Radio Shack XMODS User manual

STARTER KIT USER’S GUIDE
The 6000939 XMODS Starter Kit
revs up your XMODS experience.
Please read this user’s guide before
building and using your new car.
PRECISION CONTROL!
WHAT’S UNDER
YOUR HOOD?
Awesome upgrades!
Page 12.
Adjust the trim from
your XMODS controller.
Page 10.
6000939_UG_EN 062013.indd 1 6/21/2013 1:17:06 PM

2
2
Contents
XMODS Custom RC Starter Kit........................................................................... 3
Your Starter Kit Includes ..................................................................................................................................... 3
Assembling Your XMODS Custom RC................................................................ 4
Assembling the Car Chassis............................................................................................................................... 4
Installing Batteries in the Chassis.................................................................................................................... 6
Mounting the Car Body on the Chassis......................................................................................................... 6
Setting Up Your Controller................................................................................. 8
Installing the Battery............................................................................................................................................ 8
Pairing Your Controller and the Car................................................................................................................ 8
Driving Your Car and Adjusting Trim............................................................................................................10
When You Finish Driving ..................................................................................10
XMODS Upgrades .............................................................................................12
FCC Information................................................................................................14
Limited Warranty..............................................................................................14
6000939_UG_EN 062013.indd 2 6/21/2013 1:17:07 PM

3
XMODS Custom RC Starter Kit
Your starter kit includes the following features:
UÊFour-wheel spring suspension to provide improved handling over uneven surfaces
UÊDecals to customize the body exterior
UÊMultiple frequency bands that allow up to eight people to race
UÊDigital proportional steering for optimal speed, acceleration, and maneuverability
To really get your motor running, customize your XMODS with optional upgrades for both performance and
looks, available at your local RadioShack store. Check out the line-up of XMODS upgrades available online at
www.RadioShack.com.
Your Starter Kit Includes
Screws (4)
Decal Sheet
User’s Guide
Battery Unit
Controller Car Body
Rear Unit
Front Unit
6000939_UG_EN 062013.indd 3 6/21/2013 1:17:12 PM

4
4
Assembling Your XMODS Custom RC

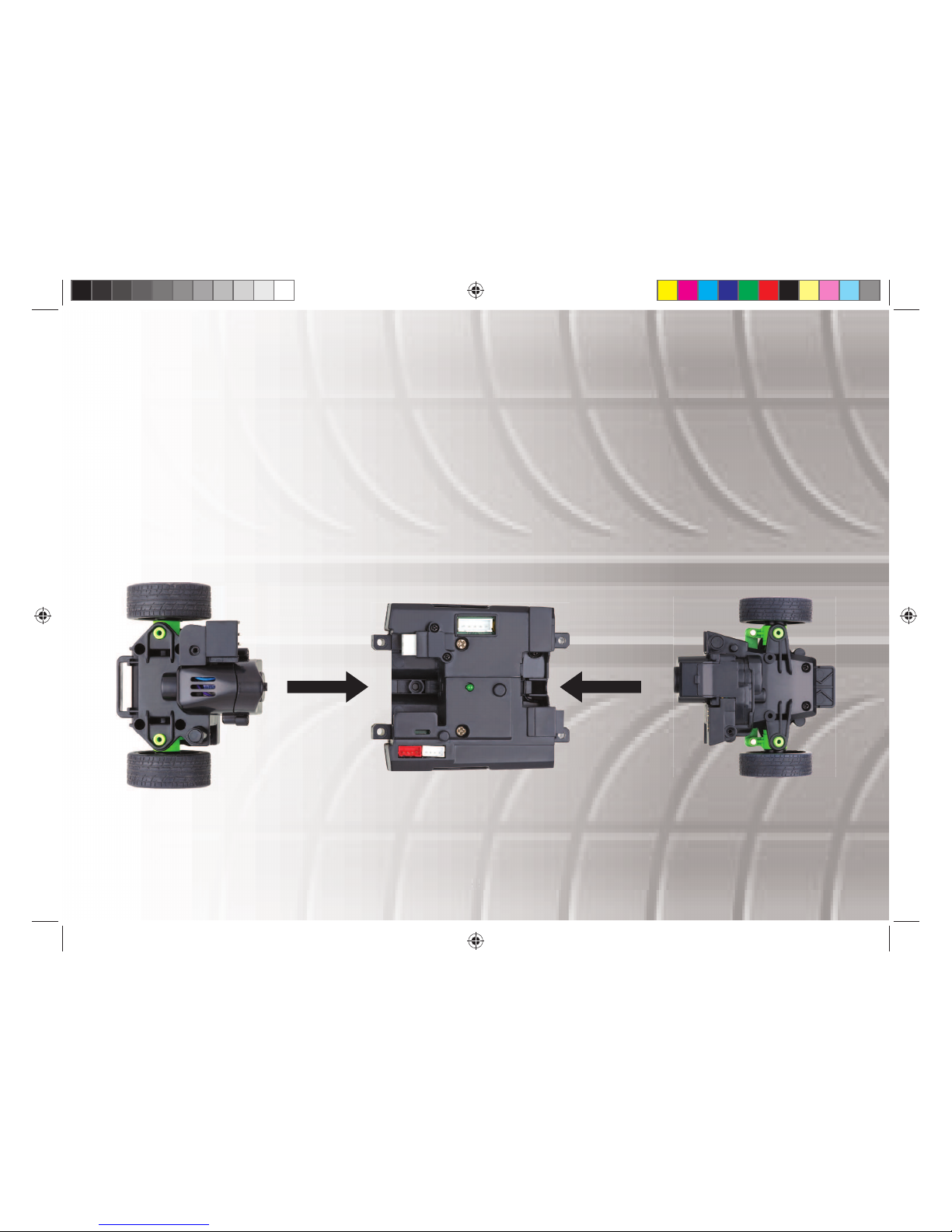

Assembling the Car Chassis
1. Connect the terminal of the Front Unit to the terminal of the Battery Unit, and secure them
with two screws.
2. Connect the terminal of the Rear Unit to the terminal of the Battery Unit, and secure them
with two screws.
6000939_UG_EN 062013.indd 4 6/21/2013 1:17:14 PM

5
5
6000939_UG_EN 062013.indd 5 6/21/2013 1:17:16 PM

6
6
6

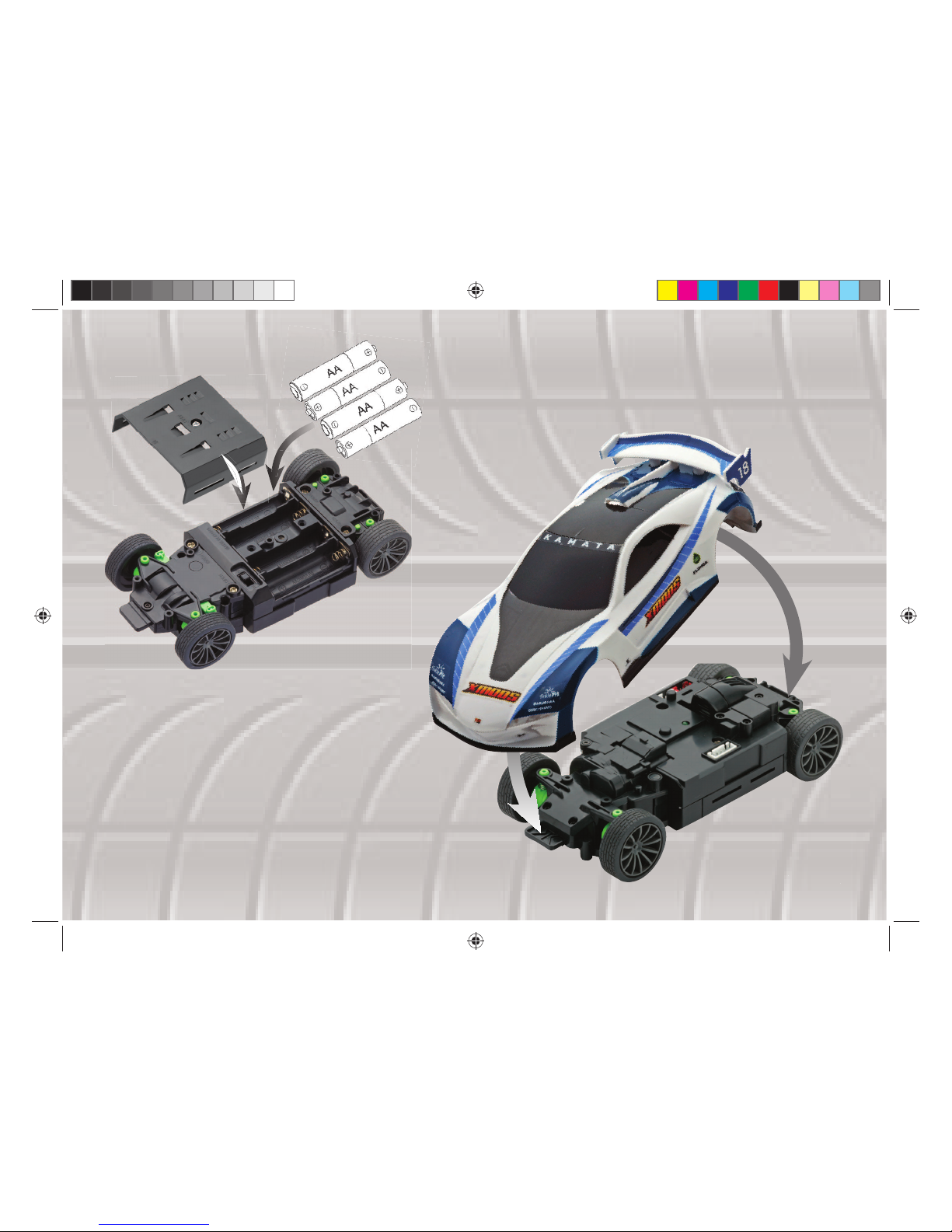

Installing Batteries in the Chassis
1. Make sure the power switch on the chassis is OFF.
2. Remove the screw on the battery compartment cover. Then carefully unlatch the battery compartment
cover and remove the cover.
3. Insert four AA batteries (not included) in the compartment, matching the polarity symbols (+ and –)
marked inside.
4. Replace the battery compartment cover and screw.
Battery Notes:
UÊDispose of old batteries promptly and properly. Do not burn or bury batteries.
UÊUse only fresh batteries of the required size and recommended type.
UÊDo not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or
rechargeable batteries of different capacities.
UÊIf you do not plan to use the vehicle for several days, remove the batteries. Batteries can leak chemicals
that can destroy electronic parts.
Mounting the Car Body on the Chassis
1. Insert the chassis tab into the slot inside the front bumper.
2. Lower the rear of the body so the tab near the back of the car body enters the slot behind the rear axle.
Press gently until you hear a click.
To remove the body from the chassis, press the tab from Step 2 gently toward the rear of the vehicle and lift
the rear part of the chassis. Gently slide the car body’s nose from the chassis.
6000939_UG_EN 062013.indd 6 6/21/2013 1:17:16 PM

7
6000939_UG_EN 062013.indd 7 6/21/2013 1:17:22 PM

8
8
8

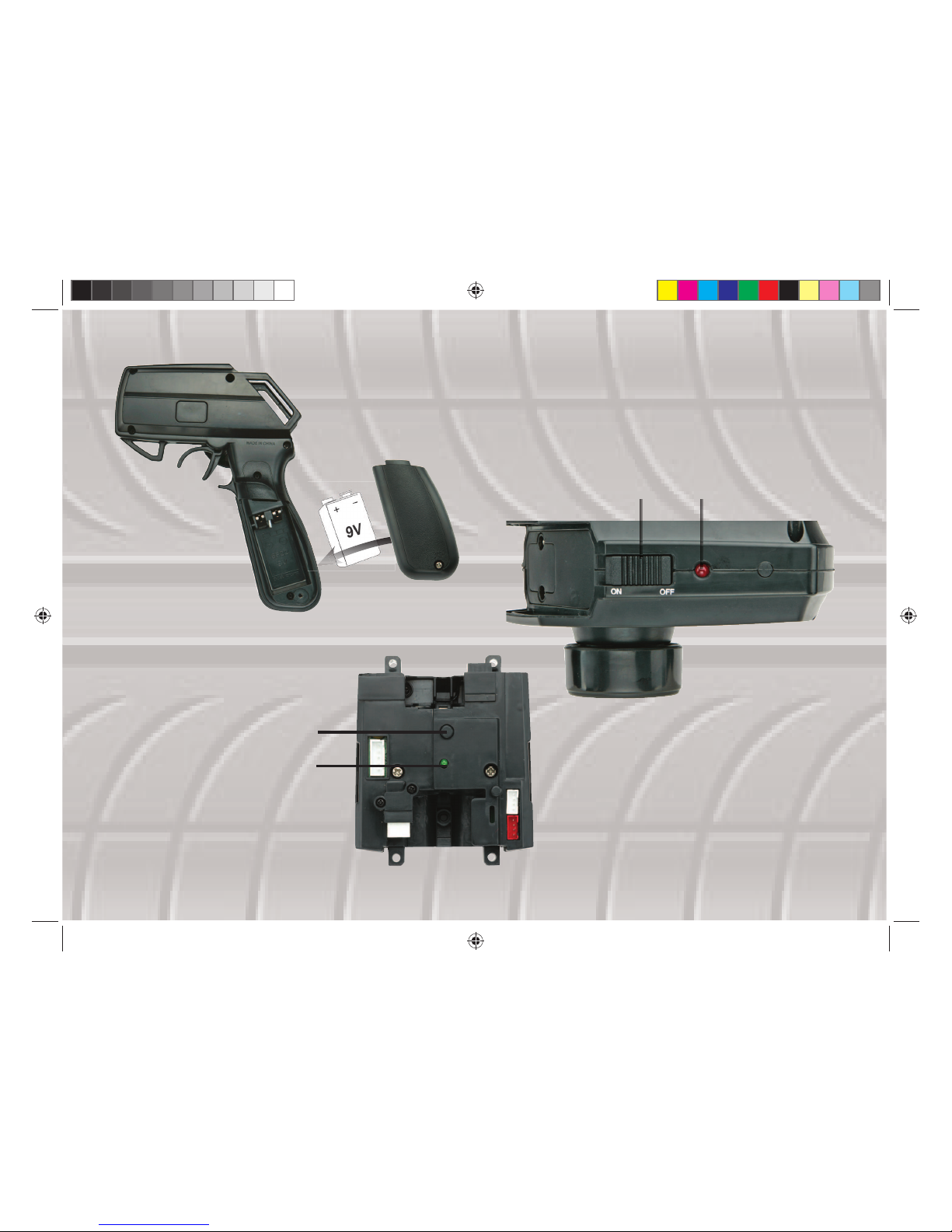

Setting Up Your Controller
Installing the Battery
Your controller needs a 9V battery (not included). We recommend 9V alkaline batteries for best performance.
1. Make sure the power switch is OFF, and remove the screw on the battery compartment.
2. Place the 9V battery in the compartment, matching the polarity symbols (+ and –) marked inside.
3. Snap the cover back in place and replace the screw.
Battery Notes:
UÊWhen you notice the LED is off or the range of your car decreases, replace the battery.
UÊDispose of old batteries promptly and properly. Do not burn or bury batteries.
UÊUse only fresh batteries of the required size and recommended type.
UÊIf you do not plan to use the vehicle for several days, remove the battery. Batteries can leak chemicals that
can destroy electronic parts.
Pairing Your Controller and the Car
Your XMODS operates at a frequency of 2.4Ghz. Before driving the first time, you must pair the controller and car.
1. Turn on the controller.
2. Turn on the car (The power switch is under the chassis). The LED indicator on the car flashes slowly.
3. Press and hold the car pairing button for 3 seconds; the car LED flashes quickly. When the car LED stops
flashing, pairing is complete.
Note:
UÊYour car and controller remain paired for future use, even when batteries are removed from the controller or
the car.
UÊIf the pairing failed, turn off the controller and the car, move closer, and then try again.
6000939_UG_EN 062013.indd 8 6/21/2013 1:17:22 PM

9
ON/OFF LED Indicator
LED Indicator
Pairing Button
6000939_UG_EN 062013.indd 9 6/21/2013 1:17:26 PM

10
10
10

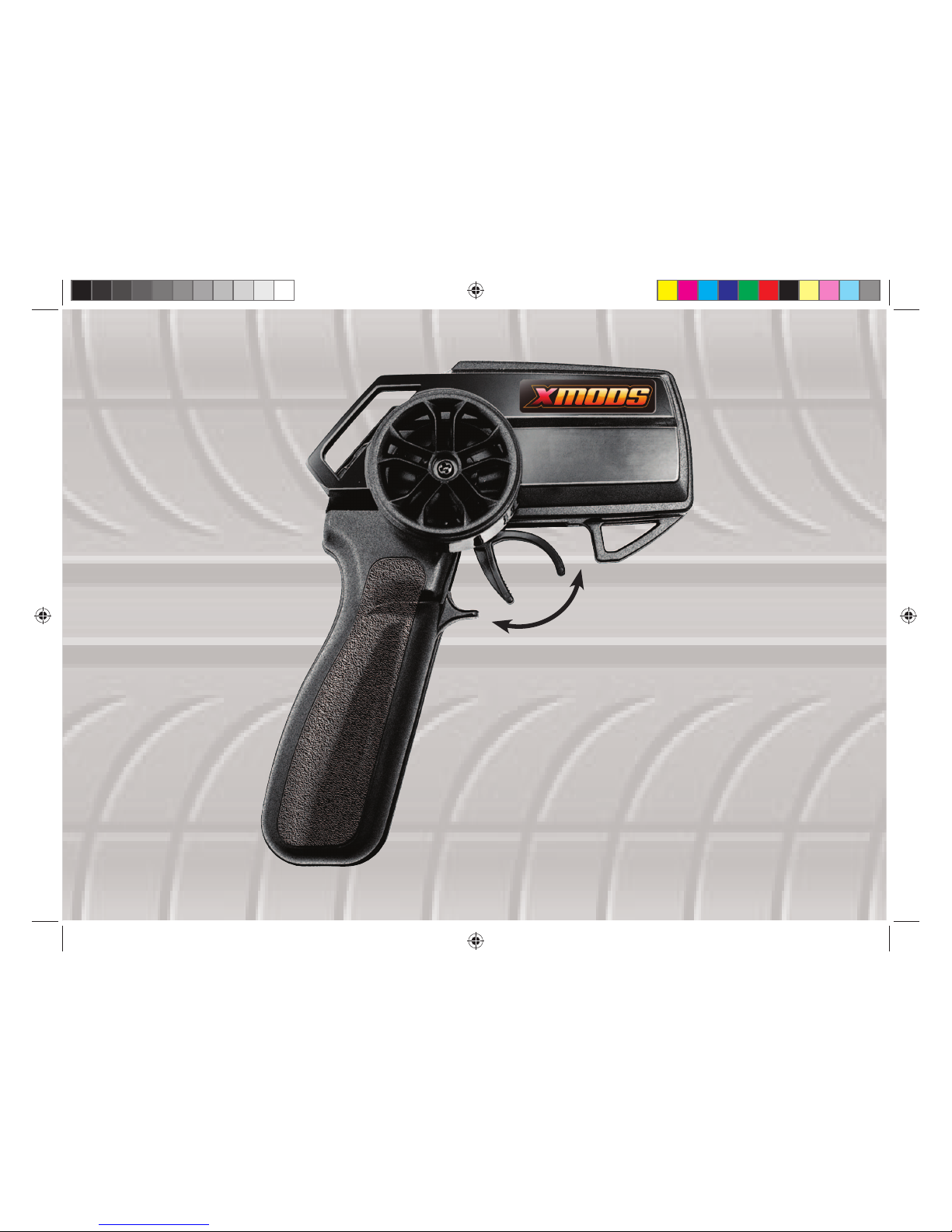

Driving Your Car and Adjusting Trim
After you turn on both controller and car, squeeze the trigger to move forward and push the trigger away
from the handle to go in reverse.
If your car does not drive straight when you release the steering wheel, adjust the trim:
1. Determine if the car steers too far to the right or left.
2. Turn off the controller, and then push the controller trigger fully forward.
3. Turn on the controller; the LED indicator on the controller flashes.
4. Keep the trigger held forward and turn the wheel to the right or left to adjust the trim.
UÊIf the car pulls to the right, turn the wheel to the left.
UÊIf the car pulls to the left, turn the wheel to the right.
5. Release the trigger; the LED indicator stops flashing and lights steadily.
Note: To avoid unintentionally adjusting the steering trim, do not operate the trigger or steering wheel when
you turn on the controller.
Running your XMODS continuously for long periods can generate high heat levels. If the car overheats, its
overheat protection will stop the car. In this case, switch the controller and the vehicle off and allow to cool
for at least 10 minutes before resuming operation.
When You Finish Driving
To conserve battery life, turn off the controller and car after you finish driving.
UÊHandle your XMODS car and controller carefully and do not drop them. Keep away from dust and dirt. Wipe
your car and controller with a damp cloth occasionally to keep them looking new.
UÊKeep your XMODS car and controller dry; if they get wet, wipe them dry immediately.
UÊUse and store only in normal temperature environments.
6000939_UG_EN 062013.indd 10 6/21/2013 1:17:26 PM

11
Drive
Reverse/Brake
Neutral
6000939_UG_EN 062013.indd 11 6/21/2013 1:17:32 PM

12
12
12

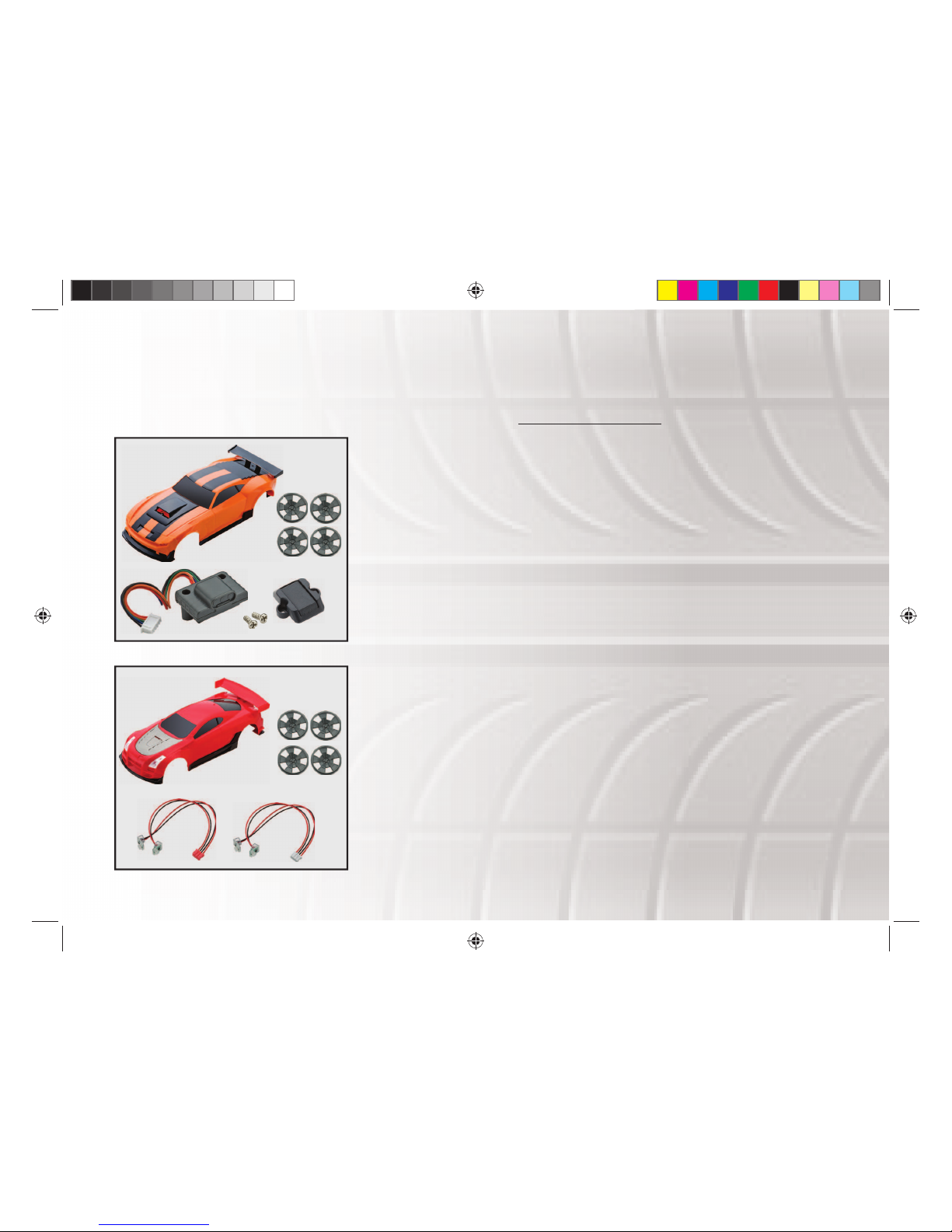

XMODS Upgrades
Modify and personalize your XMODS car with these available kits. Check out the entire line of XMODS
upgrades and accessories at your local RadioShack store and www.RadioShack.com.
Body and Light Kit
6000945
This kit lets you add working LED headlights and taillights to your car,
as well as put a new body on your XMODS chassis.
Body and Nitro Kit
6000944
This kit lets you boost performance with a super capacitor built to look
like a supercharger and put a new body on your XMODS chassis to
match the enhanced performance.
6000939_UG_EN 062013.indd 12 6/21/2013 1:17:39 PM

13

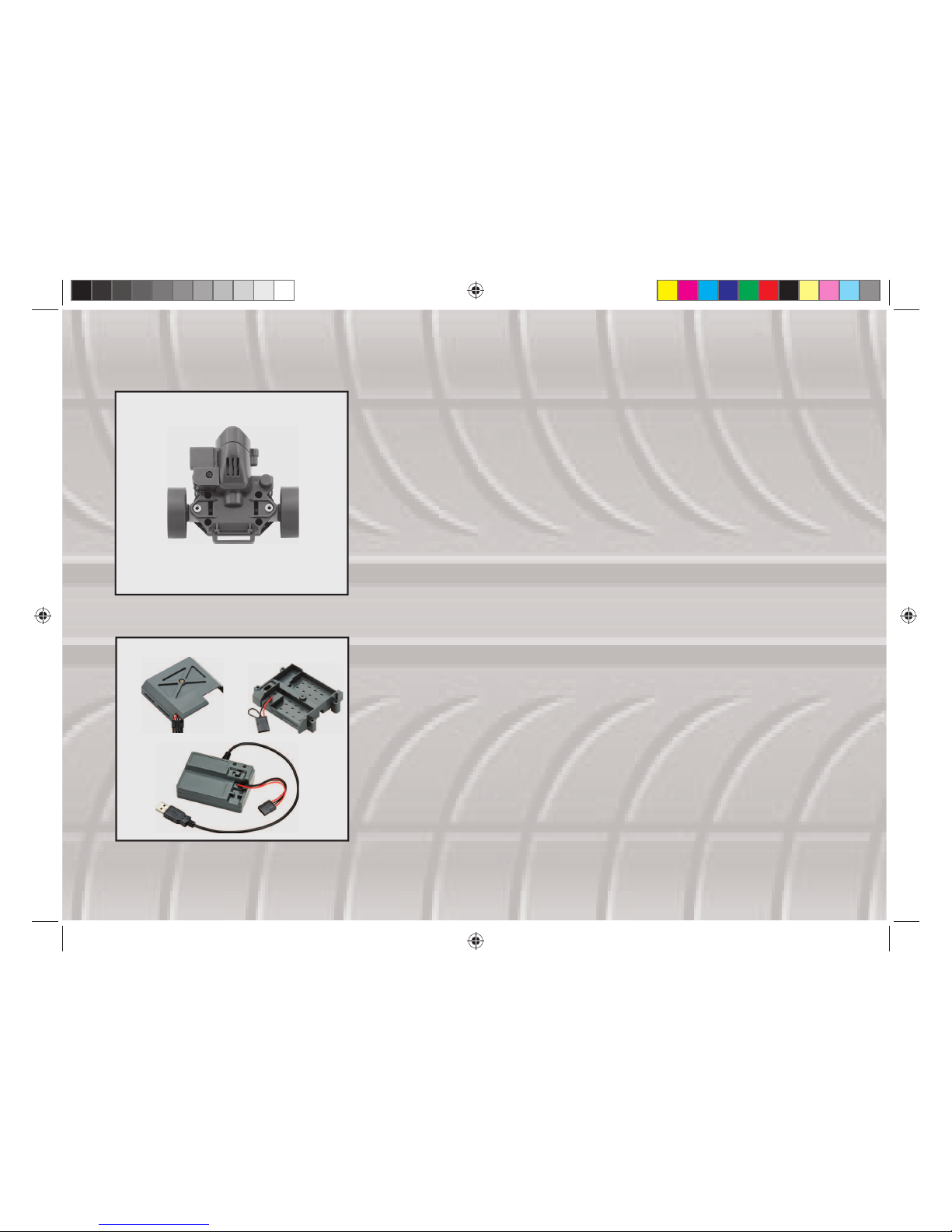

Hi-Speed Rear Unit
6000946
This Hi-Speed Rear Unit replaces the stock rear unit and is designed to
reach higher speeds.
Rechargeable Lithium Battery Pack and Charger
6000947
Add recharging capabilities when you replace your XMODS car’s AA
battery compartment with a Lithium Polymer (LiPo) battery kit.
6000939_UG_EN 062013.indd 13 6/21/2013 1:17:41 PM

14
14
14
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
UÊReorient or relocate the receiving antenna.
UÊIncrease the separation between the equipment and receiver.
UÊConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UÊConsult your local RadioShack store or an experienced radio/TV technician for help.
If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Limited Warranty
RadioShack warrants this product against defects in materials and workmanship under normal use by the
original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an
authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to
follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods
or lightning), or excess voltage or current; (b) damage or failure caused by loss of control, loss of signal
between the toy and its controller due to excessive range or low power, impact, violent contact, collision or
rough use; (c) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized
6000939_UG_EN 062013.indd 14 6/21/2013 1:17:42 PM

15
Service Facility; (d) consumables such as fuses or batteries; (e) ordinary wear and tear or cosmetic damage;
(f) transportation, shipping or insurance costs; (g) costs of product removal, installation, set-up service,
adjustment or reinstallation; and (h) claims by persons other than the original purchaser.
Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt
as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided
by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a
comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which
a refund is made, become the property of RadioShack. New or reconditioned parts and products may be
used in the performance of warranty service. Repaired or replaced parts and products are warranted for the
remainder of the original warranty period. You will be charged for repair or replacement of the product made
after the expiration of the warranty period.
ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF
APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE
EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE
PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY,
LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR
ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES
RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT
AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation
of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You
may contact RadioShack at:
RadioShack Customer Relations
300 RadioShack Circle
Fort Worth, TX 76102 04/08
www.RadioShack.com
6000939_UG_EN 062013.indd 15 6/21/2013 1:17:42 PM

06A13
6000939
Printed in China
Car models for video games "Ridge Racer" series originally created by NAMCO BANDAI Games Inc.
Ridge Racer™& ©NAMCO BANDAI Games Inc.
Complies with the European Union’s “Restriction of Hazardous Substances
Directive,” which protects the environment by restricting specific hazardous
materials and products.
©2013. RadioShack Corporation.
All rights reserved. RadioShack is a registered trademark used by RadioShack Corporation.
XMODS is a trademark used by RadioShack Corporation.
6000939_UG_EN 062013.indd 16 6/21/2013 1:17:44 PM
