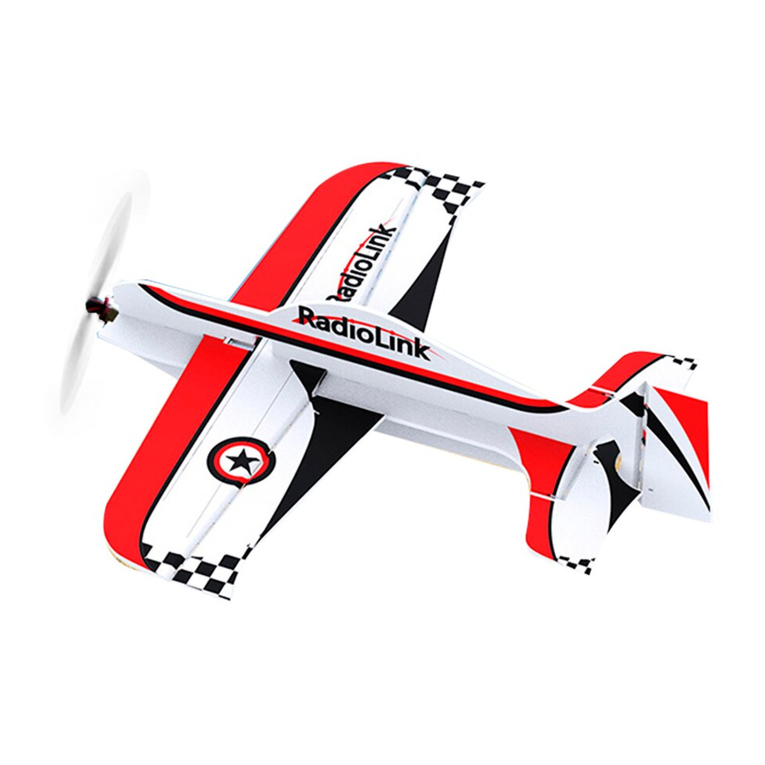

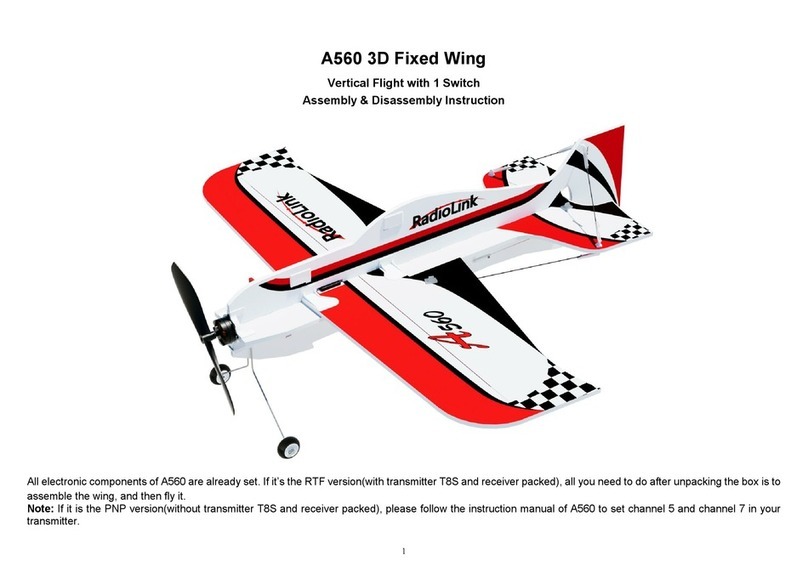

A560 3D Fixed Wing
Vertical Flight with 1 Switch
Assembly & Disassembly Instruction
All electronic components of A560 are already set. If it’s the RTF version(with transmitter T8S and receiver packed), all you need to do after unpacking the box is
to assemble the wing and tail (horizontal stabilizer), which is easy and fast.
Note: If it is the BNP version(without transmitter T8S or receiver packed), please follow the instruction manual of A560 to set channel 5 and channel 7 in your
transmitter.

RadioLink Electronic Limited
www.radiolink.com
2
A560 Introduction：

RadioLink Electronic Limited
www.radiolink.com
3
A560 Spare Part List：
A560 Assembly Steps：
1.Install the wing

RadioLink Electronic Limited
www.radiolink.com
4
2.Install the tail (horizontal stabilizer) 3.Connect tail support rods
4.Connect aileron and tail drawbars 5.Install the landing gear 6.Install the propeller
A560 Assembly
A560 Disassembly
A560 Flight Tutorial
A560 User Manual
Please scan the
code to view
A560 tutorials

RadioLink Electronic Limited
www.radiolink.com
5
A560 Disassembly Steps：
After the flight, please disconnect the battery first, and then refer to the above assembly steps to disassemble the parts of A560 in turn. The disassembly steps
are as follows:
1. Disassemble the propeller.
2. Disassemble the landing gear. Please see Note①
3. Disassemble the the drawbars and support rods. Please see Note②
4. Diassemble the buttons to fix the wing. Remove the slotted fuselage vane and wing. Insert the slotted fuselage vane back.
5. Diassemble the button to fix the tail. Remove the two parts of the tail (horizontal stabilizer).
6. Arrange all the spare parts and put them into the bag in turn. Keep all drawbars and support rods parallel to the fuselage when packing the fuselage in the bag.
Please see Note③
Disassembly Notes：
①When disassembling the landing gear,
please push the two metal rods of the landing
gear in opposite directions at the same time,
and then push the metal rods to make it out of
the slot.
③when packing the fuselage in the bag,
please keep all drawbars and support rods
parallel to the fuselage to avoid damage to the
drawbar/rod caused by improper placement.
②When disassembling the drawbars or
support rods, please put the screwdriver in the
middle gap of the clasp, and then pry it.

RadioLink Electronic Limited
www.radiolink.com
6
A560 Packing Steps：
After the disassembly, please pack the parts of the A560 in the bag as shown in the picture below.
T8S Transmitter Setup：
Phase Setup：Set the direction of channel 3 to Reverse, and other channels to Normal.
Flight Mode Switch：There are five flight modes in A560. Flight modes are set by CH5(3-way switch SWB) and CH7(3-way switch SWA) as below:
