RADOX RXQZ-0800 User manual

Radox Radiators UK, Radox House, Midlands Industrial Estate, Holt, Trowbridge, Wiltshire, BA14 6RU
T. 01225 782 819 E. [e-mail]

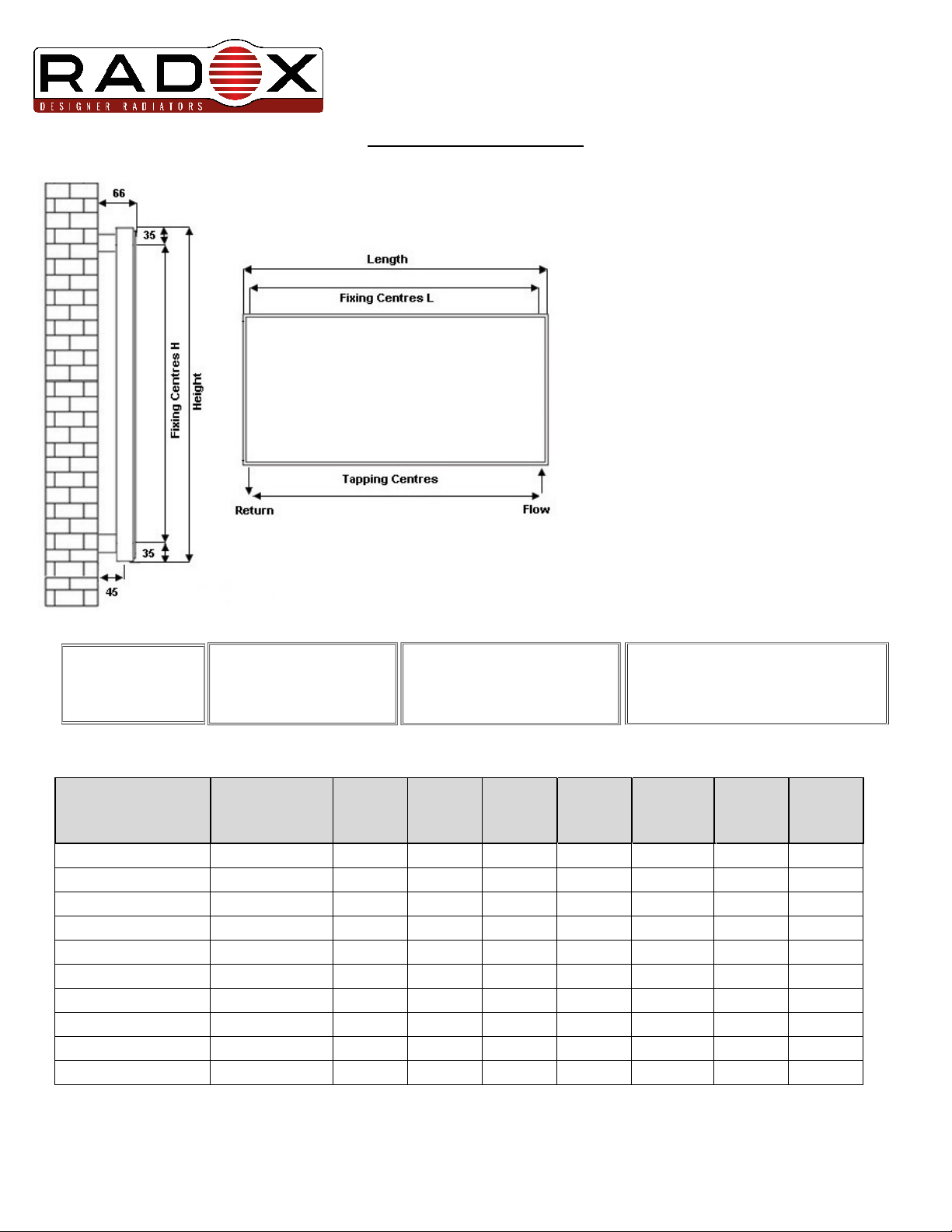

QUARTZ – HORIZONTAL
· All the dimensions are shown in millimetres
· Steel tubes – Tube dia 70mm x 10mm
· Header tube dia 30mm x 30 mm
· ½ inch BSP underside tappings
· Test pressure: 10 Bar
· Max working pressure: 8 Bar
· Heat output – in accordance with EN 442
Please Note:
· Please allow minimum of 100mm for valves
· Not suitable for use on domestic hot water
system
· The flow and return can be reversed
RXQZ-0800 RXQU-1200 RXQU-1500 RXQU-1800
Product
Heat Output
dt50 -
Coloured/Mirror
Height Length
Water
content
(L)
Weight
kg
Tapping
Centres
+/- 2mm
Fixing
Centres
H +/-
2mm
Fixing
Centres
L +/-
2mm
RXQZ-0800420-gl 433 /1476 420 800 3 9.7 770 350 770
RXQZ-0800560-gl 578 / 1971 560 800 4 14 770 490 770
RXQZ-1200420-gl 648 / 2209 420 1200 4.3 14.2 1170 350 1170
RXQZ-1200560-gl 863 / 2943 560 1200 6 20.3 1170 490 1170
RXQZ-1500280-gl 474 / 1616 280 1500 3.5 11.7 1470 210 1470
RXQZ-1500420-gl 811 / 2765 420 1500 5.2 17.6 1470 350 1470
RXQZ-1500560-gl 1082 / 3689 560 1500 6.5 21.3 1470 490 1470
RXQZ-1800280-gl 570 / 1944 280 1800 4.1 14 1770 210 1770
RXQZ-1800420-gl 973 / 3318 420 1800 6.2 20.9 1770 350 1770
RXQZ-1800560-gl 1297 / 4423 560 1800 8.3 27.9 1770 490 1770

Radox Radiators UK, Radox House, Midlands Industrial Estate, Holt, Trowbridge, Wiltshire, BA14 6RU
T. 01225 782 819 E. [e-mail]
QUARTZ – HORIZONTAL
1) Solid Fixing Lug
2) Wall Screw
3) Allen Key (Not Supplied)
4) Grub Screw
5) Wall Support
6) Wall Plug
Installation:
Step 1: Select the desired mounting position, ensuring the bottom rail is at least 150mm
from the floor. Make sure the wall is adequate to take the weight of the rail i.e
Anchor points must be securely attached to a stud.
Step 2: Loosely screw the wall support (Part 5) into the wall using the wall screw (2) and
washer. Use wall plug (6) if you are fixing into Masonry. Do no tighten full. (Top: The
mini screw hole in the side of the wall support (5) should be facing the floor)
Step 3: Adjust wall support and, with the aid of a spirit-level, tighten.
Step 4: Manoeuvre the rail back onto the bracket and tighten with the grub screw (4).
Important:
· Do not use any abrasive or chemical cleaners to clean the radiators as this will cause damage to the surface finish. Please use warm
water and a damp cloth.
