RADOX RXQZ-0800 User manual

Radox Radiators UK, Radox House, Midlands Industrial Estate, Holt, Trowbridge, Wiltshire, BA14 6RU
T. 01225 782 819 E. [e-mail]
Product
Heat Output
dt50 -
Coloured/Mirror
Height Length
Water
content
(L)
Weight
kg
Tapping
Centres
+/- 2mm
Fixing
Centres
H +/-
2mm
Fixing
Centres
L +/-
2mm
RXQZ-0800420-gl 433 /1476 800 420 3 9.7 495 770 350
RXQZ-0800560-gl 578 / 1971 800 560 4 14 635 770 490
RXQZ-1200420-gl 648 / 2209 1200 420 4.3 14.2 495 1170 350
RXQZ-1200560-gl 863 / 2943 1200 560 6 20.3 635 1170 490
RXQZ-1500280-gl 474 / 1616 1500 280 3.5 11.7 355 1470 210
RXQZ-1500420-gl 811 / 2765 1500 420 5.2 17.6 495 1470 350
RXQZ-1500560-gl 1082 / 3689 1500 560 6.5 21.3 635 1470 490
RXQZ-1800280-gl 570 / 1944 1800 280 4.1 14 355 1770 210
RXQZ-1800420-gl 973 / 3318 1800 420 6.2 20.9 495 1770 350
RXQZ-1800560-gl 1297 / 4423 1800 560 8.3 27.9 635 1770 490

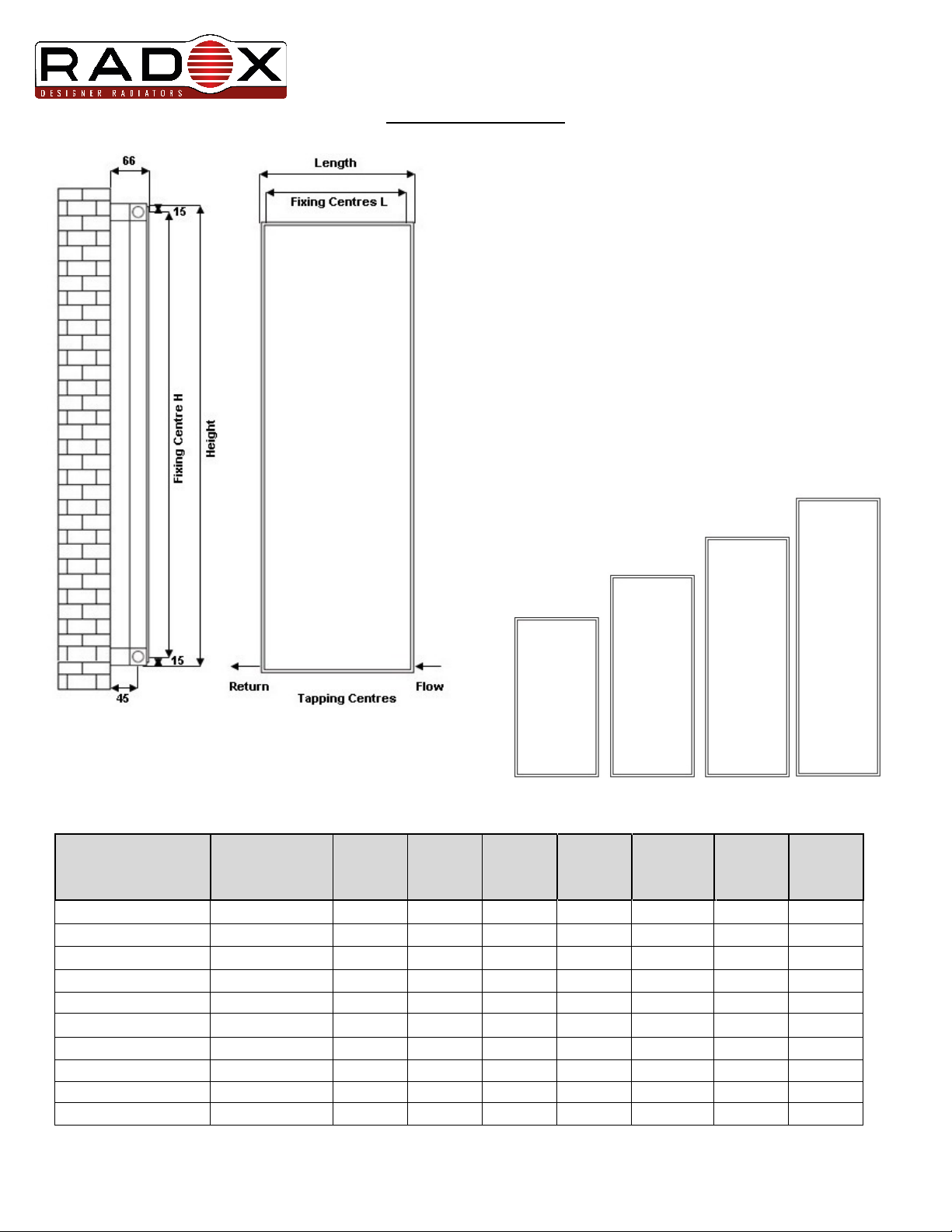

QUARTZ - VERTICAL
· All the dimensions are shown in millimetres
· Steel tubes – Tube dia 70mm x 10mm
· Header tube dia 30mm x 30 mm
· ½ inch BSP Bottom opposite end tappings
· Test pressure: 10 Bar
· Max working Pressure: 8 Bar
· Heat output – in accordance with EN 442
· Not suitable for use on direct/open systems
Please Note:
· Summer Element use will affect pipe centres
·IF USING SUMMER HEATING ELEMENT/DUAL FUEL
KIT, IT MUST BE FITTED ON THE RETURN SIDE
RXQZ-0800 RXQZ-1200 RXQZ-1500 RXQZ-1800

Radox Radiators UK, Radox House, Midlands Industrial Estate, Holt, Trowbridge, Wiltshire, BA14 6RU
T. 01225 782 819 E. [e-mail]
QUARTZ - VERTICAL
1) Solid Fixing Lug
2) Wall Screw
3) Allen Key (Not Supplied)
4) Grub Screw
5) Wall Support
6) Wall Plug
Installation:
Step 1: Select the desired mounting position, ensuring the bottom rail is at least 150mm
from the floor. Make sure the wall is adequate to take the weight of the rail i.e
Anchor points must be securely attached to a stud.
Step 2: Loosely screw the wall support (Part 5) into the wall using the wall screw (2) and
washer. Use wall plug (6) if you are fixing into Masonry. Do no tighten full. (Top: The
mini screw hole in the side of the wall support (5) should be facing the floor)
Step 3: Adjust wall support and, with the aid of a spirit-level, tighten.
Step 4: Manoeuvre the rail back onto the bracket and tighten with the grub screw (4).
Important:
· Do not use any abrasive or chemical cleaners to clean the radiators as this will cause damage to the surface finish. Please use warm
