Owner's Manual
R25515 Dual Battery Charger, 115/230VAC Input
R25515DC Dual Battery Charger, 12-24VDC Input
Model Numbers:
RAMFAN LITHIUM ION
DUAL BATTERY RAPID CHARGER
San Diego |Luxembourg |Dubai |Ningbo | Singapore

2

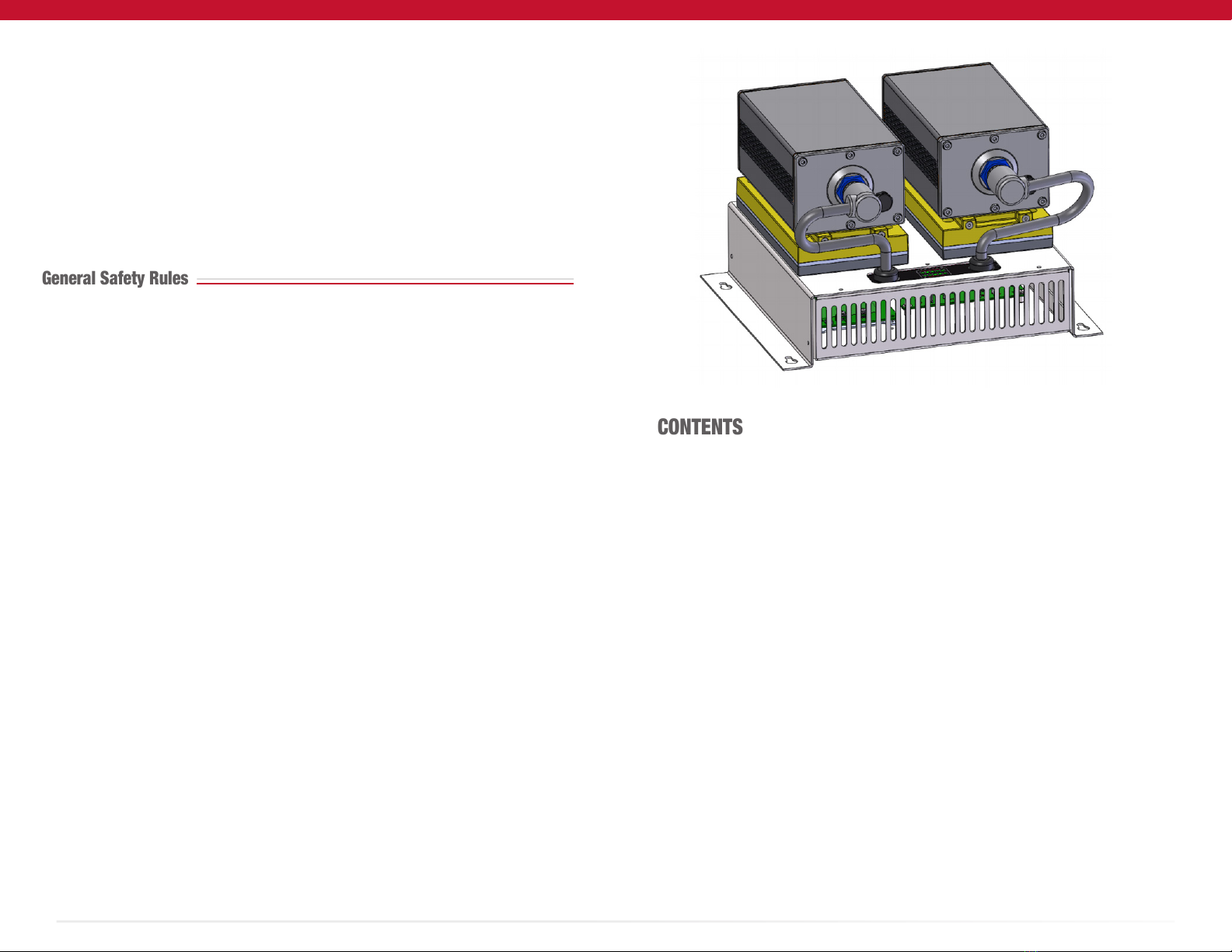

Thank you for purchasing the RAMFAN® Dual Battery Charger manufactured in the USA by
Euramco Group.
For more than 30 years Euramco Group has been on the cutting edge of industrial, re, and
marine ventilation products. Each of our blower/exhausters, smoke ejectors, PPV & LSV fans and
accessories represent the nest technologies available. Every product is constructed to demanding
and exact specications for quality, performance, and reliability.
Explore our website and online catalog at www.ramfan.com and discover how RAMFAN products
can make a dierence in the eld!
All product information in the publication is based on the most current information available at the
time of printing. Euramco Group reserves the right to make changes at any time without notice.
General Safety Rules
1. SAFETY GUIDELINES
• Read and understand this manual before use.
• Always check charger, connection cable, extension cable and plug for damage and deterioration
and repair as required before use.
• Keep the cables away from heat sources, oil and sharp edges.
• Store chargers outside the reach of children.
• Charger may not be exposed to rain or condensing humidity. Exposure to rain or condensing
humidity can cause battery charger to malfunction and increase risk of shock hazards.
• Safe handling of the charger is only guaranteed if the safety and operating information are
carefully read and adhered to.
• Do not use any chargers in an explosive environment such as in the vicinity of ammable liquids
gases or dust.
2. USE AND CARE
• Take proper care of the charger. Keep an eye out for defective connections, defects and all other
conditions that may aect the device’s operation. If any damage, repair the charger before
use.
• The charger may only be used with RAMFAN Model# R2-360-AH-U battery packs. The use of other
batteries can cause damage, injury or re.
• Battery pack(s) should not be stored for longer than 12 months without charging, to maintain
longterm reliability.
• The Charger is for charging RAMFAN 40V, 6AH Li-Ion battery packs, part# R2-360-AH-U only.
• Battery packs should not be used in the vicinity of metallic objects such as paper clips, coins,
nails, screws or other small metallic objects that could bridge and short out battery connection
terminals.
• Improper use of battery packs can lead to uid leaking from the battery; avoid any physical
contact with the uid. If you accidentally come into contact with this, wash the area concerned
thoroughly with water. Seek medical assistance if the uid gets into the eyes.
3. MAINTENANCE
• No user serviceable parts. Only allow qualied individuals to maintain the charger.
This will ensure the long-term safety of the charger.
4. Alert
• Battery packs at temperatures above 105ºF / 40ºC or below 4ºF / -20ºC will not accept a charge.
3
Basic Functions ............................................................................................................................. 4
Specications................................................................................................................................. 4
Installation..................................................................................................................................... 4
Charging Status............................................................................................................................. 5
Electrical Connections ................................................................................................................. 5
Back Pack Installation ................................................................................................................. 5
Warranty......................................................................................................................................... 6
Customer Service.......................................................................................................................... 6
Disposal........................................................................................................................................... 6
EC Declaration of Conformity .................................................................................................... 7
Certications ................................................................................................................................. 7
Drill Template................................................................................................................................ 8
CONTENTS
Battery pack(s) should not be stored for longer than 3 months without charging, to maintain
longterm reliability.
• The Charger is for charging RAMFAN 40V, 6AH Li-Ion battery packs, part# R2-360-AH-U, and 40V,
7AH Li-Ion battery packs, part# R240V only.

4
Specications
Basic Functions
Installation
•AC chargers are supplied with 6' power cable and are terminated with a NEMA #5-15
plug for 115V AC power or with a Schuko Cee 7/4" plug for 230V AC power
• DC chargers are supplied with 6’ power cable with unterminated ying leads
•Find an area within reach of a power source
•Charger can be mounted onto vertical or horizontal surfaces
•Mounting location should have space for ventilation to ensure ambient temperature does
not exceed 50°c
• Pick space such that the fan nger guard or vent holes and power cable entry are not
blocked
•Pick a dry location
•Place drill template, supplied with charger, over desired mounting location and secure
with tape
•Select four #10 or four 5mm self taping or machine thread screws, not supplied with
charger
INPUT POWER:
115VAC @ 3.2 Amps, 364 Watts
230VAC @ 1.6 Amps, 364 Watts
12VDC @ 16 Amps, 24VDC @ 8 Amps, 193 Watts
OUTPUT: Dual Channel, 42VDC, 3 Amps Charge Rate per Battery Pack Channel
CHARGE TIME: 3 Hour Nominal
OVER-CHARGE PROTECTION: Charger shuts down if Battery Pack charge current does not drop to
150 milliamps within 4 hours
UNDER VOLTAGE DISABLE: Charger disabled if battery pack voltage is less than 15VDC
SIZE:
(W X L X H)
11-3/8"x 9-1/2"x 3-5/8"without Battery Packs | 28.9 cm x 24.1 cm x 9.2 cm
11-3/8" x 9-1/2” x 6-1/2"with Battery Pack(s) | 28.9 cm x 24.1 cm x 16.5 cm
WEIGHT: 18 lb / 8.2 kg with two Battery packs
OPERATING ENVIRONMENT: -20˚C to 50˚C, 95% RH
NON-OPERATING
ENVIRONMENT: -40˚C to 85˚C, 95% RH
ROHS COMPLIANCE 6/6
• Microprocessor-controlled charging system, up to 3 hour charge time for RAMFAN
40V Li-Ion battery packs depending on the battery pack’s discharge state
• Charge two RAMFAN 40V Li-Ion battery packs simultaneously
• Defective battery detection
Determining the gauge [AWG] needed for the distance from the power source to the load, and back to the source of power.
5
Electrical Connections
Installation continued
Charging Status
Route and attach AC power cable plug to appropriate AC power receptacle, or route and
attach DC power cable to an appropriate 12V DC or 24V DC power block.
Three models to support various input power application: 85-260V with NEMA plug,
85-260V with Schuko plug, and 12-24DC.
AC Models: Insert AC plug into the appropriate AC power receptacle. The AC input battery
charger models are built around a universal (85 - 260AC, 50 / 60Hz) input power supply.
Only the AC plug determines the input voltage to be 115VAC or 230VAC.
DC Models: Will work with 11-30VDC input.
Charger is not equipped with a power switch and is live when connected to power source.
Charger automatically turns ON when input power is applied to the charger.
On power-up, charger will activate charge cycle once to check for sleeping batteries regard-
less of voltage of battery indicated by green strobing LED bar. Battery status LED’s will be
solid green when battery charge cycle is complete.
•Determine appropriate through hole drill bit for select screws
•Drill four holes at indicated mounting locations, on the drill template and tap holes if
required
•Install screws with screw head about 1/8"above mounting surfaces
•Hang charger onto the four screws
•Tighten screws to securely hold charger in place
Batteries should not be stored for longer than 12 months without charging, to maintain
“longterm reliability.”
Refer to pages 8 and 9 for Drill Template illustration
The charger will examine
connected batteries’ voltage

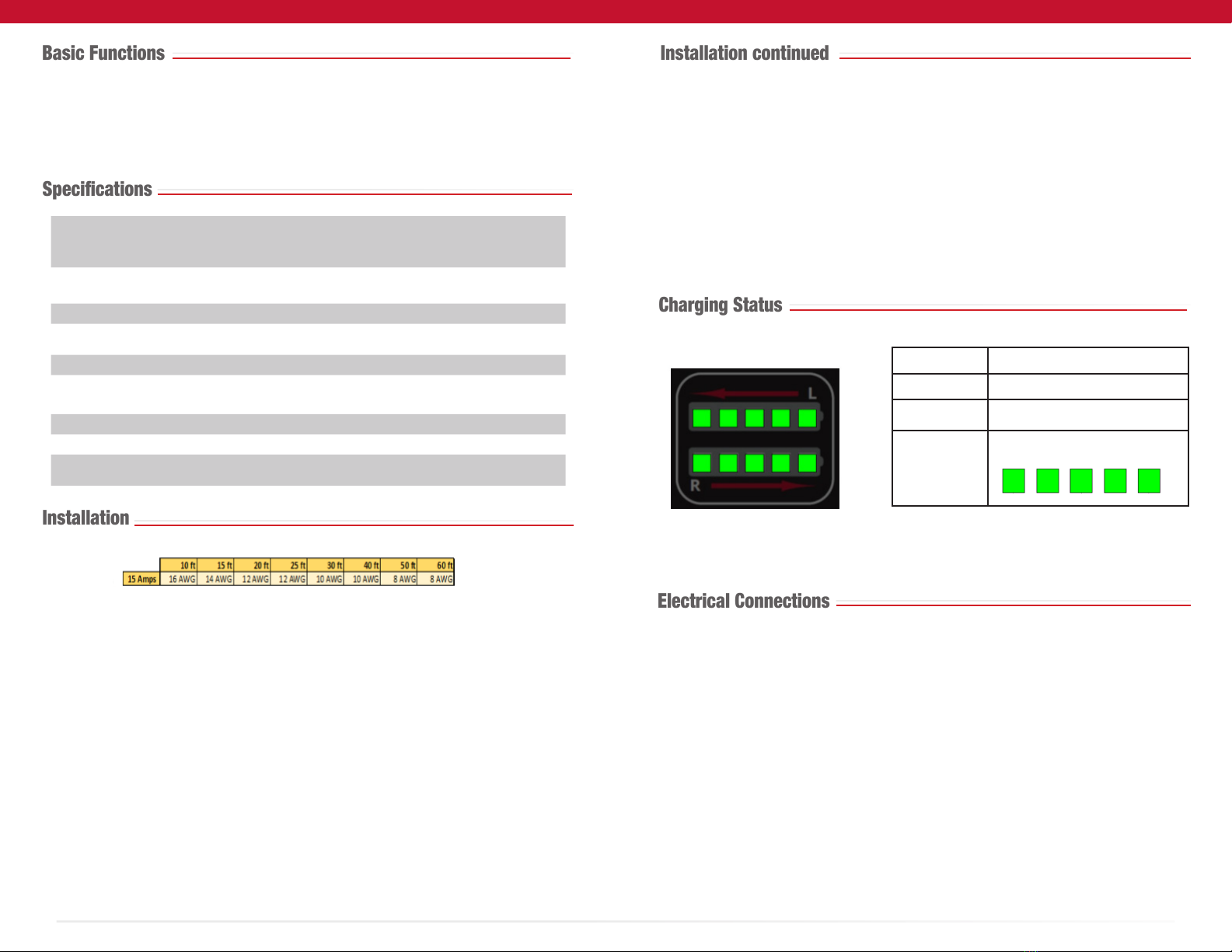

Indicator Lights During Charge:
Battery Charge Display
OFF No battery detected.
RED FLASH *Battery Fault
GREEN STROBELID
GREEN
Charging
STATUS Solid
*Battery Fault - Battery failed to accept charge. Power to charger
must be recycled to clear fault. This is a safety feature to prevent
multiple charge attempts that could possibly damage battery. Call
factory if battery will not accept charge.

6
The battery charger will hold and charge two battery packs at one time.
Charger will function with one or two battery packs installed.
Wait to attach battery cables until LED lights are o.
Align battery pack with holder and drive battery into position until a loud click is heard.
Attach charging cables to the battery pack(s).
Battery charger will determine if batteries are attached, measure & report battery charge/
fuel level, and initiate a charge cycle.
Typical charge time for a fully discharged battery is approximately 3 hours. Partially
discharged batteries will take less time.
Battery Pack Installation
Battery Charger comes with a 12 month limited warranty. This does not cover damage
due to improper handling. For information please visit www.RAMFAN.com.
The customer service department will answer your questions regarding repairs and
maintenance for your product as well as regarding spare parts and operation. You can also
nd further information at www.RAMFAN.com.
Warranty
Customer Service and Advice
Disposal
Charging devices, accessories and packaging should be recycled in
an environmentally-friendly manner.
Only for EU countries: Do not dispose of charging devices in
household waste. In accordance with the European Directive
2012/19/EC on Waste Electrical and Electronic Equipment and its
implementation into national law, unserviceable chargers should
be collected separately and recycled in an environmentally-friendly
manner.
Environmentally Safe Battery Disposal
Battery pack(s) contain Li-ion, a toxic material. All toxic materials must
be disposed of in a specied manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-ion battery
packs, contact your local waste disposal agency, or the local Environmental
Protection Agency for information and specic instructions. Take the batteries
to a local recycling and/or disposal center, certied for Li-ion disposal.
7
DECLARATION OF CONFORMITY
BATTERY CHARGERS
Year of Manufacture: 2019
Manufacturer: Euramco Safety, Inc.
2746 Via Orange Way
Spring Valley, Ca. 91978 USA
Equipment Description: R25515 –Universal AC Input, 42VDC @ 3 Amp Output
R25515DC –12-24VDC Input, 42VDC @ 1.5 Amp Output
M16515 –Universal AC Input, 54.6VDC @ 3 Amp Output
M16515DC –12-24VDC Input, 54.6VDC @ 1.5 Amp Output
BPV-12CE –12V Battery Charger (EURO)
European Directives: 2006/42/ EC – Machinery Directive
2014/30/EU – EMC Directive
2014/35/EU – Low Voltage Directive
Standards to which this Conformity is Declared:
BS EN ISO 13857:2008 – Safety Distances
BS EN ISO 12100:2010 – Safety Machinery
BS EN 6100-6-4:2007+A1:2011 – EMC Industrial Generic Emission
BS EN 6100-6-2:2005 – EMC Immunity/Industrial Environments
Euramco Safety, Inc. hereby declares that the equipment described above conforms to the relevant
Essential Health & Safety Requirements of the European Machinery Directive 2006/42/EC, and the
Additional Directives and Standards listed above.
DATE 07/29/2019
___________8/21/2018_________________
CERTIFICATIONS
CERTIFICATIONS UN/DOT
38.3
IEC
62133 CNAS WEEE
EC Declaration of Conformity

8
127mm
5.000in
AIR FLOW
AIR FLOW
AIR FLOW
261.9mm
10.31in
191.9mm
7.56in
10.2mm
.400in
5.6mm
.221in
ACCURATE BEFORE DRILLING
SET BACK 2" FROM
4 PLACES
MAKE SURE THAT DIMENSIONS ARE
DRILL FOR #10 OR M5 SCREW
FULL SCALE TEMPLATE.
WALL MINIMUM
POWER
CABLE
DWG. NO.
Euramco Safety Inc.
R2C DRILL TEMPLATE
PART NO.
DWG-R2TEMPLATE
Description
FIDUCIAL TARGETS
Drill Template
Half scale size of template
127mm
5.000in
AIR FLOW
AIR FLOW
AIR FLOW
261.9mm
10.31in
191.9mm
7.56in
10.2mm
.400in
5.6mm
.221in
ACCURATE BEFORE DRILLING
SET BACK 2" FROM
4 PLACES
MAKE SURE THAT DIMENSIONS ARE
DRILL FOR #10 OR M5 SCREW
FULL SCALE TEMPLATE.
WALL MINIMUM POWER
CABLE
DWG. NO.
Euramco Safety Inc.
R2C DRILL TEMPLATE
PART NO.
DWG-R2TEMPLATE
Description
FIDUCIAL TARGETS

SM-R2C F4
070821
USA
2746 Via Orange Way
Spring Valley, CA 91978 USA
Toll Free: [phone]
Phone: [phone]
Fax: [phone]
[email protected]
LUXEMBOURG
1 Rue Edmond Reuter,
5326 Contern, Luxembourg
Phone: [phone]
Fax: [phone]
[email protected]
MIDDLE EAST – UAE
Jebel Ali FTZ, Dubai
Phone: [phone] x114
Fax: [phone]
[email protected]
CHINA
A11, No. 1 Jinxi Road
Qingshuipu, Zhenhai, Zhejiang
Ningbo, China 315221
Phone: [phone]
Fax: [phone]
[email protected]
MADE IN THE USA
Use with all
US Firefighting
literature
