RAMSET RA27 Maintenance and service guide

RAMSET RA27 TOOL
OPERATOR’S
SAFETY & OPERATING
INSTRUCTION MANUAL
DANGER
THIS TOOL FOR USE BY LICENSED OPERATORS ONLY.
READ AND OBEY ALL SAFETY AND OPERATING
INSTRUCTIONS BEFORE OPERATING TOOL.
SEMI-AUTOMATIC, LOW VELOCITY
PISTON TYPE FASTENING TOOL
Tri-Lingual
English
Español
Française

Just as no one can merely read a book about driving an automobile and then
hope to drive one safely, no one should attempt to use any Ramset tool without
adequate, competent personal instruction. And just as one must be licensed to
drive an automobile, one must also be licensed to use a powder actuated tool.
No automobile instruction book or instructor can forewarn a learner against all
possibilities and emergencies, nor can Ramset instructors and printed material
detail all possible conditions surrounding the use of Ramset tools and products.
Responsibility for the safe and proper use of this tool rests with the tool user
and the employer.

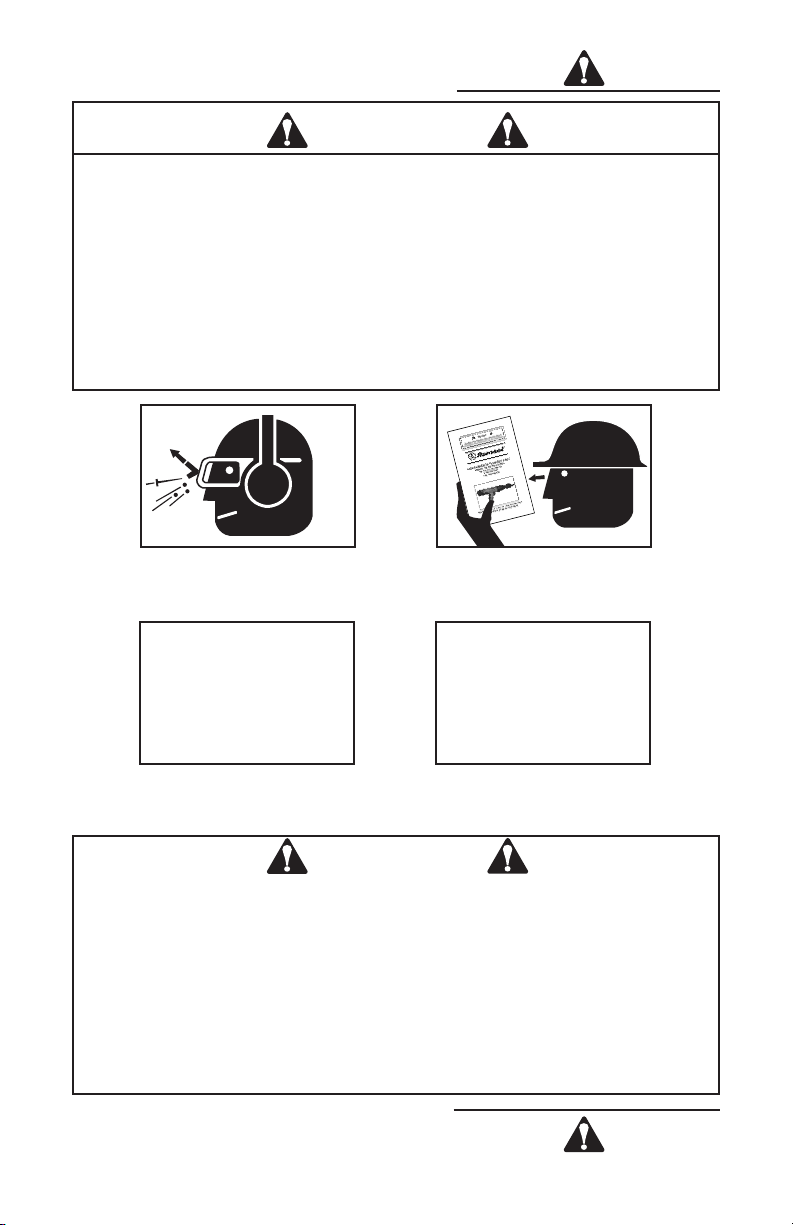

SAFETY INTRODUCTION DANGER
SAFETY INTRODUCTION DANGER
2
Operator’s and bystanders
must wear eye and hearing
protection.
Never close tool with hand over fastener loading end of the tool.
A serious hand injury from penetration by the piston or a
discharged fastener could result.
Read manual before
operating tool.
DANGER
THIS TOOL IS TO BE USED ONLY BY PROPERLY TRAINED
AND LICENSED OPERATORS.
YOU MUST SUCCESSFULLY COMPLETE THE
RAMSET’S TRAINING PROGRAM FOR THE
TOOL AND OBTAIN A CERTIFIED OPERATOR’S LICENSE
BEFORE HANDLING, LOADING OR OPERATING THIS TOOL.
ATTEMPTING TO HANDLE OR OPERATE THIS TOOL
WITHOUT PROPER TRAINING AND LICENSING CAN RESULT IN
SERIOUS INJURY TO THE OPERATOR OR BYSTANDERS.
DANGER

Preparation
Acceptable Base Materials
Powder actuated fastening is suitable for
use in the following base materials only:
• Poured Concrete
• Structural Steel
• Masonry Joints (See page 8)
Never attempt to fasten into any other
type of material. Fastening into other
materials can cause blindness or other
serious injury.
Unacceptable Base Materials
Never attempt to fasten into very hard or
brittle materials such as cast iron, tile,
glass, or rock of any type. These materials
can shatter, causing the fastener and/or base
material fragments to fly free and cause
serious injury to the tool operator and others.
Never fasten into soft base materials, such as
drywall or lumber products. These materials
may allow the fastener to travel completely
through and out the other side, endangering
those in the path of the fastener.
Never fasten into any base material that
does not pass the Center Punch test.
Failure to assure the suitability of the base
material can result in serious injury to the
eyes or other body parts.
Center Punch Test
ALWAYS WEAR SAFETY GOGGLES
WHEN PERFORMING THIS TEST.
1. Always check the material being
fastened into for hardness before
attempting any fastening operation.
2. Using a fastener as a center punch,
strike the fastener against the work
surface using an average hammer
blow and check the results.
Center Punch Test Results
1. If the fastener point is flattened,
the material is too hard for a
powder actuated fastening.
2. If the fastener penetrates the
material easily, the material is
too soft.
3. If the material cracks or shatters,
the material is too brittle.
4. If the fastener makes a small
indentation into the material, the
material is suitable for fastening.
DANGER SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 3
NEVER FASTEN INTO VERY HARD OR
BRITTLE MATERIALS
NEVER FASTEN INTO SOFT MATERIALS
SUCH AS DRYWALL

Loads & Load Selection Safety
1. Always make a test fastening after
being sure that the base material
is suitable for powder actuated
fastening. Failure to determine the
correct power level to be used may
result in the use of excessive power,
allowing the fastener to pass completely
through the work material, causing
serious or fatal injuries to others who
may be in the path of the fastener.
2. Color-blind operators must always
select strip loads by number to
prevent use of an incorrect load for
the same reasons as in #1 above.
Workplace Safety
1. Operators and bystanders must
always wear approved safety goggles
and approved hearing protection.
Failure to do so may result in blindness
or serious eye injury from flying debris
and loss of hearing from constant or
repeated unprotected exposure to
fastening noise.
2. Always keep the work area clear of
bystanders and unnecessary materials
that could interfere with safe tool
operation. Operating the tool in a
congested or cluttered area may affect
your ability to operate the tool safely.
3. Never operate tool if flammable
or explosive materials are nearby.
Powder loads burn and create sparks
when fired and could ignite these
materials or fumes.
4. Always post warning signs within
50 ft. of the area where fastening
is to be done. Sign must state:
“WARNING - Powder Actuated Tool
In Use”. Failure to warn others may
result in serious injury to them. Contact
Ramset at 1-800-848-5611 or download
at ramset.com to obtain this sign.
SAFETY INSTRUCTIONS DANGER
SAFETY INSTRUCTIONS DANGER
4
ALWAYS MAKE A TEST FASTENING
COLOR-BLIND OPERATORS MUST
ALWAYS SELECT LOADS BY NUMBER
KEEP WORK AREA CLEAR OF
BYSTANDERS AND CLUTTER
NEVER OPERATE THE TOOL AROUND
FLAMMABLE OR EXPLOSIVE MATERIALS
WARNING
POWDER
ACTUATED
TOOL IN USE
WITHIN 50 FEET
Safety is important – Take proper precautions.
ALWAYS POST WARNING SIGNS

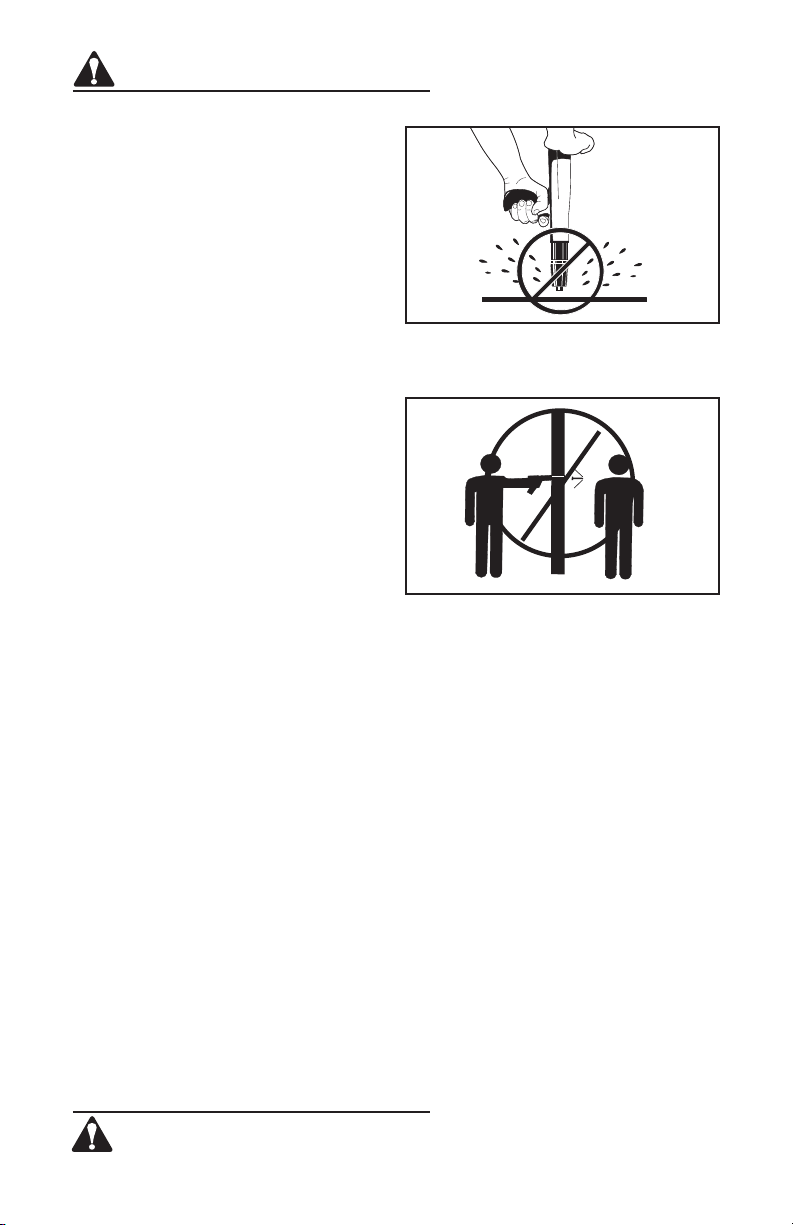

Tool Handling Safety
1. Always be sure tool is operating
properly before attempting to use
it. Follow the “Daily Function Test”
shown to the right and described
on page 9.
2. Always load tool using a strip load
selected directly from a box indicating
the power load type and number.
Never attempt to use loose strip
loads that could be mis-identified.
3. Never carry loose strip loads in pockets
with pins or other hard objects.
4. Never load a tool unless you intend
to immediately make a fastening.
Loading a tool and leaving it unattended
in the work area can result in the tool
being accidentally discharged by others.
5. Never place your hand or any other
body part over the fastener loading
end of the tool. Serious hand injury
could result from being struck by either
a fastener or the tool piston should the
tool be accidentally fired.
6. Always store the tool unloaded and
keep the tool and the loads securely
locked in a tool box. Keep keys away
f rom children and unlicensed persons.
7. Always keep the tool pointed away
from yourself and others.
8. Never carry a loaded tool around
the work area.
9. Never allow anyone not trained
to use the tool.
10. Never engage in horseplay with
the tool.
11. Using the tool in poorly ventilated
areas, cleaning tool or handling
loads may result in exposure to
lead or other substances known
to cause birth defects, and other
physical harm. Have adequate
ventilation at all times and wash
thoroughly after exposure.
DANGER SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 5
NEVER LOAD THE TOOL UNLESS IT IS
TO BE USED IMMEDIATELY
NEVER PLACE HANDS OR BODY OVER
MUZZLE OPENING
KEEP TOOL LOCKED & OUT OF THE
REACH OF CHILDREN
Empty
AB
CD
ALWAYS DO A DAILY FUNCTION TEST
BEFORE LOADING TOOL

FAILURE TO FOLLOW
INSTRUCTIONS CAN
CAUSE INJURY TO THE
TOOL OPERATOR OR
TO BYSTANDERS.
Fastener Driving Safety
1. Only use the tool for fastening into
a suitable base material.
2. Never fire the tool without a fastener.
Firing a tool without a fastener will
cause the piston to strike the work
surface, and may cause serious injury
to you and others in the work area.
3. Always hold the tool perpendicular
to and firmly against the work
surface when making a fastening.
Failure to do so could allow a fastener
to ricochet.
4. Never attempt to drive a fastener
close to an edge or to another
fastener. See page 8 for guidelines.

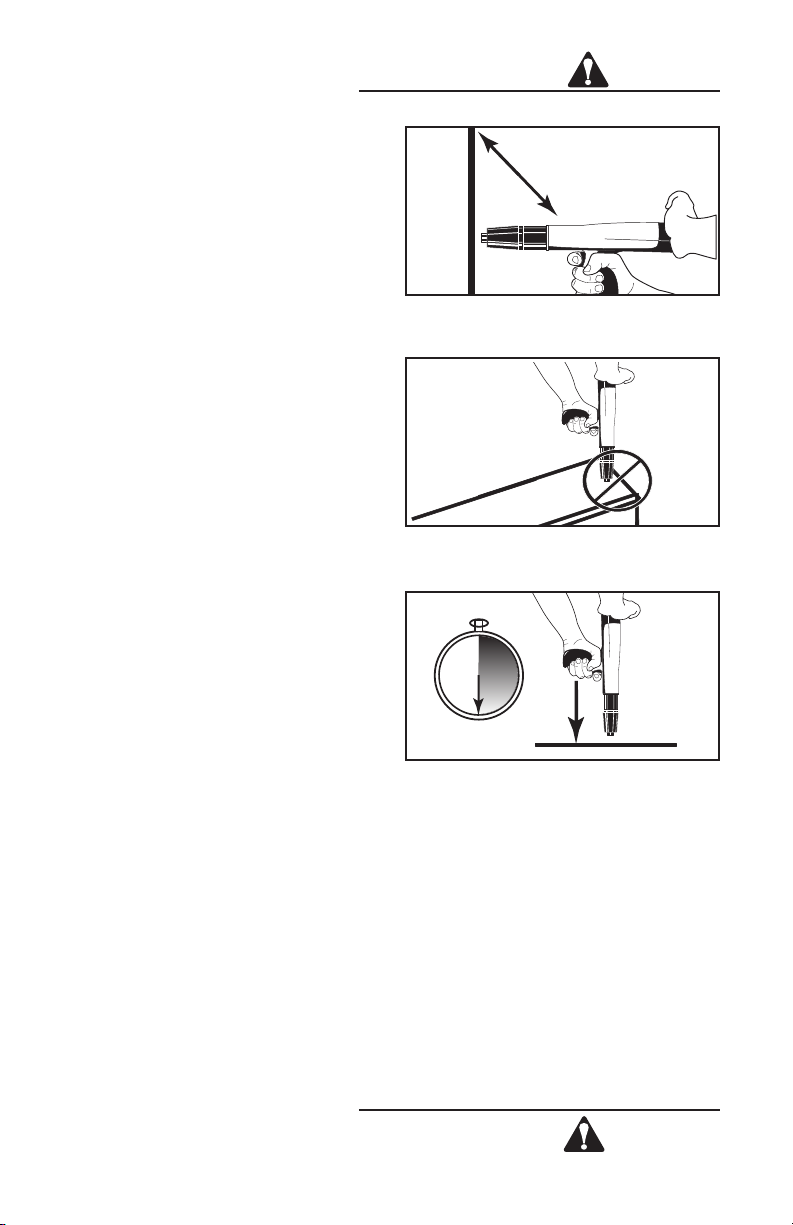

ALWAYS FOLLOW THE
MISFIRE PROCEDURE.
If the tool does not fire after pulling the
trigger, continue to hold the depressed
tool against the work surface for at least
30 seconds. Then carefully open the tool,
remove the load strip, and put it in a can
of water or other non-flammable liquid.
Never carelessly discard a strip with live
loads into a trash container.
If the tool becomes stuck or jammed with
a live powder load, keep the tool pointed
in a safe direction, and immediately tag it,
“Danger- defective - do not use”. Lock
the tool in a tool box and call your local
Ramset distributor for assistance.
SAFETY INSTRUCTIONS DANGER
SAFETY INSTRUCTIONS DANGER
6
90°
ALWAYS HOLD THE TOOL
PERPENDICULAR TO THE WORK SURFACE
NEVER DRIVE A FASTENER CLOSE TO
AN EDGE
30
HOLD THE TOOL FIRMLY AGAINST
THE WORK SURFACE FOR AT
LEAST 30 SECONDS

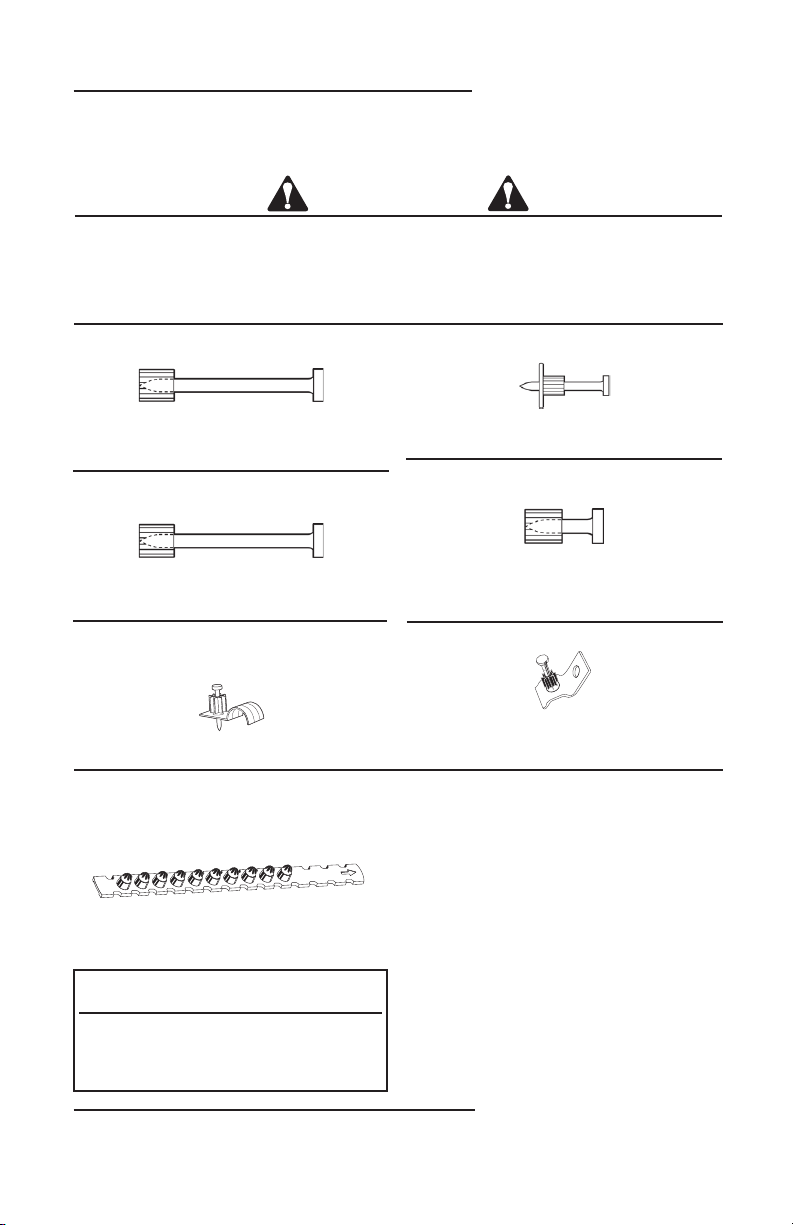

Your Ramset RA27 Tool uses only the Ramset fasteners and loads shown below or
listed for the tool in the Product Catalog.
FASTENERS
FASTENERS / LOADS
FASTENERS / LOADS
7
Never use any other types of fasteners or strip loads in the Ramset RA27 Tool. Use of other
types of fasteners or loads may cause unintentional load discharge, damage the tool, cause
poor fastening performance, or create a risk of serious injury to the operator or bystanders.
DANGER
LOADS
Ramset RS27 strip loads are specially made for use in the Ramset RA27 Tool.
The power level of the load is indicated by
the number marked on each box, the color
of the box, and the color on the tip of each
load. As the number increases, the power
level also increases.
Always perform the center punch test
described on page 3 to test the base material.
Always make a test fastening using the
lowest power level first. If more power is
required to set the fastener, use the next
higher power level until the powder level
necessary to drive the fastener is reached.
RS27 10 SHOT STRIP LOAD
POWER CATALOG LOAD CASE
LEVEL NUMBER COLOR COLOR
3 3RS27 Green Brass
4 4RS27 Yellow Brass
5 5RS27 Red Brass
.300 HEAD PLASTIC FLUTED DRIVE PINS
.145 Shank Diameter in Shank Lengths from
1/2” to 1-1/2”
.157 Shank Diameter in Shank Lengths from
1/2” to 1-1/4”
.300 HEAD PLASTIC FLUTED DRIVE PINS
WITH 7/8” WASHER
.145 Shank Diameter in Shank Lengths from
1” to 2”
POWER POINT
PLASTIC FLUTED DRIVE PINS
.150 Straight Shank in Shank Lengths
from 1/2” to 7/8”
.150 /.180 Step Shank in Lengths
from 1” to 1-1/4”
CEILING CLIP ASSEMBLIES
Ceiling Clip with 1” or 1-1/4” premounted
.145 Shank Pin and Ceiling Clip with 1” or
1-1/4” Premounted .150/.180 Shank Pin
TE DRIVE PINS
CONDUIT CLIP ASSEMBLIES

FASTENING APPLICATIONS
Your Ramset tool can be used for a wide
range of fastening needs in a variety of base
materials.Reading and follow these important
fastening guidelines will help you get the best
results from your tool, fasteners, and powder
loads, as well as help you perform these
fastening operations safely and effectively.
Powder actuated fastenings are permanent
fastening so attempting to remove a fastener
from concrete or steel may result in serious
injury.
Fastening to Concrete
When fastening into concrete, always maintain
a minimum spacing of 3” between fastenings
and 3” from any free edge. Concrete thickness
should be at least three times the intended
penetration depth into the concrete. The
primary exception to the 3” edge distance
can occur in a sill plate application where,
by necessity, the edge distance is reduced.
Driving fasteners too close to an edge or too
close to each other can cause the concrete
edge to fail or fasteners to y free.
Fastening to Concrete Block or
to Masonry Walls
While this application is not recommended,
when used, it is necessary to take care to
observe a 3” edge distance to avoid cracking
the block and over penetration of the fastener
to avoid loss of holding value. Fastening
may be made into the horizontal joint but
not into the vertical joint.
Fastening to Steel
Your Ramset tool can be used for fastening
on the at surfaces of structural steel. When
fastening into steel, always maintain a mini-
mum spacing of 1-1/2” between fastenings
and 1/2” from any edge.
FASTENING APPLICATIONS
FASTENING APPLICATIONS
8
3"
MIN. 3"
MIN.
3" MIN.
3" MIN.
1/2"
MIN. 1-1/2" MIN.
SPACING WOOD TO CONCRETE
3"
MIN. 3"
MIN.
3" MIN.
3" MIN.
1/2"
MIN. 1-1/2" MIN.
PENETRATION — THIN GAUGE
METAL TO CONCRETE
3"
MIN. 3"
MIN.
3" MIN.
3" MIN.
1/2"
MIN. 1-1/2" MIN.
SPACING — FURRING
STRIP TO CONCRETE
3"
MIN. 3"
MIN.
3" MIN.
3" MIN.
1/2"
MIN. 1-1/2" MIN.
SPACING — STEEL TO STEEL

TOOL OPERATION
DAILY FUNCTION TEST
Always check the tool first to make sure
that it does not contain a strip load or
fastener. Test the tool several times by
depressing the muzzle bushing fully on a
hard surface and pulling the trigger. You
should hear an audible click as the ring pin
releases. Let up on the tool and check to be
sure that the barrel has opened to the full
open position.
OPERATING THE RAMSET
RA27 TOOL
1. After checking to be sure that the tool
is not loaded, point it in a safe direction
and be sure that the barrel is fully
extended. This assures that the piston
is in position for the next fastening.
2. With nger off the trigger, place the
fastener, point out, into the muzzle
end of the tool until the point end is
inside the muzzle. NEVER load a
fastener with your nger on the trigger.
DO NOT use excessive force when
inserting a fastener. STOP immediately
if excessive force is require, inspect
the barrel to nd out why the fastener
is not entering the muzzle freely. DO
NOT continue loading unless the
problem is corrected.
3. With the tool pointed in a safe
direction and nger away from the
trigger, insert a load strip into the
bottom of the handle and push it in
until bottom of the strip is equal to
the bottom recess in the handle.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS
9
PERFORM FUNCTION TEST WITH
EMPTY, UNLOADED TOOL
BE SURE BARREL IS FULLY FORWARD
INSERT FASTENER INTO THE
MUZZLE END OF THE TOOL WITH
THE POINT OUT
INSERT LOAD STRIP INTO THE SLOTS IN
THE RECEIVER HOUSING

4. Hold the tool perpendicular (90°) to
the work surface with both hands and
press rmly to fully depress the tool.
Maintain rm downward pressure on
the tool with both hands and pull the
trigger to drive the fastener. DO NOT
DEPRESS THE TOOL AGAINST
ANYTHING OTHER THAN THE
INTENDED WORK SURFACE.Holding
the tool rmly in place will produce
more consistent fastening quality and
minimize tool wear or damage.
5. After making the fastening, let up
on the tool pressure and note that
the barrel assembly returns to the
full open position. This automatically
resets the piston for the next fastening.
Always keep ngers and other body
parts away from the muzzle end of
the tool.
6. Insert another fastener in the muzzle
end of the tool as before and the tool
is ready for the next fastening. Keep
your nger off of the trigger until the
tool is in position to drive the fastener.
7. To remove a used or partially used
strip load from the tool, pull the strip
out from the top of the tool. NEVER
try to remove a jammed or stuck
load strip. Should a “jammed” load
strip occur, call your local Authorized
Ramset Distributor for technical
assistance.
POWER LEVEL ADJUSTMENT
The power of the tool may be adjusted
for varying materials by turning the power
adjust wheel.
SHOULD YOU DECIDE NOT TO MAKE A
FASTENING AFTER THE TOOL HAS BEEN
LOADED, ALWAYS REMOVE THE POWDER
LOAD FIRST, THEN THE FASTENER. THIS
WILL PREVENT ACCIDENTAL DISCHARGING
OF THE FASTENER OR PISTON INTO THE
OPERATORS HAND.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS
10
90°
HOLD THE TOOL FIRMLY AND
PERPENDICULAR TO THE WORK SURFACE
LET UP ON TOOL PRESSURE.
NOTE THE BARREL HAS RETURNED
TO THE OPEN POSITION
INSERT THE NEXT FASTENER
REMOVE THE LOAD STRIP
+ INCREASE
- DECREASE
POWER LEVEL ADJUSTMENT

TROUBLESHOOTING
11
REFER TO PARTS SCHEMATIC FOR PROPER ASSEMBLY OF PARTS
– Overdriving of fasteners – Excessive power – Change to the next lower
power level load strip
color and number. Reduce
power by turning the
power adjustment wheel.
– Soft base material – Check base material
(see page 3)
– Tool fails to re – Failure to depress – See “Tool does not
completely completely depress”
– Excessive dirt buildup on – After following misre
breech face not allowing procedure, check ring
proper penetration of pin indentation on load.
ring pin Clean breech face
– Firing pin and/or breech – Replace damaged parts
damaged
– Tool does not completely – Misassembled or –
depress damaged parts
– No pins in magazine –
– Reduction or loss of power – Piston not being returned –
to the full rear position
– Worn or damaged – Replace missing worn or
retention balls or clip on damaged parts
the buffer assembly
– Worn or broken pawls – Replace pawls
– Tool cannot be cocked – Excessive dirt buildup – Clean tool thoroughly
or opened
– Damaged or bent piston – Replace piston
– Broken or damaged parts – Tag tool with warning
“Defective–Do Not Use”
Place in a locked container
and contact your local
Ramset representative
for service.
– Failure to index strip – Strip not inserted in tool – Check load strip. Properly
correctly or is damaged dispose of damaged strip.
(See page 6)
– Damaged indexing – Contact your Ramset
mechanism Distributor for assistance
– Tool fails the – Contact your Ramset
Daily Function Test Distributor for assistance
TROUBLESHOOTING
Check to be sure that the
return spring has pulled the
barrel completely open to
properly position the piston.
Check all parts in the receiver for
damage or improper assembly.
Add pins
– Strip tracks dirty –
Clean residue from strip tracks
–
Check magazine for pin defect

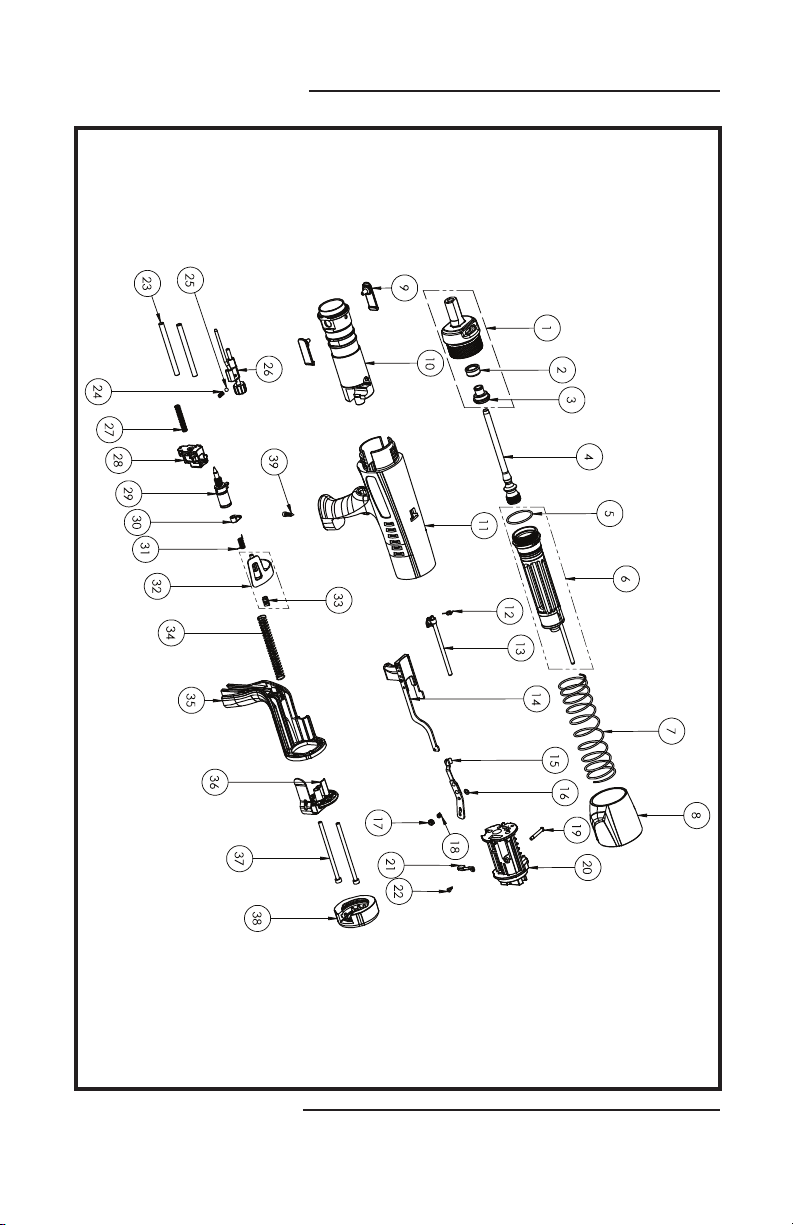

PARTS SCHEMATIC
PARTS SCHEMATIC
12

RAMSET RA27 TOOL PARTS LIST
KEY PART NO. DESCRIPTION QTY
PARTS LIST
PARTS LIST
13
1751330 GUIDE ASSEMBLY 1
2751332 BUFFER RING 1
3751333 BUFFER 1
4751321 PISTON 1
5751315 O-RING 1
6751310 BARREL ASSEMBLY 1
7751202 SPRING,BARREL ASSEMBLY 1
8751220 RETENTION COLLAR 1
9751241 PAWL,(pkg of 2) 2
10 751210 RECEIVER ASSEMBLY 1
11 751110 FRONT HOUSING ASSEMBLY 1
12 751234 SPRING,CONTROL ROD 1
13 751231 CONTROL ROD 1
14 751460 TRIGGER ASSEMBLY 1
15 751450 ADVANCE LEVER ASSEMBLY 1
16 751404 WASHER 1
17 300107 NUT, ADVANCE LEVER ASSEMBLY RETNTION 1
18 751436 SPRING, ADVANCE LEVER ASSEMBLY 1
19 751402 PIN, ADVANCE LEVER ASSEMBLY 1
20 751401 MECHANISM HOUSING 1
21 751405 CLAPBOARD 1
22 751406 SCREWS, CLAPBOARD 1
23 751403 TUBE 2
24 751444 SPRNG, POWER ADJUSTMENT ASSEMBLY 1
25 301046 BALL 1
26 751440POWER ADJUSTMENT ASSEMBLY 1
27 751483 SPRING, TRIGGER ASSEMBLY 1
28 751482 COMPARTMENT 1
29 751410 FIRING PIN ASSEMBLY 1
30 751235 RELEASER 1
31 751236 SPRING, RELEASER 1
32 751800 SWIVEL HOOK ASSEMBLY 1
33 751803 SPRING, SWIVEL HOOK ASSEMBLY 1
34 751432 SPRING, FIRING PIN 1
35 751120 REAR HANDLE 1
36 751500 FIXED HOOK ASSEMBLY 1
37 751001 SCREW 2
38 751131 BACKEND COVER 1
39 751002 HANDLE SELF-TAPPING SCREWS 1

MAINTENANCE
MAINTENANCE
14
Always make sure the tool is not loaded before performing any service or repair and
always wear safety goggles when cleaning or servicing the tool.
DAILY CLEANING
All front end parts shown in the disassembly section are to be cleaned daily with a good
detergent oil and wire brush. Remove all dirt and carbon buildup and wipe parts dry with
a clean rag. Check all parts for wear or damage before reassembly and replace or repair
any worn or damaged parts.
PERIODIC COMPLETE CLEANING / GENERAL MAINTENANCE
Heavy or constant exposure to dirt and debris may require that the tool be cleaned more
extensively. Complete disassembly and cleaning of all parts may be necessary to restore
the tool to normal operation. General maintenance should be performed every six months
or more often if the tool is subjected to heavy use. General maintenance/complete clean-
ing should be done by a qualied repair person.
IMPROPERLY MAINTAINED TOOLS CAN CAUSE SERIOUS INJURIES
TO TOOL OPERATOR AND BYSTANDERS
CLEAN TOOL DAILY
ALWAYS FUNCTION TEST THE TOOL AFTER PERFORMING ANY
SERVICE. SEE PAGE 9 FOR DETAILS ON THE FUNCTION TEST.
MAINTENANCE

TOOL DISASSEMBLY
1.
2.
3.
4.
5.
UNSCREW THE
FASTENER GUIDE
SLIDE BARREL ASSEMBLY
OUT OF THE TOOL BODY
REMOVE THE RETAINING SLEEVE
REMOVE THE RETURN SPRING
DISASSEMBLY
15
DISASSEMBLY
Be sure tool is unloaded! Grasp the
knurled collar and unscrew the
Fastener Guide Assembly. Once
unthreaded, pull it from the tool.
On the Barrel Retention Collar, locate
the raised Line on the side and top of
tool. Turn the Barrel Retention Collar
90 degrees so that the side mark on the
collar Is aligned with the top mark on
the tool. Lift off the Collar.
Grasp the Barrel, then pull open the
two pawls. Note that the pawl assembly
is hinged and is not removed. Use
caution as barrel is under slight
spring pressure.
Remove barrel and spring from tool
body.
Remove the Barrel Spring and Piston
from the Barrel Assembly.
1
2
3
4
5

6. Inspect all parts for wear or damage
and clean or replace as required.
Use detergent oil and cleaning brush.
Wipe parts dry before reassembly.
WEAR SAFETY GOGGLES WHEN
CLEANING TOOL PARTS.
7. Check the piston tip for mushrooming
or other deformities, and grind at.
The tip of the piston must be 90° to
the shank and grinding must only
be done by qualied personnel. The
overall minimum length of the piston
must not be less than 6-1/8”. When
less than this length, the piston must
be replaced to avoid tool damage.
8. Reassemble the tool in the reverse
order of disassembly.
ALWAYS PERFORM THE DAILY
FUNCTION TEST BEFORE USING
THE TOOL AFTER CLEANING
OR SERVICING.
USE BRUSH TO
CLEAN INSIDE BARREL
USE BRUSH TO
CLEAN OUTSIDE BARREL
5/16"
18°
90°
GRIND PISTON TIP FLAT AND
BEVEL THE TIP EDGE AT 18°
DISASSEMBLY
16
DISASSEMBLY
6
7
8

MAGAZINE ASSEMBLY
MAGAZINE ASSEMBLY
17
RA27 MAGAZINE REMOVAL/
INSTALLATION
RA27 Magazine Use
MAGAZINE ASSEMBLY
The Ramset RA27 can be equipped with
an optional fastener magazine (RA27MAG).
The magazine angle can be rotated to
improve its use in tight locations. The
maximum fastener length for the magazine
is 1-1/4 inches. For best performance use
Ramset collated TEX Series fasteners:
• TE12X • TE34X • TE100X • TE114X
1. Be sure tool is unloaded and remove
any remaining fasteners from the
magazine.
2. Locate the knurles collar and unscrew
the Fastener Guide. Once unthreaded,
pull it from the tool.
3. Align the magazine to the barrel, press
to click the magazine onto the threads.
Turn the knurled collar to thread the
magazine onto the barrel. As you turn
the knurled collar, you will begin to feel
the thread engage and tighten.
1. Pull follower back to its stop and load
the collated fastener strip into position.
2. Release the follower. Note the silver
button on the outside top of the
magazine. When the button is raised,
there is a pin in the muzzle ready. If the
silver button is down, the magazine is
empty or not feeding.
1
2
3
1
2
FASTENER IN MUZZLE
NO FASTENER

RA27 WARRANTY AND LIMITATIONS
POWDER ACTUATED TOOL
MANUFACTURES' INSTITUTE INC.
TM
Concrete Fastening Systems
Glendale Heights, IL 60139
800-848-5611
www.ramset.com
Buy with Confidence...
Buy From Your Authorized Distributor
AN ILLINOIS TOOL WORKS COMPANY
© ILLINOIS TOOL WORKS 2018
PRINTED IN THE U.S.A. Form No.
THE MODEL RA27 TOOL COMPLIES WITH OSHA REQUIREMENTS
AND WITH ANSI A10.3 SPECIFICATIONS
FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL AUTHORIZED
RAMSET DISTRIBUTOR OR TO FIND YOUR NEAREST RAMSET TOOL
REPAIR CENTER VISIT OUR WEB SITE AT WWW.RAMSET.COM
OR CALL 800-241-5640
Copyright 2018 Ramset
Ramset warrants that new RA27 power fastening
tools, parts and accessories will be free from
defects in material and workmanship for the
period shown below.
THREE-YEAR WARRANTY
A three-year warranty will apply to all parts,
except those listed below as normal wearing
parts, or parts which are specically covered
by an extended warranty.
The following parts are considered normal
wearing parts and are excluded from the
warranty:
• Piston • Buffer
• Pawls
The warranty period is based off of tool build
date, determined from the tool serial number.
Ramset may extend the warranty time frame
from the date of purchase with a qualifying
document proving date of purchase.
WARRANTY STATEMENT
Ramset’s sole liability hereunder will be to
replace any part or accessory which proves
to be defective within the specic time period.
Any replacement
part or accessory provided
in accordance
with this warranty will carry a
warranty for the balance of the period of
warranty applicable to the part it replaces.
This warranty does not apply to part
replacement required due to normal wear.
This warranty is void as to any tool which has
been subjected to misuse, abuse,
accidental
or intentional damage, use with
fasteners, and
loads
not meeting Ramset specication, size,
or quality, improperly maintained, repaired
with other than genuine Rocket replacement
parts, damaged in transit or handling, or
which,
in Ramset’s opinion, has been altered
or repaired in a way that affects or detracts from
the performance of the tool.
Ramset MAKES NO WARRANTY, EXPRESSED
OR IMPLIED, RELATING TO MERCHANTABILITY,
FITNESS, OR OTHERWISE, EXCEPT AS STATED
ABOVE and the liability AS STATED ABOVE AND
AS ASSUMED ABOVE is in lieu of all other
warranties arising out of, or in connection with,
the use and performance of the tool, except to
the extent otherwise provided by applicable law.
Ramset SHALL IN NO EVENT BE LIABLE FOR
ANY
DIRECT, INDIRECT, OR CONSEQUENTIAL
DAMAGES, INCLUDING,
BUT NOT LIMITED TO
DAMAGES WHICH
MAY ARISE FROM LOSS
OF ANTICIPATED
PROFITS OR PRODUCTION,
SPOILAGE OF MATERIALS,
INCREASED COST
OF OPERATION OR OTHERWISE.
Ramset reserves the right to change specications,
equipment, or designs at any time without notice
and without incurring obligation.

HERRAMIENTA RAMSET RA27
MANUAL DE INSTRUCCIONES
DE FUNCIONAMIENTO
Y SEGURIDAD
DEL OPERADOR
PELIGRO
SOLAMENTE OPERADORES CON LICENCIA DEBEN UTILIZAR ESTA
HERRAMIENTA. LEA Y OBEDEZCA TODAS LAS INSTRUCCIONES DE
FUNCIONAMIENTO Y SEGURIDAD ANTES DE OPERAR LA HERRAMIENTA.
HERRAMIENTA DE FIJACIÓN SEMIAUTOMÁTICA
DE TIPO PISTÓN DE BAJA VELOCIDAD

Del mismo modo que nadie puede sólo leer un libro acerca de cómo conducir un automóvil
y pretender conducirlo con seguridad, nadie debería intentar hacer uso de una herramienta
Ramset sin una instrucción personal adecuada y competente. Y de al misma forma que se
debe obtener una licencia para conducir un automóvil, también se debe tener una licencia para
hacer uso de una herramienta activada con pólvora. Ningún libro o instructor para aprender a
conducir puede prevenir al que está aprendiendo contra todas las posibilidades y emergencias;
tampoco pueden los instructores o el material impreso de Ramset detallar todas las posibles
condiciones implicadas en la utilización de las herramientas y productos de Ramset.
La responsabilidad del empleo seguro y apropiado de esta herramienta recae en su
usuario y el empleador.
INTRODUCCIÓN DE SEGURIDAD PELIGRO
INTRODUCCIÓN DE SEGURIDAD PELIGRO
2
El operador y las terceras
personas deben usar
protección ocular y auditiva.
Nunca cierre la herramienta con la mano sobre el extremo de carga
de elementos de fijación. Se puede ocasionar una lesión grave por
penetración del pistón o por el disparo de un elemento de fijación.
Lea el manual antes de
operar la herramienta.
PELIGRO
ESTA HERRAMIENTA SÓLO DEBE SER USADA POR OPERADORES
CAPACITADOS Y LICENCIADOS APROPIADAMENTE. USTED DEBE
COMPLETAR CON ÉXITO EL PROGRAMA DE CAPACITACIÓN
DE LA HERRAMIENTA DE RAMSET Y OBTENER UNA LICENCIA
DE OPERADOR CERTIFICADO ANTES DE MANIPULAR,
CARGAR U OPERAR ESTA HERRAMIENTA.
EL INTENTAR MANIPULAR U OPERAR ESTA HERRAMIENTA SIN LA
CAPACITACIÓN Y CERTIFICACIÓN ADECUADAS PUEDE OCASIONAR
LESIONES GRAVES AL OPERADOR O TERCERAS PERSONAS.
PELIGRO
