R&G LP0201BK User manual

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 1
FITTING INSTRUCTIONS FOR LP0201BK LICENCE PLATE BRACKET
TRIUMPH THRUXTON 1200 & THRUXTON 1200 R ’16-

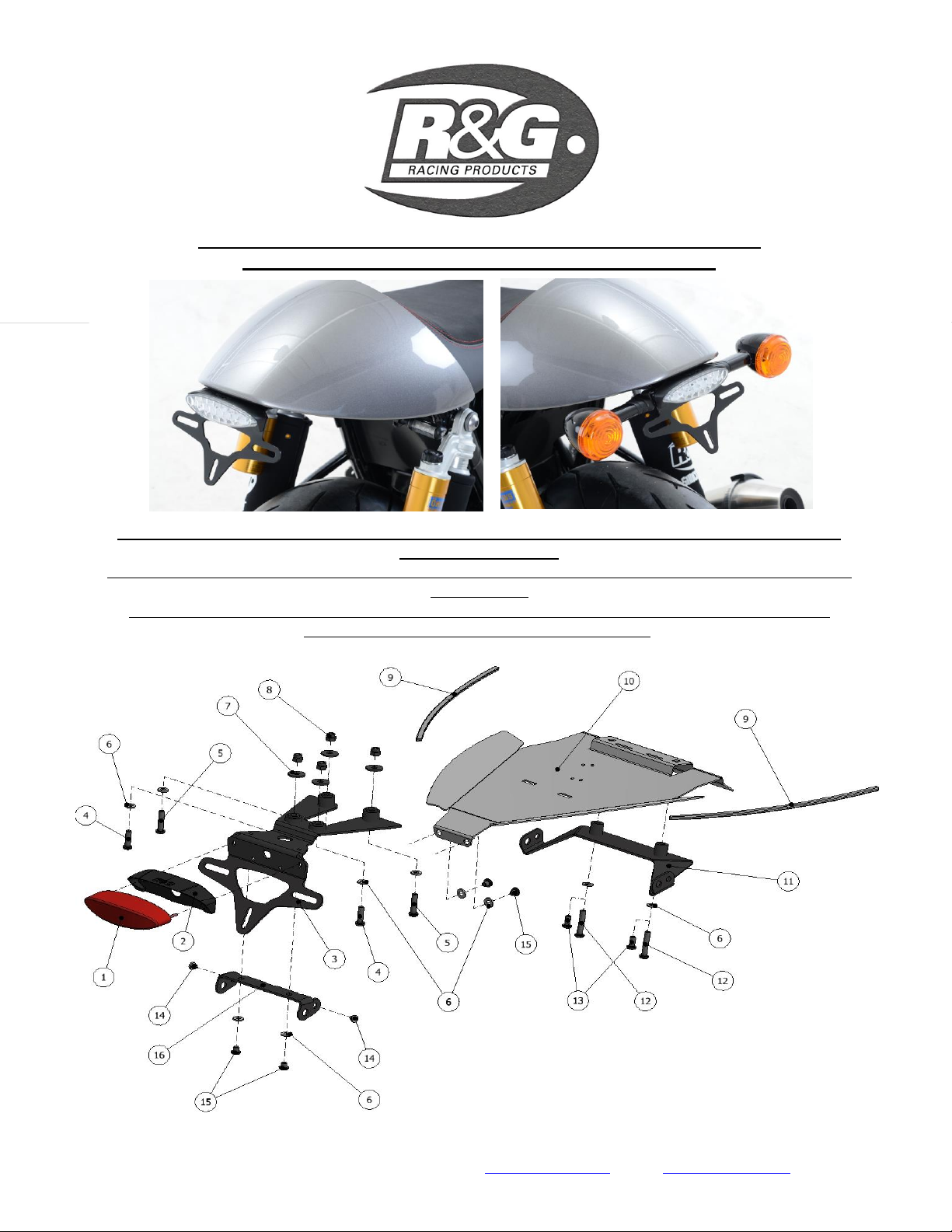

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
THE PARTS SHOWN MAY BE REPRESENTATIVE ONLY (FOR CLARITY OF INSTRUCTIONS ONLY).
13
3
x2
x4
x4
x4
x2
x2
x2

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 2
LEGEND
ITEM 1 = LA0003 TAIL LIGHT (x1).
ITEM 2 = LA0003 SHROUD (x1).
ITEM 3 = LICENCE PLATE BRACKET (TB0201 Part 1) (x1).
ITEM 4 = M6 x 20mm LONG BUTTON HEAD BOLTS (x2).
ITEM 5 = M6 x 25mm LONG BUTTON HEAD BOLTS (x2).
ITEM 6 = M6 WASHERS (12mm OD) (x10).
ITEM 7 = M6 WASHERS (20mm OD) (x4).
ITEM 8 = M6 NYLOC NUTS (x4).
ITEM 9 = RUBBER ‘U’ PROFILE (x2 LONG & x1 SHORT).
ITEM 10 = UNDERSEAT COVER (TB0201 Part 2) (x1).
ITEM 11 = FORWARD INDICATOR BRACKET (TB0201 Part 3) (x1).
ITEM 12 = M6 x 30mm LONG BUTTON HEAD BOLTS (x2).
ITEM 13 = M6 x 12mm LONG BUTTON HEAD BOLTS (x2).
ITEM 14 = RUBBER BUNGS (x2).
ITEM 15 = M6 x 6mm LONG BUTTON HEAD BOLTS (x4).
ITEM 16 = REARWARD INDICATOR BRACKET (TB0201 Part 4) (x1).

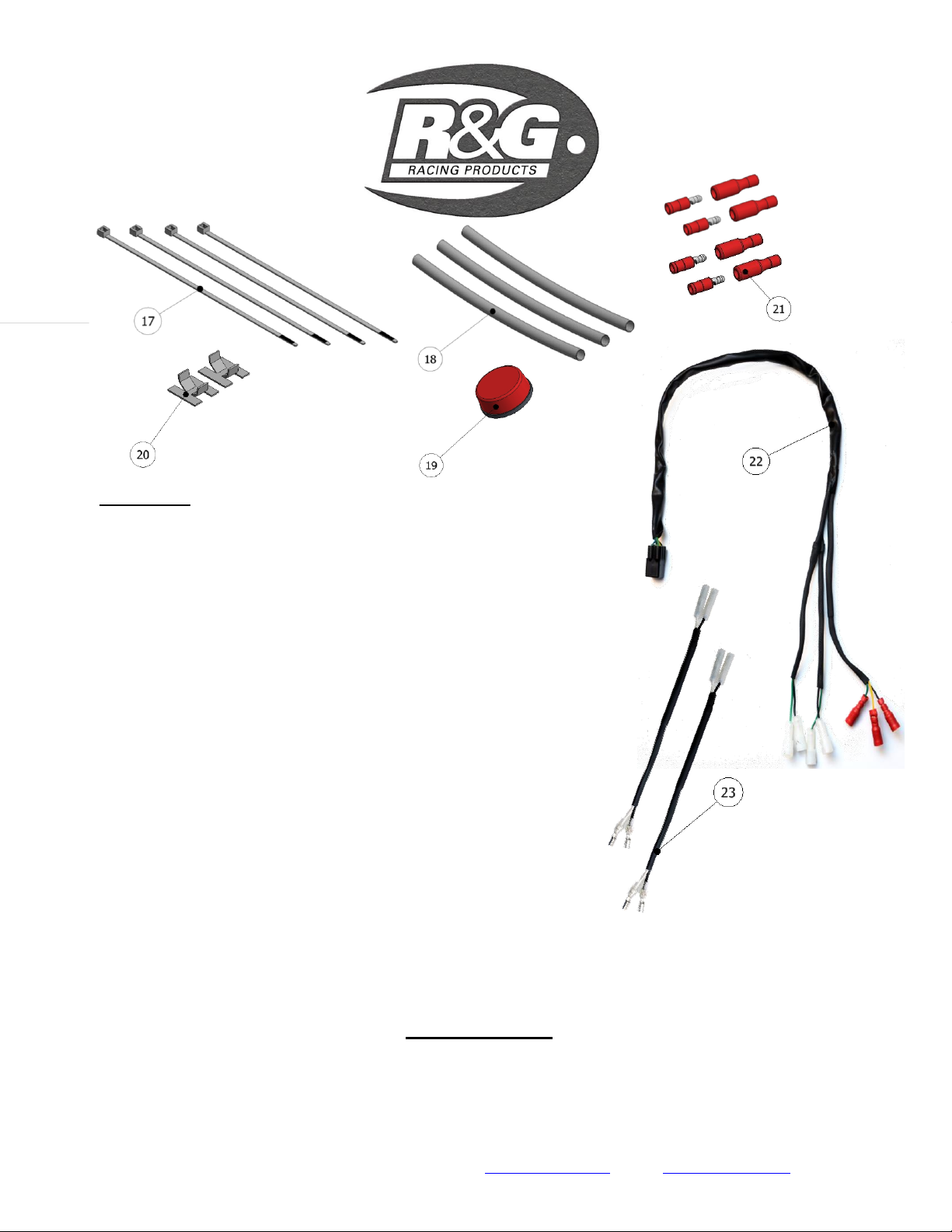

ITEM 17 = 2.5mm CABLE TIES (x4).
ITEM 18 = 150mm LENGTH OF HEATSHRINK (x3).
ITEM 19 = REFLECTOR (x1).
ITEM 20 = SELF-ADHESIVE CABLE CLIPS (x2).
ITEM 21 = BULLET CONNECTORS (CON0004) (x2).
ITEM 22 = TAIL LIGHT / INDICATOR LOOM (CON0045) (x1).
ITEM 23 = INDICATOR CONNECTORS (CON0046) (x2).
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –the
rubber washers should be thrown away!
TOOLS REQUIRED
Set of metric Allen keys to include 4, 5 &6mm A/F size.
6, 8, 10 & 13mm spanners or sockets.
Cable cutters.
Superglue or similar adhesive.

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 3
MAXIMUM TORQUE SETTINGS
M4 Bolt = 8 Nm
M5 Bolt = 12 Nm
M6 Bolt = 15 Nm
M8 Bolt = 20 Nm
Picture 1
Picture 2
Picture 3
Picture 4

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 4
Picture 5
Picture 6
Picture 7
Picture 8
Picture 9
Picture 10

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 5
Picture 11
Picture 12
Picture 13
Picture 14
Picture 15
Picture 16

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 6
Picture 17
Picture 18
Picture 19
Picture 20
Picture 21
Picture 22

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 7
Picture 23
Picture 24
Picture 25
Picture 26
Picture 27
Picture 28

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 8
Picture 29
Picture 30
Picture 31
Picture 32
Picture 33
Picture 34

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 9
Picture 35
Picture 36
Picture 37
Picture 38
Picture 39
Picture 40

R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
Page | 10
Picture 41
Picture 42
Picture 43
Picture 44
Picture 45
Picture 46
