Ranger RP-50FC User manual

1645 Lemonwood Dr.
Santa Paula, CA 93060 USA
Toll Free +1.800.253.2363
Tel: [phone]
Fax: [phone]
www.rangerproducts.com
High-Speed Oil Filter Crusher
Installation and Operation Manual
Revision B — March 2017 — Manual P/N 5900392
Model:
•RP-50FC
⚠DANGER
Always operate this equipment as directed; failure to do so may
cause injury or death. Read the entire contents of this manual prior
to installation or operation. Make sure all other operators also read
this manual. By proceeding with setup and operation, you agree
that you fully understand the contents of this manual.

Manual. High-Speed Oil Filter Crusher, Installation and Operation Manual, P/N 5900392, Rev. B, March 2017.
Designed and engineered by BendPak Inc. in the USA. Made in China.
Copyright. Copyright © 2017 by BendPak Inc. All rights reserved. No part of this manual can be reproduced,
adapted, translated, or transmitted by any means, electronic or mechanical, for any purpose or in any form,
without prior written permission of BendPak Inc.
Trademarks. BendPak, the BendPak logo, Ranger, and the Ranger logo are registered trademarks of BendPak
Inc. All other company, product, and service names are used for identification only. All trademarks and registered
trademarks mentioned in this manual are the property of their respective owners.
Limitations. Every effort has been made to ensure complete and accurate instructions are included in this
manual. However, product updates, revisions, and/or changes may have occurred since this manual was
published. BendPak Ranger reserves the right to change any information in this manual without incurring any
obligation for equipment previously or subsequently sold. BendPak Ranger is not responsible for typographical
errors in this manual.
Warranty. The BendPak Ranger warranty is more than a commitment to you: it is also a commitment to the
value of your new product. For full warranty details and to register your new BendPak Ranger product, contact
your nearest BendPak Ranger dealer or visit www.bendpak.com/support/warranty.
Safety.Your new product was designed and manufactured with safety in mind. Your safety also depends on
proper training and thoughtful operation. Do not set up, operate, maintain, or repair the unit without reading and
understanding this manual and the labels on the unit.
Owner Responsibility. In order to maintain your product properly and to ensure operator safety, it is the
responsibility of the product owner to read and follow these instructions:
• Follow all setup, operation, and maintenance instructions.
• Make sure product setup conforms to all applicable local, state, and federal codes, rules, and regulations,
such as state and federal OSHA regulations and electrical codes.
• Read and follow all safety instructions. Keep them readily available for operators.
• Make sure all operators are properly trained, know how to safely operate the unit, and are properly supervised.
• Do not operate the product until you are certain that all parts are in place and operating correctly.
• Carefully inspect the product on a regular basis and perform all maintenance as required.
• Service and maintain the unit only with approved replacement parts.
• Keep all instructions permanently with the product and make sure all labels are clean and visible.

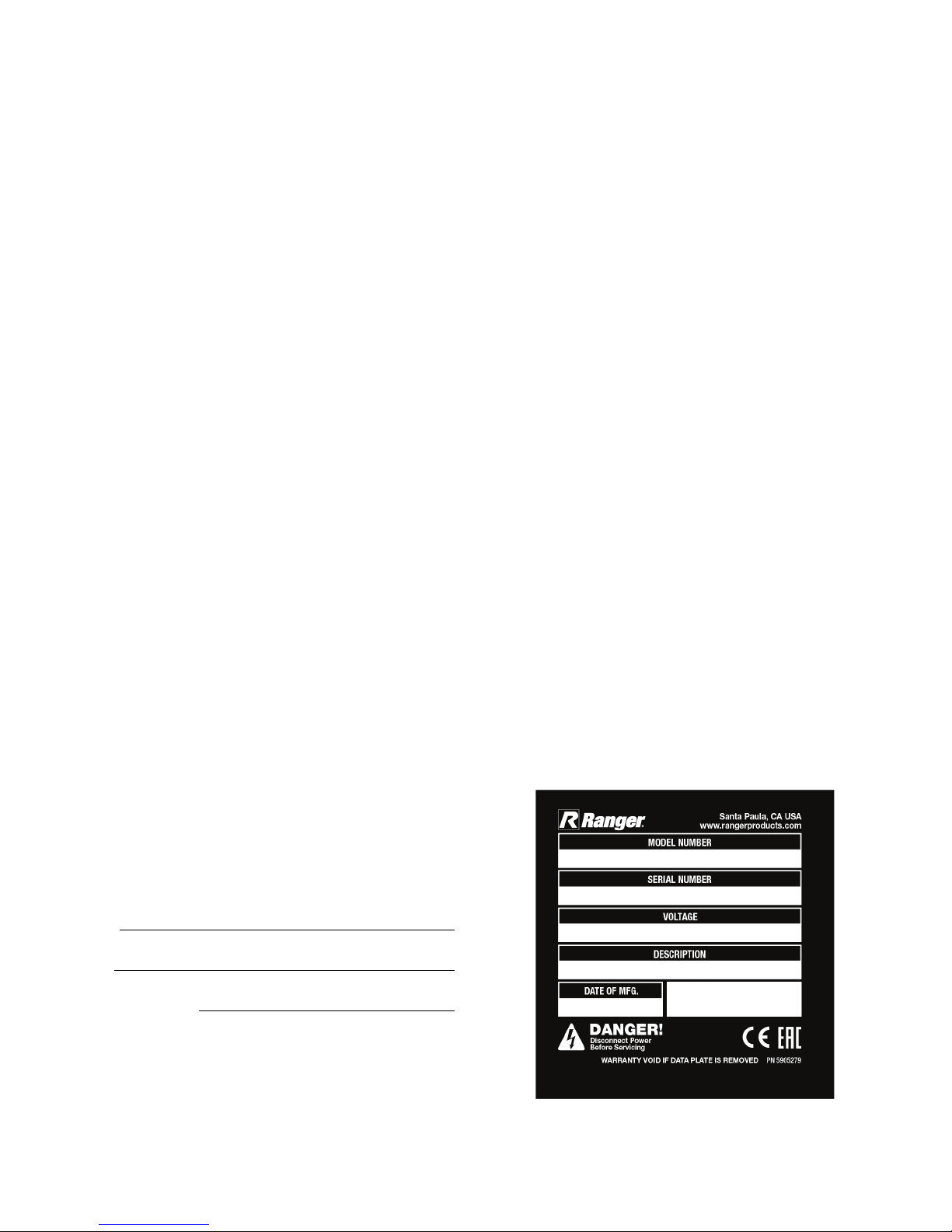

Unit Information. Enter the Model Number, Serial
Number, and the Manufactured on date from the label
on your unit. This information is required for part or
warranty issues.
Model:
Serial:
Manufactured on:

RP-50FC High-Speed Oil Filter Crusher 3P/N 5900392 — March 2017 — Rev. B
Table of Contents
Introduction 3 Maintenance 21
Shipping Information 3 Troubleshooting 22
Safety Considerations 4 Warranty 22
Specifications 5 Parts Diagrams 23
Components 6 Wiring Diagram 26
Setup 7 Maintenance Log 27
Operation 20
Introduction
This manual describes the RP-50FC high-speed oil filter crusher from Ranger Products, which applies
up to 25 tons of electric hydraulic pressing power to flatten just about any used oil filter to
approximately 20 percent of its size while removing up to 95 percent of the residual oil.
More information about the full line of Ranger Products is available at www.rangerproducts.com.
This manual is mandatory reading for all users of the RP-50FC, including anyone who sets it up,
operates it, maintains it, or repairs it.
⚠DANGER Be very careful when setting up, operating, maintaining, or repairing this equipment;
failure to do so could result in property damage, product damage, injury, or (in very
rare cases) death. Make sure only authorized personnel operate this equipment. All
repairs must be performed by an authorized technician. Do not make modifications
to the unit; this voids the warranty and increases the chances of injury or property
damage. Make sure to read and follow the instructions on the labels on the unit.
Keep this manual on or near the equipment so that anyone who uses or services it can read it.
Technical support and service for your RP-50FC is available directly from your distributor or by calling
the Ranger Products Technical Support Hotline at +1.805.933.9970. You may also
contact the Hotline for consultation on parts replacement (please have the serial number and model
number of your unit available).
Shipping Information
Your equipment was carefully checked before shipping. Nevertheless, you should thoroughly inspect
the shipment
before you sign to acknowledge that you received it.
When you sign the bill of lading, it tells the carrier that the items on the invoice were received in good
condition.
To protect yourself, do not sign the bill of lading until
after
you have inspected the

RP-50FC High-Speed Oil Filter Crusher 4P/N 5900392 — March 2017 — Rev. B
shipment.
If any of the items listed on the bill of lading are missing or are damaged, do not accept the
shipment until the carrier makes a notation on the bill of lading that lists the missing and/or damaged
goods.
If you discover missing or damaged goods
after you receive the shipment and have signed the bill of
lading, notify the carrier at once and request the carrier to make an inspection. If the carrier will not
make an inspection, prepare a signed statement to the effect that you have notified the carrier (on a
specific date) and that the carrier has failed to comply with your request.
It is difficult to collect for loss or damage after you have given the carrier a signed bill of lading. If this
happens to you, file a claim with the carrier promptly. Support your claim with copies of the bill of
lading, freight bill, invoice, and photographs, if available. Our willingness to assist in helping you
process your claim does not make us responsible for collection of claims or replacement of lost or
damaged materials.
Safety Considerations
Read this manual carefully before using your new product. Do not set up or operate
the product until you are familiar with all operating instructions and warnings. Do not allow anyone else
to operate the product until they are also familiar with all operating instructions and warnings.
Safety Information
Please note the following:
•The product is a high-speed oil filter crusher.
Use it only for its intended purpose.
•The product should only be operated by authorized personnel. Keep children and untrained
personnel away from the product.
•Do not crush aerosol cans, cylinders of compressed gas, fuel filters, or containers of flammable
liquids or solvents.
•Do not open the door while the unit is operating; always wait for the end of the automatic cycle.
•When using the product, wear appropriate work clothes and ANSI-approved safety goggles. Do
not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
•When the product is in use, keep all body parts away from it.
•Do not use the product while tired or under the influence of drugs, alcohol, or medication.
•Do not use the product in the presence of cigarette smoke, dust, or flammable liquids or gases.
•Only use the product indoors in a well-ventilated area.
•Do not make any modifications to the product.
•Secure the unit to a dry, clean, flat concrete surface; do not install it on asphalt or wood.
•Make sure all operators read and understand the Installation and Operation Manual. Keep the
manual near the device at all times.
•Avoid using an extension cord; they can overheat. If you must use an extension cord, make sure it
is No. 14 AWG
minimum .
•Make a visual inspection of the product before using it. Do not use the product if you find any
missing or damaged parts. Instead, contact an authorized repair facility, your distributor, or the
Ranger Products Technical Support Hotline at +1.805.933.9970.
•BendPak Ranger recommends making a
thorough inspection of the product at least once a year.
Replace any damaged or severely worn parts, decals, or warning labels.

RP-50FC High-Speed Oil Filter Crusher 5P/N 5900392 — March 2017 — Rev. B
Hazard Symbols
Following are the hazard symbols used in this manual:
⚠DANGER Calls attention to an immediate hazard that will result in death or severe injury.
⚠WARNING Calls attention to a hazard or unsafe practice that could result in death or severe
personal injury.
⚠CAUTION Calls attention to a hazard or unsafe practice that could result in minor personal
injury, product, or property damage.
Liability Information
BendPak Ranger assumes no liability for damages resulting from:
• Use of the equipment for purposes other than those described in this manual.
• Modifications to the equipment without prior, written permission from BendPak Ranger.
• Damage to the equipment from external influences.
• Incorrect operation of the equipment.
Specifications
Height 90.5” / 2,299 mm
Width 32.5” / 826 mm
Depth 31.5” / 800 mm
Chamber opening height 16” / 406 mm
Chamber opening width 9.8” / 249 mm
Chamber opening depth 11.5” / 292 mm
Average cycle time 8 to 15 seconds
Weight 415 lbs / 188 kg
Power unit 208–230 V, 60 Hz, 1Ph

RP-50FC High-Speed Oil Filter Crusher 6P/N 5900392 — March 2017 — Rev. B
Components
The following figure shows many of the components of the RP-50FC.
There are also components on the left side of the enclosure.

RP-50FC High-Speed Oil Filter Crusher 7P/N 5900392 — March 2017 — Rev. B
Setup
This section describes how to get your RP-50FC up and running.
Tools and Supplies
You need to provide the following:
•Wrenches and screwdrivers appropriate for assembling the unit.
•A drill and concrete drill bit to mount the unit to the floor, if desired.
•A plug to connect to the power unit’s electrical cord.
Unpacking
Use caution when unpacking the RP-50-FC components from their shipping containers.
Tip Consider unpacking the RP-50FC components in the area where you are going to
assemble the unit.
Screws
Assembling the unit requires the use of several different types of screws:
•Socket head cap screws (14), M12 by 1.75 by 80, referred to as Screw A
•Socket head cap screw (4), M12 by 1.75 by 120, referred to as Screw B
•HHB MM 8 by 35 (4), referred to as Screw C

RP-50FC High-Speed Oil Filter Crusher 8P/N 5900392 — March 2017 — Rev. B
Assembly
Your RP-50FC comes disassembled (to protect the components during shipping).
The assembly process happens in multiple phases. Perform them in the order shown.
Assembling the base frame:

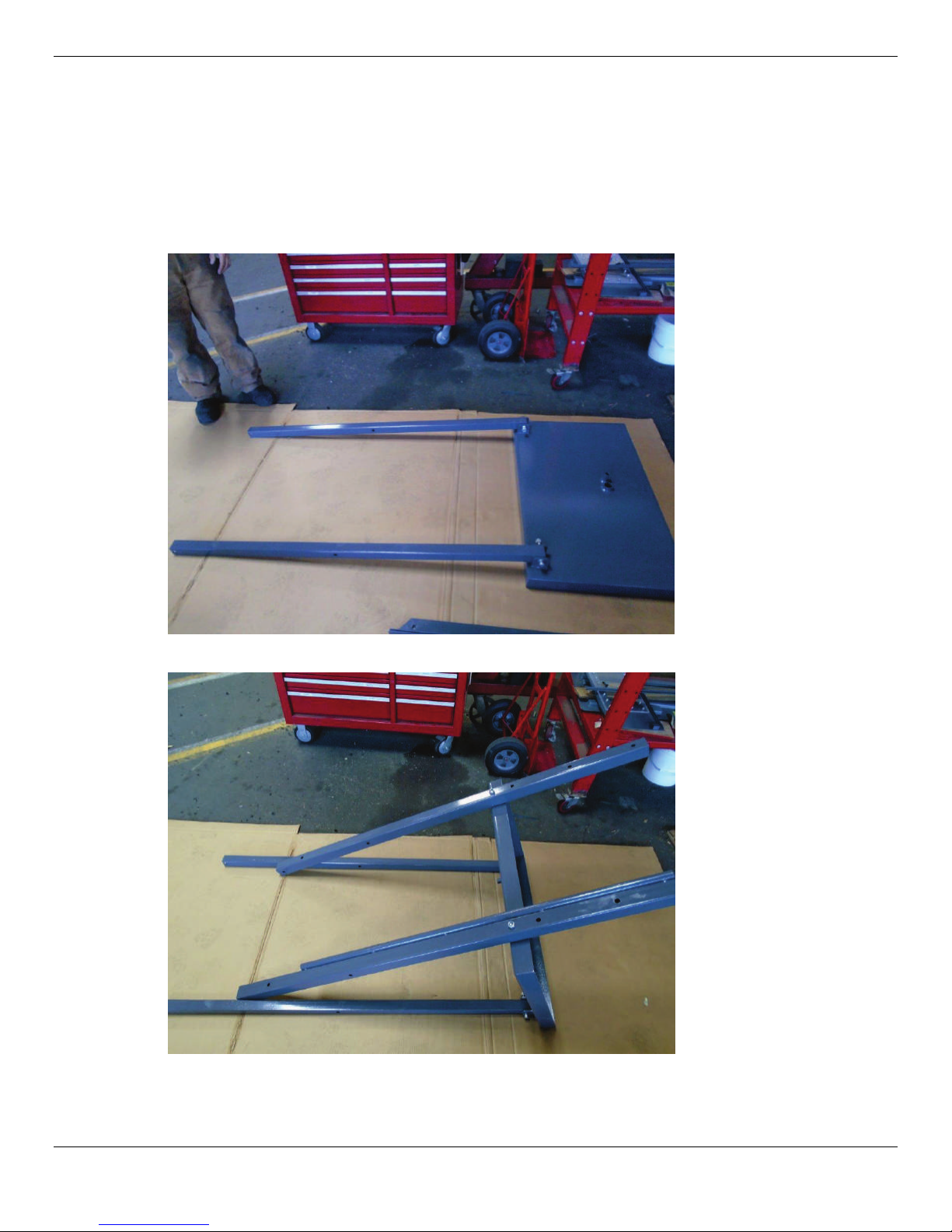

1. Connect the left and right base frame support bars to the reservoir base. Use Screw A with washer
and nut.
2. Bolt the base frame vertical support bars to the reservoir base. Use Screw A with washer and nut.

RP-50FC High-Speed Oil Filter Crusher 9P/N 5900392 — March 2017 — Rev. B
3. Bolt the base frame support bars to the vertical support bars. Use Screw B with washer and nut.
4. Bolt the base frame legs to the vertical support bars. Use Screw A with washer and nut.

RP-50FC High-Speed Oil Filter Crusher 10 P/N 5900392 — March 2017 — Rev. B
5. Stand up the base frame assembly and the reservoir base.
The base frame assembly and reservoir base are now assembled.

RP-50FC High-Speed Oil Filter Crusher 11 P/N 5900392 — March 2017 — Rev. B
Mounting the enclosure to the base frame:
1. Remove the top of the enclosure, exposing the eye hitch.
2. Use the eye hitch to lift the enclosure onto the reservoir base.
3. Bolt the enclosure onto the base frame and reservoir.

RP-50FC High-Speed Oil Filter Crusher 12 P/N 5900392 — March 2017 — Rev. B

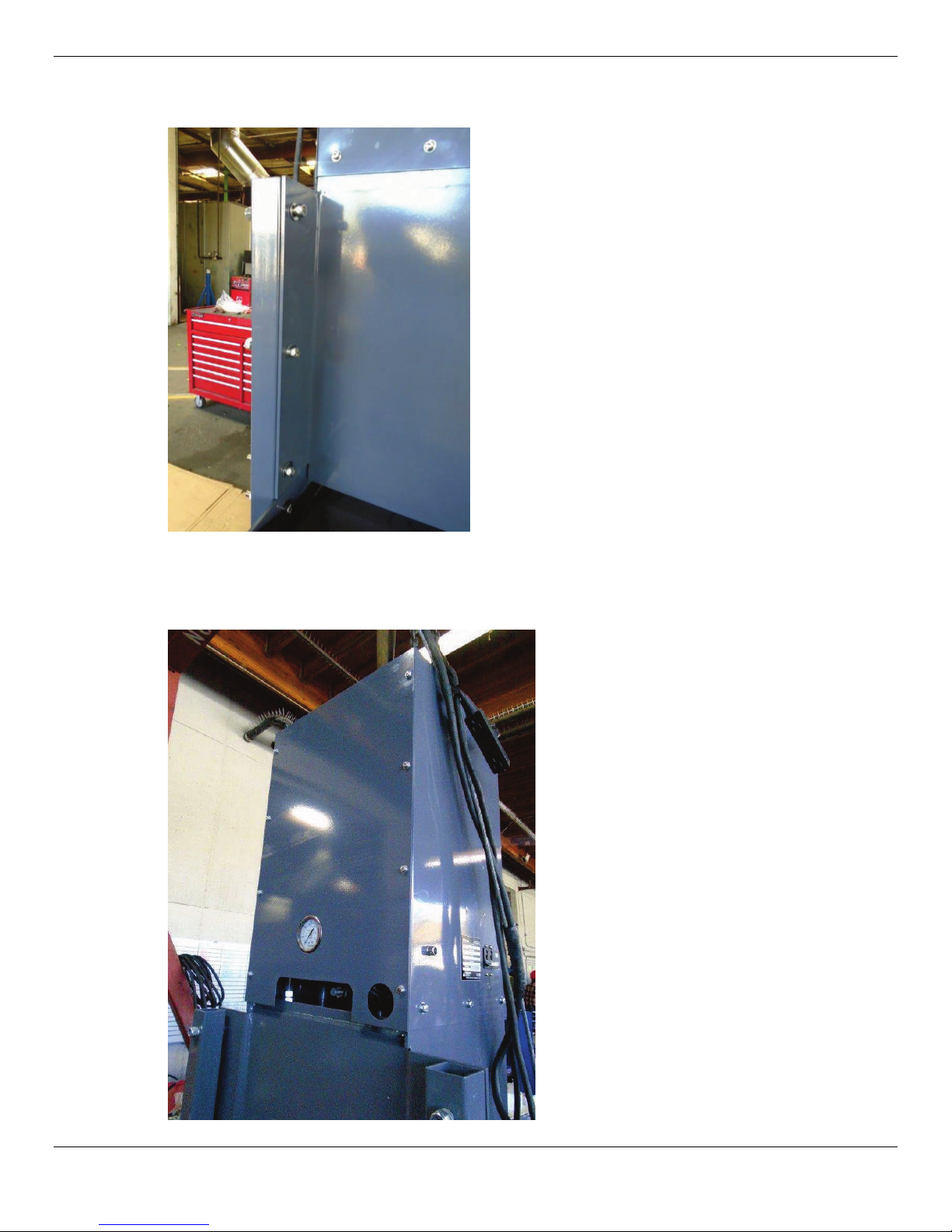

4. Bolt the enclosure to the vertical support bars on both sides. Use Screw A with one flat washer,
two ridged washers, and one nut.
The enclosure is now mounted to the base frame.
Connecting the equipment:
1. Remove the rear panel of the enclosure.

RP-50FC High-Speed Oil Filter Crusher 13 P/N 5900392 — March 2017 — Rev. B
2. Connect the cylinder hose to the pressure switch. Tighten the hose to the cylinder at the top.

RP-50FC High-Speed Oil Filter Crusher 14 P/N 5900392 — March 2017 — Rev. B
Tip Remove the top connector on the pressure switch, allowing it to be move around, thus
making it easier to connect the cylinder hose.
3. Screw down the pressure switch.
4. Connect the
anti-vibration pad and the motor at the same time to the back of the
enclosure.
Use Screw C and two washers per screw to attach the anti-vibration pad.

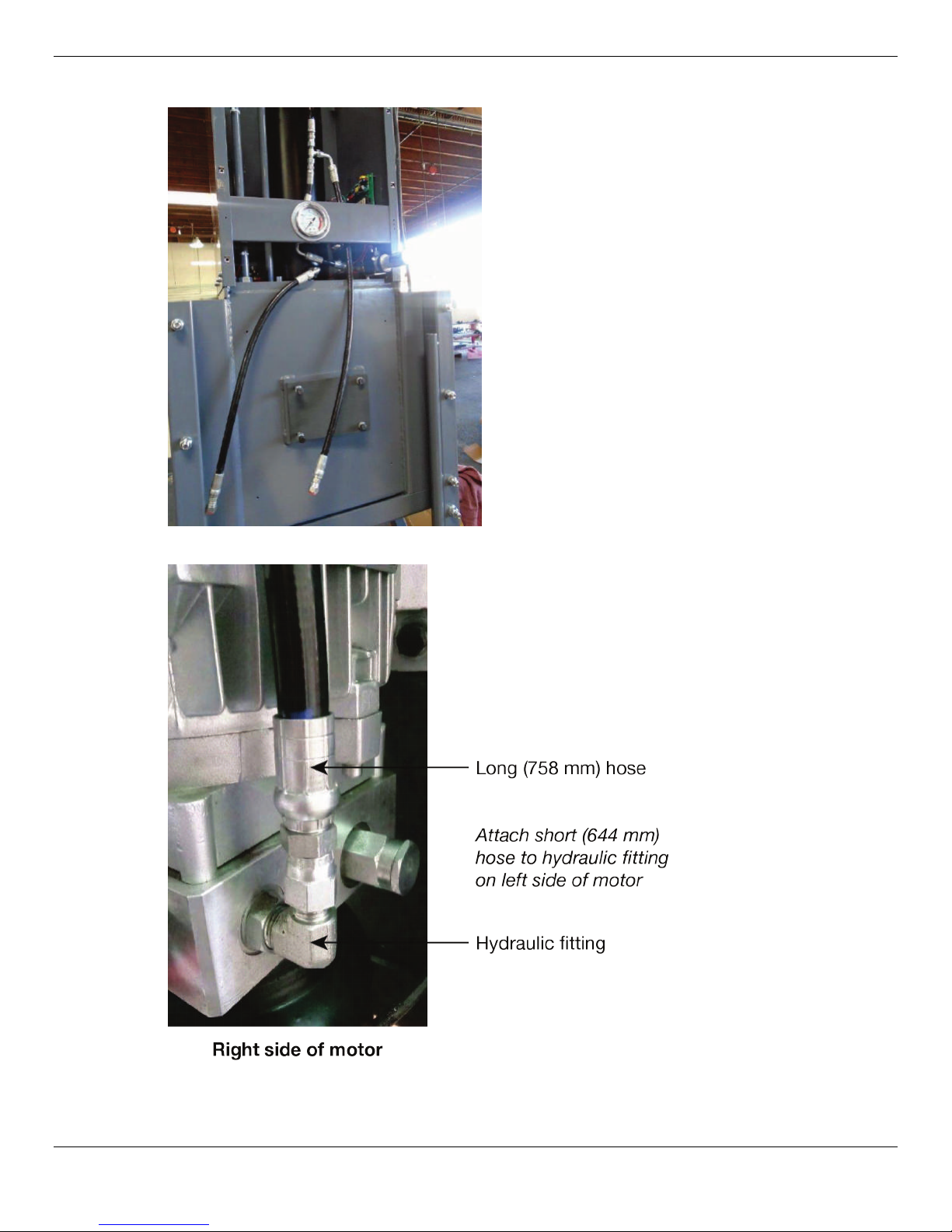

5. Attach the hydraulic fitting to the left and right sides of the motor.

RP-50FC High-Speed Oil Filter Crusher 15 P/N 5900392 — March 2017 — Rev. B
6. Attach the 664 mm hose (on the left below) to the hydraulic fitting on the left side of the motor.
7. Attach the 758 mm hose (on the left above) to the hydraulic fitting on the right side of the motor.

RP-50FC High-Speed Oil Filter Crusher 16 P/N 5900392 — March 2017 — Rev. B
8. Add hydraulic oil to the motor.
Attaching the wiring:
1. Wires labeled P6 and P7 connect to the control board and to terminals on the motor.

RP-50FC High-Speed Oil Filter Crusher 17 P/N 5900392 — March 2017 — Rev. B
2. The P5 wire attaches differently than P6 and P7.
Connect P5 first to
the bottom of the on/off breaker switch .
The shorter two wires connect to P5 on the control board (see image of control board above).

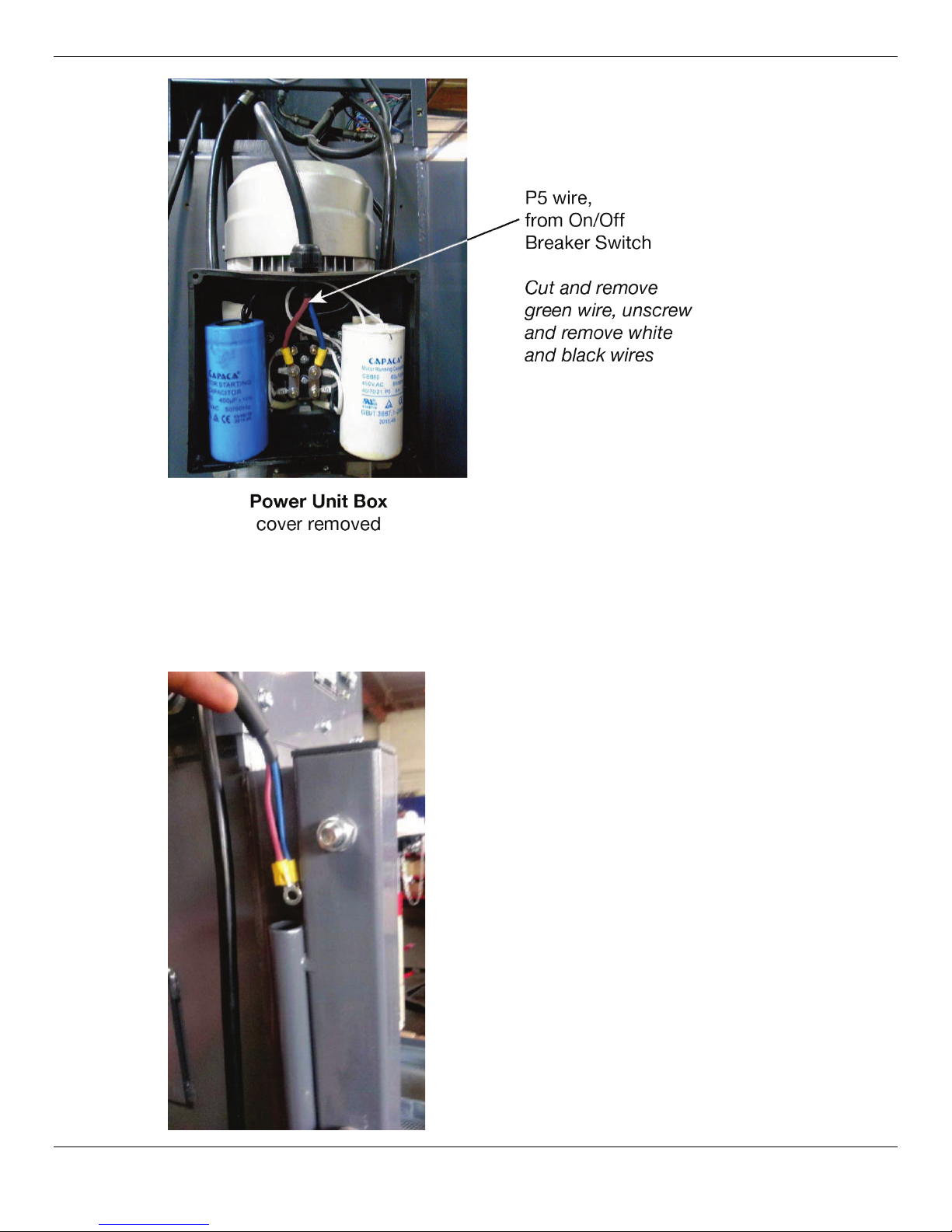

The longer red and blue wires connect to the power unit box on the power unit.
Note: You have to remove the screws on the power unit box to connect the P5 wire.

RP-50FC High-Speed Oil Filter Crusher 18 P/N 5900392 — March 2017 — Rev. B
3. Connect one end of the power cord to
the top of the on/off breaker switch (see above),
including the ground wire.
4. Slide the other end of the power cord through the top of the tube on the vertical support bar (part
of the frame) all the way through to the bottom, then connect it to an appropriate plug.

RP-50FC High-Speed Oil Filter Crusher 19 P/N 5900392 — March 2017 — Rev. B
5. Attach the plug on the end of the power unit cord to an appropriate power source.
6. Connect the foot pedal to the remote foot switches cable on the left side of the unit.
7. Install the left, right, and center grates into the reservoir base.
The unit is now ready for operation.

RP-50FC High-Speed Oil Filter Crusher 20 P/N 5900392 — March 2017 — Rev. B
Operation
The correct way to press any of the control buttons is to firmly press and then release. Pressing
and
holding
the control buttons can cause damage to the unit.
There are three control buttons on the RP-50FC:
•Start button, green. Activates the automatic pressing cycle. When pressed, the press ram
moves down until it contacts the item you are crushing. The press ram automatically stops when it
reaches maximum crushing pressure, after which it automatically retracts until it returns to the
starting position.
•Stop button, red. Stops all movement of the press ram if it is in use. This is your emergency
stop.
•Reverse button, blue. Returns the press ram to its original starting position. Do not hold it in
when retracting the press ram.
⚠WARNING Avoid off-center loads. If the press ram seems to be laboring more than usual or the
filter/can is unusually hard to press, stop operation. Do not operate the press ram if
the filter/can tilts or binds during the downward movement of the press head.
To operate the CB-30:
1. Place an approved waste oil container under the oil drain.
2. Lift the sliding door firmly and place an empty filter or paint can in the center of chamber, open end
down.
⚠WARNING Grip the sliding door firmly at all times when placing or retrieving filters in the
chamber. Never attempt to operate the crusher with the door open.
3. Close the sliding door.
Important: You cannot crush an item until the sliding door is fully closed.
4. Press and release the green button; an automatic cycle begins.
Once the automatic cycle starts, step away from the unit.
The press ram will extend downwards, crush the item, then automatically retract to the original
starting position and shut off.
5. To remove the crushed filter/can, open the sliding door and pull out the crushed item.
Do not get distracted. Be very careful not to scratch, cut or puncture your skin on the filter’s sharp
edges.
⚠WARNING Do not attempt to remove a stuck filter or paint can until you stop the automatic
pressing cycle using the Red button.
6. Put the breaker switch (on the top left side of the unit) to the Off (down) position when the unit is
not in use.
