Rapidline Boost Plus FXBSTPBTB User manual

1

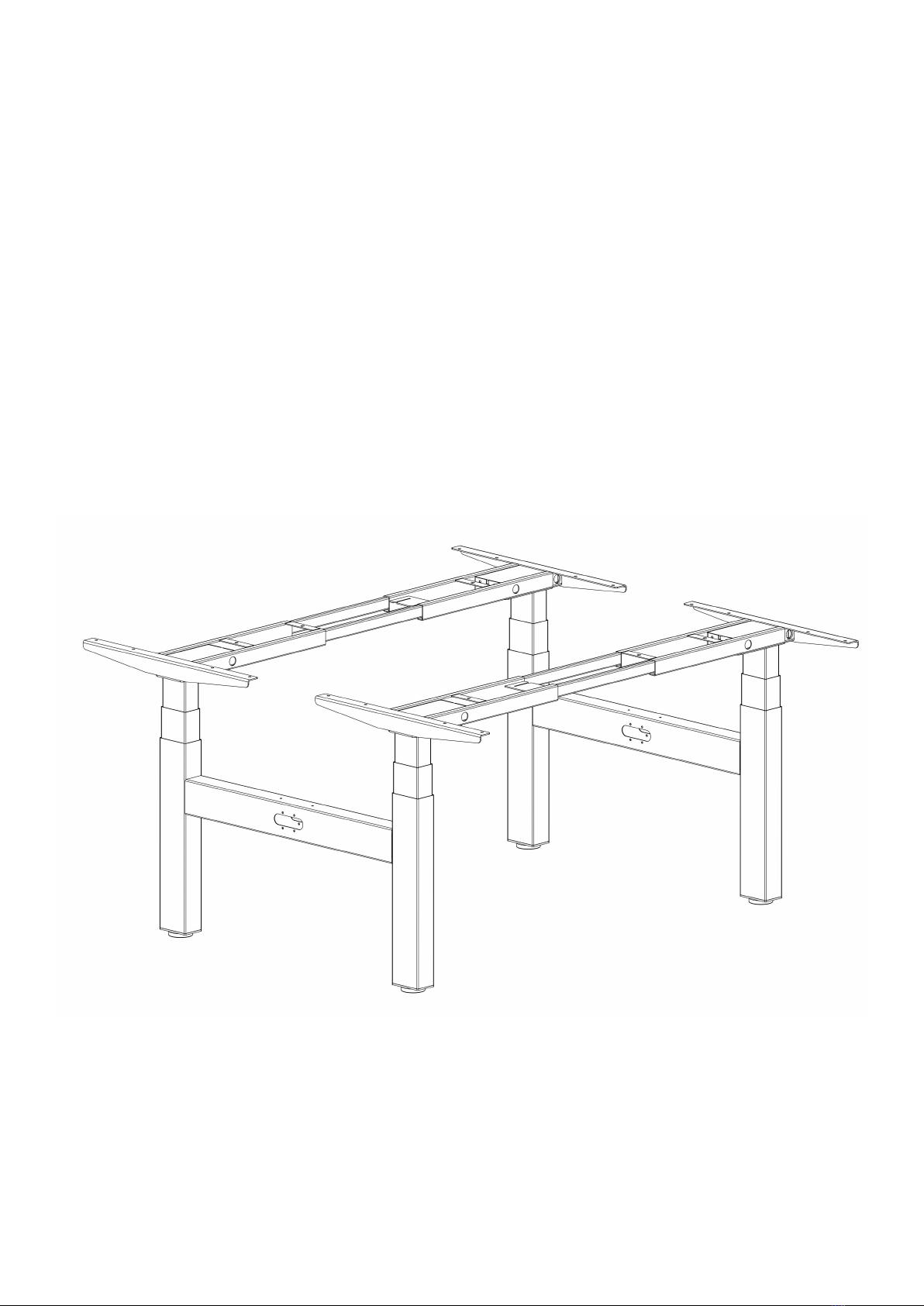

Back to back desk frame
Instruction Manual
Table of Contents
Component parts ............................................................................................................................................ 2
Assembly Instructions ……................................................................................................................................ 3
Use Instructions ………….............................................................................................................................. 10
Troubleshooting ……….................................................................................................................................... 12
Important Safety Instructions ………………….................................................................................................... 13
Advanced Programming …………………............................................................................................................ 14

2

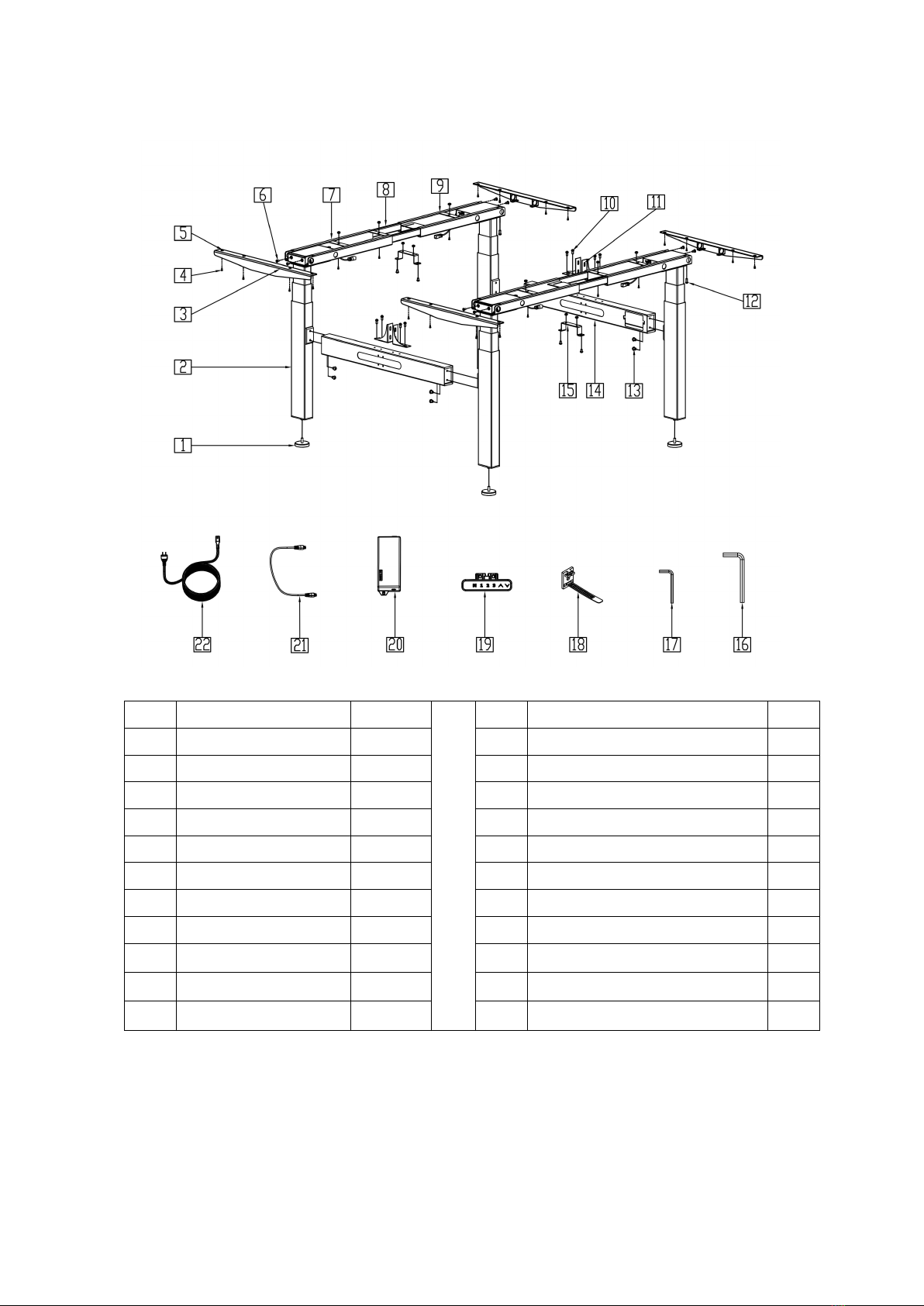

Component parts
NO.
Component Name
PCS
NO.
Component Name
PCS
1
Leveling pad
4
12
Bolts M6x16
10
2
Lifting Column
4
13
Bolts M8x10
9
3
Side Bracket
4
14
Connected beam
2
4
ST4x20
40
15
Centre bracket
2
5
Rubber pad
24
16
Allen Wrench(5mm)
1
6
Bolts M6x12
10
17
Allen Wrench(4mm)
1
7
Top frame -1
2
18
Cable Tie
10
8
Centre rails
4
19
Handset
2
9
Top frame-2
2
20
Control Box
2
10
Bolts M6x10
14
21
Motor cable
4
11
Screen brackets
4
22
Power cord
2

3
Assembly Instructions
Step 1
Loosen the pre-installed bolts and Adjust the length of the top frame to match the size of the table top.
Step 2
Inset the lifting column to the top frame.
- First fix 2pcs screws M6x12 like Bdisplayed
- And then tighten the pre-installed bolts like Cdisplayed
A
c
B

4
Step 3
Install the side brackets with Screws 8 pcs M6x16,
Step 4
Install the leveling pads

5

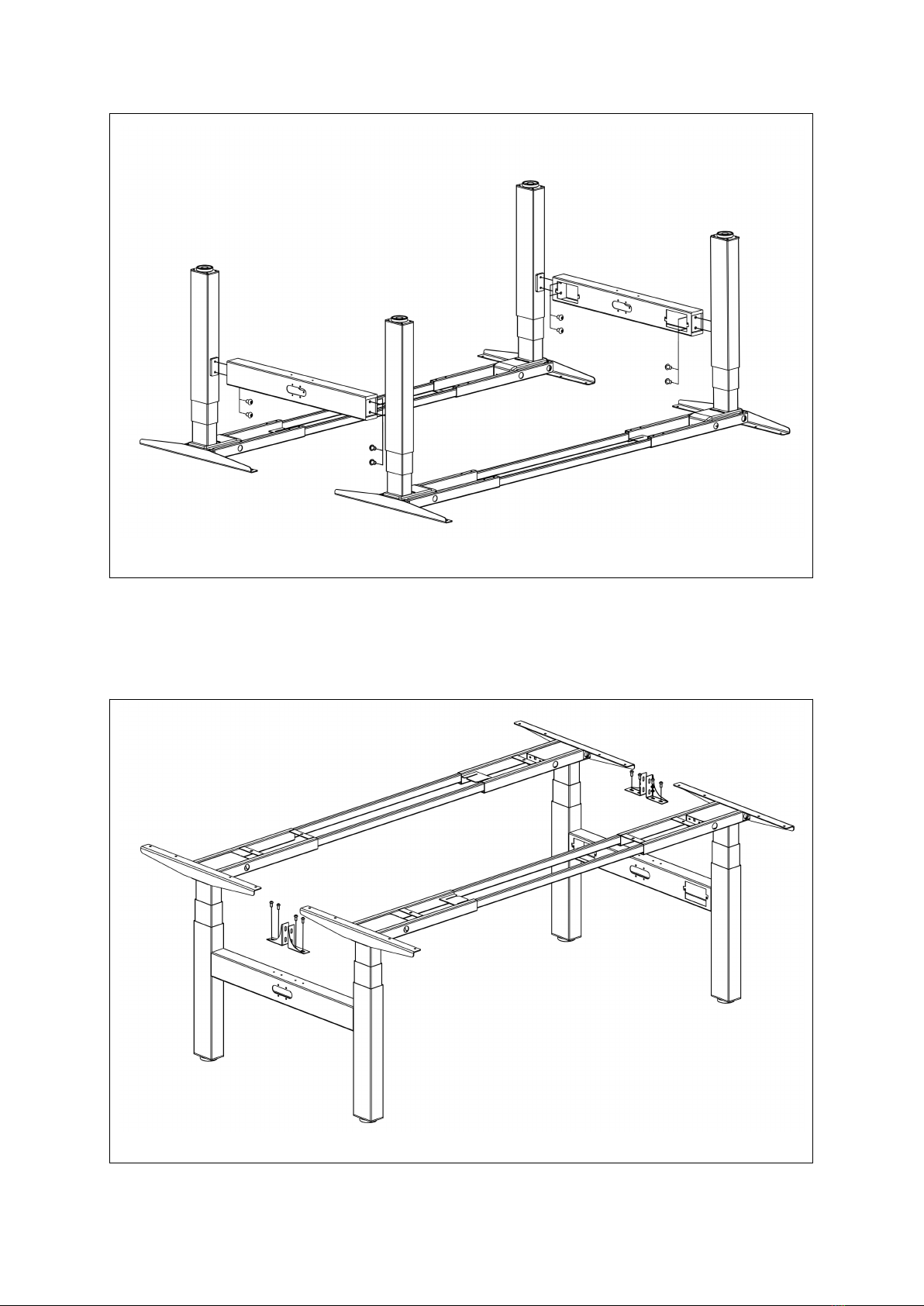

Step 5
Install the connected pipe with 8 pcs screws M8x10
Step 6
Fix the screen brackets with 8 pcs screws M6x10.
If you have a cable tray,please refer to the page 7 for a cable tray installation before you do the
following assembly.

6
Step 7
Fix the table top with 21 pcs screws ST4x20 ,Fix the handset with 2 pcs screws with ST4x20
Install the centre bracket with 2 pcs screws M6x10
Step 8
Mount the control box to the frame,connected the cables well.
Zipped the cables with cable tie.

7
Cable tray installation
-Fix the cable tray with 8 pcs M6x10 screws to the desk frame.

8

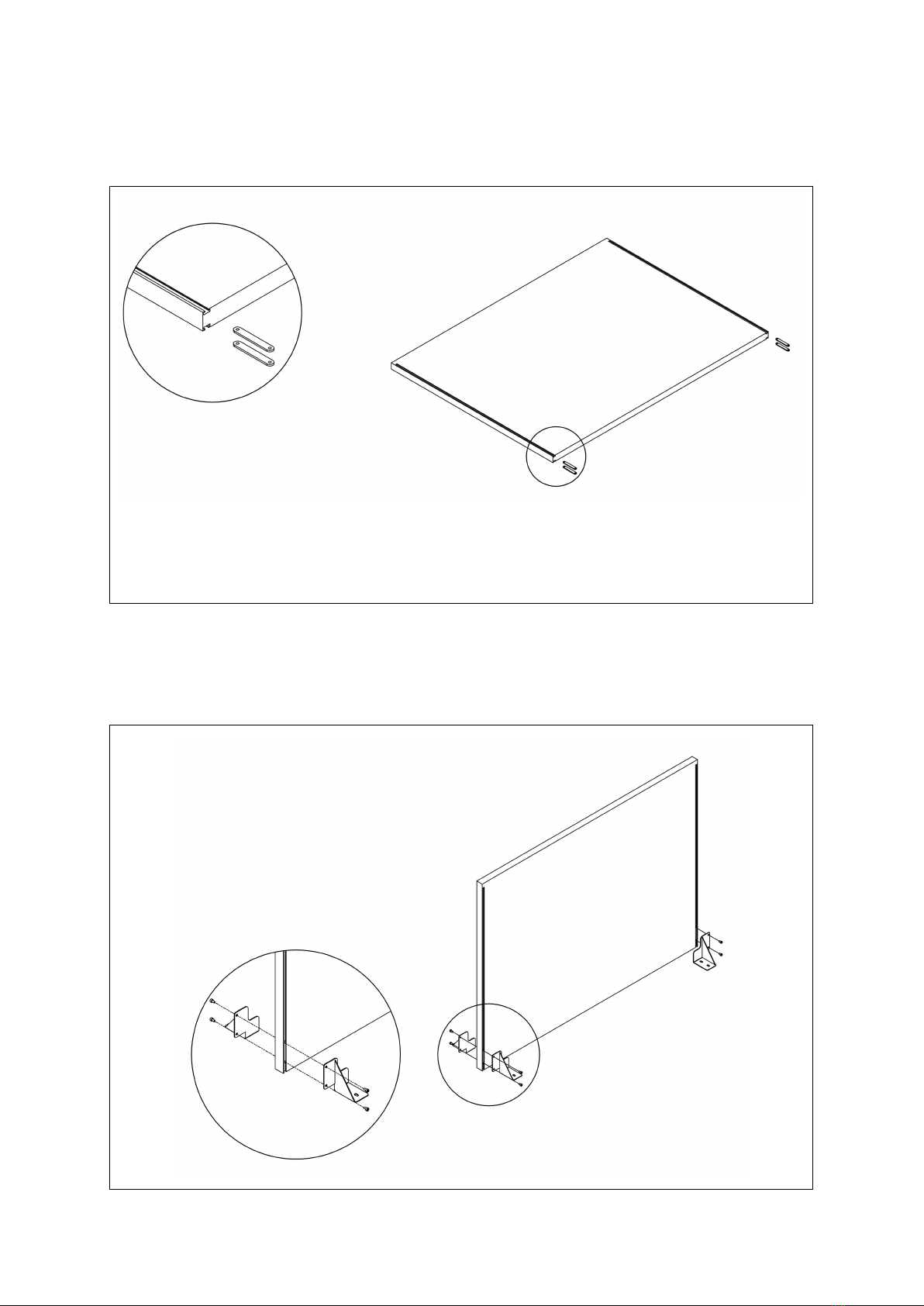

Screen panel installation
Step 1
-Insert the tapped plates to the screen panel
Step 2
- Install the brackets to the panel with 8 pcs M5x6 screws.

9
Step 3
- Fix the panel to the desk frame with 8 pcs M6x10 screws.

10
Use Instructions
A. Parts list
1. Lifting Column ……................................................................................................................................. 2 pcs
2.Handset............................................................................................................................ 1 pcs
3. Control Box ……...................................................................................................................................... 1 pcs
4. Motor Cable …................................................................................................................................... 2 pcs
5. Power Cord …………............................................................................................................................... 1 pcs

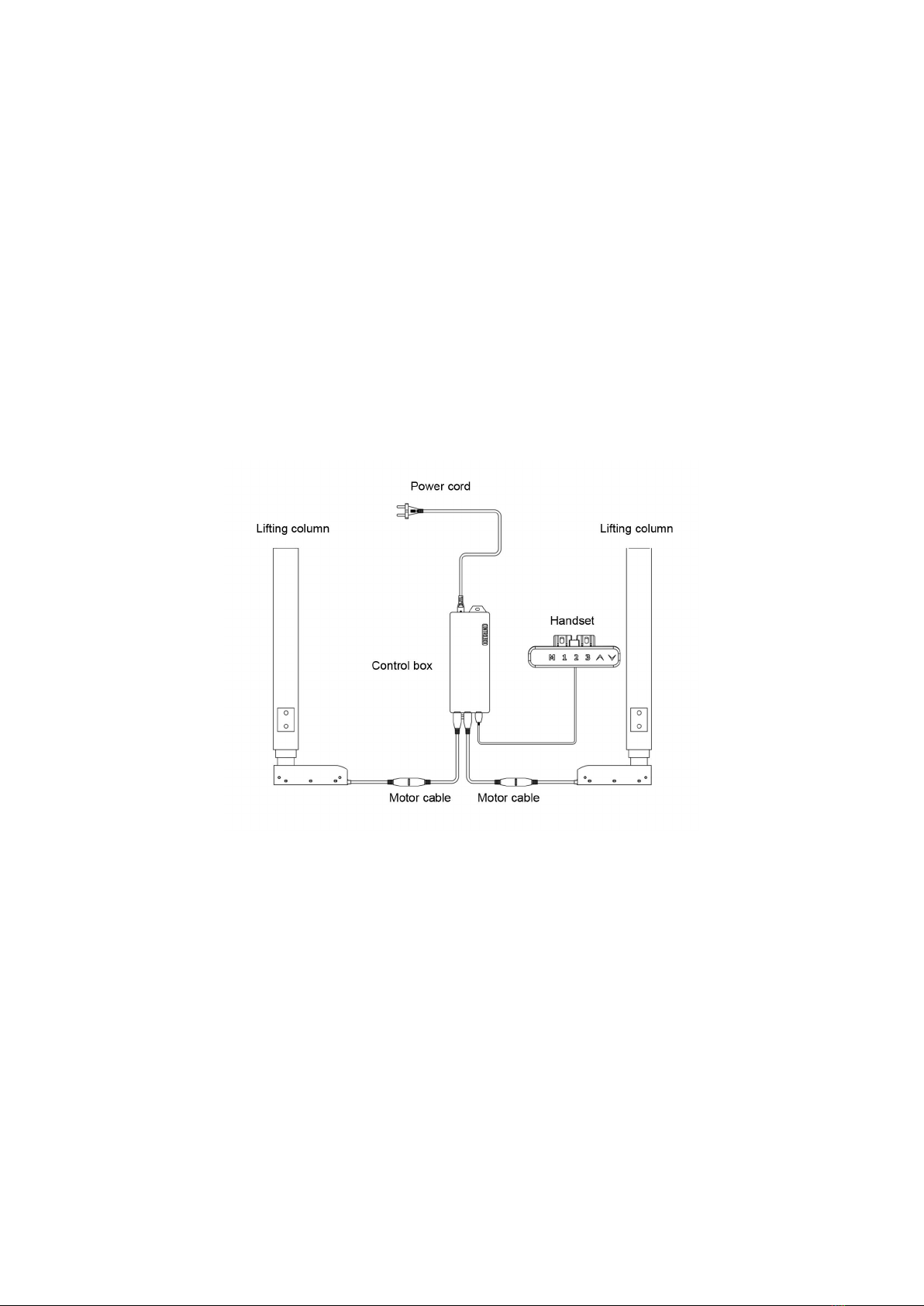

Connect the cables as shown in the photo below:
B. Technical Specifications
Input: 100-240VAC
Output Power: 29VDC
Maximum accepted weight: 120 kg (including tabletop weight)
Maximum speed: 38 mm/s
Minimum height: 620mm
Travel distance: 650 mm
Operating temperature: 0-40°C
Duty Cycle: Max.10% or 2 min on and 18 min pause
