Rapidline Boost Plus Single Sided Desk Workstation User manual

1

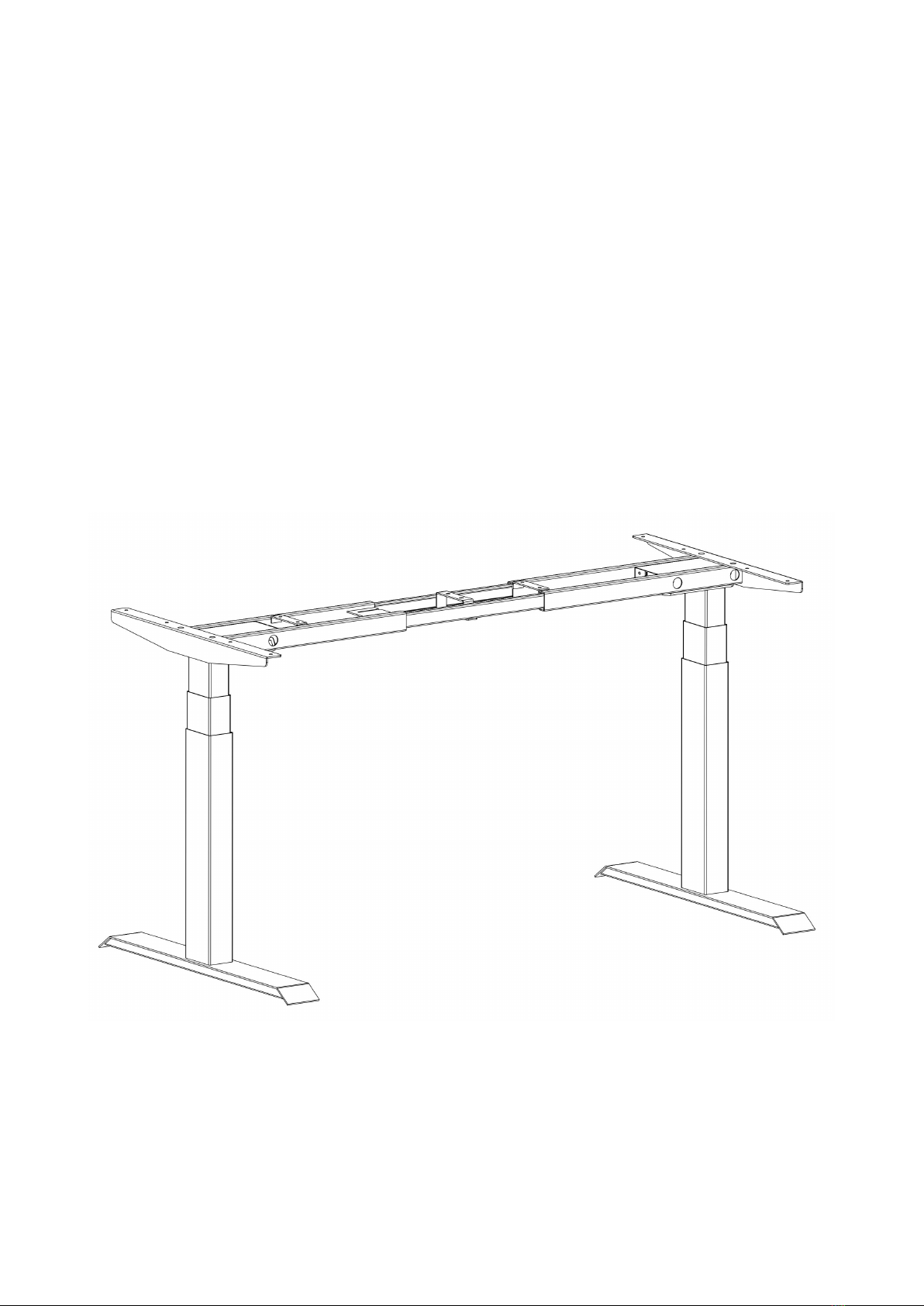

Single Sided Desk Workstation
Instruction Manual
Table of Contents
Component parts ............................................................................................................................................ 2
Assembly Instructions ……................................................................................................................................ 3
Use Instructions ………….................................................................................................................................... 9
Troubleshooting ……….................................................................................................................................... 11
Important Safety Instructions ………………….................................................................................................... 12
Advanced Programming …………………............................................................................................................ 13

2
Component parts
NO.
Component Name
PCS
NO.
Component Name
PCS
1
Leveling pads
4
11
Center rails
2
2
Table feet
2
12
Top frame-2
1
3
Lifting column( right)
1
13
Lifting column( left)
1
4
Bolt: M6x12
9
14
Bolt: M6x16
9
5
Screw:ST4x20
20
15
Allen Wrench(4mm)
1
6
Side brackets
2
16
Cable Tie
5
7
Rubber pad
14
17
Handset
1
8
Top frame-1
1
18
Control Box
1
9
Bolt: M6x10
3
19
Motor cable
2
10
Centre bracket
1
20
Power cord
1

3
Assembly Instructions
Step 1
Loosen the pre-installed bolts and Adjust the length of the top frame to match the size of the table top.
Step 2
Inset the lifting column to the top frame.
- First fix lifting column with 4pcs screws M6x12 like Bdisplayed
- And then tighten the pre-installed bolts like Cdisplayed
A
c
B

4

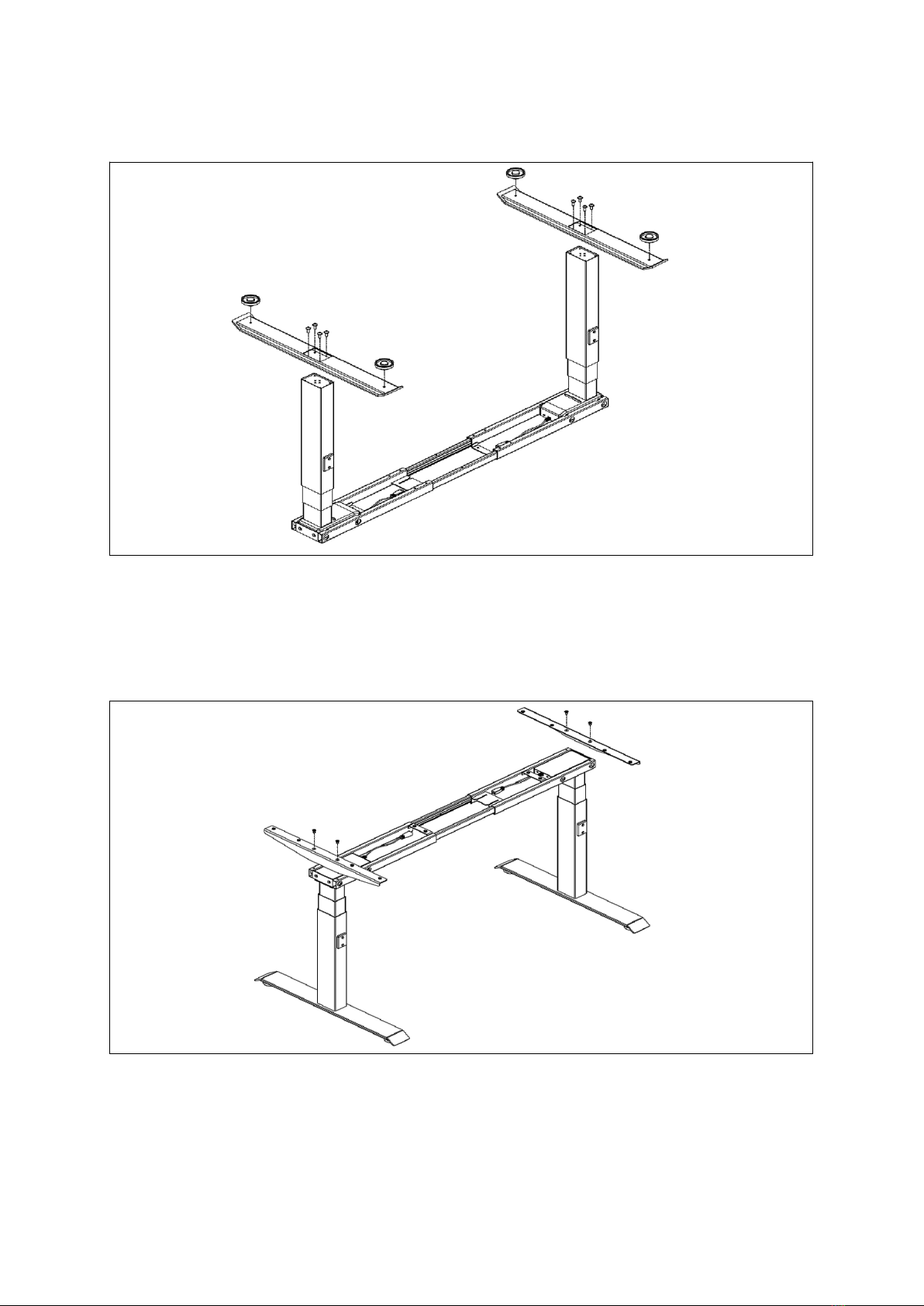

Step 3
Install the two table feet with Screws 8 pcs M6x16,
Install the 4 pcs leveling pads
Step 4
Install the two side brackets with Screws 4 pcs M6x12,

5

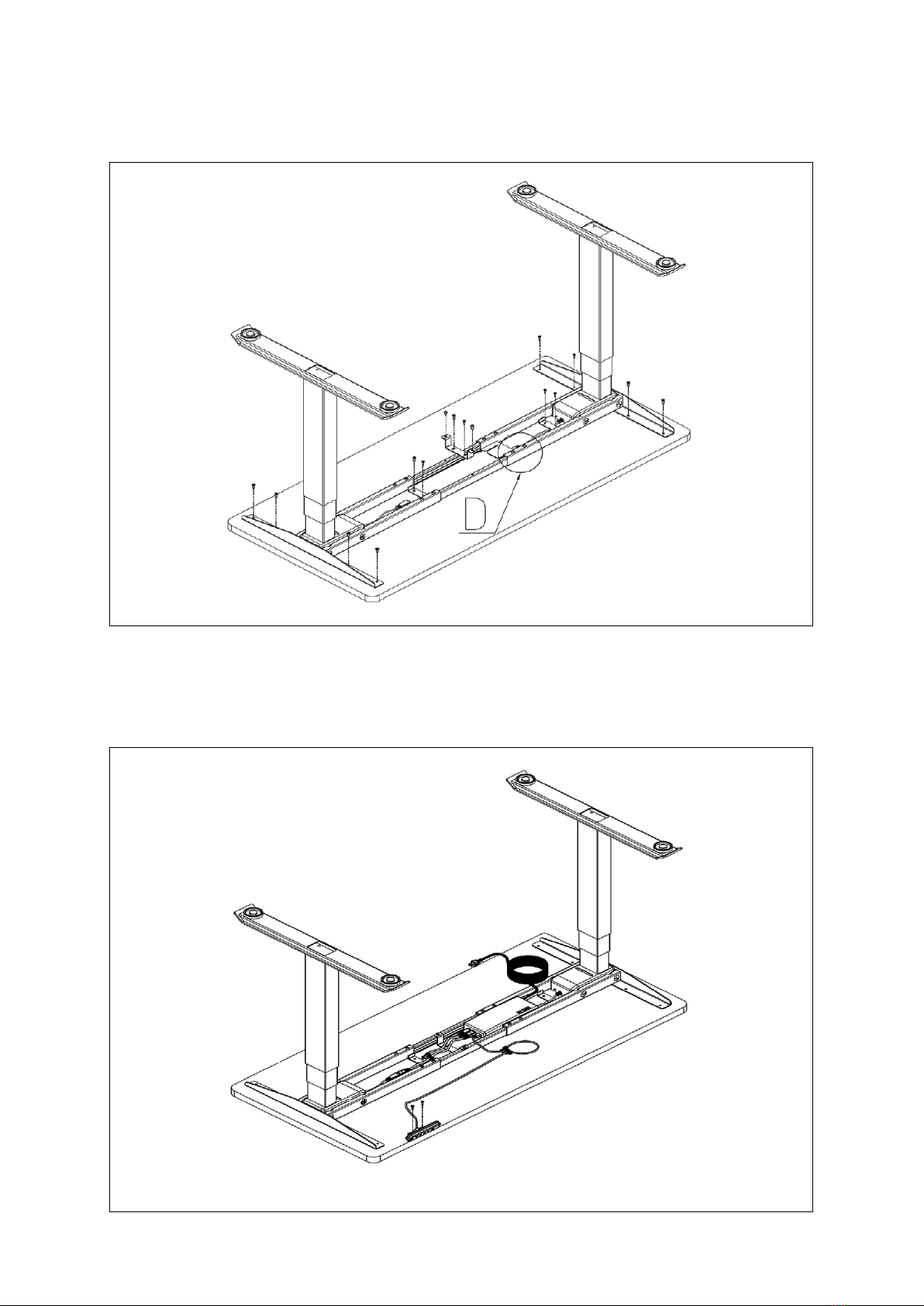

Step 5
Mount the tabletop and fix it with 14 pcs screws ST4x20; Tighten the screws like D display to fix the top
frame.Fix the centre bracket with 2 pcs screws M6x10
Step 6
Mount the control box to the frame;Fix the handset with 2 pcs screws ST4x20
Zipped the cables with cable tie.

6
Cable tray installation
Step 1
-Fix the cable tray to the cable tray arms with 8 pcs M6x10 screws.
Step 1
- Install the U brackets to the desk frame with 4 pcs M8x10 screws.
- Mount the cable tray to the desk frame and fix it with 6 pcs M6x10 screws

7
Screen panel installation
Step 1
-Insert the tapped plates to the screen panel
Step 2
- Install the brackets to the panel with 8 pcs M5x6 screws.

8
Step 3
- Fix the panel to the desk frame with 10 pcs M6x10 screws.

9
Use Instructions
A. Parts list
1. Lifting Column ……................................................................................................................................. 2 pcs
2.Handset............................................................................................................................ 1 pcs
3. Control Box ……...................................................................................................................................... 1 pcs
4. Motor Cable …................................................................................................................................... 2 pcs
5. Power Cord …………............................................................................................................................... 1 pcs
Connect the cables as shown in the photo below:
B. Technical Specifications
Input: 100-240VAC
Output Power: 29VDC
Maximum accepted weight: 120 kg (including tabletop weight)
Maximum speed: 38 mm/s
Minimum height: 620mm
Travel distance: 650 mm
Operating temperature: 0-40°C
Duty Cycle: Max.10% or 2 min on and 18 min pause
Control Panel Operation and Programming Instructions

10
1. Make sure all components are connected correctly (control box, control panel, power cable and
connecting cable, lifting columns).
2. Connect the power cable to a 110/240VAC outlet. After the control panel will display "62.0" sign for a
few seconds, the system is turn on and the desk is ready for use.
3. Up and Down
Press and hold the "UP" button to move up the desk to the desired height. The desk will stop when the
button is released.
Press and hold the "DOWN" button to lower the desk to the desired height. The desk will stop when the
button is released.
4. Memory Settings
After adjusting the desk height using the "UP"/"DOWN" buttons, press the "M" button and "S -" sign will
be displayed on the control panel. Then press the desired button from 1 to 4 to assign the current height to
a number on the keypad. Can be saved and memorized 3 different heights.
Moving the desk to a preset height can be done by pressing the corresponding button from 1 to 3.
During operation you can stop the desk by pressing one of the "UP"/"DOWN" buttons.
5. Keypad Lock
To lock: Press and hold "UP" and "DOWN" buttons for 5 seconds until "LOC" sign appears on the display,
indicating that the system is locked.
To unlock: Press the "UP" and "DOWN" buttons for 5 seconds at a same time until the "LOC" sign
disappears and the height of the desk is displayed, indicating that the system is ready to be adjusted again.
6. Reset
When the system is experiencing a problem or the control panel displays "RES", the system must be reset.
Press and hold the "DOWN" button throughout the process. After 5 seconds, the desk will lower slightly
until it reaches its lowest height, then rises slightly and the display changes back to the numeric height
setting.After the desk stops, the reset process is successfully completed.
