Raritan DRX Series User manual

Environmental Sensors and Actuators
Guide
Revision 1C
Copyright © 2018 Raritan, Inc.
SENSOR-1C-v3.4.20-E
August 2018
255-90-0003-00

This document contains proprietary information that is protected by copyright. All rights reserved. No
part of this document may be photocopied, reproduced, or translated into another language without
express prior written consent of Raritan, Inc.
© Copyright 2018 Raritan, Inc. All third-party software and hardware mentioned in this document are
registered trademarks or trademarks of and are the property of their respective holders.
FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a commercial installation. This equipment generates, uses, and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation of this equipment in a residential
environment may cause harmful interference.
VCCI Information (Japan)
Raritan is not responsible for damage to this product resulting from accident, disaster, misuse,
abuse, non-Raritan modification of the product, or other events outside of Raritan's reasonable
control or not arising under normal operating conditions.
If a power cable is included with this product, it must be used exclusively for this product.

iii
Contents
What's New in the Environmental Sensors and Actuators Guide vi
Products Supporting Raritan Sensor Packages viii
Chapter 1 Introduction to Environmental Sensor Packages 1
Sensor Overview............................................................................................................................... 2
Sensor Comparison.......................................................................................................................... 3
Sensor Support Guidelines............................................................................................................... 3
Chapter 2 DX2 Series 4
Available DX2 Sensor Packages....................................................................................................... 5
DX2-DH2C2 Door Handle Controller................................................................................................ 6
Bracket Installation ............................................................................................................... 8
DX2 Temperature and Humidity Sensors ........................................................................................ 9
DX2 LED States .................................................................................................................... 10
DX2-CC2 Contact Closure Sensors................................................................................................ 11
Connecting Detectors/Switches to DX2-CC2....................................................................... 13
Configuring DX2-CC2's Normal State ................................................................................. 15
DX2-CC2 Contact Closure Sensor LEDs.............................................................................. 16
Cascading DX2 Sensor Packages...................................................................................................17
Chapter 3 DX Series 19
Available DX Sensor Packages....................................................................................................... 20
DX-D2C6.......................................................................................................................................... 21
DX-PD2C5 ....................................................................................................................................... 24
DX-PIR ............................................................................................................................................ 27
DX-D4C3.......................................................................................................................................... 29
DX-VBR ........................................................................................................................................... 32
Making Connections ....................................................................................................................... 34
Pre-installed DX Brackets ................................................................................................... 34
Connecting Detectors/Actuators to DX................................................................................ 34
Cascading DX Sensor Packages .......................................................................................... 36

Contents
iv
Adjusting Dip Switches................................................................................................................... 38
Chapter 4 DPX3 Series 39
Available DPX3 Sensor Packages ..................................................................................................39
DPX3 Temperature and Humidity Sensors .................................................................................... 40
DPX3 LED States.................................................................................................................. 41
Cascading DPX3 Sensor Packages ................................................................................................ 41
Chapter 5 DPX2 Series 43
Available DPX2 Sensor Packages ..................................................................................................44
DPX2 Temperature and Humidity Sensors .................................................................................... 45
Connection and Disconnection....................................................................................................... 46
Connecting a DPX2 Sensor Cable........................................................................................ 46
Disconnecting a DPX2 Sensor.............................................................................................. 48
Connecting a DPX2 Sensor Package to DX2, DX or DPX3.............................................................. 49
Chapter 6 DPX Series 51
Available DPX Sensor Packages .................................................................................................... 52
DPX Temperature and Humidity Sensors ...................................................................................... 53
DPX Air Flow Sensors..................................................................................................................... 54
DPX Differential Air Pressure Sensors.......................................................................................... 54
Connecting Tubes ................................................................................................................55
Connecting a DPX Sensor Package to an Air Pressure Sensor.......................................... 56
DPX Contact Closure Sensors........................................................................................................ 57
Connecting Detectors/Switches to DPX-CC2-TR ................................................................ 59
Configuring a DPX Contact Closure Sensor ........................................................................ 61
Contact Closure Sensor LEDs ............................................................................................. 62
DPX Floor Water Sensors............................................................................................................... 63
Floor-mounted Water Sensor.............................................................................................. 63
Cable Water Sensor ............................................................................................................. 65

Contents
v
Chapter 7 Sensor-Mixing Connections 68
Cascading DX2, DX and DPX3 Sensor Packages............................................................................ 68
Mixing DPX, DPX2, DPX3, DX and DX2 Sensor Packages .............................................................. 69
Appendix A Supported Maximum Sensor Distance 74
Appendix B Supported Maximum Number of Sensors and Actuators 77
Appendix C Sensor Measurement Accuracy 78
DPX Sensor Accuracy ..................................................................................................................... 78
DPX2 Sensor Accuracy ................................................................................................................... 78
DX2 Sensor Accuracy ..................................................................................................................... 78
Appendix D Sensor Firmware Update 79
Appendix E Sensor Naming Conventions 80
Index 83

vi
The following sections have changed or information has been added to
the Environmental Sensors and Actuators Guide based on enhancements
to the Raritan environmental sensor packages and/or user
documentation.
Products Supporting Raritan Sensor Packages (on page viii)
Introduction to Environmental Sensor Packages (on page 1)
Sensor Overview (on page 2)
Sensor Comparison (on page 3)
Sensor Support Guidelines (on page 3)
DX2 Series (on page 4)
Available DX2 Sensor Packages (on page 5)

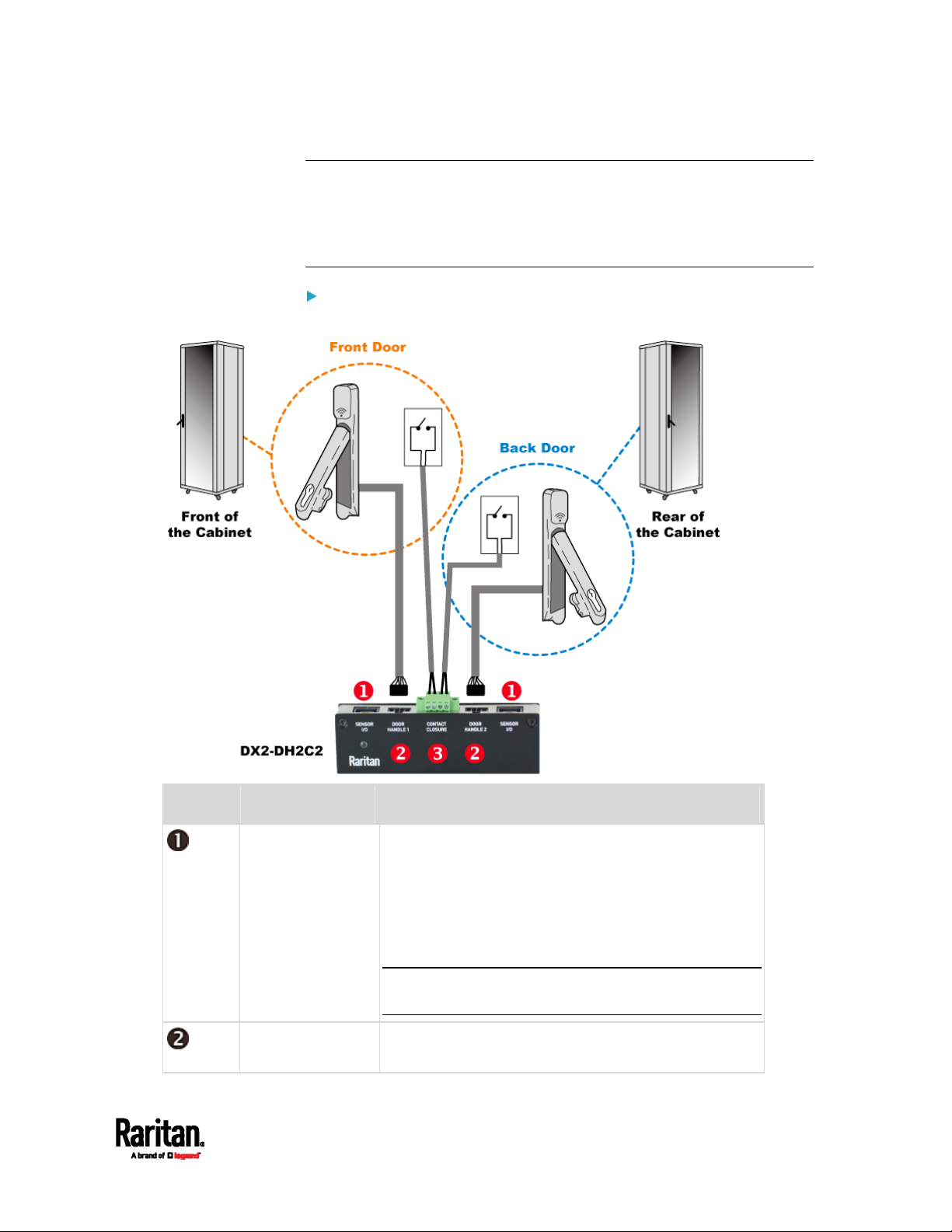

DX2-DH2C2 Door Handle Controller (on page 6)
Bracket Installation (on page 8)
DX2 Temperature and Humidity Sensors (on page 9)
DX2 LED States (on page 10)
DX2-CC2 Contact Closure Sensors (on page 11)
Connecting Detectors/Switches to DX2-CC2 (on page 13)
Configuring DX2-CC2's Normal State (on page 15)
DX2-CC2 Contact Closure Sensor LEDs (on page 16)
Cascading DX2 Sensor Packages (on page 17)
DX Series (on page 19)
Available DX Sensor Packages (on page 20)
DX-D2C6 (on page 21)
DPX3 Temperature and Humidity Sensors (on page 40)
Cascading DPX3 Sensor Packages (on page 41)
DPX2 Temperature and Humidity Sensors (on page 45)
DPX Temperature and Humidity Sensors (on page 53)
DPX Contact Closure Sensors (on page 57)
Connecting Detectors/Switches to DPX-CC2-TR (on page 59)
Configuring a DPX Contact Closure Sensor (on page 61)
Contact Closure Sensor LEDs (on page 62)
DPX Floor Water Sensors (on page 63)
What's New in the Environmental
Sensors and Actuators Guide

What's New in the Environmental Sensors and Actuators Guide
vii
Sensor-Mixing Connections (on page 68)
Cascading DX2, DX and DPX3 Sensor Packages (on page 68)
Mixing DPX, DPX2, DPX3, DX and DX2 Sensor Packages (on page 69)
Supported Maximum Number of Sensors and Actuators (on page 77)
Sensor Measurement Accuracy (on page 78)
DX2 Sensor Accuracy (on page 78)
Sensor Firmware Update (on page 79)

viii
The following products support Raritan environmental sensor packages.
For detailed information, see
Sensor Support Guidelines (on page 3).
Raritan products:
PX2 series power distribution units (PDUs)
PX3 series PDUs, including PX3-iX7
EMX asset management devices
PX3TS transfer switches, including PX3TS-iX7
Branch Circuit Monitor 1 (BCM1)
Branch Circuit Monitor 2 (BCM2), PMC and PMMC series, including:
BCM2-iX7
PMC-iX7
PXE series PDUs
Legrand products:
Legrand PDUs
Products Supporting Raritan Sensor
Packages

1
Raritan has five types of environmental sensor packages: DPX, DPX2,
DPX3, DX and DX2 series.
DPX series is the first generation while DX2 series is the latest
generation.
For a list of Raritan and Legrand products that support all of Raritan's
sensor packages, see
Products Supporting Raritan Sensor Packages
(on page viii).
Tip: You can also refer to your product's online help (or user guide) for
sensor support information. Online help is accessible from your PDU,
EMX or BCM application, or from Raritan's
Support page
(
http://www.raritan.com/support/ ).
In This Chapter
Sensor Overview..........................................................................................2
Sensor Comparison.....................................................................................3
Sensor Support Guidelines .........................................................................3
Chapter 1 Introduction to Environmental
Sensor Packages

Chapter 1: Introduction to Environmental Sensor Packages
2
Sensor Overview
Diverse generations of Raritan sensor packages:
A Raritan environmental sensor package may have more than one
sensor or actuator function. For details, see:

Available DX2 Sensor Packages (on page 5)

Available DX Sensor Packages (on page 20)

Available DPX3 Sensor Packages (on page 39)

Available DPX2 Sensor Packages (on page 44)

Available DPX Sensor Packages (on page 52)
Sensors versus actuators:
A sensor can detect the environmental condition, such as temperature,
humidity, and water presence. All of Raritan sensor package generations
support sensor functions.
An actuator can control a system or mechanism, such as opening and
closing a door handle. Only DX2 and DX series support actuator
functions.
Number of supported sensors/actuators per Raritan/Legrand
product:
A sensor port on a Raritan or Legrand product, such as a PDU, can
support up to 32 sensors or actuators. For information on how to count
the number of sensors/actuators, see
Supported Maximum Number of
Sensors and Actuators
(on page 77).
Supported maximum cabling length:
The maximum cabling length for DPX2, DPX3, DX or DX2 sensor
packages connected to a Raritan or Legrand product should not exceed
98 feet (30 meters).
Exception: DX2-DH2C2 Door Handle Controller (on page 6) and
DX-PD2C5 (on page 24).
For supported DPX cabling length, see Supported Maximum Sensor
Distance
(on page 74).
Suggested interval between connections (or disconnections) of
diverse sensor package connections:
For proper operation, wait for 15~30 seconds between each connection
operation or each disconnection operation of environmental sensor
packages.

Chapter 1: Introduction to Environmental Sensor Packages
3
Sensor Comparison
Sensor
family
Connection
interface
Support for
sensor daisy
chain
Chain position
availability*
Support for a
Raritan sensor
hub
Automatic
sensor firmware
update
DPX RJ-12 ** (1) / (2)
DPX2 RJ-12 *** (2)
DPX3 RJ-45 (2)
DX RJ-45 (2)
DX2 RJ-45 (2)
* Chain position availability column indicates whether a sensor's position
in a sensor daisy chain is available or not. This information is retrievable
from the Raritan or Legrand product where the sensor is connected,
such as PX3 or Legrand PDU.
** Most DPX sensor packages do NOT support daisy chaining except the
differential air pressure sensor, DPX-T1DP1.
*** DPX2 sensors can be daisy chained via one DPX2 sensor cable, but
you cannot daisy chain multiple DPX2 sensor cables.
(1) The first generation of sensor hub DPX-ENVHUB4 is supported by
"DPX" sensor packages only.
(2) The newer sensor hub DPX3-ENVHUB4 is supported by all Raritan
sensor packages. To connect DPX and DPX2 sensor packages to this hub,
the RJ-12 (female) to RJ-45 (male) adapter cable (P/N: 254-01-0036-00)
shipped with DPX or DPX2 is required.
Sensor Support Guidelines
The Raritan and Legrand products listed in the section Products
Supporting Raritan Sensor Packages
(on page viii) support all types of
Raritan environmental sensor packages except for the following
restriction.
Only PX3, PX3TS and Legrand PDUs support
DX-PD2C5 (on page 24)
and
DX2-DH2C2 Door Handle Controller (on page 6).

4
A DX2 sensor package consists of two RJ-45 ports and sensors and/or
terminals.
Different DX2 sensor packages have a different number of sensors,
actuators and/or terminals.
Important: A DX2 contact closure sensor does NOT support any
water detection sensor, including Raritan's DPX water sensors --
DPX-WSF and DPX-WSC series.
DX2 series works with Raritan's DPX3 sensor hub 'DPX3-ENVHUB4', but
not with the DPX sensor hub 'DPX-ENVHUB4'.
With standard network patch cables, you can:
Connect a DX2 sensor to a Raritan or Legrand product with the
"RJ-45" SENSOR port, such as PX3 or Legrand PDU.
Exception: For a Raritan PDU or EMX with an "RJ-12" SENSOR port,
an RJ-12 to RJ-45 adapter cable (part number: RJ12M-RJ45M) is
needed, which you can request from Raritan.
Daisy chain DX2 sensor packages.
Warning: Do NOT use a crossover cable for connection.
In This Chapter
Available DX2 Sensor Packages..................................................................5
DX2-DH2C2 Door Handle Controller...........................................................6
DX2 Temperature and Humidity Sensors ...................................................9
DX2-CC2 Contact Closure Sensors...........................................................11
Cascading DX2 Sensor Packages.............................................................. 17
Chapter 2 DX2 Series

Chapter 2: DX2 Series
5
Available DX2 Sensor Packages
This table lists DX2 sensor packages which are available at the time of
writing.
Sensor packages Description
DX2-DH2C2
2 ports for connecting door handles
2 pairs of terminals for connecting contact
closure sensors (CC).
See
DX2-DH2C2 Door Handle Controller (on page
6).
DX2-T1
1 temperature sensor
See
DX2 Temperature and Humidity Sensors (on
page 9).
DX2-T1H1
1 temperature sensor
1 humidity sensor
See
DX2 Temperature and Humidity Sensors (on
page 9).
DX2-T2H1
2 temperature sensors
1 humidity sensor
See
DX2 Temperature and Humidity Sensors (on
page 9).
DX2-T3H1
3 temperature sensors
1 humidity sensor
See
DX2 Temperature and Humidity Sensors (on
page 9).
DX2-CC2
Two-channel contact closure sensors, which
contain 2 pairs of terminals
See
DX2-CC2 Contact Closure Sensors (on page
11).
For detailed information on sensor names, see Sensor Naming
Conventions
(on page 80).
Tip -- other generations of contact closure sensors:
Raritan has developed 3 generations of contact closure sensors:
DPX-CC2-TR, DX series and DX2 series. Choose the type that satisfies
your needs. The newest one is DX2-CC2.
Note that only DPX-CC2-TR supports Raritan's water sensors while DX
and DX2 contact closure sensors do NOT support them.

Chapter 2: DX2 Series
6
For the other generations, see:

DPX Contact Closure Sensors (on page 57)

Available DX Sensor Packages (on page 20)
DX2-DH2C2 Door Handle Controller
DX2-DH2C2 provides a cabinet access control solution. All you need to do
is simply connect supported door handles to DX2-DH2C2, then connect
DX2-DH2C2 to Raritan's PX3, PX3TS or Legrand PDU, and finally you will
be able to control a cabinet's door handles via PX3, PX3TS or Legrand
PDU.
Door handles supported by DX2-DH2C2:
a. SouthCo H3-EM series:
H3-EM-60-100
H3-EM-64-100
H3-EM-65-100
H3-EM-66-100
H3-EM-67-100
H3-EM-68-100
b. EMKA series:
1150-U5x
Agent-E

Chapter 2: DX2 Series
7
Note: Raritan provides SmartLock kits that include both DX2-DH2C2 and
one of the listed door handles. For more information on SmartLock kits,
refer to the user documentation accompanying the SmartLock kit or
download it from Raritan's
Support page
(
http://www.raritan.com/support/ ).
DX2-DH2C2 ports and terminals:
Number Component Function
Two RJ-45 ports Connect a standard network patch cable for either or
both purposes below:
Connect to the SENSOR port (yellow) of a PX3,
PX3TS or Legrand PDU.
Cascade DX2 sensor package(s).
See
Cascading DX2 Sensor Packages (on page 17).
Exception: You CANNOT cascade DX2-DH2C2
packages.
Two door handle
ports
Connect to the standard category cable of the door
handle contained in the DX2-DH2C2 kit.

Chapter 2: DX2 Series
8
Number Component Function
The two door handles are usually attached to different
doors of the same cabinet.
Two pairs of
contact closure
sensor terminals
Connect to contact closure sensors for detecting the
door open/closed status.
For information on connecting CC sensors, see
Connecting Detectors/Switches to DX2-CC2 (on
page 13).
Installation restrictions:
Read the restrictions below before connecting DX2-DH2C2.
Only PX3, PX3TS or Legrand PDUs support DX2-DH2C2.
Up to one DX2-DH2C2 package can be connected per PX3, PX3TS or
Legrand PDU.
Only the door handles sold with DX2-DH2C2 are supported.
NO asset management strips can be connected simultaneously.
No hot plugging or swapping with door handles while DX2-DH2C2 is
being connected to a PDU.
That is, no connection or disconnection of door handles at that
time.
DX2-DH2C2 supports a maximum cabling length of 29 feet (9 meters)
instead of 98 feet (30 meters). For details, see
Supported Maximum
Sensor Distance
(on page 74).
Bracket Installation
You can install the bracket accompanying DX2-DH2C2 in order to hang or
fasten it properly on an object or position. The bracket can be installed
either onto the bottom of DX2-DH2C2 or onto one of its sides.

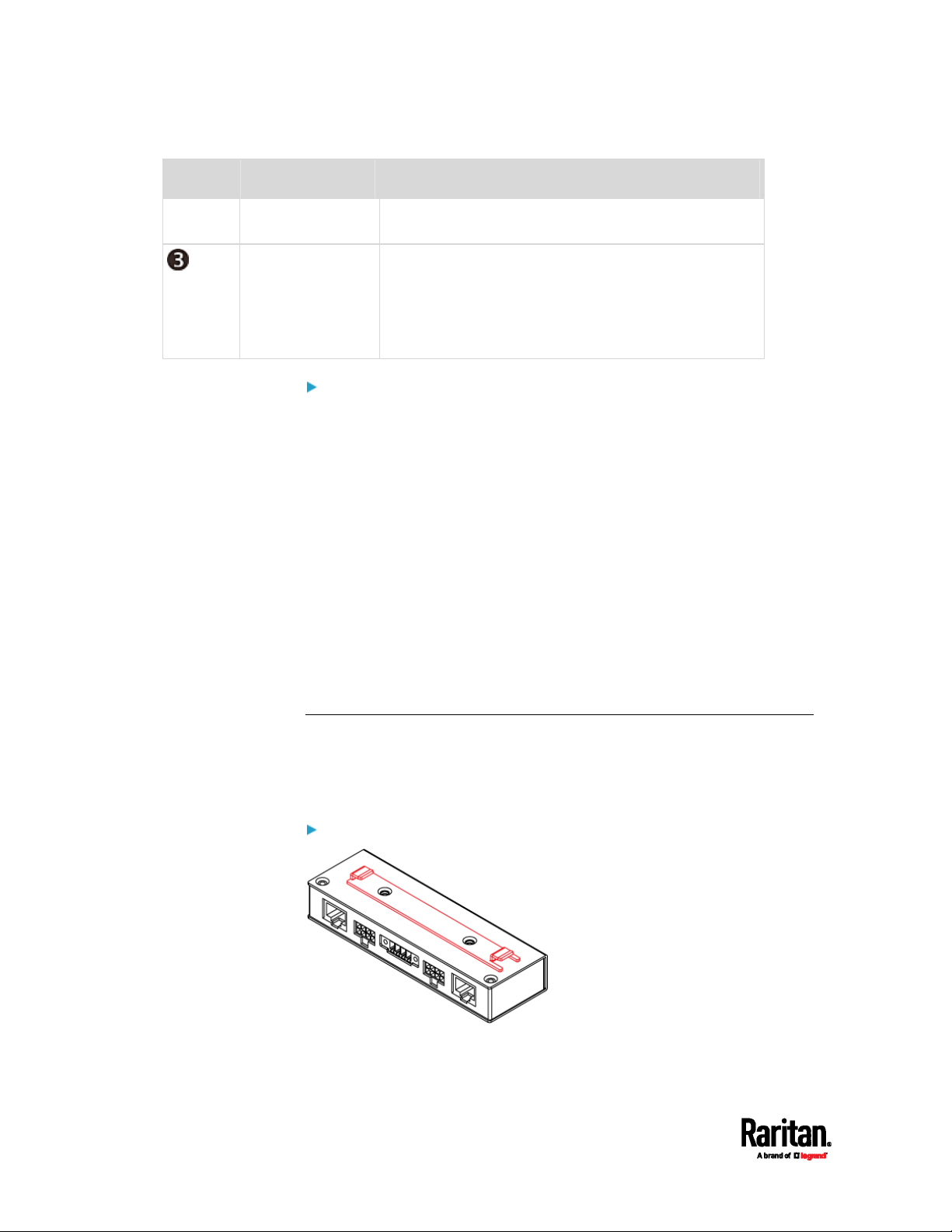

Bracket installed onto DX2-DH2C2's bottom:

Chapter 2: DX2 Series
9
Bracket installed onto the side of DX2-DH2C2:
DX2 Temperature and Humidity Sensors
There are four types of DX2 temperature and humidity sensor packages:
DX2-T1 , DX2-T1H1 , DX2-T2H1 , and DX2-T3H1 .
A DX2-T2H1 package contains one DX2-T1H1 and one DX2-T1 sensor.
A DX2-T3H1 package contains one DX2-T1H1 and two DX2-T1 sensors.
Depending on the DX2 temperature/humidity package you purchase, the
number of standard network patch cables shipped with a DX2
temperature/humidity sensor package varies.
The following diagram shows a DX2 temperature (and humidity) sensor
package.
Number Component Function
Two RJ-45 ports Connect a standard network patch cable
for either or both purposes below:
Connect to the SENSOR port of a
Raritan product (like a PX3 PDU) or
Legrand PDU.
Cascade DX2 sensor package(s).
See
Cascading DX2 Sensor Packages
(on page 17).
Status LED Indicate the sensor status. See
DX2 LED

Chapter 2: DX2 Series
10
Number Component Function
States (on page 10).
Tip -- other generations of temperature and humidity sensors:
Raritan has developed 4 generations of humidity and temperature
sensors. Choose the type that satisfies your needs. The newest
generation is DX2 series.
For the other generations, see:

DPX Temperature and Humidity Sensors (on page 53)

DPX2 Temperature and Humidity Sensors (on page 45)

DPX3 Temperature and Humidity Sensors (on page 40)
DX2 LED States
The DX2 sensor indicates an alert by making its LED flash on and off. The
LED also flashes when the sensor is upgrading its firmware.
DX2-T1:
LED states Description
Off Temperature is in the normal state.
Flashing
(1 flash and 1 off)
Temperature enters either alarmed state:
warning or critical.
High-speed flashing Sensor firmware is being updated. See
Sensor Firmware Update (on page 79).
DX2-T1H1:
LED states Description
Off Both temperature and humidity are in the
normal state.
1 flash and 1
off
Temperature enters an alarmed state:
warning or critical.
Humidity is in the normal state.
2 flashes
and 1 off
Temperature is in the normal state.
Humidity enters an alarmed state: warning
or critical.
Flashing
3 flashes
and 1 off
Both temperature and humidity enter an
alarmed state: warning or critical.

Chapter 2: DX2 Series
11
LED states Description
High-speed flashing Sensor firmware is being updated.

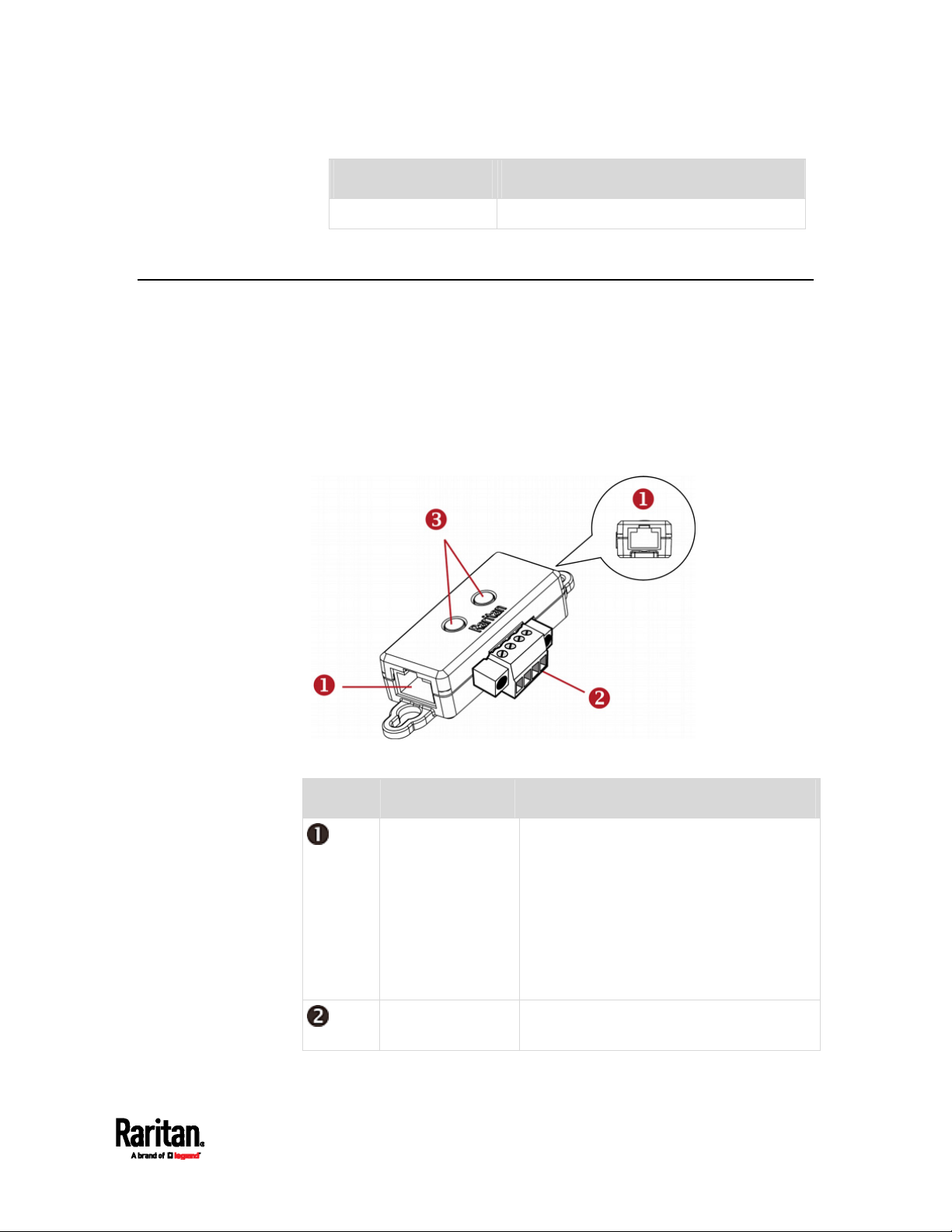

DX2-CC2 Contact Closure Sensors
Raritan's contact closure sensor can detect the open-and-closed status
of connected detectors/switches.
There are two channels for connecting two discrete detectors/switches
(state: on/off).
Four termination points are available on this sensor: the two to the right
are associated with one channel, and the two to the left are associated
with the other.
Number Component Function
Two RJ-45 ports Connect a standard network patch cable
for either or both purposes below:
Connect to the SENSOR port of a
Raritan product (like a PX3 PDU) or
Legrand PDU.
Cascade DX2 sensor package(s).
See
Cascading DX2 Sensor Packages
(on page 17).
Two pairs of
termination points
Connect two discrete detectors/switches.

Chapter 2: DX2 Series
12
Number Component Function
Two LEDs Indicate two channels' status.
Supported detector/switch types:
At a minimum, a discrete detector/switch is required for DX2-CC2 to
work properly. The types of discrete detectors/switches that can be
connected to DX2-CC2 include those for:
Door open/closed detection
Door lock detection
Smoke detection
Vibration detection
When using third-party probes, you must test them with DX2-CC2 to
ensure they work properly.
Important: Integration and testing for third-party detectors/switches
is the sole responsibility of the customer. Raritan cannot assume
any liability as a result of improper termination or failure (incidental
or consequential) of third-party detectors/switches that customers
provide and install. Failure to follow installation and configuration
instructions can result in false alarms or no alarms. Raritan makes
no statement or claim that all third-party detectors/switches will
work with Raritan's contact closure sensors.
To make DX2-CC2 work properly:
1. Connect 1 to 2 contact closure detectors/switches to DX2-CC2. See
Connecting Detectors/Switches to DX2-CC2 (on page 13).
2. Connect DX2-CC2 to a Raritan or Legrand product that supports
Raritan sensor packages, such as Raritan's PX3 or Legrand PDU.
3. Log in to the application of Raritan or Legrand product where
DX2-CC2 is being connected, and configure Normally Open or
Normally Closed for DX2-CC2.
