1. OPERATION
1.1 INTRODUCTION
Your RAY53 has the capability to transmit and receive on all available US,International and
Canada Marine VHF radiotelephone channels. There are channels that are FCC approved
but may only be used by authorized stations for specific purposes, depending on the type of
vessel (commercial or noncommercial.) Refer to Table 1-1 . These table list all of the marine
VHF channels available in your RAY53 for Canada,International and U.S. radiotelephone
use. Full familiarization with this table is essential when selecting your channels. The
International frequencies were agreed upon by the attending countries at the 1968
International Telecommunication Union meeting in Geneva and are in active use around the
world. The US channels are those channels authorized for use in the U.S.A. by the FCC.
1.2 CONTROLS AND LCD DISPLAY
1)
4) 5) 6) 7) 2) 3)

1.2.1 Controls
1) Channel Selection (Knob)
-. Turning to the right can increase the channel number and it can be
decreased by turning to the left.
-. When the Channel Selection Knob is rotated to the right at “88CH”, the channel
number becomes “01CH”.
-. When the Channel Selection Knob is rotated to the left at “01CH”, the channel
number becomes “88CH”.
(UP)
Rotate clockwise
(DOWN)
Rotate counter clockwise
2) Squelch Knob
-. When Squelch knob is rotated, the squelch level is adjusted. If the knob is rotated
completely clockwise,all bars will illuminate.
Rotate
Clockwise
NMEAVOL
SQL NMEAVOL SQL
NMEAVOL
SQL NMEAVOL SQL

3) Volume Knob
-. The volume knob controls the audio volume and is also switched to turn power on
and off. When the knob is rotated clockwise from the “OFF” position,the power
becomes “Turned On”. Being rotated clockwise,the audio volume will be
increased. Being rotated counterclockwise,the audio volume will be decreased.
(Volume UP)
Rotate clockwise
(Volume DOWN)
Rotate counter clockwise
-. When the power is turned on, the receiving mode is in use after the following
initial setting.
Initial setting at power on.
Frequency mode--------: the frequency mode at power OFF
Channel --------: 16 CH (Working CH)
Priority CH --------: Priority CH at power OFF
Weather CH --------: Weather CH at power OFF
Transmitter Power---- : 25 Watt
-. When the power is turned on with pushing on SCAN/MEM key,all the memory
can be clear.
4) SCAN/MEM key
-. When SCAN/MEM key is pressed and released, Alarm 1 is heard and Scan
starts/stop. (To cancel the scan mode, press and release while radio is scanning.
To start the scan mode, press and release while radio is not scanning.)
-. If one or more channels are stored in memory, the radio will begin Memory Scan.
If no channels are stored in memory,the radio will begin All Scan.
NMEAVOL
SQL NMEAVOL SQL

-. To begin All Scan while memory are being stored in,All Scan can be begun by
pressing once more during flashing on the LCD.
-. When SCAN/MEM key is continuing to be pressed for more than three
seconds, Alarm 1 is heard and Memory of the current channel can be
stored/canceled.(When the current channel is stored,the current channel will be
canceled. When no other channel is stored, the current channel will be stored.

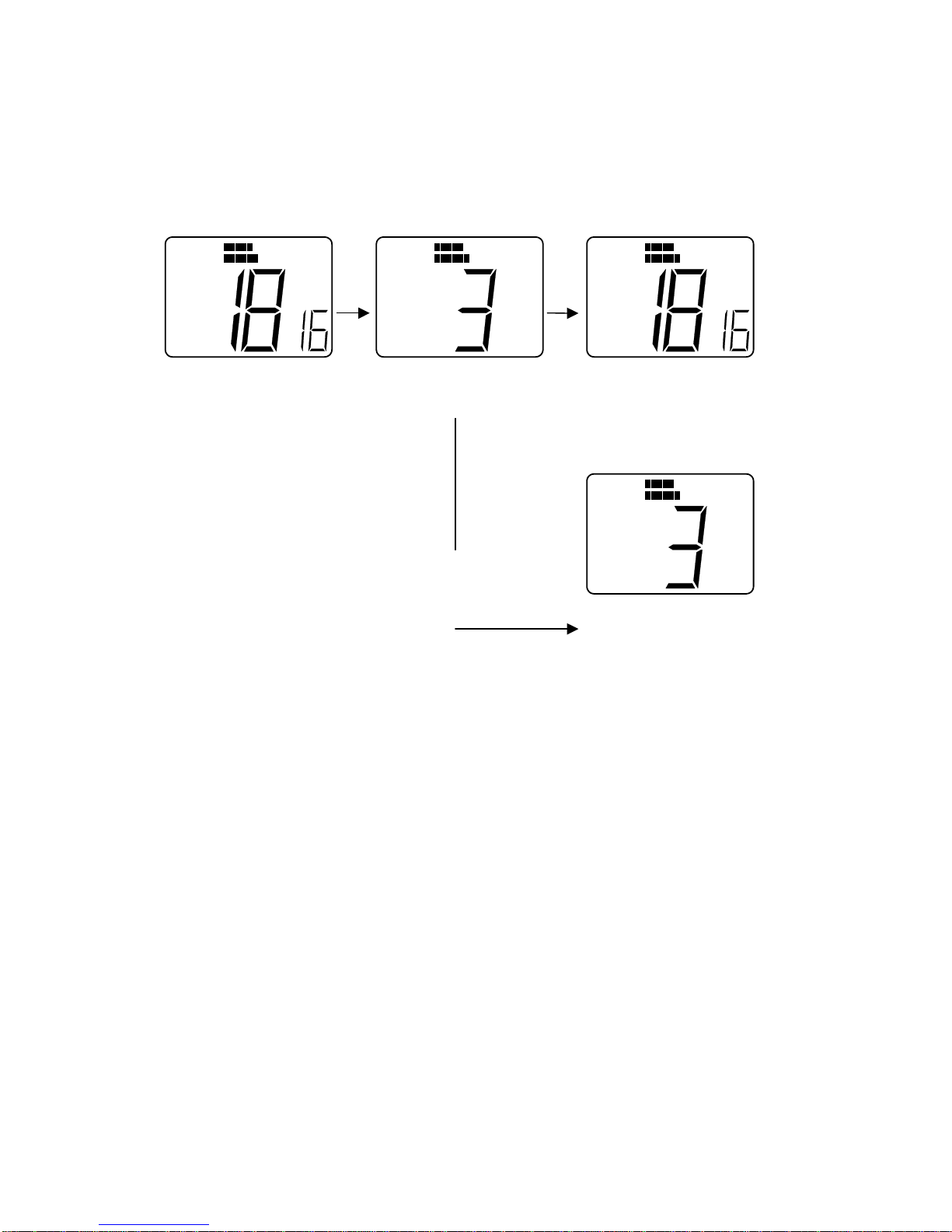

5) WX/INT key
-. When WX/INT key is pressed and released, Alarm 1 is heard and Working CH
/Weather CH are toggled each other.
-. When WX/INT key is continued to be pressed for more than 2 seconds, Alarm 1 is
heard and frequency selection mode(US,International or Canadian) can be
changed. There are 3 types of frequencies selection modes,US,International and
Canadian. The frequencies selection mode is changed like USA--ÆCAN--ÆINT.
-. While the monitor operation is in use,Dual monitor and Triple monitor can be
changed.

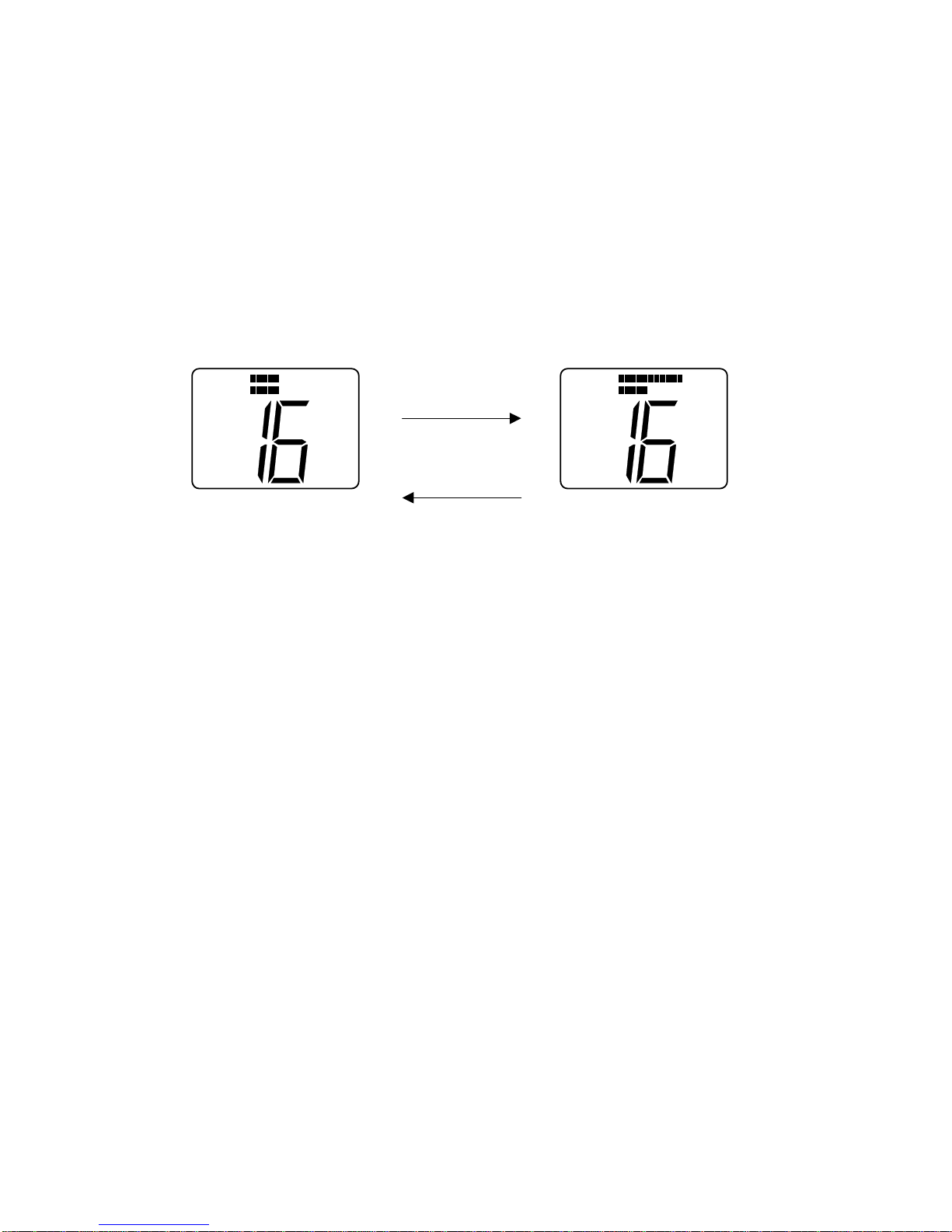

6) MON/ 1/25 Key
-.When MON/ 1/25 is pressed and released, Alarm 1 is heard and Monitor operation
start.(Dual Monitor)
-. When MON/ 1/25 continues to be pressed for more than 2 seconds, Alarm 1 is
heard and Transmitter power can be changed. When transmitter power is 25W, it
can be 1 W. When transmitter power is 1 W, it can be 25 W.
7) 16/9 Key

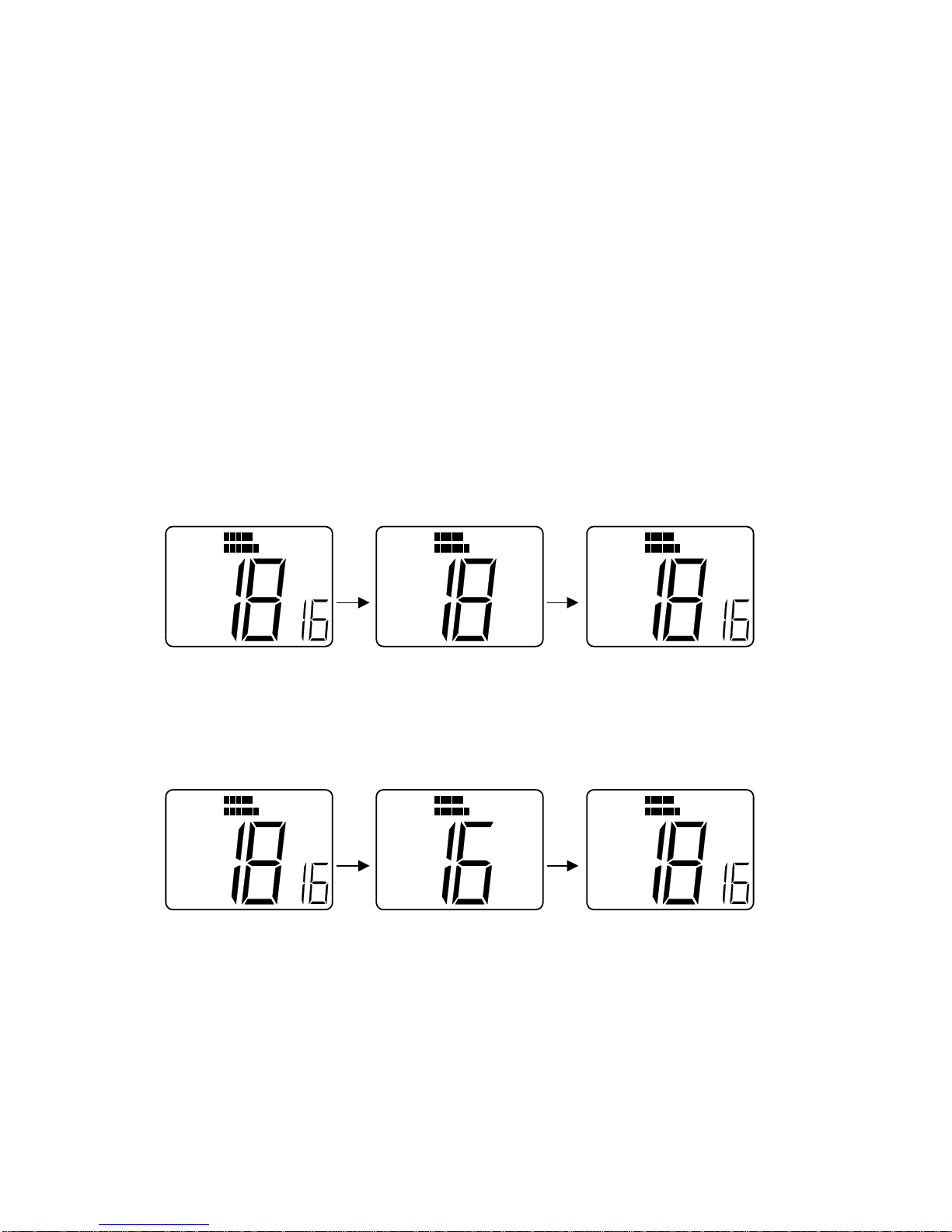

-. When 16/9 key is pressed and released, Alarm 1 is heard and Channel can be
changed as follows.
The current channel is Working CH---------------ÆBecomes Priority CH
The current channel is Weather CH---------------ÆBecomes Priority CH
The current channel is Priority CH ---------------ÆBecomes Working CH
-. When 16/9 key continues to be pressed for more than 2 seconds, Alerm 1 is heard and
priority CH can be toggled. When the private channnel is 16CH,it can be changed to
9CH and when the private channel is 9CH,it can be changed to 16CH.

8) PTT Key(Microphone)
-. When pressed,puts the radio into the transmit mode
If the current channel is Weather CH or the channel prohibitted from TX, Alerm 2 is
heard and PTT key cannot be used. If the PTT key is pressed continuously for over
five minutes,transmission is forcibly inhibited and Alarm 2 is heard until the PTT key
is released.
9) UP key(Microphone)
-. The UP key is used to move the channel numbers up(+1).
If the UP key is continuously pressed for over 0.5 seconds,the channel numbers can be
continuously up every 100msec.
10)DOWN key(Microphone)
-. The DOWN key is used to move the channel numbers down(+1)
If the DOWN key is continously pressed for over 0.5 seconds,the channel numbers
can be continueously down every 100msec.
11) 16/9 key(Microphone)
-. When 16/9 key is pressed and released, Alarm 1 is heard and Channel can be
changed as follows.
The current channel is Working CH---------------ÆBecomes Priority CH
The current channel is Weather CH---------------ÆBecomes Priority CH
The current channel is Priority CH ---------------ÆBecomes Working CH
-. When 16/9 key continues to be pressed for more than 2 seconds in Priority CH mode,
Alerm 1 is heard and priority CH can be toggled. When the private channnel is 16CH,it
can be changed to 9CH and when the private channel is 9CH,it can be changed to
16CH.
12) DISTRESS key
-. DISTRESS key is used to send a DSC Distress Call when pressed and held for 4
seconds.

1.2.2 LCD Display
The items of LCD display on the Front panel are described as follows
1) DSC display: Will be displayed when DSC mode is entered.
2) WX display : Will be displayed when Weather CH is entered.
Will be displayed when Tri monitor mode is entered.
3) INT display : Will be displayed when International channels are programmed for
use. “INT” is not displayed when US or Canadian channels are
programmed for use.
4) CAN display: Will be displayed when Canadian channels are programmed for use.
“CAN” is not displayed when US or International channels are
programmed for use.
5) MEM display: Will be displayed when displayed CH is memory-registered.
Will blink at Scan Stand-by and be displayed at Memory Scan.
6) SCAN display: Will be displayed at Scan mode
Will blink at Scan at Scan mode and be displayed with “MEM” at
Memory Scan.
7) ACK display : Will be displayed at DSC mode when the response to individual calls
are received after DSC call is transmitted.
8) MON display: Will be displayed at Monitor mode
(Dual monitor or Triple monitor)
9) TX display : Will be displayed when transmitter power is detected at transmitter
mode.

10) 1 W display: Will be displayed when the transmitter circuits are providing 1 Watt
of power to the antenna. When the transmitter is supplying 25 Watt
to the antenna, “1 W” will be extinguished.
11)VOL, Bar
Graph display: The Vol. bar graph shows the level of volume of the audio output
to the speaker.
The volume means to be larger when the dot of the bar graph
become increased to the right.
12) SQL,AUTO : The Squelch bar graph shows the depth of squelch.
Bar graph “AUTO” will be displayed when Auto-Squelch is activate.
display The number of dot of SQL Bar graph will be increased when SQL
knob is turned to the right to make Squelch deeper.
(When SQL knob is furthermore turned to right from the
maximum squelch, the squelch becomes AUTO Squelch and
“AUTO” will be displayed.
13) NMEA display: will be displayed at all of the modes while valid NMEA data is
being received.
When NMEA data is invalid or is not received,”NMEA” is
extinguished.
Applicable data: GLL,GGA,RMA,RMC,APA,APB
14) Channel display: Will display channel number in use.
(Large) When Own Ship’s MMSI ID is entered,etc,Channel
display(Large) shows its situation.
15) Channel display: Will display Priority CH number in use.
(Small) When Own Ship’s MMSI ID is entered,etc, Channel
display(Small) shows its situation.

1.3 OPERATING PROCEDURES
1.3.1 Turning the Power On
1) Rotate the VOLUME knob clockwise to turn the radio on.
1.3.2 Setting the Volume
1) Rotate the VOLUME knob for the disired volume level.
1.3.3. Setting the Power Output
1) Simply press the “MON 1/25” key for two seconds to toggle between 1 Watt output
and 25 Watt output. When “1 WATT” is displayed,the output power is 1 Watt.
If “1 WATT” is extinguished, 25watts is being output. The choice of power output is
dependent upon the distance of transmission and transmitting conditions. In certain
US harbors and on certain channels, the FCC requires the power to be limited to
1 Watt. On these “required “ channels,the radio automatically selects 1 Watt power
output when the channel is selected.
1.3.4 Selecting the Channel
1) To select the appropriate channel, rotate CHANNEL SELECTION Knob clockwise /
counterclockwise or also press UP/DOWN key of the microphone.
2) The channels which are not set on the frequency mode are skipped .
3) When UP/DOWN key is continuously pressed for over 0.5 seconds,the channel is
continuously changed(+1 or – 1) every 100msec during pressing UP/DOWN key.
1.3.5 To select the frequency mode
1) The frequency mode(group) can be selected from US mode, International mode and
Canadian Mode.
The frequency mode can be shown on the LCD as follows.
USA frequency mode----------------------------Æ“INT” and “CAN” are eliminated
CANADIAN frequency mode------------------Æ“CAN” is displayed and “INT” is
eliminated.
INTERNATIONAL frequency mode----------Æ“INT” is displayed and “CAN” is
eliminated.

When WX/INT key is pressed and held for over 2 seconds, one frequency mode
can be changed to the other frequency mode and Alerm 1 is heard.:
For example:
When USA mode is in use,it can be changed to CANADIAN mode by doing above
operation.
When Canadian mode, it can bew changed to International mode. When
International mode,it can be changed to USA mode. The last changed frequency
mode can be memorized.
When the power is turned on,the last memorized frequency mode can be
used.(Channel number is16CH at that time.)
1.3.6 To Transmit
1) Press the Push-To-Talk switch(PTT switch) and speak into the microphone using a
clear normal voice.
2) If the current channel is Weather CH or the Tx prohibited channel, PTT switch cannot
be used and Audible beep sound 2 is heard.
3) RAY53 is designed to meet the new FCC Rules Part 80.203, which states,if the PTT
switch is pressed continuously for over five minutes,transmission is forcibly inhibited.
If this occurs,audible beep sound 2 will be heard until the PTT switch is released.
1.3.7 To select a Weather Channel
1) Simply press the WX/INT,then use Channel Selection Knob or UP/DOWN key to
select the desired Weather Channel from 0 to 9. When this mode is selected,the
transmitter is always inhibited.
2) When the Weather CH is finished by pressing WX/INT key,the last used Weather CH
number is memorized
3) When the power is re-turned on,the memorized Weather CH number can be
activate on the Weather CH mode.
1.3.8 Priority Channel

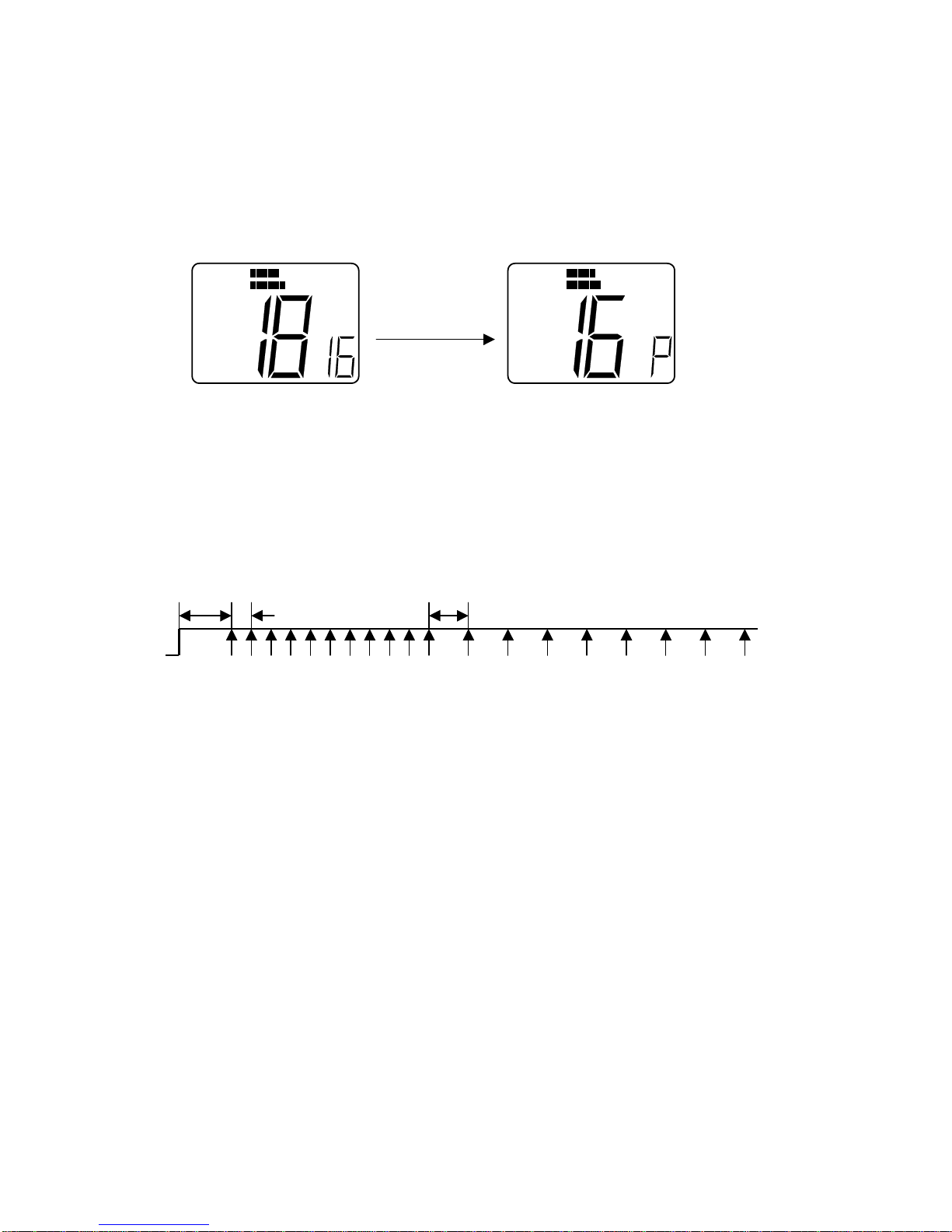

1)When 16/9 is pressed and released, Alarm 1 is heard and Priority Channel is in use then
Channel Display(Small) shows “P” on the LCD.(“P” display means “Priority CH”.)

2) When 16/9 key is pressed and released again during “P” is diplayed, Alerm 1 is heard
and the channel will be returned to the privious Working CH. When the channel is
changed by UP/DOWN key during Priority CH is displayed, “P” display will be
eliminated and Workimg CH will be in use.
3) When 16/9 is continueously pressed for over 2 seconds, Alerm 1 is heard and Priority
channel can be changed either 16CH or 9CH.(When Priority CH is 16CH, it can be
changed to 9CH and when Priority CH is 9CH,it can be changed to 16CH.)
1.3.8 Channel Memory
1) The RAY53 has the capability of memorizing all US,International and Canadian
Channels. The channels memorized will be scanned in the Memory Scan mode.
2) Channel Memory: When SCAN/MEM key is pressed and held for over 3 seconds,the
audible beep sound 1 is heard and the selected current channel can
be put into memory.
When the displayed channel on the LCD is memorized, “MEM” is
displayed on the LCD.
Memory Clear : To press and hold for 3 seconds when the memory channel is
stored, the audible beep sound 1 is heard and the channel can be
cleared
When the displayed channel is not memorized,”MEM” is not
displayed on the LCD.
1.3.9 Scan Modes
The RAY53 is equipped with two types of scan options, All-scan and Memory Scan. How these
options are accessed is dependent upon whether there are any channels stored in memory.
1) All-Scan mode
If no channels are stored in memory,when the SCAN/MEM key is pressed and
released, the audible beep sound 1 is heard and ”SCAN” will begin to flash on the LCD for
three seconds. If no other keys are pressed in these three seconds,the radio will begin
scanning all channels(except weather channels) as long as no signal is received. If a signal is
received,the scan will stop on the receiving channel. If the signal is lost for five seconds, the

radio will resume scanning.While the radio is scanning ALL-Scan,”SCAN” is displayed on the
LCD.
To cancel the scan mode,press the SCAN/MEM key while the radio is scanning.
2) Memory Scan mode
If one or more channels are stored in memory,when the SCAN/MEM key is pressed and
released, the audible beep sound 1 is heard and “SCAN” and “MEM” will begin to flash
simultaneously on the LCD for 3 seconds. If no other key is pressed in these three seconds,
the radio will begin scanning all channels currently in memory.(Begin Memory scanning) As
with All-Scan, If a signal is received,the scan will stop on the receiving channel until the signal
is lost for five seconds, the radio will resume scanning.
While the radio is scanning Memory Scan, “SCAN” and “MEM” are displayed on the LCD.
To cancel memory scan,press the SCAN/MEM key while the radio is scanning.
When SCAN/MEM key is pressed again during “MEM” flashing within these three
seconds, the audible beep sound 1 is heard and “SCAN” will flash on the LCD and the
radio will begin ALL Scan mode. “MEM” will disaprear from the LCD leaving only “SCAN”
flashing.
1.3.10 Monitor operations
1) The RAY53 is equiped with 2 types of monitor operations, Dual Watch opeartion and
Tri Watch operation.
Working CH and Priority CH can be monitored alternately in Dual Watch operation.
Working CH, Priority CH and Weather CH can be monitored by turns in Tri Watch
operation.
2)Dual Watch and Tri Watch can be changed each other by using WX/INT key.
When WX/INT key is pressed and released in the monitor mode, Alerm 1 is heard
and Dual Watch and Tri Watch can be changed each other alternately.

WX
MON
WX
Dual Monitor Tri Monitor
Dual Watch operation
-. “MON” is displayed on the LCD.
-. Working CH number is displayed at Channel Display(Large) on the LCD.
-. Priority CH(16CH or 9CH) number is displayed at Channel Display(Small) on the
LCD.
. If the signal of Working CH is detected, the Channel Display(Small) will be
extinguished and the monitor will stop temporarily. Then the Receiver will be done for
7 seconds.( Even if there is no carrier for these 7 seconds, the monitor will stop for 7
seconds.) After 7 seconds is passed,the radio will monitor Priority CH.
-. If the carrier of Private CH is detected , the Priority CH number is displayed at the
Channel Display(Large) and the Channel Display(Small) will be extinguished and the
monitor will stop temporarily.
Tri Watch operation
-. “MON” is displayed on the LCD.
-. Working CH number is displayed at Channel Display(Large) on the LCD.
-. Priority CH(16CH or 9CH) number is displayed at Channel Display(Small) on the
LCD.
-. “WX” is displayed on the LCD
-. If the carrier of Working CH is detected, the Channel Display(Small) will be
NMEAVOL
SQL NMEAVOL SQL
MON
NMEA
WX
VOL
SQL
MON

extinguished and the monitor will stop temporarily. Then the Receiver will be done
for 7 seconds.( Even if there is no carrier for thse 7 seconds, the monitor will stop for 7
seconds.) After 7 seconds is passed,the radio will monitor Priority CH.
-. If the carrier of Private CH is detected, the Priority CH number is displayed at the
Channel Display(Large) and the Channel Display(Small) will be extinguished and the
monitor will stop temporarily.
7 seconds has been passed after the carrier is eliminated, the radio will monitor
Weather CH.
-. If the carrier or the alert of Weather CH is detected, the monitor operation will stop
and Weather CH will become in use with “WX” flashing every 0.5 sec and Alerm 3 is
heard for 5 seconds.
The Variation by carrier detection during Monitor operation
Carrier Detection at Working CH
Carrier is detected 7 seconds is passed
at Working CH after the carrier is OFF
Carrier Detection at Priority CH
Carrier is detected 7 seconds is passed
at Priority CH after the carrier is OFF
NMEAVOL
SQL
MON
NMEAVOL
SQL
MON
NMEAVOL
SQL
MON
NMEAVOL
SQL
MON
NMEAVOL
SQL
MON
NMEAVOL
SQL
MON

Carrier Detection at Weather CH (Alert is received)
Carrier is detected Alert is not detected
at Weather CH
Alert is detected
"WX" flash
Exit Monitor mode
1.3.11 The key opeartion during the monitor operation.
-. When PTT key is pressed,the monitor will stop and the transmission will be done at
the stopped channel. While detecting the carrier of Weather CH or detecting Weather
Alert, the transmission will be done at Workimg CH.
NMEA
WX
VOL
SQL
MON
NMEA
WX
VOL
SQL
MON
NMEA
WX
VOL
SQL
MON
NMEA
WX
VOL
SQL

Press PTT key
at Priority CH
Priority CH is transmitted
Press PTT key at Working CH
Press PTT key at Weather CH
Working CH is transmitted
-. When SCAN/MEM key , MON/1/25 key or UP/DOWN key is pressed, Alerm 1 is heard
and the monitor will stop and then Workimg CH will be in use.
Stop monitor mode
Switch to
Working CH
NMEAVOL
TX
SQL
NMEAVOL
SQL
MON
NMEAVOL
SQL
NMEAVOL
TX
SQL
NMEA
WX
VOL
SQL
MON

-. When 16/9 key is pressed, Alerm 1 is heard and Scan operation will stop and then Priority CH
will be in use.
Stop monitor mode
Switch to
Priority CH
-. Even if the Channel Selection knob is operated,there is no change.
1.3.12 The operation for Weather Alert detection(Alert Tone : 1050 Hz)
Alert detection checks the output power from Alert detection IC as following timing.
100msec 10msec 25msec
0 2 4 6 8 10 11 12 13 14 15 16 17 18
-. When the alert is ready to be detected(when the carrier is detected), the detection
will start to be checked after 100msec.
-. The detection is checked 11 times per every 10msec and then the detection is
checked 8 times per every 25msec. If the alert is detected at all the checking points,
it means that Weather Alert can be detected.
The detection are checked with timing changed during total 300msec.
-. If none of detection is detected between 0 and 18 with the above timing, re-start at
first 100msec.
-. If the alerts are not detected at some of the above timing between 0 and 18,the
following scanning will be done.
When alert tone is detected at Tri Watch monitor, “WX” display flashes every
sec and Alarm 3 is heard for 5 seconds.
NMEAVOL
SQL
NMEAVOL
SQL
MON

Alert tone is detected
"WX" flash and
Alarm 3 is heard
2. When alert tone is detected at Weather CH, “WX” display flashes every 0.5sec.
(Alarm 3 is not heard)
Alert tone is detected
"WX" is flashing
The operation by any keys after alert detection.
-. When either PTT key,SCAN/MEM key or MON/1/25 key is pressed, Alarm 2 is
heard to prohibit keys from using.
-. When WX/INT key, 16/9 key or UP/DOWN key is pressed, “WX” display will be
eliminated and the key operation will be in use.
-. Even if the Channel Selection knob is operated,there are no changes.
1.3.13 DSC (Digital Selective Calling)
The DSC mode enables you to contact or be contacted by another vessel digitally,without voice
communications. DSC can be used to replace the normal routine of verbally contacting another
vessel on CH16,then proceeding to a working channel for further communications. Your radio
must be set to CH70 to transmit or receive DSC calls. The three DSC call modes are described in
the following section.
NMEA
WX
VOL
SQL
MON
NMEA
WX
VOL
SQL
NMEA
WX
VOL
SQL NMEA
WX
VOL
SQL

1) Own Ship’s ID Entry(Own Ship’s MMSI Entry)
To operate the RAY53 in the DSC mode,Own Ship’s ID must be registered in advance. The
registration procedure is as follows.
1. * If the former ID has been entered, Own Ship’s ID cannot be entered and Alarm 2 is
heard. There should be no MMSI number in the unit when shipped.
It is necessary for re-enter Own ship’s ID to delete the former ID by Own Ship’s ID
Clear.
*If there is no former ID, Alarm 1 is heard and Own Ship’s ID can be entered.
2. To enter DSC setting mode, press and hold the SCAN/MEM and WX/INT keys
simultaneously for 2 seconds.
----Æ“DSC” is displayed, which means the unit is in DSC mode.
----Æ“MEM” is displayed, which means OwnShip’s MMSI can be entered in DSC
mode.
3. MMSI number can be put by the following operation
-. “0” is displayed at Channel Display(Large) on the LCD and “1” is displayed at
Channel Display(Small) on the LCD.
Channel Display(Large) is representative the MMSI number itself and Channel
Display(Small) is representative of the position in the 9 digit.
-. When the Channel Selection knob is rotated, Channel Display(Large) shows the
MMSI number is increased/decreased as “0” base.( 0 to 9 can be selected)
-. MMSI number is selected by knob being rotated. When DSC key is pressed,
the audible beep sound 1 is heard and the selected number can be memorized.(“2” is
displayed at Channel Display(Small) on the LCD which means that 2nd(second) digit is
ready to be input. And the rest of the digits are entered in the same manner.
-. Once all of the digits have been entered, the unit will redisplay ID numbers every
1 second.
-. If the number was entered incorrectly, the customer perform the entry again by
pressing and releasing DSC key. At that time “0” is displayed at Channel
Display(Large) and “1” is displayed at Channel Display(Small).

-. If the number is entered correctly, the entered number becomes Own Ship’s
MMSI by pressing DSC key for 2 seconds and the audible beep sound 1 is heard,then
the DSC mode is exited and returned to Working CH.
4. Entry of number is done by Channel Selection knob. The number cannot be input by
UP/DOWN key on the Microphone.
The stored data can be memorized only by DSC key
The stored data cannot be memorized by the other key operations and cannot be done
when the power is turned off on the way.
5. The way to CLEAR Own ship’s ID No.
To turn the unit on with pressing and holding SCAN/MEM + 16/9 key simultaneously.
The audible beep sound 1 is heard and “CL” is displayed at Channel Display(Large).
2) Individual Ship’ Call”
1. “Individual Ship’s Call” specifies other Ship’s Number and the channel number.
Unless Own Ship’s MMSI ID is entered, Individual Ship’s Call cannot be used.
2. When SCAN/MEM key and WX/INT key are simultaneously pressed and
released, Individual Ship’s Call will be in use.
---Æ“DSC” is displayed on the LCD which means the unit is in DSC mode.
---ÆChannel 70 is displayed at Channel Display(Large)
(Programming for PLL data of 70CH.)
---Æ“In” is displayed at Channel Display(Small) which means the unit is in
Individual Ship’s Call mode.
3. When SCAN/MEM key (“DSC” key) is pressed and released, the audible beep sound 1 is
heard and the other ship’s Number can be set.
-. “0” is displayed at Channel Display(Large) on the LCD and “1” is displayed at
Channel Display(Small) on the LCD.
