Raynor eurotech POWERFIT User manual

USER GUIDE
Content
FUNCTION CONTROLS
HEALTHY & SMART APP
5-8
9-26
27-44
PARTS LIST
ASSEMBLY INSTRUCTIONS
3-4
2
CARE & MAINTENANCE OF UPHOLSTERY 45-46

PARTS LIST TOOLS & PARTS
43
ALLEN WRENCH X1 X4 1/4 X 16mm (ARMREST)
X1 1/4 X 16mm (SPARE)

65

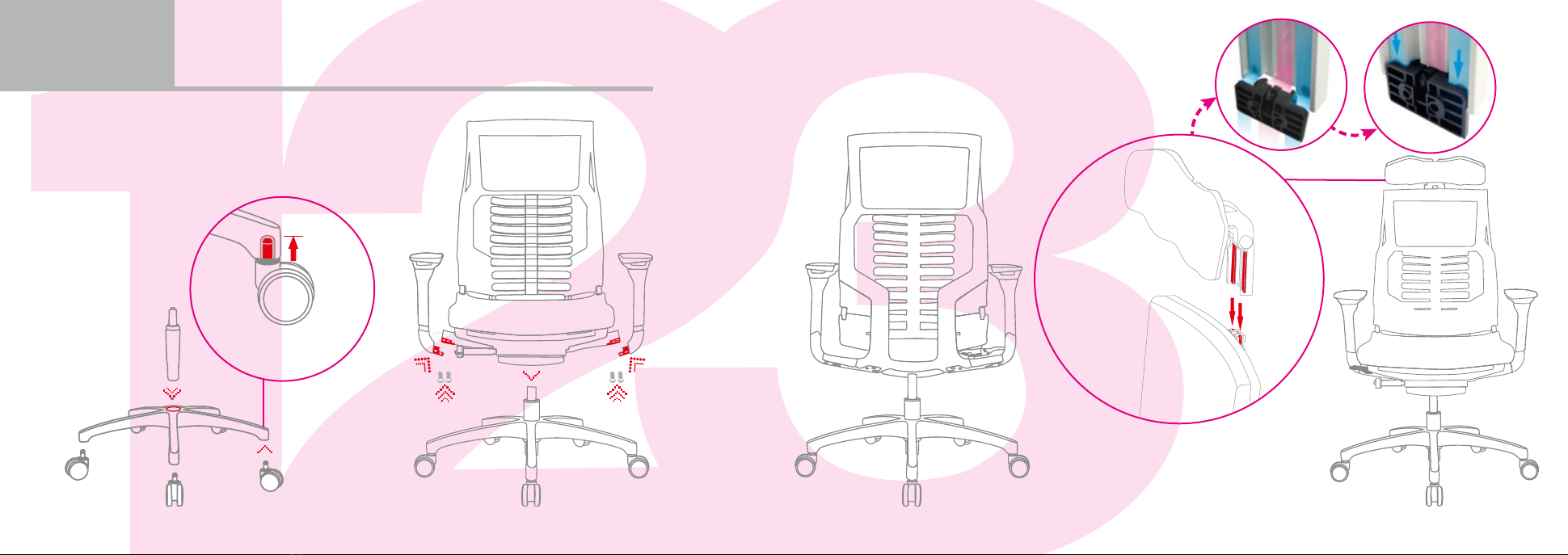

ASSEMBLY HOW TO ASSEMBLE YOUR CHAIR EASY AS 1-2-3
Headrest Assembly
（Push down until headrest
clicks into place.)
insert
completely
Align at slots then push
headrest down.
Attention:
BC
A

4
87
ASSEMBLY APP BATTERY FITTING
Push up the battery box to
open it.
Turn over the battery box,push the
battery box cover out as per arrow
direction to install batteries.
Slide the battery box from top to
bottom to close it.
AAA Backrest & Seat
Close the battery box
cover.
Slide the seat depth
forward.
Open the battery
box cover.
Install batteries

SINGLE LEVER CONTROL
FUNCTION CONTROLS
109
SEAT HEIGHT ADJUSTMENT
BACK TILT & LOCK ADJUSTMENT
1
2
3
4
6
1
2
3
5
4
7
5
7
BACK TILT ADJUSTMENT AND BACK TILT LOCK
BIONIC LUMBAR POSITION ADJUSTMENT
3D ARMREST
SEAT DEPTH ADJUSTMENT
LIVEMOTION LUMBAR AUTO-TRACKING SYSTEM
5D HEADREST(OPTIONAL)
HEALTHY ＆ ＳＭＡＲT APP
4
8
8
6

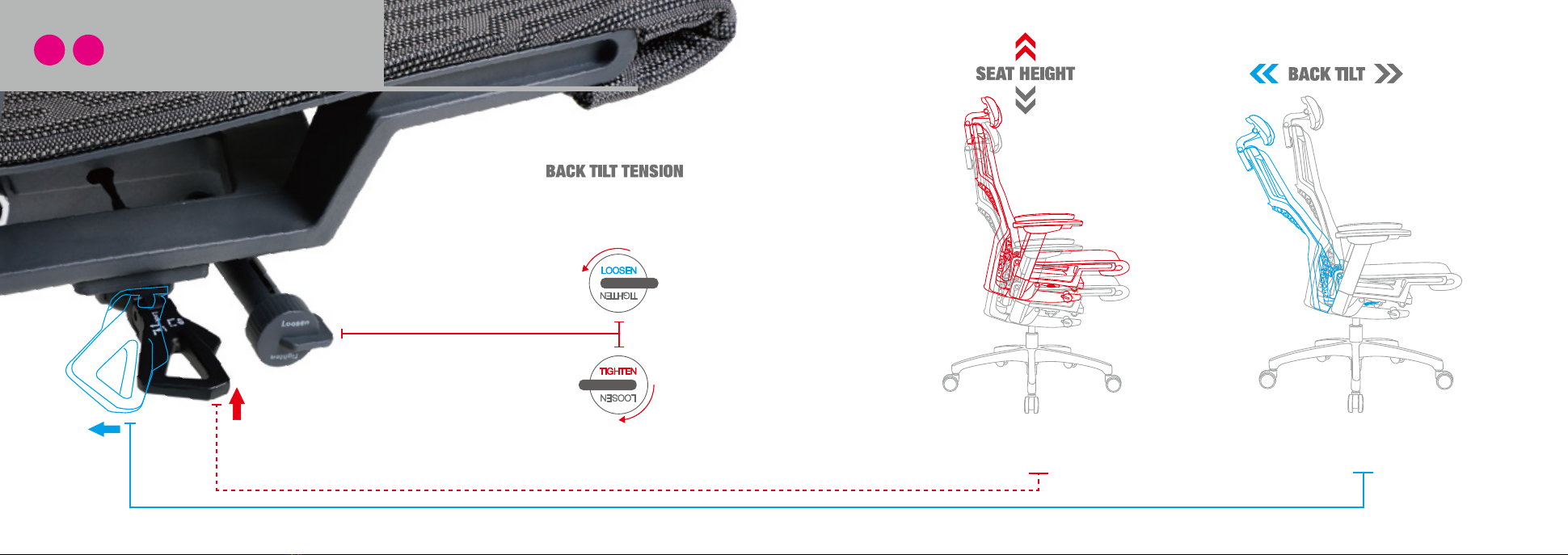

To loosen the tilt tension, turn the handle
counterclockwise so “LOOSEN”is at the top.
To tighten the tilt tension, turn the handle
clockwise so“TIGHTEN”is at the top. Push the lever backward to allow backrest tilt.
Return the lever to the center to lock backrest.
There are 4 locking positions.
Pull the lever up and hold to raise or lower
seat height. Release the lever to lock seat
in position.
1211
INTUITIVE ADJUSTMENT
FUNCTION CONTROLS
12

1413
7 Levels7 Levels
FUNCTION CONTROLS
BIONIC LUMBAR POSITION ADJUSTMENT
Hold both handles of the lumbar adjustment and lift upwards slowly to increase the
lumbar support. There are total 7 levels of adjustment. Please adjust slowly.
BIONIC LUMBAR POSITION ADJUSTMENT
To increase lumbar support:
Lift the handles “ ” to the top and push down. The Bionic Spine will return to its
original position. Then adjust to the optimal position by lifting the handles slowly.
To reduce lumbar support:
Attention: While adjusting the Bionic Spine, lean forward so there is no pressure on
the back while making the adjustment.
3

1615
ARMREST & SEAT DEPTH ADJUSTMENTS
HEIGHT DEPTH ANGLE
Hold both sides of the seat front edge.
Slide forwards or backwards to
increase or reduce seat depth.
FUNCTION CONTROLS
4 5

LIVEMOTION LUMBAR AUTO-TRACKING SYSTEM
Delivers full support and superior comfort to user’s lumbar & sacrum area when
the user changes sitting posture. User’s lumbar can be supported fully and auto-
matically all the time in any sitting position.
LIVEMOTION
LUMBAR
AUTO-TRACKING
SYSTEM
1817
6

5D HEADREST ADJUSTMENTS
2019
FUNCTION CONTROLS
7
Headrest Bar Height Adjustment Headrest Height Adjustment Tilt Adjustment Angle Adjustment Comfort Flex Adjustment

19
Hold both sides of headrest and move
headrest up or down to adjust the
height.
Hold the headrest support bar and move the
bar up or down to adjust the height.
Press the button on the right side of headrest support bar
when seated and move the headrest forwards or backwards to
tilt the headrest. Release the button to lock the position.
Hold both sides of the headrest
and rotate forwards or backwards
to adjust the angle.
Angle Adjustment
Headrest Bar Height Adjustment Headrest Height Adjustment Tilt Adjustment
2221

7
Male
Height
2-3-4
4
5
7
2
3
Healthy Lumbar Positions
HEALTHY LUMBAR POSITIONS SETTING GUIDANCE
≤ 63
inches
Recommended
3-4-5
63
-
67
inches
Recommended
4-5-6
67
-
71
inches
Recommended
5-6-7
71
inches
Recommended
≤
6
7
Height
2-3-4 4
5
7
2
3
Healthy Lumbar Positions
Recommended
3-4-5
59
-
63
inches
Recommended
4-5-6
63
-
67
inches
Recommended
5-6-7
67
inches
Recommended
≤
6
Female
2423
≤ 59
inches
* You can adjust bionic spine positions by yourself according to different
body needs when seated. If your lumbar & back spine are more tired,
you can adjust bionic spine to 1 position higher than recommended
below to increase spine support. When you are in the recommended
position, reduce 1 position if you feel too much support on spine.

90
1
2
3
5
4
6
Correct Sitting Posture
Neck support
Back support
Lumbar support
Arm support
Hips support
Thigh support
2625
Powerfit 5D (double height, tilt, angle & shape）adjustable head-
rest can provide multi-directional support to your neck and
reduce pressure on your neck.
Bionic spine is the best solution for back pain. It can provide 300%
more support to your thoracic spine, lumbar spine and sacrum
spine.
LIVEMOTION lumbar system can automatically provide full and
superior support to your lumbar area to solve lack of lumbar sup-
port while reclining.
3D Armrest allows forearms to be supported to rest com-
fortably while using keyboard or mouse or reclining to pre-
vent unsupported arms.
Powerfit intelligent seat can deliver comfortable and breath-
able support to avoid hip pain.
Front seat depth adjustment suits different sized users and
gives good support to thighs. It can disperse pressure on
hip to contribute to better blood circulation.
1
2
3
5
4
6
Sit on seat cushion fully (your hips should touch chair’s back).
This is the key to providing full and correct support to your back,
hips and legs.
HEALTHY SEATING ADVICE
Keep head and neck straight against headrest with eyes
looking straight ahead.
Body against backrest, ensuring good back support.
Keep elbows bent at 90 angle, let hands drop naturally and
relax your shoulders.
Keep knees bent at 90 angle.
Keep 2~3 inches between front seat edge to behind knees.
Feet flat on the floor or on a footrest.
°
°

HEALTHY & SMART APP
1 APP SETTING
DOWNLOAD LOGIN
2 USE & ADJUSTMENT
CREATE PROFILE CONNECT LUMBAR PROTECTION SETTING
3 UBIQUITOUS HEALTHCARE
FUNCTIONS OF THE HOME PAGE
HEALTHY SITTING POSTURE WARNING
SEDENTARINESS WARNING
SITTING POSTURE EVALUATION
SITTING POSTURE STATISTICS
4 FACILITIES MAINTENANCE
SETTINGS FAQ
2827
THE WORLD FIRST CHAIR
WITH SMART APP
29-30
31-34
41-43
37
35-36
38
39
40
8

FOR 1ST TIME SETUP ONLY
3029
1 APP SETTING
DOWNLOAD
2 WAYS TO LOGIN
LOGIN
1
2Log in via third-party (WeChat,
Facebook or LinkedIn) and then
turn to “My Profile”(For details of
personal information, please refer
to P 31 ).
CREATE ACCOUNT
For 1st time using app, please
register account by email to get
verification code and set pass-
word.
Settings-Notice-COMFORT SMART-Allow
notice
Apple store Android platform
Search
and download APP.
DOWNLOAD
In order to achieve APP smart functions, please
set your smart phone authority management.
APPLE
ANDROID
Settings-Application Management-COMFORT
SMART-Notice- Turn on lock screen display
COMFORT SMART +
OR
+

FOR 1ST TIME SETUP ONLY
3231
*For more than 2pcs Powerfit
with APP nearby, it is recom-
mended to scan QR code for
more accurate connection.
Remind to turn on bluetooth.
Connecting by
entering ID code
Connecting by
Bluetooth
Connecting by
scanning QR code
2 USE & ADJUSTMENT
3 ways to connect your Powerfit chair.
CONNECT
CREATE PROFILE
Enter your personal
information
Then press
Confirm
CREATE PROFILE CONNECT
AFTER
LOGGING IN
RECOMMENDED
or
Name
Gender
Age
Weight
Height
The QR Code
and ID No. are
stickered on the
seat battery box
cover.
Scan QR Code
or
Confirm

FOR 1ST TIME SETUP ONLY
3433
App can guide users to adjust to the best position for lumbar
support through data analysis to help maintain user’s health.
Situation A Suggested Levels
You can confirm this level if you feel
the level is the most comfortable
position. You can try other levels to
find the best comfortable position.
Press “Level Confirmation”button
LUMBAR PROTECTION SETTING
Lumbar levels are within comfortable ones
The bionic spine becomes green The bionic spine becomes red
Lumbar level is too low
Situation B Too High Levels
APP will advise you to adjust lumbar level
down to the suggested levels. You can try
other levels to find the most comfortable
position.
Press “Level Confirmation”button
Situation C Too Low Levels
APP will advise you to adjust
lumbar level up to the suggested
levels.You can try other levels to
find the most comfortable position.
Press “Level Confirmation” button
The bionic spine becomes yellow
Lumbar level is too high
2 USE & ADJUSTMENT
to save.
to save.
to save.
To Adjust Bionic Spine
To reduce bionic spine position, lift the handles to
the Top (7th level) and push down to the 1st
level, then adjust to the recommended level.
Level Confirmation
Save this level as the most
comfortable level
Cancel Confirm
Level Confirmation
Save this level as the most
comfortable level
Cancel Confirm
Level Confirmation
Save this level as the most
comfortable level
Cancel Confirm
Level Confirmation Level Confirmation Level Confirmation

Comfort Smart+
When you reach the home page functions,
click "back" to access to this connected
chairs show area. This page can add
(click ) and switch connection with other
Powerfit chairs quickly. This area will
record and display all connected chairs.
Press and hold chair name to rename
your chair. Connection is successful if
the picture circle becomes blue.
HEALTHY
SITTING POSTURE
GUIDE
Seat & Back Power Display
3 UBIQUITOUS HEALTHCARE
35 36
FUNCTIONS OF THE HOME PAGE
When APP detects lumbar levels
have been changed, APP will
send a reminder. If you press
“YES”, you will get direct access
to “Lumbar Protection Setting”.
When finished all
settings, login
app to access to
functions home
page directly
P 37 Healthy Sitting Posture Warning
P 38 Sedentariness Warning
P 39 Sitting Posture Evaluation
P 33-34 Lumbar Protection Setting
P 40 Sitting Posture Statistics
User Manual
1
2
3
4
5
6
7
8
9
CONNECTED CHAIRS
DISPLAY AREA
10
Press and hold the chair picture to unlink
the chair. If confirm "unlink", the chair will
not appear in the display area. It will not
connect automatically when you login
again.You need to re-connect the chair
to re-link it.
UNLINK MY CHAIR
P 33-34 3 situations of set level
A GREEN when lumbar support
is at the recommended level
B YELLOW when lumbar support
is above the recommended level
C RED when lumbar support is
below the recommended level
PowerFit-01
Please input nickname

If APP detects any incorrect sitting posture, it will send a warning
message to your phone.You can set the warning to alert you
every three, five or ten minutes.
HEALTHY SITTING POSTURE WARNING
Healthy Sitting Posture Warning
“Yes”- access to “Healthy Sitting Posture Guide”
When you turn on the Sedentariness warning, the APP will
detect your activity status automatically. It will send a message
to remind you to get up to move when you sit still for too long.
You can set the warning to alert you every two, three or four
hours.
SEDENTARINESS WARNING
3 UBIQUITOUS HEALTHCARE
HEALTHY SITTING POSTURE WARNING
SEDENTARINESS WARNING
3837
Head or Back no supportHead , Back & Lumbar
no support
Correct posture
PowerFit-01PowerFit-01
