Razer SEIREN X Use and care manual

RAZER
MASTER GUIDE

FOR GAMERS. BY GAMERS.
1
The is the microphone designed specially to elevate the
quality of streams. The microphone strategically filters unwanted
background noise and features a built-in shock mount to dampen
vibrations. To ensure it fits your gaming setup perfectly and professionally,
-obstructive, allowing your audience to
journey to greater heights.

FOR GAMERS. BY GAMERS.
2
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS.......................................................................................3
2. REGISTRATION / TECHNICAL SUPPORT..........................................................................................................4
3. TECHNICAL SPECIFICATIONS..............................................................................................................................5
4. DEVICE LAYOUT......................................................................................................................................................6
................................................................................................................7
..........................................................................................................................11
7. SAFETY AND MAINTENANCE ...........................................................................................................................12
8. LEGALESE...............................................................................................................................................................13

FOR GAMERS. BY GAMERS.
3
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
▪Razer condenser streaming microphone
▪Support rod
▪Desk stand base
▪Micro-USB to USB cable
▪Important Product Information Guide
SYSTEM REQUIREMENTS
▪PC or Mac with a free USB port
▪Windows® 7 64-bit / OS X® 10.8 (or higher)
▪Internet connection
▪Third party software: Open Broadcaster Software [obsproject.com] or XSplit* [xsplit.com]
*Software license fee may apply.

FOR GAMERS. BY GAMERS.
4
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razer-id.razerzone.com/warranty usingyour Razer ID to get real-
razer-id.razerzone.com to get a wide
range of Razer benefits.
TECHNICAL SUPPORT
▪
▪Free online technical support at support.razerzone.com
serial number can
be found here.

FOR GAMERS. BY GAMERS.
5
3. TECHNICAL SPECIFICATIONS
MICROPHONE SPECIFICATIONS
▪Power required / consumption: 5V 100mA
▪Sample rate: min 44.1kHz / max 48kHz
▪Bit rate: 16bit
▪Capsules: Ø25mm condenser capsules
▪Polar patterns: Super-Cardioid
▪Frequency response: 20Hz 20kHz
▪Sensitivity: 17.8mV/Pa (at 1kHz)
▪Max SPL: 110dB (THD < 1% at 1kHz)
HEADPHONE AMPLIFIER
▪Impedance: 16Ω
▪Power output (RMS): 125mW (at 32Ω)
▪THD: < 0.5% (at 1kHz)
▪Frequency response: 20Hz 20kHz
▪Signal-to-
APPROXIMATE SIZE & WEIGHT
▪Diameter (Microphone): 50 mm / 1.97 in
(Desk stand base): 90 mm / 3.54 in
▪Height: 184 mm / 7.24 in
▪Weight: 383 g / 0.84 lbs

FOR GAMERS. BY GAMERS.
6
4. DEVICE LAYOUT
A. Headphone volume control
B. Microphone mute button
C. Micro-USB port
D. 3.5 mm headphone port
E. Thread mount
F. Support rod
G. Desk stand base
H. Micro-USB to USB cable

FOR GAMERS. BY GAMERS.
7
5. SETTING UP YOUR RAZER

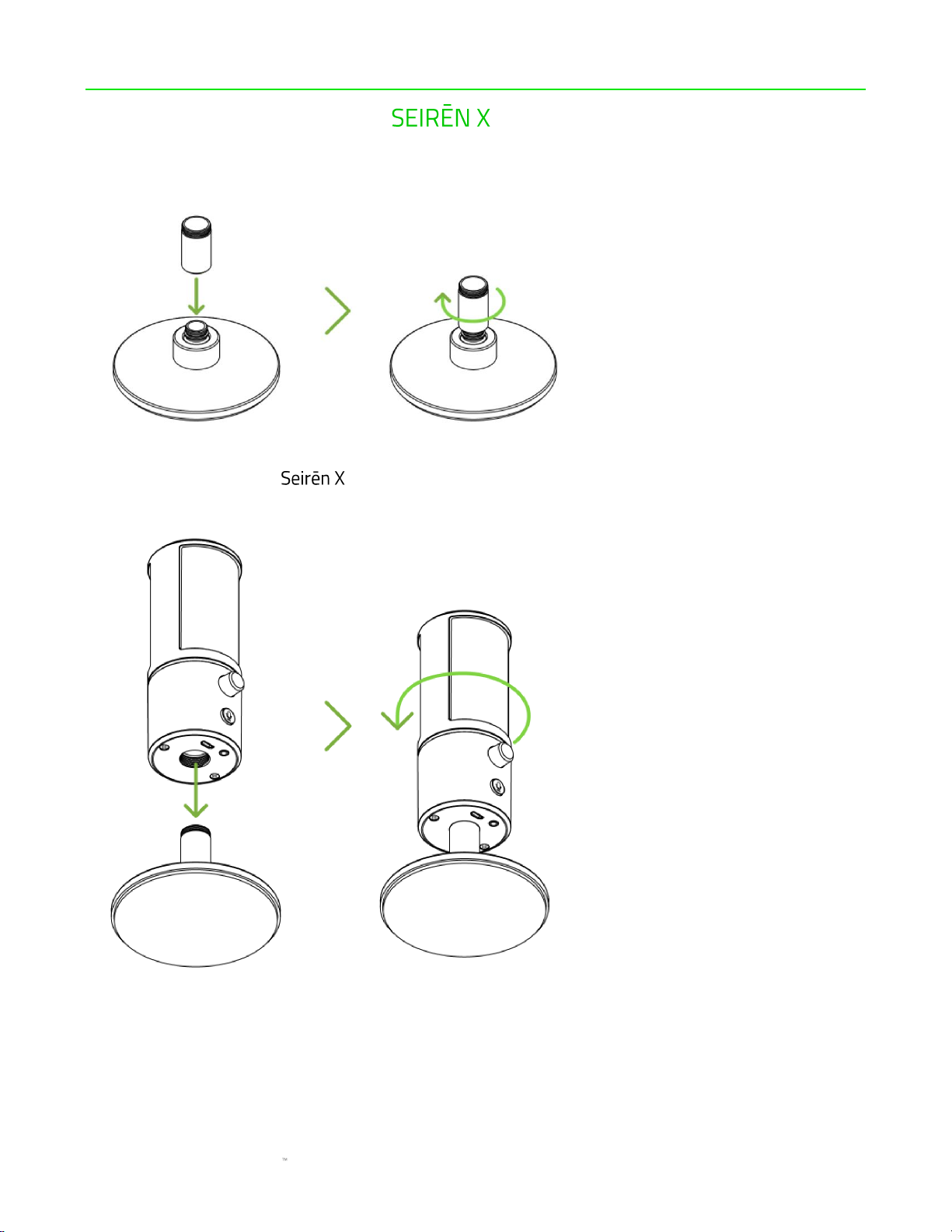

1. Tighten the support rod onto the threaded portion of the desk stand base.
2. Rotate the Razer onto the threaded portion of the support rod until it is securely
fastened.

FOR GAMERS. BY GAMERS.
8
3. Slightly tilt the microphone, then connect the Razer Seiren X to your computer using the
Micro-USB to USB cable.
Note: You may connect an analog audio output device (such as a headphone) to the 3.5 mm
headphone port, if you want to listen to both PC audio and the audio being recorded by your Razer
4. Set the Razer as the default playback and recording device of your computer. This
is required if X for the first time.
A. For Windows users
Step 1: Open your Sound settings from Control Panel > Hardware and Sound > Manage
audio devices. You can also right-click on the sound icon in the system tray, and then select
Playback devices.

FOR GAMERS. BY GAMERS.
9
Step 2: In the Playback tab, select X from the list and click the Set Default
button.
Step 3: In the Recording tab, select from the list and click the Set Default
button.
