RC-PRO PRO 15 User manual

FPV CAMERA FOLDING DRONE
ALTITUDE HOLD VERSION
WWW.RCPRO.CA
PRO 15

(1) THIS PRODUCT IS NOT A TOY. Proper assembly of unit is important to ensure correct operation. Improper
use or assembly may result in SERIOUS personal or property damage. Our company accepts no responsibility
for any damages incurred by the owner/operator’s misuse. Please use special care assembling and operating
this product for optimum enjoyment and safety.
(2) This product is for users over 14 years or age.
(3) Please refer to local bylaws as to where you can legally fly.
(4) The manufacturer is not responsible for any damage/security issues after unit is sold.
(5) Please contact us at www.rcpro.ca or alternatively, visit your local vendor for information regarding after sales
maintenance and repair.
DO NOT operate drone in a crowded area. Unexpected conditions, technical issues or improper assembly may
cause unplanned manoeuvring, which can cause serious injury and/or property damage. The operator of this
product accepts all responsibility for any damages caused by its misuse.
WARNING: Lithium batteries are vulnerable to moisture, high heat, pressure, puncture, etc.
Lithium Ion batteries are both lighter in weight and more powerful. This makes them less
durable than a traditional alkaline battery, and so extra care must be used when handling.
Improper handling may lead to fire and/or explosion. RC-PRO is not responsible for any
damage or injury occurring from proper or inproper use of this drone, batteries and the rest
of the provided parts.
REMOVE BATTERY from the drone while charging.
If you are planning to store your drone for extended periods, keep
battery charged 50% to increase the life of your battery.
Charge your battery at least once every 4 months or the battery may
damage.
Do not leave a battery charging without supervision.
Use ONLY the provided charger to charge your lithium ion batteries.
Do not leave battery charger in a carpeted area in case of fire.
Make sure batteries stored for extended periods are properly charged
before use.
1. KEEP AWAY from people and obstacles including high-rise buildings, high voltage wires, etc.
2. DO NOT store the drone in a damp environment. The drone's interior is composed of delicate electronic
components and mechanical parts, which can be seriously damaged by moisture. Please take serious care, as
this type of damage may not be visible on the outside, but can cause the product damage or act unpredictably
once in use.
3. Always operate with safety in mind. DO NOT use this drone under the influence of drugs or alcohol, or in the
case of fatigue, as improper operation can cause serious injury and/or property damage.
4. KEEP AWAY from rotating parts once the drone is in motion. Propeller blades can cause serious harm to people
and property.
5. DO NOT store or operate in high heat, as electrical components can be damaged.
SAFETY PRECAUTIONS
IMPORTANT SAFETY INFORMATION
drone

PARTS LIST
DRONE INSTRUCTION
CHARGING BATTERY
REMOTE CONTROL AND DRONE BATTERY INSTALLATION
AND CHARGING INSTRUCTIONS
1.Connect the USB charging cable to a power source, then
the battery to the charger. When battery is charged the
red indicator light will turns on
2.Insert the charged battery into the drone and align the
battery plug with the input socket on the drone
Blade B
Power switch
Canopy
Motor A
Motor A
Motor B
Motor B
Blade A
Arms folding order-fold the
front arms near the camera
first, then the back arms
(opposite when unfold them).
Blade B Blade A
REMOTE CONTROLLER FUNCTIONS

CONTROL INSTRUCTIONS
(Left lever)
(Right lever)
One key take-off and landing
Press (1) push the left stick up to
takeoff.
Left and right hand throttle switch.
To switch throttle from left to right
hand, press (1) and (2) together,
raise the left stick. This will move the throttle from
the left joystick to the right stick, for left handed flyers.
Push the left lever up and the drone will ascend Push the left lever down and the drone will descend
Drone forward
The drone flies to the left
Drone
turn left
Drone
turn right
Push the right lever down and the drone will fly backwards
The drone flies to the right
1. Connect the power plug of the drone to the lithium battery socket. Press
the power button for 2 seconds and place the drone on a flat surface.
2. Please put the drone in an open space. Before flight, please make sure
that the rear part of drone is pointing to you directly.
3. The camera of drone indicates the forward direction, conversely, the
backward direction.
4. Turn the remote control on and push the left lever up and down, you will
hear a "beep" sound and the light will stop flahsing. At this point your
drone is paired with the remote control and ready to fly.
PREPARING TO FLY

TRIMMING INSTRUCTIONS
Forward and backward trimming
When hovering backwards press this
button to adjust until backward motion
stops.
When hovering forward press this
button to adjust until forward motion
stops.
Left and right trimming
Speed Control
Calibrating the Gyroscope
Emergency Shutdown
What is Headless Mode and How to Use it
If drifting to the right while hovering,
press left on directional pad until
corrected.
If drifting to the left while hovering,
press right on directional pad until
corrected.
Move right
1. Place the drone exactly in front of you with it’s nose pointing
forward and press the “headless mode” button on the remote
control. You are now flying headless.
2. As long as the drone is in headless mode the remote contro
will sound a "beep" sound every few seconds. This sound will
stop as soon as the user will return to normal flight mode.
Speed settings apply to all four directions. There are two speeds. To switch
to Fast Mode while in flight, press the accelerator button on the controller.
A double beep will sound. To return to Regular Mode (recommended for
beginners), press the accelerator button again. A single beep will sound to
signal the switch.
1. If the gyroscope is not calibrated, the drone will wobble while hovering.
This can be adjusted.
2. Before operation, place the aircraft on a level horizontal surface. Hold
both joysticks of the controller down and outward (as shown) until the
remote issues a double beep. A light will flash on the drone to signal
the reset/calibration.
If a danger is encountered while flying, Emergency Shutdown can
be issued to immediately stop the drone. With long press the
One-button start button for 2 seconds. This function should not be
performed at high altitudes, as the drone WILL immediately fall
from its position and hit the surface.
Move left

3D Flips
TROUBLESHOOTING
Once you have mastered basic functions,
try out the 3D flip function! Make sure the
drone is at least 3m above the ground
and press the Roll button (as shown), then
move the right lever in the direction of your
intendedflip (Pressing upward will flip the
drone over forward, etc)
Problem
Remote control
status light
does not light
The drone is
instable while
flying
Can not
Control
The drone will
not ascend
The drone
crashed instead
of land
1. Controller is turned off
1. The drone is not trimmed 1. Perform trimming close to the ground (Page 4)
2. Perform gyroscope calibration (Page 5)
3. Replace the blades according to page 3 diagram
4. Do not fly in windy conditions
2. The drone is not calibrated
3. The drone’s blades are damaged
4. Wind is too strong
1. The remote control is not turned on 1. Turn switch to ON position
2. Check battery connection of the drone
3. Turn the remote control off and on again to reset
the connection
4. Do not fly in windy conditions
2. The drone battery is not connected
3. The remote control frequency has not
paired with the drone
4. Wind is too strong
1. Rotor speed is too slow
Improper use of the emergency shutdown
feature.
Make sure you use the auto landing button for
easy landing
1. Push up on the left lever
2. Charge the aircraft battery
3. Refer to the page 3 for proper blades positioning
2. Drone battery is too low
3. The blades are not positioned properly
1. Turn switch to ON position
2. Check that batteries are inserted correctly
3. Replace the batteries with new ones
2. Battery is incorrectly inserted
3. Battery has no charge
Reason Approach

APP INSTRUCTION MANUAL

RC-PRO
RC-PRO
RC-PRO
?
main screen
4).Once to connected to your drone by Wifi, you will be able to view the camera
transmit through your APP.
1.Wifi Conneciton
2.APP Interface Description
7
1)
2)
3)

2). Speed control: Click into speed control, put your right hand thumb on the
right lever, will be mobile phone swing to completed (Figure3).
3). Selfie feature: Guide the drone to point right at you and press the camera
button to take selfies(Figure 4)
drone.
3.APP Functions
8
1. Place the drone on a flat surface.
2. Press the “Altitude hold” button” (Figure1).
3. Press the “Auto-Takeoff” button” (Figure2).
34
Attention: Please make sure you disconnect the battery from the drone after
every flight in order ro prevent damage to the battery.
1

Push up the left lever, the rotating
speed of main blades increase,
the drone will ascend.
Push down the left lever, the rotating
speed of main blades decrease, the
drone will descend.
Push up the right lever, the drone
will fly forward.
Push down the right lever, the drone
will fly backward.
Attention: Push the left lever(slowly) to take off. If the drone is not stable refer to the
trimming instructions or perform calibration.
Push the right lever to the right,
the drone will fly sideways to the right.
Push the right lever to the left,
the drone will fly sideways to the left.
If the drone keeps turning left/right
while hovering, press the right/left
trimming on the bottom left of the
screen to adjust.
If the drone keeps flying left/right
sideways while hovering, press the
right/left sideway trimming on the
bottom right of the screen to adjust.
If the drone keeps flying
forward/backword while hovering,
press the forward/backword
trimming on the far right of the
screen to adjust.
drone
drone
Push the left lever to the left,
the drone will turn left.
Push the left lever to the right,
the drone will turn right.
9
4

When you release the left lever
after the up/down opeartion,
the drone will still hover over the
height when the lever is released.
Once pressing the "Track control" key the right lever will disappear
from the right side of the APP screen. Use your finger tip to draw a
"flight-plan" for your drone and the drone will fly accordingly.
Switch this feature key on and use your phone as
a motion controller. Move your phone forward and
the drone will fly forward etc.
drone
drone
drone drone .
Once you have mastered basic functions, try out the 3D flip function!
Make sure the drone is at least 3m above the ground and press the
360 Roll key , then move the right lever in the direction of your
intended flip (Pressing upward will flip the drone over forward, etc)
6).3D Flips
7).Track Control Mode
8).Gravity Function
5).Altitude Hold

drone
Flight training
1. If the drone does not hover properly and does not fly accurately then gyro calibration might
be needed in order to reset the gyroscope.
2. Place the drone on a flat surface, press and the drone's light will flash several time
quickly and then return to normal operation. Calibration complete.
10).Gyro Calibration
9).Headless Mode

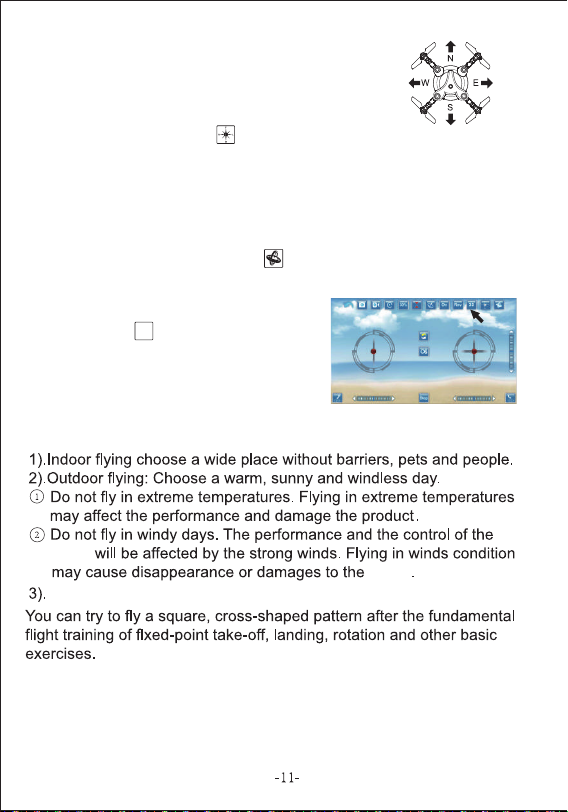

4.Choosing When to Fly
drone
This function means that the drone's direction of flight seen from
your viewpoint follows the phone directly, no matter in which direction
the drone's is pointing. Follow this steps to use this function:
(1) Place the drone exactly in front of you with its nose pointing to
your forward.
(2) Press the "Headless mode" key .
You are now able to fly your drone without considering to which direction the nose is pointing.
To disable the "Headless mode" press on the same button again.
We believe that you should make the most out of your drone.
If you are ever in need of advice, service or parts please visit
our website for a list of our retailers.
WWW.RCPRO.CA
11).3D Goggles
Press the 3D button , and you can see separate
sceen on your phone, then you can put your phone
into a VR goggles for a 3D real-time viewing.
3D
