RC-PRO SONIC 26-XLI BOAT User manual

High Speed Racing Boat
Please read manually carefully before operating.
Product may differ slightly from diagrams.
Risk of explosion if used with incorrect battery. Use only original
batteries and dispose of old batteries correctly. RC-PRO is not liable for any
damages or injuries incurred by appropriate or inappropriate use of this boat.
CAUTION!
SONIC 26-XLI BOAT
PLEASE READ INSTRUCTION MANUAL CAREFULLY BEFORE OPERATING
Specifications
•This product uses a high-power 2820 Kv brushless motor with water-cooling
system and proportionate steering control
•Top speed 55km/hr
•High-capacity rechargeable lithium-polymer battery and charger included
•Boat meansurements: 650mm x 180mm x 136mm

Servo
fine-adjusting
knob Directional
fine-adjusting
knob
Frequency matching
LED light
Main structures of remote control boat
Propeller
Show carriage

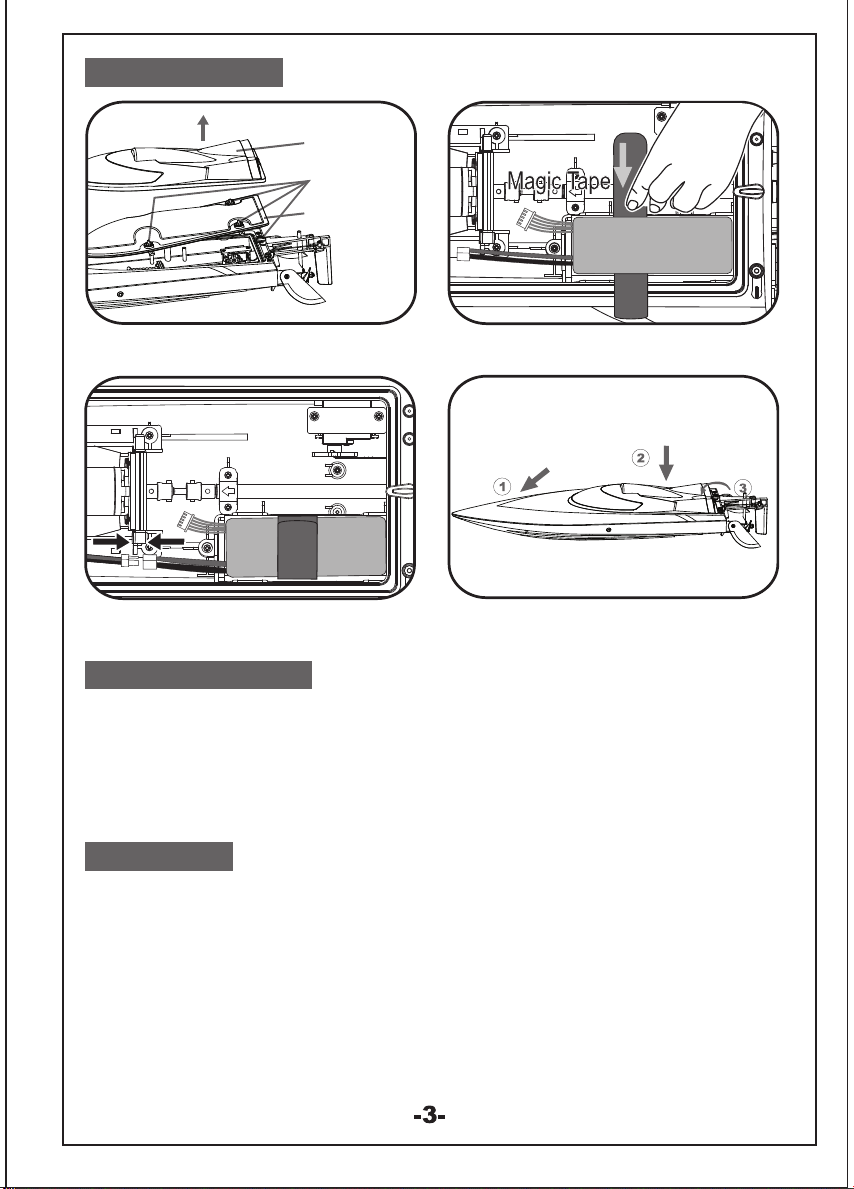

Boat cover
Middle cover
(2200 mAh/14.8 V high power
rechargeable Li-poly battery)
Charger
jack Balance
Charger
Battery charger
jack
Rudder
Servo linkage
Cover switch
UL charger

Open battery cover on controller and correctly insert six 1.5V AA batteries.
Close cover and tighten screws.(see the figure)
Connect the battery to the charger. Plug the charger into a power outlet and fully charge
(about 3.5hrs). DO NOT LEAVE CHARGING BATTERY UNATTENDED. Battery may be
warm when charging is complete. Disconnect the charger from the outlet, then the battery
from the charger.
• AA alkaline batteries recommended for controller
• Non-rechargeable batteries cannot be recharged
• Do not dismantle or short circuit batteries
• Keep batteries away from heat and flame
• Charge rechargeable batteries under adult supervision
• Remove rechargeable battery from boat before
charging and when not in use
• Remove battery before cleaning
• Regularly check all wires, plugs and batteries to ensure
proper performance and safety. In case of damage
discontinue use until repair
Installing Batteries in Remote Controller
Rechargeable Battery
Lithium Battery Safety Precautions
BATTERY PRECAUTIONS
Our company is not liable for any damages incurred by the appropriate or inappropriate use of this
product.
Check all batteries before charging and before use. Do not use or charge damaged batteries. Do not
over-charge batteries. Keep batteries away from heat and flame. Lithium is highly reactive with water;
always keep batteries away from water and humid conditions. Keep out of reach of children and pets.
Product should not be used by persons under 14 years of age, and should be accompanied by an
adult until 18 years of age. Our company is not liable for any damages resulting from improper use or
handling of the product.
+
-
Charger
Jack
Battery Charger
Jack
Balance
Charger

Safety Warning
Installing Boat Battery
Pairing Controller To Boat
This boat starts operating as soon as the battery is connected to the board. Make sure propellers
are not near you or others to avoid damage or injury. DO NOT OPERATE THIS BOAT OUTOF
WATER. Initial trimming may be necessary to adjust steering.
Connect the battery then quickly turn on the power switch of the remote controller. A solid red light
will show, as well as a blinking green light. When the green light stop flashing your controller has
paired to your boat. Once battery is connected, be sure to turn on the controller within 5 seconds,
otherwise the boat and controller may not pair. If pairing fails, disconnect your battery and repeat
Step 3. After successfully pairing, place boat in the water, where you are now safe to operate and
have fun.
Boat cover
Middle cover
1.Turn switch on boat cover to open
3.Connect the battery plug with circuit
board plug
4.Replace boat cover and turn switch
to fasten
2.Place Li-Ion battery into holder in
boat body
Cover switch
1. Recommended age 14 years, younger children should be supervised and
instructed by an adult.
2. Do not use boat in areas where people are swimming.
3. Inspect playing area for any foreign objects ie. Trees, roots, rocks.

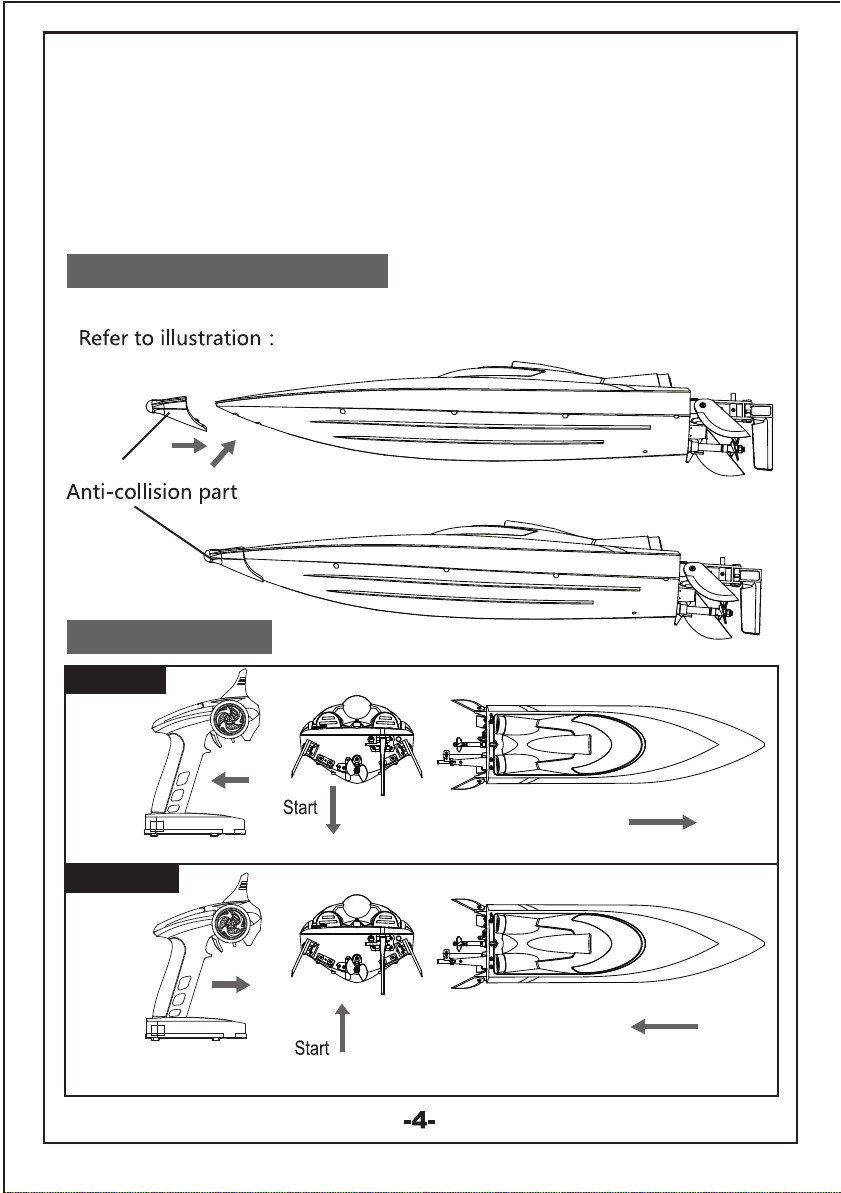

Installation of Protective Nose Guard
Operating Instructions
Nose guard can prevent damage to the bow due to collision.
3.To remove, unclip and slide cone off
1.Slide cone onto bow (as shown)
2.Click into place
Pull trigger toward body of controller, this will make the boat move forward.
Push trigger away from body of the controller, this will make the boat move backwards.
Reverse
Forward
4. Maximum control range is 150meters, going beyond this may cause this
boat to lose control.
5. Whenever you are not using your model turn off the controller and unplug
the rechargeable battery from the boat.
6. This model is equipped with a low-voltage cut-off, your speed will decrease
significantly when the battery is low. At this time bring your model to shore.
7. Always be safety-conscious. If your model gets out of control, retrieve it
safely. Always play safe.

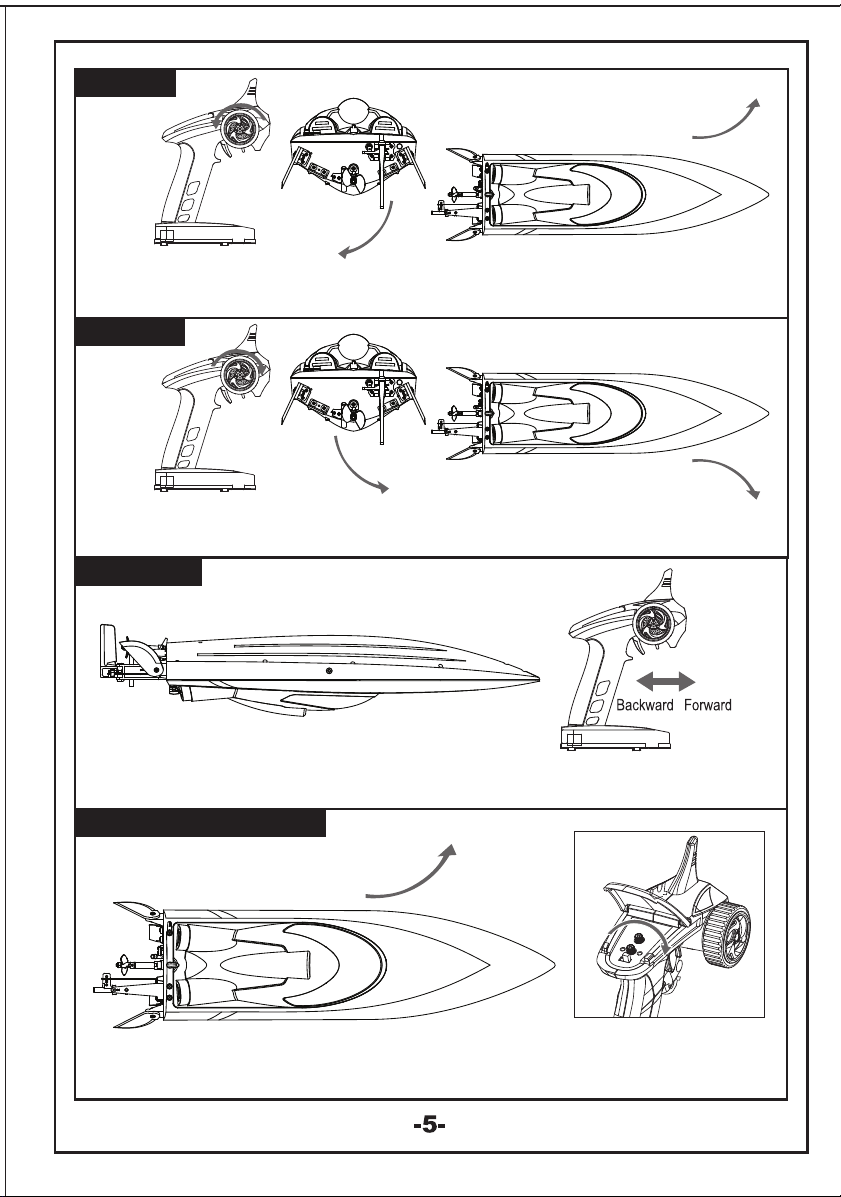

While moving turn the direction knob counter-clockwise and the boat will turn left.
While moving turn the direction knob clockwise to turn right.
Turning Left
Turning Right
Self-Righting
Fine adjustment toward left
In the case where your boat is upside-down, just push
and pull on the trigger, and the boat will automatically right itself.
If your model is automatically turning left, slowly rotate the Directional fine adjustment
knob clockwise (as shown), this will correct the drift and allow the boat to move forward
accurately.

Fine adjustment toward right

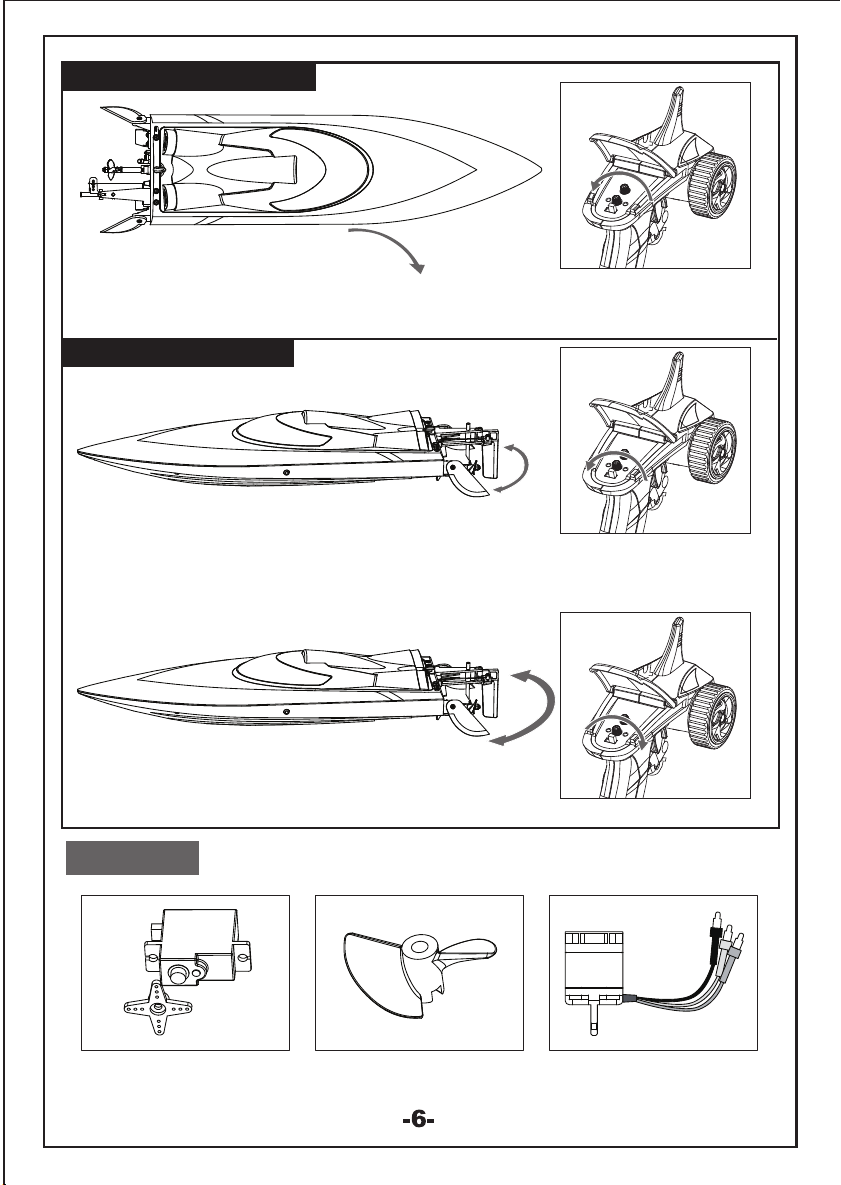

Steering Gear Adjustment
Spare Parts
Brushless motorPropellerServo
If your model is automatically turning right, slowly rotate the Directional fine adjustment knob
counter-clockwise (as shown), this will correct the drift and allow the boat to move forward
accurately.
To adjust the turning radius of your model, turn the Servo fine-adjusting knob (as pictured).
Turning clockwise will decrease your turning radius (for a sharp, aggressive turns), while
counter-clockwise will give a greater turning radius (for a wider turn).

Drive shaft
Steering unit
Left cutter Right cutter Left spray strip Right spray strip
Boat cover Boat hull
14.8V lithium
polymer battery
UL balance charger
3 in 1 ESC Protective nose guard
Balance
Charger
1. Keep body of boat clean and store out of direct sunlight.
2. After use, clean model and use a soft cloth to absorb any water that has accumulated.
3. Always remove batteries from both the boat and the controller when not in use.
4. Occasionally apply provided lubricant to the boats drive shaft connection in order to keep it
turning smoothly.
As a part of proper maintenance, Please apply the provided
lubricant to the shaft connection and turn it in order to make
sure it is evenly covered.
specialize lubrication oil
We believe that you should make the most out of your boat.
If you are ever in need of advice, service or parts please visit
our website for a list of our retailers and service centers.
WWW.RCPRO.CA
