RCA 32V550TYX1GYV User manual

Television
User's Guide
Changing Entertainment. am.

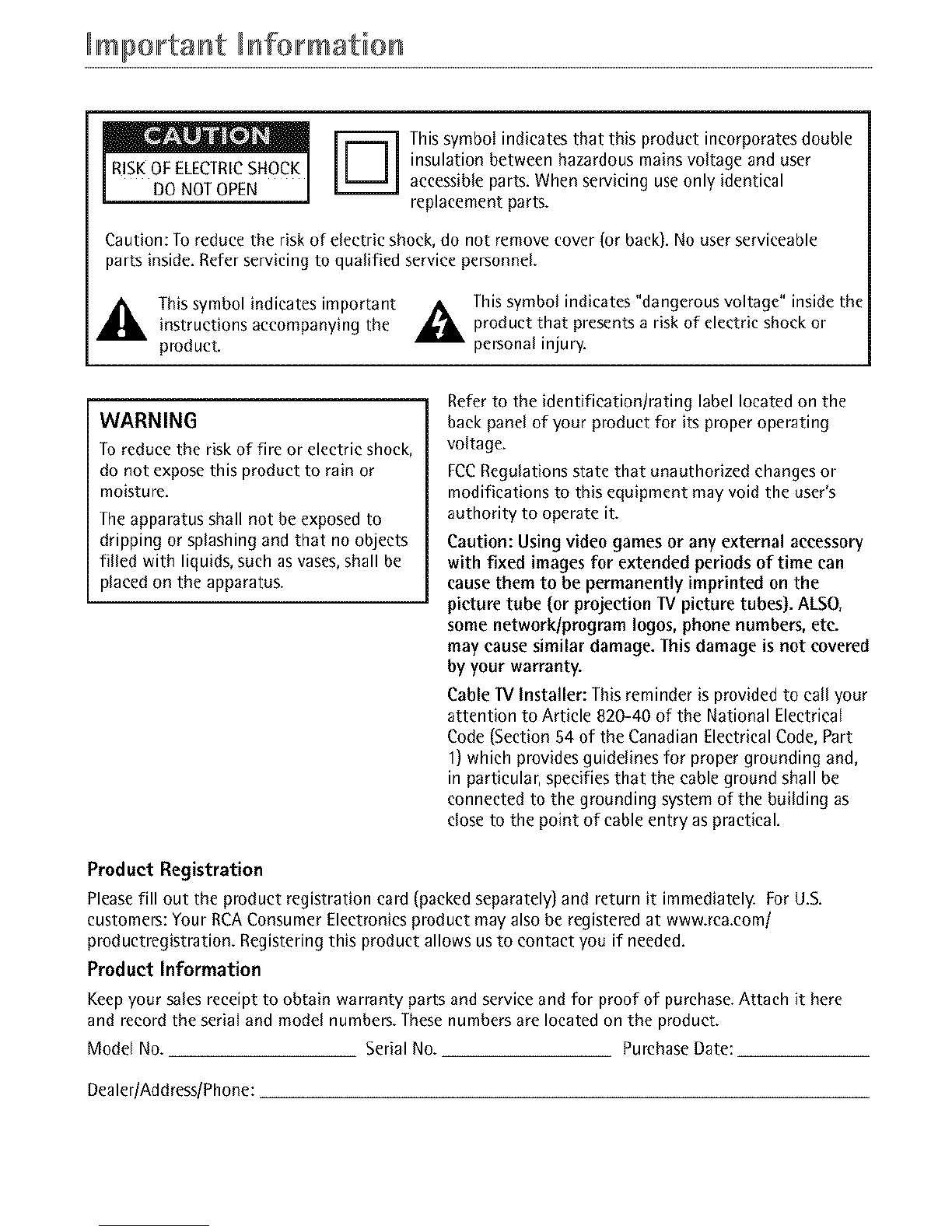

mportaHt HformatioH
This symbol indicates that this product incorporates double
insulation between hazardous mains voltage and user
accessible parts. When servicing use only identical
replacement parts.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service personnel.
Thissymbol indicates important A Thissymbol indicates "dangerousvoltage" insidethe
instructions accompanying the _, product that presentsarisk of electric shock or
product, personal injury.
WARNING
To reduce the risk of fire or electric shock,
do not expose this product to rain or
moisture.
The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
Refer to the identification/rating label located on the
back panel of your product for its proper operating
voltage.
FCC Regulations state that unauthorized changes or
modifications to this equipment may void the user's
authority to operate it.
Caution: Using video games or any external accessory
with fixed images for extended periods of time can
cause them to be permanently imprinted on the
picture tube (or projection IV picture tubes}. ALSO,
some network/program Iogos, phone numbers, etc.
may cause similar damage. This damage is not covered
by your warranty.
Cable IV Installer: This reminder is provided to call your
attention to Article 820-40 of the National Electrical
Code (Section 54 of the Canadian Electrical Code, Part
1) which provides guidelines for proper grounding and,
in particular, specifics that the cable ground shall be
connected to the grounding system of the building as
close to the point of cable entry as practical.
Product Registration
Please fill out the product registration card (packed separately} and return it immediately. For U.S.
customers: Your RCA Consumer Electronics product may also be registered at www.rca.comi
productregistration. Registering this product allows us to contact you if needed.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here
and record the serial and model numbers. These numbers are located on the product.
Model No. Serial No. Purchase Date:
Dealer/Addres_Phone:

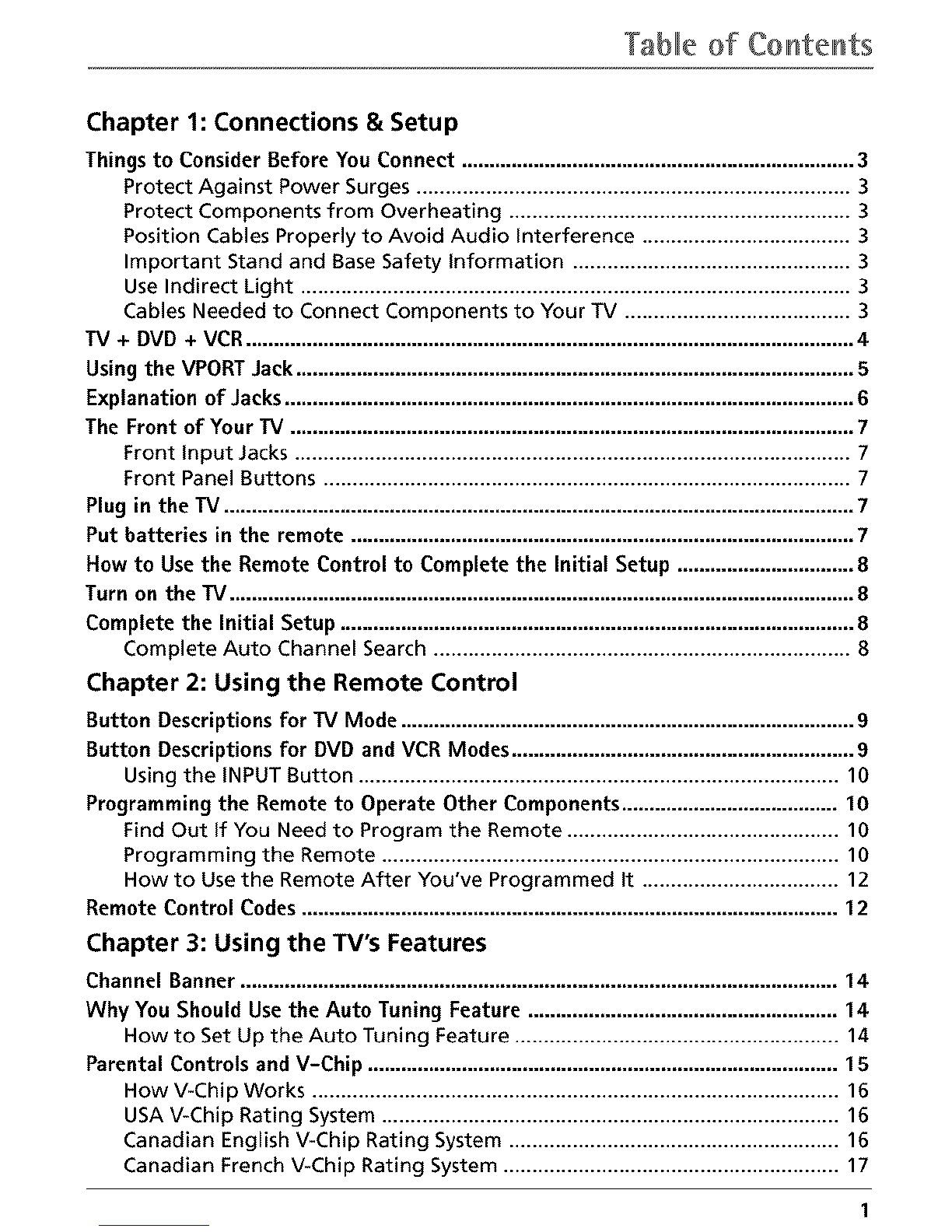

Tabl[e of CoHteHts
Chapter 1: Connections & Setup
Things to Consider Before You Connect ....................................................................... 3
Protect Against Power Surges ........................................................................... 3
Protect Components from Overheating ........................................................... 3
Position Cables Properly to Avoid Audio Interference .................................... 3
Important Stand and Base Safety Information ................................................ 3
Use Indirect Light ............................................................................................... 3
Cables Needed to Connect Components to Your TV ....................................... 3
TV + DVD + VCR .............................................................................................................. 4
Using the VPORT Jack ..................................................................................................... 5
Explanation of Jacks ....................................................................................................... 6
The Front of Your TV ...................................................................................................... 7
Front Input Jacks ................................................................................................ 7
Front Panel Buttons ........................................................................................... 7
Plug in the TV .................................................................................................................. 7
Put batteries in the remote ........................................................................................... 7
How to Use the Remote Control to Complete the Initial Setup ................................ 8
Turn on the TV................................................................................................................. 8
Complete the Initial Setup ............................................................................................. 8
Complete Auto Channel Search ........................................................................ 8
Chapter 2: Using the Remote Control
Button Descriptions for TV Mode .................................................................................. 9
Button Descriptions for DVD and VCR Modes.............................................................. 9
Using the INPUT Button ................................................................................... 10
Programming the Remote to Operate Other Components ....................................... 10
Find Out If You Need to Program the Remote ............................................... 10
Programming the Remote ............................................................................... 10
How to Usethe Remote After You've Programmed It .................................. 12
Remote Control Codes ................................................................................................. 12
Chapter 3: Using the TV's Features
Channel Banner ............................................................................................................ 14
Why You Should Use the Auto Tuning Feature ........................................................ 14
How to Set Up the Auto Tuning Feature ........................................................ 14
Parental Controls and V-Chip ..................................................................................... 15

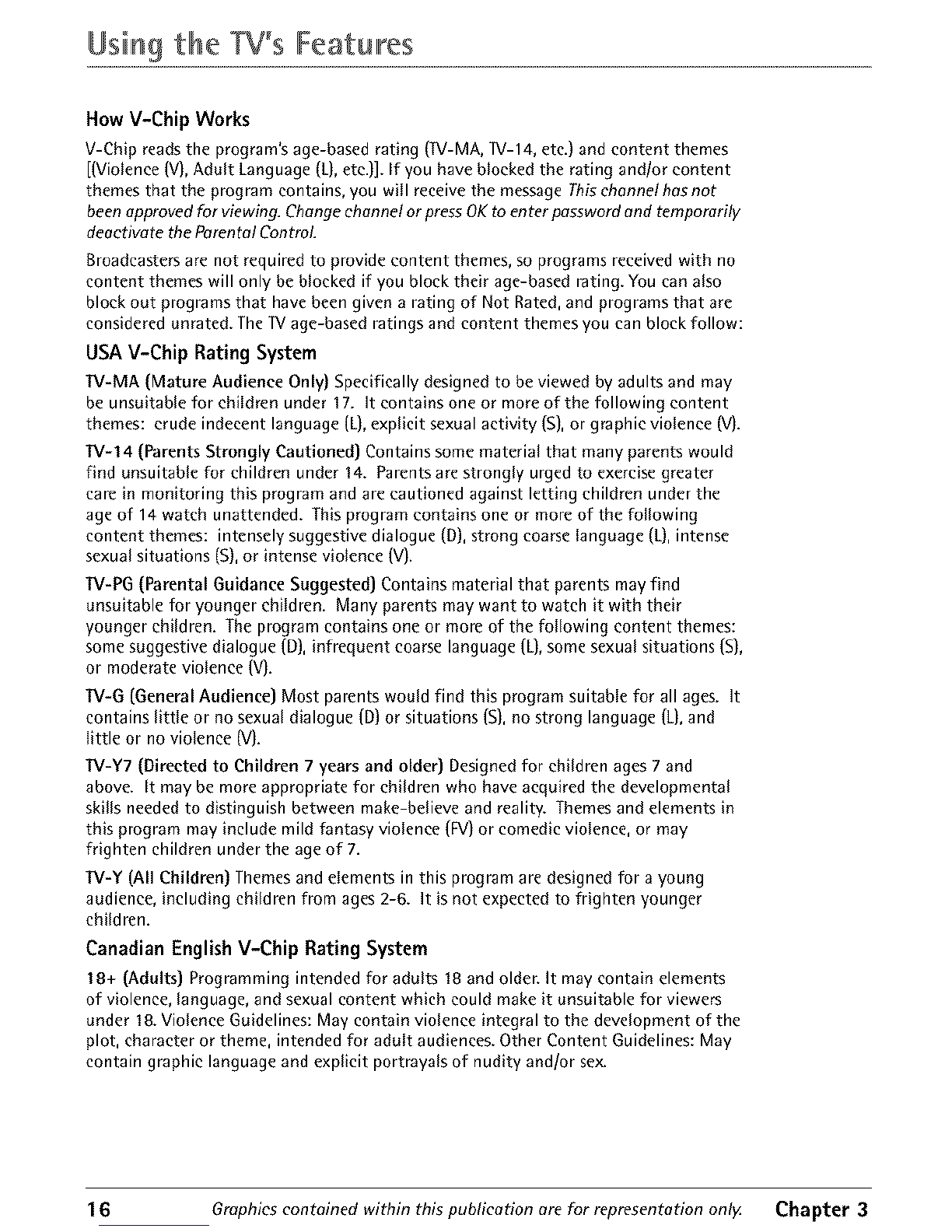

How V-Chip Works ........................................................................................... 16
USA V-Chip Rating System ............................................................................... 16
Canadian English V-Chip Rating System ......................................................... 16
Canadian French V-Chip Rating System .......................................................... 17

Tablle of CoHteHts
USA V-Chip TV Rating Limit ............................................................................. 18
Blocking Specific Content Themes .................................................................. 19
Viewing Specific Content Themes ................................................................... 19
Blocking Canadian V-Chip Ratings .................................................................. 20
V-Chip Movie Rating Limit ............................................................................... 20
V-Chip Exempt Program Block ......................................................................... 20
KidPass .............................................................................................................. 21
V-Chip Active .................................................................................................... 21
Front Panel Lock ............................................................................................... 21
Change Password ............................................................................................. 21
Chapter 4: Using the TV's Menu System
Sound Menu .................................................................................................................. 22
Picture Menu ................................................................................................................ 22
Setup Menu .................................................................................................................. 23
Parental Control Menu ................................................................................................ 24
Time Menu .................................................................................................................... 24
Chapter 5: Other Information
Troubleshooting ............................................................................................................ 25
Care and Cleaning ........................................................................................................ 27
Limited Warranty ......................................................................................................... 27
2

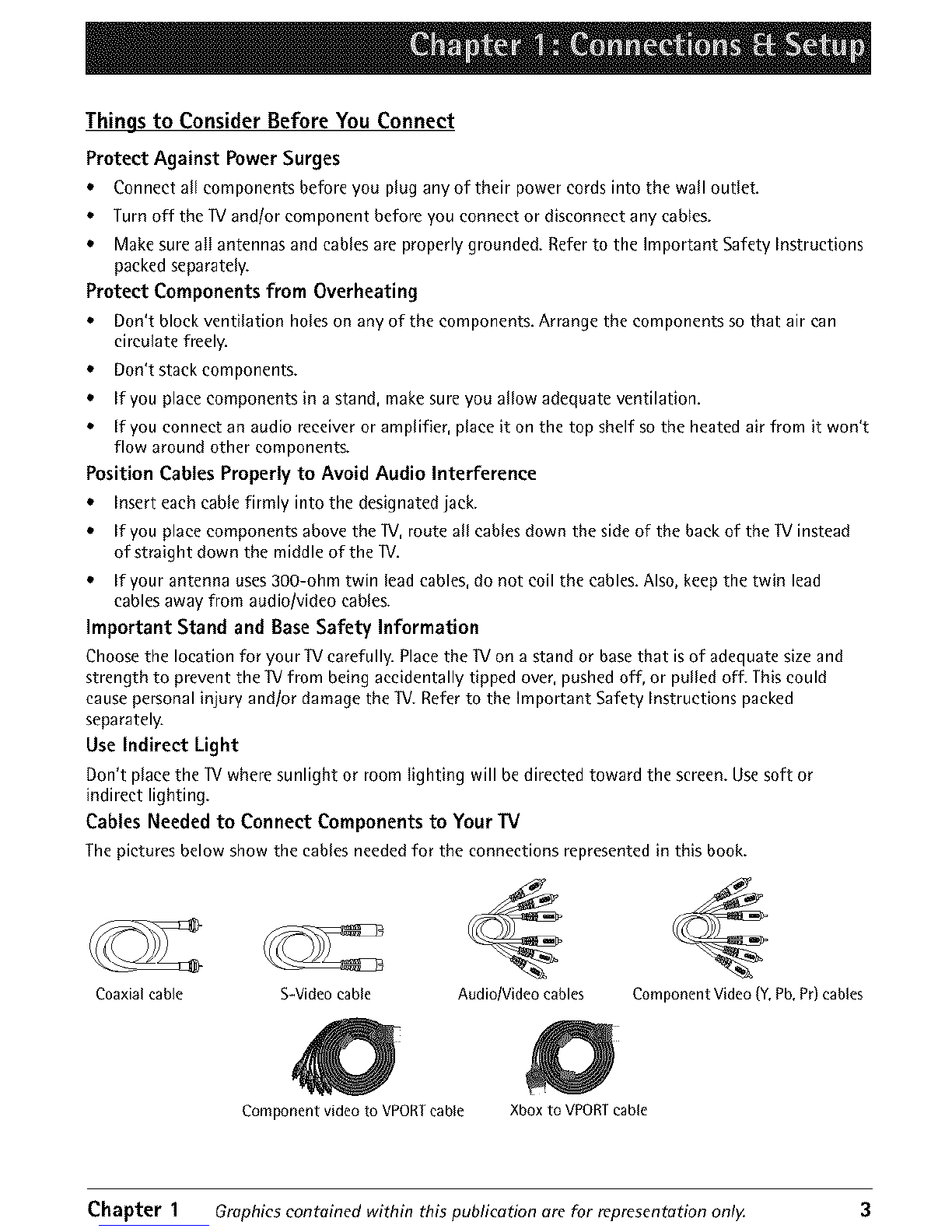

Things to Consider Before You Connect
Protect Against Power Surges
• Connect all components before you plug any of their power cords into the wall outlet.
• Turn off the IV and/or component before you connect or disconnect any cables.
• Make sure alI antennas and cables are properly grounded. Refer to the Important Safety Instructions
packed separately.
Protect Components from Overheating
•Don't block ventilation holes on any of the components. Arrange the components so that air can
circulate freely.
•Don't stack components.
• If you place components in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it won't
flow around other components.
Position Cables Properly to Avoid Audio Interference
• Insert each cable firmly into the designated jack.
• If you place components above the IV, route all cables down the side of the back of the IV instead
of straight down the middle of the IV.
• If your antenna uses 3CO-ohm twin lead cables, do not coil the cables. Also, kccp the twin lead
cables away from audiolvideo cables.
Important Stand and Base Safety Information
Choose the location for your IV carefully. Place the IV on a stand or base that is of adequate size and
strength to prevent the IV from being accidentally tipped over, pushed off, or pulled off. This could
cause personal injury andlor damage the IV. Refer to the Important Safety Instructions packed
separately.
Use Indirect Light
Don't place the IV where sunlight or room lighting will be directed toward the screen. Use soft or
indirect lighting.
Cables Needed to Connect Components to Your IV
The pictures below show the cables needed for the connections represented in this book.
Coaxial cable S-Video cable Audio/Video cables Component Video (Y,Pb, Pr)cables
Component video to VPORT cable Xbox to VPORT cable
Chapter 1 Graphics contained within this publication are for representation only. 3

Co n nectio ns Setuo
TV(backpanel)
FromCable
or Antenna
TV + DVD + VCR
* If you connect an S-Video cable, you must connect
the audio cables to the VID[O I AUDIO jacks on the
back of the TV, not the VIDEO 2 AUDIO jacks.

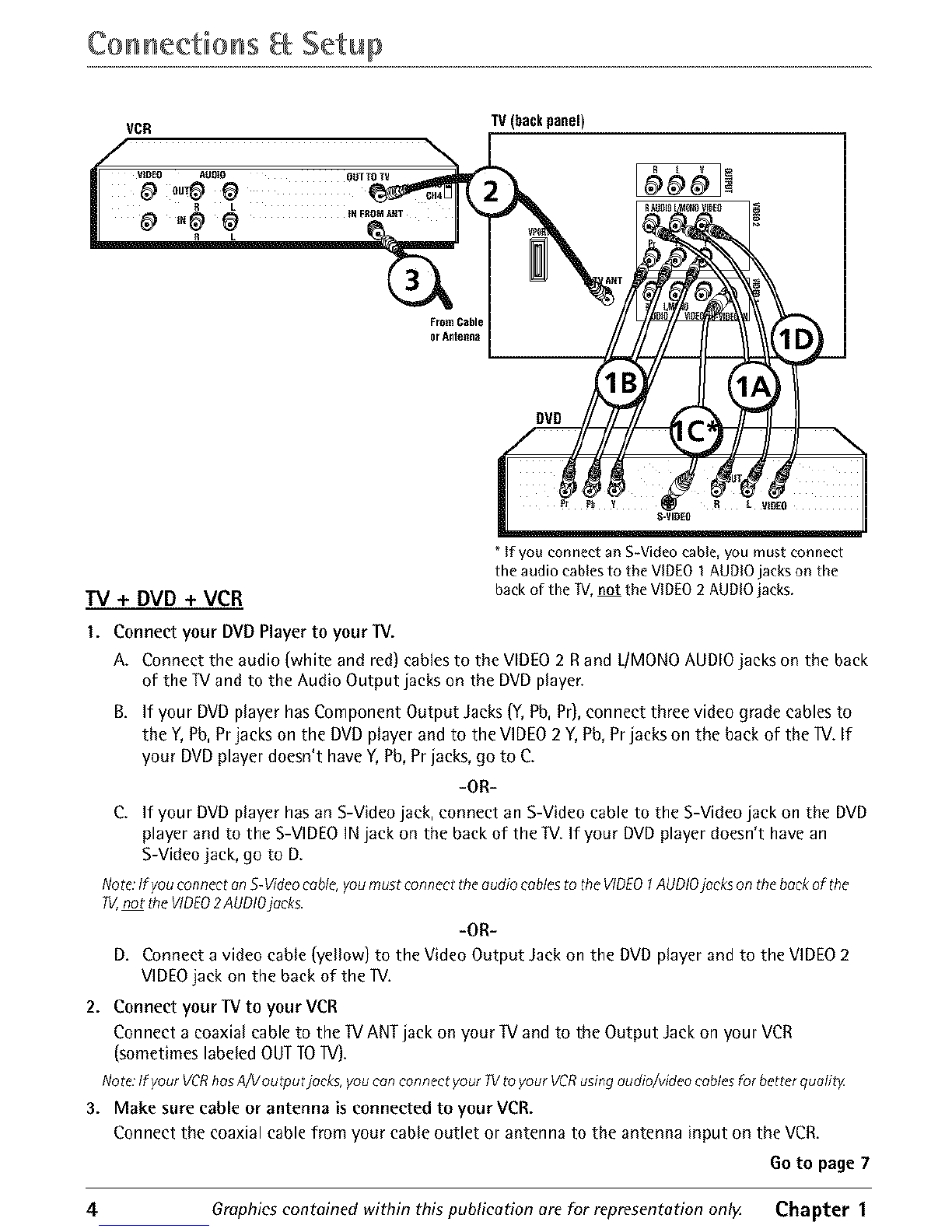

I. Connect your DVDPlayerto your TV.
A. Connect the audio (white and red) cablesto the VIDEO2 Rand L/MONOAUDIOjacks on the back
of the IV and to the Audio Output jacks on the DVDplayer.
B. ff your DVD player has Component Output Jacks (Y, Pb, Pr), connect three video grade cables to
the Y, Pb, Prjacks on the DVD player and to the VIDEO 2 Y, Pb, Pr jacks on the back of the IV. If
your DVD player doesn't have Y,Pb, Pr jacks, go to C.
-OR-
C. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD
player and to the S-VIDEO IN jack on the back of the IV. If your DVD player doesn't have an
S-Video jack, go to D.
Note:Ifyou connect anS-Videocable,you must connect tile audio cablesto theVIDEO1AUDiOjacks on tile beckof the
W,not theVIDEO2AUDIOjaoks.
-OR-
D, Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the VIDEO 2
VIDEO jack on the back of the IV.
2. Connect your TV to your VCR
Connect acoaxial cableto the 1VANTjack on your IV and to the Output Jackon your VCR
(sometimeslabeledOUTTOIV).
Nore:Ifyour VCRhasA/V output jacks,youcon connect yourWto your VCRusingaudio/videocablesfor better quolitg
3. Make sure cable or antenna is connected to your VCR.
Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.
Go to page 7
4Graphics contained within this publication are for representation onlg Chapter 1

CoHHeetioHS Setup
Xbox
DVD
TV (back panet)
or _lenna
Component video to
VPORT cable (not
supplied)
Xbox to VPORTcable
(not supplied)

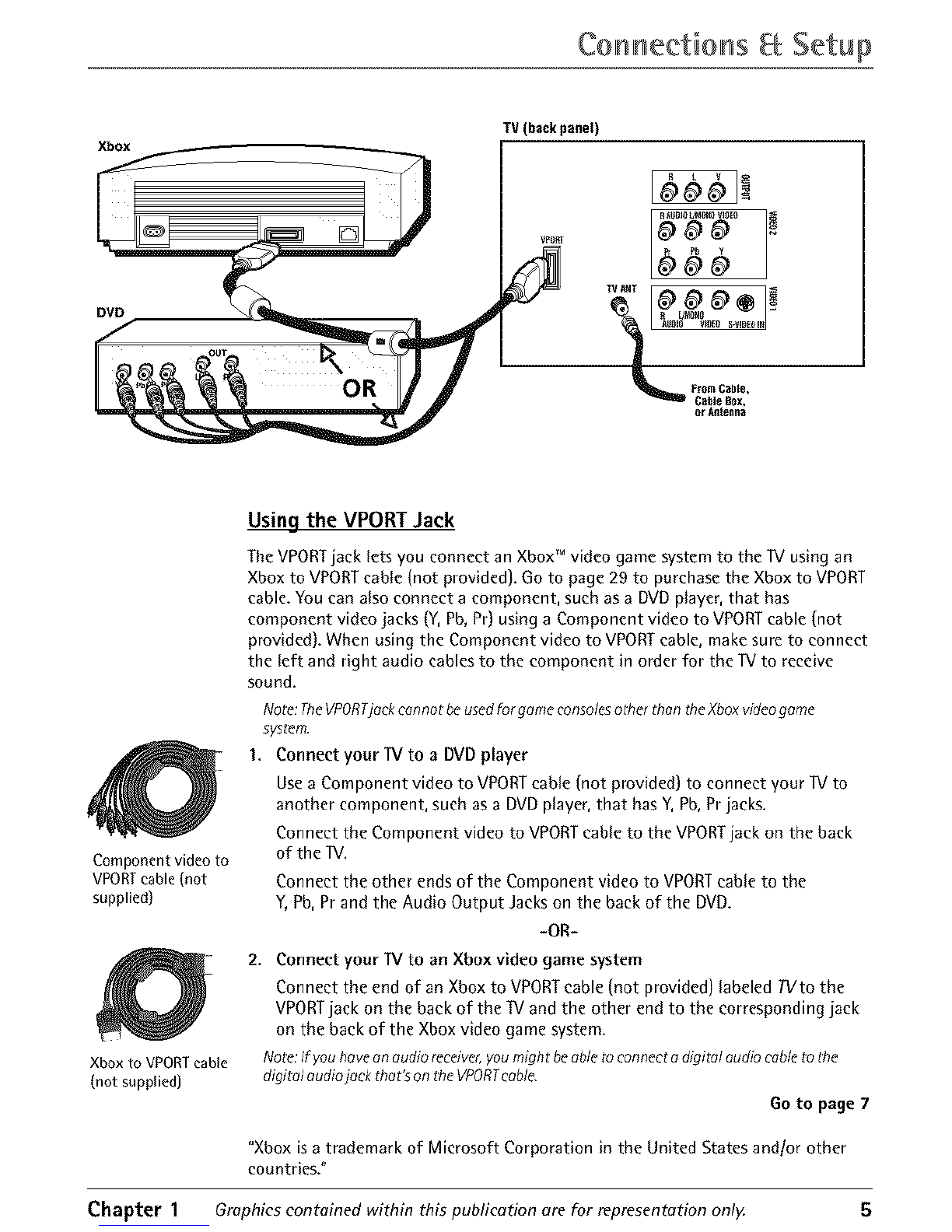

Using the VPORT Jack
The VPORTjack lets you connect an Xbox TM video game system to the lV using an
Xbox to VPORT cable (not provided). Go to page 29 to purchase the Xbox to VPORT
cable. You can also connect a component, such as a DVD player, that has
component video jacks (Y, Pb, Pr) using a Component video to VPORT cable (not
provided). When using the Component video to VPORT cable, make sure to connect
the left and right audio cables to the component in order for the lV to receive
sound.
Note:TheVPORTjackconnot I)eusedfor geme consolesother tflontileXboxvideogorne
system.
I. Connect your TV to a DVD player
Use a Component video to VPORT cable (not provided) to connect your IV to
another component, such as a DVD player, that has Y, Pb, Pr jacks.
Connect the Component video to VPORT cable to the VPORTjack on the back
of the W.
Connect the other ends of the Component video to VPORT cable to the
Y, Pb, Pr and the Audio Output Jacks on the back of the DVD.
-OR-
2. Connect your TV to an Xbox video game system
Connect the end of an Xbox to VPORT cable (not provided) labeled Wto the
VPORTjack on the back of the TV and the other end to the corresponding jack
on the back of the Xbox video game system.
Note:If you hoveanaudio receiver,you m[ght beableto connect adigital oudio cableto the
digitel o;;diojeck thet's on the VPORTcoble.
Go to page 7
"Xbox is a trademark of Microsoft Corporation in the United States andlor other
countries."
Chapter 1 Grophics eontoined within this publicotion are for representation only. 5

Co n nectio nsa Setup
Explanation of Jacks
Thissection describesthe jacks you can useto makeconnections. Thereare several
ways to connect components to your W.
VPORT Goto the previous pagefor VPORTexplanation.
13/ANT Letsyou connect acoaxial cable to receivethe signal from the antenna,
cable,cable box, or if using the example on page 4,a VCR.
R L/MONO
AUDIO VIDEOS-VIDEOIN
.,,a.
RAUDIOL/MONOVIDEO
Pr Pb Y
VIDEO 1
VIDEO, AUDIO R and LIMONO Lets you connect a
component such as a VCR, DVD player, or laserdise player.
• R (RIGHT} AUDIO Provides right audio connection. The
right audio connector is usually red.
•L/MONO AUDIO Provides left audio connection. The
left audio connector is usually white.
•VIDEO Provides composite video connection. The video
connector is usually yellow.
S-VIDEO IN Provides better picture quality than the
video jacks because the color part of the signal is
separated from the black and white part of the picture.
When using S-VIDEO IN, make sure to connect left and
right audio cables to the L/MONO and R AUDIO Input
jacks.
VIDEO 2
VIDEO,AUDIOR and LIMONOand Y,Pb,Pr Letsyou
connect a component video source,such asa DVDplayer.
• Y, Pb, Pr Provides optimum picture quality because the
video is separated into three signals. Use three video-
grade cables for the connection. When using VIDEO 2
Y,Pb, Pr, make sure to connect left and right audio cables
to the VIDEO 2 AUDIO Input jacks.
• R (RIGHT} AUDIO, L/MONO and VIDEO Their
description is the same as VIDEO I.
AUDIO/VIDEO OUTPUTS Lets you connect an amplifier or
audio receiver for improved sound quality or an external
video monitor.
6Graphics contained within this publication are for representation onlg Chapter 1

CoHHeetioHS Setup
AUDIO I

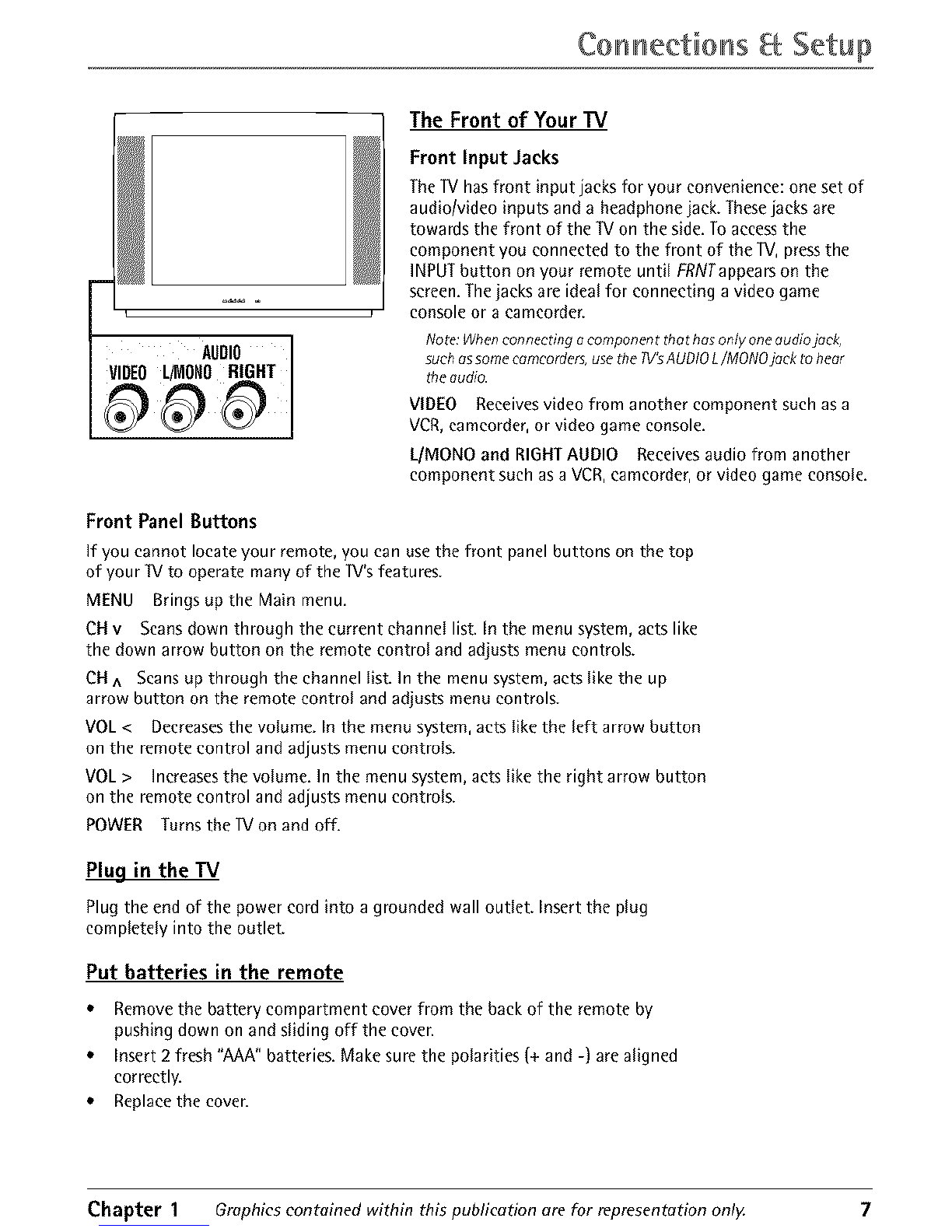

The Front of Your TV
Front Input Jacks
The1Vhasfront input jacks for your convenience: one set of
audio/video inputs and a headphonejack. Thesejacks are
towards the front of the W on the side.To accessthe
component you connected to the front of the IV, pressthe
INPUTbutton on your remote until FRNTappearson the
screen.Thejacks areideal for connecting avideo game
console or aeameorder.
Note:Whenconnectingocomponent thet hasonly oneaudiojock,
suchassomecomcorders,usetile TV'sAUDIOL/MONOjock toheor
tile oudio.
VIDEO Receivesvideo from another component such asa
VCR,camcorder,or video game console.
I_/MONOand RIGHTAUDIO Receivesaudio from another
component such as aVCR,eameorder,or video game console,
Front Panel Buttons
If you cannot locate your remote, you can usethe front panelbuttons on the top
of your TVto operate many of the 1V'sfeatures.
MENU Brings up the Main menu.
CH v Scans down through the current channel list. In the menu system, acts like
the down arrow button on the remote control and adjusts menu controls.
CH ^ Scans up through the channel list. In the menu system, acts like the up
arrow button on the remote control and adjusts menu controls.
VOL < Decreases the volume. In the menu system, acts like the left arrow button
on the remote control and adjusts menu controls.
VOL > Increases the volume. In the menu system, acts like the right arrow button
on the remote control and adjusts menu controls.
POWER Turns the 1Von and off.
Plug in the TV
Plug the end of the power cord into a grounded wall outlet. Insert the plug
completely into the outlet.
Put batteries in the remote
• Remove the battery compartment cover from the back of the remote by
pushing down on and sliding off the coven
• Insert 2 fresh "AAA" batteries. Make sure the polarities (+ and -) are aligned
correctly.
• Replace the coven
Chapter 1 Graphics contained within this publication are for representation only. 7

Co n nectio ns Setup
_._ Arrows
OK
button

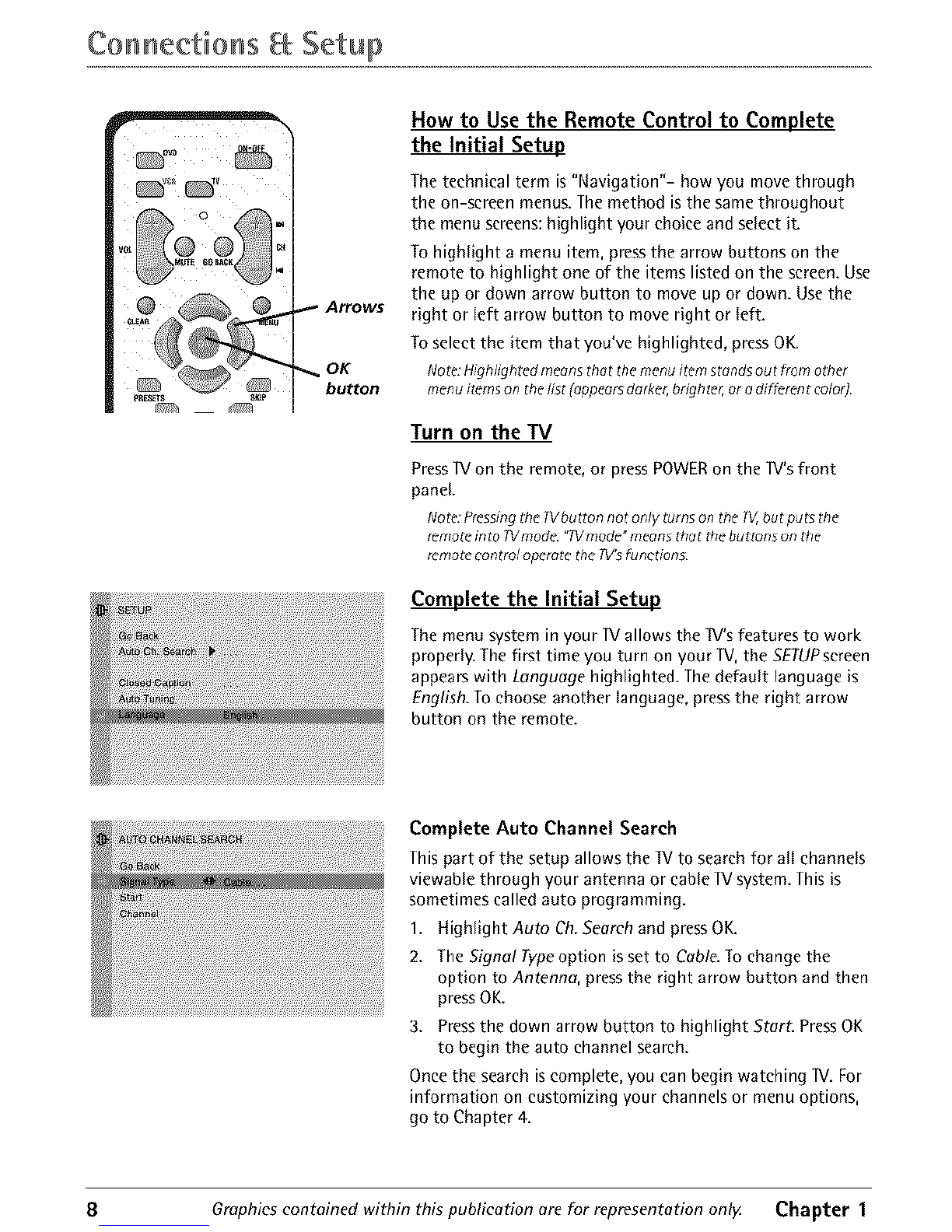

How to Usethe Remote Control to Complete
the Initial Setup
The technical term is "Navigation"- how you move through
the on-screen menus. The method is the same throughout
the menu screens: highlight your choice and select it.
To highlight a menu item, press the arrow buttons on the
remote to highlight one of the items listed on the screen. Use
the up or down arrow button to move up or down. Use the
right or left arrow button to move right or left.
To select the item that you've highlighted, press OK.
Note:Highlighted meansthat the menu itemstandsout from other
menu itemson the/;st (appearsdarker,brighter,or odifferent color]
Turn on the TV
Press]V on the remote, or pressPOWERon the ]V's front
panel.
Note:Pressingt#e Wbutton not only t_rnson theW_butputs the
remot_into Wmode. "Wmode"meansthat thebuttons on the
remot_control operatetheTV'sfunctions
Complete the Initial Setup
The menu system in your ]V allows the IV's features to work
properly. The first time you turn on your lV, the SETUPscreen
appears with Language highlighted. The default language is
English. To choose another language, press the right arrow
button on the remote.
Complete Auto Channel Search
This part of the setup allows the lV to search for all channels
viewable through your antenna or cable IV system. This is
sometimes called auto programming.
1. Highlight Auto Ch. Search and press OK.
2. The Signal Type option is set to Cable To change the
option to Antenna, press the right arrow button and then
pressOK.
3. Press the down arrow button to highlight StarL PressOK
to begin the auto channel search.
Once the search is complete, you can begin watching ]V. For
information on customizing your channels or menu options,
go to Chapter 4.
8Graphics contained within this publication are for representation onlg Chapter 1

Indicator
i_ _ _

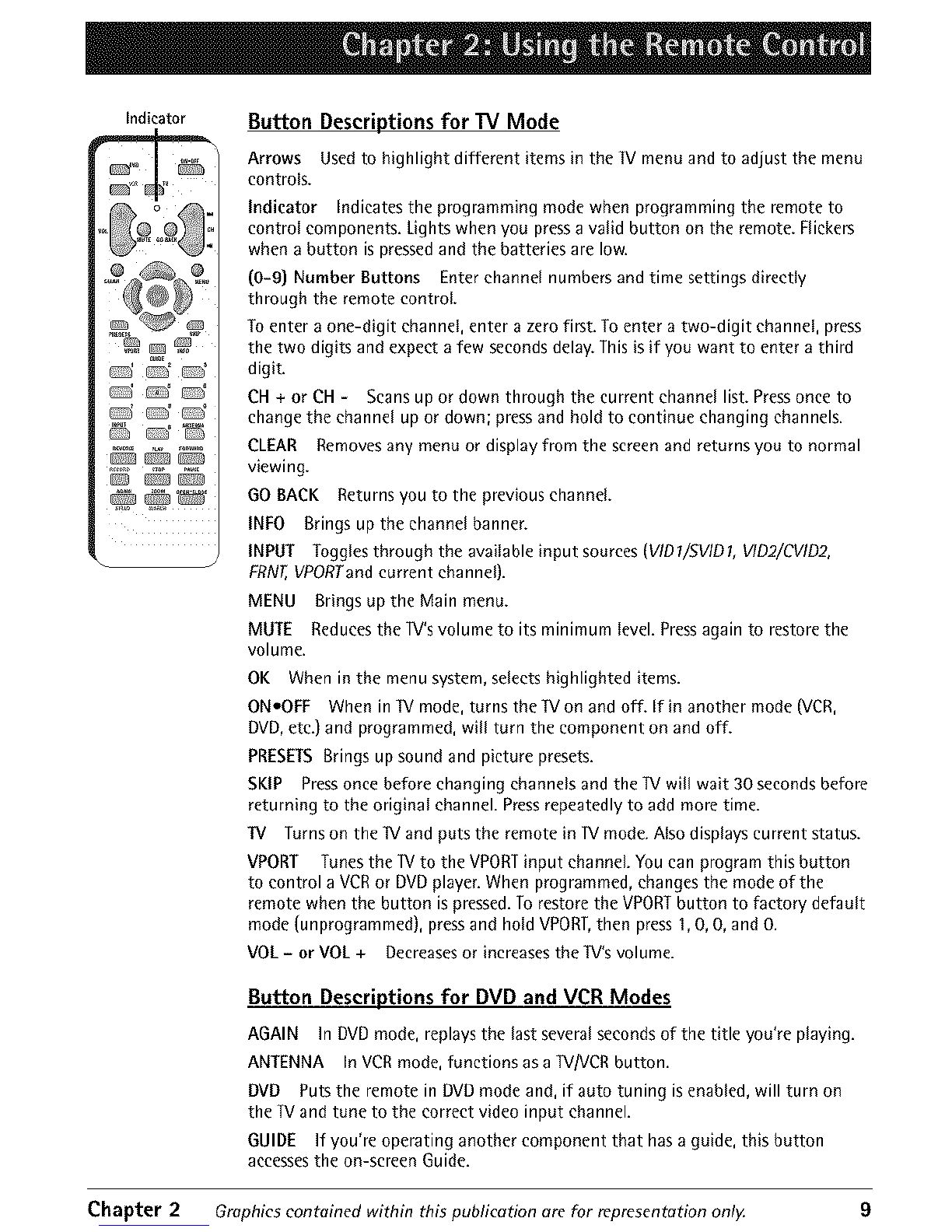

Button Descriptions for IV Mode
Arrows Used to highlight different items in the IV menu and to adjust the menu
controls.
Indicator Indicatesthe programming mode when programming the remote to
control components. Lights when you pressavalid button on the remote. Flickers
when abutton ispressedand the batteries are low.
(0-9} Number Buttons Enter channel numbers and time settings directly
through the remote control.
To enter a one-digit channel, enter a zero first. To enter a two-digit channel, press
the two digits and expect a few seconds delay. This is if you want to enter a third
digit.
CH+ or CH - Scans up or down through the current channel list. Press once to
change the channel up or down; press and hold to continue changing channels.
CLEAR Removes any menu or display from the screen and returns you to normal
viewing.
GOBACK Returnsyou to the previous channeL
INFO Brings up the channel banner.
INPUT Toggles through the available input sources (VID1/SVIDI, VID2/CVID2,
FRNT,VPORTandcurrent channel).
MENU Brings up the Main menu.
MUTE Reduces the IV's volume to its minimum level. Press again to restore the
volume.
OK When in the menu system, selects highlighted items.
ONoOFF When in IV mode, turns the IV on and off. If in another mode (VCR,
DVD,etc.) and programmed, will turn the component on and off.
PRESETS Brings upsound and picture presets.
SKIP Press once before changing channels and the IV will wait 30 seconds before
returning to the original channel. Press repeatedly to add more time.
IV Turns on the IV and puts the remote in IV mode. Also displays current status.
VPORT Tunes the IV to the VPORTinput channel. You can program this button
to control a VCRor DVDplayer. When programmed, changes the mode of the
remote when the button is pressed. To restore the VPORTbutton to factory default
mode (unprogrammed), press and hold VPORT,then press I, 0, 0, and O.
VOL - or VOL + Decreases or increases the IV's volume.
Button Descriptions for DVD and V(2R Modes
AGAIN In DVD mode, replays the last several seconds of the title you're playing.
ANTENNA In VCR mode, functions as a IV/VCR button.
DVD Puts the remote in DVD mode and, if auto tuning is enabled, will turn on
the IV and tune to the correct video input channel.
GUIDE If you're operating another component that has a guide, this button
accesses the on-screen Guide.
Chapter 2 Graphics contained within this publication are for representation only. 9

UsiH9 tlhe Remote CoHtroll
OPENoCLOSE In DVD mode, opens or closes the DVD disc tray.
REVERSE, PLAY, FORWARD, RECORD, STOP,PAUSE If programmed, provides
transport control for some remote-controllable VCRs or DVD players.
SEARCH In VCR mode, accesses Index Search feature.
SPEED In VCR mode, selects a recording speed.
VCR Puts the remote in VCR mode and, if auto tuning is enabled, will turn on the
1V and tune to the correct video input channel.
ZOOM In DVD mode, zooms in on the picture.
Using the INPUT Button
Use the INPUT button to scroll through the available video input channels and
view components you have connected to the IV.
I. Make sure the component you want to view is turned ON.
2. Press INPUT to tune to an available video input source and view the
component.
3. To return to the previous channel, continue pressing INPUT.
DVDand j
VCRbuttons
VPORTj
button
REVERSE j
and PLAY
buttons
_ON,OFF
button
STOP
button
You'lluse these buttons when
programming the remote.
Programming the Remote to Operate Other
Components
The universal remote can be programmed to operate most
brands of remote controllable components. The remote is
already programmed to operate most RCA, GE, and Proscan
components.
Not_:TheWbu_toncon't beprogrammedon thisremote.
Find Out If You Need to Program the Remote
To determine whether the universal remote needs to be
programmed for your component, turn the component ON.
For example, to program the remote for a VCR, turn on the
VCR. Point the remote at the VCR, and press the VCR button.
Then press ONoOFF or CH + (channel up] or CN - (channel
down] to see if the VCR responds to the remote commands. If
the component does not respond, the remote needs to be
programmed.
Programming the Remote
There are two ways to program the remote control:
o automatic codesearch
o direct entry
10 Graphics contained within this publication are for representation only. Chapter 2

UsiH9 the Remote CoHtroll

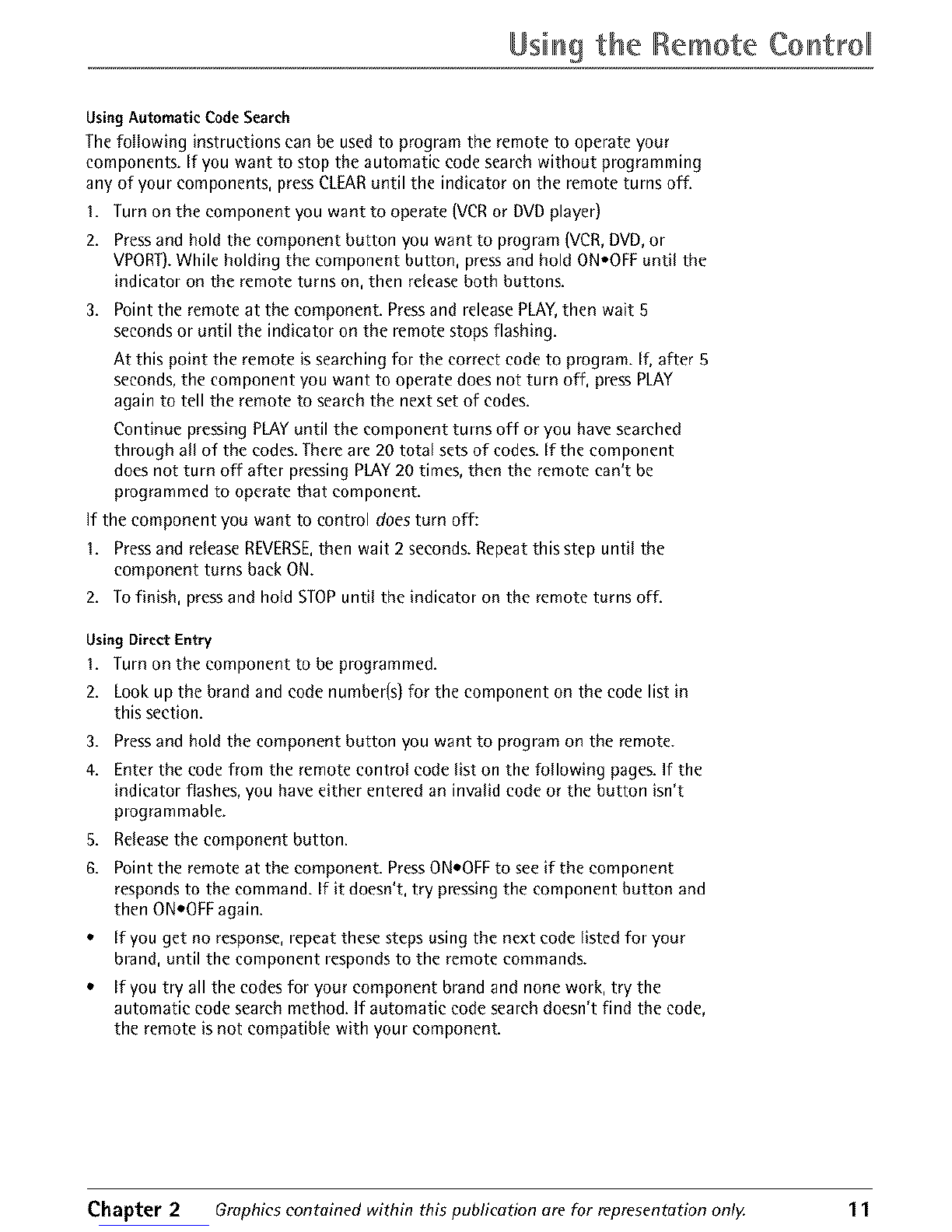

Using Automatic Code Search
The following instructions can be used to program the remote to operate your
components, if you want to stop the automatic code search without programming
any of your components, press CLEAR until the indicator on the remote turns off.
I. Turn on the component you want to operate (VCR or DVD player)
2. Press and hold the component button you want to program {VCR, DVD, or
VPORT). While holding the component button, press and hold ON*OFF until the
indicator on the remote turns on, then release both buttons.
3. Point the remote at the component. Press and release PLAY,then wait S
seconds or until the indicator on the remote stops flashing.
At this point the remote is searching for the correct code to program. If, after 5
seconds, the component you want to operate does not turn off, press PlAY
again to tell the remote to search the next set of codes.
Continue pressing PlAY until the component turns off or you have searched
through all of the codes. There are 20 total sets of codes. If the component
does not turn off after pressing PlAY 20 times, then the remote can't be
programmed to operate that component.
If the component you want to control doesturn off:
I. Pressand releaseRL:VERSE,then wait 2 seconds.Repeatthis step until the
component turns backON.
2. To finish, pressand hold STOPuntil the indicator on the remote turns off.
Using Direct Entry
I. Turn on the component to be programmed.
2. Look up the brand and code number(s) for the component on the code list in
this section.
3. Press and hold the component button you want to program on the remote.
4, Enter the code from the remote control code list on the following pages. If the
indicator flashes, you have either entered an invalid code or the button isn't
programmable.
S. Release the component button.
6. Point the remote at the component. Press ONeOFF to see if the component
responds to the command. If it doesn't, try pressing the component button and
then ONeOFF again.
* if you get no response, repeat these steps using the next code listed for your
brand, until the component responds to the remote commands.
* If you try all the codes for your component brand and none work, try the
automatic code search method. If automatic code search doesn't find the code,
the remote is not compatible with your component.
Chapter 2 Graphics contained within this publication are for representation only. 1 1

UsiH9 tlhe Remote CoHtroll
How to Use the Remote After You've Programmed It
Because this universal remote can operate several different components it uses
operational modes triggered by the component buttons. For example, if you want
the remote to operate the IV, you would press the IV button to put the remote
into lV mode before you could operate the IV.
I. Press the appropriate component button (DVD, VCR, VPORT} to set the remote
to operate the component.
2. Press ONoOFF to turn the component ON or OFE
3. Use the remote buttons that apply to that component.
Notes:
Theremotemay not becompatiSlewith oil brandsondmodelsofcomponents.It also
racynot operoteaftfunctions of theremote thotcomewith your componenL
Ifyou keeppressingbuttons andnothing happens,tile remoteisprobablyin the
wrong mode'.Youmust pressthecomponent button thet motches the component
you want tooperate(i.e,if you wont tooperate tile VCR,pressVCRon theremot_
control toput theremot_in VCRmode'.)
VCRCodes Remote Control Codes
Programmablefor VCRandVPORTbuttons.
Admi]al .................................................................................... 2132 Eme]_on ............................. 2012,20t4,2015,2021,2024,2025,
Adventura ................................................................................ 2026 .......... 2026, 2029, 2030, 203t, 2032, 2033, 2034,2036, 2036,
Aiko .......................................................................................... 2027 .......... 2037,2038,2039,2040,2041,2042,2044,2046,2046,
Aiwa ......................................................................................... 2026 ............................................ 2047,2065,2tt3,2116,2H7,2130
Akai ................. 2003, 2004, 2005, 2007, 2008, 2111, 2112, 2t13 Fisher ............. 2011, 2023, 2048, 2049, 2050, 2051, 2052, 2t18
American High ........................................................................ 2021 Fuji ................................................................................. 2021, 2tt9
Asha ......................................................................................... 2013 Funai ........................................................................................ 2026
Audio Dynamics ........................................................... 2009, 20IO Garrard ..................................................................................... 2026
Audiovox ................................................................................. 2014 GE ....................................................................... 2000,2001,2013,
Bell a Howell ........................................................................... 2Otl ............................................. 2021, 2022, 2053, 2115, 2120, 2t31
Beaumark ................................................................................. 2013 Goldstar ................................................... 2009,2014,20t8,2054
Bloksonic ...................................................................... 2012,2025 Gladiente ................................................................................. 2026
Cahx ......................................................................................... 2014 Harley Davidson ..................................................................... 2026
Candle ..................................................... 20t3, 2014, 2015, 2016, Harman Kmdon ...................................................................... 2009
............................................................................. 2017,20t8,2019 Harwood .................................................................................. 206t
Canon .................................................................. 2021,2022,2t14 HeadquaAel. ............................................................................. 201t
Capeha_ ......................................................................... 2020,2110 Hitachi ......................................................................... 2065,2066,
Cm_er ....................................................................................... 2062 ......................................................... 2067,2107,2111,2120,2122
CCE ................................................................................ 2027,2061
Citizen ........................................................................... 2013,20t4,
............................................. 20t5,2016,2017,2018,20t9,2027
COlo#yme ................................................................................ 2009
Colt ........................................................................................... 2061
Claig ......................................................... 2013,2014,2023,2061
Cmtis-Math¢N .................................................... 2000,2009,20t3,
................................... 2016,20t8,2021,2022,2024,2115,2131
Cybernex ................................................................................. 2013
Daewoo .......... 2015,2017,20t9,2025,2026,2027,2028,21IO
Daytmn ..................................................................................... 2tio
DBX ................................................................................ 2009,2010
Dimensia ........................................................................ 2000,2131
Dyna_eh .................................................................................. 2026
Hi-Q .......................................................................................... 2023
Instant Replay ......................................................................... 202t
............................................................................................... 202t
JCPenney ................................................ 2009, 20t0, 2Oll, 2013,
...................................................... 20t4,2021,2022,2055,2056,
........................................................ 2058,2059,2060,2107,21t8
Jonson ................................................................. 2065,2066,2111
JVC ....................................... 2oo9,201o, 2011,2o18,2111,2123
Kenwood .................... 2009,2010,2011,20t6,2018,2111,2123
KLH ........................................................................................... 2061
Kodak ............................................................................ 2014,2021
Lloyd ........................................................................................ 2026
Logik ........................................................................................ 2061
LXI ............................................................................................ 2oi4
Electmhome ................................................................. 2014,2029 Magnavox ........................................................ 2021,2022,2062,
Electlophonic .......................................................................... 2014 ........................................................ 2063,2IO4,2105,2108,2124
12 Graphics contained within this publicotion ore for representation onlg Chapter 2

UsiHg the Remote CoHtroll

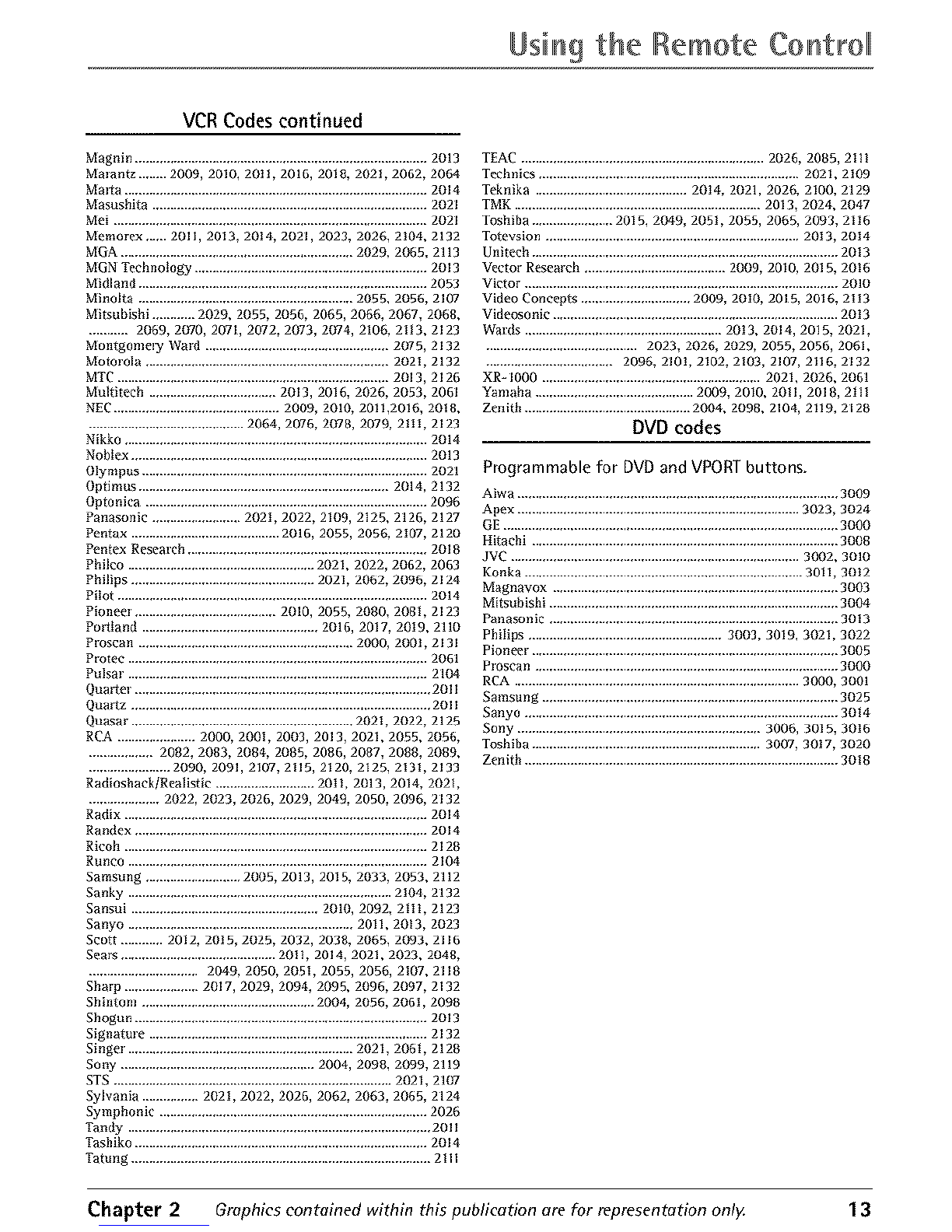

VCR Codes continued
Magnin ................................................................................... 2013
Marantz ..,..... 2009, 2010, 20tl, 2016, 2018, 2021, 2062, 2064
Malta ...................................................................................... 2014
Masusbita .............................................................................. 2021
Mei ......................................................................................... 2021
Memorex ,..,.. 2011, 2013, 20t4, 2021, 2023, 2026, 2t04, 2132
MGA .................................................................. 2029, 2065, 2113
MGN Technology .................................................................. 2013
Midland .................................................................................. 2053
Minolta ............................................................. 2056, 2056, 2107
Mitsubisbi ............ 2029, 2055, 2056, 2065, 2066, 2067, 2068,
........... 2069, 2070, 2071, 2072, 2073, 2074, 2106, 2t13, 2123
TEA(" ..................................................................... 2026, 2085, 2Itt
Technics .......................................................................... 2021, 2109
Teknika ........................................... 20t4, 2021, 2026, 2100, 2129
TMK ...................................................................... 2013, 2024, 2047
Toshiba ....................... 2015, 2049, 2051, 2055, 2065, 2093, 2t 16
Totevsion ........................................................................ 2013, 2OI4
Unitech ....................................................................................... 2013
Vector Research ........................................ 2009, 2010, 2015, 20t 6
Victor ......................................................................................... 2010
Video Concepts ............................... 2009, 2010, 2015, 2016, 2It3
Videosonic ................................................................................. 20t3
Wards ........................................................ 20t 3, 2014, 2015, 2021,
Montgomel3t Wald .................................................... 2075, 2132 ........................................... 2023, 2026, 2029, 2055, 2056, 2061,
Motorola ..................................................................... 202I, 2132 .................................... 2096, 210t, 2102, 2t03, 2107, 2116, 2132
MTC ............................................................................. 2013,2126
Multitech .................................... 2013, 2016, 2026, 2053, 2061
NEC ............................................... 2009,2010,2011,2016,2018,
............................................ 2064, 2076, 2078, 2079, 21tt, 2123
Nikko ...................................................................................... 2014
Noblex .................................................................................... 2013
Olympus ................................................................................. 2021
Optimus ....................................................................... 2014,2132
Optonica ................................................................................ 2096
Panasonic ......................... 202t,2022,2109,2125,2126,2127
Pentax .......................................... 2016, 2055, 2056, 2107, 2120
Pentex Research .................................................................... 2018
Phi]co ..................................................... 2021,2022,2062,2063
Pbi]ips .................................................... 2021, 2062, 2096, 2124
Pilot ........................................................................................ 2014
Pioneer, ....................................... 2010,2066,2000,2081,2123
PoAtand .................................................. 2016,2017,2019,2110
Proscan ............................................................. 2000, 200t, 2131
Pmtec ..................................................................................... 2061
Pulsal. .................................................................................... 2104
Quake1. ................................................................................... 2011
Qua_z ..................................................................................... 2011
Quasar ............................................................... 2021,2022,2125
RCA ...................... 2000,2001,2003,2013,2021,2055,2056,
.................. 2082,2083,2084,2085,2086,2087,2000,2089,
....................... 2090,2091,2107,2t15,2120,2125,2131,2133
Radioshack/RealisOc ............................ 20It,2013,2014,2021,
.................... 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2132
Radix ...................................................................................... 2014
Randex ................................................................................... 2014
Ricoh ...................................................................................... 2128
Runco ..................................................................................... 2104
Samsung ........................... 2005,2013,2015,2033,2053,2112
Sanky ........................................................................... 2104,2132
Sansui ..................................................... 2010,2092,2Ht,2123
Sanyo ................................................................ 2011,20t3,2023
Scott ............ 2012, 20t5, 2025, 2032, 2038, 2065, 2093, 2116
Sea_ ............................................ 201t,2014,2021,2023,2048,
............................... 2049,2050,2051,2055,2066,2107,2118
Sharp ..................... 2017, 2029, 2094, 2096, 2096, 2097, 2132
Shintom ................................................. 2004, 2056, 206t, 2098
Shogun ................................................................................... 2013
Signatme ............................................................................... 2132
Singel. ............................................................... 2021,206L2128
Sony ....................................................... 2004,2098,2099,2119
STg ............................................................................... 2021,2107
Sylvania ................ 2021,2022,2026,2062,2063,2065,2124
Symphonic ............................................................................ 2026
Tandy ...................................................................................... 2011
Tashiko ................................................................................... 2014
Tatung ..................................................................................... 2111
XR-1000 .............................................................. 2021,2026,2061
Yamaha ............................................. 2009, 2010, 2011, 2018, 2tti
Zenith ............................................... 2004, 2098, 2104, 2119, 2i28
DVD codes
Programmable for DVD and VPORT buttons.
Aiwa ........................................................................................... 3009
Apex ................................................................................ 3023, 3024
GE ............................................................................................... 3000
Hitachi ....................................................................................... 3008
JVC .................................................................................. 3002, 3010
Konka ............................................................................... 3011,3012
Magnavox ................................................................................. 3003
Mitsubishi .................................................................................. 3004
Panasonic .................................................................................. 3oi3
Pbilips ....................................................... 3003,3019,3021,3022
Pioneer ....................................................................................... 3005
Pmscan ...................................................................................... 3000
RCA ................................................................................. 3000, 3001
Samsung .................................................................................... 3025
Sanyo ......................................................................................... 3Ot4
Sony ..................................................................... 3006,3015,3016
Toshiba ................................................................. 3007, 30t7, 3020
Zenith ......................................................................................... 3018
Chapter 2 Graphics contained within this publication are for representation only. 13

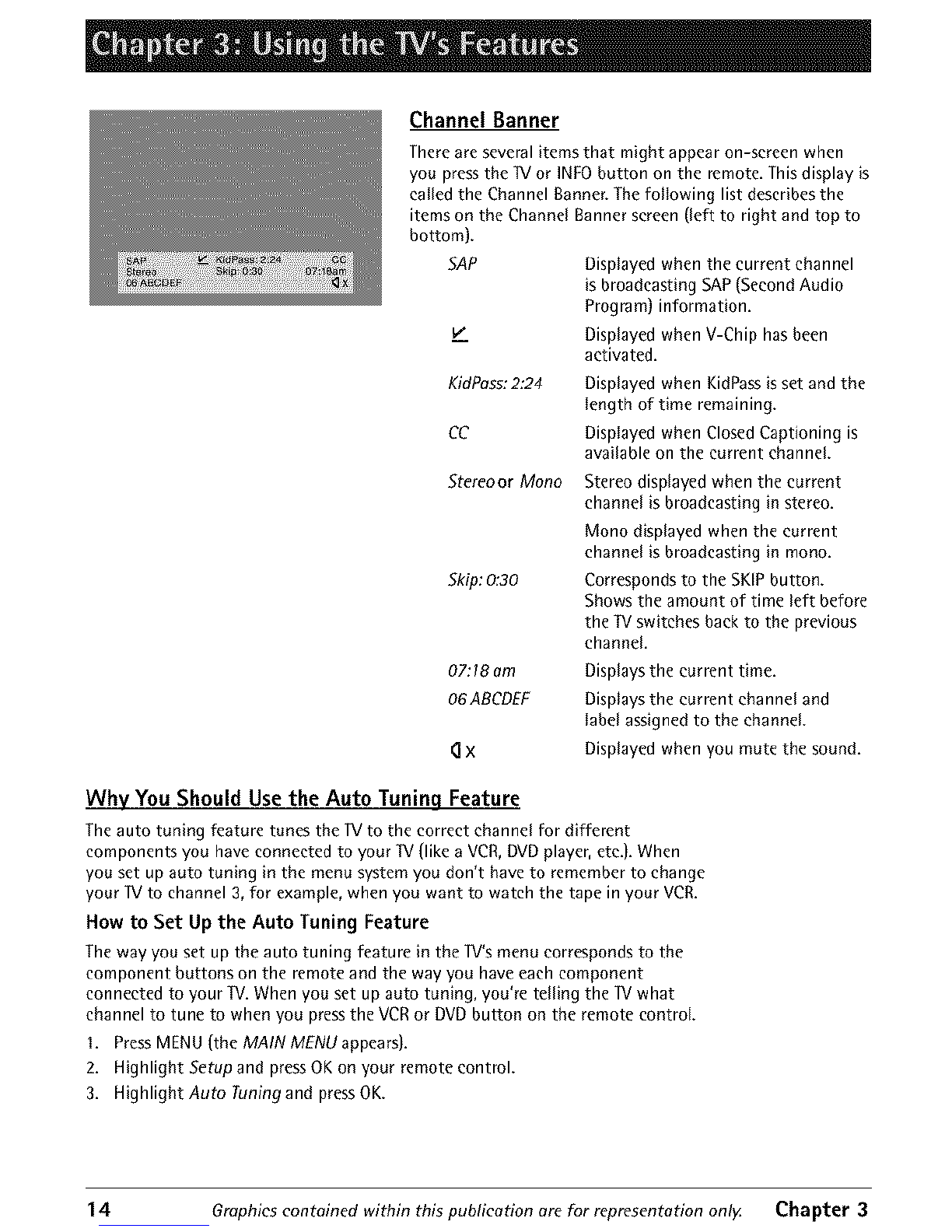

Channel Banner
Thereareseveralitems that might appearon-screen when
you pressthe IV or INFObutton on the remote. Thisdisplay is
eatled the Channel Banner.Thefollowing list describesthe
items on the Channel Bannerscreen(left to right and top to
bottom).
SAP Displayed when the current channel
is broadcasting SAP (Second Audio
Program) information.
Displayed when V-Chip has been
activated.
Displayed when KidPass is set and the
length of time remaining.
Displayed when Closed Captioning is
available on the current channel.
S_oor Mona
Skip: 0:30
Stereo displayed when the current
channel is broadcasting in stereo.
Mona displayed when the current
channel is broadcasting in mona.
Corresponds to the SKIP button.
Shows the amount of time left before
the TV switches back to the previous
channel.
07:18 om Displays the current time.
O6ABCDEF
_x
Displays the current channel and
label assigned to the channel.
Displayed when you mute the sound.
Why You Should Use the Auto Tuning Feature
The auto tuning feature tunes the IV to the correct channel for different
components you have connected to your IV (like a VCR, DVD player, etc.). When
you set up auto tuning in the menu system you don't have to remember to change
your IV to channel 3, for example, when you want to watch the tape in your VCR.
How to Set Up the Auto Tuning Feature
The way you set up the auto tuning feature in the IV's menu corresponds to the
component buttons on the remote and the way you have each component
connected to your IV. When you set up auto tuning, you're telling the 1V what
channel to tune to when you press the VCR or DVD button on the remote control.
I. Press MENU (the MAIN MENUappears).
2. Highlight Setup and press OK on your remote control.
3. Highlight Auto Tuning and pressOK.
14 Graphics contained within this publication are for representation onl)z Chapter 3

UsiH9 the W"s Features

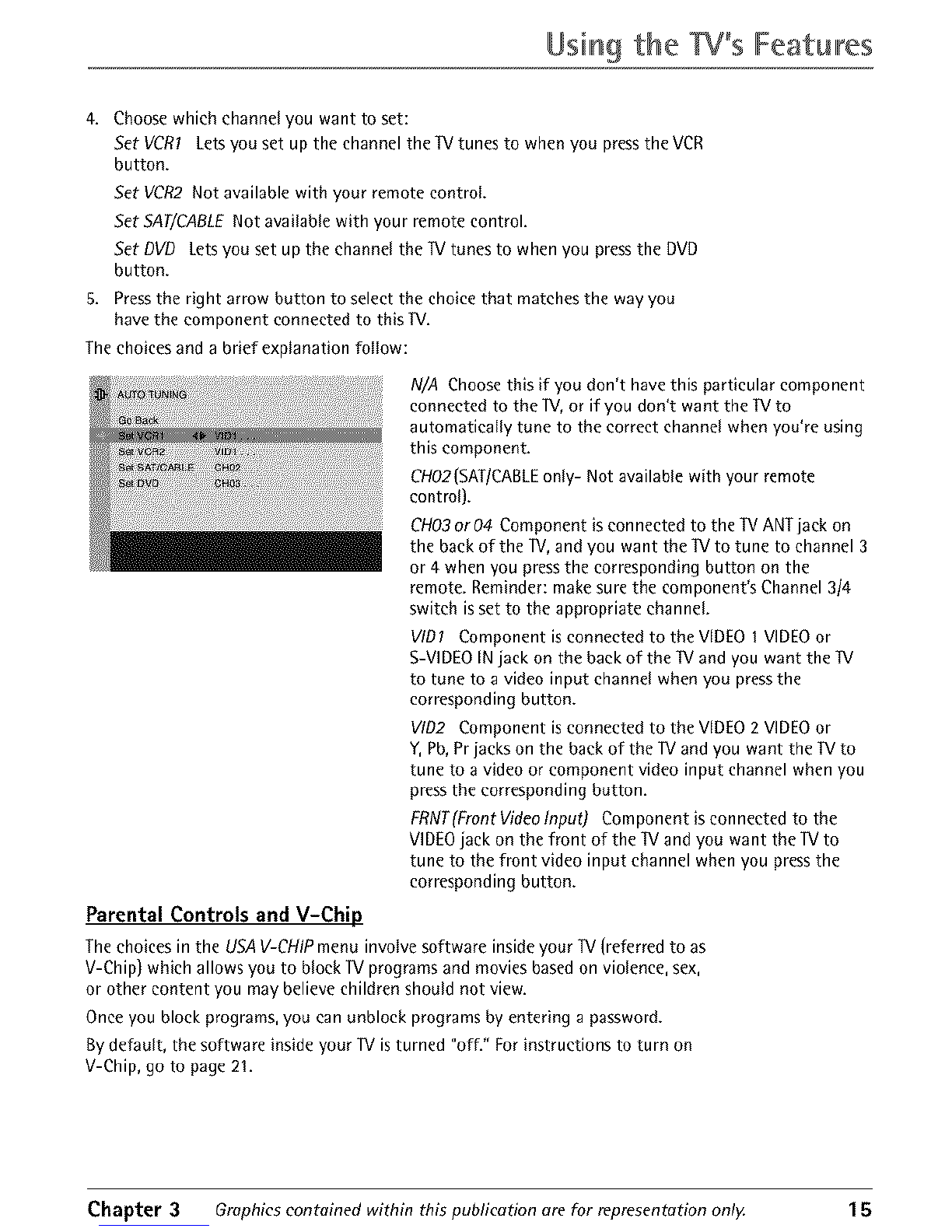

4. Choose which channel you want to set:
Set VCRI Lets you set up the channel the IV tunes to when you press the VCR
button.
Set VCR2 Not available with your remote control.
SetSAT/CABLE Not available with your remote control.
Set DVD Lets you set up the channel the IV tunes to when you press the DVD
button.
5. Press the right arrow button to select the choice that matches the way you
have the component connected to this IV.
The choices and a brief explanation follow:
N/A Choose this if you don't have this particular component
connected to the IV, or if you don't want the IV to
automatically tune to the correct channel when you're using
this component.
CHO2(SATICABLE only- Not available with your remote
control).
CH03 or04 Component is connected to the IV ANT jack on
the back of the IV, and you want the IV to tune to channel 3
or 4 when you press the corresponding button on the
remote. Reminder: make sure the component's Channel 314
switch is set to the appropriate channel.
VlD1 Component is connected to the VIDEO 1VIDEO or
S-VIDEO IN jack on the back of the IV and you want the IV
to tune to a video input channel when you press the
corresponding button.
VlD2 Component is connected to the VIDEO 2 VIDEO or
Y, Pb, Pr jacks on the back of the IV and you want the IV to
tune to a video or component video input channel when you
press the corresponding button.
FRNT(Front Video Input) Component is connected to the
VIDEO jack on the front of the IV and you want the IV to
tune to the front video input channel when you press the
corresponding button.
Parental Controls and V-Chip
Thechoices in the USAV-CHIPmenu involvesoftware insideyour IV (referred to as
V-Chip) which allows you to block IV programsand moviesbasedon violence,sex,
or other content you maybelievechildren should not view.
Once you block programs, you can unblock programs by entering a password.
By default, the software inside your IV is turned "off." For instructions to turn on
V-Chip, go to page 21.
Chapter 3 Graphics contained within this publication are for representation onl_ 15

UsiHg tlhe Features
How V-Chip Works
V-Chip reads the program's age-based rating (IV-MA, IV-14, ete.) and content themes
[(Violence (V), Adult Language (k), etc.)]. If you have blocked the rating and/or content
themes that the program contains, you will receive the message This ehunne/has not
been approved for viewing. Change channel or press OK to enter password and temporarily
deactivate the Parental ControL
Broadcasters are not required to provide content themes, so programs received with no
content themes will only be blocked if you block their age-based rating. You can also
block out programs that have been given a rating of Not Rated, and programs that are
considered unrated. The 1V age-based ratings and content themes you can block follow:
USA V-Chip Rating System
]V-MA iMature Audience Only) Specifically designed to be viewed by adults and may
be unsuitable for ehildren under 17. It contains one or more of the following content
themes: crude indecent language (L), explicit sexual activity iS), or graphic violence (V).
1V-14 iParents Strongly Cautioned) Contains some material that many parents would
find unsuitable for children under 14. Parents are strongly urged to exercise greater
care in monitoring this program and are cautioned against letting children under the
age of 14 watch unattended. This program contains one or more of the following
content themes: intensely suggestive dialogue (D), strong coarse language (k), intense
sexual situations (S), or intense violence (V).
IV-PG (Parental Guidance Suggested) Contains material that parents may find
unsuitable for younger ehildren. Many parents may want to watch it with their
younger children. The program contains one or more of the following content themes:
some suggestive dialogue iD), infrequent coarse language iL), some sexual situations iS),
or moderate violence (V).
W-G (General Audience) Most parents would find this program suitable for all ages. It
contains little or no sexual dialogue (D) or situations (S), no strong language (L), and
little or no violence (V).
W-Y7 (Directed to Children 7 years and older) Designed for children ages 7 and
above. It may be more appropriate for children who have acquired the developmental
skills needed to distinguish between make-believe and reality. Themes and elements in
this program may include mild fantasy violence iFV) or eomedie violence, or may
frighten children under the age of 7.
TV-Y (All Children) Themes and elements in this program are designed for a young
audience, including children from ages 2-6. It is not expected to frighten younger
children.
Canadian English V-Chip Rating System
18+ (Adults) Programming intended for adults 18 and older. It maycontain elements
of violence, language, andsexual content which could makeit unsuitable for viewers
under 18.Violence Guidelines: May contain violence integral to the development of the
plot, character or theme, intended for adult audiences.Other Content Guidelines: May
contain graphic language andexplicit portrayals of nudity and/or sex.
16 Graphics contained within this publication are for representation only. Chapter 3

UsiH9 the W"s Features

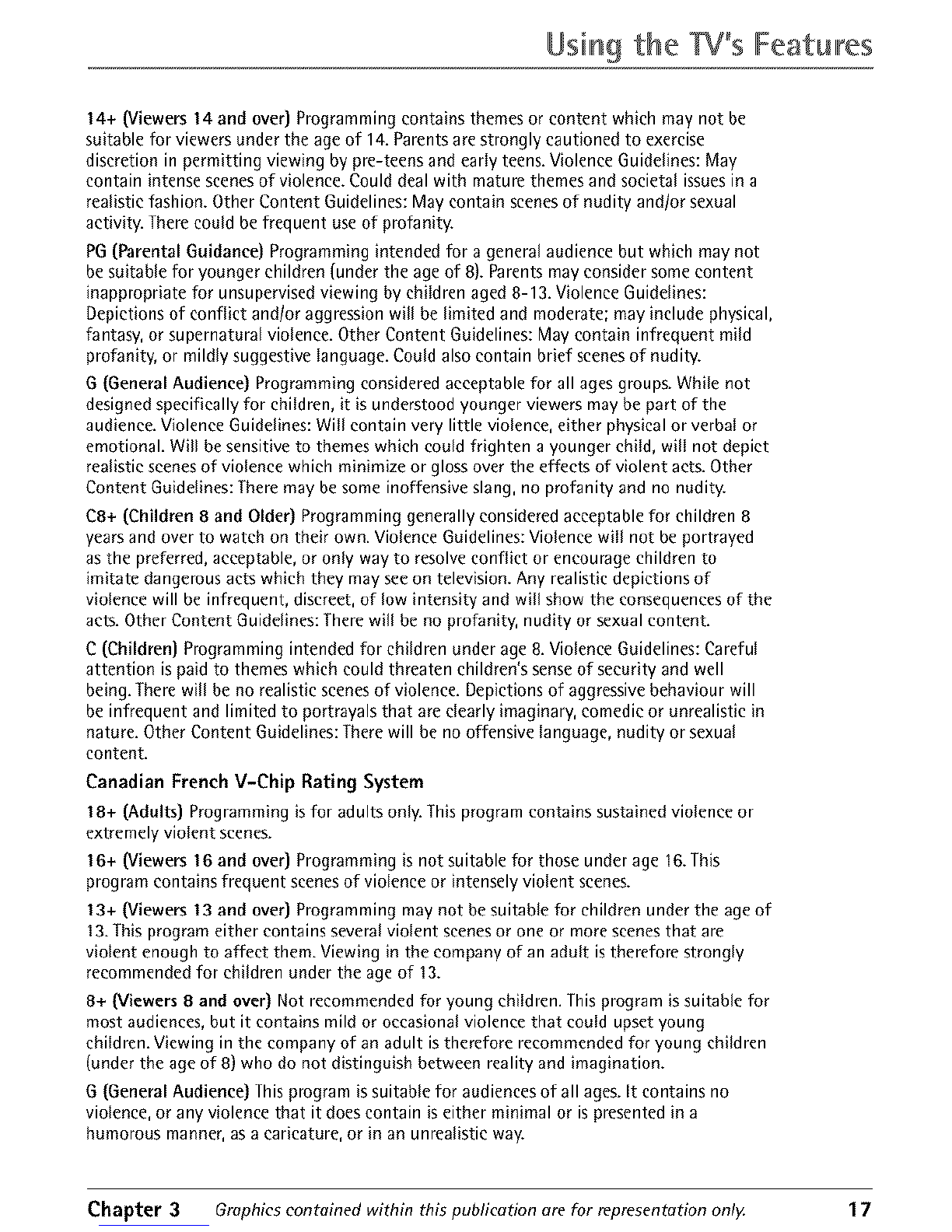

14+ (Viewers 14 and over) Programming contains themes or content which may not be
suitable for viewers under the age of 14. Parents are strongly cautioned to exercise
discretion in permitting viewing by pre-teens and early teens. Violence Guidelines: May
contain intense scenes of violence. Could deal with mature themes and societal issues in a
realistic fashion. Other Content Guidelines: May contain scenes of nudity and/or sexual
activity. There could be frequent use of profanity.
PG (Parental Guidance) Programming intended for a general audience but which may not
be suitable for younger children (under the age of 8). Parents may consider some content
inappropriate for unsupervised viewing by children aged 8-13. Violence Guidelines:
Depictions of conflict and/or aggression will be limited and moderate; may include physical,
fantasy, or supernatural violence. Other Content Guidelines: May contain infrequent mild
profanity, or mildly suggestive language. Could also contain brief scenes of nudity.
G {General Audience) Programming considered acceptable for all ages groups. While not
designed specifically for children, it is understood younger viewers may be part of the
audience. Violence Guidelines: Will contain very little violence, either physical or verbal or
emotional. Will be sensitive to themes which could frighten a younger child, will not depict
realistic scenes of violence which minimize or gloss over the effects of violent acts. Other
Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.
C8+ (Children 8 and Older) Programming generally considered acceptable for children 8
years and over to watch on their own. Violence Guidelines: Violence will not be portrayed
as the preferred, acceptable, or only way to resolve conflict or encourage children to
imitate dangerous acts which they may see on television. Any realistic depictions of
violence will be infrequent, discreet, of low intensity and will show the consequences of the
acts. Other Content Guidelines: There will be no profanity, nudity or sexual content.
C (Children) Programming intended for children under age 8. Violence Guidelines: Careful
attention is paid to themes which could threaten children's sense of security and well
being. There will be no realistic scenes of violence. Depictions of aggressive behaviour will
be infrequent and limited to portrayals that are clearly imaginary, eomedic or unrealistic in
nature. Other Content Guidelines: There will be no offensive language, nudity or sexual
content.
Canadian French V-Chip Rating System
18+ (Adults) Programming is for adults only. This program contains sustained violence or
extremely violent scenes.
16+ (Viewers 16 and over) Programming is not suitable for those under age 16. This
program contains frequent scenes of violence or intensely violent scenes.
13+ (Viewers 13 and over) Programming may not be suitable for children under the age of
13. This program either contains several violent scenes or one or more scenes that are
violent enough to affect them. Viewing in the company of an adult is therefore strongly
recommended for children under the age of 13.
8+ (Viewers 8 and over) Not recommended for young children. This program is suitable for
most audiences, but it contains mild or occasional violence that could upset young
children. Viewing in the company of an adult is therefore recommended for young children
(under the age of 8) who do not distinguish between reality and imagination.
G {General Audience) This program is suitable for audiences of all ages. It contains no
violence, or any violence that it does contain is either minimal or is presented in a
humorous manner, as a caricature, or in an unrealistic way.
Chapter 3Graphics contained within this publication are for representation only. 17

Usi n9 the l"s Features
USA V-Chip TV Rating Limit
TheV-Chip 11/Rating Limit letyou decide which TV
programs canand cannot be viewed.
Toset11/programming limits:
I. ChooseParentatControl from the MAIN MENU(the
PASSWORDscreen appearsthe first time you enter the
Parental Control menu).Create your passwordusing the
number buttons on the remote.
2.
3.
Highlight and select USA V-Chip. Then select 1VRatings.
Onceyou get to the W RATINGLtMITsereen,usethe
arrow buttons and OKon your remote to change the
status of a W program rating or content theme from
Viewto Block.
4. For_Vrating limits to take effect, turn on V-Chipactive
in the PARENTALCONTROLmenu (box hascheek mark).
The following sections give you more details about how to
change the status of IV program limits.
Note:If you forget yourpassword youcon resetit: Makesure the
W isoff. 5imultoneously pressend hold VOL< on theW's front
pond and CLEARontile rernotefor approximately 5seconds.Enter
unew passwordnext time you accesstile PARENTALCONTROL
menu.

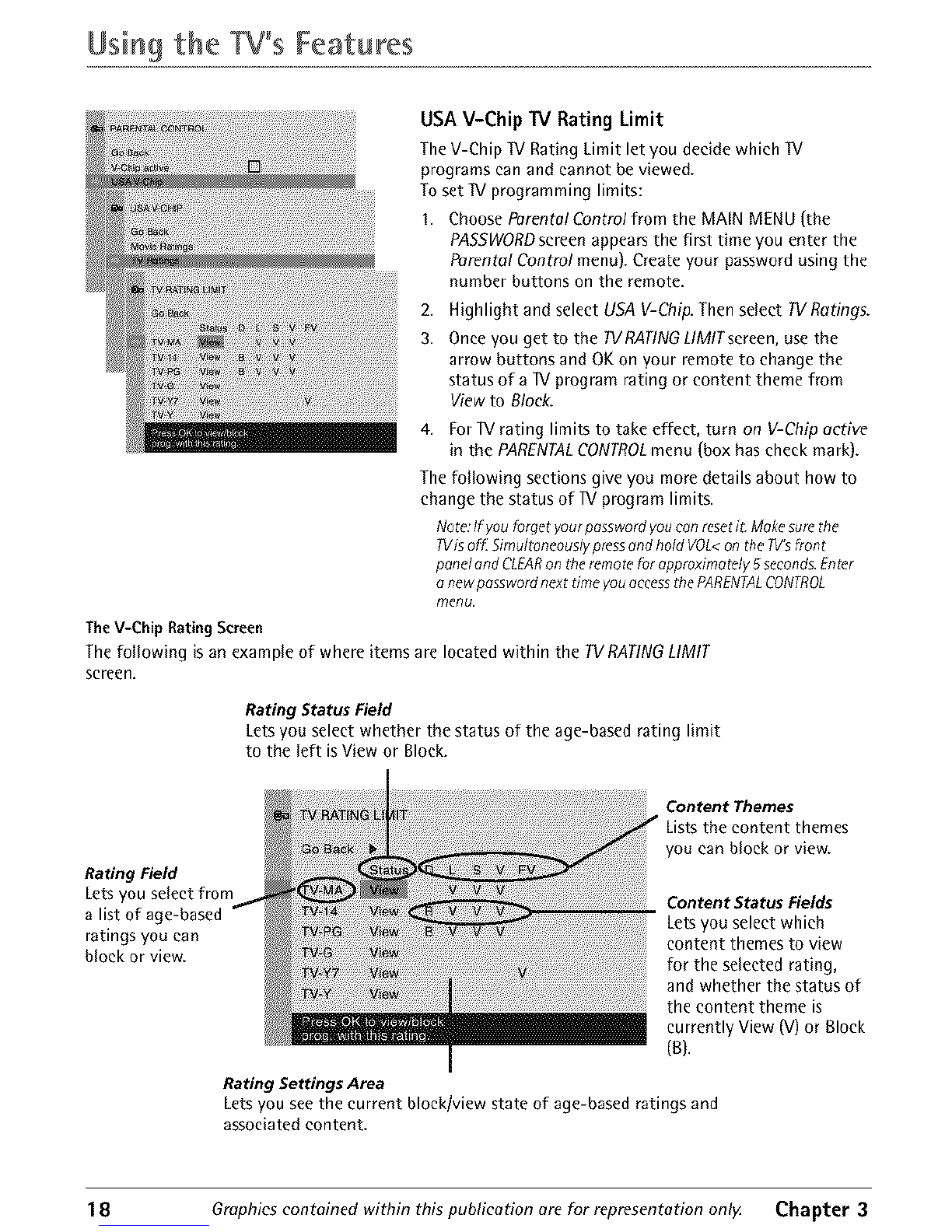

The V-Chip Rating Screen
The following is an example of where items are located within the IVRATING LIMIT
screen.
Rating Status Field
Lets you select whether the status of the age-based rating limit
to the left is View or Block.
Rating Field
Lets you select from
a list of age-based
ratings you can
block or view.
Content Themes
Lists the content themes
you can block or view.
Content Status Fields
Lets you select which
content themes to view
for the selected rating,
and whether the status of
the content theme is
currently View (V) or Block
(B).
RatingSettings Area
Letsyou seethe current block/view state of age-basedratings and
associated content.
18 Graphics contained within this publication are for representation only. Chapter 3
Table of contents
Other RCA TV manuals
