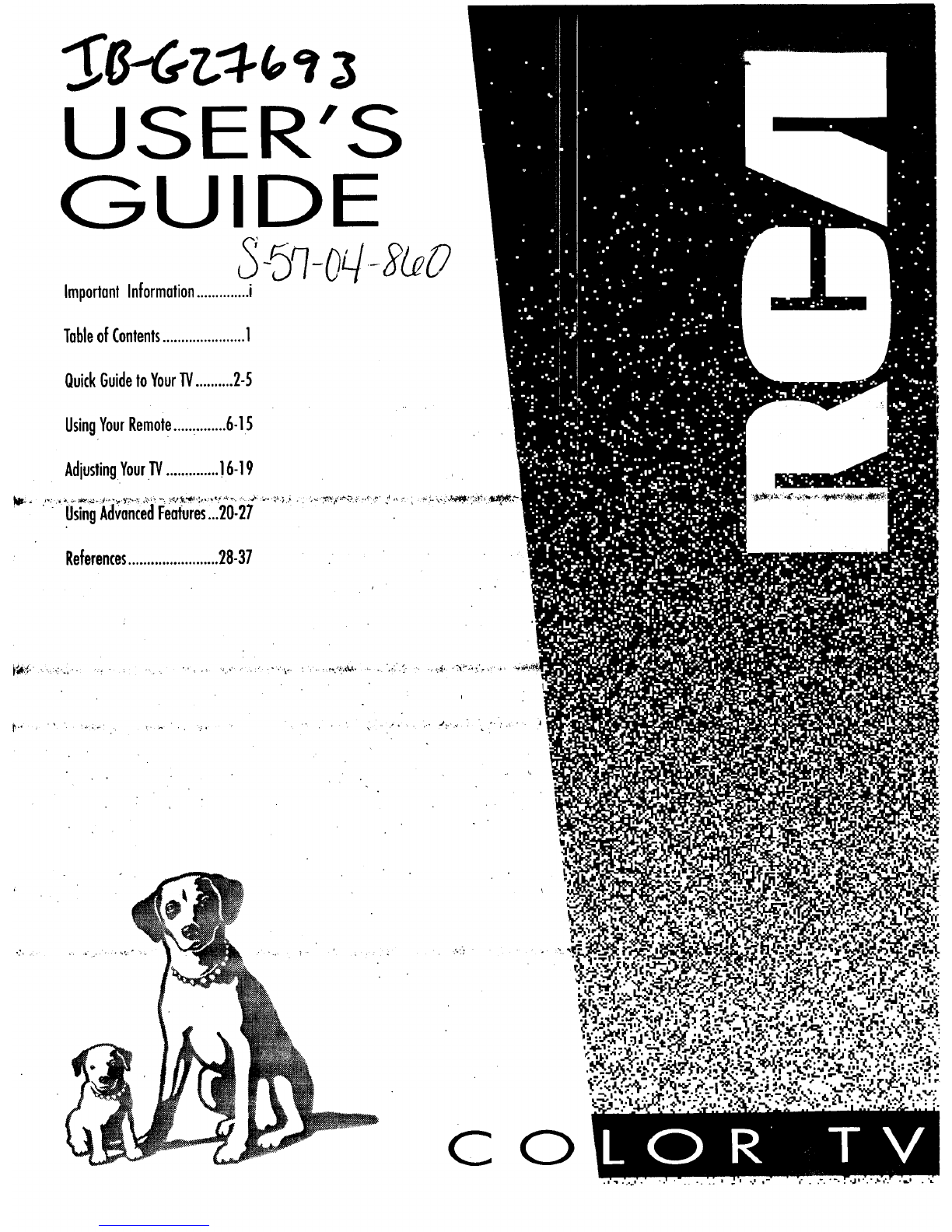

RCA G27693 User manual

USER'S
GUIDE
5-SqO#_uO
ImportantInformation..............i
TableofContents......................1
QuickGuidetoYour"IV..........2-5
UsingYourRemote..............6-15
AdjustingYour1"1/..............!6-!9
_IJsingAdvancedFeatures,..20-27 ........ ...... "
References........................28-37
i
c0

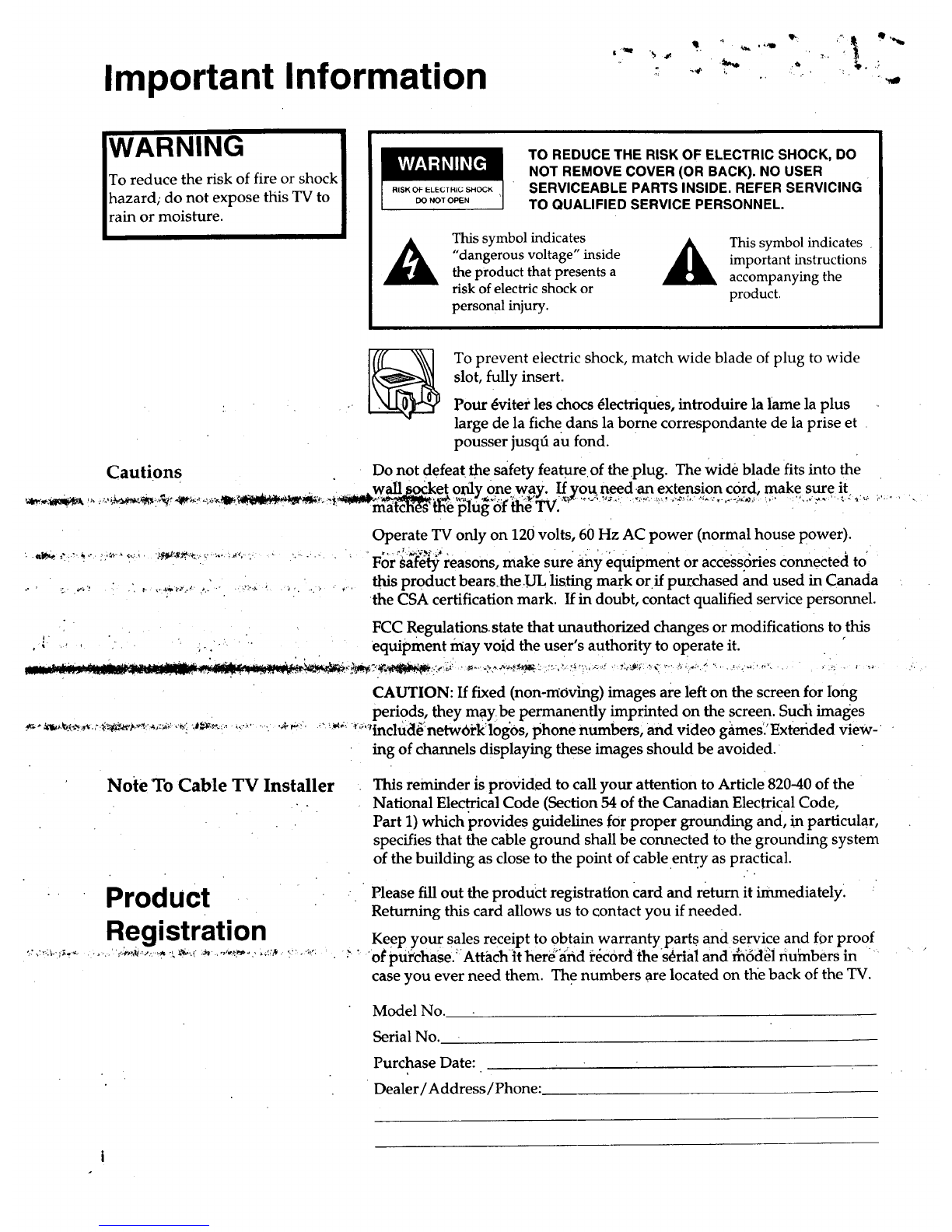

Important Information '_ _ 4. _"
,= _,aP ;. _ .'
WARNING I
To reduce the risk of fire or shock |
hazard; do not expose this TV to |
rain or moisture, l
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
persona 1 injury.
This symbol indicates
important instructions
accompanying the
product,
To prevent electric shock, match wide blade of plug to wide
slot, fully insert.
Pour 4viter les chocs _lectriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et
pousser jusqd au fond.
Cautions Do not defeat the safety feature of the plug. The wide blade fits into the
., " .wall rK_ket only One way. If_ou need.an extension cord, make sure it
".a_4_ ,'.'-_ ...... _" •..... ,_'_"_,.-v '_.,"';.a'_.'v"'-..... • .
Operate TV only on 120 volts, 60 Hz AC power (normal house power).
For safety reasons, make sure any equipment or access6ries connected to
this product bears_the UL listing ma(k orif purchased and used in Canada
the CSA certification mark. If in doubt, contact qualified service personnel.
FCC Regulations.state that unauthorized changes or modifications to this
,-. .... equipment may void the user's authority to operate it.
. • . .
CAUTION: If fixed (non-mOving) images are left on the screen for Iong
periods, they may be permanently imprinted on the screen. Such images
_"'_'_ ";'"inclu(t6_netw0rk :logOs, phone numbers, and video g_imes'. Exterided view-
ing of channels displaying these images should be avoided.
Note'To Cable TV Installer
• Product
Registration
This reminder is provided to call your attention to Article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code,
Part 1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system
of the building as close to the point of cable en .t_.yas practical.
Please fill out the product registration Card and return it immediately.
Returning this card allows us to contact you if needed.
Keep you rsales receipt t° obtain warranty parts and service and for proof
'of pu_chase._Attach it here'and i_6c0rd thes_rial and rh:6fl_i nuh_bers in _
case you ever need them. The numbers are located on the back of the TV.
Model No.
Serial No.
Purchase Date:
Dealer /Address /Phone:

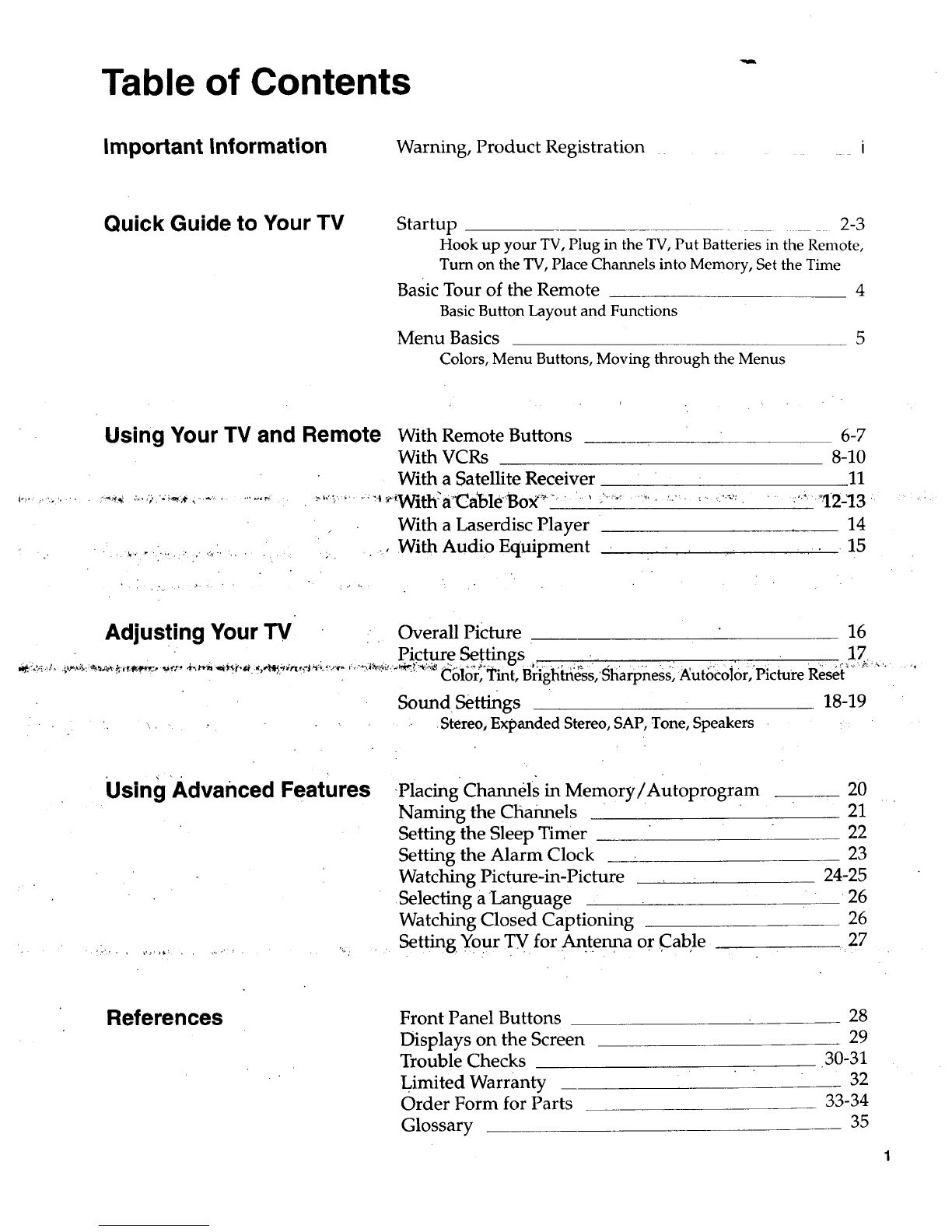

Table of Contents
Important Information Warning, Product Registration i
Quick Guide to Your TV Startup 2-3
Hook up your TV, Plug in the TV, Put Batteries in the Remote,
Turn on the TV, Place Channels into Memory, Set the Time
Basic Tour of the Remote 4
Basic Button Layout and Functions
Menu Basics 5
Colors, Menu Buttons, Moving through the Menus
Using Your TV and Remote With Remote Buttons

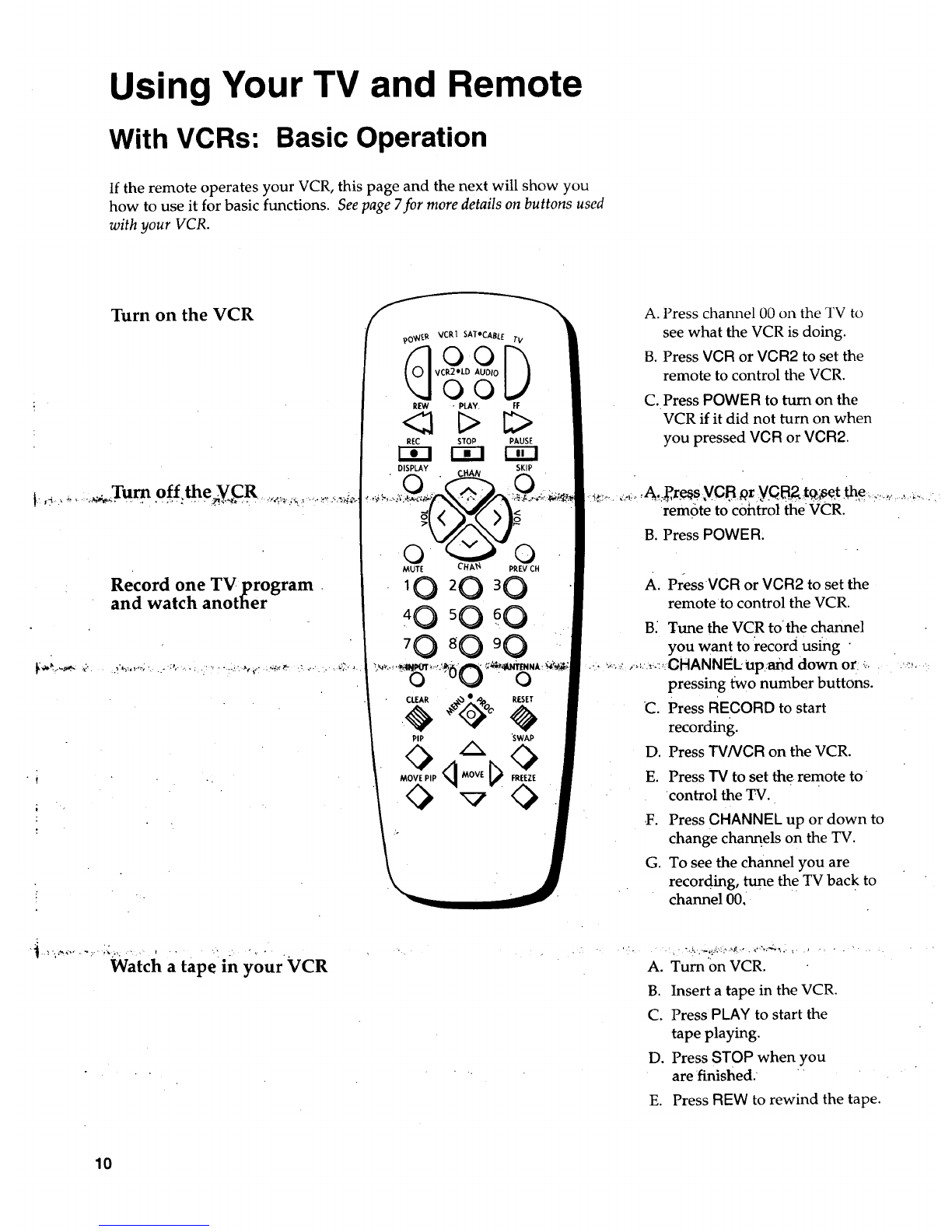

With VCRs
With a Satellite Receiver

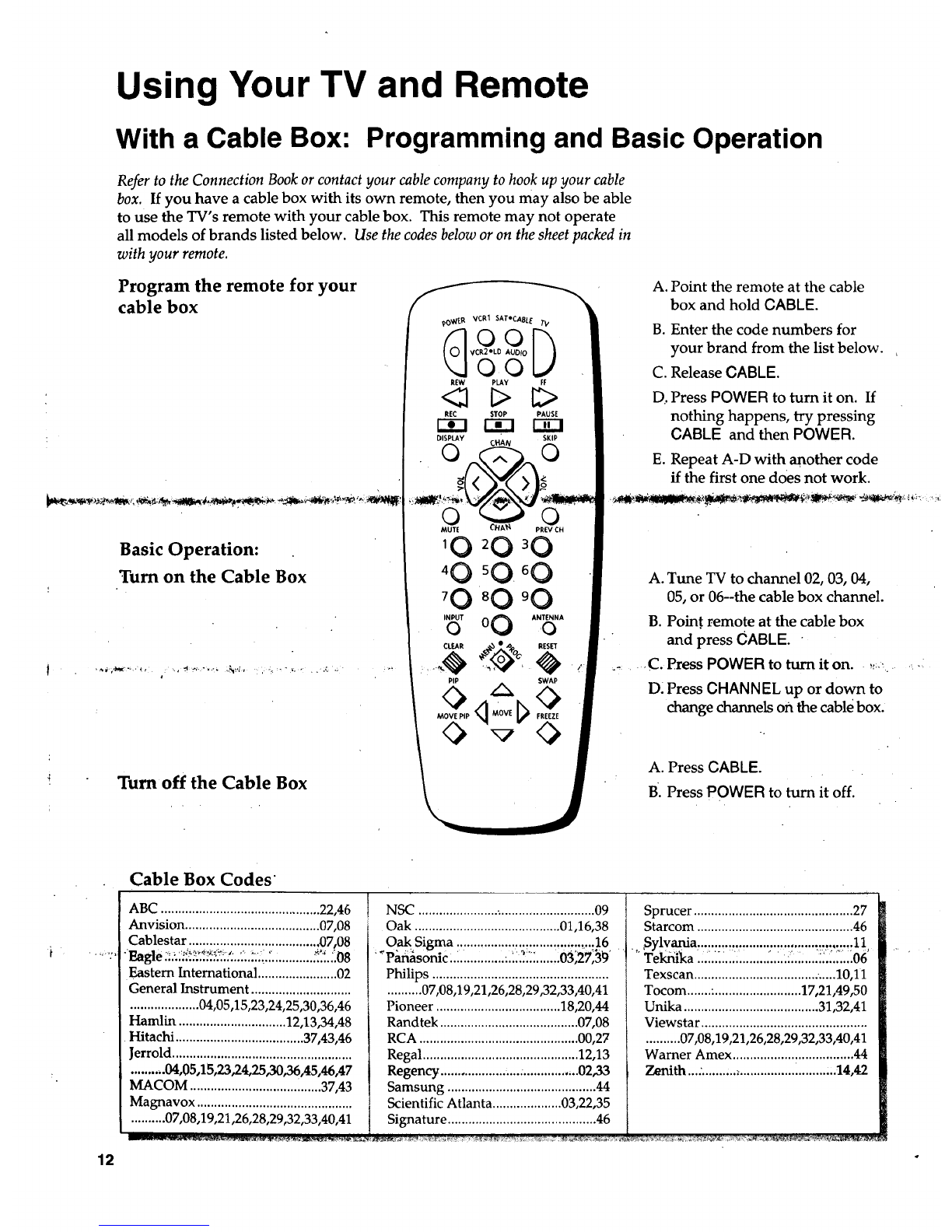

•_.,.,,._With'a_CableBoX:-_ - ,,,, ........ ;. _. ,._:.:

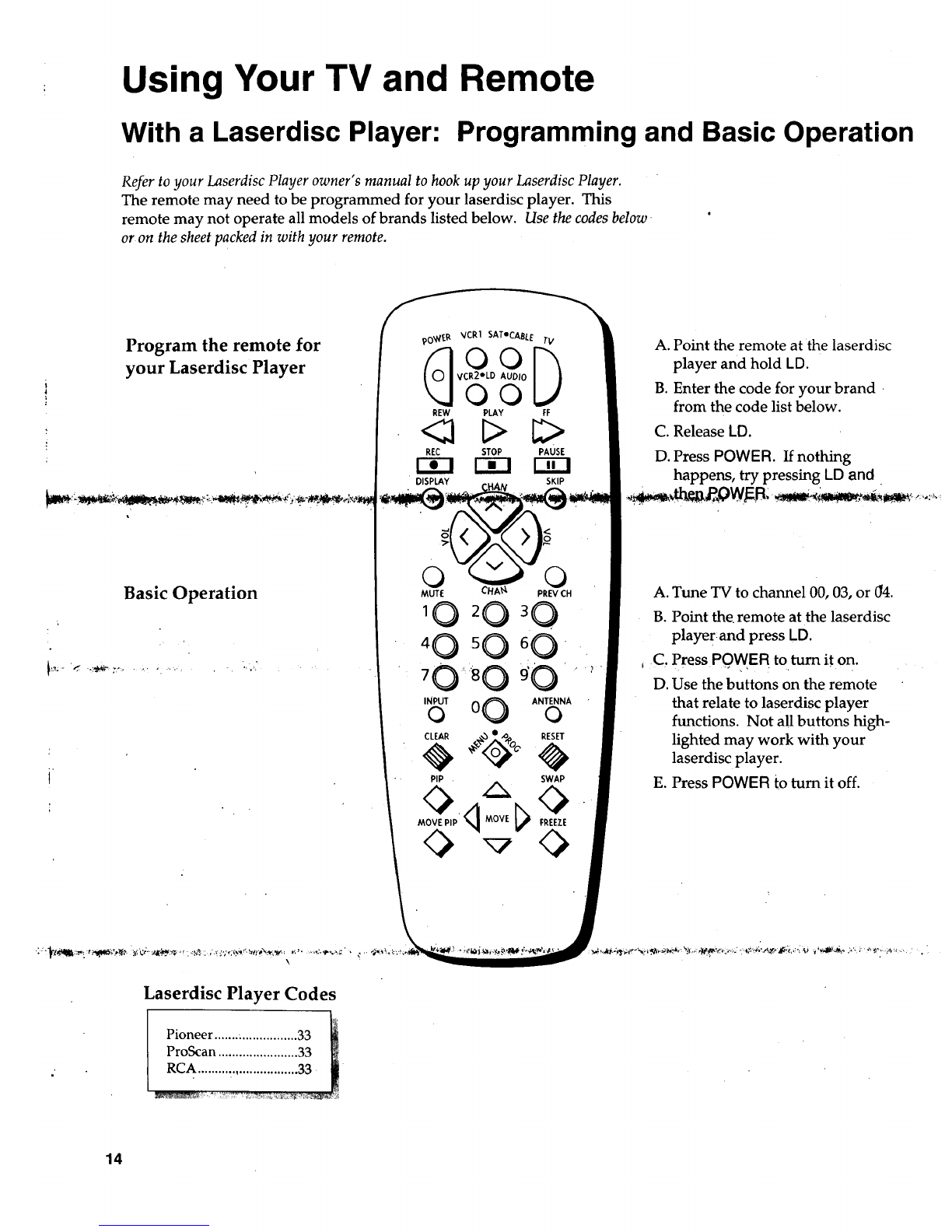

With a Laserdisc Player

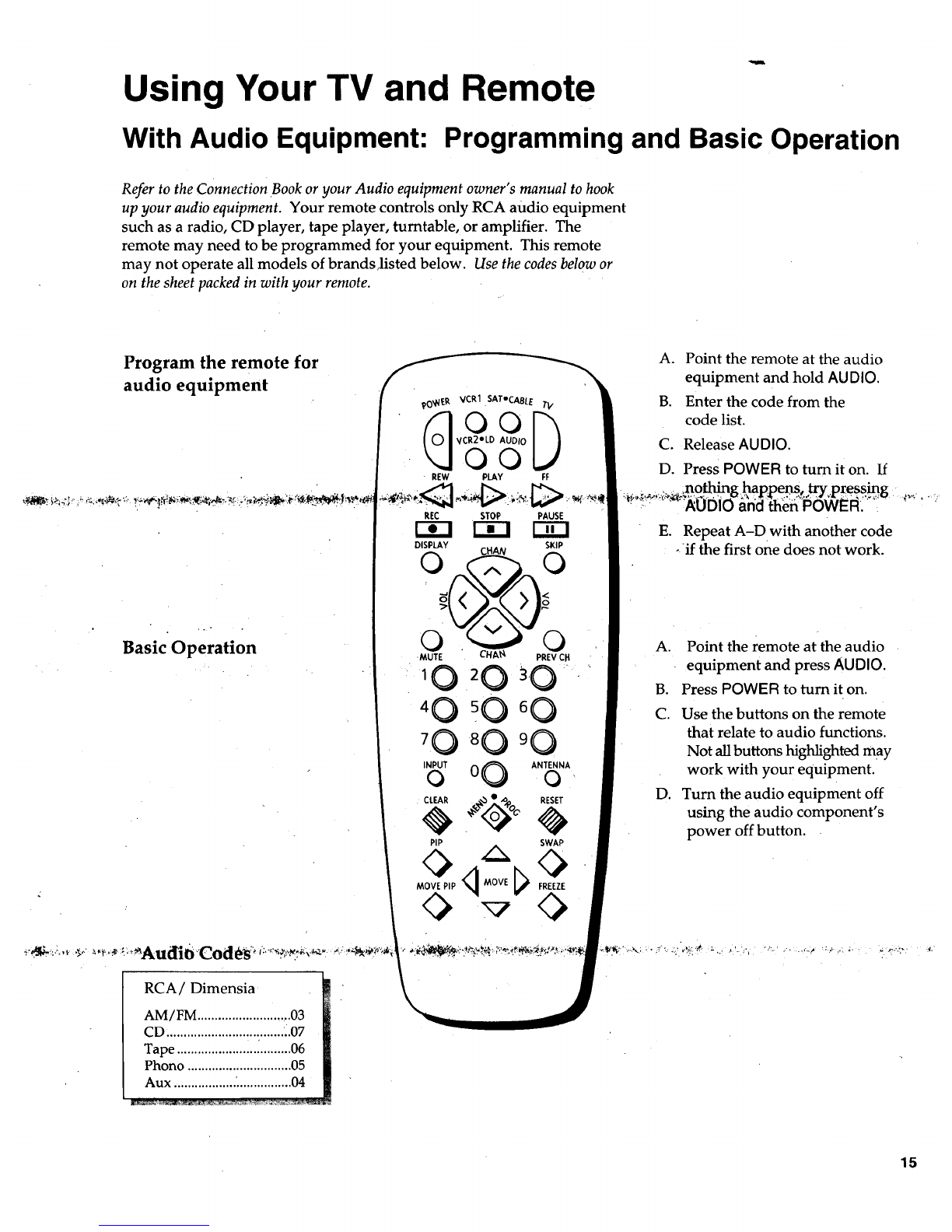

-, With Audio Equipment
6-7
8-10
.11
. ,..,_,,1.2213:
14
• • 15
Adjusting Your TV Overall Picture 16
Picture Settings . . 17.
................. _ Color, _mt, Br|ghtness,'Sharpness, _iutoco!or, Picture Reset""'_" '

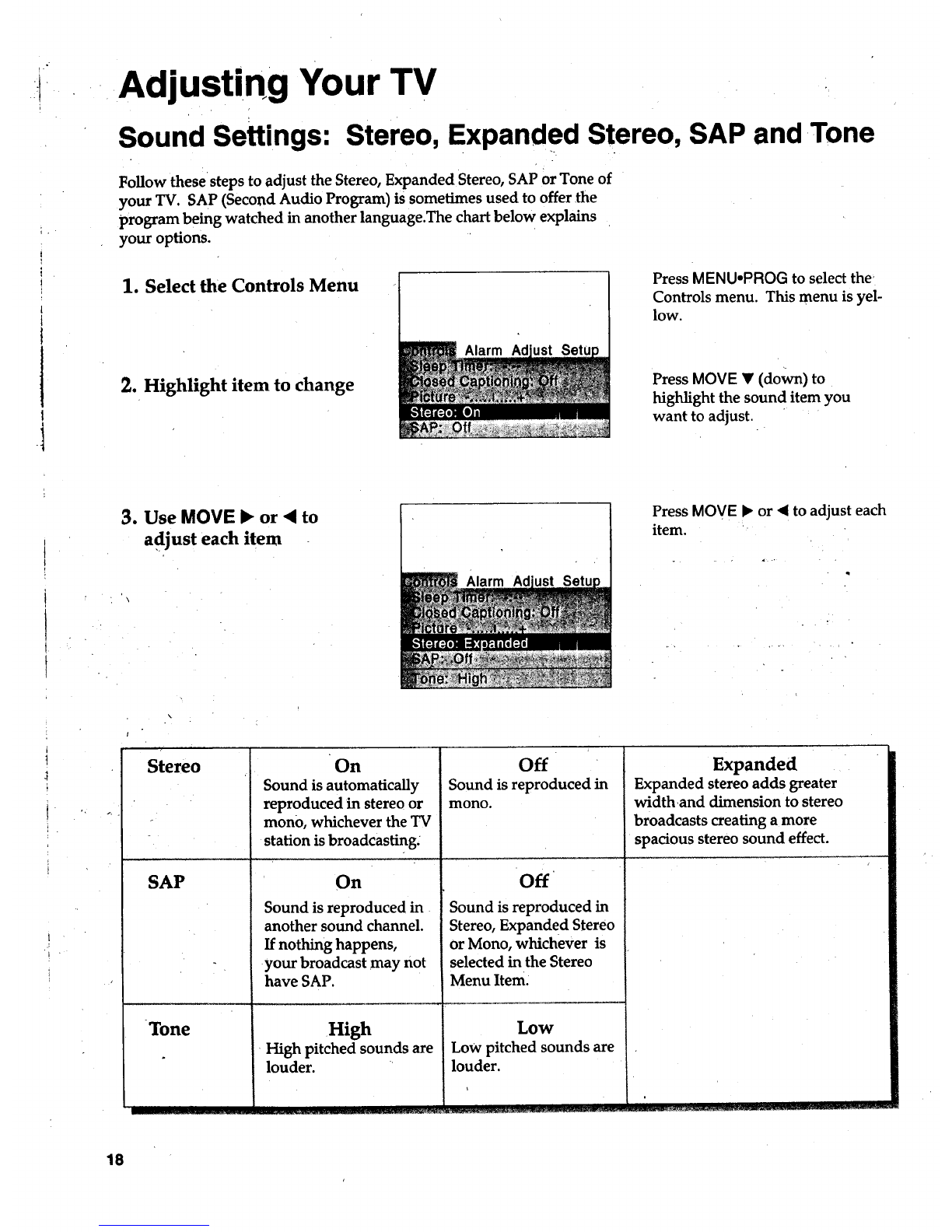

Sound Settings 18-19
• Stereo, Expanded Stereo, SAP, Tone, Speakers
Using Advanced Features .Placing Channels in Memory/Autoprogram
Naming the Channels
Setting the Sleep Timer
Setting the Alarm Clock
Watching Picture-in-Picture
Selecting aLanguage
Watching Closed Captioning
. Setting. Your TV for Antenna or Cable
20
21
22
23
24-25
26
26
27
References Front Panel Buttons
Displays on the Screen
Trouble Checks
Limited Warranty
Order Form for Parts
Glossary
28
29
30-31
32
33-34
35

Quick Guide to Your TV
Startup
The steps below will get your TV connected and ready for watching.
For more details, see the page numbers listed.
1. Hook up your TV
Details are in the
Connections Guide. CONNECTIONS
GUIDE
Hook up any antennas, cables or
other equipment to your TV before
you follow the steps below.
2. Plug in the TV
- .. , ., _ .
Plug the cord into the outlet,
:_,matching the wide .and the.small .,.:.o_..........
end of the plug with the outlet.
•:L .
3. Put Batteries in the Remote
a
A. Pull off the cover of the battery
compartment.
B. Place the four AAA batteries as
shown, matching the +and -
.end of each battery ,inthe ......
compartment.
C: Replace the cover.

Quick Guide to Your TV -'
Startup
4. Turn on the TV
<_ _> c>
r-_ r-_ r-wl
'O 20 '0
'0 50 +O
'0 80 '0
_00%-
Press TV on the remote.
OR
_..Press POWER on the TV. ;,:, .... ,_:,....
5. Place all available
,channels in memory
(AutoProgram)
Details for adding and deleting•
channels are on page 20. •
18
Controls Alarm
A. Press MENU.PROG until the
Setup menu is selected. This
menu is white.
B. Press. MOVE • to highlight
Autoprogram.
C. Press MOVE • to start placing
channels in the TV's memory.
D. Wait until TV has cycled through
all the channels and returns to
•original channel.
6. Set the Time 12:21 AM 13
\,
A. Press MENU.PROG until the
+-Alarm menu is selected. This
menu is green.
B. The Clock is automatically
highlighted the first time you
set it, If it is not, press MOVE •
(down) to highlight it.
C.Press MOVE _l to set the hour:
D. Press MOVE • to set the minutes.

Quick Guide to Your TV
Basic Tour of the Remote
Basic information about your remot.e is shown below. This will give you a
general idea of how your remote works. For more details, seepages 6-15.
TV Power Button
Volume and Channel Controls
Details areon.page6.
Component Buttons
Details are on pages 8-15.
Menu Buttons
See next page for details.
-r
Picture-in-picture buttons
Details are on pages 7 and 24-25.
Turns the TV on.
Sets the remote to control the TV.
Operates TV when remote is set to
control the TV.
Operates theTV and
advanced features.
.o °.
ConSols components such as a
VCR, laserdisc player, audio
equipment, and a cable box;
Changes the menus and features
on the screen.
Used to watch two pictures on the
TV at the same time.
4

Quick Guide to Your TV
Menu Basics
General information about using the on-screen menu system is shown
below. Details on using the remote buttons are on pages 6-7. Many menu items
are explained in detail in Using the Advanced Features starting on page 20.
Colors
•-. :<. .t<-; ,-._..... ,,7:W,o ,;.
Yellow Green
1"
Controls Alarm
Light White
Blue
-11
Menu Buttons
These buttons are used withthe • _',
TV's menus to adjust the features.
You Can use the menu buttons on
the remote or the front of the TV.
Moving through the Menus
,. . , % - .
Press MENUoPROG rePeatedly to
see each of the four menu colors.
Each menu has adifferent color
background as shown at the left.
i.:!...;-,: :: ,_ ._-., ..... ._.. ;_ .
--....
MENU CHV CHA VOL- VOL+
0 0 0 0 0
1. Press MENUopROG on the
remote or MENU on the front
. panel to move from menu to
menu.
2. Press MOVE A/v on the
remote or CHANNEL
up/down on the front panel to
move up and down through
the .features in the menu.
3. Press MOVE • and _ on the
remote or VOLUME +/- on the
front panel to move left and
right on the menu lines.

Using Your TV and Remote
With Remote Buttons
pO_[g VCR1 SAT'CABLE TV
O0
REW PLAY FF
<:1 C> C>
REC STOP PAUSE
r-i-i r-i-I
DISPLAY SKIP
MUTE CHA_ PREVCH
102030
POWER
Turns off the TV.
Turns off compatible VCRs.
Turns on a component after a
component button is pressed.
AUDIO, VCR, VCR2oLD,
SAT.CABLE, TV
Sets the remote to control the
component. VCR2=LD can only be
programmed for'one component:
either a VCR or a Laserdis¢ Player.
See Using the Reinote with a VCR: ::
Cable Box, Laserdisc Player and Audio
equipment on pages 8-15.
DISPLAY
Shows displays on fhe screen•
Clears menus from the screen.
SKIP (Commercial Skip)
Allows you to scan other chan-
nels during commercials.
Each press adds 30 seconds. TV
switches back to original channel
when time runs out. Press
CLEAR to cancel SKIP.
CHAN A and v
(Channel up and down)
Scans up and down through
channels in the TV's .memory:
_. :.... . .: - '..... Moves thro.ugh._els. ,y
• "_ ms on the TV m vLK s memory.
ILl. .•:.••
Shows, th.e displays .0n, the screen; _.
:""Setstl_e rem0'te'to control the _J'
• - See Using the Remote with a VCR,
Cable Box, Laserdisc Player and Audio
equipment on pages 8-15.
VOL +and -
:'_ :(V01ul_ie'_p&h'i:i'd0wn)'
Raises and lowers sound.
MUTE
Switches the TV sound onoroff..
(Re d) r
,!;:_- REW win ::......... ,;
Rewinds a tape or ]aserdise..
Searches backward whil e tape or
laserdisc is playing.
PLAY
Plays tape or laserdisc.
FF (Fast Forward)
Fast forwards a tape or laserdisc.
Searches forward while tape or
laserdisc is playing.
- PREV CH (Previous Channel) :
Changes back and forth between
two channels.
Select achannel and then select
another..Press PREV CH to
switch between the two channels.
REC (Record)
Starts recording onto tape.
STOP
Stops tape or laserdisc.
PAUSE
Pauses tape or laserdisc.

Using Your TV and Remote
With Remote Buttons
90_NER VCRI SATeCABL ETV
O0
REW PLAY FF
REC STOP PAUSE
DISPLAY SKIP
CHAN
' 1 3
sO
,,-708.0
INPUT 00 0(_ A.TE..A
CLEAR ._0_ .RESE_I_
PiP A" . SWAP
•A h<>
MOVE PIP _JJ kS" FREEZE
Number Buttons (0-9)
Selects any channel number.
Two numbers must be pressed for
each channel. Press 0 and 6 for
channel 6. For three digit chan-
nels, press and hold I until 1--
appears on the screen. Then press
the other two numbers.
INPUT
Switches between the TV channels
and Video 00.
ANT A*B (Antenna)
Used asTV/VCR button when
remote is set to con_ol the VCR. "
MOVE • and • (left and right)
Moves left and right on a menu
line. See Menu Basics on page 5.
Changes a feature setting.
MOVE • and • (up and down)
Moves up and down menus. See
Menu Basics on page 5.
PIP (Picture-in-Picture)
Turns the small picture on or off.
PIP MOVE
Moves the small picture to the
next corner.
SWAP
"' '_'_ ;_..........."_'"_- "_'_ "_'_"__"" :'.... ;:;" ......;_SwitcheS, the channel in the sinall ' ; "
CLEAR picture with the big picture.
Clears menus and displays from
,... the screen. ........ ""'- FREEZE -. _.... "
Clears _tems from VCR timer Freezes or unfreezes the
programs and VCR's clock, small picture.
MENUopROG (Program)
Shows menus on the screen and
moves from menu to menu.
Sets VCR clock and programs
timer on VCR.
RESET
Returns the picture adjustments to .
the original settings.
7

Using Your TV and Remote
With VCRs: Programming the Remote
Refer to the Connection Book or the VCR's owners manual to hook up your VCRs.
The remote may need to be programmed for your VCR. This remote may
not operate all models of brands listed below. Use the codes below or on the
sheet packed in with your remote.
1. Test the remote
:2. Program the remote for
your VCRs
f
<l E> t2>
r_ _oP pAusE
•'0 _0 _0
"0 _0 _0
_0 80 '0
o°O o
0<l I_0
A°
B,
Press VGR or VGR2 to turn
the VCR on.
Press the VCR buttons shown
at the left. If your VCR does
not work, program VOFI or
VOR2 with a VCR code from
the list below.
A. Pointthe remote at the VCR
and hold VOR.
B. Enter the codefor your brand
,, , .... ....._,_from the code :list below. _:.,,,:-
C. Release VCR.
D.,Press p_QWER. If nothing
' appe; s;trypr;ssh VCana
then POWER ......
E. Repeat A-D with another code
if the first one does not work or
if a second VCR is connected.
. ...."_*_-_'VCR,Codes '" " ................... ' _'°'"".......--" .................._'......:" _*"*"_ _::_*_'*_°_-_'_'__:'........._.
Aiwa 1.2............................................. 15
Akai .................... ...................... 03,22,23
Audio Dynamics ........................ 14,16
Broksonic ......................................... 10
Canon ............................................... 08
Capehart ....................... .i.................. 01
Citizen .................................... .......... 09
Craig ............................................ 07,12
Curtis Mathes ........................ 00,08,15
Daewoo ............................................ 13
dbx .......... .............................. ....... 14,16
Dimensia .......................................... 00
Dynatech .......................................... 15
Emerson...09,10,13,15,20,23,24,34,41
Fisher ............................ 02,12,18,19,43
v_a_.'.'...L.....:.L:.......................j.....15
GE .................................00,07,08,32,37
Goldstar .......................................09,14
Harman Kardon ..............................14
Hitachi ............................... 05,15,35,36
Instant Replay ................................. 08
JCL ....................... _............................ 08.
JCPenney .......02,05,07;08,14,16,30,35
JVC ..................................... 02,14,16,30
Kenwood ........................... 02,14,16,30
Lloyd ................................................ 15
Magnavox ................................... 08,29
Marantz.. ................. 02,08,14,16,29,30
Marta ................................................ 09
•MEI .............................................. :....08
Memorex ........................... 08,09,12,15
MGA ............................................ 04,27
Minolta ........................................ 05,35
Mitsubishi .................... 04,05,27,35,40
Montgomery Ward ......................... 06
MTC ..................... _....................... 07,15
Multitech ........................... 07,15,31j32
NEC ................................... 02,14,16,30
Panasonic ......................................... 08
Pent .a:,3_.......................................... 05,35
Philco ................... '..:.....] ............. '.08,29
Philips .......................................... 08,29
Pioneer ................................... 05,16,33
ProScan ............................................. 00
Quartz ............................................... 02
Quasar .............................................. 08
RCA .................... 00,05,07,08,28,35,37
Realistic ......... 02,06,08,09,12,15,19,43
Samsung ....................... 07,13,22,32,42
Sanyo..'. .......................... :............ 02,12
Scott ....................................... 04,13,41
Sears ............. 02,05,09,12,18,19,35,43
Sharp ..................................... 06,24,39
Shintom ................................ 17,26,31
Sony ....................................... 17,26,38
Sylvania ............................. :..08,15,29
Symphonic ................... _............ 02,15
Tashiko ........................................... 09
Tatung ............................................. 30
Te.ac ............................................ 15,30
Technics .......................... :....,.......... 08
Teknika ....i......."................ 08,09,15,21
Toshiba ................................. 05,13,19
•Totevision ........ :......... _............. ,07,09
Unitech ........................................... 0Y
Vector Research ........................ 14,16
Victor .............................................. 16
Video Concepts ........................ 14,16
Videosonic ...................................... 07
Wa'rds ..................................................
............ 05,06,07,08,12,13,15,25,31,35
• Yamaha ......:..................... 02,14,16_30
Zenith ......................................... 11,17"
Sansui ............................................... 16

Using Your TV and Remote
With VCRs: Setting the VCR1 Channel
The VCR 1 Channel works with VCR on the remote. If the VCR 1Channel
is set, pressing VCR selects the channel to see the VCR picture. The VCR 1
Channel setting depends on which diagram you have used from the
Connection Guide. If you want to turn this feature off, set the VCR 1
Channel to Disable. Refer to the chart below for your setting.
1. Select the Setup Menu 13 A. Press TV to set the remote to
control the TV.
B. Press MENU.PROG to select the
Setup menu. This menu is
white.
2. Highlight VCR1 Channel 13 A. Press MOVE • (down) to
highlight t-he VCR 1 Channel.
B. Press • to highlight the Channel.
3. Enter channel number A. Enter channel 00, 03, or 04.
Choose your setting from the
chart below. Press OHANNEL
down until "Disabled" is
displayed to turn the feature off.
Diagram used from the
Connection Guide:
1B, 1C,.2B, 2C, 3B, 3C, 4C, 5C
4B, 5B i
Set VCR1 Channel to:
3or 4 (same as 3/4 switch)

Using Your TV and Remote
With VCRs: Basic Operation
If the remote operates your VCR, this page and the next will show you
how to use it for basic functions. See page 7for more details on buttons used
with your VCR.
Turn on the VCR
_Tum off the_.CR,: ,:, ..... -
_. " • • _ .' ..... ........ .-, " :r_,- , _q-,;\! ''" :_','_;_,[_
Record one TVprogram
and watch another
• !
?OW_._ VCR1 SATeCABL[ TV
D
REW " PLAY. FF
R[C STOP PAUSE
A. Press charmel 00 on the TV to
see what the VCR is doing.
B. Press VCR or VCR2 to set the
remote to control the VCR.
C. Press POWER to turn on the
VCR if it did not turn on when
you pressed VGR or VCR2.
B. Press POWER:
A. PressVCR or VCR2 to set the
remote to control the VCR.
B_ Tune the VCR tothe channel
you want to record using •
-_..,,,,.' ......:_.-_,CHANNELUpand down or: _:.
pressing two number buttons.
C. Press RECORD to start
recording.
D. Press TVNCR on the VCR.
E. Press "IVto set the remote to
control the TV.
,F. Press CHANNEL up or down to
change chanr_.els on the TV.
G. To see the channel you are
recording, tune th e TV back to
channel 00,
Watch a tape in your VCR .':.., • _,.!.._.,}.<._,_.,,_-._t,',,_,_.. ,. .... . , ...
A. Turn on VCR.
B. Insert a tape in the VCR.
C. Press PLAY to start the
tape playing.
D. Press STOP when you
are finished. "
E. Press REW to rewind the tape.
10

Using Your TV and Remote
With a Satellite Receiver: Basic Operation
You may also be able to use the TV's remote with other satellite receivers.
Refer to your Satellite Receiver owner's manual to hook up your Satellite
Receiver. The remote may need to be programmed for othe r brands of
satellite receivers, but may not operate all models of the brands listed
below. Use the codes below or on the sheet packed in with your remote.
Follow the instructions below for basic operation of your receiver. You
may also want to experiment with other buttons on the remote to see if
they work with your receiver.
Program the remote for your
Satellite Receiver
Turn on the
Satellite Receiver
Turn off the
Satellite Receiver
Satellite Receiver Codes
Chaparral ......,...................80,81
Cheyenne ...............................81
Drake .................................82,83
DSS..........................................00
GE..............•..............................00
General Instruments...92,93,94
ProScan ......................:............00
RCA.........................................00
Realistic ..................................84
Sierra I,II,III............................81
STS1.........................................85
STS2....,.:.........L.......................86
STS3.........................................87
STS4.........................................88
Toshiba ...................................89
Uniden ....................................90
Video Cipher II......................91
pO_/t:p. VCR1 SATOCABLETV
O0
<;1 C> c>
REC STOP PAUSE
r-i-1 r-i-i n-el
DISPLAY SKIP
C.HAN
MUTE CHA_. PREV CH
°0
INPUTo O0 ANTENNAo
CLEAR • .o •RESET
PiP SWAP
A. Point the remote at the satellite
receiver and hold SAT,CABLE.
B. Enter the code for your brand
from the code list below.
C. Release SAT,CABLE.
D. Press POWER. If nothin_
happens, try pressing _°'_"
SAT-GABLE and then POWER.
A. Press SAT.CABLE to set
the remote to control the satel-
lite receiver.
B. Press POWER to turn on the
,receive r if it did not turn on
when you pressed SAT.CABLE.
A. Press SAT,CABLE to set
the remote to control the satel-
lite receiver.
B. Press POWER to turn Off
the receiver.
11

Using Your TV and Remote
With a Cable Box: Programming and Basic Operation
Refer to the Connection Book or contact your cable company to hook up your cable
box. If you have a cable box with its own remote, then you may also be able
to use the TV's remote with your cable box. This remote may not operate
all models of brands listed below. Use the codes below or on the sheet packed in
with your remote.
Program the remote for your
cable box
Basic Operation:
Turn on the Cable Box
pO_ R VCR1 SATeCASL ETV
VCSL ODAUDIo
REW PLAY FF
<_ L> E>
REC STOP PAUSE
DISPLAY SKIP
0 _.A_0
MUTE CHA_' PREV CH
10 2 0 3 0
_0 _0 _0
_0 80 90
INPUTo 0 0 ANTENNAo
CLEAR _%_'Po. RESET
PiP SWAP
MOVE PIP MOVE
A. Point the remote at the cable
box and hold CABLE.
B. Enter the code numbers for
your brand from the list below.
C. Release CABLE.
D, Press POWER to turn it on. If
nothing happens, try pressing
CABLE and then POWER.
E. Repeat A-D with another code
if the first one does not work.
, , .... , : , ,.
A. Tune TV to channel 02, 03, 04,
05, or 06--the cable box channel.
B. Poin.t remote at the cable box
and press CABLE.
......... C. Press POWER to turn iron.. ,_:,_.......
D. Press CHANNEL up or down to
change channels on the cable box.
Turn off the Cable Box A. Press CABLE.
B. Press POWER to turn it off.
Cable Box Codes"
ABC ..............................................22,46
Anvision .......................................07,08
Cablestar....................................._07,08
_g e.;.:.;.;;;..;..'..1, ....... ,................. ...... 08
EasternInternational.......................02
Genera]Instrument .............................
....................04,05,15,23,24,25,30,36,46
Hamlin ...............................12,13,34,48
Hitachi.....................................37,43,46
Jerrold....................................................
..........04,05,15,23,24,25,30,36,45,46,47
MACOM ......................................37,43
Magnavox .............................................
..........07,08,19,21,26,28,29,32,33,40,41
NSC .....................................................09
Oak .......................................... 01,16,38
Oak Sigma ........................................16
Panasomc ................................03,27,39
Philips ...................................................
..........07,08,19,21,26,28,29,32,33,40,41
Pioneer ....................................18,20,44
Randtek ........................................07,08
RCA ..............................................00,27
Regal .............................................12,13
Regency ........................................02,33
Samsung ...........................................44
Scientific Atlanta....................03,22,35
Signature ...........................................46
Sprucer .............................................. 27
Starcom ............................................. 46
.Sylvania: ........ ,., ............. ,........,.._..,.1!,
'" Te_ika., ._i..,i ........ (..i..i'i.i,...:_._..'i._06
Texscan ................................... ......10,11
Tocom ....... :......................... 17,21,49,50
Unika ....................................... 31,32,41
Viewstar ................................................
.......... 07,08,19,21,26,28,29,32,33,40,41
Warner Amex ................................... 44
Zenith ...:....... ,.._................ i........ .,.14,42
12

Using Your TV and Remote
With a Cable Box: Setting the Cable Channel
The Cable Channel Works with CABLE on the remote. If the Cable
Channel is set, pressing CABLE selects the channel to see cable channels.
The Cable Channel setting depends on which channel your cable box
must be on to see cable channels. The channels usually used are 02, 03,
04, 05 or 06. Consult your cable company for more information.
1. Select the Setup menu 13 A. Press "IVto set the remote to
control the TV.
B. Press MENU.PROG to select the
Setup menu. This menu is
white.
2. Highlight Cable Channel 13 A. Press MOVE • (down) to move
down the menu until Cable
Channel is highlighted.
B. Press • to underline the
channel.
3. Enter channel number 13
A. Enter the number for your cable
box, eithe r 02,03,04,05, or 06.
.... •Press. CHANNEL _l.ownuntil_
"Disabled" is displayed to turn
this feature off.
13

Using Your TV and Remote
With a Laserdisc Player: Programming and Basic Operation
Refer to your Laserdisc Player owner's manual to hook up your Laserdisc Player.
The remote may need to be programmed for your laserdisc player. This
remote may not operate all models of brands listed below. Use the codes below
or on the sheet packed in with your remote.
Program the remote for
your Laserdisc Player
Basic Operation
-_ ._ 7+:..... . •..: . - ' .,"
i
po_E.p, VCR1 SATeCABLE TV
VCR2*LD AUDIo
O0
REW PLAY FF
REC STOP PAUSE
DISPLAY SKIP
MUTE CHA'_. PREV CH
10 2 0 3 0
INPUTo 00ANTENNAo
_lPCLEAR OI,,_I_, OC, RESE4
PIP SWAP
MOVE PiP' qMOVE [_ FREEZE
A. Point the remote at the laserdisc
player and hold LD.
B. Enter the code for your brand
from the code list below.
C. Release LD.
D. Press POWER. If nothing
happens, try pressing LD and
A. Tune TV to channel 00, 03, or 04.
B. Point the. remote at the laserdisc
player: and press LD.
,C, Press POWER to turn it on.
D. Use the buttons on the remote
that relate to laserdisc player
functions. Not all buttons high-
lighted may work with your
laserdisc player.
E. Press POWER t,o turn it off.
\
Laserdisc Player Codes
/
Pioneer......._................33
ProScan .......................33 _
RCA.............................33 _
14

Using Your TV and Remote
With Audio Equipment: Programming and Basic Operation
Refer to the Connection Book or your Audio equipment owner's manual to hook
up your audio equipment. Your remote controls only RCA audio equipment
such as a radio, CD player, tape player, turntable, or amplifier. The
remote may need to be programmed for your equipment. This remote
may not operate all models of brands,listed below. Use the codes below or
on the sheet packed in with your remote.
Program the remote for
audio equipment
Basic Operation
RCA/Dimensia
AM/FM ...........................03
CD .................................._.07
Tape .................................06
Phono ..............................05
Aux .................._...............04
pOWF.R VCR1SATeCABLE TV
REW PLAY FF
REC STOP PAUSE
r--_ _-1 r-_
DISPLAY SKIP
MUTE CHAP, PREVCH
A. Point the remote at the audio
equipment and hold AUDIO.
B. Enter the code from the
code list.
C. Release AUDIO.
D. Press POWER to turn it on. If
,_ ._ _nothjng,happe.nq.,_,trypressing ,,,
_'"_*"* '__:._ODiOa_nd_efi 'I56_IEFil ...... '_' ;
E. Repeat A-D with another code
-if the first one does not work.
A. Point the remote at the audio
equipment and press AUDIO.
B. Press POWER to turn it on.
C. Use the buttons on the remote
that relate to audio functions.
Not all buttons highlighted may
work with your equipment.
D. Turn the audio equipment off
using the audio component's
power off button.
15

Adjusting Your TV
Overall Picture
Follow the steps below to lighten or darken the overall picture without
changing the color levels.
1. Select the Controls Menu
Alarm Ad
Press MENU,PROG to select the
Controls menu. This menu is yel-
low.
2. Highlight Picture
Alarm
Press MOVE •(down) to high-
light Picture.
3. Use MOVE I_ and < to
adjust the Picture
Press MOVE •(right) to lighten
the picture.
OR
Press MOVE < (left) to darken the
picture.
-- ]][_Jl!ll'- --. ...... !_111
16

Adjusting Your TV
Picture Settings
!'3
Follow the steps below to change the picture on the screen to your
personal setting. The chart at the bottom of the page explains your options.
1. Select the Adjust Menu
2. Highlight item to change
Controls Alarm
Press MENUopROG repeatedly to
select the Adjust menu. This menu
is light blue.
Press MOVE V(down) to
highlight the picture item you
want to adjust.
3. Use MOVE •or •to
adjust each item
Controls Alarm
Press MOVE I1_or • to adjust each
item.
Press MOVE •to:
"'-7::_T 2_: :.T._:L:.::.......... JJ[_:_:L2 .... .....
Color
Tint
Bright (Brightness)
Increase color richness
Give red tint to skin color
Add more light to dark parts of
the picture
Sharp (Sharpness)
Autocolor
•Picture Reset
Show cleaner, clearer images
Turn on to keep Color and Tint in
proper balance each time you :
change channels
Reset the picture back to the
original settings
Press MOVE •to:
Lower color to black and white
Give green tint to skin color
Add more dark to light parts of
the Picture
Make picture more smooth
Turn off for manual adjustment
of Color and Tint
Reset the picture back to the
original settings
17

Adjusting Your TV
Sound Settings: Stereo, Expanded Stereo, SAP and Tone
Follow these steps to adjust the Stereo, Expanded •Stereo, SAP OrTone of
your TV. SAP (Second Audio Program) is sometimes used to offer the
program being watched in another language.The chart below explains
your options.
1. Select the Controls Menu
2. Highlight item to change
Alarm
PressMENUopROG to selectthe
Controls menu. This menu is yel-
low.
Press MOVE •(down) to
highlight the sound item you
want to adjust.
3. Use MOVE •or "4to
adjust each item
Press MOVE •or < to adjust each
item.
q
1
]Stereo
SAP
Tone
On
Sound is automatically
reproduced in stereo or
mon0, whichever the TV
station is broadcasting.
On
Sound is reproduced in
another sound channel.
If nothing happens,
your broadcast may not
have SAP.
High
High pitched sounds are
louder.
off
Sound is reproduced in
mono.
Off
Sound is reproduced in
Stereo, Expanded Stereo
or Mono, whichever is
selected in the Stereo
Menu Item.
Low
Low pitched sounds are
louder.
Expanded
Expanded stereo adds greater
width.and dimension to stereo
broadcasts creating a more
spacious stereo sound effect.
18
