RCA VR344 User manual

a
*Ivideo cassette recorder
low
QI
Q
t\
Q user’s guide
5
vR519 & vR344
\
o\ c.F
hg
In &I
ZQ

-
To reduce the risk of electric shock, do not remove
RISK OF ELECTRIC
cover (or back). No user serviceable parts inside.
SHOCK DO NOT OPEN
Refer servicing to qualified service personnel.
A
This symbol indicates
A
This symbol indicates
“dangerous voltage” inside important instructions
the product that presents a accompanying the product.
risk of electric shock or
personal injury.
Caution: To reduce the risk of electric shock, match
wide blade of plug to wide slot, fully insert.
Attention: Pour eviter les chocs Clectriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user’s authority to operate it.
Cable TV Installer: This reminder is provided to call your attention to
Article 82040 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
WARNING
To reduce the risk of fire or
shock hazard, do not expose
this product to rain or moisture.

First Thing First ...............................................................
3
Setting up the VCR .........................................................
7
Using the QuickSet Guide .................................................................. 8
Using the Menu to Set Up Features ................................................. 8
Language .......................................................................................... 8
Cable Box Setup ............................................................................ 9
VCR Channels List ....................................................................... IO
To Auto Channel Search ...................................................... IO
To Change the SignalType ................................................... I2
To Add or Remove Channels ............................................. I2
Time and Date .............................................................................. I2
Set Daylight-SavingTime ...................................................... I 2
Set theTime and Date ......................................................... I3
VCR Plus+ Channels ............................................................ I4
What’s Next--Additional Set-Up Features
in the PREFERENCES Menu ...................................................... I6
RemoteVCR I/VCR2 Option .................................................... I7
Auto Play.. ...................................................................................... I8
Auto TV/VCR--Model VR5 I9 Only .......................................... I8
VCR Basics ..................................................................... 19
Remote Buttons .................................................................................. 20
Playing a Tape ....................................................................................... 21
Automatic Rewind .............................................................................. 21
Tape Eject ............................................................................................. 22
Recording ............................................................................................. 22
Check the SafetyTab ................................................................... 22
Recording ............................................................... 23
Recording Features ............................................................................ 24
Express Recording (XPR) .......................................................... 24
Timer Recording .......................................................................... 25
Timer Recording with VCR Plus+ ............................................ 26
Stopping a Timer Recording ...................................................... 28
Reviewing and Clearing Programs ........................................... 28
Using TwoVCRs for Copying and Editing Tapes ................... .29
Other Features .............................................................. 31
Picture Search Options ..................................................................... 32
Forward and Reverse Search .................................................... 32
Slow Motion .................................................................................. 32
Commercial Scan (SEARCH Button) ...................................... 32

Frame Advance ............................................................................. 33
Index Search .................................................................................. 33
Zero Search .................................................................................. 34
Pro-Tect Plus TM Locking Feature .................................................... 34
Tracking ................................................................................................. 35
Time Counter ...................................................................................... 35
On-Screen Displays ............................................................................ 36
Connections .................................................................. 37
Things to Know Before Connecting Components .................... .37
ConnectingYourVCR ........................................................................ 38
Jacks and Cables ........................................................................... 38
Choosing a VCR Connection ................................................... 39
Advantages of Audio/Video Cable Connections ................ .39
Don’t Forget About the TV/VCR Feature .............................. 39
TV with RF Jack Only ................................................................. 40
TV with Audio/Video Jacks ....................................................... .4 I
TV with Audio/Video Jacks and Cable Box to
Unscramble Pay Channels Only .......................................... 42
Appendix A: Reference ................................................ 43
Front Panel ........................................................................................... 44
Back Panel ............................................................................................ 45
Indicator Panel ..................................................................................... 45
TroubleshootingTips .......................................................................... 46
Specifications ....................................................................................... 49
Cleaning theVCR ................................................................................ 49
Limited Warranty ................................................................................
50
Index .............................................................................. 51
2

HI, MY NAME IS SUSAN...
and I wrote this User’s Guide. It’s my job to see
that you have a rewarding user manual experience.
And, I think you’ll be pleased with the features that
can be accessed through the on-screen menus.
READTHE FIRSTTHREE SECTIONS
The first three sections of the manual introduce
you to yourVCR, and show you how to set theVCR
up and use the on-screen menus. Reading these
sections gives you the basic information you need
to use yourVCR.
WHAT’S LEFT?
The rest of the book highlights playback and
recording information, contains a detailed
connections section, and a reference section that
includes troubleshooting tips, limited warranty, and
index.
II
FIRSTTHINGS FIRST
I”“““”
These note boxes give you tips for
your new video cassette recorder.
3

STEP 1: UNPACK WHAT’S IN THE BOX
The following items come packed in the box:
l VCR
l Remote control
l RF coaxial cable
STEP 2: INSTALL BATTERIES IN THE
REMOTE CONTROL
Follow these steps whenever you need to install or change the
batteries in your VCR remote.
1. Remove the cover of the battery compartment.
2. Place batteries in the remote, matching the + and - ends of
each battery to the diagram inside the compartment.
3. Replace the cover.
STEP 3: CONNECT YOUR VCR
If you connect your VCR to your home antenna or cable system
and then to your TV, use the VCR’s IN FROM ANTENNA and OUT
TO TV jacks for a good signal as shown.
If you have a TV with AUDIONIDEO jacks, use the jacks for a
better connection. Refer to the Connections section, toward the
back of the manual.
TCABLE, CABLE BOX OR ANTENNA
VCR
4

STEP 4: PLUG IN THE VCR
Match the wide blade of the plug with the wide slot in the
outlet. Be sure to insert the plug completely.
STEP 5: TUNE THE TV
Tune the TV to the VCR viewing channel. The VCR viewing
channel is channel 3 or 4 or the TV’s video input.
l If you connect your VCR using the ANTENNA connectors with
RF coaxial cable, set the 3CH.4 switch to channel 3 or channel
4--the channel you want to use on your TV.
l If you connect your VCR using the AUDIO/I/IDE0 jacks with
audio/video cables, select the TV’s video input to see the
signal. See the 7V Owner’s Manual.
STEP 6: TURN ON THE VCR
The first time you connect your VCR and turn it on, a menu
screen appears. This is the beginning of the QuickSet Guide
which helps you to set up specific features of the VCR. If you
choose not to use this Guide, you can set up each feature
individually.
Go to the next step to understand how to move through and
change items in the menu system.
STEP 7: ACCESS THE MENUS
The MENU and number buttons let you access, select and change
menu items. For example, to change the AUTO PLAY setting, you
would do the following:
VCR Viewing Channel \
When using the ANTENNA jacks to
connect your VCR, tune your TV to
channel 3 or 4.
When using the audio/video jacks to
connect your VCR, tune your TV to the
TV’s video input.

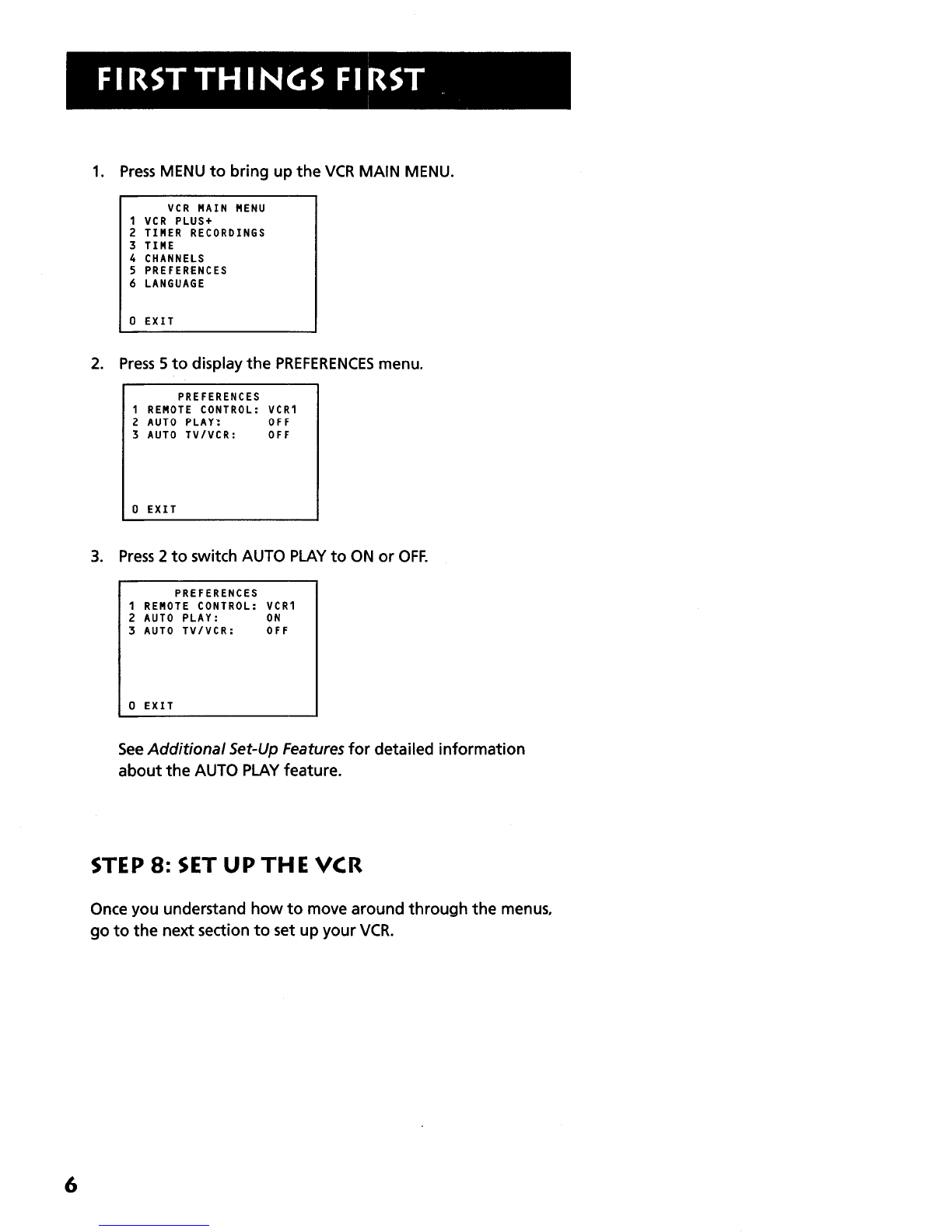

1. Press MENU to bring up the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
1 0 EXIT
2. Press 5 to display the PREFERENCESmenu.
PREFERENCES
1 REMOTE CONTROL: VCR1
2 AUTO PLAY: OFF
3 AUTO TV/VCR: OFF
0 EXIT
3. Press 2 to switch AUTO PLAY to ON or OFF.
PREFERENCES
1 REMOTE CONTROL: VCR1
2 AUTO PLAY: ON
3 AUTO TV/VCR: OFF
0 EXIT
See Additional Set-Up Features for detailed information
about the AUTO PLAY feature.
STEP 8: SET UP THE VCR
Once you understand how to move around through the menus,
go to the next section to set up your VCR.
6

ON-SCREEN GUIDE AND ADDITIONAL
SET-UP FEATURES
The QuickSet Guide is a one-time procedure that
takes you through specific features to set up your
VCR. In addition to the Guide, there are other
features you may want to set up, such as:
l Select a language
l Set upVCR channel list (AUTO CHANNEL
SEARCH)
l Set up for a cable box
l
Set automatic daylight-saving time
l Set the time and date
l Set upVCR Plus+ channels
l
Set the REMOTEVCRINCRZ feature
l Set the AUTO PLAY feature
l Set the AUTO TV/VCR feature
v
2 SETTING UPTHEVCR
7

USING THE QUICKSET GUIDE
The QuickSet Guide is an automated procedure that helps you
set up your VCR. The first time you turn on your VCR, the first
screen of the guide appears.
SELECT A LANGUAGE.
SELECCIONE UN IDIOMA.
CHOISISSEZ UNE LANGUE.
1 ENGLISH
2 ESPAiiOL
3 FRANFAIS
Just follow the step-by-step procedures until setup is complete.
Some of the feature options may not apply to your VCR
configuration.
If the menu does not appear:
l Make sure TV is tuned to the same channel as the 3CH.4
switch or TVs video line input.
l Make sure VCR indicator is on in the VCR display if you
connected your VCR using the ANTENNA IN and OUT jacks.
l Check your connections.
If you choose to set up the VCR options individually, then go to
the next section.
USING THE MENU TO SET UP FEATURES
You can set up features by using the menu system. Each feature
that appears in the QuickSet Guide is explained in this section as
well as a few others you may want to set up before you begin
using your VCR.
LANGUAGE
Select your preferred language, and the on-screen displays will
appear in that language.
On-Screen Menus
Not all the VCR screens are shown in this
manual when explaining the features.
8

1. Press MENU to displav the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
0 EXIT
2. Press 6 to select and display the LANGUAGE menu.
LANGUAGE
SELECT A LANGUAGE.
l>ENGLISH
2 ESPAROL
3 FRANCAIS
PRESS MENU TO CONTINUE
3. Select English, Espaiiol (Spanish), or Francais (French).
CABLE BOX SETUP
This setup applies only when all channels are received through
the cable box. The VCR will automatically enter the output
channel of the cable box when programming your VCR for timer
recordings.
1. Press MENU to display the VCR MAIN MENU.
VCR HAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
I 0 EXIT I
2. Press 4 to display the CHANNELS menu.
CHANNELS
1 AUTO CHANNEL SEARCH
2 ADD/REMOVE CHANNELS
3 SIGNAL TYPE: CABLE
4 VCR PLUS+ CHANNEL LIST
5 CABLE BOX SETUP
1 0 EXIT
9

3. Press 5 to display CABLE BOX SETUP Then select one of the
three choices.
CABLE BOX SETUP
DO YOU USE YOUR CABLE
BOX TO RECEIVE ALL
CHANNELS OR ONLY SOME
CHANNELS?
1 ALL CHANNELS
2 ONLY SOME CHANNELS
3 CANCEL SETUP
4. If you selected ALL CHANNELS, enter the output channel of
your cable box, usually 03,04, or video line input and
press MENU.
CABLE BOX SETUP.
ON WHAT CHANNEL DOES
THE VCR RECEIVE SIGNALS
FROM THE CABLE BOX?
(USUALLY 3, 4, OR VIDEO)
04
ENTER 01-13 OR INPUT
PRESS MENU TO CANCEL
CABLE BOX SETUP
THE VCR WILL NOW
RECEIVE ALL SIGNALS
FROM THE CABLE BOX
ON CHANNEL 04.
PRESS MENU TO CONTINUE
Once you complete the setup, the VCR confirms that Cable
Box Setup is complete.
VCR CHANNELS LIST
Your VCR may come with a channel list preset at the factory.
Even though your VCR may come with a list, it’s possible that
you may want to add or eliminate some channels depending
on whether they are active.
To AUTO CHANNEL SEARCH
1. Press MENU to display the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
0 EXIT
.
Cable Box Setup
ALL CHANNELS: enter two numbers for
output channel of your cable box or
press INPUT.
ONLY SOME CHANNELS: if you only use
the cable box to tune premium
channels.
CANCEL SETUP: select to cancel. d
All Channels
If you do not use a cable box for ALL
channels, then you will want to use a
channel list (Auto channel search).
10

2. Press 4 to display the CHANNELS menu.
CHANNELS
1 AUTO CHANNEL SEARCH
2 ADD/REMOVE CHANNELS
3 SIGNAL TYPE: CABLE
4 VCR PLUS+ CHANNEL LIST
5 CABLE BOX SETUP
0 EXIT
3. Press 1 to display the AUTO CHANNEL SEARCH menu.
AUTO CHANNEL SEARCH
WHAT TYPE OF SIGNAL
ARE YOU USING?
1 CABLE TV
2 ANTENNA
3>DETECT AUTONATICALLY
0 CANCEL
4. Select one of the three AUTO CHANNEL SEARCH options.
Choices one and two are self-explanatory. If you choose
DETECT AUTOMATICALLY, the VCR automatically detects
which signal system you have attached to your VCR.
AUTO CHANNEL SEARCH
NOW SCANNING CHANNEL 14
PRESS ANY KEY TO CANCEL
The VCR begins scanning for the available channels--this
takes about one to two minutes. The lowest channel is tuned
once the search is complete. Now pressing CHANNEL up or
down should only select the active channels.
.
Detect Automatically
A strong cable or antenna signal in
your area may cause Auto Detect
to mis-detect. If this should
happen, select 1 or 2 for the
system you have.
l
Auto Channel Search
Use the AUTO CHANNEL SEARCH
feature to place all available
channels in memory.
If you ever change cable or
antenna signals, you may need to
AUTO CHANNEL SEARCH again.
11

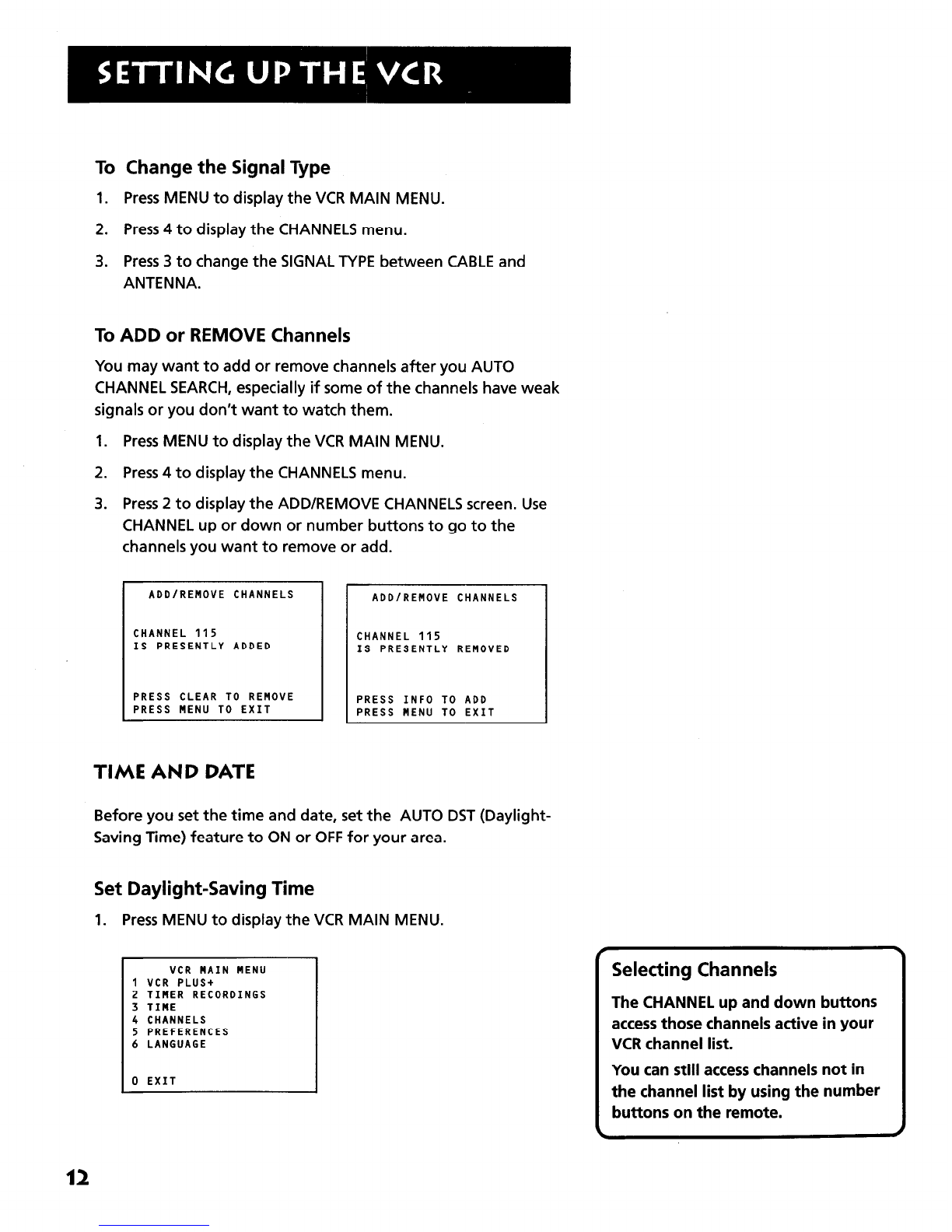

To Change the Signal Type
1. Press MENU to display the VCR MAIN MENU.
2. Press 4 to display the CHANNELS menu.
3. Press 3 to change the SIGNAL TYPE between CABLE and
ANTENNA.
To ADD or REMOVE Channels
You may want to add or remove channels after you AUTO
CHANNEL SEARCH, especially if some of the channels have weak
signals or you don’t want to watch them.
1. Press MENU to display the VCR MAIN MENU.
2. Press 4 to display the CHANNELS menu.
3. Press 2 to display the ADD/REMOVE CHANNELS screen. Use
CHANNEL up or down or number buttons to go to the
channels you want to remove or add.
ADD/REMOVE CHANNELS
CHANNEL 115
IS PRESENTLY ADDED
PRESS CLEAR TO REMOVE
PRESS MENU TO EXIT
ADD/REMOVE CHANNELS
CHANNEL 115
IS PRESENTLY REMOVED
PRESS INFO TO ADD
PRESS MENU TO EXIT
TIME AND DATE
Before you set the time and date, set the AUTO DST (Daylight-
Saving Time) feature to ON or OFF for your area.
Set Daylight-Saving Time
1. Press MENU to display the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
I 0 EXIT
Selecting Channels
The CHANNEL up and down buttons
access those channels active in your
VCR channel list.
You can still access channels not in
the channel list by using the number
buttons on the remote.
12

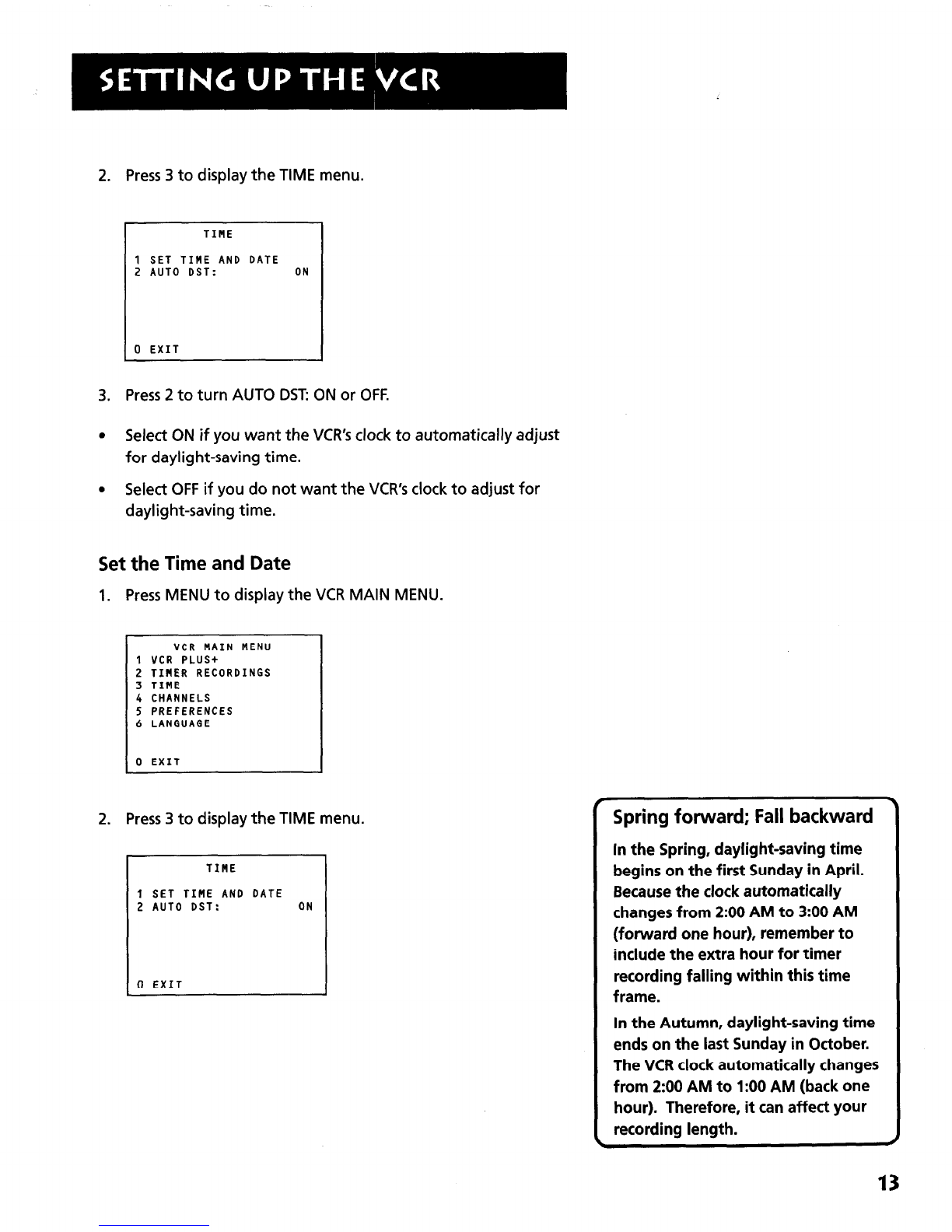

2. Press 3 to display the TIME menu.
TIME
1 SET TIME AND DATE
2 AUTO DST: ON
0 EXIT
3. Press 2 to turn AUTO DST: ON or OFF.
l Select ON if you want the VCR’s clock to automatically adjust
for daylight-saving time.
l Select OFF if you do not want the VCR’s clock to adjust for
daylight-saving time.
Set the Time and Date
1. Press MENU to display the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
0 EXIT
2. Press 3 to display the TIME menu.
TIME
1 SET TIME AND DATE
2 AUTO DST: ON
0 EXIT
Spring forward; Fall backward
In the Spring, daylight-saving time
begins on the first Sunday in April.
Because the clock automatically
changes from 2:00 AM to 3:00 AM
(forward one hour), remember to
include the extra hour for timer
recording failing within this time
frame.
In the Autumn, daylight-saving time
ends on the last Sunday in October.
The VCR clock automatically changes
from 2:00 AM to 1:00 AM (back one
hour). Therefore, it can affect your
recording length.
13

3. Press 1 to display the SETTIME AND DATE screen.
SET TIME AND DATE
TINE --:--
(HH:MM)
DATE --/--/--
PRESS MENU TO CANCEL
4. Enter the data using the number buttons. Press 0 before
single-digit numbers and follow the on-screen directions.
SET TIME AND DATE
TIME 12:34 PM
DATE 10/24/97 FRIDAY
PRESS CLEAR TO CORRECT
PRESS MENU TO SET
VCR PLUS+ CHANNELS
Using VCR Plus+ can make programming timer recordings for
cable or off-air antenna easier, but you have to put in a little
time right now to set up a channel list. A worksheet and
abbreviated codes for typical cable services in the U.S. and
Canada are provided on the following pages.
1. Press MENU to display the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
1 0 EXIT
I
Time/Date Display
Pressing INFO on the remote displays
the time and date on the screen.
VCR Plus+ Channel List
Refer to your local television list for
a complete VCR Plus+ channel list
for your viewing area or contact
your cable company. Using the list
may save you some time.
14

VCR PLUS WORKSHEET
Two-DigitVCR Plus+ Channel
35 American Movie Classics
39 Arts &-Entertainment
57 Black Entertainment
54 Bravo
42 Cable News Network
45
Cinemax
98 Cinemax 2
37 The Discovery Channel
53
The Disney Channel
63
EntertainmentTelevision
34 ESPN Sports Network
47
The Family Channel
33 Home Box Office
95 Home Box Office 2
96
Home Box Office 3
51 The Learning Channel
46 Lifetime
58 The Movie Channel
48
Music Television
49 The Nashville Network
38
Nickelodeon
64 NostalgiaTelevision
99
QualityValue Cable
41 Showtime
97
Showtime 2
59
Sports Channel
52
Turner NetworkTelevision
44 USA-Network
62
Video Hits I
93
Viewer’s Choice I
94 Viewer’s Choice 2
55
WGN Chicago
43
WTBS Atlanta
60
WWOR-NewYork
Numbers for CableTV
(USA List)
See next page fir Canadian List
*Check your local or cable listing for the channel number you receive this station on.
**Check your local listing for broadcast or VCR Plus+ channel number assigned.
15

2. Press 4 to display the CHANNELS menu.
CHANNELS
1 AUTO CHANNEL SEARCH
2 ADD/REMOVE CHANNELS
3 SIGNAL TYPE: CABLE
4 VCR PLUS+ CHANNEL LIST
5 CABLE BOX SETUP
0 EXIT
3. Press 4 to display the VCR PLUS+ CHANNEL LIST screen.
VCR+ CHANNEL MY CHANNEL
5 --
4 --
3 -> -> -> --
2 --
1 --
USE CH+/- TO SELECT
PRESS O-9 TO CHANGE
PRESS MENU TO SAVE
4. Enter the data following the on-screen directions using your
worksheet.
VCR+ CHANNEL NY CHANNEL
5 46
4 --
3 -> -> -> 23
2 --
1 --
USE CH+/- TO SELECT
PRESS 0-9 TO CHANGE
PRESS MENU TO SAVE
Screen is for an example only
WHAT’S NEXT--ADDITIONAL SET-UP
FEATURES IN THE PREFERENCES MENU
The features in this section are all accessed through the
PREFERENCESmenu.
Two-Digit VCR Plus+ Channel
Numbers for CableTV
(Canadian List)
67 Allarcom PayTelevision/
Super-channel
44 Arts & Entertainment
72 Cable News Network-Headline
News
6 I Cable News Network
70 Canadian Home Shopping Network
56 Canal Famllle
69 Cathay InternationalTelevision Inc
68 Chinavision Canada Corp
60 Country MusicTelevision
63 Family Channel
62 First Choice
96 First ChoiceTwo
97 First ChoiceThree
99 First Choice Four
90 House of Commons
9 I La Chaine Francaise
5 I The Learning Channel
65 MeteoMediafThe Weather Network
48 MuchMusIc Network
55 MusiquePlus
52 Nashville Network
73 NewsworldlCBC
53 Le Reseau des Sports
43 The Sports Network
64 Super Ecran
37 Super Ecran B
98 Super Ecran C
66 Telatino Network
46 TV5 Montreal
92 Viewer’s Choice I
93 Viewer’s Choice 2
94 Viewer’s Choice 3
95 Viewer’s Choice 4
7 I Vision TV: Canada’s Faith Network
38 Youth TV, Canada Inc.
16

1. Press MENU to display the VCR MAIN MENU.
VCR MAIN MENU
1 VCR PLUS+
2 TIMER RECORDINGS
3 TIME
4 CHANNELS
5 PREFERENCES
6 LANGUAGE
0 EXIT
2. Press 5 to display the PREFERENCESmenu.
Now you are ready to select an item from the menu to set up.
REMOTE VCRWVCR2 OPTION
If you own a compatible RCA, GE, or ProScan remote that has
a VCR2, VCRZ*LD, or DVDWCRZ button, this feature allows
you to set this VCR to respond to that button.
Press 1 to select the REMOTE CONTROL item. Then press the
VCRZ, VCRZ*LD, or DVDWCRZ button to change.
PREFERENCES
(PRESS VCR2 TO CHANGE)
2 AUTO PLAY: OFF
3 AUTO TV/VCR: OFF
0 EXIT
PREFERENCES
1 REMOTE CONTROL: VCR2
2 AUTO PLAY: OFF
3 AUTO TV/VCR: OFF
0 EXIT
The VCR will only respond to the compatible remote’s VCRZ,
VCRZ*LD, or DVDWCRZ button. If you change the remote
setting to VCRZ, the remote that came with your VCR will no
longer control it.
To change the remote setting back to VCRl, display the
PREFERENCESmenu, press 1, and then press VCR1 on your
compatible remote.
17

AUTO PLAY
This feature allows the VCR to automatically start playing when
you insert a tape with the safety tab removed. Press 2 to switch
between ON or OFF.
l Select ON if you want a tape with its safety tab removed to
start playing automatically when the tape is inserted.
l Select OFF if you do not want a tape with its safety tab
removed to start playing automatically.
AUTO TV/VCR --MODEL VRS19 ONLY
This feature controls whether the TV/VCR switch changes
automatically to the VCR mode, when the VCR isturned on. Press
3 to switch between ON and OFF.
l Select ON if you want the VCR to switch to the VCR mode
when the VCR is turned on or a cassette is inserted. This only
applies if you connect the ANTENNA IN and OUT jacks of
your VCR and TV and watch your VCR on channel 3 or 4 of
your TV
l Select OFF if you want the VCR to remain in the TV mode.
This is useful if you watch your VCR on the TV’s video input
and you don’t want your antenna/cable signal interrupting
the VCR.
Auto TV/VCR
Pressing WWCR on the remote
will still switch between the VCR
and TV mode.
VCR mode: VCR indicator in the
display panel lights.
TV mode: VCR indicator turns off.
18
