RCBS REBEL 9353 Instruction sheet

REBEL RELOADING PRESS
PRODUCT INSTRUCTIONS
9353
03-20

NOTICE - This manual is not intended to provide comprehensive instructions or
safety information on how to reload, or handle or use reloading components. Always
read and thoroughly understand a reloading manual before attempting to reload
ammunition.
SAFETY
Reloading is an enjoyable and rewarding hobby when conducted safely. But, as with
many hobbies, carelessness or negligence can make reloading hazardous. When
reloading, always follow these safety guidelines to minimize the risk of personal injury
or death.
RELOADING SAFETY
• Always wear safety glasses.
• Understand what you are doing and why. Read handbooks and manuals on
reloading. Talk to experienced reloaders. Write or call suppliers of equipment or
components if you have questions or are in doubt.
• Read and understand all warnings and instructions accompanying your equipment
and components. If you do not have written instructions, request a copy from the
manufacturer. Keep instructions for future reference.
• Don’t rush or take short cuts. Establish a routine and follow it at a leisurely pace.
• Keep complete records of reloads. Label each box showing the date produced, and
the type of primer, powder and bullet used.
• Do not smoke while reloading, or reload near sources of heat, sparks or ame.
• Observe good housekeeping in the reloading area. Keep tools and components
neat, clean and orderly. Promptly and completely clean up any spills.
• Keep all reloading equipment and components out of reach of children.
• Stay alert. Reload only when you can give your undivided attention. Do not reload
when tired, ill, rushed or under the inuence of drugs or alcohol.
Because RCBS has no control over the choice, assembly or use of components or other
reloading equipment, RCBS assumes no liability, express or implied, for the use of
ammunition reloaded with this product.
WARNING
Before using the RCBS Rebel Reloading Press, read these instructions carefully
to fully learn how to safely operate the related reloading equipment. Failure
to properly operate the related reloading equipment can result in severe
personal injury and/or equipment damage.
If you have any questions while assembling or operating this tool,
Call us at 1-800-533-5000 (US or Canada)
Or email us at [e-mail]
This instruction manual contains specic safety and operating information.
It should be considered a permanent part of your reloading equipment and
remain with the equipment at all times for easy reference.
1

PRIMERS AND POWDER
• Store powder beyond the reach of children and away from heat, dampness, open
ames and electrical equipment. Avoid areas where static electricity is evident.
• DO NOT use primers of unknown identity.
• Dispose of unknown primers in accordance with applicable regulations.
• Keep primers in the original factory container until ready to use. Return unused
primers to the same factory packaging for safety and to preserve their identity.
Primer packaging is designed to provide safe storage.
• DO NOT store primers in bulk. The blast of just a few hundred primers is sucient to
cause serious injury to anyone nearby.
• DO NOT force primers. Use care in handling primers.
• DO NOT have more than one can of powder on the bench at one time. Powder cans
should be stored away from the bench to avoid picking up the wrong one.
• DO NOT use any powder unless its identity is positively known. The only positive
identication is the manufacturer’s label on the original canister. Discard all mixed
powders and those of uncertain identity.
• DO NOT attempt to prime military cartridge cases with crimped/staked primer
pockets until the crimp/staking has been removed with a reamer or by swaging.
Attempting to seat primers into staked/crimped primer pockets can result in primer
detonation, which can cause serious personal injury.
• DO NOT decap live primers. This is extremely dangerous and can result in primer
detonation, causing serious personal injury.
• If you use a powder measure, replace the lids on both the powder hopper and
powder can after the powder hopper has been lled.
• When using a powder measure, settle the powder in the powder hopper before
charging any cases. Throw and check the weight of at least ten charges. This will
assure you that the correct powder charge is being thrown.
• When you nish a reloading session, pour any remaining powder back into its
original factory container. This will preserve the identity and shelf life of the powder.
• DO NOT smoke while reloading.
LOADING DATA
• DO NOT SMOKE WHILE RELOADING
• OBSERVE ALL WARNINGS ABOUT THE USE OF MAXIMUM LISTED LOADS.
• Use only laboratory tested reloading data. We recommend the SPEER Reloading
Manual.
RECORD KEEPING
• Keep complete records of reloads. Apply a descriptive label to each box showing
the date produced, and the primer, powder and bullet used. Labels for this purpose
are packed with SPEER bullets.
• Never attempt to guess at the identity of your ammunition.
2

GENERAL INFORMATION

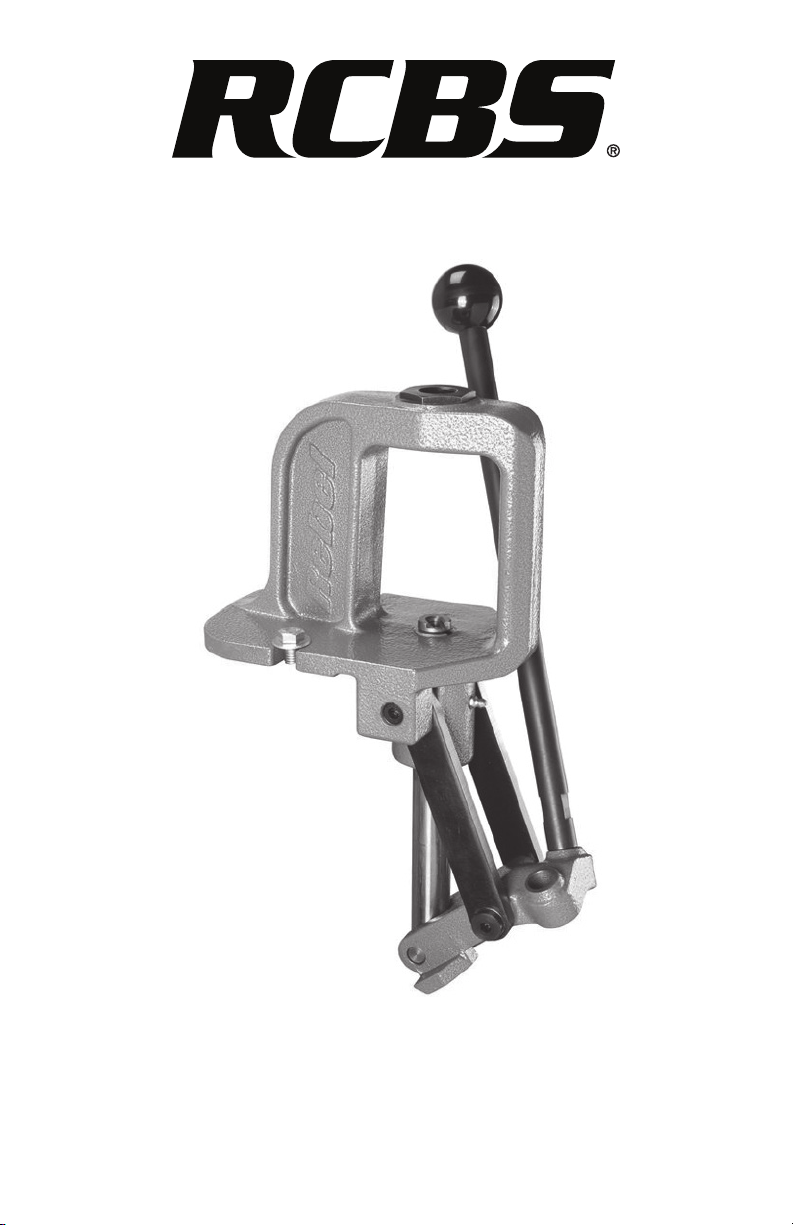

The RCBS Rebel Reloading Press is the next evolution in single stage reloading presses.
With the Rebel Reloading Press you can load your favorite pistol and rie ammo from
magnums down to .17 caliber. The larger loading window allows room for the longer
cartridges while also providing more width for greater ease of use. The sturdy block
‘O’ frame eliminates springing of the frame that occurs in other type presses. All press
components are constructed of iron and steel. The compound leverage ensures ease of
sizing the largest cartridge cases. The Rebel Reloading Press frame provides 4-1/2” of
bearing surface for the 1” diameter ram, insuring alignment between the shell holder
and the die throughout the ram stroke. A new style ram allows the user to place a trash
can below the press for spent primer containment which allows for a cleaner working
surface. The upgraded threaded linkage pins allow for ease of disassembly for cleaning.
The Rebel Reloading Press is also tted with a zerk tting so the user can lubricate the
ram/frame interface and has an ambidextrous handle design.
UNPACKING
Unpack the press carefully and look for the items listed below:
• Press
• Handle
• Instructions
INSTALLATION
Mount the Rebel Reloading Press to a sturdy workbench or table with two 3/8” bolts
of sucient length to penetrate the press base and bench. The Rebel Reloading Press
may also be mounted to an optional Accessory Base Plate-3, (#09282, sold separately).
Attach the threaded portion of the handle to either the right or left side of the toggle
block and lock down using a 9/16”open end wrench on the ats provided on the handle.
The handle must always remain tight to avoid damage to the handle or toggle block.
MAINTENANCE
This press was lubricated at the factory. However, it is necessary to lubricate all moving
parts from time to time with gun oil. A zerk tting has been installed on the front of the
frame to lubricate the ram/ frame interface. If rust spots appear, swab lightly with gun
oil and wipe dry. It is a good practice to clean the press prior to lubrication to remove
grit and other residue. Note: the ease with which the epoxy enamel paint wipes clean.
This nish is impervious to oil and is extremely chip and fade resistant.
3

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 20049489 Rebel Press Frame 1
2 7709138 Press Bushing 1
3 20049494 Rebel Ram 1
4 7188719 Link 2
5 7109213 Zerk Fitting 1
6 7109112 Clip Spring 1
7 20049495 Rebel Link Pin 2
8 20049491 Rebel Toggle Block 1
9 7788255 Ram Pin 1
10 20049496 Rebel Toggle Pin 1
11 7187212 7/16-20 Nyloc Nut 1
12 20049497 Handle 1
13 7109121 Handle Ball 1
4
1
4
10
8
9
12
2
13
5
11
6
3
7
4
7
