N A V I G A T O R 5 0 0
User Guide

RealWear, Inc. Copyright 2021 www.realwear.com
Table of Contents
RealWear Navigator 500 ................................................................................................................................................. 3
Navigator Features................................................................................................................................................... 4
Navigator Product Specifications ............................................................................................................................. 5
RealWear Navigator™ 500 Software Brief ................................................................................................................. 6
Navigator Safety Guidelines ..................................................................................................................................... 8
Safety and Usage Guidelines .................................................................................................................................... 9
Navigator Connectivity ........................................................................................................................................... 10
Navigator Box Contents ......................................................................................................................................... 10
Navigator Device Overview ..................................................................................................................................... 11
Navigator Device Overview – Details ...................................................................................................................... 12
Navigator Setup Guide ................................................................................................................................................. 17
Wearing Navigator ................................................................................................................................................. 17
Remote configuration for Navigator from web browser ......................................................................................... 22
Determining Eye Dominance .................................................................................................................................. 23
Headwear with Navigator Devices .......................................................................................................................... 24
Using Navigator with a Hard Hat ............................................................................................................................ 26
Using Navigator without a Hard Hat ....................................................................................................................... 26
Wearing Navigator with Eye Protection .................................................................................................................. 26
Navigator Charging Basics ..................................................................................................................................... 27
Configuring your Navigator .................................................................................................................................... 29
Settings .................................................................................................................................................................. 29
Setting Up Screen Lock .......................................................................................................................................... 30
Unlocking Navigator Using PIN .............................................................................................................................. 32
Wireless Update ..................................................................................................................................................... 33
Selecting Navigator Interface Language ................................................................................................................ 36
Navigator MicroSD Card ......................................................................................................................................... 37
How to insert a MicroSD card: ................................................................................................................................ 37
Setting Up and Using a MicroSD Card .................................................................................................................... 39
Navigator Device Care ............................................................................................................................................ 41
Storing the Navigator ............................................................................................................................................. 41
Cleaning the Navigator device ................................................................................................................................ 42
Navigator Interaction Modes .................................................................................................................................. 43
Speech Keyboard ................................................................................................................................................... 44
Voice Control ......................................................................................................................................................... 47
Navigator Software Overview ....................................................................................................................................... 49
My Programs ......................................................................................................................................................... 51
Recent Applications ............................................................................................................................................... 52
My Files ................................................................................................................................................................. 53
My Documents ....................................................................................................................................................... 56
Media Player .......................................................................................................................................................... 58
Deleting Files from File Manager ............................................................................................................................ 60
My Camera............................................................................................................................................................. 62
My Controls............................................................................................................................................................ 68
Action Buttons ....................................................................................................................................................... 73
Power Management ............................................................................................................................................... 74
Battery Hot Swap ................................................................................................................................................... 76
Microphone Settings .............................................................................................................................................. 76
Screen Orientation ................................................................................................................................................. 77
Power Warnings ..................................................................................................................................................... 77
Notifications .......................................................................................................................................................... 78
Barcode Reader...................................................................................................................................................... 79
Utility Apps ............................................................................................................................................................. 81
Navigator Ownership Information ................................................................................................................................ 82
Navigator Regulatory and Compliance Statements ................................................................................................ 83
Declaration of Conformity ...................................................................................................................................... 85
Navigator Specific Absorption Rate (SAR) Information .......................................................................................... 87
Navigator Limited Warranty and Software License ................................................................................................. 88

realwear.com
3

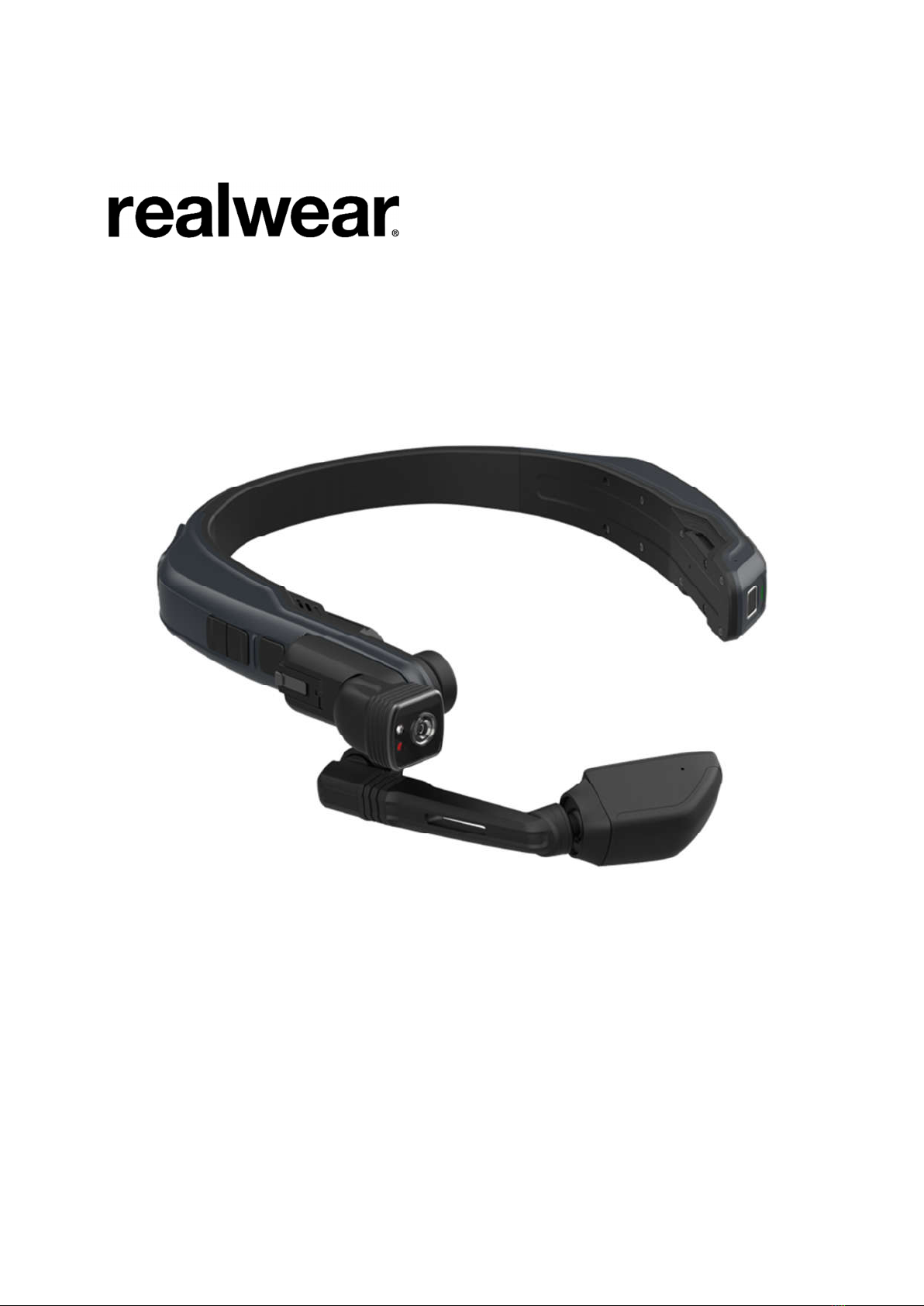

RealWear Navigator 500
The RealWear Navigator™ is the world’s first hands-free Android™ tablet class wearable computer for industrial
workers. The RealWear Navigator™ provides the foundation for Connected Worker programs.
Use it in wet, dusty, hot, dangerous, and loud industrial environments.
A fully rugged head-mounted device, it optionally snaps into safety helmets or attaches to bump caps and can be
used with safety glasses or corrective eyewear.
The high-resolution micro display fits just below your line of sight and views like a 7” tablet. It’s an industrial
dashboard: there when you need it and out of your way when you don’t.
The Navigator works with powerful software applications from our solution partners in four core categories, each
optimized for completely hands-free voice control. That means no scrolling, swiping, or tapping - just simple voice
commands.
Use it for remote collaboration in real-time, acceptance testing, remote commissioning, auditing, document navigation,
digital workflow, visual assist, on-demand training, and data visualization.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 4
Navigator Features
100% Hands free
Voice based operating system with local speech recognition in loud areas.
Powerful Audio
Integrated speaker and 3.5mm audio jack for use with hearing protection.
Unmatched Noise Cancellation
Navigator uses four microphones and advanced algorithms to perform noise cancellation prior to voice recognition.
PPE Compatible
Designed to work with standard hard helmets, bump caps and safety glasses.
Full-Shift Internal Battery
Field swappable for continuous use.
Outdoor Display
Viewable in bright sunlight.
Shock Resistant
Resistant to 2-meter drops onto concrete from any angle.
Built Rugged
Fully operational from -20° C to +50° C.

realwear.com
5
Navigator Product Specifications
Core Platform & Functions
2.0 GHz 8-core Qualcomm® Snapdragon™ 662 with
Adreno 610 GPU - OpenGL ES 3.2 & OpenCL 2.0
Included Applications
Document Navigator, Camera with Barcode Reader,
Video Recorder, Media Player, Calculator, Pedometer,
Timer
Languages Supported
Dutch, Chinese (Cantonese), Chinese (Mandarin),
Chinese (Traditional), Czech, English, French,
German, Italian, Indonesian, Japanese, Korean,
Polish, Portuguese, Russian, Spanish, Thai
Memory
64 GB Internal Storage / 4 GB RAM / MicroSD slot
(max card supported 512 GB)
Operating System
Android 11 (AOSP) + WearHF™ hands-free interface
Connectivity & Sensors
Bluetooth
Bluetooth 5.1 Low Energy
Wi-Fi
802.11 a/b/g/n/ac – 2.4GHz and 5GHz
GPS and Location
GPS, GLONASS, A-GPS, BeiDou, Galileo, QZSS,
SBAS. NavIC support. Dual-frequency GNSS (L1 +
L5). Qualcomm® Sensor-Adjusted Positioning
IMU
6-DOF (3-axis accelerometer, magnetometer, and
gyroscope), software enhanced stabilization
Battery
Capacity
2600 mAh/10.0 wH Li-Ion, rechargeable and field
swappable
Battery Life
Full shift (9-10 hours) with typical use
Physical Characteristics
Weight
9.28 oz/263g
Ruggedization
MIL-STD-810H, 2-meter drop test
Dedicated Keys
Power key, application-specific Action key, volume
up/down
Ports
3.5mm audio, 1 USB Type-C
Boom Arm
Adjust six ways for all head sizes, left or right eye
compatible, display flips out of the way when not in
use
Display
Type
20° field-of-view, 1-meter fixed focus 24-bit color LCD,
0.33 inch diagonal, outdoor visible
Resolution
WVGA (854x480)
Audio
Microphone
4 digital microphones with active noise cancellation
Accurate voice recognition even in 95 dBA of typical
industrial noise
Speaker
Internal 91 dB loudspeaker
Multimedia
Camera
48 MP camera with pixel binning, low light
performance down to 5 Lux with up to 2x zoom
Video
Up to 1080p @30fps with 5x zoom. Codecs: VP8,
VP9 and hardware encoding support for H.264, H.265
HEVC
Accessories
Included
RealWear Navigator 500™, USB Type-C Charging
Cable, Workband, Removable Battery, Quick Start
Cards

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021
6
Optional
Spare Battery, 6 Battery Multi-Charger, Hard Hat
Clips, Bump Cap and Tri-Band Strap, Ear Bud
Hearing Protection Headphone rated at 33dB noise
reduction rating (NRR), Soft Pouch Carrying Case,
Semi-Rigid Carrying Case, Hard Hat, Baseball Cap
with Navigator clips, Micro SD card
RealWear Navigator™ 500 Software Brief
Navigator software is optimized for safe and secure jobs, taking hands-free to new heights of productivity and
connectivity.
Android Enterprise Support
All Navigator devices can be managed by either RealWear Foresight or by an EMM (Enterprise Mobility Management)
system. Android Enterprise standards allow for device management of the Navigator by most EMM providers –
please see http://www.realwear.com/support for information on currently supported EMM providers or contact your
provider directly. Enrolling your device is easy: simply use the Configuration app on the Navigator to scan the QR
code generated by your EMM system.
Core Functions
Operating System Android 11 AOSP (Android Open Source Project)
Usability
Optimized UI Head movements and voice commands utilized for intuitive hands-free control
Easy access to core Android capabilities such as Notifications and device settings
Display automatically orients for left or right eye dominance
Keyboard Fully hands-free keyboard with gestures and voice including:
 Standard keyboard
 Secure Entry mode enables hands-free password entry without compromising
security
 Full dictation for improved productivity
 ABC Mode keyboard entry
My Controls Commonly used controls accessible from any activity
My Files Browse and sort through files using clear, simple navigation
Read full filenames
Large thumbnails
Delete files
Document Viewer Access PDF files easily with full zoom and pagination controls
Create and use your own bookmarks for quick reference
Media Player Native playback support for audio and video files built into My Files
Security
Android 11 Security
Security patch level – October 2021
RealWear Release 1
Compliance with current enterprise IT security policies
API Level 29 support for developers
Screen Lock Option to secure your device with a custom PIN or fingerprint scan, required at device
wake and power on
Customization and Configuration

realwear.com
7
Centralized WearHF
configuration
OS level and App level customization and configuration. Default values and
preferences can be stored in a common configuration space and updated, refreshed,
or managed for easier deployment and support
Cloud Services Fully manageable by RealWear Foresight Cloud or select EMM providers
Language
Software support and voice recognition for 17 languages
Dynamic and individual language strings can be adjusted or improved by administrators
or by over the air (OTA) updates
Most Advanced Camera System for Harsh Environments
Hands-free for industry Command and control all features while keeping your hands free for work
Barcode Reader Built-in code reading software to handle most barcode formats
Preview Instant preview of photos and videos
Smooth Transitions Seamless experience from “MY CAMERA” to “MY PHOTOS” and “MY MEDIA”
Low Light Performance Proven performance in low light settings and situations
Field of View (FOV)
Wide angle range or standard range
 Standard: Improves visibility of camera view when used with a baseball
cap. Enhanced zoom to provide even more magnification for small or far away
subjects
 Wide: Full width of camera view is captured
Focus and Exposure Switch between Autofocus or Manual Focus at any time: lock focus and exposure to one
of 9 points in the frame for better photos in non-ideal lighting conditions
Image and Video
Stabilization
Automatic image and video stabilization allows more accurate remote mentoring,
compliance and inspections. This feature is enabled by default but can be disabled by
the end user.
Flashlight Flashlight functionality can be controlled directly from the camera app or My Controls
 Flash settings for photos: On/Off/Auto
Camera Controls
(MORE OPTIONS)
 Exposure level
 Flashlight controller
 Aspect ratio 16:9 and 4:3
 Image resolution: High and low
 Video resolution: High and Low
 Frame rate: 15, 25, 30
 Video Stabilization: On or Off
 Picture preview
 Manual focus
 Field of view: narrow and wide
 Direct access to your photos and video

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021
8
Navigator Safety Guidelines
Battery Performance
A rechargeable battery powers your device. Always use only the original type of RealWear battery that came with the
device. Use the battery only for its intended purpose. Never use any charger or battery that is damaged. If the battery
is completely discharged, it may take a few minutes before the charging indicator appears on the display or before
the device can be used. The full performance of a new battery is achieved only after 3 to 4 complete charge and
discharge cycles. The battery can be charged and discharged for multiple cycles, but it will eventually wear out.
Unplug the charger from the electrical plug and the device when not in use. Ensure that you do not leave the fully
charged battery connected to the charger. If left unused, a fully charged battery will lose its charge over time.
Warning: There is a risk of explosion while charging if a battery other than the specified model is used.
Battery Replacement
If the Navigator battery is not charging properly, replace the battery with an original RealWear battery. If a
replacement battery is being used for the first time or if the battery has not been used for a prolonged period, it may
be necessary to connect the charger and then disconnect and reconnect it to begin charging the battery.
Avoid Short Circuit
Do not short-circuit the battery. An accidental short-circuit can occur when a metallic object such as a coin, clip, or
pen causes direct connection of the positive (+) and negative (-) terminals of the battery. This might happen, for
example, when you carry a spare battery in your pocket or toolbox. A short-circuit at the terminals may damage the
battery or the connecting object.
Avoid High Temperatures
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the
capacity and lifetime of the battery. For the best results, try to keep the battery between -10°C and +50°C (+14°F and
122°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below freezing.
Battery Disposal
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of
batteries according to local regulations and recycle when possible. Do not dispose as household waste. Do not
dismantle, open or shred cells or batteries. In the event of a battery leak, do not allow the liquid to come in contact
with the skin or eyes. In the event of leak or a hazard seek medical help immediately.
Child Safety
Do not allow children to play with your device or its accessories. Keep it out of their reach. They could hurt
themselves or others or could accidentally damage the device or accessories. Your device and its accessories may
contain small parts, which could be detached and create a choking hazard.
Health and Safety Warnings
Stop using RealWear Navigator or its display immediately if you experience a headache, vertigo, dizziness or nausea.
Do not use Navigator display while operating any vehicle. Move the boom arm completely out of your line of sight
when not using the display. Maintain situational awareness of your surroundings while using Navigator.

realwear.com
9
Safety and Usage Guidelines
• Do not use Navigator while driving
• Always wear Navigator with eye protection.
• Always use your dominant eye for comfortable viewing.
Disposal of Old Electrical and Electronic Equipment
The symbol of the crossed-out wheeled bin indicates that within the countries in the European Union, this product,
and any enhancements marked with this symbol, cannot be disposed as unsorted waste but must be taken to
separate collection at their end-of-life.
Disposal of Battery
Please check local regulations for disposal of batteries. The battery should never be placed in municipal waste. Use a
battery disposal facility if available.
Guideline for Headphone and Earphone
To prevent possible hearing damage, do not listen at high volume levels for long periods.
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur.
Charger Use Safety Instructions
Warning: To use the charger follow these instructions:
 Make sure that the cable plug is properly connected.
 Keep the charger away from liquids.
 In case of any strange smell or noise from the charger, disconnect it and contact support.
 Before cleaning the cable or charger, disconnect from power supply.
 When using an extension cable, check the integrity of the ground conductor.
 Disconnect the charger from Navigator once the battery is fully charged.
 Do not use this charger in wet areas This charger is for indoor use only.
 Do not insert or remove the plug with wet hands.
 Do not open the charger. For any issues, contact support.
 Do not cut, break or bend the cable in a knot.
 Do not put any objects on the cable that may let it overheat. It may damage the cable and cause fire or
electrocution.
 Do not use any cable other than the original cable as it may cause short circuit or electrocution.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 10
Navigator Connectivity
Operating Frequency Bands for RealWear Navigator™ 500
Wi-Fi operating frequency band(s) details are as follows:
Bluetooth (2400-2483.5MHz): 11.93 dBm
WIFI 2.4G (2400-2483.5MHz): 14.98 dBm
WIFI 5G (5150-5250MHz): 14.71 dBm
WIFI 5G (5250-5350MHz): 13.17 dBm
WIFI 5G (5470-5725MHz): 13.47 dBm
WIFI 5G (5725-5850MHz): 13.48 dBm
5G Wi-Fi Connection Information
Operations in the 5.15 — 5.35GHz band are restricted to indoor use only.
Bluetooth
BT 5.1 LE (Low Energy)
Navigator Box Contents
The list of items in the RealWear Navigator™ 500 box are:
RealWear Navigator™ 500:
 USB cable type C
 Navigator Quick Start Card
 Swappable Battery
 RealWear Workband
Included with purchase of Navigator, but shipped in a separate box:
 Navigator Regional Wall Charger

realwear.com
11
Navigator Device Overview
Front View
1. Record Indicator Light
2. Shoulder Joint
3. Flashlight
4. Display Pod
5. Mic A1 (Mic A2 on opposite side)
6. Display Pod Pivot
7. Boom Arm
8. Camera
9. Elbow Joint
10. Action Button
11. Power Button/Fingerprint Sensor
12. Speaker (one on each side)
13. Side Accessory Clipping points
Rear View
1. Battery Pack
2. Display Window
3. Audio Jack
4. USB-C Charging Port
5. Micro SD Card Slot Cover
6. Rear Band
7. Camera Module
5
.
3
4
2
5
6
9
88
9
12
11
10
1
13
1
5
4
3
2
6
7

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 12
Navigator Device Overview – Details

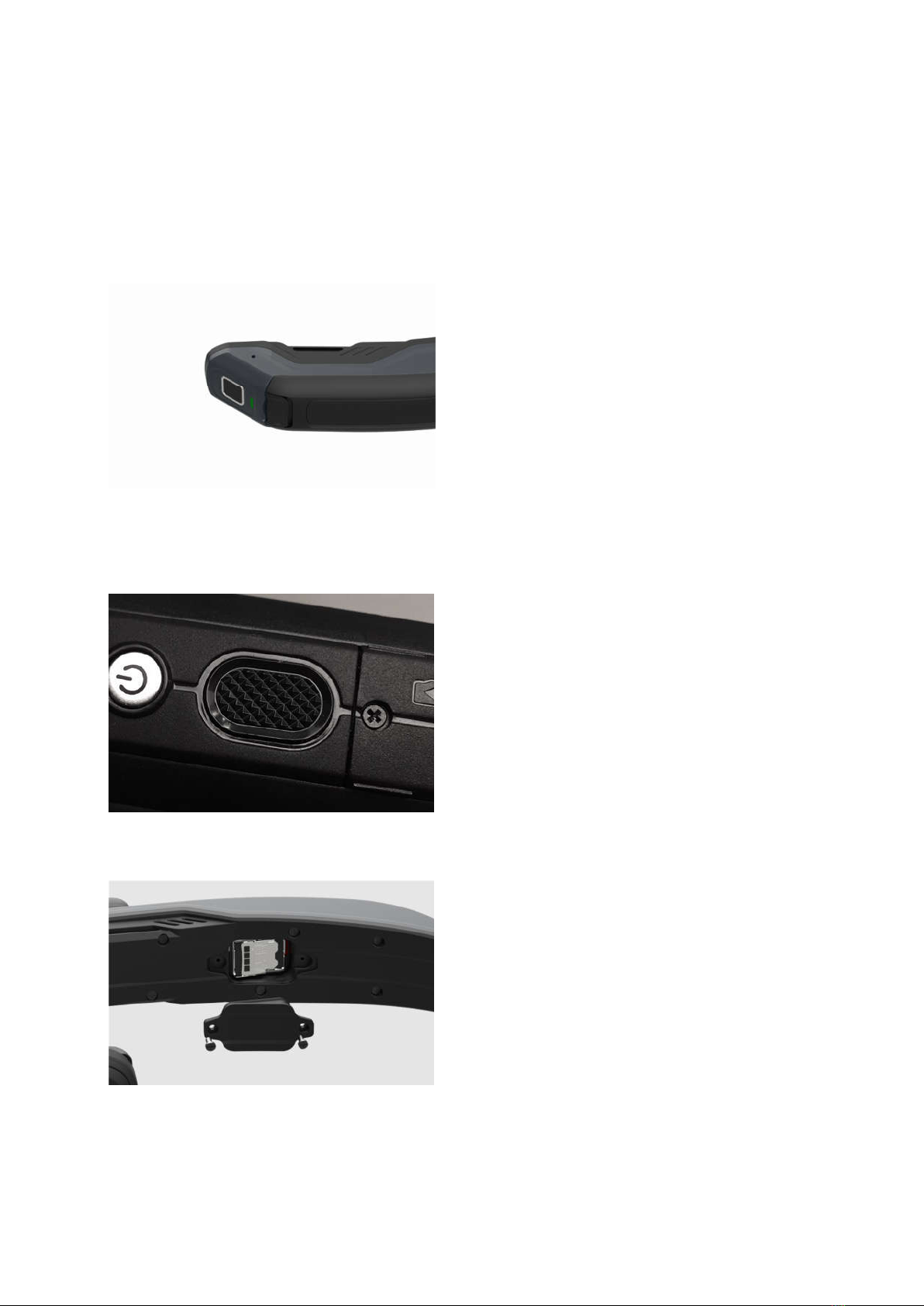

Power Button/ Fingerprint Sensor
There is a button/sensor on the front of the battery side of the device. This is used to unlock Navigator, power on,
power off, put into Sleep Mode, or wake from Sleep.
Action Button
The action button is the large, textured button beside the
power button, and serves multiple purposes. A single tap
serves as a failsafe method of returning you to your home
screen. Three quick, consecutive taps will toggle the
microphone array between front and back configurations.
Pressing and holding the action button will open the
Language Select menu and will cycle through a list of
supported languages. Release the button to select your
desired language.
Left/Right Buttons
Micro SD Card Door
The MicroSD card door, located on the inside of the Navigator band, can be opened with a 001 Phillips Head
screwdriver. Insert a FAT32 formatted microSD card with a maximum capacity of 256 GB? for portable storage.

realwear.com
13
Details Continued
Swappable Camera
The Swappable Camera is located above the boom arm and can be pivoted up and down. It is capable of taking 48
MP photos and 1080p videos. It also includes a built-in flashlight that can be controlled with your voice.
Boom Arm
The Boom Arm allows the user to adjust the positioning of the
Display Pod and allows for 6 degrees of freedom, which means it
can be adjusted up and down, left and right, and forward and
back. It is comprised of a Shoulder, Elbow, and Wrist joint
(imagine the human arm). Its orientation can be inverted to allow
use by left or right eye dominant users.
Display Pod Pivot
The Display Pod can pivot in multiple directions to allow you
to view the Navigator display from the angle you need.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 14
Display Pod
The Display Pod can be rotated and adjusted so the user
can see the display clearly. The Display itself is an 854x480p
24-bit LCD Display with 20-degree field-of-view and 1-meter
focal depth, meaning that it appears like a 7in. Tablet at
arm’s length.
Microphone Array
There are two sets of two microphones on Navigator. The Primary Microphones handle user input, while the
reference microphones cancel external noise. The front microphones, active by default, are located on the display
pod. The Primary Mic is downward-facing, close to the user’s mouth, and the reference mic is upward-facing to pick
up and remove background noise.
The rear microphones are located on the side of the device opposite from the boom arm. These are used when
issuing voice commands while the boom arm is out of your field of view.

realwear.com
15
Speakers
A 91 dB loudspeaker that sits above each ear.
Battery Compartment
You can remove the battery cap with a small counterclockwise turn followed by a pull. Once removed, tilt the device
to remove the battery. To replace, insert a fresh battery, press to secure the battery cap and turn slightly clockwise to
lock in place. Secure the flap.
USB-C Port
For all charging and data transfer, you must use the USB-C port, which is located next to the battery compartment,
beneath the rear flap on the side opposite the boom arm.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 16

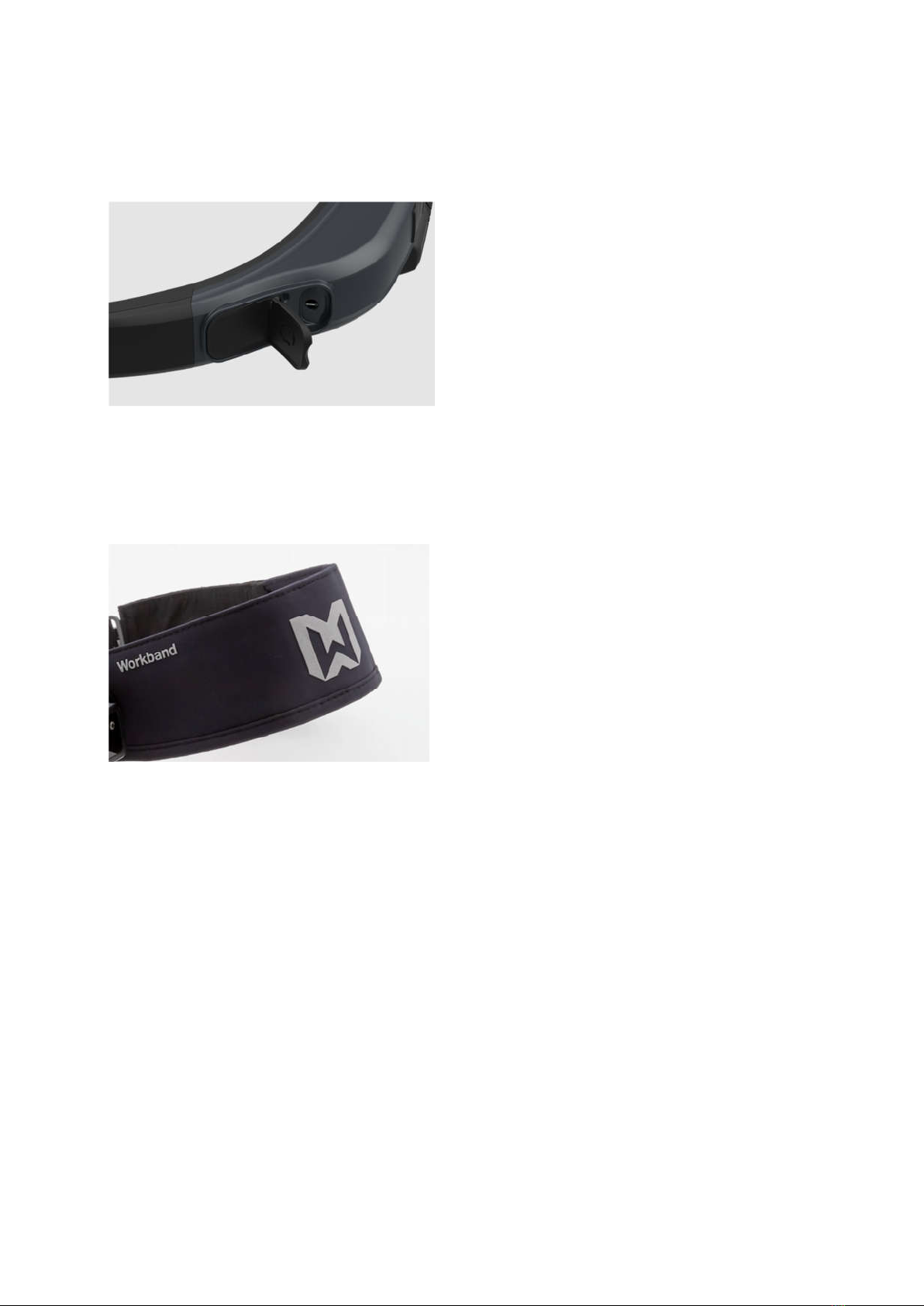

Auxiliary Jack (Headphones)
Headphones can be connected to Navigator using the 3.5mm headphone jack on the back of the Navigator, under
the flap on the side of Navigator, on the opposite side from the USB-C charging port. We recommend using
RealWear 33 dB noise-reduction earbuds with your Navigator.
Workband
This is an adjustable Velcro strap that rests across the top front of the wearer’s head. If mounting via hard-hat or
bump cap, this can be removed.

realwear.com
17
Navigator Setup Guide
Wearing Navigator
This article will walk you through how to wear your Navigator device and ensure the best possible experience.

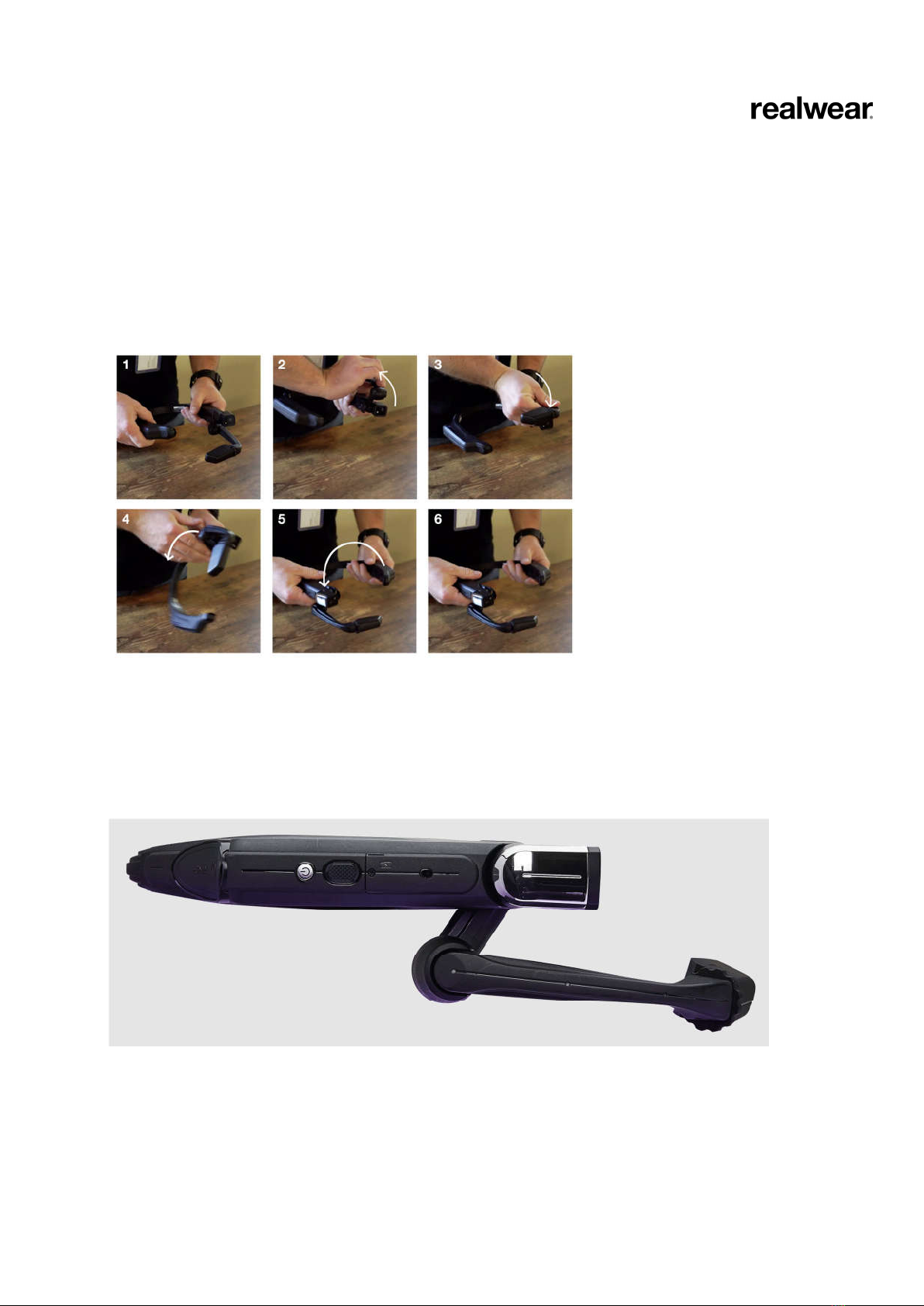

Step 1 - Determining Left- or Right-Eye Configuration
Navigator can be set up so that the display and camera are aligned with the left or right side of your head.
First, it is important to determine your dominant eye, to do so, follow the simple instructions in this linked article.
Viewing Navigator's display with your dominant eye will allow for the most clear and comfortable use of the device.
Step 2 - Get Navigator Ready
Before wearing, hold Navigator level with the boom-arm/display on the left or right, whichever is your dominant eye
side. Bend the boom so it forms a slight "Z" shape as shown below.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 18
Step 3 - Ensure proper head-mounting accessories are in place.
You may mount Navigator to a baseball cap, bump cap or hard hat, or you may use the RealWear WorkbandThese
can include the single strap, tri-strap, hardhat with clips, bump cap with tri-strap, baseball cap or Workband with
mounting kit.
Step 4 - Workband
Before positioning Navigator, put the Workband over your head and adjust the Velcro straps to fit comfortably. Then,
push the clips on the Workband into the slots on each side of Navigator:
Place Navigator and Workband on your head.

realwear.com
19

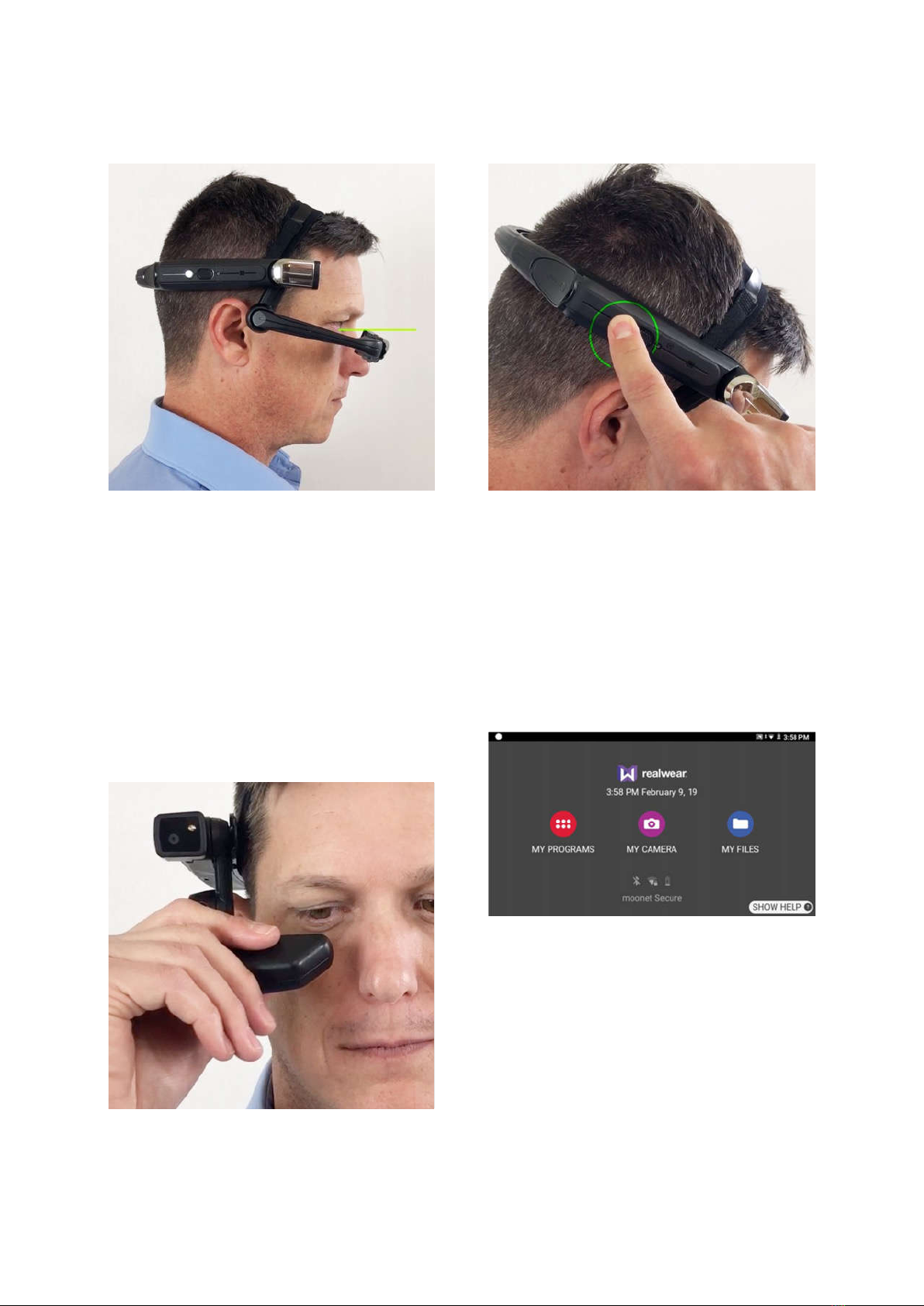

Next, position the device on your head so that it is roughly level with ground. Workband should be positioned
horizontally across your forehead. For an optimal experience, it is recommended that the display is close to the
center line of your face, in front of and close to your eye.
Step 5 - Adjusting the fit
Ensure that the display pod is not positioned too far to
the outside or too far in front of your eye.
Move the display towards the center line by pushing
from the outside inward.
Then holding the boom arm with one hand and
holding the back of Navigator with the other, push the
display pod inward so that it is close to, in front of and
slightly below your eye.

RealWear Navigator™ 500 User Guide
RealWear, Inc. Copyright 2021 20
Step 7 – Power On Navigator
Before putting Navigator on your head, press and
hold down the fingerprint sensor button for about
three seconds then release the button.
In about ten to fifteen seconds you will hear a sound
as the start-up sequence completes. Navigator is now
powered on and ready to wear. You should now be
able to see the screen.
Step 8 - Fine tuning
It is best to tilt and rotate the display pod to make
minor adjustments.
Make sure that the display pod is rotated so that all
four corners of the screen are clearly visible to your
eye. With your Navigator powered on, and the display
pod positioned correctly, you will see the entire
Navigator Home Screen.
Warning: If you are not able to clearly see what is on
screen, review how your device and display setup -
double check the fitting of the strap or headwear and
if your display is correctly setup for your dominant eye.
