Rebotec Berlin User manual

REBOTEC®Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Phone: [phone]
Fax: [phone]
Web: www.rebotec.de
BA Nr.: 02.07.082/2023-09-A02 Email: [e-mail]
Read User Manual before using the product for the first time and keep it at hand for the user
as well as for future use and provide it to the purchaser in case of subsequent sales
EN
User Manual
Shower and Toilet Wheelchairs
XX= Colour code, YY= Equipment variant
Figure similar
Berlin
Bonn
Erfurt
344.XX.YY
343.XX.YY
334.XX.YY
130 kg
130 kg
130 kg
New York
Boston
Oslo
Manhattan
369.XX.YY
342.XX.YY
362.XX.YY
365.XX.YY
150 kg
150 kg
150 kg
150 kg

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 2 -
EN
Table of contents
1Product description .......................3
1.1 Introduction ............................................3
2Features ..........................................3
2.1 Intended purpose ...................................3
2.2 Use...........................................................4
2.3 Storage & transport................................4
2.4 Packaging ...............................................4
2.5 Disposal ..................................................4
3Symbols & nameplates..................4
4Safety instructions.........................5
5Incident reporting...........................6
6Warranty..........................................6
6.1 Complaints..............................................6
7Reuse, lifetime................................6
8Scope of delivery............................6
9Setting up for use...........................6
9.1 Folding down the footrests...................6
9.2 Adjusting the footrest height................6
9.3 Mounting the backrest...........................7
10 Product information.......................7
11 Operation of the product ...............7
11.1 Sitting down............................................7
11.2 Getting up ...............................................7
11.3 Swivelling the armrests.........................8
11.4 Parking brake operation........................8
11.5 Removing the footrests.........................8
11.6 Handling of the toilet bucket.................8
11.7 Removing the shower/toilet seat..........8
11.8 Removing the backrest cushion...........8
11.9 Moving over a toilet................................8
12 Troubleshooting.............................8
13 Cleaning & disinfection..................9
13.1 General.................................................... 9
13.2 Cleaning.................................................. 9
13.3 Disinfection ............................................ 9
14 Maintenance ................................. 10
15 Spare parts & accessories .......... 11
16 Drawing & dimensions ................ 12

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 3 -
EN

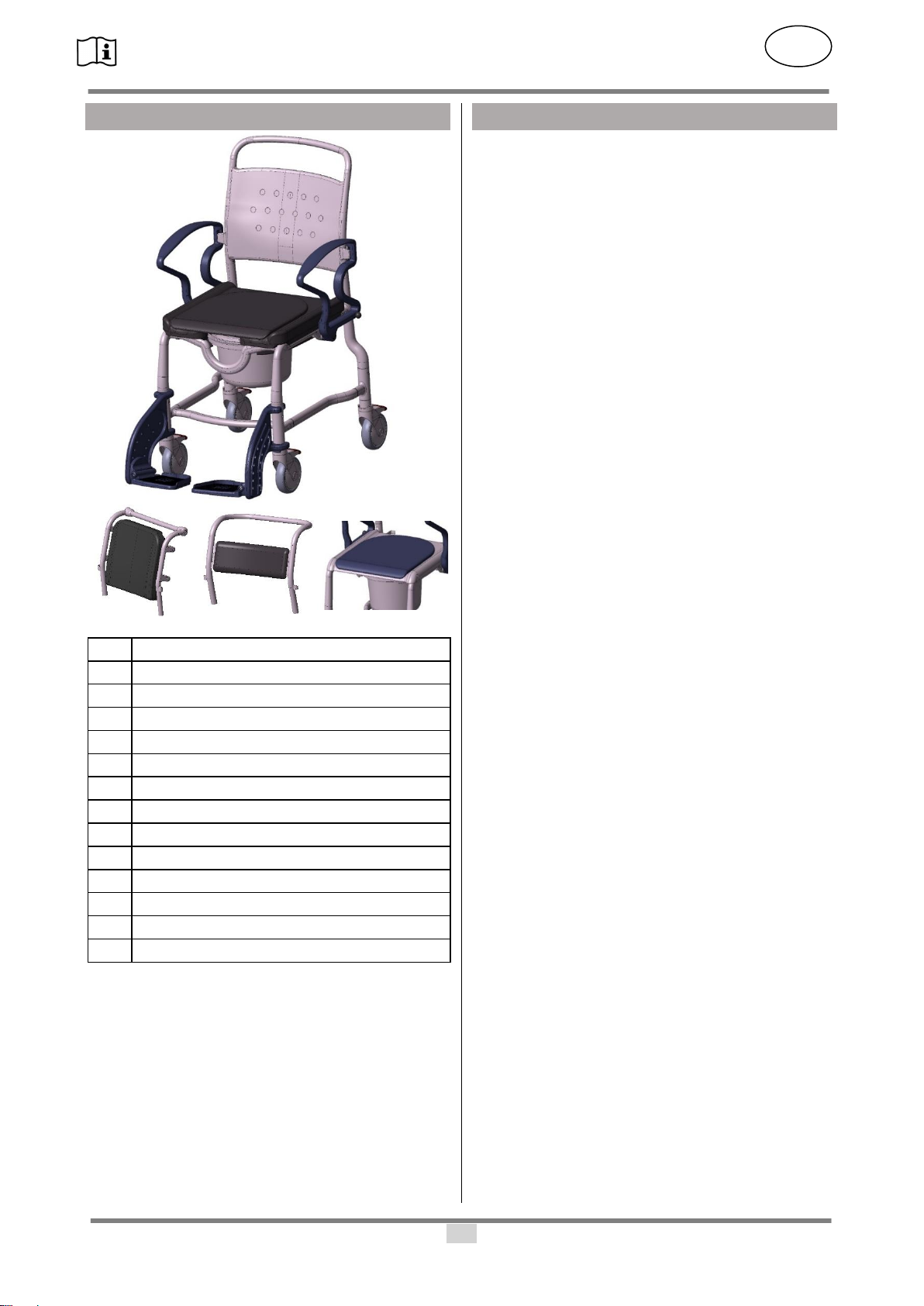

1 Product description
Figure shows:
A
Backrest
B
Armrest (swivelling)
C
Locking bolts
D
Chair frame with struts
E
Wheel insert with parking brake
F
PUR seat, hygiene opening
G1
PUR seat cushion (removable)
G2
Toilet seat (foldable)
H
Foot support with footrest (adjustable)
I
Bucket holder
J
Toilet bucket & lid
K
PUR backrest cushion
L
Nameplate
M
PUR back pad, comfort
1.1 Introduction
•The product described here is a medical device of
risk class I according to Regulation (EU)
2017/745 (MDR).
•In this User Manual, you will find information on the
safe and proper initial operation, use, maintenance
and care of this product.
•Read this User Manual carefully before using this
product. Follow the safety instructions and act ac-
cordingly.
2 Features
2.1 Intended purpose
Berlin, Erfurt (334.XX.21, 334.XX.22), Manhattan
New York –shower/toilet wheelchair
•The product is intended for the care of patients
with limited ability to stand and/or walk. It enables
showering while sitting down, as well as going to
the toilet if a conventional toilet or bathroom is out
of reach. In the case of a suitable design, it can be
pushed over a conventional toilet. The patient
must have sufficient sitting ability and upper body
musculature. If necessary, a nurse must be pre-
sent during use. The product is not intended for
prolonged sitting or transfer.
Bonn, Boston –Toilet Wheelchair
•The product is intended for the care of patients
with limited ability to stand and/or walk. It enables
going to the toilet if a conventional toilet or bath-
room is out of reach. In the case of a suitable de-
sign, it can be pushed over a conventional toilet.
The patient must have sufficient sitting ability and
upper body musculature. If necessary, a nurse
must be present during use. The product is not in-
tended for prolonged sitting or transfer.
Erfurt –Shower Wheelchair
•The product is intended for the care of patients
with limited ability to stand and/or walk. It enables
showering while sitting down. The patient must
have sufficient sitting ability and upper body mus-
culature. If necessary, a nurse must be present
during use. The product is not intended for pro-
longed sitting or transfer.
Oslo –Shower Transport Wheelchair
•The product is intended for the care of patients
with limited ability to stand and/or walk. It allows
patients to shower while sitting down and for trans-
fer of patients. The patient must have sufficient sit-
ting ability and upper body musculature. If neces-
sary, a caregiver must be present during use. The
product is not intended for prolonged sitting.
A
B
D
E
H
I
C
F
K
J
G1
G2
L
M

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 4 -
EN
Specification –Berlin, Bonn, Erfurt:
•Maximum user weight: 130 kg
•Height-adjustable footrests
•Wheelchair, 4 swivel castors, lockable
•Indoor use
Specification –New York, Boston:
•Maximum user weight: 150 kg
•Indoor use
•Height-adjustable footrests
•Wheelchair, 4 swivel castors, lockable
•Indoor use
Specification –Oslo:
•Indoor use
•Maximum user weight: 150 kg
•Height-adjustable footrests
•Wheelchair, 2 swivel castors, lockable
•Indoor use
Indication
•If it is impossible for patients to visit a stationary
toilet, due to damage to the function of the lower
extremities with limited or eliminated mobility and
muscle strength and/or damage to the vestibular
functions or tendency to fall due to other causes,
while at the same time maintaining a sufficiently
stable thorax posture for sitting and sufficient re-
sidual functions of the upper extremities.
•The wheelchairs for showers and toilets are in-
tended solely for use in helping to shower or bathe,
when using the toilet or when transferring a person
indoors.
•Medical condition of the patient:
•The use of a chair by patients with cognitive disor-
ders (reduced mental, physical, sensory or intel-
lectual abilities) must be decided in advance by a
medical decision (prescription of the product) or on
site by nursing personnel.
2.2 Use
•Temperature range: 5 °C to 35 °C; direct radiant
heat on the product must be avoided.
•Relative humidity: 40%-75%. Outside of these
conditions, the product must only be used for a
short time.
•The product is not suitable for use in swimming
pools or saunas, as surface discolouration and lim-
itations of mechanical strength may occur.
•Disassembly for transport or storage is possible.
•There must be a level parking area of sufficient
size. See 16.
•Use in domestic and inpatient settings.
2.3 Storage & transport
•Temperature range: 5 °C to 25 °C; direct radiant
heat on the product must be avoided.
•Store the product in dry rooms with a humidity of
up to 65%.
•The shower should be designed so that there is a
flat surface of sufficient size.
2.4 Packaging
•We recommend you keep the packaging for later
transport.
•Dimensions:
Berlin, Bonn, Erfurt: 640 mm x 570 mm x 570
mm
Boston, New York: 640 mm x 570 mm x 640 mm
Manhattan: 640 mm x 570 mm x 730 mm
Oslo: 730 mm x 660 mm x 720 mm
2.5 Disposal
•Disposal and recycling of used products and pack-
aging must be carried out in accordance with cur-
rently valid regulations. Please contact a disposal
company for further information.
•The Infection Protection Act must be observed.
•Please observe any labels and information on
packaging material and act accordingly.

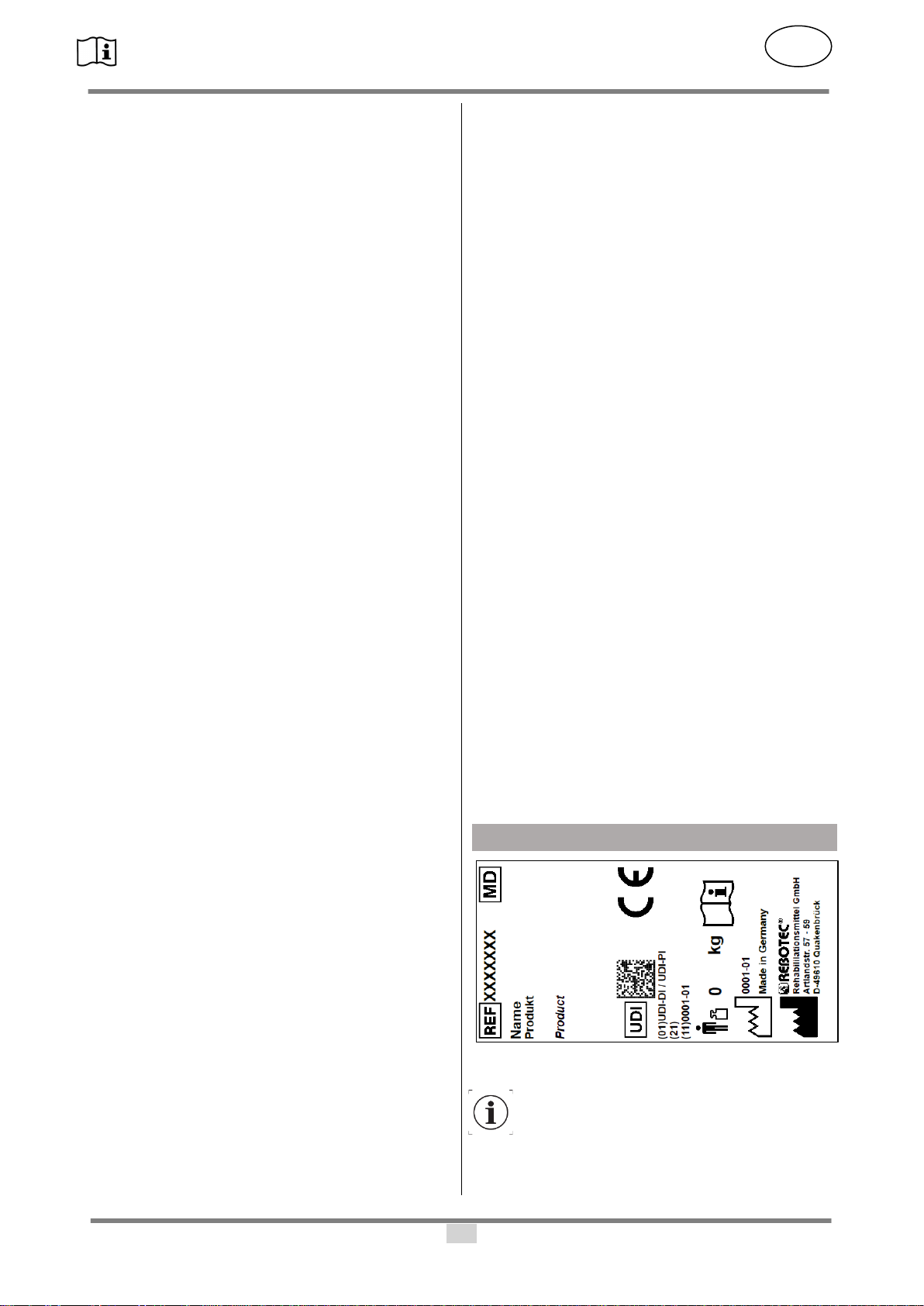

3 Symbols & nameplates
Figure similar.
The nameplate must not be removed! For or-
dering spare parts and processing com-
plaints, the device name, serial number and
year of manufacture will be required.

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 5 -
EN
Symbol
Meaning
Symbol
Meaning
Read the
manual!
Year of
manufac-
ture of
product
Serial num-
ber
Important
information!
Product
number
Maximum
user weight
in kg
Care in-
structions
Mainte-
nance in-
structions
Applicable
for indoor
use only.
Manufac-
turer
Visual sig-
nal
Language
Read the
User Man-
ual!
Do not dis-
pose of as
household
waste.
The product complies with Regula-
tion (EU) 2017/745 (MDR)
Caution!
Observe the safety instructions
Unique Device Identifier
(Data: GTIN / LOT (SN) / year of man-
ufacture)
Medical device label
This product is a medical device.
4 Safety instructions
Please observe the following safety in-
structions:
•Before using the product for the first time, the User
Manual must be read completely in order to avoid
hazards or damage caused by maloperation.
•Before every commissioning, check whether there
is any visible damage to the product.
•In case of malfunction or damage of any kind, the
product must not be used.
Caution: Danger of falling!
•The chair must only be used with the armrests
locked in place when sitting and moving about.
•Sitting down, getting up and transferring of a pa-
tient should be done under supervision or with the
help of a trained caregiver, depending on the pa-
tient's state of health.
•Patients who are prone to uncontrolled actions or
movements must be supervised when using the
chair.
•The chair may only be moved on a slope or incline
with the help of a caregiver. Generally, on an uphill
slope the chair should be pushed forward and on
a downhill slope it should be pulled backward.
Caution: Danger of breakage!
•The product is only suitable for the intended use.
Observe the permitted user weight.
•Never carry or lift the product while a patient is sit-
ting on it.
•Do not pull or hold on to additionally attached com-
ponents or accessories.
Caution: Danger of tipping over!
•The chair must only be used with the armrests
locked in place when sitting and moving about.
•The chair must only be pushed by the push handle
(backrest).
•Only move the chair at a moderate walking pace
(with and without patients).
•Do not lean out of the chair (both in standstill and
while moving). If the swivel castors are in an unfa-
vourable position (pointing inwards), the chair’s
stability is limited.
Caution: Danger of pinching or catching!
•When folding the armrests up or down, do not
reach into the joint guide so that no parts of the
body or other objects are trapped. To this end, also
see 9 on page 6.
•When attaching the seat plate, do not reach be-
tween the seat surface and the seat frame so that
no body parts are trapped.
•When pulling out and pushing in the toilet bucket,
there is a risk of soft parts of the patient being
trapped. To prevent injuries, the bucket may only
be pulled out or pushed in when no user is sitting
in the chair.
Caution: Risk of injury!
•There is a risk of injury with surface temperatures
> 40 °C. Therefore, do not expose the product to
high temperatures (e.g. sunlight, radiators, hot wa-
ter). Allow the product to cool down before use.
If the product is used by patients with in-
sensitive skin (no temperature perception
or skin damage), a heat check (e.g. touching with
the back of the hand) must be carried out by the
nursing staff.
EN

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 6 -
EN
5 Incident reporting
•Serious incidents in connection with the product
must be reported immediately to the manufacturer
and Federal Institute for Drugs and Medical De-
vices (BfArM).
BfArM: www.bfarm.de/DE
▪Use the reporting functions and provided
forms.
Manufacturer: [e-mail]
6 Warranty
•The manufacturer grants a warranty of 12 months
for this product. The prerequisites are the general
terms and conditions (www.rebotec.de/agbs), as
well as the intended use. The statutory warranty
provisions shall apply.
•Unauthorised modifications to this product will void
the product’s conformity and the warranty.
6.1 Complaints
•Please contact us before returning the product.
•To reduce transport damage, use the original
packaging if possible.
•The Infection Protection Act must be complied
with.
Please make sure that the product does not
pose a risk of infection when returned.
Enclose the information sheet on safety with the
product.
Costs may be incurred for returns that are not
marked as harmless.
7 Reuse, lifetime
•The product is suitable for reuse. How often the
product can be reused depends on the frequency
and nature of use.
•Before reuse, the product must be reprocessed hy-
gienically and the technical and functional safety
and reliability of the product must be checked and
restored if necessary. See Fehler! Verweisquelle k
onnte nicht gefunden werden..
For more detailed information, please see the
reprocessing instructions (02.12.156) and the
maintenance instructions (01.11.150).
The documents can be downloaded from the fol-
lowing link.
▪www.rebotec.de/downloads
•If the product is used as intended, its lifetime is 5
years. The effective lifetime may vary depending
on the frequency and intensity of use and the gen-
eral condition.
8 Scope of delivery
•1x Shower/toilet wheelchair
•1x User Manual (02.07.082)
•1x Maintenance instructions (02.11.150)
•The reprocessing and maintenance instructions
can be ordered or viewed and downloaded at
www.rebotec.de/downloads.
9 Setting up for use
•The product has been carefully inspected in the
factory for freedom from defects and complete-
ness. Please check the product for any possible
damage which may have occurred during transport
and for completeness of the scope of delivery upon
receipt. Assembly or adjustment shall be carried
out by the specialist dealer
9.1 Folding down the footrests
•Turn (1) the footrests forwards until they engage
automatically. Fold (2) the footrests down. Adjust
the height of the footrests if necessary.
9.2 Adjusting the footrest height
•The footrest height can be adjusted in 7 positions.
Loosen and remove the screws on the side of the
footrest using an Allen key (SW 5). Select the ap-
propriate height (1-7) and screw the footrest back
in place. Make sure that the screws are firmly tight-
ened!
1
2
Max
Min

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 7 -
EN

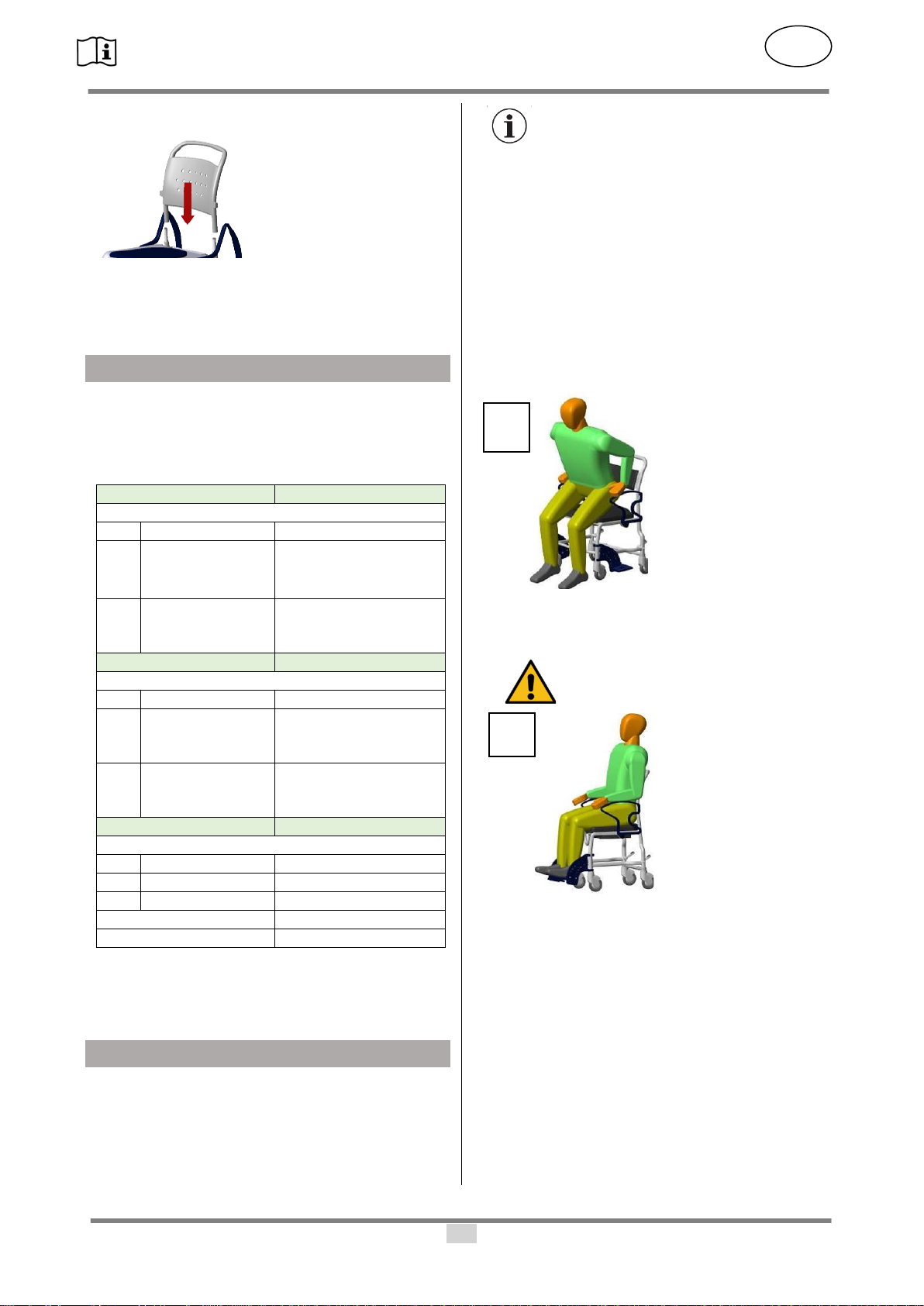

9.3 Mounting the backrest
•Swivel the armrest
backwards, place the
backrest on the tubes of the
chair frame and push it onto
the base frame as far as it
will go.
•Swivel the armrests
forwards again so that they engage in the groove
on the backrest and with the locking bolt in the
base frame.

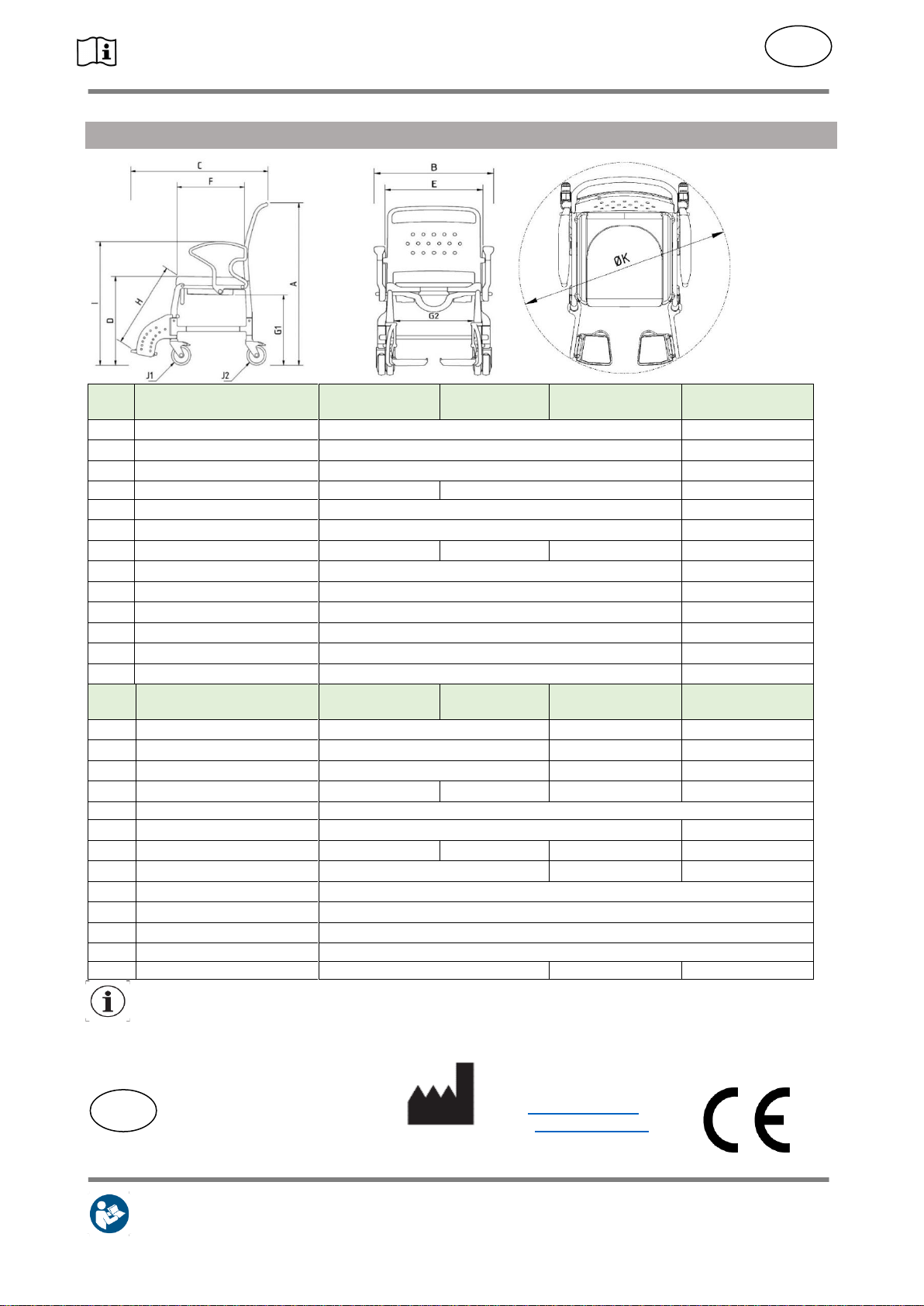

10 Product information
•We reserve the right to make technical develop-
ments and improvements with respect to the de-
sign shown in this User Manual.
•See 16.
Field
Value
Berlin, Bonn, Erfurt
1.
User weight
max. 130 kg
2.
Product weight*
Berlin: 16.4 kg
Bonn: 15.2 kg
Erfurt: 13.7 kg
3.
Total weight*
Berlin: 19.0 kg
Bonn: 17.8 kg
Erfurt: 16.3 kg
Field
Value
New York, Boston, Manhattan
1.
User weight
max. 150 kg
2.
Product weight*
New York: 18.1 kg
Boston: 17.4 kg
Manhattan: 20.6 kg
3.
Total weight*
New York 20.5 kg
Boston 19.8 kg
Manhattan: 23.0 kg
Field
Value
Oslo
1.
User weight
max. 150 kg
2.
Product weight*
16.8 kg
3.
Total weight*
20.2 kg
Skin sensitivity
DIN EN 10993-1/-5
Flammability
DIN EN 1021-1/-2
*Without accessories
**Flame-retardant: For products made of PUR ma-
terial.
11 Operation of the product
•Before use, it must be ensured that the product is
in proper condition. If defects or malfunctions are
evident, the product must not be used. Have the
defects corrected by a specialist dealer before use.
If necessary, depending on the patient’s
limitations (adequate mobility and muscle
strength), sitting down and getting up must
be done with the help of a caregiver. Subsequent
adjustments may only be made by qualified per-
sonnel!
11.1 Sitting down
•Before sitting down and standing up, make sure
that the product is securely positioned to prevent it
from slipping or tipping over, that at least two
wheels are braked, that the armrests are properly
engaged, that the seat surfaces are firmly in place,
and that the footrests are folded to the side or up.
•The user must posi-
tion themselves as close
as possible to the prod-
uct. If necessary, they
can orientate or support
themselves with their
hands on the armrests.
•If this is not possible
due to the patient’s phys-
ical limitations, the user
must seek the assistance
of a competent person. This can be with the help
of an assistive device
Attention: Danger of falling!
•Falling down or
slumping on the chair
seat must be avoided.
The patient should sit on
the full chair surface, if
possible, and not only
on the edge of the seat
•When transporting
people, the entire sur-
face of the backrest and
the footrests must be used if possible.
11.2 Getting up
•Before standing up, make sure that the product is
securely positioned to prevent it from slipping or
tipping over, that at least two wheels are braked,
that the armrests are properly engaged, that the
footrests are folded to the side or up and that the
patient is sitting upright.
•The patient must move forward on the chair sur-
face until their feet are on the floor.
•The patient must support themselves with their
arms on the armrests and slowly rise from the seat.
2.
1.

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 8 -
EN
•The patient must not
lean their body too far for-
ward to avoid a potential
risk of falling.
•The patient should
be helped to stand up by
the nursing staff
Caution: Danger of falling!
•The patient must
never leave their feet on
the footrests when sitting
down or getting up.
11.3 Swivelling the armrests
•Pulling out the locking bolts (A) releases the lock-
ing mechanism and the armrests can be swivelled
backwards.
•When folding up the armrest, check that the catch
on the backrest (B) and the locking bolt (A) are
seated correctly.
Caution: Danger of pinching or catching!
•The armrests are to be swivelled with both hands.
To do this, keep the locking bolt (A) pulled during
the entire swivelling process and guide the armrest
to point (C) with the other hand.
•Only touch the outer area and do not reach into or
through the armrest.
Check the locking at regular intervals, as
possible limescale deposits on the locking
mechanism can impair function and smooth opera-
tion.
11.4 Parking brake operation
•With your foot, press down the parking brake lever
(1). The wheel is now braked and fixed in its direc-
tion. The wheel is released by lifting the actuating
lever with the foot (2).
11.5 Removing the footrests
•Remove or fold up the seat. Then, raise the foot-
rest by approx. 100 mm and turn outwards by 90
degrees.
•Now you can push the footrest all the way up and
pull it out
11.6 Handling of the toilet bucket
•From the back of the chair, slide the toilet bucket
under the seat. To remove, slightly lift the bucket
and then pull it out backwards.
•In the version with a 2-section toilet seat, you can
alternatively insert or remove the toilet bucket from
above by lifting the seat.
11.7 Removing the shower/toilet seat
•The seat can be removed from its locked position
on the chair frame by lifting it off for cleaning or
replacement.
11.8 Removing the backrest cushion
•The backrest cushion is attached to the backrest
by means of nubs. Press against the nubs to re-
lease the backrest cushion.
11.9 Moving over a toilet
•To ensure that the chair can be moved far enough
over the toilet, push the clamping strut (A) by hand
as far as it will go against the front strut (B).
12 Troubleshooting
Fault
Potential cause
Remedy
Armrest can-
not be swiv-
elled down
Deposits in the
locking device
(locking bolt)
Cleaning,
regular
checking
Locking bolt
cannot be
pulled out
Deposits, tension
spring jammed or
defective
Cleaning,
C
B
A
2
1
3.
4

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 9 -
EN
Fault
Potential cause
Remedy
replacing
the locking
bolt
Footrest can-
not be folded
down
Deposits in the
joint,
bracing
Cleaning,
checking
screw con-
nection
Wheel lock
does not brake
General defect
See
mainte-
nance!
The wheel is
stiff
Deposits
Cleaning
Wheel does
not turn
General defect
See
mainte-
nance!
Wheel runs
unevenly
Severe uneven
tread wear
See
mainte-
nance!
Chair frame
too unstable
Screw connections
too loose
Screw con-
nections:
Tighten
frame,
wheel in-
serts
Wheel insert
bent
Hitting an obstacle
See
mainte-
nance!
13 Cleaning & disinfection
13.1 General
Attention: Danger of jamming when
cleaning the footrests!
•Please note point 4.
•The product is suitable for machine cleaning and
disinfection. Please observe the reprocessing in-
structions (02.12.156).
Only the bucket can be cleaned and disinfected
by machine.
•Do not use hard objects such as scrapers, wire
brushes, or metal sponges.
•Observe infection control. Disinfect the product be-
fore reuse.
•Do not mix different cleaning and disinfectant prod-
ucts.
13.2 Cleaning
•Gross contamination must be removed immedi-
ately after use.
•The seat pad, seat, leg pad and bucket must be
removed before cleaning.
They must be cleaned and dried separately.
•Use only commercially available detergents with a
pH of 5-9.
•Note the mixing ratio information.
•Allow the detergent to act as specified by the man-
ufacturer.
•Remove the cleaning agent with warm water with-
out leaving any residue.
•After cleaning, wipe the product with a damp cloth.
•Dry the product with a cloth after cleaning. The
product may only be used in a dry state.
Exclusions:
Cleaning agents must not contain chlorine or
strong acids.
Do not use cleaners with added abrasive.
Do not use a pressure washer.
13.3 Disinfection
The product is not intended for steam or hot air
sterilisation.
•Observe the operating temperatures (2.2).
•The product is not intended for steam or hot air
sterilisation. Observe the operating temperatures
(2.2).
•Use only surface disinfectants tested and recog-
nised by the Robert Koch Institute.
Permitted agents are those based on (form) al-
dehyde or alcohol.
•Observe the material approvals of disinfectant
manufacturers. The product consists of the follow-
ing components or materials:
Polyamide: Frame, armrests, footrests
Polyurethane: Seat, backrest, leg rest, head
support
Polypropylene: Bucket & holder
Polythene: Nameplate
Aluminium: Tubes
Stainless steel: Screws, washers. Nuts
•Note the mixing ratio information.
•Observe the safety instructions from the disinfect-
ant manufacturer.
•Apply the disinfectant by spraying or rubbing over
the surface.
•Leave the agent to take effect. Observe the indi-
cated exposure times.

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 10 -
EN
•Depending on the disinfectant, a subsequent wip-
ing with warm water may be necessary.
•Remove the disinfectant without leaving any resi-
due.
Exclusions:
Do not use any alcohol-based products in the
area of stickers and nameplates.
Cleaning agents must not contain chlorine or
strong acids.
14 Maintenance
•Wear and tear that is not recognised in time and/or
improper handling, as well as irregular or no
maintenance may result in accidents.
For safety reasons, the product must be
professionally maintained at least once a
year.
•Check product for visible damage
(cracks, breakage, loose parts)
•Check stability before use
Maintenance/inspection scope
•Maintenance should include the following in-
spection work and should be documented.
•All bolted connections for tightness (espe-
cially the wheel inserts and the frame)
•Function of the armrests and locking bolts
•Function of the footrest (replace defective
footrests)
•Running characteristics and tread of the
wheels (replace defective wheels)
•Function of the parking brakes (replace defec-
tive brakes)
•Inspect accessories for deficiencies
Repair
•If you have any questions concerning the
maintenance of the chair, please contact an
authorised dealer or a medical and healthcare
supplies store.
•In the event of damage and/or a need for re-
pairs, contact your authorised dealer immedi-
ately.
•Do not make any unauthorised changes to
the product. This may affect the safety and
function of the product.
•In such cases, REBOTEC will not assume
any liability.
•Only use original spare parts from the manu-
facturer for repairs. Observe all guarantee
and warranty information.
•After maintenance or repair work has been
carried out, we recommend you clean the
chair for hygienic reasons before using it
again.
•Follow all the instructions for ordering spare
parts, reuse and the lifetime.
For documenting the maintenance and
repair work, REBOTEC provides a
Maintenance Report. The User Manual
and Maintenance Report can be ordered or viewed
at www.rebotec.de. It is also possible to print the
information and read it when needed.

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
- 11 -
EN
15 Spare parts & accessories
No.
Prod. no.
Designation
1
301.00
Toilet bucket, standard
2
309.10
Bucket holder
3
440.XX.62
PUR lining mat for shower and toilet seat
4a
440.10.04
PUR shower seat (130 kg)
440.10.14
PUR shower seat (150 kg)
4b
307.00
Toilet seat
5a
447.00.81
Rear wheel 125 total locker
442.00.81
Rear wheel 125 total locker
448.00.81
Rear wheel 125 total locker
5b
447.00.83
Wheel 125 total locker
442.00.80
Front wheel 125 –unbraked
448.00.83
Wheel 125 total locker
6
450.10.05
Armrest lock, complete
7
447.XX.57
Footrest complete, left
8
447.XX.59
Footrest complete, right
-
440.10.24
Shower seat, closed
-
308.00.00
Shower seat with hygiene cut-out, grey
-
308.00.60
Shower seat, standard with bucket holder
-
440.10.32
PUR armrest pad
-
442.00.86
Brake lever, right
-
442.00.87
Brake lever, left
-
302.00
Toilet bowl
-
445.10.59
PUR backrest cushion for aluminium backrest
-
445.48.82
Backrest with upholstery
-
450.10.15
PUR back pad, comfort
-
303.62
Infusion stand with holder
-
322.30.20
Safety belt size M/L
-
322.10.50
Safety belt slide-on pad
-
440.10.40
PUR splash protection for PUR shower seat
-
440.50.70
Stabiliser for clamping strut, 50 cm seat width
-
02.07.082
User Manual
-
02.11.150
Maintenance Report
-
02.12.156
Reprocessing Instructions
XX= Colour variant
Use only REBOTEC spare parts and accessories to ensure the proper and safe functioning of the
product.
1
2
3
4a
6
5a
3
4b
8
7
5b

REBOTEC / BA Nr.: 02.07.082/2023-09-A02
Read User Manual before using the product for the first time and keep it at hand for the user as
well as for future use and provide it to the purchaser in case of subsequent sales.
EN
16 Drawing & dimensions
No.
Designation
Berlin dimen-
sions
Bonn dimen-
sions
Erfurt dimen-
sions
A
Height
1010 mm
B
Width
560 mm
C
Depth
870 mm
D
Seat height
550 mm
530 mm
E
Seat width
460 mm
F
Seat depth
450 mm
G1
Slide-over height
430 mm
440 mm
430 mm
G2
Slide-over width
470 mm
H
Footrest knee height max.
380 mm –540 mm
I
Armrest height
765 mm
J1
Front wheel diameter
125 mm
J2
Rear wheel diameter
125 mm
K
Turning diameter
980 mm
No.
Designation
New York di-
mensions
Boston di-
mensions
Oslo dimensions
Manhattan di-
mensions
A
Height
1040 mm
1030 mm
1020 mm
B
Width
620 mm
640 mm
630 mm
C
Depth
890 mm
1060 mm
960 mm
D
Seat height
550 mm
530 mm
560 mm
550 mm
E
Seat width
520 mm
F
Seat depth
450 mm
430 mm
G1
Slide-over height
430 mm
440 mm
-
430 mm
G2
Slide-over width
470 mm
-
450 mm
H
Footrest knee height max.
380 mm –540 mm
I
Armrest height
765 mm
J1
Front wheel diameter
125 mm
J2
Rear wheel diameter
125 mm
K
Turning diameter
1060 mm
1010 mm
1060 mm
Dimensions and weights may vary depending on the equipment. There might be minor deviations due
to production tolerances. Subject to change without notice.
REBOTEC®
Rehabilitationsmittel GmbH
D-49610 Quakenbrück, Artlandstr. 57-59
Phone: [phone]
Fax: [phone]
Web:
www.rebotec.de
Email:
[email protected]
EN
