Rec room masters Xtension 32 upright User manual

32 UPRIGHT

Contents:

Page 1: Cover

Page 2: Base Section - Cabinet Parts List

Page 3: Base Section - Hardware List

Page 4 - 9: Base Section - Assembly Instructions

Page 10: Top Section - Cabinet Parts List

Page 11: Top Section - Hardware List

Page 12-19: Top Section - Assembly Instructions

Page 20: Game On!

Required Tools:

Phillips Head Screwdriver

Included M4 Allen Wrench

PLEASE NOTE:

Adult Supervision Recommended

For Assembly

2 People Required For Assembly

PLEASE TRY OUR NEW

VIDEO INSTRUCTIONS!

Xtension Arcade Cabinet

USER & ASSEMBLY GUIDE

NEED SUPPORT?

Send an email to:

support@recroommasters.com

WARNING:

Please be sure to read assembly

instructions thoroughly, as improper

assembly may lead to instability.

youtube.com/@Recroommasters

Part #1 (Right Side Base Upright)

Xtension Arcade Base Section

Part Description

page 2

Part #2 (Left Side Base Upright)

Part #3 (Front/Kick Panel)

32XT-B2

1 PC

Part #4 (Base Floor & Middle Shelf)

32XT-B3

2 PCS

Part #8 (Unmarked Keyboard Door)

32XT-B4

1 PC

Part #5 (Front Top Support)

32XT-B5

1 PC

Part #6 (Center Base Support)

32XT-B6

1 PC

32XT-B6

32XT-B4

32XT-B5

32XT-B3

32XT-B2

32XT-B3

Part #0

(Metal Coin Door)

This Part May Be Optional

NOTE: Part #3 32XT-B2 and Part #4 32XT-B3 panels are interchangeable depending on whether or not a Metal Coin Door or Coin Mech are used.

If not using a Metal Coin Door or Coin Mech with your cabinet, use one of the Part #4 32XT-B3 blank panels in place of the Part #3 32XT-B2

cutout panel on the front of your cabinet. These three panels are interchangeable.

Part # 14 (Adjustable Shelf )

Part # 7 (Controller Support)

Part # 12 (Metal Door) Part # 11 (Right Side Base Upright)

Part # 1 (Left Side Base Upright)

Part # 2 (Front)

Part # 3 (Base Floor) Part # 6 (Center Base Support)

Part # 7 (Top)

Part # 8 (Keyboard Door)

Part # 4 (Back Middle Support)

Part # 5 (Back Bottom Support)

Part # 10 (Keyboard Tray)

Pre Drilled Magnetic

Door Catch Holes

This Part May Not Be Labled

Part # 9 (Front Top Support)

This Part May Be Optional

Part # 13(OPTIONAL)

(Tankstick Desk Top)

Part # 14 (OPTIONAL)

(Fight Stick Desk Top)

This Part May Not Be Labled This Part May Not Be Labled

Part #7 (Keyboard Tray)

1 PC

Xtension Arcade Base Section

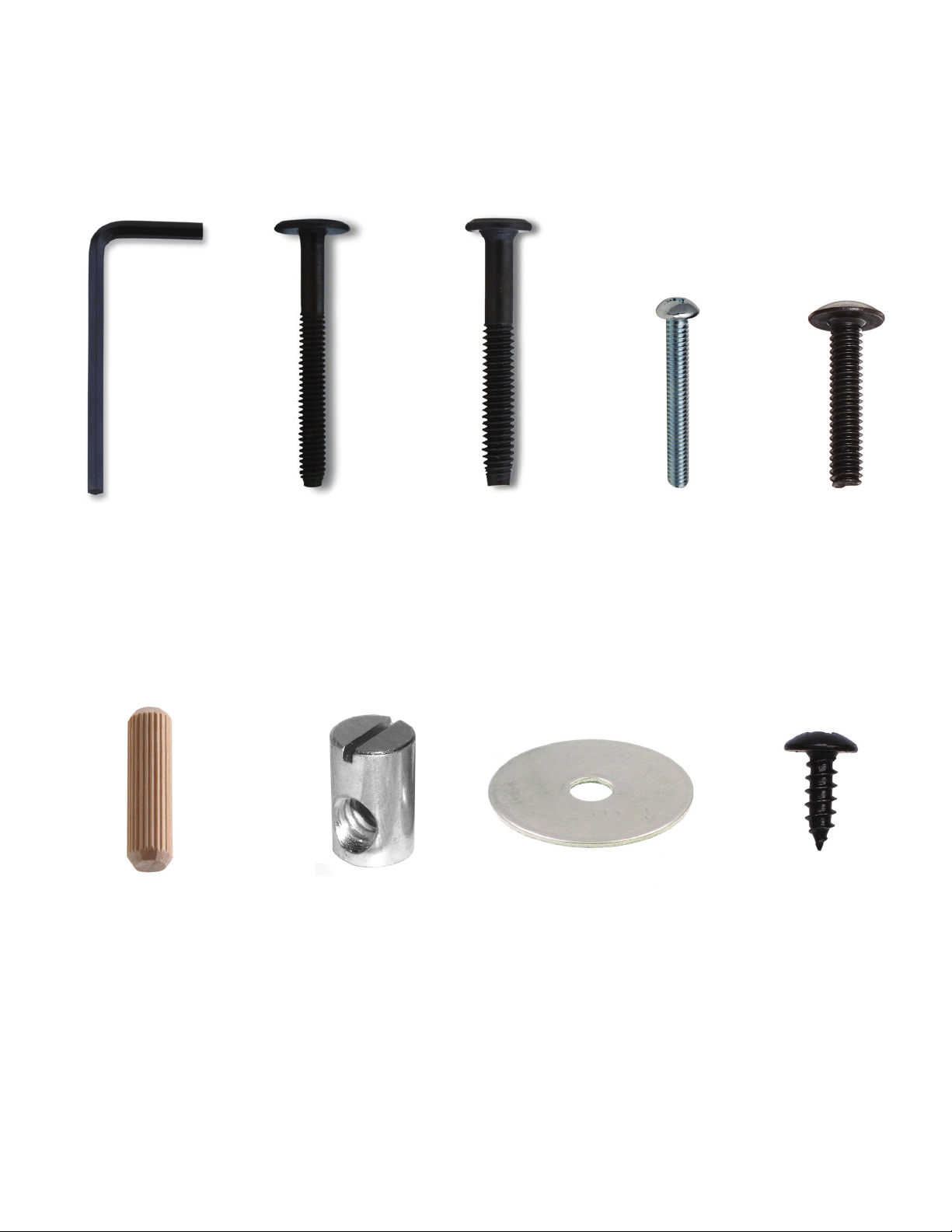

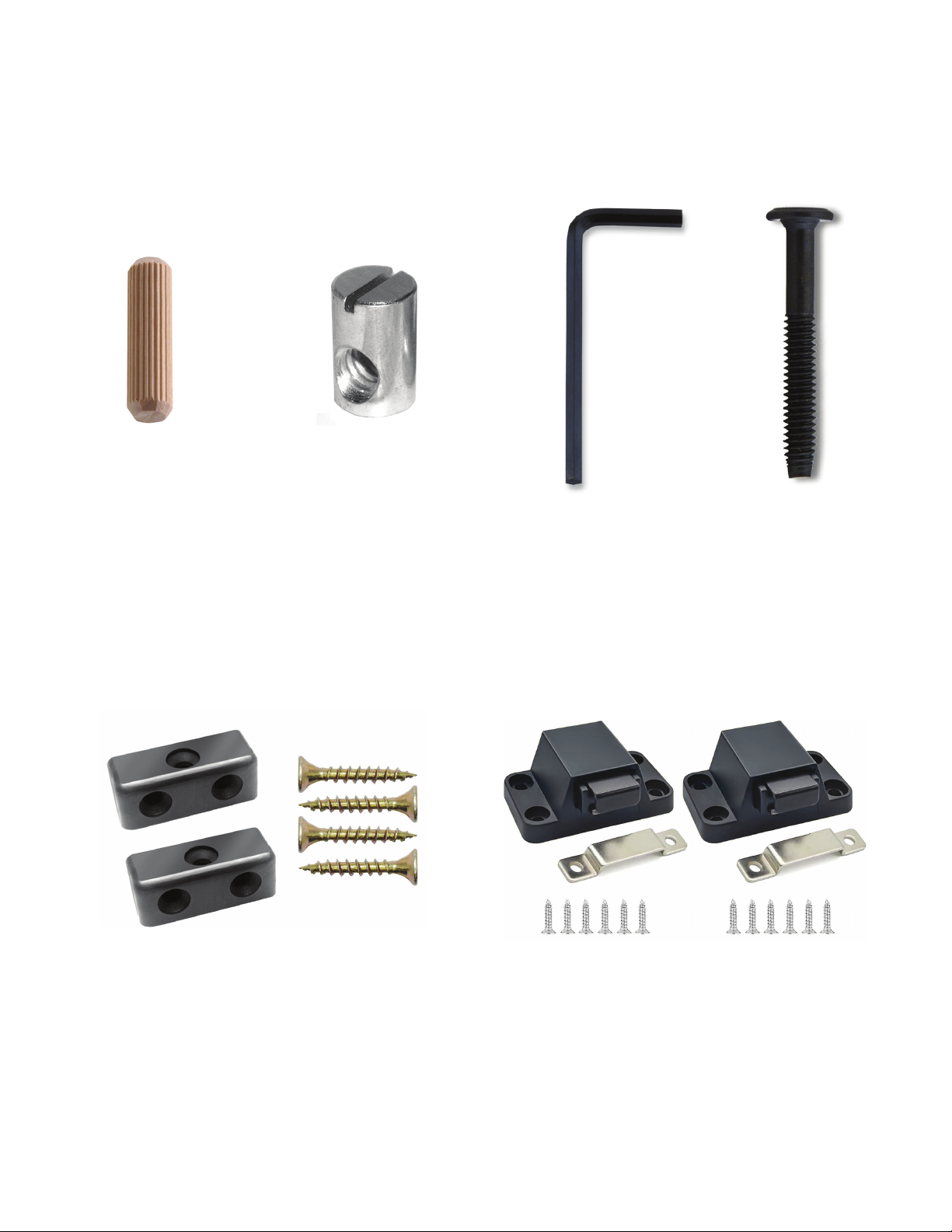

Hardware Description

page 3

Door Stopper with Screws

2 PC (SETS)

Push-to-Open Hardware

Metal Catch Brakets with screws

2 PC (SETS)

60mm Bolt (small head)

12 PC

M4 Allen Wrench

1 PC

Wood Dowel Pin

30 PC

Metal Cross Dowel

16 PC

Xtension Arcade Base Section

Assembly Instructions

page 4

QUICK TIP

STEP 1

STEP 2

STEP 3

PLEASE NOTE: 2 people are required as

1 person will need to support the parts

until base is securely bolted.

STEP 1

Parts Needed: Part #1 / wood dowel pins (x11)

Lay PART #1 (Right Side Base Upright) of the

cabinet on a soft surface and insert the wood

dowel pins into any holes that are not through

holes. When done there will be a total of 11

dowels installed where the red circles are

pictured.

STEP 2

Parts Needed: Part #1 / metal cross dowels (x2)

athead screwdriver [optional]

Next install two metal cross dowels in the

remaining holes towards the top of the panel.

QUICK TIP: When inserting the metal

crossed dowels in STEP 2, make sure that

the slot is facing upwards. The slot must

also be aligned with the hole on the side

of the panel. If needed you can adjust the

position of the cross dowel with a athead

screwdriver, so that it is perfectly aligned

with the hole.

STEP 3

Parts Needed: Part #2 / metal cross dowels (x2)

Next lay PART #2 (Left Side Base Upright) of

the cabinet on a soft surface and install two

metal cross dowels where the green circles are

pictured (same as the previous STEP 2), but do

not install any of the wood dowel pins on this

PART #2 (Left Side Base Upright) panel. Set this

panel aside for now as we will not use it again

until we get to STEP 14.

Xtension Arcade Base Section

Assembly Instructions

page 5

NOTE: The PART #3

32XT-B2 and

PART #4 32XT-B3

panels are

interchangeable if

not using a Metal Coin

Door or Coin Mech.

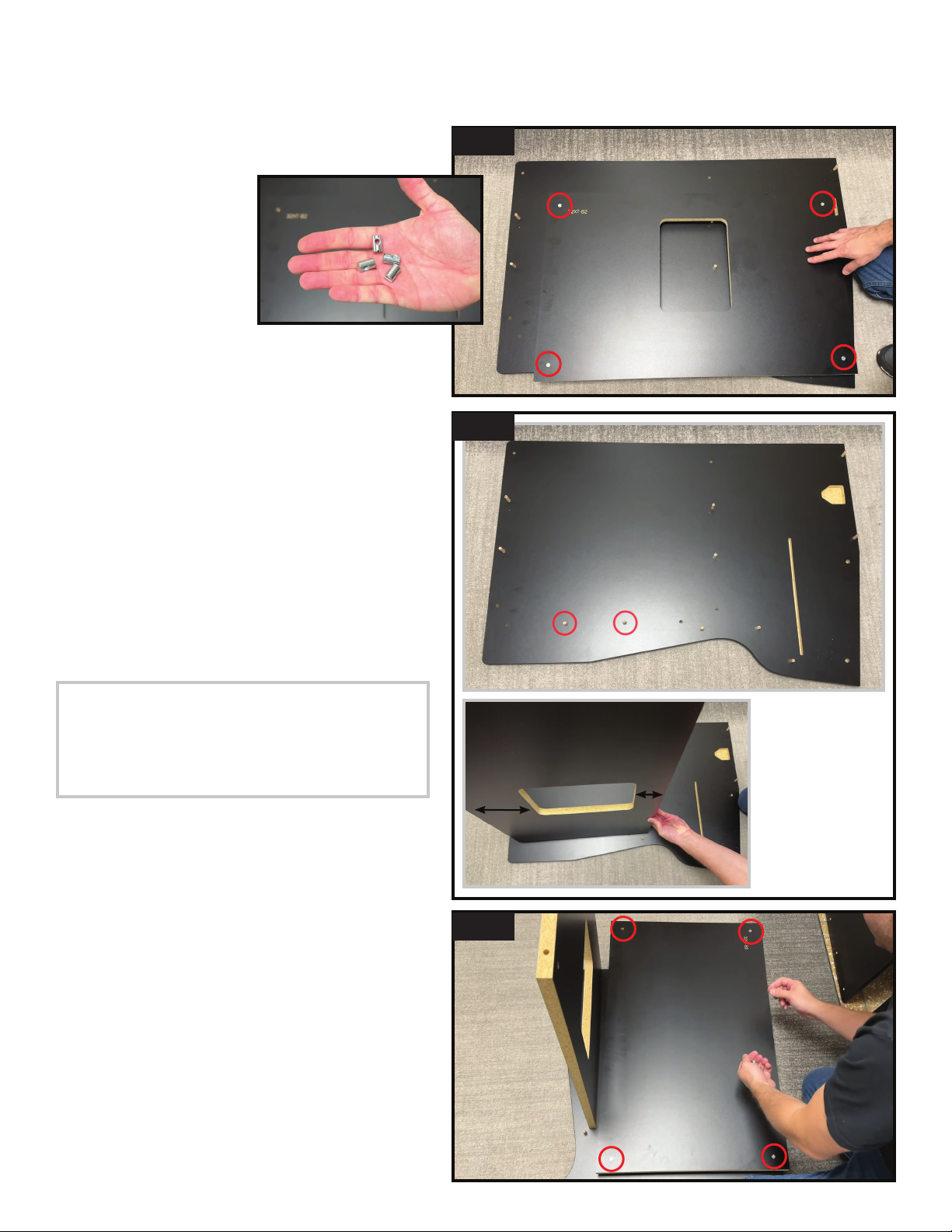

STEP 4

STEP 5

STEP 6

STEP 4

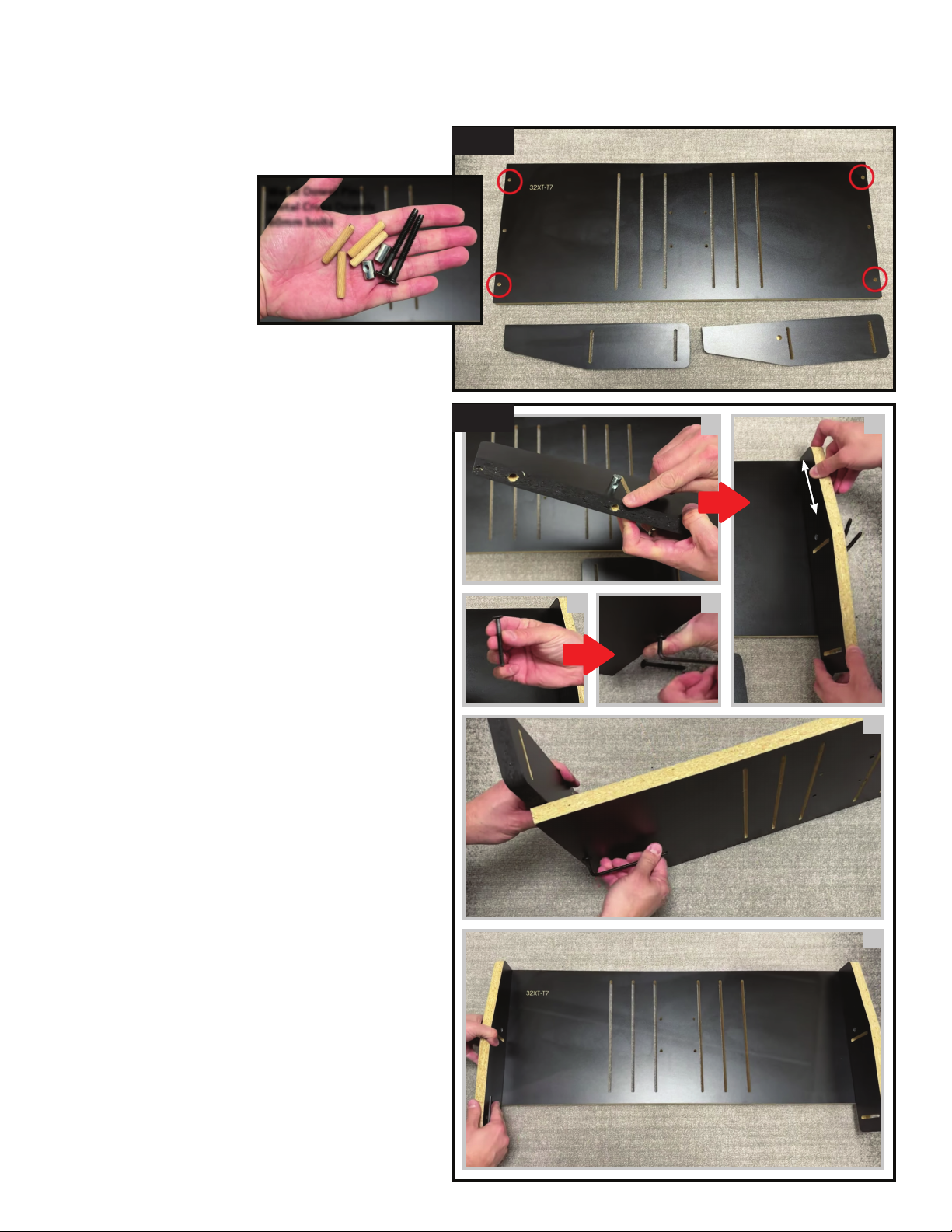

Parts Needed: Part #3 / metal cross dowels (x4)

For this next step, insert four metal cross dowels

into the corners of PART #3 32XTB2

remembering the correct orientation shown in

STEP 2.

STEP 5

Parts Needed: Part #1 / Part #3

Next locate the lower pins of PART #1 (Right

Side Base Upright), which are shown in the red

circles, and insert PART #3 32XTB2 onto the

pins of PART #1 (Right Side Base Upright).

QUICK TIP: The longer side underneath the

cutout will face the bottom of the cabinet.

The panel number 32XTB2, printed on

the panel, will face the inside of the cabinet.

STEP 6

Parts Needed: Part #4 (x2)

metal cross dowels (x8)

Next insert metal cross dowels into each of

the four corners of both PART #4 32XTB3

panels. You will need eight total metal cross

dowels to ll both PART #4 32XTB3 panels.

Long

Short

Metal Cross Dowels

Xtension Arcade Base Section

Assembly Instructions

page 6

STEP 7

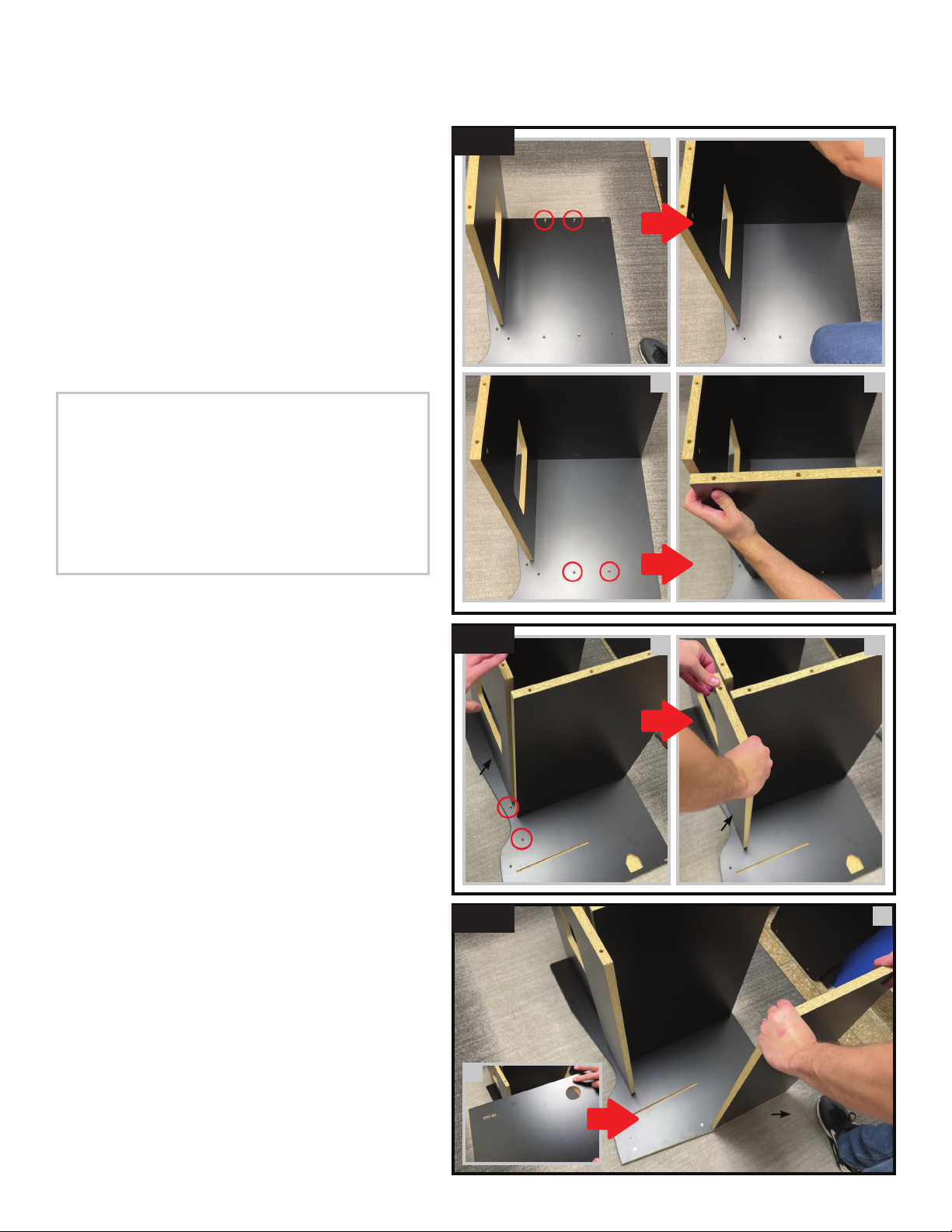

Parts Needed: Part #1 / Part #4 (x2)

Next insert one of the two PART #4 32XTB3

panels into the bottom two wood dowel pins

of the PART #1 (Right Side Base Upright) panel

where the red circles are [see images A & B].

Then insert the second PART #4 32XTB3

panel into the two center wood dowel pins

where the red circles are [see images C & D].

QUICK TIP: If you are not using the optional

Metal Coin Door or Coin Mech, you can

install the PART #3 32XTB2 front panel

with the coin door cutout in either of the

PART #4 32XTB3 positions and then

install one of the blank PART #3 32XTB2

panels in the front instead.

STEP 8

Parts Needed: Part #1 / Part #5

We can now install PART #5 32XTB5 panel

into the two wooden dowel pins above the

PART #3 32XTB2 front panel where the

red circles are [see images E & F].

STEP 9

Parts Needed: Part #1 / Part #6

Next install PART #6 32XTB6 center base

support panel with the hole [see image G for

close up of this panel] facing the back of the

cabinet into the two wooden dowel pins at

the very top of the PART #1 (Right Side Base

Upright) panel [see image H].

Part #1

Part #4 (rst)

Part #4 (second)

A B

C D

STEP 8 E F

STEP 9

Part #6

Part

# 3

Part

# 5

Hole should face

back of the cabinet

Xtension Arcade Base Section

Assembly Instructions

page 7

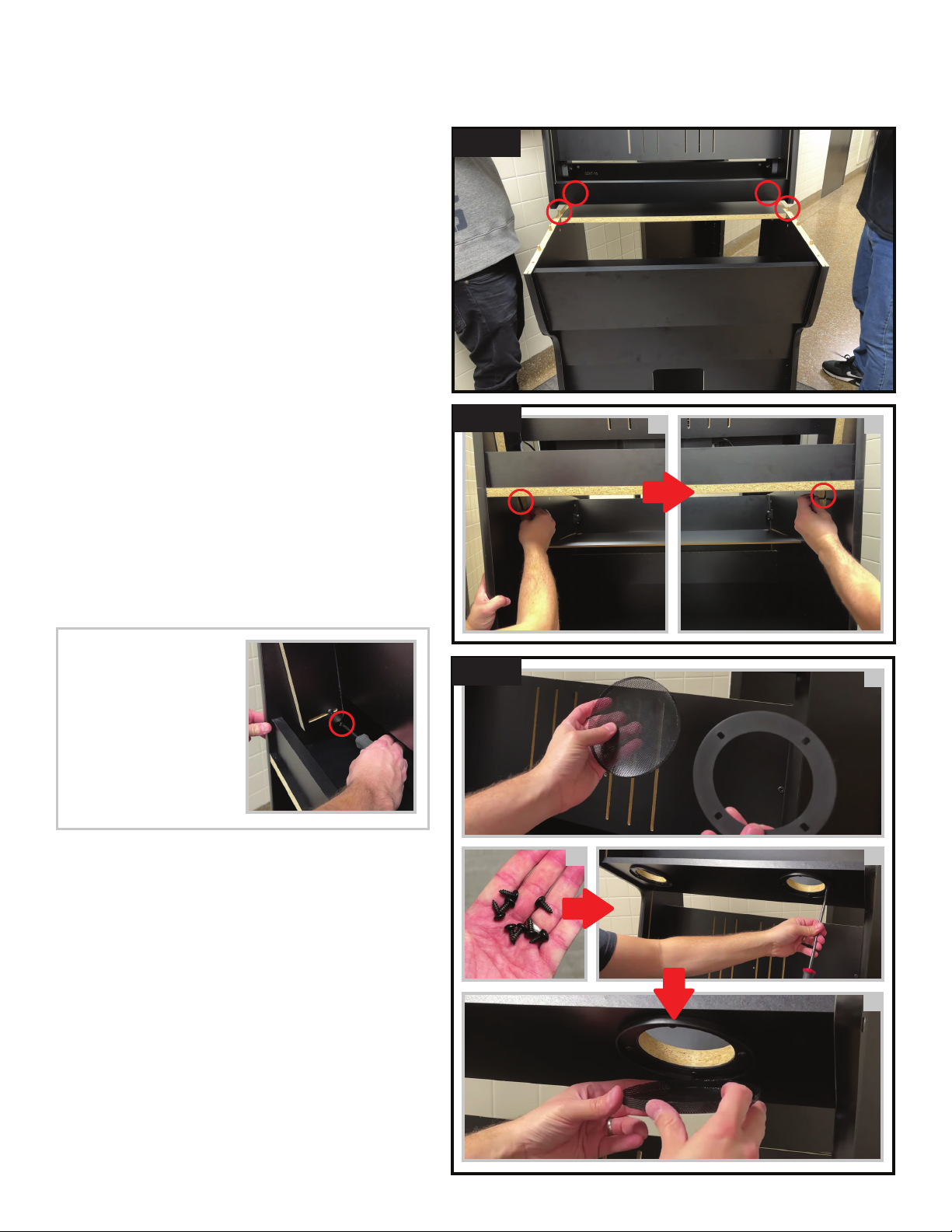

STEP 10

STEP 12

STEP 10

Parts Needed: Part #1

Part #2 / screwdriver

door stopper (x2) with screws (x4)

Using the provided screws and screwdriver,

screw the door stopper into the pre-drilled

holes beneath the keyboard tray slot on the

PART #1 (Right Side Base Upright) panel. Make

sure to repeat this step on the PART #2 (Left

Side Base Upright) panel as well [see image I].

STEP 11

Parts Needed: Part #1 / Part #7

Next insert PART #7 (Keyboard Tray) into the

keyboard tray slot on PART #1 (Right Side Base

Upright) panel and rest it on the adjoining

PART #5 32XTB5 panel [see images J & K].

STEP 12

Parts Needed: Part #3 / Part #4 (x2) / Part #5

Part #6 / wood dowel pins (x10)

Next insert 10 wood dowel pins into the holes

where the red circles are pictured.

STEP 13

Parts Needed: Part #1 / Part #8

wood dowel pins (x1)

We can now install PART #8 32XTB4, the

unmarked keyboard door. Face the unnished

side [see image L] towards the bottom of the

cab and the pilot holes [see image M] towards

the inside of the cab. Insert a dowel pin into the

hole on the side of the door as shown in the red

circle [see image M] and insert the door into the

remaining wood dowel pin on PART #1 (Right

Side Base Upright) in front of the keyboard tray.

Door Stopper

with screws

Part #2

STEP 11 J K

Keyboard

Tray Slot

Part #7

STEP 13 L M

Unnished

side

Part #8

Pilot

Holes

Part #1

Xtension Arcade Base Section

Assembly Instructions

page 8

STEP 14

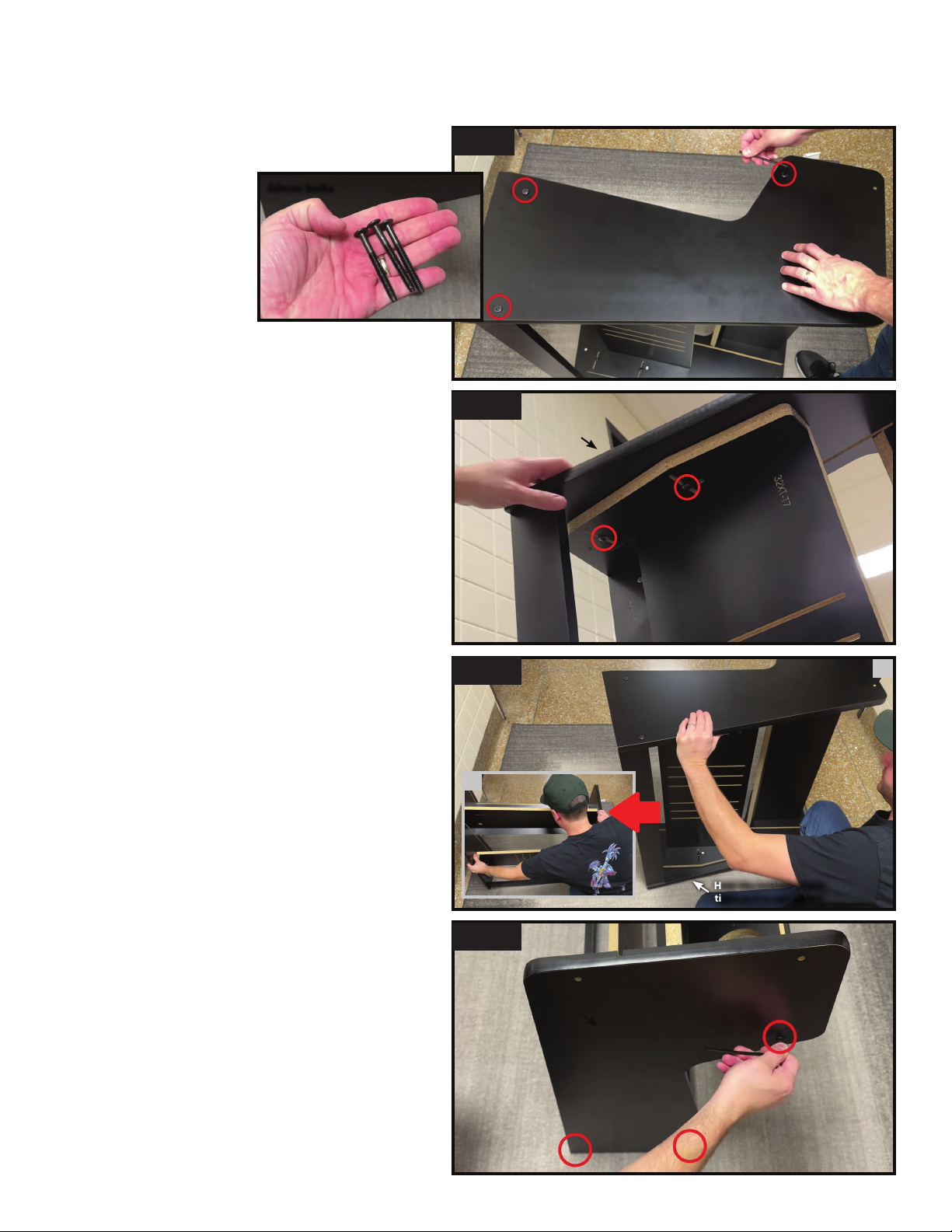

Parts Needed: Part #2 / 60mm bolts (x6)

4M Allen Wrench

Next hold the door in place while a second

person grabs the PART #2 (Left Side Base

Upright) panel that we set aside earlier. Lay this

panel over the top of all of the panels pictured

in image N. Make sure you look underneath and

adjust as necessary until all of the wood dowel

pins are in the correct holes. Once everything

is t together tight [see image O], you can now

secure the PART #2 (Left Side Base Upright)

panel using six 60mm bolts where the red

circles are [see image P] with the provided

M4 Allan Wrench [see image Q].

NOTE: DO NOT OVER TIGHTEN THE BOLTS!

STEP 15

For this step, rotate the base of the cabinet 90O

to its upright position [see images R & S].

NOTE: IT IS VERY IMPORTANT TO APPLY

PRESSURE ON THE UNBOLTED SIDE AS THERE

ARE NO BOLTS SECURING IT IN PLACE WHEN

ROTATING! TWO PEOPLE ARE HIGHLY

RECOMMENDED FOR THIS STEP.

STEP 16

Parts Needed: Part #1 / 60mm bolts (x6)

4M Allen Wrench

Next insert an additional six 60mm bolts on

the PART #1 (Right Side Base Upright) panel

where the red circles are with the provided

M4 Allan Wrench.

NOTE: DO NOT OVER TIGHTEN THE BOLTS!

Part #4 (rst)

N O

STEP 16

STEP 15

Hold the bottom panel

tight as it is not bolted

Xtension Arcade Base Section

Assembly Instructions

page 9

STEP 17

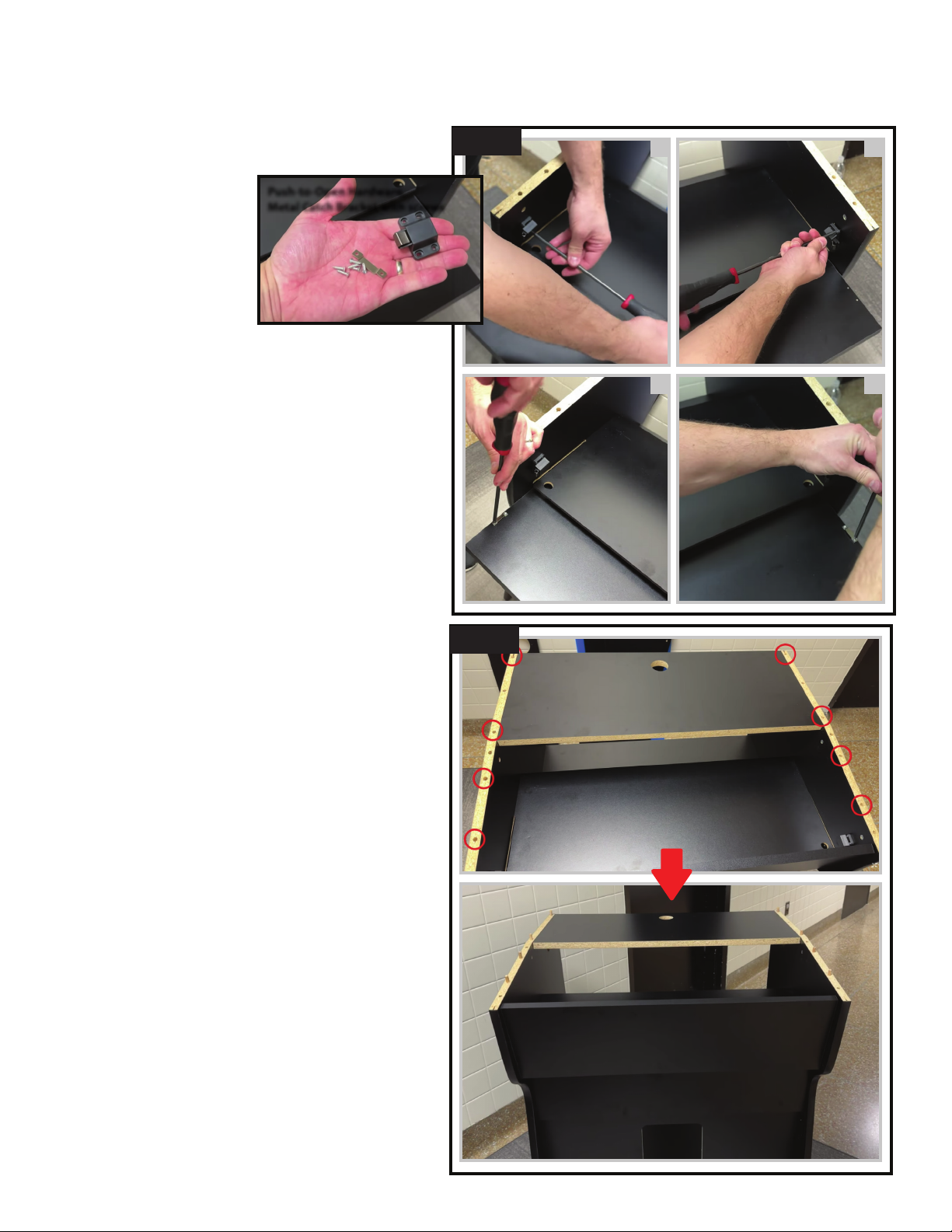

Parts Needed: Part #1 / Part #2 / Part #8

push-to-open hardware (x2) with screws (x8)

metal catch brackets (x2) with screws (x4)

screwdriver

You can now install the push-to-open hardware

using the pilot holes on the inside of both

PART #1 (Right Side Base Upright) and also

PART #2 (Left Side Base Upright) panels with

a screwdriver and screws [see images T & U].

Now you can also install the metal catch

brackets to the pilot holes on the left and right

sides of PART #8 32XTB4, the unmarked

keyboard door with a screwdriver and screws

[see images V & W].

STEP 18

Parts Needed: Part #1 / Part #2

wood dowel pins (x8)

Finally, insert eight wood dowel pins into

the holes where the red circles are shown on

PART #1 (Right Side Base Upright) and also

PART #2 (Left Side Base Upright) panels.

Congratulations! At this point you’re halfway

done and now let’s move on to the top section

of the cabinet.

Push-to-Open Hardware,

Metal Catch Bracket with screws

STEP 17 T U

V W

STEP 18

Part #8

page 10

NOTE: Part #3 32XT-B2 and Part #4 32XT-B3 panels are interchangeable depending on whether or not a Metal Coin Door or Coin Mech are used.

If not using a Metal Coin Door or Coin Mech with your cabinet, use one of the Part #4 32XT-B3 blank panels in place of the Part #3 32XT-B2

cutout panel on the front of your cabinet. These three panels are interchangeable.

Xtension Arcade Cabinet Top Section

Part Description

Part #6 (Speaker Panel)

32XT-T3

1 PC

Part #7 (Lower Back)

32XT-T4

1 PC

Part #12 (Top)

32XT-T5

1 PC

Part #5 (TV/Monitor Bottom Support)

32XT-T6

2 PC

Part #1 (TV/Monitor Mount)

32XT-T7

1 PC

Part #2 (TV/Mounting Side Brackets)

32XT-T8

2 PC

32XT-T5

32XT-T4

32XT-T3

32XT-T7

32XT-T8

32XT-T6 32XT-T6

Part # 7

(Left Side Top Upright)

Part # 1

(Right Side Top Upright)

Part # 5 (Monitor Mount)

Part # 9( Clear Bezel)

Part # 13 (Lower Back)

Part # 10 (Top)

Part # 8 (Back Lit Header Marquee)

Part # 4 (Speaker Ports)

Part # 9 (Bezel Sticker)

Part # 11

(Speaker Grill Covers)

Part # 3 (Back Light Block Support)

This Part May Be Optional

Part # 12

(Light)

May Or May Not Be Included

Depending On Availability

Part # 6 (Monitor Bottom Support)

Part # 2 (Back Top Support)

Grove For Marquee

Part #11 (Marqee Plexi Glass)

Part #9 (Monitor Bezel Plexi Glass)

Part # 7

(Left Side Top Upright)

Part # 1

(Right Side Top Upright)

Part # 5 (Monitor Mount)

Part # 9( Clear Bezel)

Part # 13 (Lower Back)

Part # 10 (Top)

Part # 8 (Back Lit Header Marquee)

Part # 4 (Speaker Ports)

Part # 9 (Bezel Sticker)

Part # 11

(Speaker Grill Covers)

Part # 3 (Back Light Block Support)

This Part May Be Optional

Part # 12

(Light)

May Or May Not Be Included

Depending On Availability

Part # 6 (Monitor Bottom Support)

Part # 2 (Back Top Support)

Grove For Marquee

Part # 7

(Left Side Top Upright)

Part # 1

(Right Side Top Upright)

Part # 5 (Monitor Mount)

Part # 9( Clear Bezel)

Part # 13 (Lower Back)

Part # 10 (Top)

Part # 8 (Back Lit Header Marquee)

Part # 4 (Speaker Ports)

Part # 9 (Bezel Sticker)

Part # 11

(Speaker Grill Covers)

Part # 3 (Back Light Block Support)

This Part May Be Optional

Part # 12

(Light)

May Or May Not Be Included

Depending On Availability

Part # 6 (Monitor Bottom Support)

Part # 2 (Back Top Support)

Grove For Marquee

Part #10 (LED Light Housing)

Part #8 (Speaker Grill Covers)

Part #4 (Right Side Top Upright) Part #3 (Left Side Top Upright)

Xtension Arcade Cabinet Top Section

Hardware Description

page 11

60mm Bolt (large head)

4 PC

M4 Allen Wrench

1 PC

Large Washer

4 PC

60mm Bolt (small head)

14 PC

Monitor Screw

4 PC

Wood Dowel Pin

13 PC

Metal Cross Dowel

14 PC

Speaker Screw

8 PC

TV Bracket Bolt

4 PC

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 12

STEP 1

Parts Needed: Part #1 / wood dowel pins (x4)

For the top section we’ll start by assembling the

TV mounting bracket. Lay PART #1 32XTB7

on a soft surface and insert four dowel pins into

the holes where the red circles are pictured.

STEP 2

Parts Needed: Part #1 / Part #2 (x2)

metal cross dowels (x2) / 60mm screws (x2)

4M AllenWrench / athead screwdriver [optional]

Next, insert a metal cross dowel into one of

the PART #2 32XTB8 as shown in image A.

Remember to use the correct orientation from

earlier in this manual [see page 4 / Base Section

/ STEP 2 QUICK TIP for inserting the metal cross

dowel]. Face the slanted edge of the right side

panel towards the top and insert it into the

dowel pins you previously installed [see image

B]. You can now secure the PART #2 32XTB8

side panel to the rest of the PART #1 32XTB7

bracket with a 60mm bolt by ipping over the

PART #1 32XTB7 bracket and inserting the

60mm bolt into the hole where the metal cross

dowel is and secure it in place with the provided

M4 Allan Wrench [see images C & D].

Repeat STEP 2 on the other PART #2 32XTB8

left side panel [see image E].

When nished, the completely assembled

TV/monitor bracket should look like image F.

Wood Dowel Pins

Metal Cross Dowels

60mm bolts

C D

Slanted

Edge

STEP 2

Top

Bottom

Top

Bottom

PLEASE NOTE:

2 people are required

when combining the

base and top sections

of the cabinet.

Metal Cross Dowel

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 13

STEP 3

STEP 5

STEP 4

STEP 3

Parts Needed: Part #3 / metal cross dowel (x1)

wood dowel pins (x5)

We will now move on to the PART #3 (Left Side

Top Upright) panel of the cabinet. Insert a metal

cross dowel into the bottom center hole where

the green circle is located. Then install ve wood

dowel pins into the red circles are located.

STEP 4

Parts Needed: Part #4 / metal cross dowel (x1)

Next, insert a metal crossed dowel into the

PART #4 (Right Side Top Upright) panel where

the red circle is located.

STEP 5

Parts Needed: Part #3 / Part #5 (x2)

metal cross dowels (x4)

Next, insert two metal cross dowels into one of

the PART #5 32XTB6 panels [see image G].

Make sure to face the panel number towards

the inside of the cabinet and insert the panel

into the wood dowel pin where the lower green

circle is shown in image I.

Repeat these steps on the second PART #5

32XTB6 panel [see image H]. Once again,

remember to face the panel number towards

the inside of the cabinet and insert the panel

into the wood dowel pin where the higher

green circle is shown in image I.

Part #3

Part #4

G H

NOTE: Make sure to face

the 32XTB6 panel number

towards the inside of the cab.

Part #3

Part #5

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 14

STEP 6

Parts Needed: Part #3 / Part #6 / Part #7

metal cross dowels (x2)

Next, install two metal cross dowels into

PART #6 32XTT3 where the red circles are

located [see image J]. Make sure to face the

slotted side towards the front of the cabinet and

insert into the single pin where the green circle

is located [see image K].

The red circles in image K show where you

will need to install PART #7 32XTT4. Insert

PART #7 32XTT4 into these two wood dowel

pins above PART #6 32XTT3 [see image L].

When nished PART #6 32XTT3 and

PART #7 32XTT4 should be resting next to

each other with the slotted side on the inside of

these these two parts as seen in image L.

STEP 7

Parts Needed: Part #5 (x2) / Part #6 / Part #7

wood dowel pins (x5)

Next, install ve wood

dowel pins into the

holes shown in the red

circles located here.

STEP 8

Parts Needed: Part #3 / TV bracket bolts (x2)

TV/monitor bracket (assembled in STEPS 1 & 2)

Place the TV/monitor bracket

[previously assembled

in STEPS 1 & 2] in place

and secure to PART #3

(Left Side Top Upright)

by hand tightening two

of the four TV bracket

bolts where the red

circles are located.

STEP 6

Part #3

Slotted side

Part

# 6

Part #6

Slotted side

Part #3

Part #7

Part

# 6

STEP 7

Wood Dowel Pins

STEP 8

TV bracket bolts

Part #3

TV/Monitor Bracket

(assembled in STEPS 1 & 2)

Part #3

Slotted side

STEP 9

Parts Needed: Part #4

60mm bolts (x3)

M4 Allan Wrench

Now you can lay the

PART #4 (Right Side Top

Upright) panel over the

top. Look underneath

and adjust as necessary until all of the wood

dowel pins are in the correct holes. Secure the

PART #4 (Right Side Top Upright) panel using

three 60mm bolts where the red circles are with

the provided M4 Allan Wrench.

NOTE: DO NOT OVER TIGHTEN THE BOLTS!

STEP 10

Parts Needed: Part #4 / TV bracket bolts (x2)

TV/monitor bracket (assembled in STEPS 1 & 2)

You can now secure the left side of the

TV/monitor bracket [previously assembled

in STEPS 1 & 2] by hand tightening the two

remaining TV bracket bolts to the PART #4

(Right Side Top Upright) where the red circles

are located.

STEP 11

For this step, rotate the top of the cabinet 90O

to its upright position [see images M & N].

NOTE: IT IS VERY IMPORTANT TO APPLY

PRESSURE ON THE UNBOLTED SIDE AS THERE

ARE NO BOLTS SECURING IT IN PLACE WHEN

ROTATING!

STEP 12

Parts Needed: Part #3 / 60mm bolts (x3)

4M Allen Wrench

Next insert an additional three 60mm bolts on

the PART #3 (Left Side Top Upright) panel

where the red circles are located with the

provided M4 Allan Wrench. [similar to STEP 9]

NOTE: DO NOT OVER TIGHTEN THE BOLTS!

60mm bolts

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 15

STEP 9

STEP 10

Part #4

TV/monitor bracket

(assembled in STEPS 1 & 2)

Part

# 4

STEP 11

STEP 12

Hold the bottom panel

tight as it is not bolted

Part #3

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 16

STEP 13

Parts Needed: top section of cabinet

base section of cabinet

With the assistance of a second person, lift the

top half of the cabinet and align it with the four

dowel pins on top of the base section where the

red circles are located. Once everything is lined

up, drop it into place.

STEP 14

Parts Needed: top section of cabinet

60mm bolts (x2) / 4M Allen Wrench

athead screwdriver [optional]

From the back of the cabinet insert two 60mm

bolts into the recessed sections on both sides

of the cabinet where the red circles are located.

It is best to hand tighten the bolts as much as

possible and then nish them o using the

provided M4 Allen Wrench [see images O & P].

QUICK TIP: If the

bolts are not going

in smoothly you can

adjust the position

of the metal cross

dowels in the top

section using a

athead screwdriver.

STEP 15

Parts Needed: Part #6 / speaker screws (x8) /

screwdriver / Part #8 (speaker grill covers) (x2)

Next, separate PART #8 speaker grills from the

plastic rings [see image Q]. Using the provided

screws, screw the plastic speaker grill rings into

the pilot holes on the PART #6 32XTT3 panel

using a screwdriver [see images R & S].

Finally, reinsert both speaker grills into both

plastic speaker grill rings [ see image T].

STEP 13

STEP 14 PO

STEP 15

STEP 16

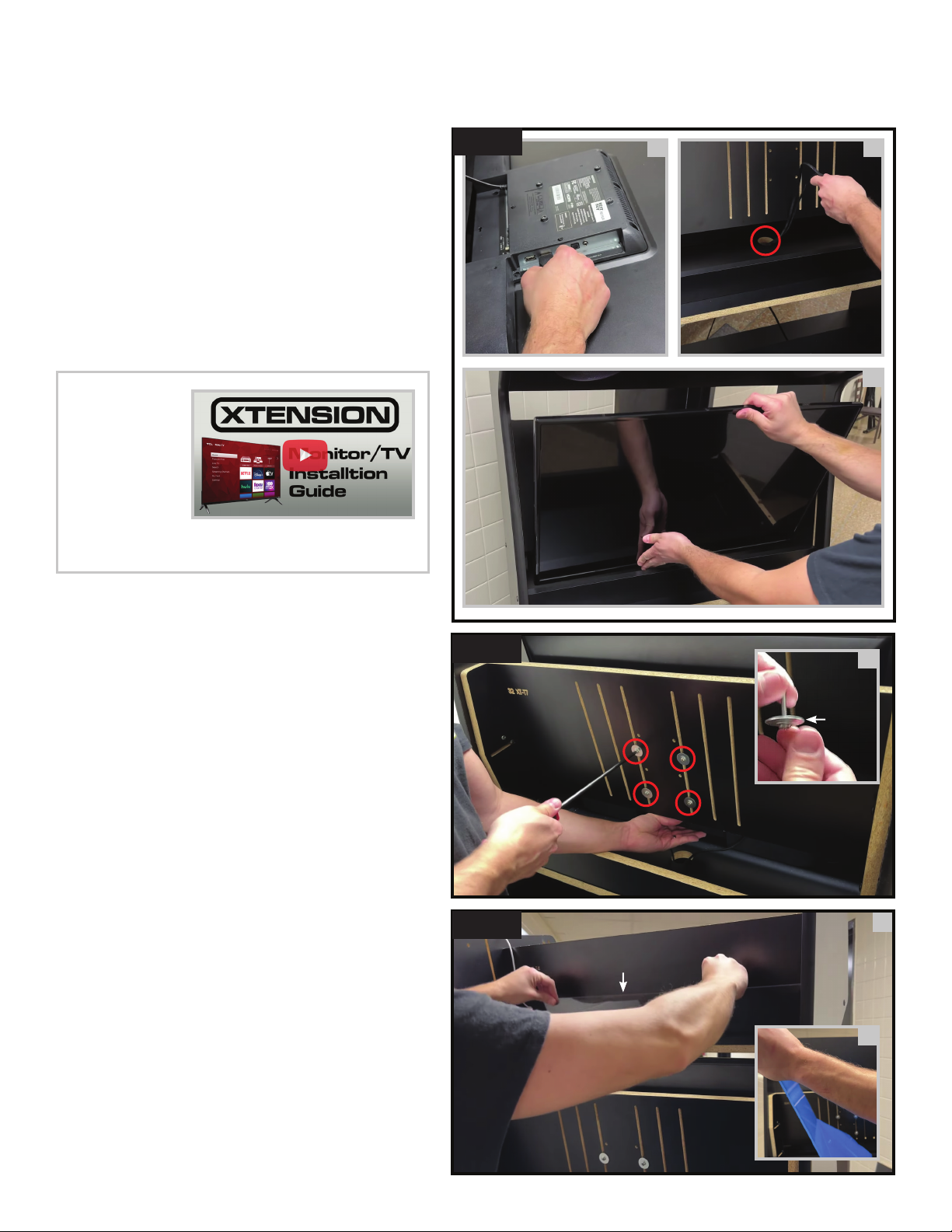

Parts Needed: TV or Monitor and cables

TV/monitor bracket (assembled in STEPS 1 & 2)

You can now attach any necessary cables to

the back of your TV [see image U]. Then route

all of the cables from your TV through the

cable management hole where the red circle is

located [see image V]. And nally, rest the TV

against the mounting bracket [see image W].

QUICK TIP:

For a more

detailed video

on mounting a

TV or monitor,

please see the

link below:

www.youtube.com/watch?v=AAXStZKNjc8&t=6s

STEP 17

Parts Needed: screwdriver / monitor screws (x4)

TV/monitor bracket (assembled in STEPS 1 & 2)

large washers (x4)

Next, place a large washer onto each of the

four monitor screws. Secure the display to the

mounting bracket from the back of the cabinet

with the four monitor screws. It is best to hand

tighten each screw as we will be adjusting

the vertical position of the display. Once the

TV/monitor is in the correct position, you will

tighten each screw with a screwdriver.

STEP 18

Parts Needed: top section of cabinet

Part #9 (monitor bezel plexi glass)

Next, remove the blue protective lm from

PART #9 (monitor bezel plexi glass) [see image Y].

Then slide it into the grooves on the top of the

cabinet [see image Z].

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 17

STEP 16

K W

STEP 17

STEP 18

Slide the plexi glass

down into position

Place

a large

washer

on each

screw.

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 18

STEP 19

Parts Needed: top section of cabinet

TV/monitor bracket (assembled in STEPS 1 & 2)

four TV bracket bolts / screwdriver

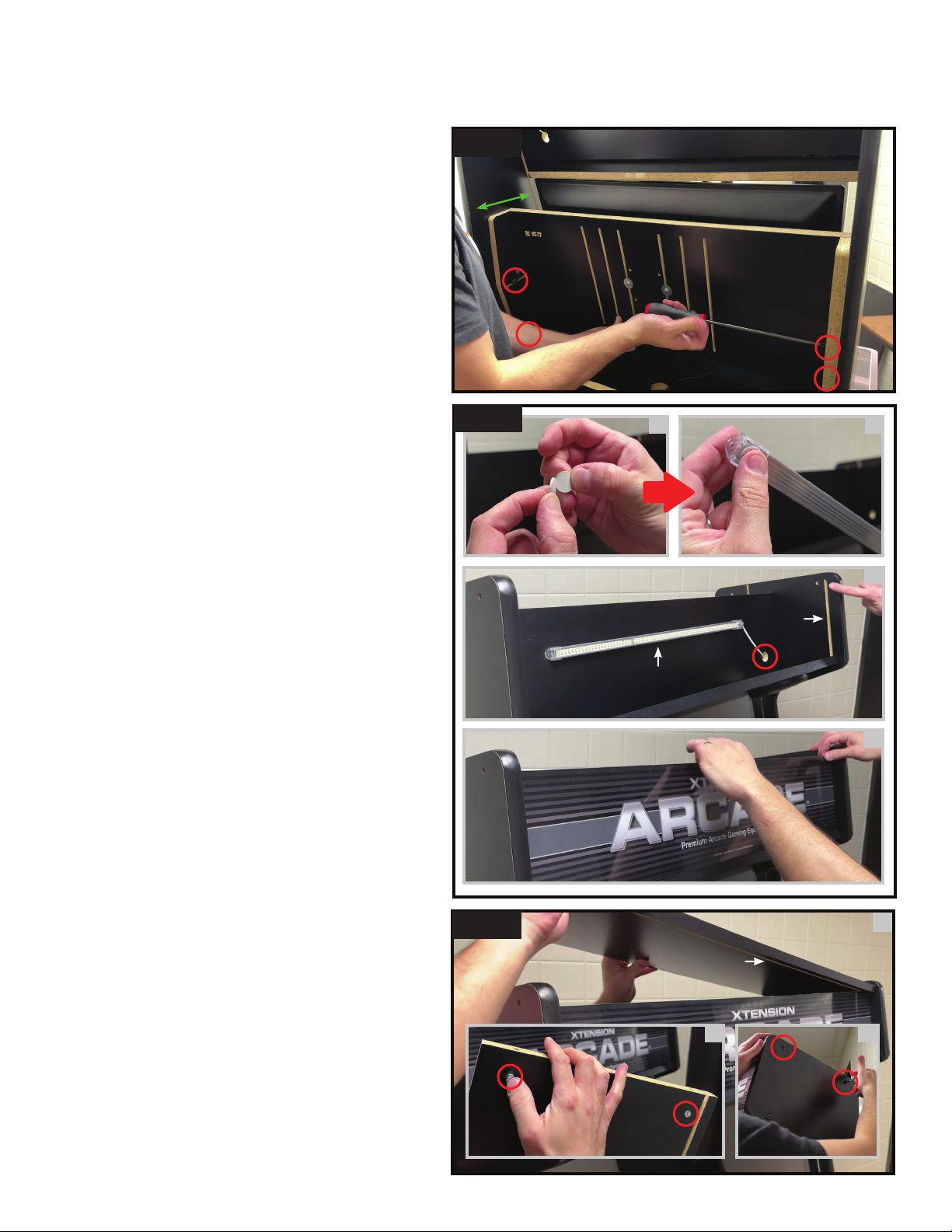

You can now adjust the front to back position of

the TV bracket to your liking [see green arrows].

Once in place, tighten the four TV bracket bolts to

secure the TV/monitor bracket to the top section

of the cabinet where the red circles are located.

STEP 20

Parts Needed: top section of cabinet

adhesive dots (x2) / Part #10 (LED light housing)

Part #11 (marquee plexi glass).

Next, peel o the backing from the adhesive

dots [see image A] and apply a dot to each side

of PART #10 (LED light housing) [see image B].

Stick PART #10 to the rear Marquee panel and

route the wires through where the red circle is

located [see image C].

You can now install PART #11 (marquee plexi

glass) into the slots on the side of the cabinet

[see image C]. Flex the marquee plexi glass as

necessary to get it in place in the correct slots

[see image D].

STEP 21

Parts Needed: Part #12 / metal cross dowels (x4)

top section of cabinet / 60mm bolts (x4)

M4 Allen Wrench / Part #11 (marqee plexi glass)

Next, install four metal cross dowels into the

corners of PART #12 32XTT5, two of which

are shows where the red circles are located in

image E. Make sure to align the slotted side with

the top of PART #11 (marquee plexi glass) and

carefully drop it into place.

Finally, secure the PART #12 32XTT5 using

four 60mm bolts. The red circles in image G

show where two of the bolts are located.

NOTE: DO NOT OVER TIGHTEN THE BOLTS!

STEP 19

STEP 20 BA

Front to back

position

STEP 21

Marquee

plexi glass

slot

Part #10

Slotted side

STEP 22

Parts Needed:

base section of cabinet

extension controller

large head bolts (x4)

M4 Allen Wrench

Open the keyboard door,

then pass the controller’s

cables through the opening in the back of the

cabinet [see the green rectangle in image H].

Align the controller over the four front wood

dowel pins [see red circles in image H] of the

base section of the cabinet. Then push down on

the controller until ush. Secure the controller

in place using the four large head bolts where

the red circles are located [see image I].

NOTE: DO NOT OVER TIGHTEN THE BOLTS AS

YOU MAY CRACK THE PLEXI GLASS OVERLAY!

STEP 23 [OPTIONAL]

Parts Needed: Part #0 coin door / screwdriver

base section of cabinet / coin door hardware

To install the optional coin door, start by hand

tightening the mounting brackets along the

perimeter of the door where the red circles are

locationed in image J.

QUICK TIP:

For details

on how to

assemble &

install the coin

mech, please

see this link

www.youtube.com/watch?v=IZfmrTYa8UY

Next, place the coin door into the panel

cutout, moving any brackets out of the way as

necessary [see image K]. Once fully installed,

close the door and lock it [see image L]. From

the back of the cabinet, swing the brackets to

make contact with the wood and tighten them

using a screwdriver [as indicated by the red

circles in image M].

Xtension Arcade Cabinet Top Section

Assembly Instructions

page 19

STEP 17

large head bolts

STEP 22 H

Open

keyboard

door

STEP 17

STEP 23 J K

L M

Turn key

to lock

GAME ON!

Rec Room Masters www.recroommasters.com

email: support@recroommasters.com

THANK YOU FOR YOUR PURCHASE.

Table of contents

Popular Arcade Game Machine manuals by other brands

BMI Gaming

BMI Gaming FOOL THE GUESSER operating instructions

GCE

GCE Vectrex Scramble manual

Universal Space

Universal Space LANE MASTER Operation manual

Harry Levy

Harry Levy MELODY MOUSE Operator instructions

Stern

Stern AEROSMITH PRO Service and operation manual

BMI Gaming

BMI Gaming Operation operating manual

Sega

Sega Sonic Sports Air Hockey 2P owner's manual

Sega

Sega Giant Plants vs Zombies The Last Stand manual

Lowtech Studios

Lowtech Studios slither.io Operator's manual

NAMCO

NAMCO TEKKEN 4 Connections and Ajustments

GCE

GCE Vectrex Spinball manual

NAMCO

NAMCO Ridge Racer 2 Operator's manual

GCE

GCE Vectrex Blitz! manual

MGA Entertainment

MGA Entertainment Moj Moj 555520 quick start guide

NAMCO

NAMCO CRISIS ZONE DX Operator's manual

Roxor

Roxor In the Groove 2 Service manual

Neo Legend

Neo Legend CLASSIC ARCADE user manual

Bob's Space Racers

Bob's Space Racers Jersey Wheels Operator's manual

REC ROOM MASTERS XTENSION 32 UPRIGHT User manual

Popular Arcade Game Machine manuals by other brands
