Record Power PT260 User guide

Original Instruction Manual
PT260
Planer Thicknesser
Always wear safety glasses when
using woodworking equipment.
Always read the instructions
provided before using
woodworking equipment.
i
Kg
Version 3.1
January 2014
To register this product please visit
www.recordpower.info
It is important to register your product as soon as possible in order to receive efficient after sales
support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.
Please see back cover for contact details.
Important
For your safety read instructions carefully
before assembling or using this product.
Save this manual for future reference.
i
Kg

2
Contents Terms & Conditions Of Usage
Explanation of Symbols
General Health & Safety Guidance
Additional Health & Safety Guidance for Planer Thicknessers
Record Power Guarantee
User Manual

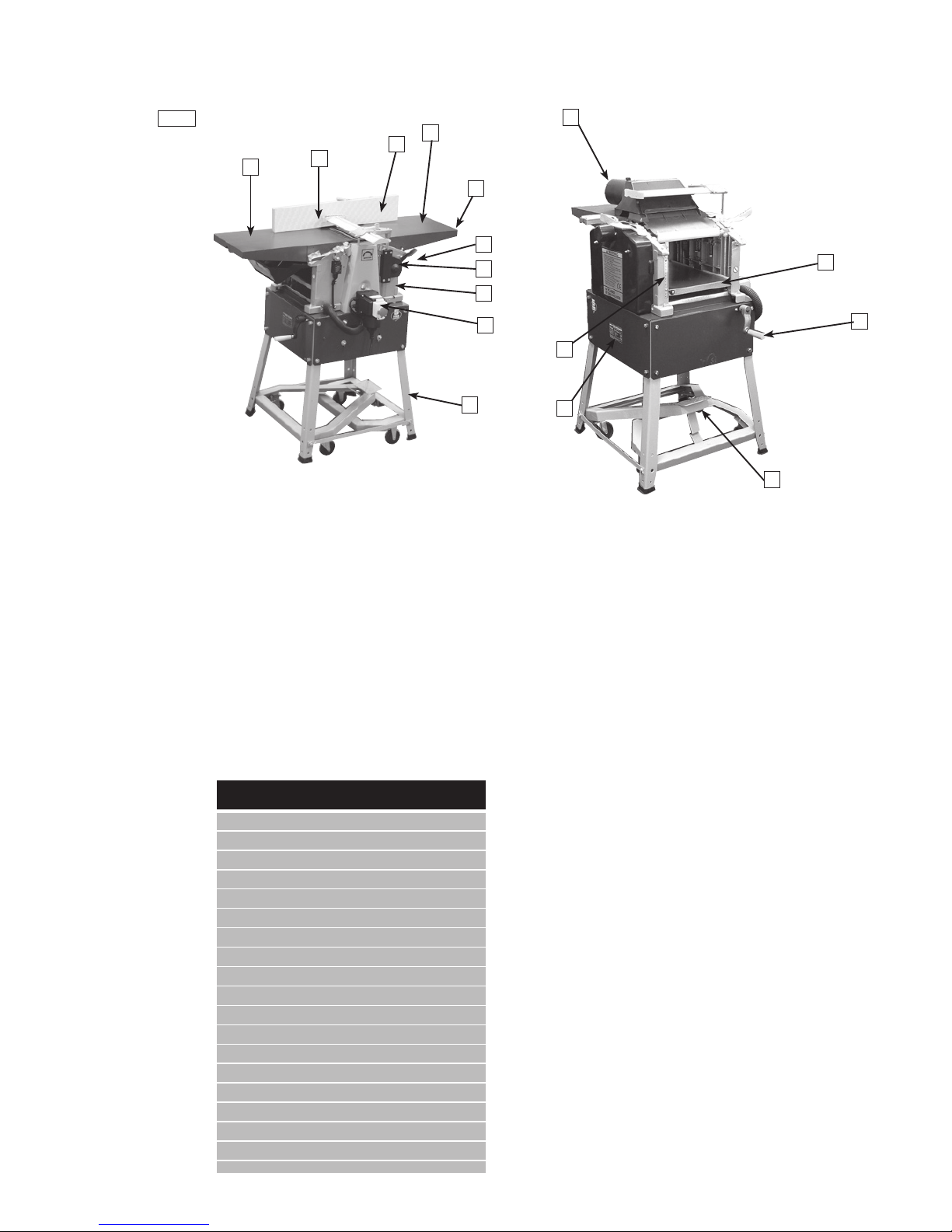

1 Getting to Know your Planer Thicknesser
2 Machine Specification
3 Stand & Wheel Kit Assembly
4 Machine Assembly
5 Machine Set Up
6 Operation & Planer Thicknesser Practice
7 Dust Extraction
8 Maintenance
9 Electrical Connection & Wiring Diagram
10 Trouble Shooting
11 Parts Diagrams
12 Parts List
EU Declaration Of Conformity
Consumable Spare Parts
Quick Find
Part Description Part Number
Lock bar screw – M6 x 11mm SRSPT260 (101)
Set screw – M6 x 8mm SRSPT260 (104)
RSPT260A Planer blade (Pair) SRSPT260 (105)
Extraction port SRSPT260 (174)
Fence extrusion SRSPT260 (204)
Ratchet lever – M8 SRSPT260 (217)
Flat belt SRSPT260 (256)
Poly-V-belt – 5PJ864 SRSPT260 (309)

3
Part Description Part Number
THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL. PLEASE ENSURE THAT YOU
TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED.
Explanation of Symbols
Mandatory Instructions
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
Read and fully understand the instruction manual
before attempting to use the machine.
Indicates an instruction that requires particular attention
Wear protective eyewear
Use respiratory protective equipment
Use suitable protective footwear
Use hearing protection
Use protective work gloves
Warning
i
Kg
Indicates a risk of severe personal injury or
damage to the machine
Indicates a risk of severe personal injury
from electrical shock
Risk of personal injury from lifting of heavy items
Indicates a risk of severe personal injury from
airborne objects
Risk of fire
i
Kg
i
Kg
i
Kg
i
Kg
General Health & Safety Guidance
Ensure that you carefully read and fully understand the
instructions in this manual before assembly, installation and
use of this product. Keep these instructions in a safe place for
future reference.
WARNING: for your own safety, do not attempt to operate this machine
until it is completely assembled and installed according to
these instructions.
WARNING: When using any machine, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and
personal injury.
Safe Operation
1. Use Personal Protective Equipment (PPE)
• The operation of any machine can result in foreign objects being thrown
into your eyes, which can result in severe eye damage. Protective
eyewear or other suitable eye protection or face shield should be used at
all times. Everyday spectacles only have impact resistant lenses. They are
not protective eyewear and do not give additional lateral protection.
• Use respiratory protective equipment (dust mask etc.) if the machining
operation creates dust. Exposure to high levels of dust created by
machining hardwoods, softwoods and man made composite boards can
result in serious health problems. Some imported hardwoods give off
highly irritating dust, which can cause a burning sensation. The use of
respiratory protective equipment should not be seen as an alternative to
controlling the risk of exposure at source by using adequate dust
extraction equipment.
• The use of ear plugs or ear defenders is recommended when the machine
is in use, particularly if the noise level exceeds 85 dB.
• Wear suitable protective gloves when handling cutting tools or blades.
Gloves should NOT be worn when using the machine as they can be
caught in moving parts of the machine.
• Non-slip safety footwear is recommended when using the machine and
handling large work pieces.
2. Dress appropriately
• Do not wear loose clothing, neckties or jewellery; they can be caught in
moving parts of the machine.
• Roll up long sleeves above the elbow.
• Wear protective hair covering to contain long hair.
3. Safety warnings
• Find and read any warning labels on the machine.
• It is important that any labels bearing health and safety warnings are
not removed, defaced or covered. Replacement labels can be obtained by
contacting our Customer Service Department.
4. Familiarise yourself with the machine
• If you are not thoroughly familiar with the operation of this machine,
obtain advice from your supervisor, instructor, or other qualified person or
contact your retailer for information on training courses. Do not use this
machine until adequate training has been undertaken.
5. Take care when moving or positioning the machine
• Some machines can be very heavy. Ensure the floor of the area in which
the machine is to be used is capable of supporting the machine.
• The machine and its various components can be heavy.
Always adopt a safe lifting technique and seek assistance when lifting
heavy components. In some cases it may be necessary to use mechanical
handling equipment to position the machine within the work area.
• Some machines have optional wheel kits available to allow them to be
manoeuvred around the workshop as required. Care should be taken to
install these according to the instructions provided.
• Due to the nature of the design of some machines the centre of gravity
will be high making them unstable when moved. Extreme care should be
taken when moving any machine.
• If transportation of the machine is required then all precautions relating
to the installation and handling of the machine apply. In addition, ensure
that any vehicles or manual handling equipment used for transportation
is of adequate specification.
6. The machine should be level and stable at all times
• When using a leg stand or cabinet base that is designed to be fitted to
the machine, always ensure that it is securely fastened to the machine
using the fixings provided.
• If the machine is suitable to be used on a workbench, ensure that the
workbench is well constructed and capable of withstanding the weight
of the machine. The machine should always be securely fastened to the
workbench with appropriate fixings.
• Where possible, floor standing machines should always be secured to the
floor with fixings appropriate to the structure of the floor.

4
• The floor surface should be sound and level. All of the feet of the
machine should make contact with the floor surface. If they do not, either
re-locate the machine to a more suitable position or use packing shims
between the feet and the floor surface to ensure the machine is stable.
7. Remove adjusting keys and wrenches
• Ensure that all adjusting wrenches and keys are removed before
switching the machine ‘ON’. There is a risk of severe personal injury or
damage to the machine from airborne objects.
8. Before switching the machine ‘ON’
• Clear the machine table of all objects (tools, scrap pieces etc.)
• Make sure there is no debris between the work piece and the
table / work support.
• Ensure that the work piece is not pressed against, or touching the saw
blade or cutting tool.
• Check all clamps, work holding devices and fences to ensure that they
are secure and cannot move during machining operations.
• Plan the way that you will hold and feed the work piece for the entire
machining operation.
9. Whilst machining
• Before starting work, watch the machine while it runs. If it makes
an unfamiliar noise or vibrates excessively, switch the machine ‘OFF’
immediately and disconnect it from the power supply. Do not restart until
finding and correcting the source of the problem.
10. Keep the work area clear
• Working clearances can be thought of as the distances between
machines and obstacles that allow safe operation of every machine
without limitation. Consider existing and anticipated machine needs,
size of material to be processed through each machine and space for
auxiliary stands and/or work tables. Also consider the relative position of
each machine to one another for efficient material handling. Be sure to
allow yourself sufficient room to safely operate your machines in any
foreseeable operation.
• Cluttered work areas and benches create the risk of accidents. Keep
benches clear and tidy away tools that are not in use.
• Ensure that the floor area is kept clean and clear of any dust and debris
that may create trip or slip hazards.
11. Consider the work area environment
• Do not expose the machine to rain or damp conditions.
• Keep the work area well lit and ensure that there is artificial lighting
available when there is insufficient natural light to effectively light the
work area. Lighting should be bright enough to eliminate shadow and
prevent eye strain.
• Do not use the machine in explosive environments eg. in the presence of
flammable liquids, gases or dust.
• The presence of high levels of dust created by machining wood can
present a risk of fire or explosion. Always use dust extraction equipment
to minimise the risk.
12. Keep other persons away (and pets)
• The machine is designed to be used by one person only.
• Do not let persons, especially children, touch the machine or extension
cable (if used) and keep visitors away from the work area.
• Never leave the machine running unattended. Turn the power supply off
and do not leave the machine unattended until it comes to a
complete stop.
• If the work area is to be left unattended, all machinery should be
switched ‘OFF’ and isolated from the mains power supply.
13. Store machines safely when not in use
• When not in use, machines should be stored in a dry place, out of reach
of children. Do not allow persons unfamiliar with these instructions or
with the machine to operate it.
14. Do not overreach
• Choose a working position that allows your body to remain balanced
and feed the work piece in to the machine without overreaching.
• Keep proper footing and balance at all times.
15. Electrical supply
• Electrical circuits should be dedicated to each machine or large enough
to handle combined motor amp loads. Power outlets should be located
near each machine so that power or extension cables are not obstructing
high-traffic areas. Observe local electrical guidelines for proper
installation of new lighting, power outlets, or circuits.
• The machine must be connected to an earthed power supply.
• The power supply must be equipped with a circuit breaker that provides
short circuit, overload and earth leakage protection.
• The voltage of the machine must correspond to the voltage of the mains
power supply.
• The mains plug fitted to the machine should always match the power
outlet. Do not modify the plug in any way. If a replacement plug is
required it should be fitted by a competent person and of the correct
type and rating for the machine.
• If you are unsure about any electrical connections always consult a
qualified electrician.
16. Avoid unintentional starting of the machine
• Most machines are fitted with a no-volt release (NVR) switch to prevent
unintentional starting. If in doubt always ensure the machine switch
is in the ‘OFF’ position before connecting it to the power supply. This
means the machine will not automatically start up after a power cut or
switching on of the power supply, unless you first reset the start switch.
17. Outdoor use
• Your machine should not be used outdoors.
18. Extension cables
• Whenever possible, the use of extension cables is not recommended.
If the use of an extension cable is unavoidable, then it should have
a minimum core cross section of 2.5 mm² and limited to a maximum
length of 3 metres.
• Extension cables should be routed away from the direct working area to
prevent a trip hazard.
19. Guard against electric shock
• Avoid body contact with earthed or grounded surfaces such as pipes
and radiators. There is an increased risk of electric shock if your body is
earthed or grounded.
20. Always work within the machine’s intended capacities
• Operator safety and machine performance are seriously adversely
affected if attempts to make the machine perform beyond its limits
are made.
21. Do not abuse the power cable
• Never pull the power cable to disconnect it from the power socket.
Always use the plug.
• Keep the power cable away from heat, oil and sharp edges.
• Do not use the power cable for carrying or moving the machine.
22. Secure the work piece
• Ensure that the work piece is securely held before starting to machine it.
• When working within 300 mm of the machining area, always use a push
stick to feed the work piece in to the blade or cutting tool. The push stick
should have a minimum length of 400 mm. If the push stick becomes
damaged, replace it immediately.
• Use extra supports (roller support stands etc.) for any work pieces large
enough to tip when not held down to the table top.
• Do not use another person as a substitute for a table extension, or as
additional support for a work piece that is longer or wider than the basic
table, or to help feed, support, or pull the work piece.
• Do not attempt to machine more than one work piece at a time.
• When feeding the work piece towards the blade or cutting tool never
position your hands in direct line of the cutting path. Avoid awkward
operations and hand positions where a sudden slip could cause your
hand or fingers to move into the machining area.
General Health & Safety Guidance cont.

5
General Health & Safety Guidance cont.
23. Stay alert
• Safety is a combination of operator common sense and alertness at all
times when the machine is being used.
• Use all machines with extreme care and do not use the machine when
you are tired or under the influence of drugs, alcohol or medication.
24. Use the correct tool for the job
• Do not use the machine for any purpose other than which it
was designed.
• When selecting replacement cutting tools and blades, always ensure that
they are designed to cut the material that you intend to use them for. If
in any doubt seek further advice from the manufacturer.
25. Connect dust extraction equipment
• Always use dust extraction equipment. The dust extractor should be of
suitable size and capacity for the machine that it is connected to and
have a filtration level appropriate to the type of waste being collected.
Refer to the relevant section of the manual for details of the specific dust
extraction requirements for this machine.
• The dust extractor should be switched ‘ON’ before starting the machine
that it is connected to. The dust extractor should be left running for 30
seconds after the last machining operation is complete in order to clear
any residual waste from the machine.
26. Ensure that the machine is correctly guarded
• Never use the machine if any of the standard safety guards and
equipment are removed or damaged.
• Some machines incorporate safety interlocks to prevent the machine
from being used without the guards in place. Never attempt to bypass
or modify the interlocks to allow the machine to be used without the
guards in place.
27. Maintain your machine with care
• This manual gives clear instructions on installation, set up and
operation of the machine and also details any routine and preventative
maintenance that should be performed periodically by the user.
• Remember always to switch off and unplug the machine from the power
supply before carrying out any setting up or maintenance operations.
• Follow any instructions for the maintenance of accessories
and consumables.
• Do not use compressed air to clean the machine. Always use a brush to
dislodge dust in places that are awkward to reach and a dust extractor
to collect the waste.
• Inspect electric cables periodically and, if damaged, have them replaced
by an authorised service facility or qualified electrician.
• Inspect extension cables (if used) periodically and replace if damaged.
28. Keep cutting tools sharp and clean
• Correctly maintained cutting tools are easier to control and less likely
to bind.
• Cutting tools and blades can become hot during use. Take extreme care
when handling them and always allow them to cool before changing,
adjusting or sharpening them.
29. Disconnect the machine from the power supply
• When not in use, before servicing, changing blades etc. always
disconnect the machine from the power supply.
30. Check for damaged parts
• Before each use of the machine, it should be carefully checked to
determine that it will operate properly and perform its
intended function.
• Check for alignment of moving parts, binding of moving parts, breakage
of parts and any other conditions that may affect the operation of
the machine.
• A guard or other part that is damaged should be properly repaired
or replaced by a qualified person unless otherwise indicated in this
instruction manual.
• Do not use the machine if the switch does not turn the machine ‘ON’
and ‘OFF’.
• Have defective switches replaced by a qualified person.
31. Warning!
• The use of any accessory or attachment, other than those recommended
in this instruction manual, or recommended by our Company may present
a risk of personal injury or damage to the machine and invalidation of
the warranty.
32. Have your machine repaired by a qualified person
• This machine complies with the relevant safety rules and standards
appropriate to its type when used in accordance with these instructions
and with all of the standard safety guards and equipment in place. Only
qualified persons using original spare parts should carry out repairs.
Failure to do this may result in considerable danger to the user and
invalidation of warranty.
33. Caution! Motor may become hot during use
• It is normal for motors on some machines to become hot to the touch
during use. Avoid touching the motor directly when in use.

6
Additional Health & Safety Guidance
for Planer Thicknessers
Warning:
For your own safety, do not attempt to operate your planer
thicknesser until it is completely assembled and installed
according to these instructions.
Safe Operation
1. The planer thicknesser should be level and stable at all times
• If using an optional wheel kit to position the machine within your
workshop, never attempt to move the machine with the surface tables in
the raised position as this will raise the centre of gravity and make the
machine unstable.
2. Familiarise yourself with the machine
• Machining operations using planer thicknessers have a history of serious
accidents. Most accidents resulted from contact with the cutter block when
surface planing due to the guard being incorrectly adjusted or missing from
the machine.
• The machine is designed for planing hard and soft woods. It is not
designed for planing any other material.
• Do not attempt to perform rebating, moulding, cutting tenons and
recessing. The machine is designed to prevent these operations from being
performed. Do not modify the machine in order to attempt any of these
operations.
3. Before switching the machine ‘ON’:
• Set and secure safety guards in position before operating the machine.
Adjust the guards to suit the size of work piece. Full details of the correct
setting of the guards is included within the manual.
• Before starting work, watch the planer while it runs. If it makes
an unfamiliar noise or vibrates excessively, switch the machine ‘OFF’
immediately and disconnect it from the power supply. Do not restart until
finding and correcting the problem.
• Regularly check that the blades and lock bars are locked tight in the
cutter block.
• Regularly check the anti-kickback fingers of the thicknesser for proper
operation.
• Make sure there are no nails, screws or foreign objects in the part of the
work piece to be planed.
• Make sure there is no debris between the work piece and the table or
fence.
• Check that the fence, guards and work holding devices are secure and
that the fixings for them are fully tightened.
• Clear the planing tables of all objects (tools, scrap pieces etc.).
• Plan the way you will hold and feed the work piece from start to finish.
4. Whilst planing:
• Never remove any of the safety guards. Keep guards operational at all
times.
• Use extra caution with large, very small or irregularly shaped work pieces.
• Use extra supports (roller support stands etc) for any work pieces large
enough to tip when not held down to the table top.
• Do not use another person as a substitute for a table extension, or as
additional support for a work piece that is longer than the basic planer
table, or to help feed, support, or pull the work piece.
• When planing irregularly shaped work pieces, or chamfering with the
fence at 45º, plan your work support so it will not slip and be pulled from
your hands.
• When planing short work pieces an additional push block should be used.
Never attempt to plane a work piece that is too small to hold by hand.
• Avoid awkward operations and hand positions where a sudden slip could
cause fingers or hands to move into the cutter block.
• Never make planing cuts deeper than 3mm / 1/8”.
• Plane only one work piece at a time.
• Keep your face and body to one side, out of line with a possible kick
back.
• If the work piece binds when thicknessing the machine may stall. If this
happens, switch the machine ‘OFF’ immediately and follow the instructions
detailed in the manual for safely removing the work piece. Do not attempt
to free the work piece whilst the machine is running.
5. Maintenance:
• Regularly check that all safety guards are present and in full working
order.
• Regularly check that the bridge guard moves freely, both horizontally and
vertically.
• Keep the guards clean and free from waste material and deposits of resin.
• Regularly clean the planer table and thicknesser bed and apply a suitable
lubricant (silicone wax or spray to help the work piece slide easily.
• The planer knives should be sharpened regularly to reduce the risk of
snatching and kick back.
• Do not exceed maximum allowable blade projection over cutter block of
1.0mm/ 0.040 inch +10%.
6. This machine falls under the scope of the ‘Health & Safety
at Work etc.
Act 1974’, and the ‘Provision & Use of Work Equipment Regulations 1998’.
In addition the elimination or control of risks from wood dust is included in
the above regulations and the ‘Control of Substances Hazardous to Health
(COSHH) Regulations 2002’. We recommend that you study and follow
these regulations.
Further guidance is available from The Health & Safety Executive and their
website www.hse.gov.uk.

7
Record Power Guarantee
“Products” means the Products sold by Record Power subject to these
terms and conditions;
“Record Power” is Record Power Limited, whose company registration
number is 4804158 and registered office address is Centenary House,
11 Midland Way, Barlborough Links, Chesterfield, Derbyshire, S43 4XA
and sells through a network of Authorised Dealers;
“Authorised Distributor” is the nominated importer for your region
who will generally sell through a network of Authorised Dealers. Details of
Authorised Distributors for specific countries can be found in the Product
manual or at www.recordpower.info;
“Authorised Dealer” is a retailer or business authorised to sell Record
Power Products to end users.
1 Guarantee
1.1 Record Power guarantees that for a period of 5 years from the date
of purchase the components of qualifying Products (see clauses 1.2.1
to 1.2.9) will be free from defects caused by faulty construction
or manufacture.
1.2 During this period Record Power, its Authorised Distributor or
Authorised Dealer will repair or replace free of charge any parts
which are proved to be faulty in accordance with paragraphs 1.1
above provided that:
1.2.1 you follow the claims procedure set out in clause 2 below;
1.2.2 Record Power, our Authorised Distributor or Authorised Dealer are
given a reasonable opportunity after receiving notice of the claim to
examine the Product;
1.2.3 if asked to do so by Record Power, its Authorised Distributor or
Authorised Dealer, you return the Product, at your own cost, to
Record Power's premises or other approved premises such as those
of the Authorised Distributor or supplying Authorised Dealer, for the
examination to take place;
1.2.4 the fault in question is not caused by industrial use, accidental
damage, fair wear and tear, wilful damage, neglect, incorrect
electrical connection, abnormal working conditions, failure to follow
our instructions, misuse, or alteration or repair of the Product without
our approval;
1.2.5 the Product has been used in a domestic environment only;
1.2.6 the fault does not relate to consumable Products such as blades,
bearings, drive belts or other wearing parts which can reasonably
be expected to wear at different rates depending on usage (for full
details contact Record Power or your local Authorised Distributor);
1.2.7 the Product has not been used for hire purposes, by you or by a
previous owner;
1.2.8 the Product has been purchased by you as the guarantee is not
transferable from a private sale.
1.2.9 where the Product has been purchased from a retailer, the 5 year
guarantee is transferable and begins on the date of the first purchase
of the Product and in the event of a claim under this guarantee
proof of the original purchase date will be required to validate the
warranty period.
2 Claims Procedure
2.1 In the first instance please contact the Authorised Dealer who
supplied the Product to you. In our experience many initial problems
with machines that are thought to be due to faulty parts are actually
solved by correct setting up or adjustment of the machines. A good
Authorised Dealer should be able to resolve the majority of these
issues much more quickly than processing a claim under
the guarantee.
2.2 Any damage to the Product resulting in a potential claim under the
guarantee must be reported to the Authorised Dealer from which it
was purchased within 48 hours of receipt.
2.3 If the Authorised Dealer who supplied the Product to you has been
unable to satisfy your query, any claim made under this Guarantee
should be made directly to Record Power or its Authorised Distributor
(for details of the Authorised Distributor in your country please see
your Product manual or check www.recordpower.info for details).
The claim itself should be made in a letter setting out the date and
place of purchase, and giving a brief explanation of the problem
which has led to the claim. This letter should then be sent with
proof of the purchase date (preferably a receipt) to Record Power or
its Authorised Distributor. If you include a phone number or email
address this will help to speed up your claim.
2.4 Please note that it is essential that the letter of claim reaches Record
Power or its Authorised Distributor on the last day of this Guarantee
at the latest. Late claims will not be considered.
3 Limitation of Liability
3.1 We only supply Products for domestic and private use. You agree not
to use the Product for any commercial, business or re-sale purposes
and we have no liability to you for any loss of profit, loss of business,
business interruption or loss of business opportunity.
3.2 This Guarantee does not confer any rights other than those expressly
set out above and does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra benefit and does
not affect your statutory rights as a consumer.
4 Notice
This Guarantee applies to all Products purchased from an Authorised
Dealer of Record Power within the United Kingdom of Great
Britain and Northern Ireland. Terms of Guarantee may vary in other
countries – please check with the Authorised Distributor in your
country (details of the Authorised Distributor for your country can be
found in the manual or at www.recordpower.info).

8
2. Machine Specification
1. Getting To Know Your Planer Thicknesser
A On / off & emergency stop
B Cutter guard
C Infeed table
D Outfeed table
E Fence assembly
F Planing depth of cut adjustment
G Cutter guard rise and fall
H Machine frame
I Stand & wheel kit
J Planing extraction port (100mm)
K Thicknessing table
L Thicknessing rise and fall handle
M Thicknessing extraction port (100mm)
N Thicknessing depth gauge
O Wheel kit operating pedal
P Motor rating plate
Thicknesser Feed Rate: 5 Metres / Minutes
Cutter Block Diameter: 63 mm
Maximum Thicknessing Width: 260 mm
Maximum Planing Width: 260 mm
Planing Table Length: 1000 mm
Weight: 80 kg
Cutter Block Knives: 2
Maximum Thicknessing Height: 150 mm
Maximum Thicknesser Depth of Cut: 3 mm
Maximum Planer Depth of Cut: 3 mm
Motor: Input 2 kW
Output 1.4 kW
Size: H914 x W280 x D1200 mm
Thicknessing Sound Power Level: 99.9 dB (A)
Thicknessing Sound Pressure Level: 86.9 dB (A)
Surface Planing Sound Power level: 100.8 dB (A)
Surface Planing Sound Pressure level: 87.8 dB (A)
Full Load Current: 9.1 A
PT260 SPECIFICATION
Fig.1
L
N
M
K
O
P
B
A
C
F
G
J
I
H
D
E

9
3. Stand & Wheel Kit Assembly
3.1 Stand & Wheel Kit Assembly
CAUTION! To fit the legs the machine must be placed onto its
side. The machine is heavy. Additional help or a suitable lifting
device or support will be required for lifting the machine onto
the stand.
The stand and wheel kit comes as a self assembly unit Fig.3.1.
Stand
1. 4 x stand legs
2. 16 x nuts, bolts and washers (each)
Wheel Kit
3. 1 release catch
4. 4 x fixing Pins
5. 2 x axles
6. 2 x brace support bars
7. 7 x nuts, bolts and washers
8. Operating frame pedal
9. Operating frame
10. 2 x castors
11. 2 x fixed wheels
1
2
34
5
6
7
8
9
10
Fig.3.1
11

10
3. Stand & Wheel Kit Assembly - cont.
CAUTION! To fit the legs the machine
must be placed onto its side. The
machine is heavy. Additional help or a
suitable lifting device or support will be
required for lifting the machine onto the
stand.
Note: With the machine laying on
its side, it is easier to gain access to
the underside to secure the nuts and
washers.
3.2 Stand Assembly
1. Before laying the machine down on its side,
remove the spindle cover from the back of
the machine Fig.3.2. Or if the switch has not
yet been fitted then lay the machine down
on this side, as this is steel panelling with no
obstructions.
2. Gently lay the machine onto its side. Ensuring
that the weight of the machine is distributed
equally across the main frame.
3. With the machine on its side secure one of
the legs to the main frame of the machine, using
the nuts, bolts and washers provided Fig.3.3A,
Fig.3.3B and Fig.3.3C.
4. In the same way, attach the second leg to the
main frame Fig.3.4.
5. Continue the same process until legs three
and four have been secured to the main frame
Fig.3.5. However, it may not be possible to fix
the lower fixing bolts until the machine is in the
upright position.
6. With assistance or a suitable lifting device,
return the machine to an upright position,
ensuring that all four legs are stable and secure.
Fig.3.6. Fit the final four bolts.
CAUTION! Do not attempt to lift the
machine single handed. Seek assistance
or use a suitable lifting device.
Fig.3.3A
Fig.3.3B
Fig.3.3C
Fig.3.4Fig.3.2
Fig.3.5
Fixing bolts
Fixing nuts and washers
Fig.3.6
Fixing bolts
Lower bolts
i
Kg
i
Kg
i
Kg
Fixing holes

11
3. Stand & Wheel Kit Assembly - cont.
3.3 Wheel Kit Assembly
1. On the underside of the operating frame, find
the two flattened areas on either side. Mount
the two fixed wheels and secure in place using
the nuts and bolts provided Fig.3.7.
2. Take the two castor wheels and mount and
secure them to the operating frame pedal
Fig.3.8.
3. Feed one of the axles through the hole on the
brace support bar and secure it using one of the
pins provided Fig.3.9A and 3.9B.
4. Feed the axle through the fixing holes on both
of the legs and operating frame pedal Fig.3.10.
5. Repeat this process at the opposite side
ensuring that both sides of the axle have been
secured with the fixing pins and that both sides
of the operating frame pedal are fixed. It should
now be secure between the legs.
6. With the operating frame in hand, locate the
release catch and fix it to the operating frame
Fig.3.11.
7. Return to the stand and partially fitted wheel
kit ready to fit the operating frame to the stand.
8. Feed the second axle through the holes in the
brace support bars and legs at the other side
of the stand and secure it using the fixing pins
Fig.3.12.
9. At this point it is important to ensure that
the operating frame sits below the operating
frame pedal and that the release catch hooks
under the operating frame pedal Fig.3.13. It is
possible to adjust the operating frame to enable
the release catch to hook onto the operating
frame pedal.
Wheel Kit Operation
To operate the wheel kit press down on the
operating frame pedal Fig.3.14. This motion
raises the planer thicknesser and stand. The
release catch hooks onto the operating frame
pedal allowing the planer thicknesser to be
wheeled freely around the workshop.
To set the planer thicknesser in position, press
down on the release catch. This motion releases
the wheels and lowers the planer thicknesser
onto the legstand.
Fig.3.8
Fig.3.9A
Fig.3.12
Fig.3.7
Flattened areas
Fig.3.9B
Fixing pin
Fig.3.14
Axle
Brace support bar
Fig.3.10
Axle
FIXING PIN
Operating frame pedal
Fig.3.11
Release catch
Fig.3.13
Operating frame pedal
Release pedal
Operating frame
Fig.3.15

12
11
4. Machine Assembly
ASSEMBLY – IDENTIFYING CONTENTS
Inside the shipping container you will find the following:
1. PT260 Planer Thicknesser main body
2. Chip ejector hood
3. Extraction port
4. Switch box
5. 2 x Planer tables
6. Fence Extrusion
7. 2x wrenches
8. 2x Hex wrenches
9. Crank Handle
10 4x Pan head self tapping screw (4.8 x 13mm) and washers
11. Blade setting gauge
12. Switch screws
1
3
4
2
5
6
7
10 12
8 9
1
3 4
5
6
8
9
10
2
7
11
Stand & Wheel Kit
Stand
1. 4 x stand legs
2. 16 x nuts, bolts and washers
Wheel Kit
3. 1 release catch
4. 4 x fixing pins
5. 2 x axles
6. 2 x brace support bars
7. 7 x nuts, bolts and washers
8. Operating frame pedal
9. Operating frame
10. 2 x castors
11. 2 x fixed wheels

13
Fig.4.5 Depth Scale
4. Machine Assembly

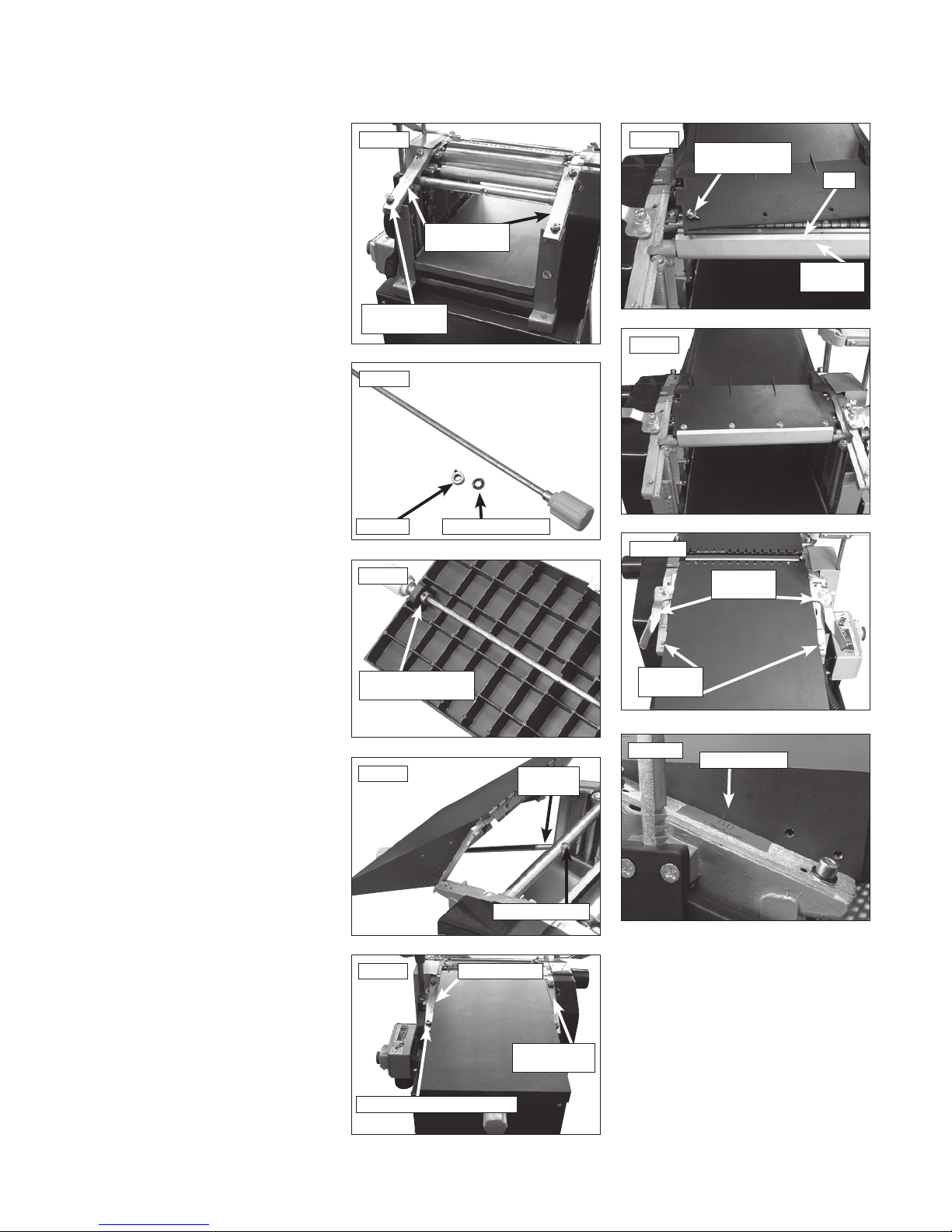

4.1 Fixing the in-feed table
1. Remove the four socket head cap screws from
table cover rails already fitted and remove the
cover rails Fig.4.1.
2. Take the in-feed depth of cut adjustment
bar and remove the collar and sprung washer
Fig.4.2.
3. Thread the bar through underside of table
then re-fit and secure collar Fig.4.3.
4. Offer the table up to the machine whilst
threading the depth of cut adjustment bar into
the spacer shaft Fig.4.4.
5. Fit the infeed table into position and wind the
depth of cut bar until the uppermost line on the
depth scale is registered with the line on the
side of the table Fig.4.5. Re-fit and secure the
table cover rails, Fig.4.6. these rails should not
be fully tightened as the table needs to slide up
and down in order to adjust the depth of cut. As
a guide fully tighten the socket head cap screws
then unscrew by 1/4 turn.
4.2 Fixing the thicknessing dust
extraction outlet
Moving round to the opposite side of the
machine, locate the slotted extrusion and place
the extraction outlet into position Fig.4.7.
Secure this outlet into slot using 4 self tapping
screws and washers Fig.4.8
4.3 Fixing the outfeed table
1. Place the outfeed table over the lugs on the
planer body and lock the table in place with the
levers. Fig.4.9.
4.4 Table adjustment
Table adjustment is not necessary at this
stage. See the table adjustment part of the
maintenance section.
Fig.4.1
Fig.4.2
SOCKET HEAD
CAP SCREW
TABLE COVER
RAILS
COLLAR
Fig.4.3
COLLAR & SPRUNG
WASHER
Fig.4.4
SPACING SHAFT
Fig.4.6
SOCKET HEAD CAP SCREW
TABLE COVER
RAIL
DEPTH OF
CUT BAR
DEPTH SCALE
Fig.4.7
Fig.4.8
Slotted
extrusion
Slot
Self tap screw
& washer
Fig.4.9
Locating
Lugs
Locking
levers
SPRUNG WASHER

14
4. Machine Assembly - cont.
4.5 Fitting the fence
Slide the fence assembly on to the fence carrier
Fig.4.10 and tighten the lower ratchet handle
to secure. Now fit the guard plate Fig.4.11.
4.6 Setting the fence
Once the fence is in position it must now be
accurately set at 90º. To do this you will need
an accurate square. Loosen the upper ratchet
handle and adjust the fence into position
against the square. Once at 90º, tighten the
upper ratchet handle to secure the position.
Now adjust the 90º stop screw against the
registration point to ensure that the fence
always returns to 90º. Fig.4.12.
This same operation should also be carried out
using a mitre square for the 45º stop screw.
4.7 Switch box
Fit the switch box to the side of the machine
Fig.4.13.
4.8 Thicknesser handle
The thicknesser handle should now be attached
with the long Phillips head screw. Fig.4.14.
Fig.4.10
Fence carrier
Fig.4.11
Lower Ratchet handle
Guard plate
Fig.4.12
Upper Ratchet handle
90º stop
screw
45º stop
screw
Fig.4.13
Fig.4.14
Switch Box
Thicknesser
Handle

15
5. Machine Set up
5.1 The lock bar wedge and planer knife
system
CAUTION! This procedure involves close
contact with the planer blade. Ensure
that gloves are worn at all times to
prevent injury to hands and ensure that
the machine is disconnected from the
power source.
During transit the planer knives may be knocked
out of alignment. It is important to check that
the knives are properly aligned and adjust if
necessary.
The knives are held on a wedge, located on two
pins, this wedge is held in place with 4 locking
nuts. It is adjusted by tightening or loosening
three jacking bolts within the wedge. Figs 5.1
& 5.2
5.2 Preparation for knife adjustment
Before making an adjustment it is advisable to
remove both wedges and knives to clean them
thoroughly. To remove the wedge and knives,
first wind all the locking nuts into the wedge,
Fig 5.3, so it all moves freely inside the cutter
block. Now ease the knife off of the front of the
wedge Fig 5.4 and remove from the block. The
wedge can now be removed as well.
Clean both parts thoroughly with white spirit.
Even the smallest amount of swarf or timber
resin can prevent the knife from seating
properly. Also give the slot in the cutter block a
wipe down with white spirit.
Once the components are clean, treat with a
lubricant such as Record Power Silicone Spray.
Check the operation of the jacking mechanism
in the wedge Fig 5.5. Clean and lubricate this
as well.
Now re-fit into the cutter block. Place the
wedge in first then fit the knife on to the wedge,
ensuring the pins seat into the location holes in
the knife Fig 5.6.
Fig.5.1
Fig.5.3
4 x locking nuts
4 x locking nuts
2 x location holes
3 x jacking screws
2 x location pins
Knife
Wedge
Knife
Wedge
Fig.5.2
Fig.5.5
Jacking screw
Fig.5.4
Easing the knife off
the front of the wedge
and removing
Fig.5.6
Pins and location holes
i
Kg

16
Centre jacking screw
5. Machine Set Up - cont.
5.3 How to adjust Planer Knives
The wedge and knives are now ready to be set.
Turn the four locking nuts anti-clockwise Fig 5.7
and tighten enough to hold the knife, but not so
hard that it cannot move. The principle is simply:
To raise the height of the knife tighten
the jacking screw, to lower slacken off
the jacking screw.
Setting planer knives is absolutely crucial to
accurate results, incorrectly set knives result in
a machine that either won’t plane at all, planes
tapers, or takes scoops (snipe) out of the end of
the work. if the blades are set too low the wood
will foul on the edge of the outfeed table, or
start to cut and then taper off. If the blades are
too high it will plane adequately but then take a
scoop (snipe) out at the end.
Listed below are a few hints to bear in
mind when setting the knives.
• The knives are set to the outfeed table, the
infeed table should be lowered out of the way.
• Adjust the centre jacking screw first and
tighten the two middle locking nuts. Fig 5.8.
Now adjust either side to match the centre. By
making the adjustments in this order it should
remedy any slight distortion which is sometimes
present in planer knives if they have been held
by magnets when being ground.
• When tightening the jacking screws do so
very delicately, even a tiny fraction of a turn can
make a big difference as the jacking points are
very sensitive.
• When slackening the jacking screws it may be
necessary to tap the top of the hex key to get
this point to seat and lower the knife
Fig 5.9
• If the jacking screw becomes difficult to turn
when raising the knife it is because the space
allowed by the locking nut has been adjusted
out Fig 5.10, simply turn the relevant locking
nut in a little so the wedge has a little more
space to slide into.
• Whether adjusting the locking nuts or jacking
screws, do so in tiny increments. It is easier to
set the knives with the locking nuts being as
tight as possible whilst still allowing movement.
In general the procedure is:
1. Tighten jacking screw a fraction
2. Slightly back off locking nut.
3. Tighten jacking screw a little more.
4. Check setting.
5. Repeat until setting has been
achieved.
4 x locking nuts
Fig.5.7
Fig.5.8
Fig.5.9
Tap the top of the
hex key
Fig.5.10
Locking nut against
cutter block. Note; if
the jacking screw is
tightened there is no
space for the wedge
to slide.
Locking nut wound
in slightly, leaving
gap for wedge to
slide into when
jacking screw is
tightened Locking nut now
tight again
Jacking screw
tightened sliding
wedge & knife
upwards
Knife
Jacking screw
Wedge
i
Kg

17
To make setting the blades an easier and
faster operation Record Power offer the
RPPSJ Planer Blade Setting Jig.
See the website for full details.
CAUTION! This procedure involves close
contact with the planer blade. Ensure
that gloves are worn at all times to
prevent injury to the hands and ensure
that the machine is disconnected from
the power source.
Use an aluminium straight edge or a perfectly
flat piece of timber preferably with quite a wide
body.
Mark on this straight edge a gap of 2-3mm
Fig.5.11.
Take the straight edge, and place in the centre of
the block, with the front mark aligned with the
edge of the outfeed table Fig.5.12.
Turn the cutterblock by hand, one turn against
the direction of feed. Take care not to touch the
blades as they are very sharp and could cause
injury. The planer knives are set correctly if the
straight edge is moved forward 2 to 3mm when
the cutterblock is turned Fig.5.13.
If the straight edge move less than 2mm or
doesn't move at all Fig.5.14 the knives are set
too low. If it moves further than 3mm they are
set too high Fig.5.15.
To set the knife projection, slacken the lock nuts
and turn the grub screws in the planer knife lock
bar with a 3mm allen key as required. Once the
centre is set, lock the two centre locking nuts
to secure the setting. Now check and adjust the
knife at both ends of the cutterblock.
Don't forget to repeat the whole process
on the second knife.
The knives are now set accurately to the
cutterblock and the table. The settings should be
given a final check and locked.
To lock the setting, turn the four 10mm headed
bolts anti-clockwise until they are tight. To
prevent distortion of the planer knife lock bar
start with the screws in the centre moving out to
the edges.
5. Machine Set Up - cont.
Fig.5.11
Straight edge with 2-3mm
gap marked out
Fig.5.12
Centre jacking
screw
Edge of
outfeed table
Fig.5.13
2-3mm of
movement
Fig.5.14
Rotate cutter
block by hand
No movement
- knives are
too low
Fig.5.15
Rotate cutter
block by hand
Too much
movement
- knives are
too high
i
Kg
Rotate cutter
block by hand

18
6. Operation & Planer Thicknesser Practice
6.1 Chip removal when planing
Set thicknessing bed to approximately 2/3
capacity and place extraction connector on to
it. Raise thicknessing bed to secure extraction
connector in position Fig.6.1a
Note: The microswitch has to be
registered for the machine to operate
Fig.6.1b. Ensure that the notches in top
of the connector locks in the spacer shaft
& depth of cut adjusting bar.
Note: Adequate dust extraction must
be used with this machine - particularly
when processing large boards. Large
volumes of chips will be produced that
will clog the cutter block and extraction
chute having adverse effects on the
finish of you work. This could also lead
to damage of the machine that may
not be covered by the warranty if an
extractor is not used.
6.2 Chip removal when thicknessing
Thicknessing without dust collector: Take off the
outfeed table, slide cutter guard clear of table
and set guard to highest position. Swing chip
ejection hood over the cutterblock and secure in
place with the lock levers, as well as lowering
the guard on to it Fig.6.2.
Thicknessing with a dust collector:
Bring chip ejection hood into position as shown,
then place the suction connector on to it
Fig.6.3. Secure with lock levers and guard.
Note: The chip ejection hood acts as a
cutterblock guard when the machine is
set up for thicknessing. Never operate
machine without chip ejection hood in
place and properly secured.
6.3 Setting cutter guard
Height adjustment is made with the lever
mounted on the left hand side of the machine.
After lifting the lock lever the cutter guard can
be slid sideways to set, Fig.6.4.
6.6 Thicknessing
Set thicknessing bed to required thickness of
workpiece (but a maximum 5mm more than
actual thickness of the workpiece).
Start machine and place workpiece with planed
side facing down on to thicknessing bed and
slowly push forward until feed roller engages.
Fig.6.1a
Fig.6.2
Fig.6.3
Fig.6.4
Fig.6.1b
i
Kg
i
Kg
Microswitch
Spacer shaft
Connector

19
6. Operation & Planer Thicknesser Practice - cont.
6.4 Planing
Fix the extraction port in position as shown in
Section 6.1.
This operation is carried out for straightening
a workpiece and for trimming the long side of
panels. Place workpiece flush on to in-feed table,
with your left hand set the cutter guard to the
required height (workpiece should be run clear
of the guard). Start the machine and push timber
slowly and steadily against the cutterblock,
moving hands over the cutter guard as the
timber is pushed under it, see Fig.6.5A.
The depth of cut can be altered by setting the
infeed table to line up with the marking on the
scale. The top line is zero and the bottom line is
a 3 mm cut. It is not advised to take the deepest
cut, a shallow cut will give better results and put
less strain on the machine Fig.6.5B .
To increase the depth of cut simply rotate the
infeed adjustment knob anti clockwise Fig.6.5C.
6.5 Jointing
For planing the narrow sides of a workpiece,
release the cutter guard's lock lever and set the
cutter guard to the width of the workpiece. The
spring on the end of the cutter guard should
exert a slight pressure against the workpiece.
Lock blade guard in place and start the machine.
Push workpiece slowly and steadily against
cutter block. Ensure that fence is set at the
required angle and the workpiece is kept flush
against the fence Fig.6.6.
This gives you 2 datum surfaces; explanation
below Fig.6.7A.
After straightening side 1, turn the workpiece
90º so that side 1 now lines up along the fence.
Surface side 2 at 90° in order to carry out
thicknessing: this way it is possible to obtain a
finished piece planed on all 4 sides.
When side 1 is positioned flat against the
thicknessing bed, side 3 is cut exactly square
Fig.6.7B. Likewise when side 2 is positioned
flat against the thicknessing bed, side 4 is cut
square the end result is a completely square
piece of timber Fig.6.7C.
Before proceeding with thicknessing, carefully
read the advice on safety and planer-protection
adjustment on the following pages.
Fig.6.5A
Fig.6.6
Fig.6.5B Depth Scale
Fig.6.5C
Adjustment Knob
90º
Fig.6.7A
Thicknessing
bed
1
3
2
Fig.6.7B Cutterblock
Thicknessing
bed
2
1
4
3
Fig.6.7C
Side 1
Fence
Surface
planing table
Surface
planing table
Side 1
Side 2
Side 1
Side 3
Side 2 Side 4Side 1
Side 3
Side 4
Side 2
Plastic spring

20
6. Operation & Planer Thicknesser Practice - cont.
Start machine and place workpiece with planned
side facing down on to thicknessing bed and
slowly push forward until feed roller engages
Fig.6.8.
IMPORTANT:
With wedge-shaped workpieces feed the thicker
end in first.
The timber will now feed through the machine
and should be removed as it travels through.
Wind the handle so the thicknessing bed is
raised 1mm on the scale and feed the timber
through again. Repeat this process until the
timber is sized as required. Although the
maximum depth of cut is 3mm, by taking off
1mm at a time the results will be much cleaner
and the machine will be under less strain.
The thicknessing bed should be
cleaned with white spirit and treated
regularly with a silicone based spray
such as Record Power CWA195. This will
enable the workpiece to move through
smoothly and cleanly, Fig.6.9.
6.7 Micro Switches
The purpose of the microswitch is to enhance
the safety of the machine by ensuring that the
cutterblock is inaccessible whilst the machine
is in operation. The PT260 is equipped with 3
safety micro switches.
1. In thicknesser mode, the extraction port
must be placed over the cutterblock, covering it
before the machine will start Fig.6.10.
2. When planing, the table lock handles must be
engaged. The micro switch registers that the lock
handle is positioned correctly and allows power
to run to the machine Fig.6.11.
3. Also when planing, the micro switch beneath
the cutterblock must register that the dust
extraction port is in place before the machine
will start Fig.6.12.
Fig.6.8
Fig.6.9
Thicknessing Bed
Fig.6.10
Fig.6.11
Fig.6.12
i
Kg
Restarting
In the Event of a Blockage or if the Machine Stalls
If the machine stalls due to the work piece becoming trapped in the cutter
block,
switch it off immediately by pressing the emergency stop button (Red button
marked ‘O’) and wait for the machine to come to a complete stop before
proceeding further.
If the work piece is trapped between the cutter block and thicknessing table,
it may be necessary to lower the thicknessing table in order to free
the blockage.
To re-start the machine, press the green button marked ‘I’ on the switch.
In the Event of a Power Failure
The machine is fitted with a no volt release (NVR) switch to protect the user
against automatic starting of the machine when power is restored
after a power failure.
In the event of a power failure, first locate and rectify the source of the
failure. If the fault is within the power circuit of the workshop, there may be
an underlying cause (circuit overload etc.) that should be investigated by a
qualified electrician, before attempting to restore the power source.
If a cutting operation was taking place when the power supply was
interrupted, then it may be necessary to free the work piece from the cutter
before attempting to re-start the machine.
Once the power is restored, the machine can be re-started by pressing the
'on' switch.
