Record Power PT107 User manual

PT107 10" x 7" Heavy Duty
Planer Thicknesser
Important
For your safety read instructions carefully before
assembling or using this product.
Save this manual for future reference.
Always wear safety glasses when
using woodworking equipment.
Always read the instructions
provided before using
woodworking equipment.
i
Kg
Version 3.2
April 2022
To register this product please visit
www.recordpower.info
It is important to register your product as soon as possible in order to receive efficient after sales
support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.
Please see back cover for contact details.
Original Instructions
PT107 Manual 3.2.indd 1PT107 Manual 3.2.indd 1 25/04/2022 14:41:1425/04/2022 14:41:14

2
Contents
Part Description Part Number
1Explanation of Symbols
2General Health & Safety Guidance
3Additional Health & Safety Guidance for Planer Thicknessers
4Record Power Guarantee
5 Specifications
6Contents of the Package

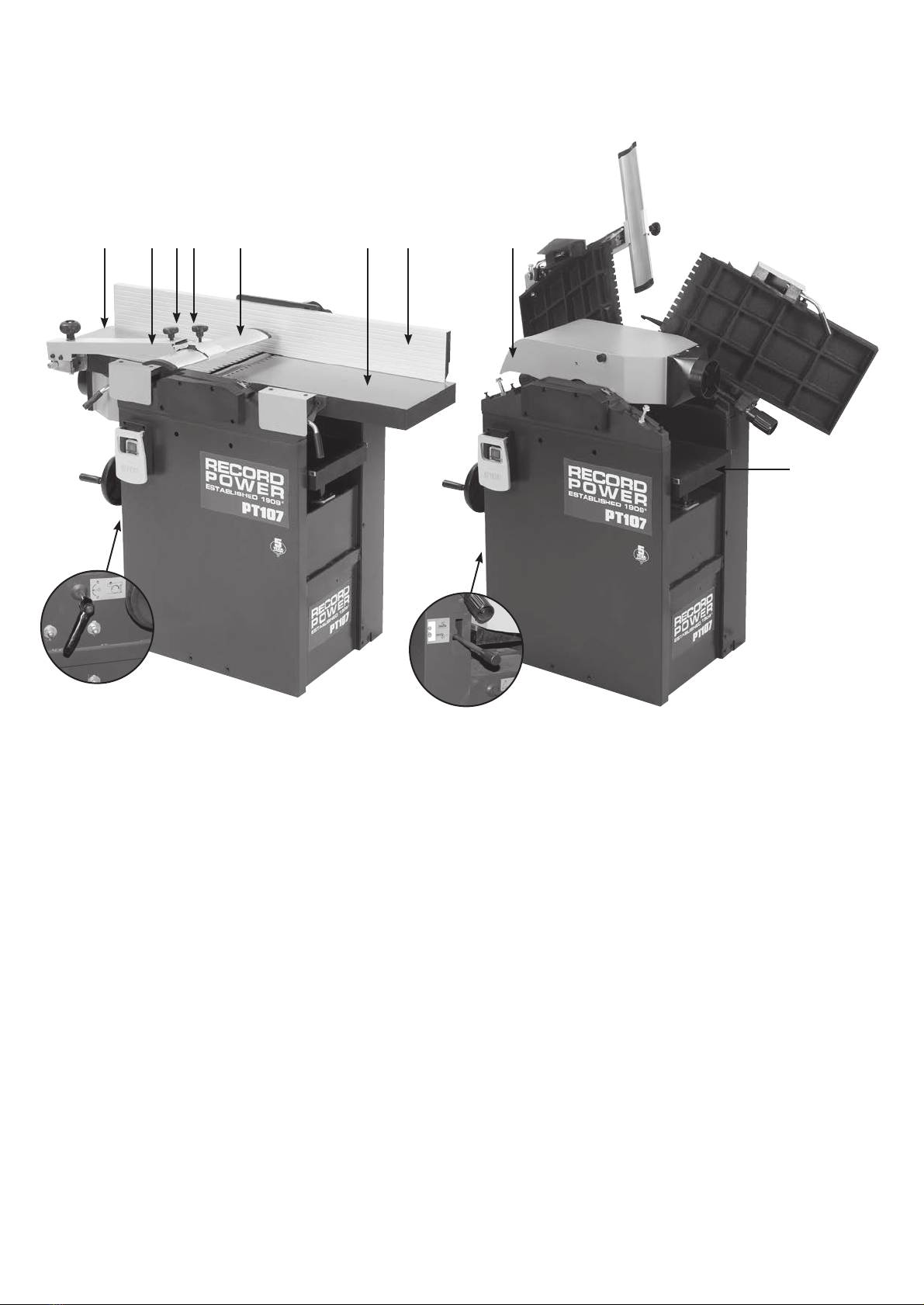

7 Getting to Know Your Planer Thicknesser
8 Assembly
9Assembly of the Optional Wheel Kit
10 Assembly of the Optional 49000 Thicknessing Table Extension
11 Operation
12 Adjustments & Maintenance
13 Dust Extraction
14 Electrical Connection & Wiring Diagram
15 Troubleshooting
16 Parts Lists & Diagrams
EU Certificate of Conformity
PT107 Manual 3.2.indd 2PT107 Manual 3.2.indd 2 25/04/2022 14:41:1425/04/2022 14:41:14

3
THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL. PLEASE ENSURE THAT YOU
TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED.
1. Explanation of Symbols
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
i
Kg
Mandatory
Instructions
Warning
Read and fully understand the instruction manual
before attempting to use the machine.
Indicates an instruction that requires particular attention
Wear protective eyewear
Use respiratory protective equipment
Use suitable protective footwear
Use hearing protection
Use protective work gloves
Indicates a risk of severe personal injury or
damage to the machine
Indicates a risk of severe personal injury
from electrical shock
Risk of personal injury from lifting of heavy items
Indicates a risk of severe personal injury from
airborne objects
Risk of fire
i
Kg
i
Kg
i
Kg
i
Kg
PT107 Manual 3.2.indd 3PT107 Manual 3.2.indd 3 25/04/2022 14:41:1425/04/2022 14:41:14

4
2. General Health & Safety Guidance
Ensure that you carefully read and fully understand the
instructions in this manual before assembly, installation and use
of this product. Keep these instructions in a safe place for future
reference.
WARNING: for your own safety, do not attempt to operate this machine
until it is completely assembled and installed according to these
instructions.
WARNING: When using any machine, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and
personal injury.
Safe Operation
1. Use Personal Protective Equipment (PPE)
• The operation of any machine can result in foreign objects being thrown
into your eyes, which can result in severe eye damage. Protective eyewear
or other suitable eye protection or face shield should be used at all
times. Everyday spectacles only have impact resistant lenses. They are not
protective eyewear and do not give additional lateral protection.
• Use respiratory protective equipment (dust mask etc.) if the machining
operation creates dust. Exposure to high levels of dust created by
machining hardwoods, softwoods and man made composite boards can
result in serious health problems. Some imported hardwoods give off
highly irritating dust, which can cause a burning sensation. The use of
respiratory protective equipment should not be seen as an alternative to
controlling the risk of exposure at source by using adequate dust
extraction equipment.
• The use of ear plugs or ear defenders is recommended when the machine
is in use, particularly if the noise level exceeds 85 dB.
• Wear suitable protective gloves when handling cutting tools or blades.
Gloves should NOT be worn when using the machine as they can be
caught in moving parts of the machine.
• Non-slip safety footwear is recommended when using the machine and
handling large work pieces.
2. Dress appropriately
• Do not wear loose clothing, neckties or jewellery; they can be caught in
moving parts of the machine.
• Roll up long sleeves above the elbow.
• Wear protective hair covering to contain long hair.
3. Safety warnings
• Find and read any warning labels on the machine
• It is important that any labels bearing health and safety warnings are
not removed, defaced or covered. Replacement labels can be obtained by
contacting our Customer Service Department.
4. Familiarise yourself with the machine
• If you are not thoroughly familiar with the operation of this machine,
obtain advice from your supervisor, instructor, or other qualified person or
contact your retailer for information on training courses. Do not use this
machine until adequate training has been undertaken.

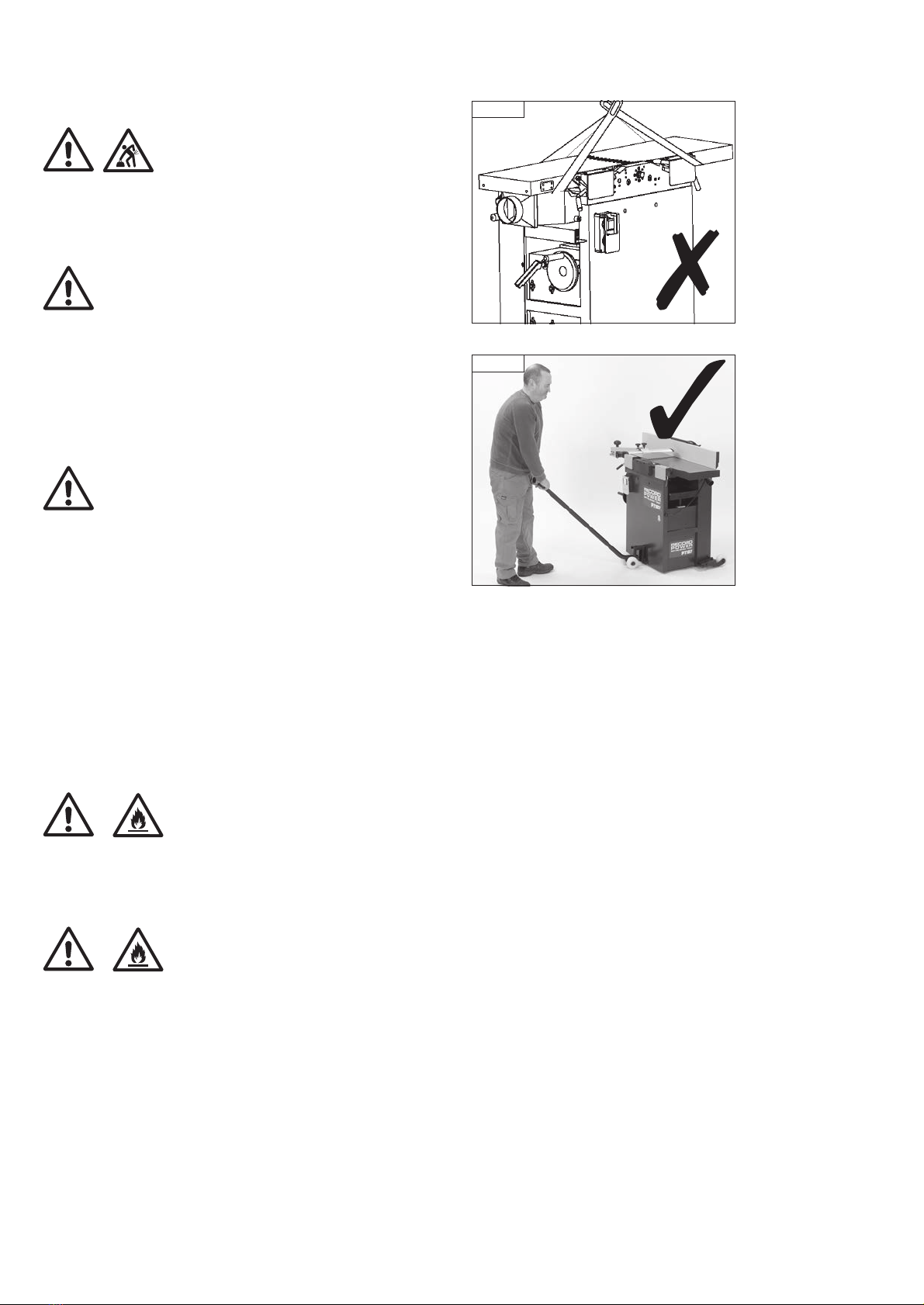

5. Take care when moving or positioning the machine
• Some machines can be very heavy. Ensure the floor of the area
in which the machine is to be used is capable of supporting
the machine.
• The machine and its various components can be heavy.
Always adopt a safe lifting technique and seek assistance when lifting
heavy components. In some cases it may be necessary to use mechanical
handling equipment to position the machine within the work area.

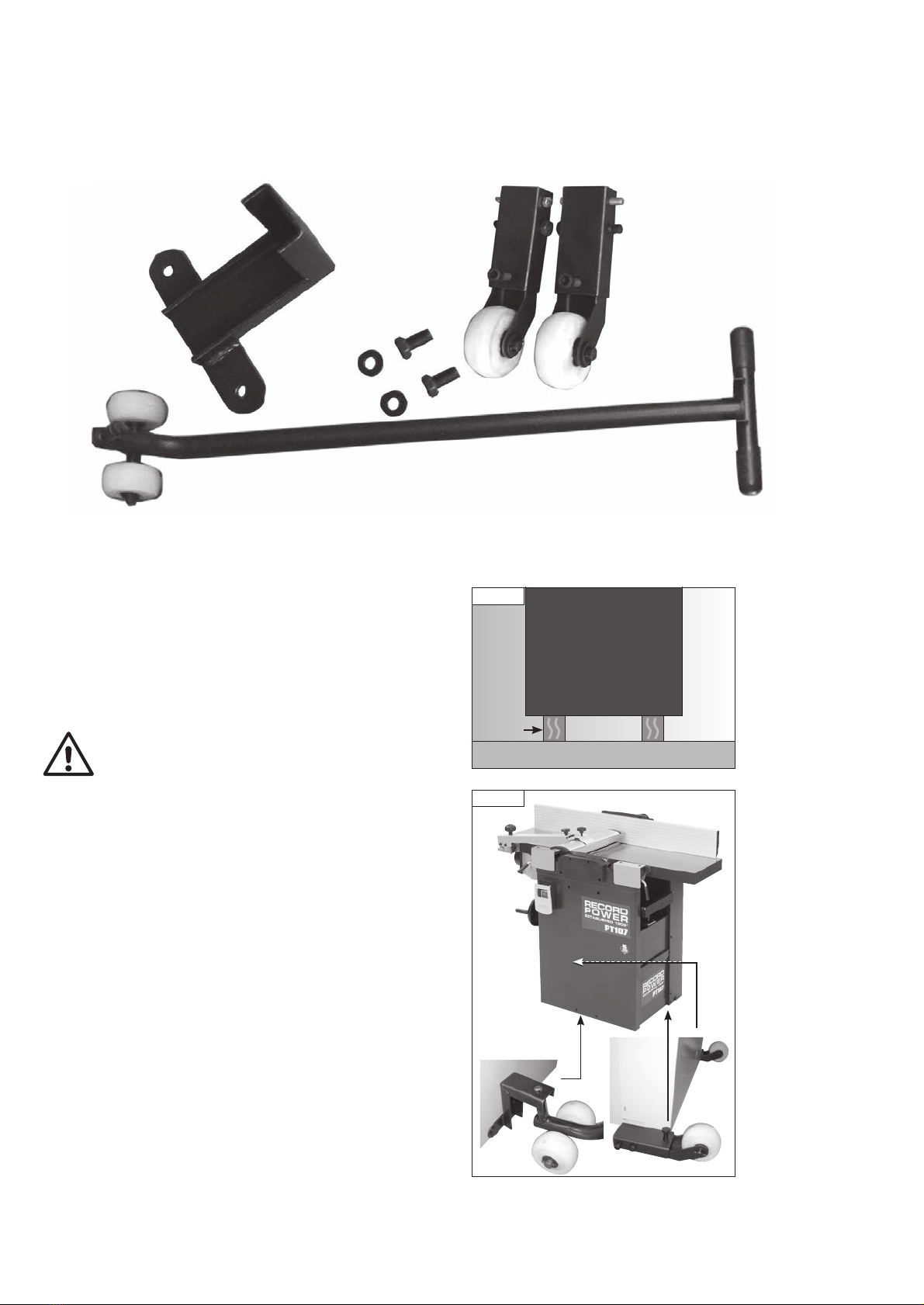

• Some machines have optional wheel kits available to allow them to be
manoeuvred around the workshop as required. Care should be taken to
install these according to the instructions provided.
• Due to the nature of the design of some machines the centre of gravity
will be high making them unstable when moved. Extreme care should be
taken when moving any machine.
• If transportation of the machine is required then all precautions relating
to the installation and handling of the machine apply. In addition, ensure
that any vehicles or manual handling equipment used for transportation
are of adequate specification.
6. The machine should be level and stable at all times
• When using a leg stand or cabinet base that is designed to be fitted to
the machine, always ensure that it is securely fastened to the machine
using the fixings provided.
• If the machine is suitable to be used on a workbench, ensure that the
workbench is well constructed and capable of withstanding the weight
of the machine. The machine should always be securely fastened to the
workbench with appropriate fixings.
• Where possible, floor standing machines should always be secured to the
floor with fixings appropriate to the structure of the floor.
• The floor surface should be sound and level. All of the feet of the machine
should make contact with the floor surface. If they do not, either re-locate
the machine to a more suitable position or use packing shims between
the feet and the floor surface to ensure the machine is stable.
7. Remove adjusting keys and wrenches
• Ensure that all adjusting wrenches and keys are removed before
switching the machine ‘ON’. There is a risk of severe personal injury or
damage to the machine from airborne objects.
8. Before switching the machine ‘ON’
• Clear the machine table of all objects (tools, scrap pieces etc.)
• Make sure there is no debris between the work piece and the
table / work support.
• Ensure that the work piece is not pressed against, or touching the saw
blade or cutting tool.
• Check all clamps, work holding devices and fences to ensure that they
are secure and cannot move during machining operations.
• Plan the way that you will hold and feed the work piece for the entire
machining operation.
9. Whilst machining
• Before starting work, watch the machine while it runs. If it makes
an unfamiliar noise or vibrates excessively, switch the machine ‘OFF’
immediately and disconnect it from the power supply. Do not restart until
finding and correcting the source of the problem.
10. Keep the work area clear
• Working clearances can be thought of as the distances between
machines and obstacles that allow safe operation of every machine
without limitation. Consider existing and anticipated machine needs, size
of material to be processed through each machine and space for auxiliary
stands and/or work tables. Also consider the relative position of each
machine to one another for efficient material handling. Be sure to allow
yourself sufficient room to safely operate your machines in any
foreseeable operation.
• Cluttered work areas and benches create the risk of accidents. Keep
benches clear and tidy away tools that are not in use.
• Ensure that the floor area is kept clean and clear of any dust and debris
that may create trip or slip hazards.
11. Consider the work area environment
• Do not expose the machine to rain or damp conditions.
• Keep the work area well lit and ensure that there is artificial lighting
available when there is insufficient natural light to effectively light the
work area. Lighting should be bright enough to eliminate shadow and
prevent eye strain.
• Do not use the machine in explosive environments eg. in the presence of
flammable liquids, gases or dust.
• The presence of high levels of dust created by machining wood can
present a risk of fire or explosion. Always use dust extraction equipment
to minimise the risk.
12. Keep other persons away (and pets)
• The machine is designed to be used by one person only.
• Do not let persons, especially children, touch the machine or extension
cable (if used) and keep visitors away from the work area.
• Never leave the machine running unattended. Turn the power supply off
and do not leave the machine unattended until it comes to a
PT107 Manual 3.2.indd 4PT107 Manual 3.2.indd 4 25/04/2022 14:41:1425/04/2022 14:41:14

5
2. General Health & Safety Guidance cont.
complete stop.
• If the work area is to be left unattended, all machinery should be
switched ‘OFF’ and isolated from the mains power supply.
13. Store machines safely when not in use
• When not in use, machines should be stored in a dry place, out of reach
of children. Do not allow persons unfamiliar with these instructions or
with the machine to operate it.
14. Do not overreach
• Choose a working position that allows your body to remain balanced and
feed the work piece in to the machine without overreaching.
• Keep proper footing and balance at all times.
15. Electrical supply
• Electrical circuits should be dedicated to each machine or large enough to
handle combined motor amp loads. Power outlets should be located near
each machine so that power or extension cables are not obstructing high-
traffic areas. Observe local electrical guidelines for proper installation of
new lighting, power outlets, or circuits.
• The machine must be connected to an earthed power supply.
• The power supply must be equipped with a circuit breaker that provides
short circuit, overload and earth leakage protection.
• The voltage of the machine must correspond to the voltage of the mains
power supply.
• The mains plug fitted to the machine should always match the power
outlet. Do not modify the plug in any way. If a replacement plug is
required it should be fitted by a competent person and of the correct type
and rating for the machine.
• If you are unsure about any electrical connections always consult a
qualified electrician.
16. Avoid unintentional starting of the machine
• Most machines are fitted with a no-volt release (NVR) switch to prevent
unintentional starting. If in doubt always ensure the machine switch
is in the ‘OFF’ position before connecting it to the power supply. This
means the machine will not automatically start up after a power cut or
switching on of the power supply, unless you first reset the start switch.
17. Outdoor use
• Your machine should not be used outdoors.
18. Extension cables
• Whenever possible, the use of extension cables is not recommended.
If the use of an extension cable is unavoidable, then it should have a
minimum core cross section of 2.5 mm² and limited to a maximum length
of 3 metres.
• Extension cables should be routed away from the direct working area to
prevent a trip hazard.
19. Guard against electric shock
• Avoid body contact with earthed or grounded surfaces such as pipes
and radiators. There is an increased risk of electric shock if your body is
earthed or grounded.
20. Always work within the machine’s intended capacities
• Operator safety and machine performance are seriously adversely
affected if attempts to make the machine perform beyond its limits are
made.
21. Do not abuse the power cable
• Never pull the power cable to disconnect it from the power socket.
Always use the plug.
• Keep the power cable away from heat, oil and sharp edges.
• Do not use the power cable for carrying or moving the machine.
22. Secure the work piece
• Ensure that the work piece is securely held before starting to machine it.
• When working within 300 mm of the machining area, always use a push
stick to feed the work piece in to the blade or cutting tool. The push stick
should have a minimum length of 400 mm. If the push stick becomes
damaged, replace it immediately.
• Use extra supports (roller support stands etc.) for any work pieces large
enough to tip when not held down to the table top.
• Do not use another person as a substitute for a table extension, or as
additional support for a work piece that is longer or wider than the basic
table, or to help feed, support, or pull the work piece.
• Do not attempt to machine more than one work piece at a time.
• When feeding the work piece towards the blade or cutting tool never
position your hands in direct line of the cutting path. Avoid awkward
operations and hand positions where a sudden slip could cause your
hand or fingers to move into the machining area.
23. Stay alert
• Safety is a combination of operator common sense and alertness at all
times when the machine is being used.
• Use all machines with extreme care and do not use the machine when
you are tired or under the influence of drugs, alcohol or medication.
24. Use the correct tool for the job
• Do not use the machine for any purpose other than which it
was designed.
• When selecting replacement cutting tools and blades, always ensure that
they are designed to cut the material that you intend to use them for. If
in any doubt seek further advice from the manufacturer.
25. Connect dust extraction equipment
• Always use dust extraction equipment. The dust extractor should be of
suitable size and capacity for the machine that it is connected to and
have a filtration level appropriate to the type of waste being collected.
Refer to the relevant section of the manual for details of the specific dust
extraction requirements for this machine.
• The dust extractor should be switched ‘ON’ before starting the machine
that it is connected to. The dust extractor should be left running for 30
seconds after the last machining operation is complete in order to clear
any residual waste from the machine.
26. Ensure that the machine is correctly guarded
• Never use the machine if any of the standard safety guards and
equipment are removed or damaged.
• Some machines incorporate safety interlocks to prevent the machine
from being used without the guards in place. Never attempt to bypass or
modify the interlocks to allow the machine to be used without the guards
in place.
27. Maintain your machine with care
• This manual gives clear instructions on installation, set up and
operation of the machine and also details any routine and preventative
maintenance that should be performed periodically by the user.
• Remember always to switch off and unplug the machine from the power
supply before carrying out any setting up or maintenance operations.
• Follow any instructions for the maintenance of accessories
and consumables.
• Do not use compressed air to clean the machine. Always use a brush to
dislodge dust in places that are awkward to reach and a dust extractor to
collect the waste.
• Inspect electric cables periodically and, if damaged, have them replaced
by an authorised service facility or qualified electrician.
• Inspect extension cables (if used) periodically and replace if damaged.
28. Keep cutting tools sharp and clean
• Correctly maintained cutting tools are easier to control and less likely
to bind.
• Cutting tools and blades can become hot during use. Take extreme care
when handling them and always allow them to cool before changing,
adjusting or sharpening them.
29. Disconnect the machine from the power supply
• When not in use, before servicing, changing blades etc. always disconnect
the machine from the power supply.
30. Check for damaged parts
• Before each use of the machine, it should be carefully checked to
determine that it will operate properly and perform its
intended function.
• Check for alignment of moving parts, binding of moving parts, breakage
PT107 Manual 3.2.indd 5PT107 Manual 3.2.indd 5 25/04/2022 14:41:1425/04/2022 14:41:14

6
2. General Health & Safety Guidance cont.
of parts and any other conditions that may affect the operation of
the machine.
• A guard or other part that is damaged should be properly repaired
or replaced by a qualified person unless otherwise indicated in this
instruction manual.
• Do not use the machine if the switch does not turn the machine ‘ON’
and ‘OFF’.
• Have defective switches replaced by a qualified person.
31. Warning!
• The use of any accessory or attachment, other than those recommended
in this instruction manual, or recommended by our Company may present
a risk of personal injury or damage to the machine and invalidation of
the warranty.
32. Have your machine repaired by a qualified person
• This machine complies with the relevant safety rules and standards
appropriate to its type when used in accordance with these instructions
and with all of the standard safety guards and equipment in place. Only
qualified persons using original spare parts should carry out repairs.
Failure to do this may result in considerable danger to the user and
invalidation of warranty.
33. Caution! Motor may become hot during use
• It is normal for motors on some machines to become hot to the touch
during use. Avoid touching the motor directly when in use.
PT107 Manual 3.2.indd 6PT107 Manual 3.2.indd 6 25/04/2022 14:41:1425/04/2022 14:41:14

7
WARNING: FOR YOUR OWN SAFETY, DO NOT ATTEMPT TO
OPERATE YOUR PLANER THICKNESSER UNTIL IT IS COMPLETELY
ASSEMBLED AND INSTALLED ACCORDING TO
THESE INSTRUCTIONS
Safe Operation
1. The planer thicknesser should be level and stable at all times
• If using an optional wheel kit to position the machine within your
workshop, never attempt to move the machine with the surface tables in
the raised position as this will raise the centre of gravity and make the
machine unstable.
2. Familiarise yourself with the machine
• Machining operations using planer thicknessers have a history of serious
accidents. Most accidents resulted from contact with the cutter block
when surface planing due to the guard being incorrectly adjusted or
missing from the machine.
• The machine is designed for planing hard and soft woods. It is not
designed for planing any other material.
• Do not attempt to perform rebating, moulding, cutting tenons and
recessing. The machine is designed to prevent these operations from
being performed. Do not modify the machine in order to attempt any of
these operations.
3. Before switching the machine ‘ON’:
• Set and secure safety guards in position before operating the machine.
Adjust the guards to suit the size of work piece. Full details of the correct
setting of the guards is included within the manual.
• Before starting work, watch the planer while it runs. If it makes an
unfamiliar noise or vibrates excessively, switch the machine ‘OFF’
immediately and disconnect it from the power supply. Do not restart until
finding and correcting the problem.
• Regularly check that the blades and lock bars are locked tight in the
cutter block.
• Regularly check the anti-kickback fingers of the thicknesser for proper
operation.
• Make sure there are no nails, screws or foreign objects in the part of the
work piece to be planed.
• Make sure there is no debris between the work piece and the table or
fence.
• Check that the fence, guards and work holding devices are secure and
that the fixings for them are fully tightened.
• Clear the planing tables of all objects (tools, scrap pieces etc.).
• Plan the way you will hold and feed the work piece from start to finish.
4. Whilst planing:
• Never remove any of the safety guards. Keep guards operational at all
times.
• Use extra caution with large, very small or irregularly shaped
work pieces.
• Use extra supports (roller support stands etc) for any work pieces large
enough to tip when not held down to the table top.
• Do not use another person as a substitute for a table extension, or as
additional support for a work piece that is longer than the basic planer
table, or to help feed, support, or pull the work piece.
• When planing irregularly shaped work pieces, or chamfering with the
fence at 45º, plan your work support so it will not slip and be pulled
from your hands.
• When planing short work pieces an additional push block should be
used. Never attempt to plane a work piece that is too small to hold
by hand.
• Avoid awkward operations and hand positions where a sudden slip could
cause fingers or hands to move into the cutter block.
• Never make planing cuts deeper than 3mm / 1/8”.
• Plane only one work piece at a time.
• Keep your face and body to one side, out of line with a possible
kick back.
• If the work piece binds when thicknessing the machine may stall. If
this happens, switch the machine ‘OFF’ immediately and follow the
instructions detailed in the manual for safely removing the work piece.
Do not attempt to free the work piece whilst the machine is running.
5. Maintenance:
• Regularly check that all safety guards are present and in full
working order.
• Regularly check that the bridge guard moves freely, both horizontally
and vertically.
• Keep the guards clean and free from waste material and deposits
of resin.
• Regularly clean the planer table and thicknesser bed and apply a suitable
lubricant (silicone wax or spray to help the work piece slide easily.
• The planer knives should be sharpened regularly to reduce the risk of
snatching and kick back.
• Do not exceed maximum allowable blade projection over cutter block of
1.0mm/ 0.040 inch +10%.
6. This machine falls under the scope of the ‘Health & Safety at Work etc.
Act 1974’, and the ‘Provision & Use of Work Equipment Regulations 1998’.
In addition the elimination or control of risks from wood dust is included in
the above regulations and the ‘Control of Substances Hazardous to Health
(COSHH) Regulations 2002’. We recommend that you study and follow
these regulations.
Further guidance is available from The Health & Safety Executive and their
website www.hse.gov.uk.
3. Additional Health & Safety Guidance for
Planer Thicknessers
PT107 Manual 3.2.indd 7PT107 Manual 3.2.indd 7 25/04/2022 14:41:1425/04/2022 14:41:14

8
4. Record Power Guarantee
“Products” means the Products sold by Record Power subject to these
terms and conditions;
“Record Power” is Record Power Limited, whose company registration
number is 4804158 and registered office address is Centenary House,
11 Midland Way, Barlborough Links, Chesterfield, Derbyshire, S43 4XA and
sells through a network of Authorised Dealers;
“Authorised Distributor” is the nominated importer for your region
who will generally sell through a network of Authorised Dealers. Details of
Authorised Distributors for specific countries can be found in the Product
manual or at www.recordpower.info;
“Authorised Dealer” is a retailer or business authorised to sell Record
Power Products to end users.
1 Guarantee
1.1 Record Power guarantees that for a period of 5 years from the date
of purchase the components of qualifying Products (see clauses 1.2.1
to 1.2.9) will be free from defects caused by faulty construction
or manufacture.
1.2 During this period Record Power, its Authorised Distributor or
Authorised Dealer will repair or replace free of charge any parts
which are proved to be faulty in accordance with paragraphs 1.1
above provided that:
1.2.1 you follow the claims procedure set out in clause 2 below;
1.2.2 Record Power, our Authorised Distributor or Authorised Dealer are
given a reasonable opportunity after receiving notice of the claim to
examine the Product;
1.2.3 if asked to do so by Record Power, its Authorised Distributor or
Authorised Dealer, you return the Product, at your own cost, to
Record Power's premises or other approved premises such as those
of the Authorised Distributor or supplying Authorised Dealer, for the
examination to take place;
1.2.4 the fault in question is not caused by industrial use, accidental
damage, fair wear and tear, wilful damage, neglect, incorrect
electrical connection, abnormal working conditions, failure to follow
our instructions, misuse, or alteration or repair of the Product without
our approval;
1.2.5 the Product has been used in a domestic environment only;
1.2.6 the fault does not relate to consumable Products such as blades,
bearings, drive belts or other wearing parts which can reasonably
be expected to wear at different rates depending on usage (for full
details contact Record Power or your local Authorised Distributor);
1.2.7 the Product has not been used for hire purposes, by you or by a
previous owner;
1.2.8 the Product has been purchased by you as the guarantee is not
transferable from a private sale.
1.2.9 where the Product has been purchased from a retailer, the 5 year
guarantee is transferable and begins on the date of the first purchase
of the Product and in the event of a claim under this guarantee
proof of the original purchase date will be required to validate the
warranty period.
2 Claims Procedure
2.1 In the first instance please contact the Authorised Dealer who
supplied the Product to you. In our experience many initial problems
with machines that are thought to be due to faulty parts are actually
solved by correct setting up or adjustment of the machines. A good
Authorised Dealer should be able to resolve the majority of these
issues much more quickly than processing a claim under
the guarantee.
2.2 Any damage to the Product resulting in a potential claim under the
guarantee must be reported to the Authorised Dealer from which it
was purchased within 48 hours of receipt.
2.3 If the Authorised Dealer who supplied the Product to you has been
unable to satisfy your query, any claim made under this Guarantee
should be made directly to Record Power or its Authorised Distributor
(for details of the Authorised Distributor in your country please see
your Product manual or check www.recordpower.info for details).
The claim itself should be made in a letter setting out the date and
place of purchase, and giving a brief explanation of the problem
which has led to the claim. This letter should then be sent with
proof of the purchase date (preferably a receipt) to Record Power or
its Authorised Distributor. If you include a phone number or email
address this will help to speed up your claim.
2.4 Please note that it is essential that the letter of claim reaches Record
Power or its Authorised Distributor on the last day of this Guarantee
at the latest. Late claims will not be considered.
3 Limitation of Liability
3.1 We only supply Products for domestic and private use. You agree not
to use the Product for any commercial, business or re-sale purposes
and we have no liability to you for any loss of profit, loss of business,
business interruption or loss of business opportunity.
3.2 This Guarantee does not confer any rights other than those expressly
set out above and does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra benefit and does
not affect your statutory rights as a consumer.
4 Notice
This Guarantee applies to all Products purchased from an Authorised
Dealer of Record Power within the United Kingdom of Great
Britain and Northern Ireland. Terms of Guarantee may vary in other
countries – please check with the Authorised Distributor in your
country (details of the Authorised Distributor for your country can be
found in the manual or at www.recordpower.info).
PT107 Manual 3.2.indd 8PT107 Manual 3.2.indd 8 25/04/2022 14:41:1425/04/2022 14:41:14

9
5. Specifications
Cutter block diameter: 75 mm
Number of cutters: 3
Blade size: 260 x 18.5 x 3 mm
Cutter block speed: 4000 rpm
Planing table size: 1100 x 265 mm
Maximum planing width: 265 mm
Thicknessing table size: 600 x 265 mm
Maximum thicknessing width: 265 mm
Maximum planing depth of cut: 3 mm
Maximum thicknesser depth of cut: 2 mm
Maximum thicknessing height: 190 mm
Thicknesser feed rate: 5 metres / minute
Fence size: 1080 x 130 mm
Fence tilt: 90º - 45º
Dust port diameter: 100 mm
Weight: 162 kg
Sound power level: 85 db(a) / 106 db(a) unloaded /
loaded
Sound pressure level: 83 db(a) / 100 db(a) unloaded /
loaded
Motor: 230 v / 50 hz / 3 hp / 2200 w
Full load current: 9.7 A
6. Contents of the Package
1 PT107 Planer Thicknesser
2Fence bracket
3Bridge guard bracket
4Fence carrier
5Emergency stop cover
6Ratchet handles and M8 washers x 2
7Bridge guard
8Fence
9Spindle cover screws x 4
10 M5 hex head socket bolts x 2
11 Spindle cover
12 3 mm hex wrench
13 Blade setting jig
14 10 / 8 mm wrench
15 13 mm wrench
16 Push block
3
5
4
6
11
13
12 14
15
7
8
9 10
16
1
2
PT107 Manual 3.2.indd 9PT107 Manual 3.2.indd 9 25/04/2022 14:41:2325/04/2022 14:41:23

10
12
14
7. Getting to Know Your Planer Thicknesser
1 Fence
2 Outfeed table
3 Infeed table
4 Table lock
5 Bridge guard
6 Bridge guard bracket
7 Bridge guard adjustment knobs
8 Dust extraction hood
9 Thicknesser table lock lever
10 Thicknessing table hand wheel
11 Power switch
12 Thicknesser table
13 Thicknesser feed clutch
14 Infeed table adjustment handle
1 82 6 7 5
4
10
913
3
11
PT107 Manual 3.2.indd 10PT107 Manual 3.2.indd 10 25/04/2022 14:41:3625/04/2022 14:41:36

11
8. Assembly
Fig 8.1
Fig. 8.2
Unpacking
The planer thicknesser is a heavy machine. DO NOT over-exert yourself. while
unpacking or moving the machine. You will need assistance and possibly
powered equipment to move it. Serious personal injury may occur if safe
moving methods are not adhered to.
Warning: Never lift the machine by the planer tables when
unloading as shown in Fig. 8.1. Belt and chains may only be
attached to the stand.
Ensure that lifting gear used has an adequate capacity and the load is
secured against lateral slipping.
Unloading can be performed using a forklift, pallet jack or crane.
Use of the PT107/W Jockey Style Wheel Kit is recommended for transport of
the machine, Fig. 8.2.
Warning: Some metal parts may have sharp edges on them.
Please examine the edges of all metal parts before handling
them. Failure to do so could result in injury.
i
Kg
i
Kg
i
Kg
i
Kg
Cleaning
The unpainted surfaces are coated with a waxy oil to protect them from
corrosion during transport. Remove this protective coating with a solvent
cleaner, de-greaser or white spirit. For optimum performance of the machine,
make sure to clean all moving parts or sliding contact surfaces that are
coated. Avoid chlorine-based solvents as they may damage painted surfaces
should they come in contact with them.
After cleaning it is recommended that Record Power CWA195 Silicone Spray
or wax be applied to the tables to give smooth movement of timber.
Warning: Do not use gasoline or other petroleum-based solvents
to clean with. They have low flash points which make them
extremely flammable. A risk of explosion and burning exists if
these products are used.
Warning: Do not smoke while using solvents. A risk of explosion
or fire exists and may result in serious personal injury.
i
Kg
i
Kg
i
Kg
i
Kg
PT107 Manual 3.2.indd 11PT107 Manual 3.2.indd 11 25/04/2022 14:41:4225/04/2022 14:41:42

12
Fitting the Bridge Guard & Bracket
The bridge guard bracket is supplied with an M10 x 100 mm securing bolt,
spacer plate and nylon locking nut already fitted, Fig. 8.3. Remove the nut
and attach the bracket to the outfeed table by screwing the bolt into the
threaded hole in the outfeed table, locating the hole in the spacer plate over
the registration collar and securing with the nylon locking nut, Fig 8.4. To fit
the nut, access to the bolt is gained from the underside of the outfeed table,
Fig. 8.5.
Slide the bridge guard into the holder on the bracket as shown in Fig 8.6
and tighten the locking knob on top of the holder.
8. Assembly
Fig 8.7 Hex head
socket bolts
Fig 8.4
Spacer plate
Registration
collar
Fig 8.5
Table
Nylon
locking
nut
Fig 8.6 Locking knob
Fig 8.3
Securing
bolt
Nylon locking nut
Spacer
plate
Threaded
hole
Registration
collar
Fitting the Fence
Attach the fence carrier to the machine body using the 2 hex head socket
bolts as shown in Fig. 8.7.
PT107 Manual 3.2.indd 12PT107 Manual 3.2.indd 12 25/04/2022 14:41:5425/04/2022 14:41:54

13
8. Assembly
Fig 8.8
Fig 8.9
Plate
Fig 8.11 Ratchet
handles
Fence
Fence
stop
Fig 8.10
Threaded holes
Slide the fence bracket into the carrier as shown in Fig. 8.8.The bracket can
be locked in position using the locking handle of the carrier. Ensure that the
plate attached to the underside of the locking handle mount is positioned
beneath the locking handle as shown in Fig. 8.9.
The fence features a moving plate with threaded holes inside the groove on
the rear of the fence, Fig. 8.10. Attach the fence to the bracket by screwing
the two bolts with ratchet handles attached into the holes as shown in Fig.
8.11. Ensure the washers supplied are placed between the ratchet handles
and the fence bracket as shown.
Fig 8.12
Cutter
block
Fence
Outfeed
table
Infeed
table
The fence features a stop which must always be positioned as shown in Fig.
8.11. The fence is shaped to allow maximum support to the workpiece by
having a deeper surface on its right hand side, see Fig. 8.12. The left hand
side of the fence is raised to give clearance to the outfeed table. The purpose
of the stop is to eliminate the risk of the fence being positioned so the lower
part of it comes into contact with the cutter block.
i
Kg
PT107 Manual 3.2.indd 13PT107 Manual 3.2.indd 13 25/04/2022 14:42:0325/04/2022 14:42:03

14

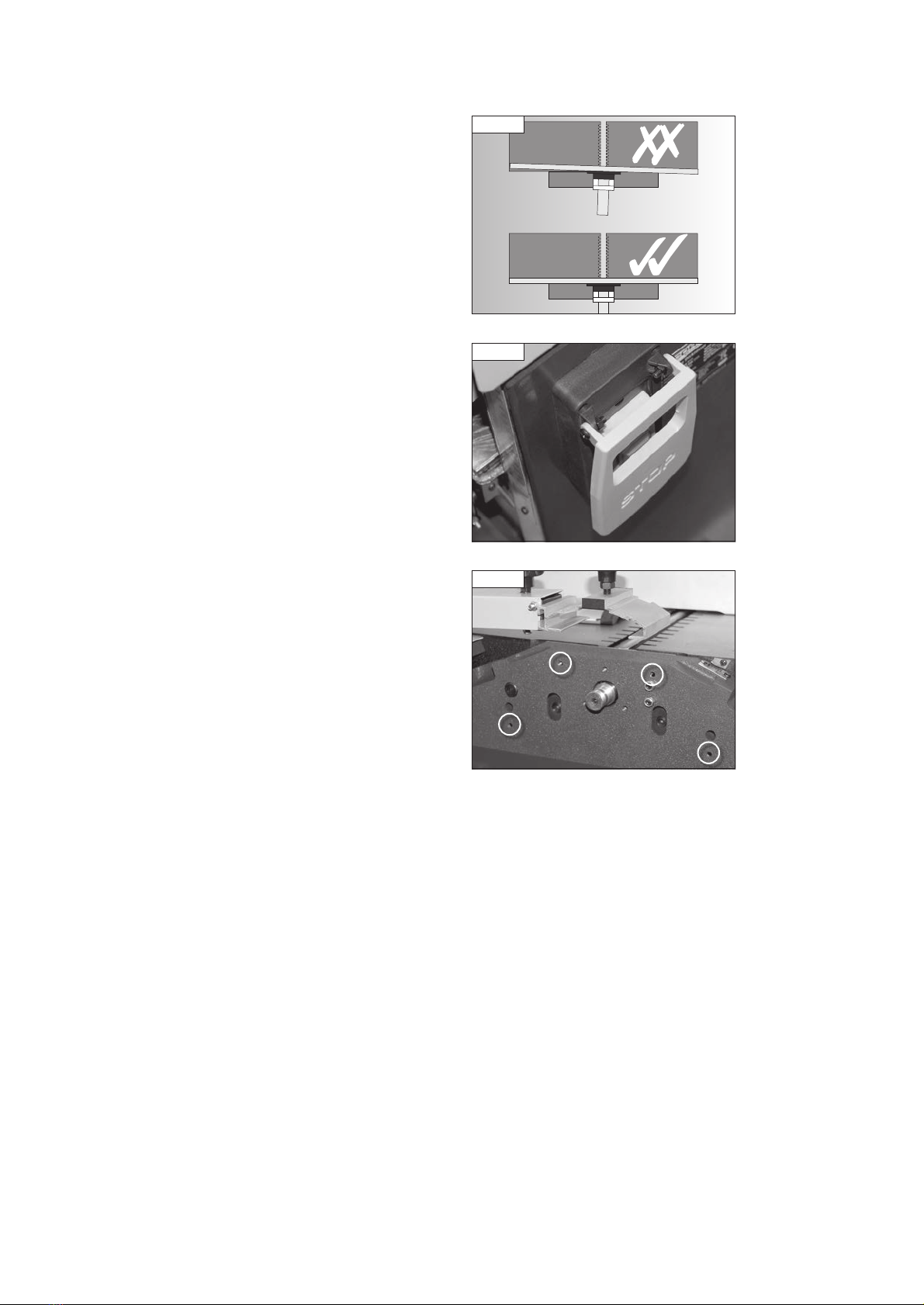

Once the whole fence assembly is installed, check that the fence is square
to the table. If not, adjust the position of the fence carrier until alignment is
achieved. See Fig. 8.13.
Attach the switch cover to the switch box on the front of the machine as
shown in Fig. 8.14 using the nuts and bolts supplied pre-assembled to the
switch cover.
To fit the spindle cover, pass the spindle cover screws through the holes in
the cover and screw into the threaded holes on the side of the machine as
shown in Fig. 8.15.
Fig 8.14
Fig 8.15
8. Assembly
Fig 8.13
PT107 Manual 3.2.indd 14PT107 Manual 3.2.indd 14 25/04/2022 14:42:0825/04/2022 14:42:08

15
9. Assembly of the Optional Wheel Kit
Fig. 9.1
12
3
4
Contents of the Package
See Fig. 9.1.
1Lifting bracket
2Wheel assemblies, hex head nuts and bolts x 2
3Hex head nuts and bolts x 2
4Jockey bar and wheels
Access to the underneath of the machine is required to fit the nuts to the
bolts which hold the wheel kit components to the machine. To do this safely,
mount the machine securely on blocks of wood which are tall enough to
allow access, Fig. 9.2.
DO NOT attempt to gain access to the underneath of the
machine by tipping it as this introduces the risk of it becoming
unstable and falling over.
The wheel assemblies are supplied with hex head nuts and bolts
pre-assembled. To attach them to the machine, remove the nuts and pass the
bolts through the assemblies and the pre-drilled holes in the machine body
and secure with the nuts, as shown in Fig. 9.3. Ensure the assemblies are
installed with the wheels pointing upwards as in Fig. 9.3.
Using the remaining two nuts and bolts, attach the lifting bracket to the
front of the machine as shown in Fig. 9.3.
i
Kg
Fig. 9.3
Fig. 9.2
PT107
Planer
Thicknesser
Blocks
Floor
PT107 Manual 3.2.indd 15PT107 Manual 3.2.indd 15 25/04/2022 14:42:1525/04/2022 14:42:15

16
When the wheel kit is not in use, the wheels fitted to the main body of the
machine can be raised by unscrewing the adjusting screw, Fig. 9.4, so that
they are clear of the floor. The wheels must be lowered again before using
the wheel kit.
When fully assembled, the wheel kit should be as shown in Fig. 9.5.
Never attempt to move the machine with the wheel kit whilst the planer
tables are in the raised position. The centre of gravity will be high, making
the machine unstable. Always ensure that the tables are in the closed
position before attempting to move the machine.
i
Kg
Adjusting
screw
Fig. 9.4
Fig. 9.5
9. Assembly of the Optional Wheel Kit
PT107 Manual 3.2.indd 16PT107 Manual 3.2.indd 16 25/04/2022 14:42:1925/04/2022 14:42:19

17
10. Assembly of the Optional 49000 Thicknessing Table
Extension
Fitting the Thicknessing Table Extension to Pre-drilled Machines
Firstly, fix the thicknessing extension table onto the edge of main
thicknessing table of the PT107, using the 2 M8 hex bolts, 2 M8 hex head
socket screws and 2 flat washers supplied, as shown in Fig 10.1, do not
fully tighten. Then, adjust the two M8 hex bolts mounted on the underside of
the thicknessing extension table, to ensure that the two surfaces are flush,
Fig 10.2. Then, fully tighten the 2 M8 hex bolts.
Note: Follow instructions below for machines with pre-drilled holes for
table extension fitment. For machines without pre-drilling, please see
instructions for Drilling the Thicknessing Table to fit the Table
Extension to Machines Without Pre-drilled Holes.
M8 hex bolt
M8 hex head socket screw
Flat washer
Fig 10.1
Fig 10.2
Drilling the Thicknessing Table to fit the Table Extension to
Machines Without Pre-drilled Holes
Note: Step-by-step video illustrating how to drill the machine thicknessing
table available at YouTube.com/RecordPowerTV.
Measure 54 mm inwards from the left-hand side of the machine
thicknessing table and mark a line, Fig 10.3.
Measure 16 mm down from the top of the table and mark a second line
across the marking previously made, Fig 10.4.
Fig 10.3
Fig 10.4
PT107 Manual 3.2.indd 17PT107 Manual 3.2.indd 17 25/04/2022 14:42:2425/04/2022 14:42:24

18
From the centre point of the two markings previously made, measure 150
mm into the table and mark a third line, Fig 10.5.
As done previously, measure 16 mm down from the top of the table along
the line previously made and mark a fourth line, Fig 10.4.
Create an indentation in both centre points of the four markings using a
centre punch and hammer, Fig 10.6.
Drill through both centre points using either a 3.5 mm or 4.5 mm drill bit,
then, drill through both holes using an 8.5 mm drill bit, Fig 10.7 and Fig
10.8.
10. Assembly of the Optional 49000 Thicknessing Table
Extension
Fig 10.7
Fig 10.5
Fig 10.6
Fig 10.8
PT107 Manual 3.2.indd 18PT107 Manual 3.2.indd 18 25/04/2022 14:42:2825/04/2022 14:42:28

19
10. Assembly of the Optional 49000 Thicknessing Table
Extension

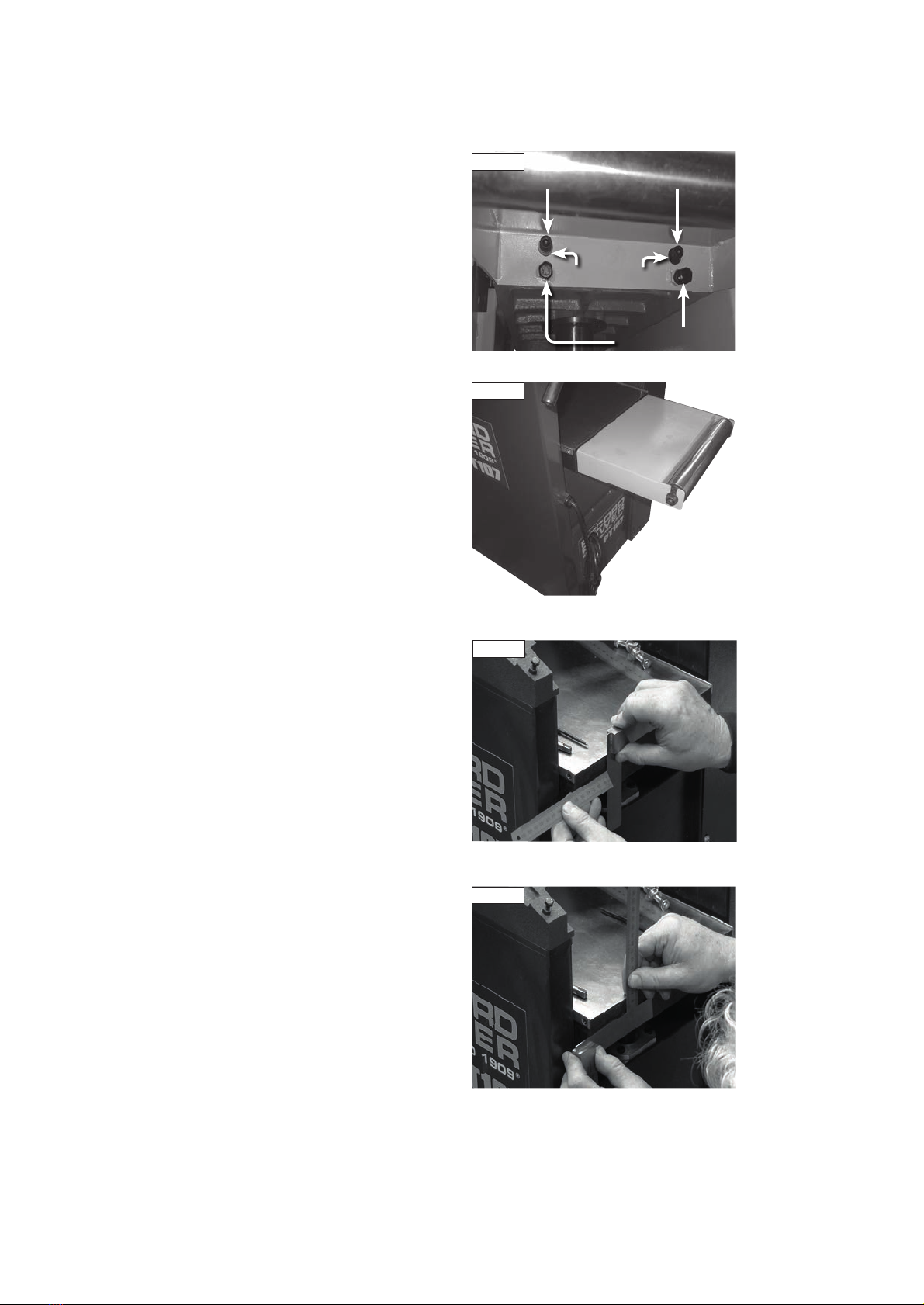

Thread the M8 hex head socket screw along with the first M8 washer
through the drilled hole as shown. On the opposing side of the table, add
the second M8 washer, followed by the M8 nut and repeat this process, Fig
10.9.
Place a straight edge over the joint from the machine table to the extension
table on both sides, to check they are flush together, Fig 10.10.
Should adjustment be required, gently knock the extension table into
position using a soft mallet. Fine adjustment can also be made by loosening
the M8 hex bolts pre-fitted into the extension table, Fig 10.11.
Fig 10.9
Fig 10.10
Fig 10.11
PT107 Manual 3.2.indd 19PT107 Manual 3.2.indd 19 25/04/2022 14:42:3125/04/2022 14:42:31

20
10. Assembly of the Optional 49000 Thicknessing Table
Extension

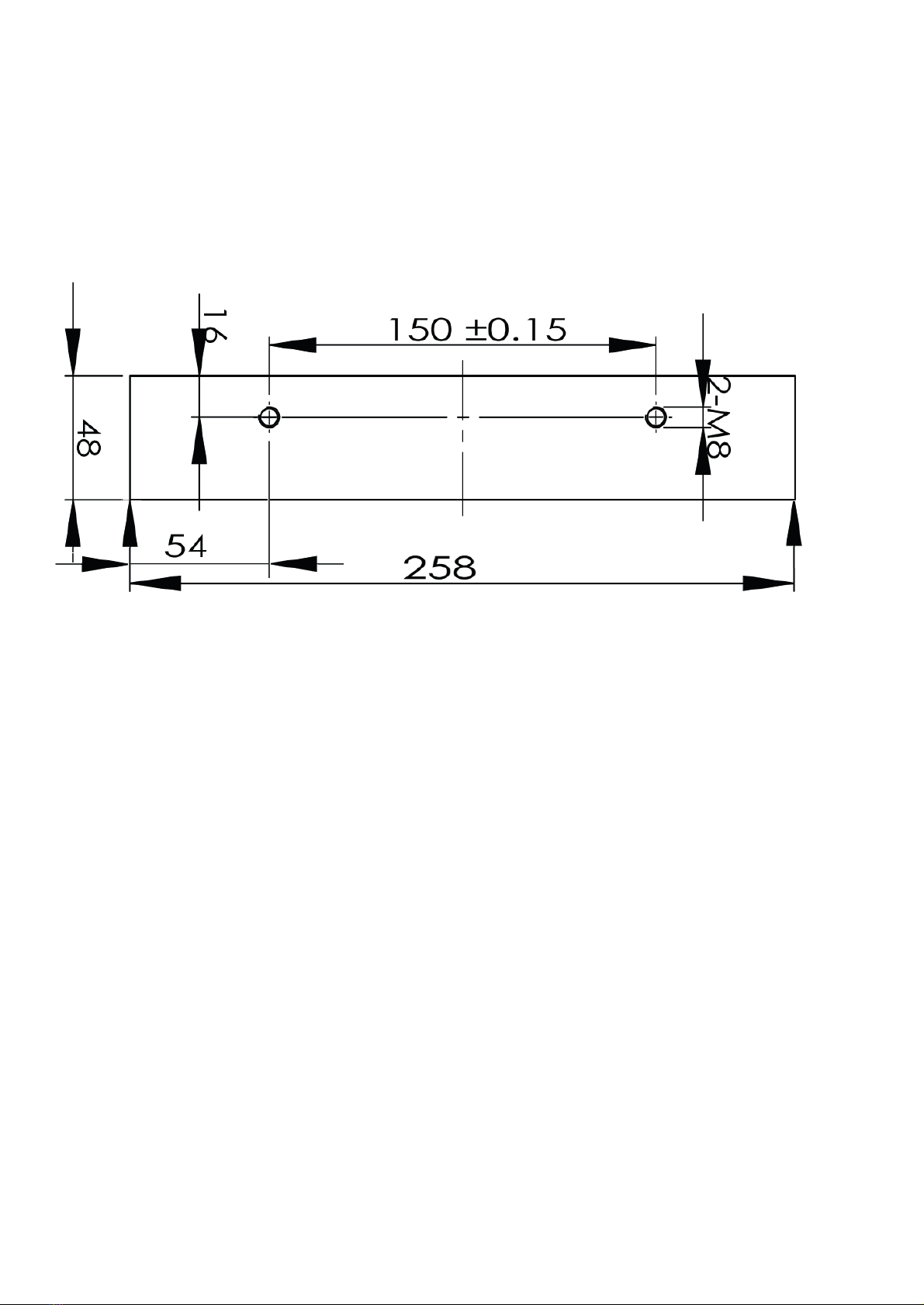

49000 Thicknessing Table Extension Drilling Template
Template not to scale
PT107 Manual 3.2.indd 20PT107 Manual 3.2.indd 20 25/04/2022 14:42:3125/04/2022 14:42:31
