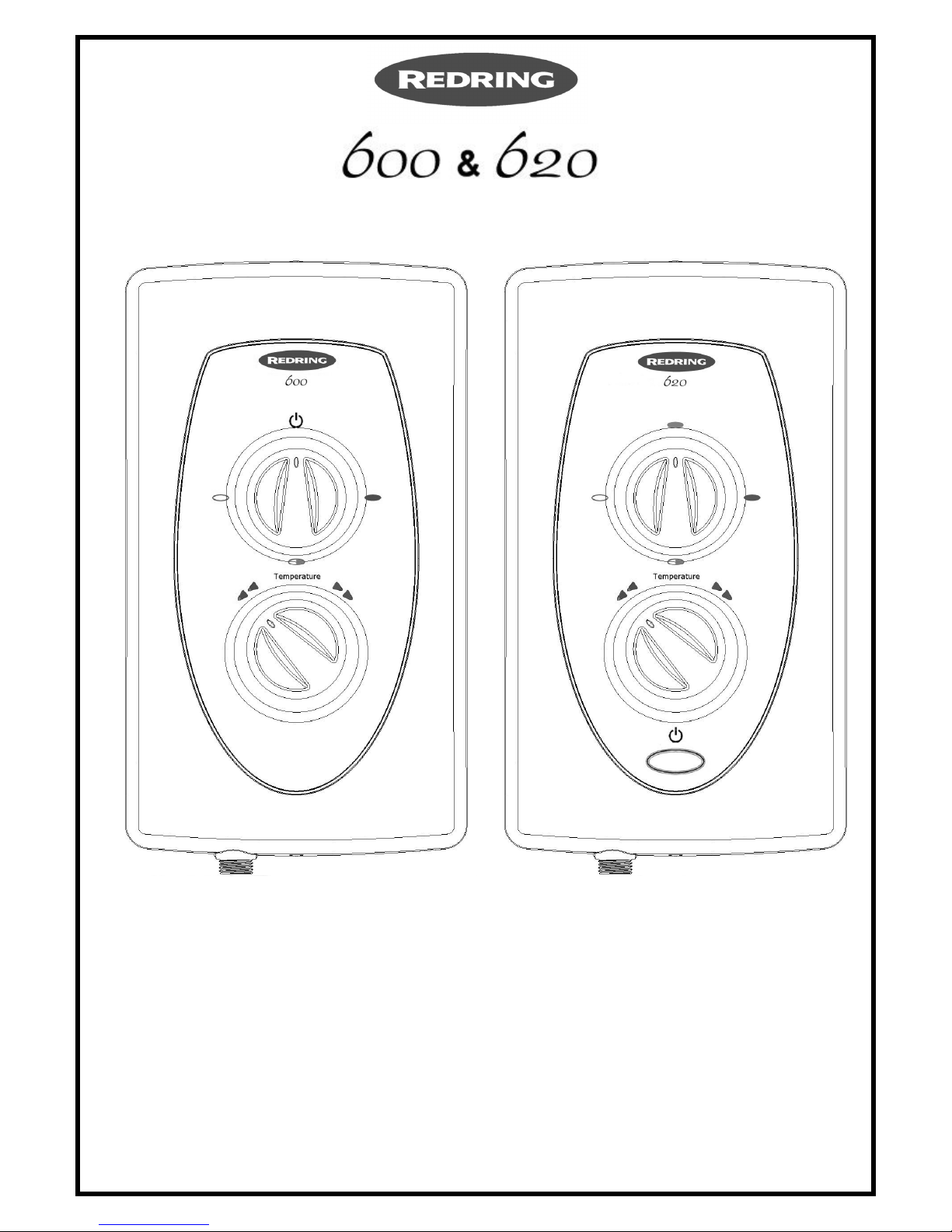

RED-RING 600 User manual

SHOWER HANDBOOK
IMPORTANT:
Please retain this booklet for future reference

CONTENTS
Page
How to use your shower …………… 2
How your shower works …………… 3
What to do if things go wrong …………… 5
Installation instructions ………….... 6
How to maintain your shower …………… 10

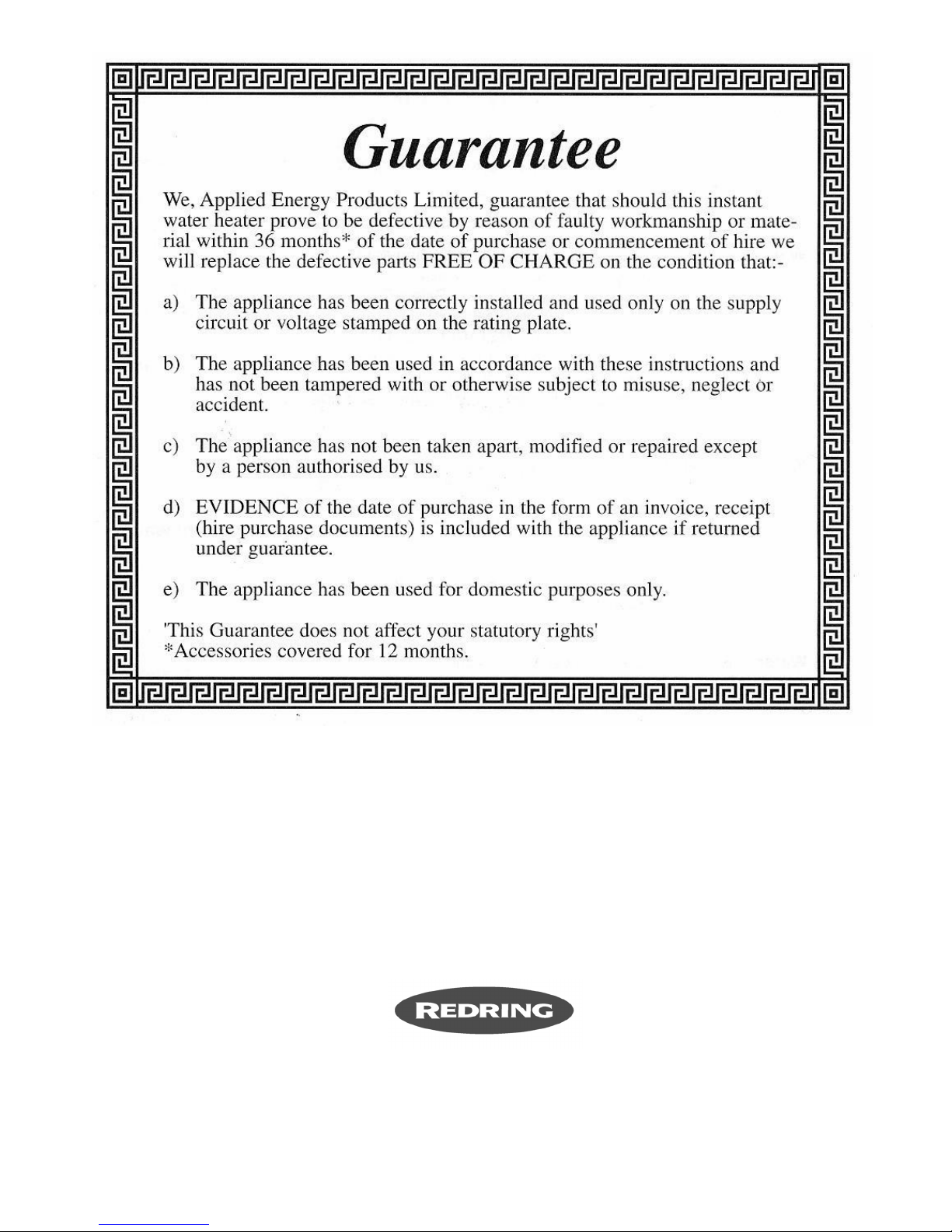

Guarantee …………… 12
How to use your shower
1. Ensure the electricity and water are turned on to the
unit
2. Function of controls : -
KNOB “A” – Power selector. (On/off 600 only)
KNOB “B” – Adjusts the flow / temperature of the water
BUTTON “C”– Starts and ‘Shuts down’ the shower and cools the water automatically for
(620 only) the next shower.
3. Turning the unit on
Model 600 – Rotate knob “A” clockwise a ¼ turn (one click) this will select full power, the
normal setting, further turns change the power setting (see above).
Model 620 – Press button “C”. (Rotating knob “A” selects the power level, full power being
the normal setting - see above).
4. You will now need to adjust the temperature of the water. Rotate knob “B”. If the
temperature is too low rotate knob “B” anti clockwise and allow 20 seconds for the
temperature to settle. Repeat this procedure until the temperature is to your liking.
5. If the temperature is too high then turn knob “B” clockwise allowing 20 seconds between
adjustments. The final adjustment can be anywhere on the scale. See diagram 2 for
relationship of flow to temperature.
6. Clockwise makes the temperature cooler, anti-clockwise makes the temperature warmer.
7. Once a temperature setting to your liking has been achieved knob “B” will rarely need
adjusting, e.g. Adjust for variations of incoming mains water temperature between summer
and winter.
8. The options of Medium or Low, reduces the power used giving a cooler shower or the
option of reduced flow. These options are mainly for summer usage and knob “B” will have
to be re-adjusted. The cold option (620 only) supplies water with no heat.
9. When you have finished showering.
Model 600 - Rotate knob “A” to the 12 o’clock position ( ). The electricity is switched off
and the water will cease to flow immediately.
2

Model 620 - Press button “C”. The electricity to the elements is then switched off, water
will continue to flow for approximately 5 seconds before switching off. This
reduces the temperature of the water in the unit.
Switch the electricity off at the ceiling switch or local isolator.
10.Your shower is designed to stabilise temperature changes caused by water pressure
fluctuations. These can result from toilets being flushed or taps being turned on or off.
When this happens your showering temperature will be held within a controlled band,
provided that the minimum pressure required by the shower is maintained.
11.Your shower requires a minimum operating pressure of 100 kPa (1.0 bar, 14.5 p.s.i.). At
pressures above 100 kPa (1.0 bar, 14.5 p.s.i.) it will minimise temperature fluctuations
detailed in note 9. If the water pressure falls below 100 kPa (1.0 bar, 14.5 p.s.i.), it is likely
that the pressure switch will turn off the power to the heating elements, resulting in a cold
shower.
12.During normal operation if the shower senses an overheated water temperature then the
thermal cutout will switch off the heating elements. Water will continue to flow and as the
water temperature falls the heating elements will be turned back on. If the unit continues to
do this then increase the flow rate by turning knob “B” clockwise and check that the handset
does not require de-scaling. If it still continues, then rotate knob “A” to the MEDIUM power
setting, six o’clock position (Knob B will need adjusting).
13.Note that knob “B” IS NOT A TAP and does not turn the water off.
WARNING! DO NOT SWITCH THE SHOWER ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
Redring After Sales Service
We offer a technical advisory service on the telephone to contractors and other customers with
problems in the field.
RING 0870 9000 430
Spare parts can be supplied against any debit or credit cards.
RING 0870 0102 829
Remember to quote the exact type of shower, as written on the front of the shower and on this
leaflet. It may also be of use to have a note of the catalogue number and serial number as stated
on the underside of the shower
How your shower works
Your shower is designed for convenience, economy and safety
of use
1. Water is heated instantaneously as it flows over the
heating elements in the copper heating tube.
2. The required water temperature is achieved by adjusting
the rate of water flow. Diagram 2 shows the principle
involved in relating temperature rise to flow rate. The
higher the water flow the lower the temperature rise, and
vice versa. The temperature of the water supplied from the mains can vary considerably
3

throughout the year from 5 to 20°C. This means that in Winter, the flow rate will be less
than in the Summer to achieve the same outlet temperature. In summer the ‘MED
(medium)’ or ‘LOW’ power setting may give adequate hot water.
The heaters are only switched on when sufficient water is flowing. This is done automatically with
a switch, which works on water pressure.
3. The water is turned on and off by
the solenoid valve built into the
shower. This is switched on by
rotating Knob “A” (pressing button
“C” - model 620 only)
4. The flow of water is automatically
held at the level set by the user
even though the supply pressure
may vary. (See ‘How to use your
shower’ note 9).
5. If the water supply falls below a set
limit, the pressure switch will operate
and switch off the power to the
elements.
6. As a further safeguard, a thermal
cutout switches the power off if the
water temperature climbs above a
set limit. The cutout gives an audible
click when it switches off, but will
reset itself if water is run through the
shower for 10 to 20 seconds.
7. The pressure relief device is to
safeguard against extreme abuse conditions.
8. There are 3 defined spray plate settings adjustable by rotating the spray plate, (see
diagram 4). If desired many combinations between the 3 can be achieved. (Model 600 has
a different shape handset but the modes are the same). The modes have a positive to
identify them.
IN ORDER TO MAINTAIN THE PERFORMANCE OF YOUR SHOWER YOU MUST CLEAN THE
SHOWERHEAD.
All water contains particles of lime, which build up in the showerhead and unit reducing the
performance. It is therefore important to clean the showerhead by regularly rubbing the rubber
spray nozzles or, in severe cases dipping the spray plate into a suitable de-scaling solution.
The frequency of this will vary from weekly to quarterly depending on the water hardness and
experience.
Diagram 4
4

Check the spray plate is then free to rotate to give the three settings.
In some winter conditions, when the incoming mains water is particularly cold it may be necessary
to select the inner or outer spray pattern only. This will ensure correct operation of the shower with
a slightly lower water flow rate
Note: After use it is normal for some water to drip from the showerhead for a few moments, this
inhibits scale build up over prolonged use.
What to do if things go wrong
SELF HELP
If the shower is unsatisfactory, make the following checks before calling out the contractor. Any of
these adjustments could restore the performance
a) Water too HOT
Increase water flow by adjusting the
temperature control clockwise.
Clean spray plate holes. (Select outer or
combination spray patterns).
Switch power to MEDIUM setting.
Increase pressure of water supply e.g. fully
open service valve or stop cock. Check hose is
not kinked restricting the water flow.
b) Water too COLD
Decrease water flow by adjusting the
temperature control anti-clockwise.
Select inner or outer spray patterns only.
Switch power to HIGH setting.
c) Spray pattern poor Clean spray plate and flush heater. (Select
inner / outer spray pattern).
d) Water goes cold while using shower
Check water pressure has not fallen so far as
to let pressure switch cut out, e.g. another tap
drawing water off.
Raise position of handset.
e) Broken parts
Please contact our spares department on
0870 0102 829.
Fitting instructions are provided with spares.
PROFESSIONAL SERVICE
If the previous checks fail to restore the performance, you should either contact the Redring
Technical Advisory Service or seek the assistance of a qualified plumber and / or electrician.
The person who installed the shower is probably the best one to repair it and is certainly
the person to contact if you have a problem in the guarantee period.
The following additional checklist is provided for the benefit of the qualified serviceman.
WARNING – SWITCH OFF THE ELECTRICITY AT THE ISOLATING SWITCH BEFORE
REMOVING THE COVER TO MAKE CHECKS.
5

a) Water too HOT
Water flow restricted by blockage in filter of
solenoid valve. Switch off water and undo plastic
nut on elbow, loosen brass nut to swing elbow
away from solenoid. Remove filter in solenoid with
long nosed pliers and flush clean.
b) Water too COLD
Check circuit through thermal cut-out
Check circuit through microswitch on the pressure
switch
Check each element circuit.
Check tightness of electrical connections.
c) Water leaks from burst pressure relief
valve
Check for cause of high pressure and remove it.
i.e. Blockage on outlet or blocked spray plate.
Replace the pressure relief disc.
d) Water does not flow when Knob “A” is
rotated (when button “C” is pressed -
620 only)
Check the circuit through the solenoid coil.
Check circuit through mini microswitch (push switch
– 620 only)
Possible timer PCB fault (620 only). If defective,
then replace.
Power supply not reaching shower.
Installation instructions
Check that the electrical rating shown on the shower matches the mains supply.
A competent installer must undertake all installations. If in any doubt, advice and
assistance should be sought from a qualified plumber and/or electrician. Installations and
wiring must conform to current IEE regulations (UK) BS7671
WARNING! DO NOT INSTALL THIS SHOWER IN A ROOM WHERE IT MAY BE SUBJECT TO
FREEZING
We recommend that the installation be done in the following sequence.
a) Fixing the shower to the wall
b) Plumbing
c) Electrical connections
a) Fixing the shower to the wall
1. Position the riser rail at the height recommended in
diagram 5 and mark its position.
2. Position the heater so the sides of the unit are vertical
and the top is level with, or up to 0.6 metres (2ft)
maximum below the top of the riser rail. Choose a flat
piece of wall to avoid the possibility of distorting the back
plate thus making the front cover a poor fit
3. Adjust the positions to get the most convenient
arrangement taking the following into account.
a) The possible need to use the handset over the sink
for hair washing etc.
b) The heater must not be mounted in the direct spray
from the showerhead.
6

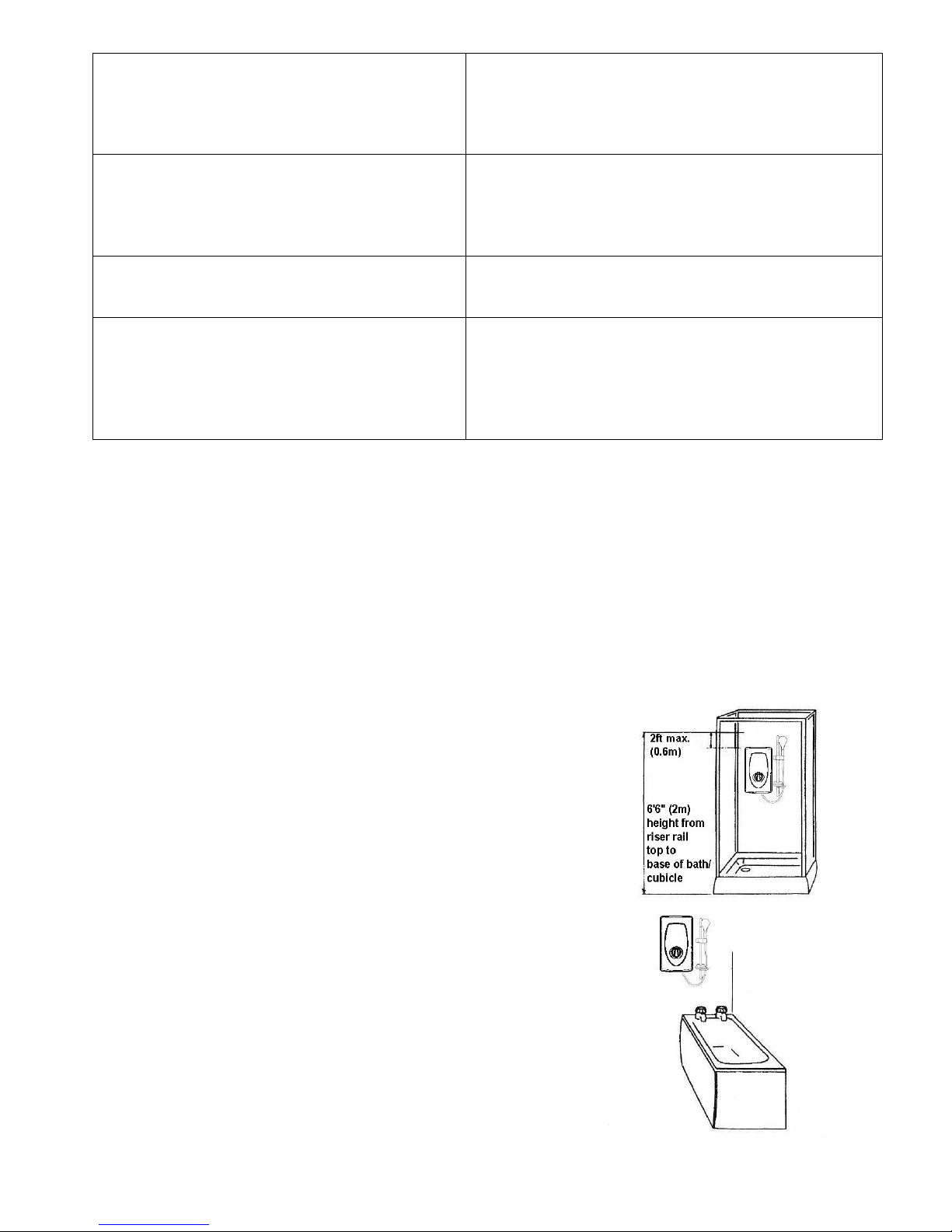

Diagram 5

c) The handset must not be able to come into contact
with any used water in the bath or basin. If it can,
even after the hose has been retained by the hose
retainer (see diagram 13), then a vacuum breaker
must be fitted. It should be noted that these
devices are liable to minor leakage so they must
be positioned so that any drips are not detrimental.
4. Fix the riser rail with screws provided. The fixing holes
at the base of the brackets will be disclosed by
removing the plastic fronts. Assemble as shown in
diagram 13.
5. Decide the position of the electrical cable inside the
unit. If top or bottom entry is chosen (according to
diagram 6), cut away the walls of the back-plate as
shown in diagram 8. There is also the option to fit the
cable from the rear in the channel provided.
6. Decide the cut away position of entry of the cold water
pipe into the unit. Cut away the back-plate and front
cover as shown in diagram 7 or 8. There is also the
option to have rear entry (see later section on
plumbing).
7. If you have not yet done so, remove the front cover
(complete with control knob) of the unit by undoing the
retaining screws at the top and bottom of the unit and
lifting the cover off. The top-fixing hole is a keyhole slot,
and should be marked and drilled first. Tighten top
screw with head protruding about 10mm from wall and
hook the back-plate over the screw head. This allows for
correct and accurate alignment of your shower before
marking and fixing the bottom/side position. You may
not wish to tighten up all 3 other screws at this stage as
the holes are elongated to allow for adjustment after
other connections have taken place.
8. Do not obstruct the pressure relief device found in the
back-plate slot underneath the outlet connection (see
diagram 2). Especially if silicone sealant or similar
materials are used around the edges of the back-plate.
9. There are a number of shields in the shower unit.
These are important for the correct operation of this
shower and MUST NOT be removed under any
circumstances.
b) Plumbing (see diagram 9)
The heater should be connected to the mains cold water supply. This must have a minimum
running pressure of 100kPa, 1.0 bar (14.5 p.s.i) and a maximum pressure of 1000kPa, 10 bar
(145 p.s.i).
Before connecting the pipe-work to the shower ensure that pipe-work is flushed out.
Dia
g
ram 5
Diagram 7
Diagram 8
Diagram 6
7

1. It is recommended that a WRAS (Water Regulations Advisory Scheme) listed isolating
valve is fitted between the rising main and the unit. This will allow the unit to be serviced or
exchanged without having to turn off the water at the mains stop valve.
2. The heater can be fed from a header tank provided this has a minimum head height of 10.5
metres (35ft).
3. 15mm copper or stainless steel pipe should be used alongside with a standard
compression fitting. In multiple shower installations correct pipe-work sizes should be
calculated to maintain adequate flow to each shower.
4. a) If top entry is chosen, turn the elbow 180°into the required position and fit a standard
15mm in-line compression fitting. There is a removable side section, which will aid you
with this (diag.7).
b) If rear entry is chosen, turn the elbow 180°and treat it as top entry except for the fitting
of a ‘Yorkshire’ elbow in the rear channel. The removable side section will again be an
aid.
5. It is in order to use a WRAS (Water Regulations Advisory Scheme) approved sealant
sparingly whilst avoiding excess finding its way into shower operating parts.
6. With the stop valve connected, flush the pipe-work through to remove any particles
etc., before making the final connection to the shower. Blockage in the waterways
(particularly the handset and solenoid valve) will prevent the heater working properly.
7. The shower is designed to have an open outlet and should only be used with ‘Redring’
recommended fittings. Do not connect the handset until after the shower removable side
section and front cover are fitted.
WARNING - DO NOT FIT A TAP ON THE SHOWER OUTLET. TAKE CARE TO AVOID
RESTRICTING THE OUTLET AND FLOW FROM THE
HANDSET OR THE PRESSURE RELIEF DEVICE.
d) Electrical Connections
The electrical installation must be in accordance with the
current BS. 7671 (I.E.E. regulations).
1. The shower is designed for a single-phase A.C.
electrical supply. Please check the rating plate on the
unit to see what details apply.
2. The table is to be used as a guide only. Please refer to
the current wiring regulations.
Diagram 9
Diagram 10
8

You may be able to use 6mm² cable if Method 1 (clipped direct) is used.
Remember to up-rate the cable if it runs in thermal insulation in a loft, or for a longer
distance.
3. A means for disconnection in all poles must be incorporated in the fixed wiring in
accordance with the wiring rules. We recommend ceiling switches.
4. Cut back cable as in diagram 10. Connect cable to terminal block making sure that ALL the
retaining screws are VERY tight and that no cable insulation is trapped in the block.
WARNING - FAILURE TO COMPLY WITH THESE
INSTRUCTIONS COULD RESULT IN A FAILURE
OF THE TERMINAL BLOCK AND CABLING.
5. WARNING - THIS APPLIANCE MUST BE
EARTHED.
6. Ensure that the removable side section is fitted securely back into the back-plate.

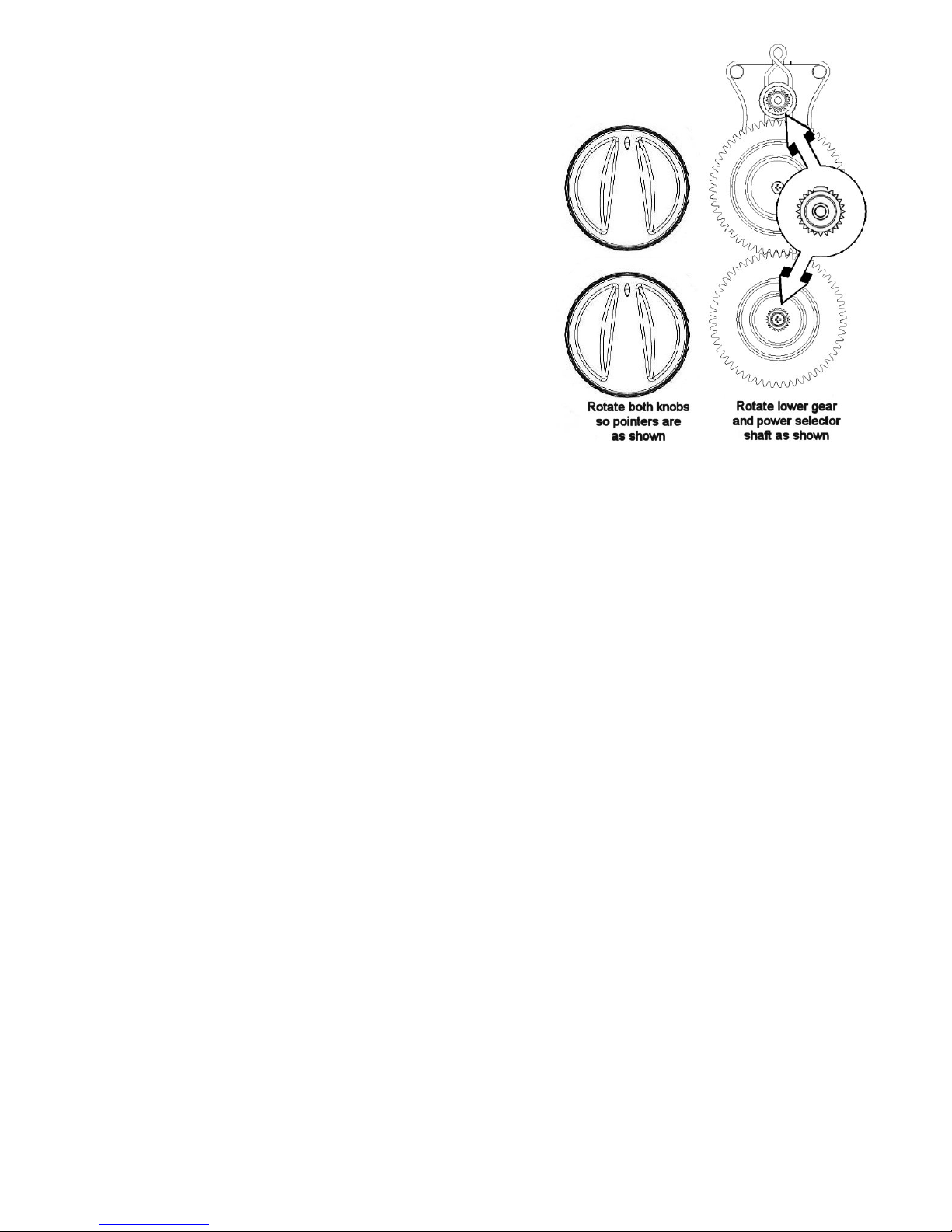

7. Fit the front cover into position making sure the knob is aligned correctly with the flow valve
(see diagram 12).
WARNING - TAKE CARE WHEN REPLACING THE FRONT COVER TO AVOID
DAMAGING ANY COMPONENTS.
8. Operate the shower first without the handset to flush out any particles, fit handset and then
operate the shower as explained previously and check:
a) That the water gets to a satisfactory temperature.
b) Power selection does give a change in water temperature.
c) Check again for leaks.
Cable Sizes Fuse/ MCB
7.5 / 6.9kW 240/230V 6mm² 40A Cartridge fuse Type A MCB 14m max
8.5 / 7.8 kW 240/230 V 6mm² 40A Cartridge fuse 14m max Type A MCB 22m max
9.5 / 8.7kW 240/230V 10mm² 40 or 45A Cartridge fuse 22m max
Diagram 11
9

d) That the holes in the spray plate are not blocked.
e) Water flow can be adjusted by knob B.
9. DEMONSTRATE OPERATION TO USER
10.LEAVE THESE INSTRUCTIONS WITH THE
USER FOR FUTURE REFERENCE.
How to maintain your shower
It is recommended that the shower unit, riser rail, hose
etc. can be cleaned using a soft cloth and that the use of
an abrasive or solvent cleaning fluid be avoided.
We recommend that, before cleaning, the isolating switch
be turned off, thus avoiding accidentally switching on the
shower.
The showerhead should be periodically cleaned as
previously detailed on page 4.
Additional Accessories Catalogue Number
White 2 metre Shower hose 83-593529
Water control tap 93-792452
Shower de-scaling powder 95-711015
Curtain and rail pack 83-792802
Curtain and rail pack with Bath mat 83-792801
Spares
Front cover complete (600) 93-597808
Front cover complete (620) 93-597809
Side section 93-591819
Thermal cutout 93-590306
Outlet elbow & PRV 93-593592
Solenoid 93-591805
Inlet elbow 93-591804
Gear wheel drive 93-593591
Miniature microswitch (600 only) 93-597811
Relay (620 only) 93-597812
Timer pcb (620 only) 93-597813
On/off switch (620 only) 93-590713.
Spares / accessories can be supplied against any Visa or Access cards from
Redring Sales Hotline [phone]
Diagram 12
10

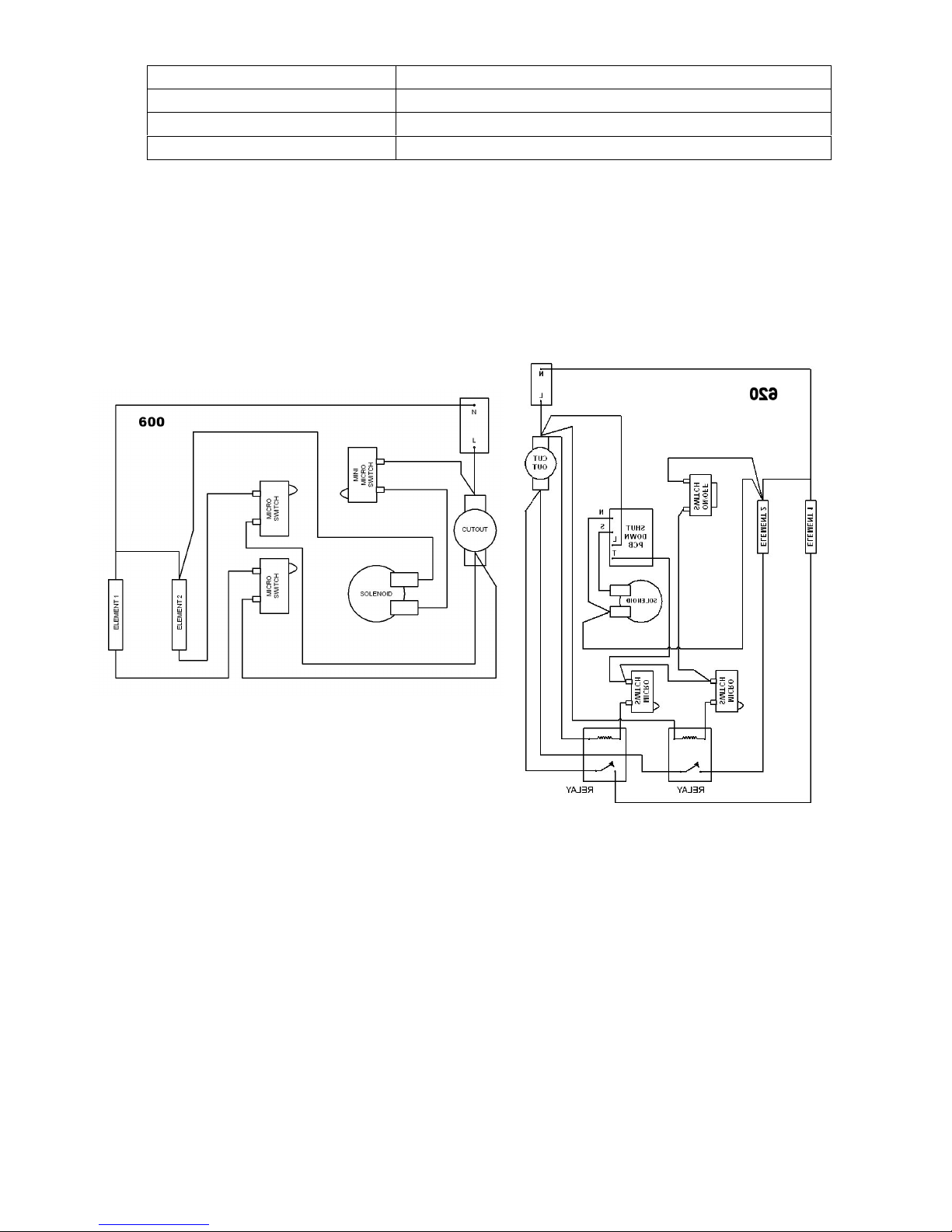

Diagram 13
11

Full details of terms and conditions are available on request from: -
APPLIED ENERGY PRODUCTS LTD.
MORLEY WAY, PETERBOROUGH. PE2 9JJ.
Tel [phone] Fax: [phone] Website: www.redring.co.uk
555.2067.01A
12
