red roo TC350 User manual

SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment
TC350
TURF CUTTER
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT622
GARDEN
TILLER
OPERATION
1) Remove the garden tiller
from its trailer/carrier. Use caution.
2) Familiarize yourself with the machine and its
controls.
3) Ensure the safety clutch control lever is in the
disengagedposition. The safety clutch
control lever is located on the left handle bar.
The disengaged position of the lever is down.
4) Remove the shaft locking pin located behind
the wheel axle. Store pin in hole provided on
left hand side of handle bar.
5) The wheel axle will now pivot. Lift up on the
handle to allowwheelaxle to pivot. For
transport, keep the wheel axle forward. When
cultivating, keep the wheel axle rearward for
added stability and control.
DO NOT transport the tillerwith the wheel
axle in the rear position.
6) Adjust depth shoe(ifequipped) by removing
shaft locking collarand slidingdepth shoe to
desired position. Replace shaft locking collar.
7) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
8) Wheninposition to begingarden tilling,
engage the safety clutch controllever. The
tyneswillbeginrotating. Wheel axle must be in
the rearpositionwhile tilling.Release the
safety clutch controllever to stop the tynes
rotating. Tynespeed is governed by engine
throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
9) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed.
WARNING! –IN CASE OF DIFFICULTY,
DISENGAGE THE SAFETY CLUTCH
CONTROL LEVER. ALL TILLING ACTION
STOPS.Press the engine"STOP"button
located on the engine.
10) Stop Engine: Release the safety clutch control
lever.Move throttle to Slowposition. Set engine
stop switch to Stop or Offposition.DO NOT move
choke control to Choke
or Start position to stop
engine.Backfire or
enginedamagemay
occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheelaxle to forwardposition for
transport. Replace shaft locking collar.
6) Returndepth shoe(ifequipped) to full Up
position.
© Copyright 2001, Red Roo Sales & Service Company Pty. Ltd. 1301-0018
Commercial Environmental Equipment

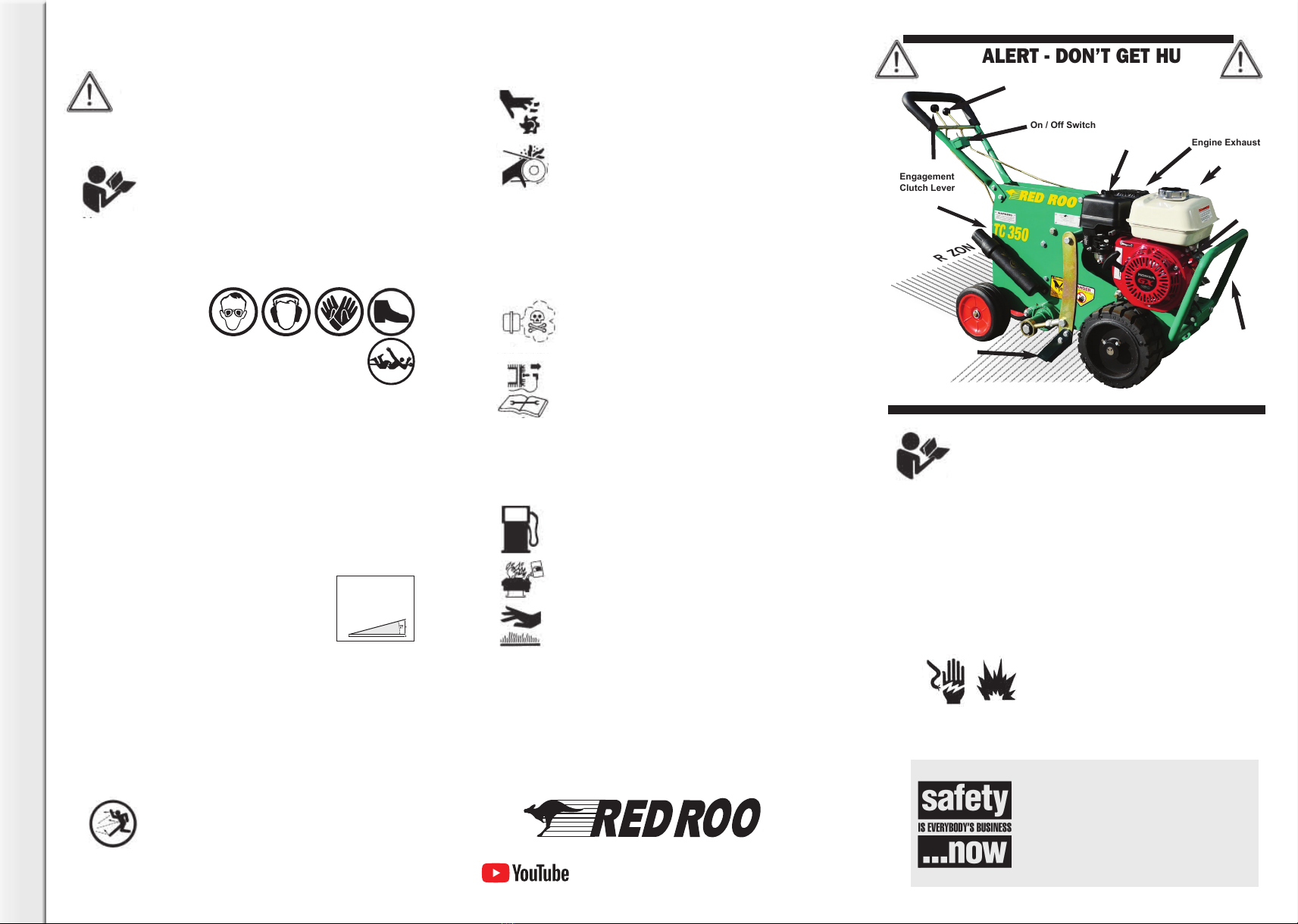

OPERATING INSTRUCTIONS FOR TC350
1) Remove the turf cutter from its carrying
vehicle or trailer. ALWAYS USE CAUTION
2) Familiarize yourself with this turf cutter and its controls.
Learn where all engine controls are and be prepared to
stop this machine quickly in a possible emergency.
3) PPE (PERSONAL PROTECTION EQUIPMENT)
IS MANDATORY BEFORE OPERATING THIS
MACHINE. Wear safety glasses or helmet and visor
combination, loose tting gloves, hearing protection,
and steel caps boots when operating this machine.
4) Before starting the engine, ensure the turf cutting blade
is in the raised position.
5)
Before starting the engine,
ensure both clutch handles are
forward and disengaged.
6) Move choke control to Choke or Start position:
NOTE: CHOKE MUST FULLY CLOSE.
MOVE THROTTLE CONTROL TO RUN OR
FAST POSTION OPERATE ENGINE AT
MAXIMUM RPMs
7) Maneuver the turf cutter to the area where the turf is
to be removed. This can be done by pushing the turf
cutter or driving the machine using its own power,
simply engage the wheel drive clutch and move the
machine to the desired cutting area.
8) When the operator is ready to start cutting turf, lower
the turf cutting blade to the desired depth by lifting up
on the depth control handle.
9) Adjust the throttle lever (located on the
engine) to achieve desired rpm (motor
speed) according to the conditions.
WARNING! KEEP HANDS AND FEET
CLEAR OF TURF CUTTING BLADE
AT ALL TIMES
10) To start the turf cutting blade slowly push the blade
engagement clutch lever towards the engine.
11) Only after the turf cutter blade has been lowered and
the blade engagement clutch lever has been activated
are you ready to engage the wheel drive clutch lever.
12) Completely Engage the self propelled wheel drive clutch lever
and start cuting turf.
WARNING! IN CASE OF DIFFICULTY, DISENGAGE
BOTH CLUTCH LEVERS (ALL ACTION STOPS)
TURN THE ENGINE SWITCH TO OFF LOCATED ON
HANDLE BAR OR ENGINE
13) When you are nished cutting the turf,
reverse the procedure:
a) Reduce the throttle speed
b)
Disengage self-propelled clutch
– pull backwards toward operator
c) Disengage turf cutting blade
– pull backwards toward operator
d) Raise the turf cutting blade
e) Engage the self-propelled clutch lever
and return to the trailer/carrier
f) Use Caution
14) STOP ENGINE: Do not
move the choke control
to the CHOKE position
to stop the engine.
15) Move throttle control to the slow position
AFTER USE
1) Turn fuel tap to the off position
2) Allow the machine to cool down
3) Keep the machine clean using warm soapy water.
Make sure that no water enters the carburetor
4) Remove any weeds, wire, rope, etc. that may have
wrapped around the cutting assembly
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT5
GARDEN
TILLER
OPERATION OF GT622
1) Remove the garden tiller
from its trailer/carrier/ute. Use caution.
2) Familiarize yourself with the machine and its
controls.
5) Ensure the tyne engagement control lever is in
the neutral position. The tyne engagement
control lever is located
machine below handle bar. The neutral position
on the left hand side of the
of the lever is achieved by simply releasing the
tyne engagement control lever.
4)
3) Adjust wheels if required, using the handle wheel
adjustment lever.
Adjust depth shoe if required, using the depth
control adjustment lever.
6) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
pull up on the tyne engagement control lever.
The tynes will begin to turn. Release the tyne
7) Wheninposition to begingarden tilling,
engagement control lever to stop the tynes turning.
Tyne speed is governed by engine throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
8) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed. Consider
watering the surface and reducing engine speed.
Adjust wheels and depth shoe accordingly while
tilling
WARNING! –IN CASE OF DIFFICULTY,
RELEASE THE TYNE ENGAGEMENT
CONTROL LEVER. ALL TILLING ACTION
STOPS.Turn the engine "STOP" switch
to off located on the engine.
9) Stop Engine: Release the tyne engagement
control lever. Move throttle to Slow position.
Set engine stop switch to Stop or Off position.
DO NOT move choke
position to stop engine.
Backfire or engine
damage may occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheels and depth control handle to
transport position.
© Copyright 2012, Red Roo Sales & Service Company Pty. Ltd. 1301-0069-A
Commer
“The Right Way to Rent” cial Outdoor Power Equipment
control to Choke or Start
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT5
GARDEN
TILLER
OPERATION OF GT622
1) Remove the garden tiller
from its trailer/carrier/ute. Use caution.
2) Familiarize yourself with the machine and its
controls.
5) Ensure the tyne engagement control lever is in
the neutral position. The tyne engagement
control lever is located
machine below handle bar. The neutral position
on the left hand side of the
of the lever is achieved by simply releasing the
tyne engagement control lever.
4)
3) Adjust wheels if required, using the handle wheel
adjustment lever.
Adjust depth shoe if required, using the depth
control adjustment lever.
6) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
pull up on the tyne engagement control lever.
The tynes will begin to turn. Release the tyne
7) Wheninposition to begingarden tilling,
engagement control lever to stop the tynes turning.
Tyne speed is governed by engine throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
8) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed. Consider
watering the surface and reducing engine speed.
Adjust wheels and depth shoe accordingly while
tilling
WARNING! –IN CASE OF DIFFICULTY,
RELEASE THE TYNE ENGAGEMENT
CONTROL LEVER. ALL TILLING ACTION
STOPS.Turn the engine "STOP" switch
to off located on the engine.
9) Stop Engine: Release the tyne engagement
control lever. Move throttle to Slow position.
Set engine stop switch to Stop or Off position.
DO NOT move choke
position to stop engine.
Backfire or engine
damage may occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheels and depth control handle to
transport position.
© Copyright 2012, Red Roo Sales & Service Company Pty. Ltd. 1301-0069-A
Commer
“The Right Way to Rent” cial Outdoor Power Equipment
control to Choke or Start
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
Online Demonstration Available at:
www.redroo.com/products/turfcutter
safety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...now
- Hire A TurfcuTTer
© Copyright 2017 Red Roo Sales & Service Company Pty. Ltd. 1301-0056-A

TC350 TURF CUTTER
OPERATING
INSTRUCTIONS
9) ALWAYS KEEP YOUR HANDS, FEET,
AND BODY AWAY FROM TURF CUTTING
ZONE WHILE THE ENGINE IS RUNNING
10) NEVER remove the safety guarding
attached to the turf cutter. These protective
devices must be in place and in good
working order at all times during the operation of this
machine. Keep the unit well maintained and in good
working order.
11)
DO NOT leave the machine unattended while the
engine is running.
12)
DO NOT over speed the engine or alter
the governor settings. Excessive speed is
dangerous and will shorten engine life.
13)
NEVER OPERATE THE TURF CUTTER
IN AN ENCLOSED AREA
. Engine exhaust
contains carbon monoxide, an odourless
and tasteless poison that can kill
14)
STOP the engine, disconnect the spark plug leads
and allow engine to cool before inspecting or
performing maintenance
15)
REFUELIING
* Shut off engine. DO NOT REFUEL AN
ENGINE WHILE OPERATING MACHINE!
* ALLOW engine to cool down. Minimum 5
minutes
*
USE UNLEADED FUEL ONLY
* USE CLEAN FRESH UNLEADED FUEL
* Do not mix oil with unleaded fuel
* Do not over-ll fuel tank. Allow space for
fuel expansion
* Do not smoke
* Allow no naked ame or hot material in
refuelling area
* Use only approved fuel containers and
funnels.
REMEMBER FUEL IS A POTIENTIAL
FIRE HAZARD
SAFETY INSTRUCTIONS FOR TC350 USERS
safety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...nowsafety
IS EVERYBODY’S BUSINESS
...now
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT5
GARDEN
TILLER
OPERATION OF GT622
1) Remove the garden tiller
from its trailer/carrier/ute. Use caution.
2) Familiarize yourself with the machine and its
controls.
5) Ensure the tyne engagement control lever is in
the neutral position. The tyne engagement
control lever is located
machine below handle bar. The neutral position
on the left hand side of the
of the lever is achieved by simply releasing the
tyne engagement control lever.
4)
3) Adjust wheels if required, using the handle wheel
adjustment lever.
Adjust depth shoe if required, using the depth
control adjustment lever.
6) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
pull up on the tyne engagement control lever.
The tynes will begin to turn. Release the tyne
7) Wheninposition to begingarden tilling,
engagement control lever to stop the tynes turning.
Tyne speed is governed by engine throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
8) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed. Consider
watering the surface and reducing engine speed.
Adjust wheels and depth shoe accordingly while
tilling
WARNING! –IN CASE OF DIFFICULTY,
RELEASE THE TYNE ENGAGEMENT
CONTROL LEVER. ALL TILLING ACTION
STOPS.Turn the engine "STOP" switch
to off located on the engine.
9) Stop Engine: Release the tyne engagement
control lever. Move throttle to Slow position.
Set engine stop switch to Stop or Off position.
DO NOT move choke
position to stop engine.
Backfire or engine
damage may occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheels and depth control handle to
transport position.
© Copyright 2012, Red Roo Sales & Service Company Pty. Ltd. 1301-0069-A
Commer
“The Right Way to Rent” cial Outdoor Power Equipment
control to Choke or Start
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
SAFETYPRECAUTIONS
AND OPERATING
INSTRUCTIONS
™
GT5
GARDEN
TILLER
OPERATION OF GT622
1) Remove the garden tiller
from its trailer/carrier/ute. Use caution.
2) Familiarize yourself with the machine and its
controls.
5) Ensure the tyne engagement control lever is in
the neutral position. The tyne engagement
control lever is located
machine below handle bar. The neutral position
on the left hand side of the
of the lever is achieved by simply releasing the
tyne engagement control lever.
4)
3) Adjust wheels if required, using the handle wheel
adjustment lever.
Adjust depth shoe if required, using the depth
control adjustment lever.
6) Open fuel shut-off valve. Set choke
control to Choke or Start position.
Set throttle control to Run or Fast
position. Set engine
stop switch to On or
Run position. Pull
starter cord rapidly.
Repeat (if necessary)
with choke off.
pull up on the tyne engagement control lever.
The tynes will begin to turn. Release the tyne
7) Wheninposition to begingarden tilling,
engagement control lever to stop the tynes turning.
Tyne speed is governed by engine throttle setting.
WARNING! –KEEPHANDSAND
FEET CLEAR OF TYNES AT ALL
TIMES!
8) Do not hurry the job. Proceed slowly and allow
the machine time to do the job. When ground
is extremely hard, reduce engine speed. Consider
watering the surface and reducing engine speed.
Adjust wheels and depth shoe accordingly while
tilling
WARNING! –IN CASE OF DIFFICULTY,
RELEASE THE TYNE ENGAGEMENT
CONTROL LEVER. ALL TILLING ACTION
STOPS.Turn the engine "STOP" switch
to off located on the engine.
9) Stop Engine: Release the tyne engagement
control lever. Move throttle to Slow position.
Set engine stop switch to Stop or Off position.
DO NOT move choke
position to stop engine.
Backfire or engine
damage may occur.
AFTER USE
1) Turn fuelshut off valve to the "OFF"
position.
2) Allow machine to cool down.
3) Wash mud and dirt off of the garden tiller.
Ensure no water enters the carburettor.
4) Removeanyweeds,wire,rope or other
material thatmayhavewrappedaround the
tynes and rotor assembly.
5) Returnwheels and depth control handle to
transport position.
© Copyright 2012, Red Roo Sales & Service Company Pty. Ltd. 1301-0069-A
Commer
“The Right Way to Rent” cial Outdoor Power Equipment
control to Choke or Start
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
BEFORE USE
1) If the turf cutter is to be used in clay or hard ground
conditions, it is recommended to water the area
thoroughly and to allow sufcient time for the soil to
soften
2) Police the area. Remove any foreign
objects from the area. Identify and
mark the location of sprinkler heads,
gas pipes, telephones cables, etc.
1) DO NOT allow any person to operate
the turf cutter without rst reading and
understanding the safety and operating
instructions. KNOW THE CONTROLS
AND HOW TO STOP
THE TURFCUTTER
QUICKLY IN AN EMERGENCY
2) NEVER allow CHILDREN or UNTRAINED
ADULTS to operate the turf cutter
3) PPE (PERSONAL
PROTECTION
EQUIPMENT)
IS MANDATORY BEFORE OPERATING
THIS MACHINE.
ALWAYS wear
protective clothing when operating the
turf cutter. This includes, but not limited to; safety
glasses, loose tting gloves, steel capped boots and
hearing protection. NEVER wear loose tting clothing
or jewelry when operating the turf cutter. Keep all
clothing away from moving parts. Clothing could
become caught in the machine resulting in injury.
4) ALWAYS operate the turf cutter in a well-lighted area
5) ALWAYS make certain that both control clutches
are in the “DISENGAGED” position prior to
starting the engine.
6) ALWAYS operate the turf cutter
on level ground only. Keep your
work area clear and free of of
debris. DO NOT operate on angle
that exceeds 15º degrees.
7) NEVER operate the turf cutter when fatigued.
AWAYS BE ALERT! If you get tired while
operating the turf cutter take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before operating this piece of
equipment. NEVER operate the turf cutter under
the inuence of medication, alcohol or drugs.
8) DO NOT allow other adults, children
or animals near the turf cutter. IT IS
THE RESPONSIBILITY OF THE
OPERATOR to keep bystanders and animals a
minimum of 6 metres (18 feet) away from the turf
cutter while in operation.
SAFETY INSTRUCTIONS FOR RH918 USERS
OPERATING
INSTRUCTIONS
USE COMMON SENSE
AND PLENTY OF IT
TRANSPORT
BEFORE USE
1) DO NOT allow any person operate the
rotary hoe without first reading and
understanding the safety instructions and
operating instructions.
2) NEVER allow children to operate the rotary hoe.
8) ALWAYS make certain the Tyne Control Lever is
set at neutral while loading and unloading the
rotary hoe, or moving to and away from working area.
9) NEVER run the machine in reverse while the tynes
are rotating. Always move the tyne control lever to
“OFF” before reversing the wheels.
11) DO NOT leave the machine unattended while the
engine is running.
12) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life.
13) NEVER operate the rotary hoe in an
enclosed area. Engine exhaust contains
carbon monoxide, an odourless and
tasteless poison.
14) STOP the engine and disconnect the
spark plug lead(s) and allow engine to
cool before inspecting or performing
maintenance on the rotary hoe.
15)
1)
REFUELLING
* Shut off the engine. DO NOT REFUEL
AN ENGINE WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* USE UNLEADED FUEL ONLY.
Use clean, fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
* Do not over-fill fuel tank. Allow space
for fuel expansion.
10) NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good
working order.
4) ALWAYS use the rotary
hoe in a well lighted area.
7) NEVER operate the rotary hoe when fatigued.
ALWAYS BE ALERT! If you get tired while
operating the rotary hoe, take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before you operate this equipment.
NEVER operate the rotary hoe under the influence
of medication, alcohol or drugs.
6) DO NOT allow other persons near the
rotary hoe. It is up to the operator to keep
bystanders and animals a minimum of 6
5) ALWAYS operate the rotary
hoe on level ground only.
Police the area before rotary
hoeing. Remove any foreign objects in the digging
area - bricks, rocks, wire and sticks. Locate and mark
any sprinkler heads, water pipes, gas lines,
electrical and telephone cables or any other hazard
either below or above ground.
3) ALWAYS wear protective clothing when operating
the rotary hoe. This includes, but is not limited to;
safety glasses, loose fitting gloves, steel capped
boots and hearing protection. NEVER wear loose
fitting clothing or jewellery when operating the
rotary hoe. Keep all clothing away from moving
parts. Items could become caught in the machine,
resulting in injury.
KNOW THE CONTROLS AND HOW TO STOP
THE ROTARY HOE QUICKLY IN AN EMERGENCY.
metres (20’) away from the machine while in
operation.
ALWAYS KEEP YOUR HANDS,
FEET AND BODY AWAY FROM
THE DIGGING ZONE WHILE
ENGINE IS RUNNING.
* Do not smoke.
* Allow no naked flame or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard .
Be sure Tyne Control Lever is set to “Neutral”
while loading and unloading the rotary hoe
and when moving to or from jobsite.
Ensure that all grass and weeds have been cut
as low as possible.
2) If the rotary hoe is to be used in clay or hard
ground conditions, it is recommended to water
the area thoroughly and allow sufficient time
for earth to soften.
3) Police the area. Remove any
foreign objects from the area.
4) Identify and mark the location of sprinkler heads,
gas pipes, telephone cables etc.
“The Right Way to Rent”
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
USE COMMON SENSE
AND PLENTY OF IT
OPERATOR MUST BE TRAINED
MAXIMUM ANGLE
OF OPERATION
DO NOT EXCEED
15º ANGLE
USE COMMON SENSE
AND PLENTY OF IT
SAFETY INSTRUCTIONS FOR HT912USERS
INSTRUCTIONS
DO NOT allow any person to operate the
hydraulic trencher without first reading and
understanding the safety instructions and
NEVER allow children to operate the hydraulic trencher.
ALWAYS use hydraulic trencher in a well lighted area.
ALWAYS make certain that all control clutches are in
the “disengaged” position prior to starting the engine.
The safety clutch lever/Operator Presence Control on
the left handlebar is for operator protection. DO NOT
tape down or otherwise bypass this Safety Device.
NEVER wear loose fitting clothing or jewellery when
operating the hydraulic trencher. Keep all clothing
away from moving parts. Item could become
caught in the machine, resulting in injury.
ALWAYS wear protective
clothing when operating
the hydraulic trencher.
This includes, but is not limited to, safety glasses, hard hat
loose fitting gloves, steel capped boots and hearing protection.
operating instructions. KNOW THE CONTROLS AND
HOW TO STOP THE HYDRAULIC TRENCHER QUICKLY
IN AN EMERGENCY.
1)
2)
3)
4)
Police the area before trenching. Remove any foreign
objects in the digging area eg bricks, rocks, wire and
sticks. Locate and mark any sprinkler heads, water
pipes, gas lines, electrical and telephone cables or any
other hazard either below or above ground.
5)
DO NOT leave the machine unattended while the engine
is running. DO NOT park on incline or park
perpendicular to slope. DO NOT freewheel down incline.
7)
DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life
8)
NEVER operate the hydraulic trencher when fatigued.
ALWAYS BE ALERT! If you get tired while operating
the hydraulic trencher, take a break. If you have any
type of physical or mental condition that may be
aggravated by strenuous work, consult with your
physician before you operate this equipment. NEVER
operate the hydraulic trencher under the influence of
medication, alcohol or drugs.
9)
NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good working order
Remove the hydraulic trencher from its
trailer. Use caution.
Police the area. Remove any
foreign objects from the area.
Identify and mark the location of sprinkler heads,
gas pipes, telephone cables, etc.
IGNITION: Must be in “ON” position to start. “OFF”
to stop.
ENGINE: Throttle cable controls engine speed.
Operate at full throttle (all the way forward).
WHEEL DRIVE CONTROL LEVER: Controls wheel
speed forward or reverse after clutch lever is engaged.
DIGGING BOOM CONTROL LEVER: Raises and lowers
the digging boom.
DIGGING CHAIN CONTROL LEVER: must be in “ON”
position BEFORE clutch lever is depressed in order
to start chain in motion. Chain moves in a forward
direction after clutch lever is engaged.
SAFETY CLUTCH LEVER/OPERATOR PRESENCE
CONTROL: (At left handle grip) Activates WHEEL
DRIVE and DIGGING CHAIN controls when depressed.
Stops all motion when released.
FORWARD/REVERSE DIGGING CHAIN CONTROL
LEVER: Allows manual operation of chain in forward
or reverse rotation to dislodge objects or dig difficult
terrain. (This control can be used with the clutch lever
released.) To reverse chain, DIGGING CHAIN control
must be in “OFF” position.
Familiarize yourself with the hydraulic
trencher and its controls.
10)
1)
1)
2)
1)
Free Wheel Hub Feature - Operation:
Pull one free wheeling pin slightly, using the split
ring. Rotate the pin until the 3mm (1/8”) diameter roll
pin aligns with the slot in the mounting plate. Allow
the pin to slide through the slot. Repeat for the other
wheel. Roll the trencher until each pin drops into a
hole in the hub. The wheel hubs are now locked.
Reverse the procedure to unlock the wheels.
2)
DO NOT allow other persons near the hydraulic
trencher. It is up to the operator to keep
bystanders and animals a minimum of 6 metres
(20ft) away from the machine while in operation.
12)
NEVER operate the hydraulic trencher in an
enclosed area. Engine exhaust contains carbon
monoxide, an odourless and tasteless poison.
13)
WARNING: Hydraulic oil is under extreme
pressure and can get under skin and burn
or poison. Check for leaks with cardboard.
14)
STOP the engine and disconnect the spark
plug lead(s) and allow engine to cool before
inspecting or performing maintenance on
the hydraulic trencher.
15)
REFUELLING
* Shut off engine. DO NOT REFUEL AN ENGINE
WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* Do not smoke. *Allow no naked flame
or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard.
* Do not over-fill fuel tank. Allow space for
fuel expansion.
* USE UNLEADED FUEL ONLY. Use clean,
fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
16)
ALWAYS KEEP YOUR HANDS, FEET AND BODY
AWAY FROM THE DIGGING CHAIN AND OTHER
MOVING PARTS WHILE ENGINE IS RUNNING.
11)
ALWAYS operate
hydraulic trencher
on level ground only.
6) MAXIMUM
ANGLE OF
OPERATION
DO NOT EXCEED 15ºANGLE
BEFORE USE
OPERATION
TRANSPORT
SAFETY INSTRUCTIONS FOR RH918 USERS
OPERATING
INSTRUCTIONS
USE COMMON SENSE
AND PLENTY OF IT
TRANSPORT
BEFORE USE
1) DO NOT allow any person operate the
rotary hoe without first reading and
understanding the safety instructions and
operating instructions.
2) NEVER allow children to operate the rotary hoe.
8) ALWAYS make certain the Tyne Control Lever is
set at neutral while loading and unloading the
rotary hoe, or moving to and away from working area.
9) NEVER run the machine in reverse while the tynes
are rotating. Always move the tyne control lever to
“OFF” before reversing the wheels.
11) DO NOT leave the machine unattended while the
engine is running.
12) DO NOT overspeed the engine or alter the governor
settings. Excessive speed is dangerous and will
shorten engine life.
13) NEVER operate the rotary hoe in an
enclosed area. Engine exhaust contains
carbon monoxide, an odourless and
tasteless poison.
14) STOP the engine and disconnect the
spark plug lead(s) and allow engine to
cool before inspecting or performing
maintenance on the rotary hoe.
15)
1)
REFUELLING
* Shut off the engine. DO NOT REFUEL
AN ENGINE WHILE OPERATING!
* Allow engine to cool. Minimum 5 minutes
* USE UNLEADED FUEL ONLY.
Use clean, fresh unleaded fuel.
* Do not mix oil with unleaded fuel.
* Do not over-fill fuel tank. Allow space
for fuel expansion.
10) NEVER operate the unit without the safety
guards in place and in working order. Keep
the unit well maintained and in good
working order.
4) ALWAYS use the rotary
hoe in a well lighted area.
7) NEVER operate the rotary hoe when fatigued.
ALWAYS BE ALERT! If you get tired while
operating the rotary hoe, take a break. If you have
any type of physical or mental condition that may
be aggravated by strenuous work, consult with
your physician before you operate this equipment.
NEVER operate the rotary hoe under the influence
of medication, alcohol or drugs.
6) DO NOT allow other persons near the
rotary hoe. It is up to the operator to keep
bystanders and animals a minimum of 6
5) ALWAYS operate the rotary
hoe on level ground only.
Police the area before rotary
hoeing. Remove any foreign objects in the digging
area - bricks, rocks, wire and sticks. Locate and mark
any sprinkler heads, water pipes, gas lines,
electrical and telephone cables or any other hazard
either below or above ground.
3) ALWAYS wear protective clothing when operating
the rotary hoe. This includes, but is not limited to;
safety glasses, loose fitting gloves, steel capped
boots and hearing protection. NEVER wear loose
fitting clothing or jewellery when operating the
rotary hoe. Keep all clothing away from moving
parts. Items could become caught in the machine,
resulting in injury.
KNOW THE CONTROLS AND HOW TO STOP
THE ROTARY HOE QUICKLY IN AN EMERGENCY.
metres (20’) away from the machine while in
operation.
ALWAYS KEEP YOUR HANDS,
FEET AND BODY AWAY FROM
THE DIGGING ZONE WHILE
ENGINE IS RUNNING.
* Do not smoke.
* Allow no naked flame or hot material in refuelling area.
* Use only approved fuel containers and funnels.
Remember, fuel is a potential hazard .
Be sure Tyne Control Lever is set to “Neutral”
while loading and unloading the rotary hoe
and when moving to or from jobsite.
Ensure that all grass and weeds have been cut
as low as possible.
2) If the rotary hoe is to be used in clay or hard
ground conditions, it is recommended to water
the area thoroughly and allow sufficient time
for earth to soften.
3) Police the area. Remove any
foreign objects from the area.
4) Identify and mark the location of sprinkler heads,
gas pipes, telephone cables etc.
“The Right Way to Rent”
You alone know the operational demands and
special conditions affecting the equipment in
your situation and therefore assume the
responsibility for developing, carrying out, and
enforcing the safety concepts which apply to your
own operation to effect the greatest safety for
yourself andthe people around you.
“STAY ALERT - DON’T GET HURT”
OPERATOR ZONE
On / Off Switch
Engine ExhaustLifting Point
Bumper Bar
Engine
On / Off
Switch
Wheel Drive
Engagement
Clutch Lever
Turf Cutter Blade
Depth
Control
Handle
Turf Cutter
Blade Engage / Disengage
Clutch Lever
TURF CUTTING ZONE
- Hire A TurfcuTTer
© Copyright 2017 Red Roo Sales & Service Company Pty. Ltd. 1301-0056-A
