RedEarth SunRise SRS-3 Series User manual

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 1 of 18 Issue Date 13/11/2020
SunRise
Home Battery System
Model: SRS-3xx
User Manual

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 2 of 18 Issue Date 13/11/2020
RedEarth Energy Storage Ltd
15 Fienta Place
Darra – QLD 4076
Australia
Tel: [phone]
Email: [e-mail]
Web: www.redearth.energy

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 3 of 18 Issue Date 13/11/2020
Symbol
Explanation
Indicates additional information, emphasized contents or tips that may be helpful.
Caution, risk of electric shock.
Caution, risk of danger.
In the event of fire evacuate the area and call emergency services. A dry agent fire
extinguisher should be readily available and used. DO NOT use water. Evacuate the
area and call emergency services. Toxic gas may be produced if the battery catches
fire.
Note: MSDS document is provided with the system and also can be found at
www.redearth.energy
Do not use a damaged battery. Batteries should only be disposed of at an appropriate
recycling centre. Please contact RedEarth for advice.
Working on the inside of the BlackMax system is restricted to qualified personnel.
In Australia this is typically qualified electricians with CEC accreditation for Solar and
Battery.
Many of the procedures covered in the Installation manual have inherent risks. Whilst
the SunRise is designed to be electrically safe, including residual current device and
double insulated cables, the voltages connected or generated by the equipment are
hazardous and potentially fatal.
The SunRise must only be commissioned by suitably qualified personnel.
It is the
responsibility of the installer to ensure the operation and all the wiring is carried out
according to all safety standards that are
applicable to the installation. The wiring
diagrams and installation instructions are given as a guide only and compliance to
appropriate standards is the responsibility of the installer.
If equipment used in manner not specified be the manufacturer, the protection provided
by the equipment may be impaired.
In our efforts towards constant product enhancement, this document is subject to
change at any time. Please visit www.redearth.energy and download the appropriate
and latest version manual.
Safety

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 4 of 18 Issue Date 13/11/2020
The SunRise Home Battery is an Australian-made battery system designed to reduce electricity
usage. The system generates and stores solar power for use day & night. The SunRise is fully
certified to AS4777.2, IEC62109-1/2 & AS60950.1 and conforms to the Battery Safety Guide.
This manual describes the installation of the Model: SRS 3xx of the SunRise System.
A 1-phase version of the SunRise is also available.
The SunRise system can opperate with or without batteries. These can also be easily added later,
as demand grows and budgets allow. All batteries must be of the same make and model.
•When installed with batteries excess PV solar electricity generated during the day will be
used to reduce the amount of electricity baught from the grid at night. In addition the battery
ensures essential household loads (fridges, lights etc) can be powered during a power
outage.
•When installed without batteries excess PV generated during the day can be exported to
the grid, which reduces your electicity bill. Ensuring you have the best electricity plan from
your provider will improve your return.
•The SunRise system can also easily be retrofitted to an existing PV solar system.
The SunRise combines an AS4777.2 certified SunGrow 10kW inveter (SH10RT) with the globaly
popular Pylontech lithium-ion batteries (H48074). With the advantege of scalability in energy
storage, the Sunrise has multiple options to fit a budget:
•Emergency Power: The minimum amount of batteries aloud for this SunRise is zero (0) batteries.
However, if opting for batteries, at least 5 batteries (17.75kWh) must be installed for correct
operation.
•Full Power: To have the maximum (10kW) power available, the Sunrise must have seven (7) or more
batteires.
•Max Storage: With the hability to hold 9 batteries, a fully loaded SunRise can store 31.95kWh of
electricity.
For government rebates purposes, a total of 13.3kW of solar panels can be connected to the system.
The SunRise SRS system can be remotely monitored via RedEarth Energy Storage’s platfom as
well as SunGrow’s web portal or their app (iSolarCloud app).
About the SunRise

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 5 of 18 Issue Date 13/11/2020
SunRise Weight: 450kg with 9x Lithium batteries (32kg per battery)
Dimensions: 1050 H x 1322 W x 537 D [mm]
Dimensions & Clearance
Sunrise Minimum Clearance
According to AS/NZS 5139

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 6 of 18 Issue Date 13/11/2020
The SunRise
RedEarth’s SunRise Home Battery System is designed to be fully autonomous and provide solar
and battery power in the most efficient way possible.

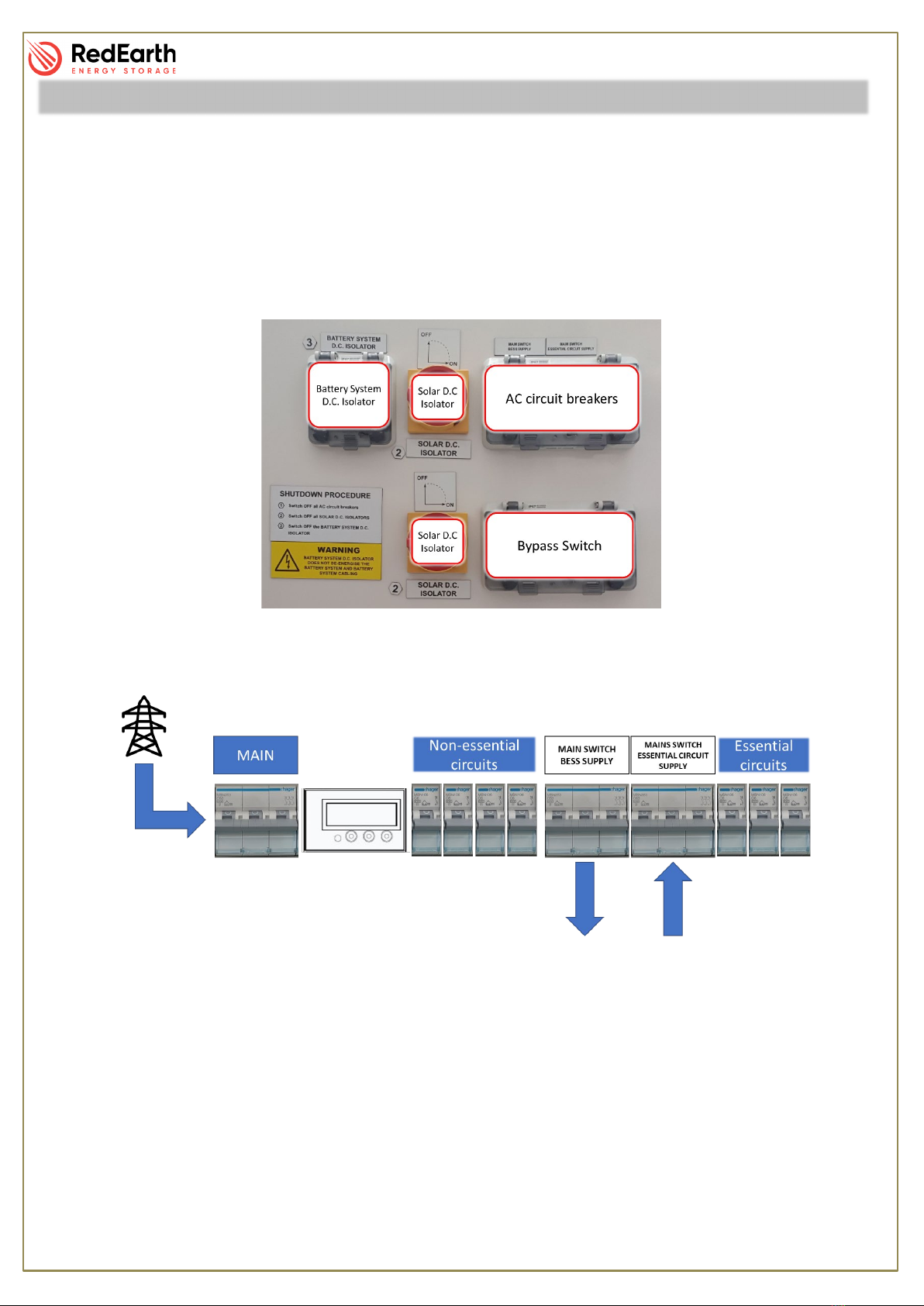

The SunRise has three sets of switches on the righthand side to control the flow of power. These
sets are defined as “AC”, “PV” and “Battery”. With the AC switches behind the first window, the PV
in the middle (red and yellow rotary switches) and the battery on the right
The House
After the installation of the three-phase SunRise, the Main Switchboard of the property should look
something like this:
The key features are:
•SunRise Meter (CHINT): Reads the amount of power used/sold to the grid
•“MAIN SWITCH ESSENTIAL CIRCUIT SUPPLY”: Disconnects the non-essential side of the SunRise
•“MAIN SWITCH BESS SUPPLY”: Disconnects the essential side of the SunRise
Overview

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 7 of 18 Issue Date 13/11/2020
Turn ON
NOTE: All devices listed below are located on the RHS of the unit and can be also identified by the
number in front of it.
To turn ON the unit for the first time, you must follow the steps below:
1 Switch ON the BATTERY SYSTEM D.C. ISOLATOR (#3);
2 Switch ON both SOLAR D.C. ISOLATORS (#2);
3 Turn the ByPass Switch to Normal Operation (upwards);
4 Turn ON all AC circuit breakers (#1);
1
2
3
4
NOTE: For a full “turn on” procedure, check the Installation Manual
How to Turn ON / Shutdown my SunRise

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 8 of 18 Issue Date 13/11/2020
Shutdown Procedure
The shutdown procedure is the reverse of the “turn on” procedure and is shown below. This
procedure can be found on the RHS of the unit.
1 Turn OFF all AC circuit breakers (#1);
2 Switch OFF the SOLAR D.C. ISOLATORS (#2);
3 Switch OFF the BATTERY SYSTEM D.C. ISOLATOR (#3);
1
2
3
How to Turn ON / Shutdown my SunRise

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 9 of 18 Issue Date 13/11/2020
Grid Connected:
The SunRise is setup to provide power in the most efficient way possible.
The priorities set on this system are to power the loads from the PV (solar) first, then the battery and
finally the grid.
To take full advantage of your solar power, the solar power will go to the loads first and only the
excess will be stored into the batteries and used when needed. In the event where the loads are
met (by the solar power), the batteries are full and there is still excess solar available, the system
will now begin to export power to the grid.
To understand better, observe the real life example below, where the green area is the Solar Power,
the yellow area is the Loads, the red area is the battery and the blue area is the grid.
In this example there are 4 clear scenarios:
•Scenario 1: There is no solar power, the batteries are “empty” and the grid is providing power to the
loads.
•Scenario 2: As the solar power increases, it provides power to the loads and the excess power charges
the batteries. Grid power is now neutral.
•Scenario 3: The solar power is at its maximum and is still providing power to the loads. The batteries
are full and remain full until they are needed. The excess solar power is exported to the grid.
•Scenario 4: As the solar power disappears, the batteries start to “take over” the loads. While the
batteries still have energy, the grid will remain neutral.
How my SunRise Operates

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 10 of 18 Issue Date 13/11/2020
During Black-outs:
When the Grid power is lost, the system will turn off and then after a few seconds (up to a minute)
power will be available on the essential loads (EPS).
While in this mode, the Sunrise will use PV power (if available) and supply power to the loads as
well as charge the batteries.
Once batteries are empty, the SunRise will turn off and you will lose power on the EPS loads.
There are two ways that the SunRise will turn on again. Please see FAQ #1 at the end of this manual
to learn how this happens.

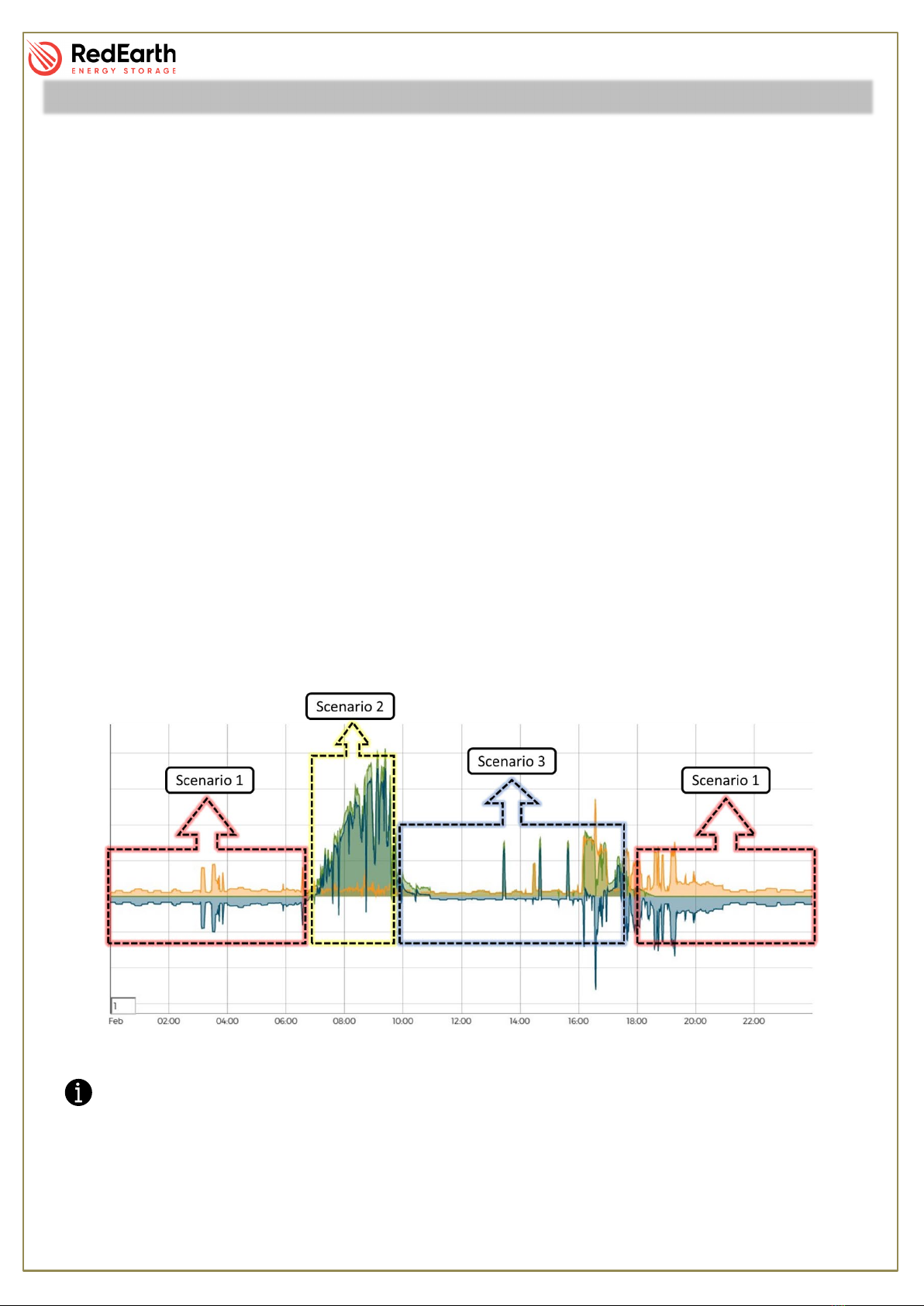

To understand better, observe the real-life example below, where the green area is the Solar Power,
the yellow area is the Loads, the blue area is the battery. Note that in this example the grid in not
present.
In this example there are 3 clear scenarios:
•Scenario 1: There is no solar power or grid, the batteries are providing power to the loads.
•Scenario 2: As the solar power increases, it provides power to the loads and the excess power charges
the batteries.
•Scenario 3: Even though the solar power is at its maximum, it is reduced to only match the loads.
Minimal battery power is used in this scenario as it is used as a buffer for sudden changes in demand.
Note that the previous “excess” solar power is not allowed to be exported to the grid.
How my SunRise Operates
If the SunRise is overloaded in this operation mode, the inverter will turn off (loss of power
on essential loads). It will attempt to turn on again, but for this to happen some loads must
be turned off otherwise it will trip again.

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 11 of 18 Issue Date 13/11/2020
Under Fault
Faults in the system can happen due to several reasons including, but not limited to, MPPT failure,
electrical leak (earth fault), over discharged battery. As the system is compliant to all safety
standards, the most likely symptom of a failed system is the non-use of battery power or non-
production of PV power. If this happens, follow the Shutdown Procedure (explained in this manual)
and operate the system in Bypass Operation (explained in this manual).
If there is an electrical leak (earth fault), the SunRise will illuminate the red light in the AC Breakers
window. If this happens, follow the Shutdown Procedure (explained in this manual) and operate the
system in Bypass Operation (explained in this manual) and call your installer as soon as possible.
How my SunRise Operates

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 12 of 18 Issue Date 13/11/2020
SwitchBoard
The Sunrise system will be connected to two breakers in a switchboard. These breakers should be
identified by the labels below.
•MAIN SWITCH BESS SUPPLY: Disconnects the non-essential side of the SunRise.
•MAIN SWITCH ESSENTIAL CIRCUIT SUPPLY: Disconnects the essential side of the SunRise.
NORMAL OPERATION:
In this operation mode the Sunrise will operate as explained above.
Where the system uses solar, battery and grid depending on the
situation.
All of the AC breakers and isolators should be on the ON position and
the ByPass Switch should be in the upwards position ( I ).
The Battery and Solar DC Isolators must be turned on as well.
BYPASS OPERATION
In the ByPass operation mode, the system will completely bypass the
inverter and the grid will provide power directly to the EPS loads.
For this to happen, all breakers and isolators should be turned OFF and
the ByPass Switch should be in the downwards position ( II )
The Battery and Solar DC Isolators must be turned on as well.
How to Operate the SunRise
B
reakers in the Switchboard must be turned on (even in
BYPASS OPERATION)

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 13 of 18 Issue Date 13/11/2020
Maintenance Schedule
Weekly
Check component operating lights are normal
Monthly
Clean inside the enclosure of dust, vermin or obstructions
Ensure safety labels/instructions remain visible
Clean air filter with vacuum or soft brush
Clean outside of enclosure soft brush or damp cloth
Bi-annually
Clean solar panel surfaces to ensure optimal performance
Annually
Visually inspect for loose cables or connections near inverter
Clear any vegetation or overgrowth over the solar panels
Inspect conditions of solar panels, cables, array frame for damage or corrosion
End of Life Recycling
Please contact RedEarth Energy Storage to arrange recycling of your battery.
Working on the inside of the SunRise system is restricted to qualified personnel.
RedEarth recommend installation by licensed electricians only.
Maintenance and End of Life

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 14 of 18 Issue Date 13/11/2020
1. During testing and commissioning, RedEarth will setup an account for the end user and send
out the following invitation.
2. Click on the link to create an account.
3. In a web browser, visit https://app.switchdin.com/accounts/sign-in?profile=redearth and log in
to view your system.
Monitoring
Once signed in, you will see the following page.
Setting up monitoring

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 15 of 18 Issue Date 13/11/2020
Overview Tab
LIVE DATA - Illustrates the movement of PV production, battery power, generator and load
all in Real Time.
WEATHER - Displays the current weather at the location of the system, time of day when
solar is available, wind speed and humidity.
SYSTEM STATUS - Shows the last time data was collected from the BlackMax system and
updated to this profile.
SOC - This graph shows the State Of Charge (SOC)of the battery for today as a percentage
value.
SO FAR TODAY – This section has three charts. Two of these are doughnut charts and
relate to Production (PV) and Consumption (Loads). The third shows power values from solar, load,
generator and battery over time.
In this example the solar PV is producing 0.77kW of power, there is 0.05kW of load and solar PV
is charging the battery with 0.54kW. The battery is providing 0kW to the loads.
In the example above, 0.75kWh energy was produced from solar. 0.05kWh of it was
“exported” to the Loads and 0.71kWh was stored in the battery. Of the 0.05kWh “exported”
(consumption), 0.05kWh came from the PV and 0kWh came from the battery.
Understanding SwitchDin’s portal

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 16 of 18 Issue Date 13/11/2020

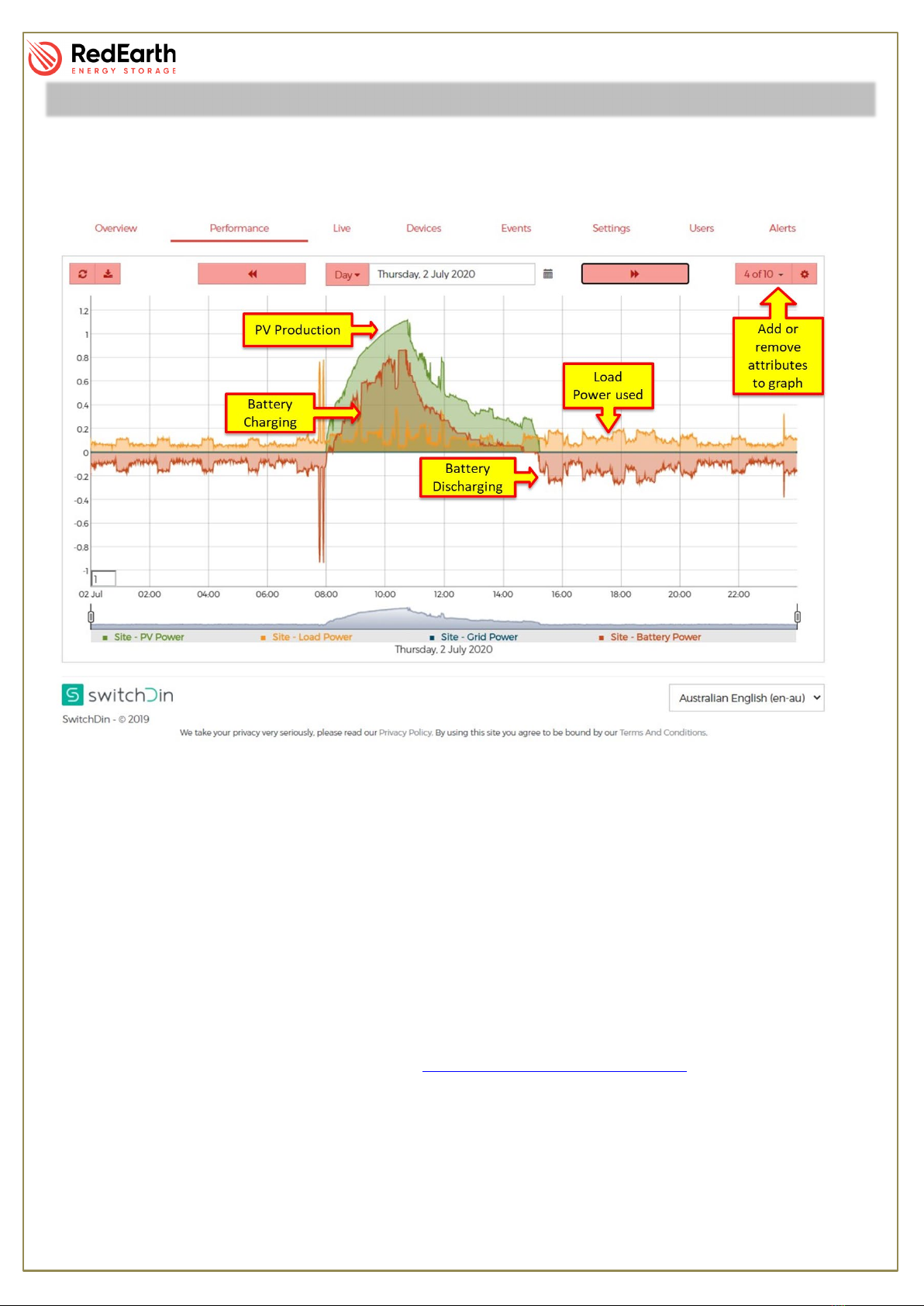

Performance Tab
The performance tab can be customised to see several historical data about the system.
If the “Battery Power” is a positive value (above the zero line) then it is in a charging state. If this is
a negative value (below zero the line), then it is discharging.
Live Tab
The Live Tab displays all the live readings of data in numerical form from the connected devices.
Users Tab
This tab shows the users who can view this system. This will include you, the customer, and the
RedEarth team involved in monitoring your system.
Alert Tab
The alert tab shows any errors or warnings received about the system. You will also receive an
email if an alert occurs.
Further Questions
For further questions, feel free to email us at [e-mail] or call us on 1800 733
637.
Understanding SwitchDin’s portal

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 17 of 18 Issue Date 13/11/2020
1. “I lost power!” What should I do?
R: If you have lost power on the non-essential loads, this means that the grid has failed, and the
power will remain off until it is fixed. If your essential loads have lost power the most likely reason
for this is that the grid has failed, and the SunRise is setting itself up to start EPS mode. This could
take up to a minute.
If the SunRise was already on Backup Mode (no Grid) and the essential loads have turned off, the
loads will come back on automatically is the Grid comes back on. Otherwise, you must turn OFF the
ac breakers on the sunrise and then turn the PV isolator OFF and then ON again (while the sun is
shining). This will start charging the battery. Once the battery is at a safe level (approximately 40%),
you can turn the AC breakers back on.
If the battery is left in low state of charge for a long period of time, it will cause damage to the battery
and require a certified electrician to restart the system.
FAQ’s

SunRise – Installation Manual
RE_PROD_0018 Version 1 Page 18 of 18 Issue Date 13/11/2020
RedEarth can provide several options for the SunRise;
•Membership of the RedEarth Customer Community
•Additional batteries for system expansion
•Remote and ongoing monitoring option
•Extended warranty option
•Miscellaneous spare parts
•SunRise Power Kit: PV panels, racking and pre-terminated PV cables
Services and options available for your SunRise
RedEarth’s Monitoring and Customer Community Monitoring
Visit us in Brisbane
