Redmax Bm46i Owner's manual

WARNING WARNING

This sprayer is not designed to be used with acids of any

kind, corrosive products like caustic soda, gasoline,

materials capable of generating heat, hot fluids, explosive

or highly volatile products.

USE OF THESE AND OTHERS EXPOSE USERS TO

SERIOUS INJURY AND EVEN DEATH.

Before using our products, please read this

manual carefully to understand the proper

use of your unit.

OWNER/OPERATOR MANUAL

BACKPACK SPRAYER

MCO080103 (801)

BM46I

SAFETY FIRST

Instructions contained in warnings within this manual and warning seals marked

with a symbol on the sprayer concern critical points which must be taken into

consideration to prevent possible serious bodily injury, and for this reason you are

requested to read all such instructions carefully and follow them without fail.

Note that there may be times when warning seals peel off or become soiled and

impossible to read. If this happens, you should contact the dealer from which you

purchased the product to order new seals and affix the new seal(s) in the required

location(s).

■NOTES ON TYPES OF WARNINGS

Instructions labeled as shown at left, concern critical steps or procedures

which must be followed in order to prevent accidents which could lead to

serious bodily injury or death.This mark is used to indicate instructions

which must be followed without exception.

Instructions labeled as shown at left concern steps or procedures which, if not

followed correctly, could lead to mechanical failure, breakdown, or damage.

Used to label supplementary instructions designed to provide hints or directions

useful in the use of the product.

NOTE

IMPORTANT

WARNING

1. Parts location ………………………………………………3

2. Specifications ………………………………………………3

3. Warning labels on the machine …………………………3

4. For safe operation …………………………………………3

5. Set up ………………………………………………………6

6. Pre Operation………………………………………………7

7. Operation …………………………………………………8

8. Maintenance ………………………………………………8

9. Storage ……………………………………………………9

10. Disposal ……………………………………………………9

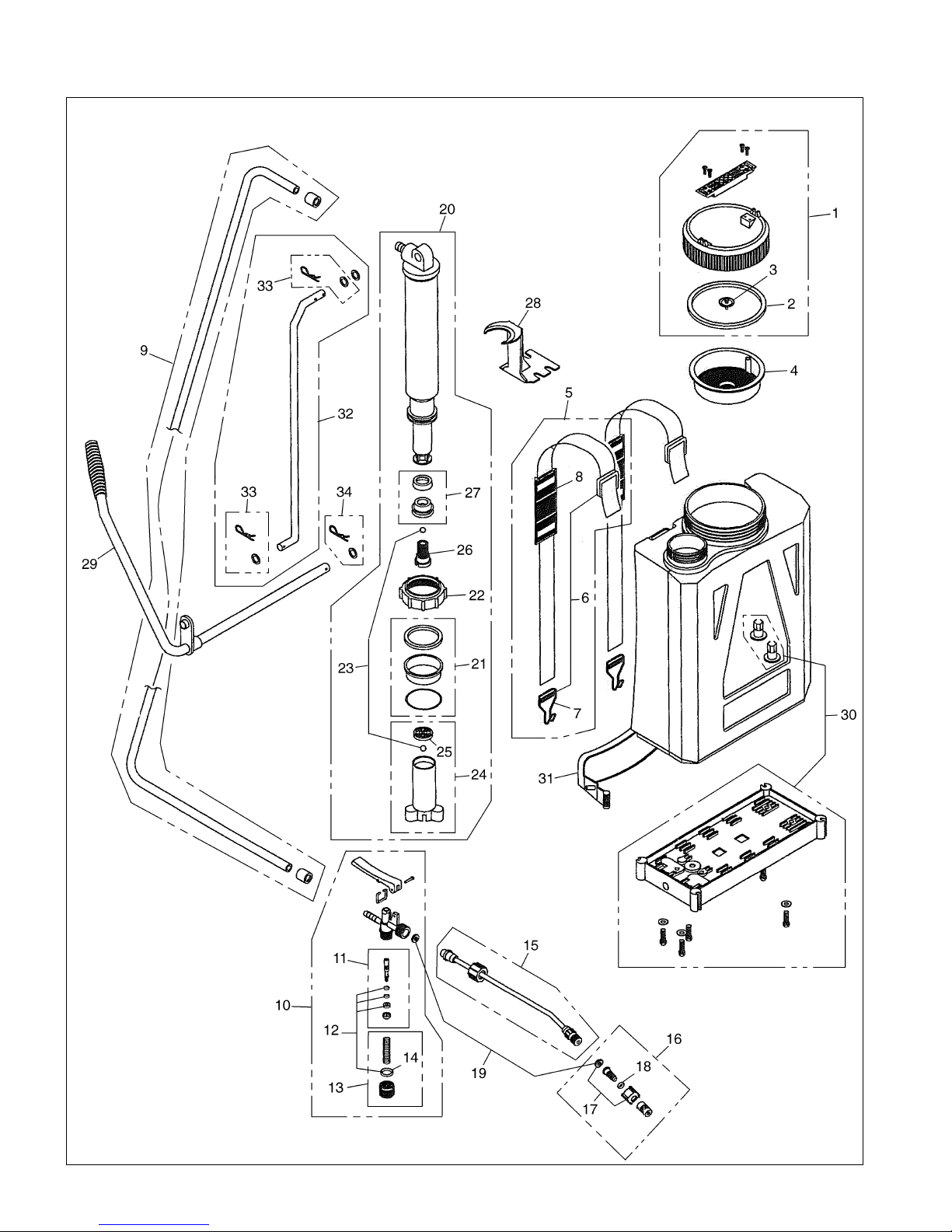

11. Parts list ……………………………………………………9

Contents

2

3

1. Tank

2. Pump

3. Lid (cap)

4. Shoulder Strap

5. Hose

6. Wand

7. Nozzle,

Spray Tip Set

Type········································································Back Pack

Model Name ··································································BM46I

Dimensions (LxWxH) ·························566x375x220 (22.3x14.8x8.7) mm (in)

Dry Weight········································································6.05 (12.1) kg (lbs)

Tank Capacity·································································17.4 (4.6) litter (Gal)

Max. Pressure ··························································11.76 (168) kgf/cm2 (psi)

Working Pressure········································1.05 – 5.6 (15 – 80) kgf/cm2 (psi)

Sealed/O rings············································································VITON/Nytril

Pump Type ··················································Internal Double-ripped Piston

Reparability················································································YES

Tank Mouth··································································································6"

Wand Type······················································································20" Brass

Standard Nozzle ······················································Adjustable Brass Nozzle

1

3

2

4

5

6

7

1. Parts location

3. Warning labels on the machine

If warning label peel off or become soiled and impossible to

read, you should contact the dealer from which you

purchased the product to order new labels and affix them in

the required location(s).

Never modify your machine.

We won't warrant the machine, if you use the remodeled

machine or you don't observe the proper usage written in

the manual.

WARNING

IMPORTANT

2. Specifications

1. Read this Sprayer Owner/Operator

Manual carefully. Be sure you

understand how to operate this unit

properly before you use it. Failure to

do so could result in serious injury.

2. Be sure to keep this manual handy so that you may

refer to it later whenever any questions arise. Also

note that you are requested to contact the dealer

from whom you purchased the product for

assistance the event that you have any questions

which cannot be answered herein.

3. Always be sure to include this manual when selling,

lending, or otherwise transferring the ownership of

this product.

4. Do not lend or rent your machine without the

owner's manual.

5. Be sure that anyone using your unit understands the

information contained in this manual.

6. Never let a child under 13 years old

use the machine.

7. DO NOT use flammables in the

sprayer. They can ignite ore xplode

causing serious injury.

8. Always wear splash goggles and

protective gear and clothing when filling, using

and/or cleaning the sprayer.

9. Oil the rubber cap gasket prior to first usage so the

gasket will seal properly.

10.Tighten all connections before using the sprayer.

Some may not he properly secured and must be

tightened to prevent leakage.

BEFORE USING:

Oil cap gasket, oil check valve, and maintain breather

hole clear of debris. Your failure to oil and to clean

check valve, and to maintain breather hole open to

allow air into tank, can cause tank to collapse and

crack due to vacuum created by the pump.

■WORKING CONDITION

1. Refrain from operating the sprayer if you are

tired, ill, or upset, or if you are under the

influence of alcohol, drugs or medication.

2. To reduce the risk of injury when filling, using

and/or cleaning the sprayer, always wear eye

protection. Eye protection should meet the

requirements of ANSI Z87.1.

3. Always wear a mask or respirator when

filling, using and cleaning sprayer, if

recommended by the spray material

manufacturer.

4. Wear protective gear and clothing when

filling, using and cleaning the sprayer.

WARNING

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

4. For safe operation

4

•Pay attention to the direction of the wind, do not work

against the wind.

•Never use the sprayer during windy conditions.

•Never point a sprayer nozzle toward an open flame to

avoid the possibility of igniting the unit, causing injury to

yourself or damage to surroundings.

•Always release pressure in the pump prior to filling,

cleaning, or servicing the sprayer.

•Before opening a container of pesticide or other spray

material, carefully read, understand, and follow all

instructions on the label.

•Do not use flammable materials in the sprayer: they can

ignite and/or explode, causing serious injury.

•Never use caustic or corrosive materials in the sprayer,

which could result in damage to the unit.

•In case of personal contamination: remove contaminated

clothing, remain upright, do not consume liquids or

cause vomiting, and get professional help immediately.

•Never attempt to pressurize the unit by any other method

than with the pump module provided. Never over-

pressurize the unit.

•Do not eat, drink, or smoke while spraying.

•Wash face and hands with soap and water after

spraying.

•Clean and rinse tank and spraying assembly after each

use to prevent crystallizing, which would later cause

clogging and chemical damage to the unit.

•Do not store sprayer under pressure, or with spray

solution in tank.

•Do not transfer spray materials to other containers,

especially, food and/or drink containers.

•Keep spray materials locked up and out of reach of

children and animals.

•Use only original manufacturer’s replacement parts.

•As a rule, mix your chemicals in a separate container

from which to fill the sprayer. Do not mix formulas inside

the sprayer. Where an exception is made (e.g. with liquid

fertilizers), fill sprayer with water BEFORE adding the

active ingredient.

•Always sift formula through the screen. If there is no

built-in strainer, use a screened funnel.

•Never fill the sprayer with hot liquids. Max. 30°C, or

85°F.

•Never use gasoline or other flammable materials.

•Before cleaning or servicing the sprayer, allow all

pressure to escape. Do not store or transport sprayer

under pressure.

•After each use, wash the sprayer—including hose, lance

and shut-off valve—with plenty of fresh water. Unless

spraying is to be continued within hours, drain chemical

formula and thoroughly rinse the tank and all liquid

ducts.

•Never store chemicals in your sprayer for any length of

time

•Do not leave the sprayer in reach of children or persons

not qualified to handle it in proper fashion.

•When not in use—and especially during prolonged

storage—keep your sprayer in a protected place away

from direct solar heat.

4. For safe operation

5. Wear sturdy rubber-soled shoes or shoes

with some other form of anti-slip protection to

help protect you against falling when filling,

using and/or cleaning the sprayer.

6. Do not wear loose clothing, scarves, neck

chains, hair longer than shoulder length, and

the like when filling, using and/or cleaning

the sprayer.

Check and follow the local regulations.

■WORKING PLAN

•When planning your work schedule, allow plenty of time to

rest. Limit the amount of time over which the product is to

be used continuously to somewhere around 30 ~ 40

minutes per session, and take 10 ~ 20 minutes of rest

between work sessions. Also try to keep the total amount of

work performed in a single day under 2 hours or less.

■USING THE PRODUCT

Hose clamps are not completely tight.

Please tighten hose clamps prior to using.

Hose clamps are left loose to extend life of gaskets and

fittings.

Oil cap gasket before using and lubricate weekly so the

gasket will seal properly and prevent chemical leaks.

Oil check valve and maintain breather hole clear of

debris. Your failure to oil may can cause the tank to

collapse and crack due to vacuum created by pump

lubricate with "3 and 1" oil.

1. Always inspect your sprayer thoroughly before and after

each use. Check to be sure hose is securely attached and

in good condition before pressurizing the tank.

2. Check the work area that the sprayer will be

used in and remove or cover all valuables

that may be damaged by using sprayer.

3. To reduce the risk of injury,

•Watch out for children, pets, open

windows or freshly washed cars, and

spray safely away.

•Do not allow bystanders in work area.

•Do not point the sprayer nozzle in the direction of people

or pets.

WARNING

NOTE

IMPORTANT

5

•Make sure the spray hose loops freely without kinking or

squeezing.

4. After using sprayers and other equipment, CLEAN UP!

Dispose of debris in trash receptacles.

■MAINTENANCE

1. In order to maintain your product in proper working order,

perform the maintenance and checking

operations described in the manual at

regular intervals.

2. Examine the sprayer at intervals for loose

fasteners and rusted or damaged parts.

Use special care for chemical leakage.

3Clean and rinse tank and spraying assembly after each use

to prevent crystallizing, which would later cause clogging

and chemical damage to the unit.

4. All service except for those described in this manual should

be performed by competent service personnel.

5. When replacing the any other part, or any lubricant, always

be sure to use only RedMax products or products which

have been certified by RedMax for use with the RedMax

product.

6. In the event that any part must be replaced or any

maintenance or repair work not described in this manual

must be performed, please contact a representative from

the store nearest RedMax authorized servicing dealer for

assistance.

7. Do not use any accessory or attachment other than those

bearing the RedMax mark and recommended for the unit.

8. Under no circumstances should you ever take apart the

product or alter it in any way. Doing so might result in the

product becoming damaged during operation or the product

becoming unable to operate properly.

4. For safe operation

■TRANSPORTATION

•Clean and rinse tank and spraying assembly after each use

to prevent crystallizing, which would later cause clogging

and chemical damage to the unit.

•Drain the content from the tank before transporting or

storing the sprayer.

•Secure the unit carefully to prevent movement when it is

transported.

•Aunit that receives a strong shock during transport and

unloading may malfunction.

■STORAGE

•Clean and rinse tank and spraying assembly after each use

to prevent crystallizing, which would later cause clogging

and chemical damage to the unit.

•Do not store sprayer under pressure, or with spray solution

in tank.

•When storing the sprayer, choose a space indoors free

from moisture and out of the reach of children.

■DISPOSAL

•When disposing your machine, or chemical, be sure to

allow your local regulations.

RedMax BM46I Owner's manual

Popular Paint Sprayer manuals by other brands
