REED SOVE7 User manual

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 1 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
INTRODUCTION........................................................................................................................................................2
WARRANTY ..............................................................................................................................................................3
WARRANTY CLAIM FORM....................................................................................................................................4
PRODUCT DESCRIPTION........................................................................................................................................5
SAFETY.....................................................................................................................................................................6
SAFETY ALERT SYMBOLS AND SIGNAL WORDS..............................................................................................6
READ AND UNDERSTAND MANUAL ...................................................................................................................7
PERSONAL SAFETY PRECAUTIONS..................................................................................................................8
JOBSITE SAFETY PRECAUTIONS.....................................................................................................................10
SAFETY DECALS ................................................................................................................................................11
OPERATOR QUALIFICATIONS.............................................................................................................................14
SOVE V07 MANUAL SUPPLEMENT .....................................................................................................................15
CONTROL BOX....................................................................................................................................................15
AIR VALVE...........................................................................................................................................................20
MOTOR AND SHAFT ADAPTORS ......................................................................................................................21
ELECTRICAL SCHEMATIC .................................................................................................................................22
SOVA V07 MANUAL...............................................................................................................................................23

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 2 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
INTRODUCTION
This manual introduces the warranty policy, safe operation, safe maintenance, parts, and other
aspects of the gunite machine.
Reading and understanding this operation manual will help maximize performance and
reliability, and help minimize dangers, improper operation, and repair costs. Contact REED
Customer Service for additional replacement manuals.
Everyone involved with the operation, maintenance, inspection, and repair of gunite machine
MUST READ and UNDERSTAND this manual.
The operation manual is applicable to a STANDARD EQUIPPED GUNITE MACHINE. It is
possible some gunite machines are supplied with various options and specialized equipment.
All safety guidelines, product descriptions, illustrations, and specifications found throughout
this manual were in effect at the time the manual was released for printing. It should be noted
REED RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR TO MAKE
ADDITIONS TO OR IMPROVEMENTS IN THE PRODUCT WITHOUT IMPOSING ANY
OBLIGATIONS UPON ITSELF TO INSTALL THEM ON PRODUCTS PREVIOUSLY
MANUFACTURED.

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 3 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
WARRANTY
REED warrants each of its new pneumatic spraying machines to be free of defects in material
and workmanship under normal use and service for a period of twelve (12) months from date
of delivery to initial user or 1000 pumping hours, whichever comes first.
The warranty is issued ONLY to the INITIAL USER. The warranty period begins when the
product is delivered to the initial user or when first put into service, whichever occurs first. Said
warranty is void if the machine is subjected to misuse, neglect, accident or abuse.
REED’s obligation under this warranty is limited to correcting without charge, at its factory, any
parts or parts thereof which shall be returned to its factory, transportation prepaid and upon
REED’s examination proves to have been originally defective. Correction of such defects by
repair or replacement shall constitute fulfillment of all obligations to the initial user. This
warranty does not include labor or transportation charges unless specifically identified and
authorized in writing by REED. Nor does the warranty apply to any unit upon which repairs or
unauthorized alterations have been made.
This warranty does not apply to normal maintenance service or to normal replacement of
certain machine parts, which are subject to normal wear (such as feed bowls, wear plates,
wear pads, liners, delivery systems, etc.). REED makes no warranty in respect to trade
accessories or outside vendor components, such being subject to the warranties of their
respective manufacturers.
THIS IS A LIMITED WARRANTY AND IS IN LIEU OF ANY OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. In no event shall REED be liable for incidental,
general or consequential damages, loss or any expense directly or indirectly related and
resulting from use or lack of use caused by delay in delivery, parts failure, or any other causes
associated with the product use. No person, firm or corporation is authorized to assume for
REED any other liability in connection with the sale of REED products.
Effective February 1, 2010

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 4 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
WARRANTY CLAIM FORM
Claim Number: Date:
Distributor Account Number: End User Account Number:
Distributor: End User:
Address: Address:
City: State: Zip: City: State: Zip:
Phone ( ) Phone ( )
Pump Model:
Pump Serial Number:
In Service Date: Hours
of Operation:
Failure Date:
Repair Date:
Do not send part(s) until requested by REED or until claim is approved. All parts requested to be returned
must have a Return Authorization Number provided by REED and shipping freight prepaid. Parts must ship
within 30 days from REED request.
Return Authorization Number: Ship Date:
Part Number Description Qnty Unit
Price Total Price Replacement Part Invoice No.
Failure Description and Cause:
REED Comments:
Claim Value Approved:$ Claim Value Denied:$
REED Print Name, Sign, and Date:
Dealer Print Name, Sign, and Date:

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 5 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
PRODUCT DESCRIPTION
The REED Gunite Machine is a dry mix pneumatic spraying machine designed specifically for
the purpose of inducing granular materials into a compressed air stream. The material is then
conveyed by the air through a hose line delivery system to a nozzle, where water is introduced
which then mixes with the dry material and air and then is sprayed from the nozzle for the
specific application. The machine is of a simple design, compact, lightweight, and is of a
rugged construction to withstand the work environment surrounding the many applications of
dry mix spraying.
The gunite machine utilizes as its main power source an air or electric powered motor. The
air supply for operations of the air motor is provided by an external compressed air source.
The air/electric motor through an oil bath spur gear arrangement is used to rotate the feed
wheel or bowl. A means is provided to vary the rotating speed for the feed wheel, which in turn
varies the output feed rate.
In operation, dry or damp material is placed into the hopper where it is allowed to freely fall
through openings and down into the “U” shaped pockets of the feed wheel. As the feed wheel
rotates, the material loaded pockets pass under a molded rubber sealing pad which is set tight
against the top portion of the feed wheel. The rubber pad and back-up plate each contain two
(2) specifically designed openings. One is used as an inlet for the compressed air and the
other is used as an outlet for the air material mixture. These openings are designed to align
with the “U”-shaped pockets of the feed wheel. As the loaded pockets pass under the pad and
line up with the openings, the compressed air which is directed to the inlet opening of the pad
then pushes the material from the pockets of the feed bowl and up through the pads outlet
opening where it travels through the gooseneck and into the delivery hose and nozzle. With
the constant even rotation of the feed bowl, the material can be exhausted into the hose in a
steady flow.
When equipped with an air motor, protection of the air motor and other related components
against premature wear is provided by an air filter and lubricator. The filter is used to remove
any liquids and solids from the incoming compressed air. The lubricator is used to induce a
controlled oil flow into the air stream where it is atomized into an airborne oil fog which is
carried to the air motor.
Controls for operation of the unit are at the machine. They include the ability to turn on and
regulate the air power to the motor and feed bowl, to monitor the pressure of the systems and
adjust the pad clamps.

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 6 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
SAFETY
SAFETY ALERT SYMBOLS AND SIGNAL WORDS
The following safety alert symbols, signals, and explanations are intended to warn the operator
of hazardous and potentially hazardous situations.
The triangle with the exclamation point inside is used to alert the operator to an important
safety point, and is called a safety alert symbol. One of the following signal words will appear
after the safety alert symbol:
If the safety alert symbol is followed by the signal word DANGER, the safety alert symbol
indicates a hazardous situation which, if not avoided, WILL lead to death or serious injury.
If the safety alert symbol is followed by the signal word WARNING, the safety alert symbol
indicates a potentially hazardous situation which, if not avoided, COULD result in death or
serious injury.
If the safety alert symbol is followed by the signal word CAUTION, the safety alert symbol
indicates a potentially hazardous situation which, if not avoided, COULD result in minor to
moderate injury.
The signal word CAUTION, but without safety alert symbol means the safety symbol alert
addresses a hazard which, if not avoided, COULD cause damage to equipment or property.
NOTE

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 7 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
READ AND UNDERSTAND MANUAL
Everyone involved with the operation, maintenance, inspection, and repair of the gunite
machine MUST READ and UNDERSTAND this manual.
The accompanying Safety Manual is attached at the end of this manual.
Use Only Qualified, Experienced, and Trained Personnel
Wearing Protective Equipment At All Times
For Safe Use, Maintenance, Inspection, and Repair,
Only Operate, Maintain, Inspect, and Repair
In Accordance With This Operation Manual and the Safety Manual
Performance and Safety Features Must Never Be Altered, Disconnected, or Removed
Contact REED Technical Support and Service When Assistance Is Required

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 8 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
PERSONAL SAFETY PRECAUTIONS
•Be fully rested for work and clear of personal issues, accidents can occur when the
body is on the job, but the mind is not
•Arrive to work on time, accidents can be caused by rushing through procedures
•Dress in appropriate apparel and Personal Protective Equipment (P.P.E.)
oHard Hat
oSafety Glasses or Goggles
oSnug Fitting Clothes
oGloves
oSteel Toed Shoes
oHearing Protection
oBreathing Mask (for Toxic Dust)
oWork Gloves
oSteel Tool Boots
oRubber Gloves (when handling concrete)
oRubber Boots (when standing in concrete)

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 9 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
•Do NOT wear clothing with strings, fringes, or other external tightening means that could
be caught in moving parts
•Do NOT wear jewelry, athletic shoes, sandals, and shorts
•NEVER go to work or work on, around or near a piece of machinery when under the
influence of drugs or alcohol. Also, be cautious of “over the counter” drugs, which may
have warnings regarding side-effects and operating machinery.

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 10 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
JOBSITE SAFETY PRECAUTIONS
Everyone involved with the operation, maintenance, inspection, and repair of the gunite
machine MUST READ and UNDERSTAND this manual.
Many different dangerous conditions and situations are possible at a jobsite. Be alert to these
warnings to prevent dangerous working conditions. Do not overlook these possible hazards,
not limited to the following:
•Keep work area clear of unauthorized personnel
•Level machine on uneven terrain and slopes
•Do not operate machine in traffic lanes.
•Always place cones and barricades around the unit.
•Don’t clean, lubricate, and/or make maintenance adjustments while unit is in operation
•Keep safety decals and operation instructions legible
•Do not alter or disconnect safety devices
•Use whip-check cables or chain safety couplings on air supply hoses
•Use only sturdy & safe lifting devices, platforms and scaffolding, equipped with safety
rails, for those spraying operations that are performed off the ground
•Never remove the hopper screen and put your hands into the hopper
•Report items that need attention or require service

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 11 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
SAFETY DECALS
Safety decals are placed at appropriate areas on the gunite machine to be constant warnings
of dangers. Know and adhere to the information they provide. Contact REED Customer
Service for complimentary replacements of safety decals, shipping charges may apply.
WARNING!
The wear pad area of this
machine is extremely dangerous
when the wear pad and Pad
back-up assembly are removed.
It is essential that strict safety
procedures be followed before
performing any work in the wear
pad area.
If maintenance must be
performed in this area then
proceed as follows:
(1) Shut off power.
air / electric
(2) Disconnect air feed line or
electric cord.
Work in the wear pad area can
now be per- formed safety.
Upon completion of this work,
reconnect air feed line or electric
cord, and restore power.
WARNING
ALWAYS WEAR SAFETY GLASSES
WHEN OPERATING THIS MACHINE

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 12 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
SAFETY DECALS CONTINUED
WARNING!
The inside of the hopper of this machine
has moving parts which are extremely
dangerous.
It is essential that strict safety procedures
be followed before any work is done inside
the hopper.
The screen on the hopper is bolted in a
closed position to restrict access. If main-
tenance must be performed inside the
hopper, proceed as follows:
(1) Shut off power.
air / electric
(2) Disconnect air feed line or electrical
cord.
(3) Remove bolts securing the hopper
screen
Work inside the hopper may now be
performed safely.
Upon completion of this work, replace the
bolts and secure the hopper screen in a
closed position. Reconnect air feed line or
electrical cord and restore power.
CAUTION DO NOT LIFT THIS
MACHINE BY HOPPER HANDLES.
USE SLINGS UNDER MACHINE.

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 13 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
SAFETY DECALS CONTINUED

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 14 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
OPERATOR QUALIFICATIONS
Making the choice for an operator and nozzleman is a vital decision as it affects safety and
productivity. The gunite machine has been thoroughly inspected and tested by the REED
Quality Control prior to shipment. The design of the unit incorporates several built-in safety
features and also allows for an average skilled person to readily become proficient in the safe
operation of the gunite machine. The unit is a pressurized material pump and can be
potentially DANGEROUS in the hands of untrained and/or careless operators.
Knowing the characteristics of the machine and function of the controls are important to safe,
proper operation and use.
Everyone involved with the operation, maintenance, inspection, and repair of the gunite
machine MUST READ and UNDERSTAND this manual.
•The first requirement for any user/operator is to obtain a thorough understanding of the
operating characteristics and limitations of the machine regardless of their prior experience
with similar type equipment
•Only qualified and trained personnel who have been authorized must be allowed to operate
the REED gunite machine
•Individuals who cannot READ and UNDERSTAND the signs, warnings, notices and
operating instructions that are part of the job, in the language in which it is printed MUST
NOT BE ALLOWED to operate the gunite machine
•Know and follow all cautions, warnings, and operating instructions on the machine
•Repair and adjustments must only be made by qualified and trained personnel
•No modification is to be made to the machine without prior written consent of the REED
Customer Service Department
•Attach a SIGN-OFF sheet on the unit to enable the operator to report any damage, defects,
problems, or accidents to his work supervisor
•Understand and obey all applicable local and federal government statues and regulations
applying to safe operation and use of material pumping machines

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 15 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
SOVE V07 MANUAL SUPPLEMENT
CONTROL BOX
8
2
1
5
4
7
3
7
6
9
Materials
Find# Qty Part# Description
1 1 20203 Nameplate-Phase Failure
2 1 20204 Nameplate-Pump
3 1 20205 Nameplate-Phase Inverter
4 1 20206 Nameplate-Air
5 1 20117 Light-lens
6 1 20115 Light-Ind. Body
7 2 20108 Switch-Panel
8 1 20107 Switch-Phase Inverter
9 1 20295 Machined-Box

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 16 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
CONTROL BOX CONTINUED
1
2
3
X3
X2
X3
5
4
9
8
7
6
Materials
Find# Qty Part# Description
1 1 20114 Terminal GND
2 3 20112 Terminal
3 2 20113 Terminal
4 3 20110 Fuse
5 3 20109 Fuse holder
6 1 20111 Relay
7 1 20163 Relay –Phase-Seq
8 1 20122 Contactor
9 1 20118 Relay –overload

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 17 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
CONTROL BOX CONTINUED
8
2
1
5
4
7
3
7
6
9
Materials
Find# Qty Part# Description
1 1 20203 Nameplate-Phase Failure
2 1 20204 Nameplate-Pump
3 1 20205 Nameplate-Phase Inverter
4 1 20206 Nameplate-Air
5 1 20117 Light-lens
6 1 20115 Light-Ind. Body
7 2 20108 Switch-Panel
8 1 20107 Switch-Phase Inverter
9 1 20295 Machined-Box

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 18 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129

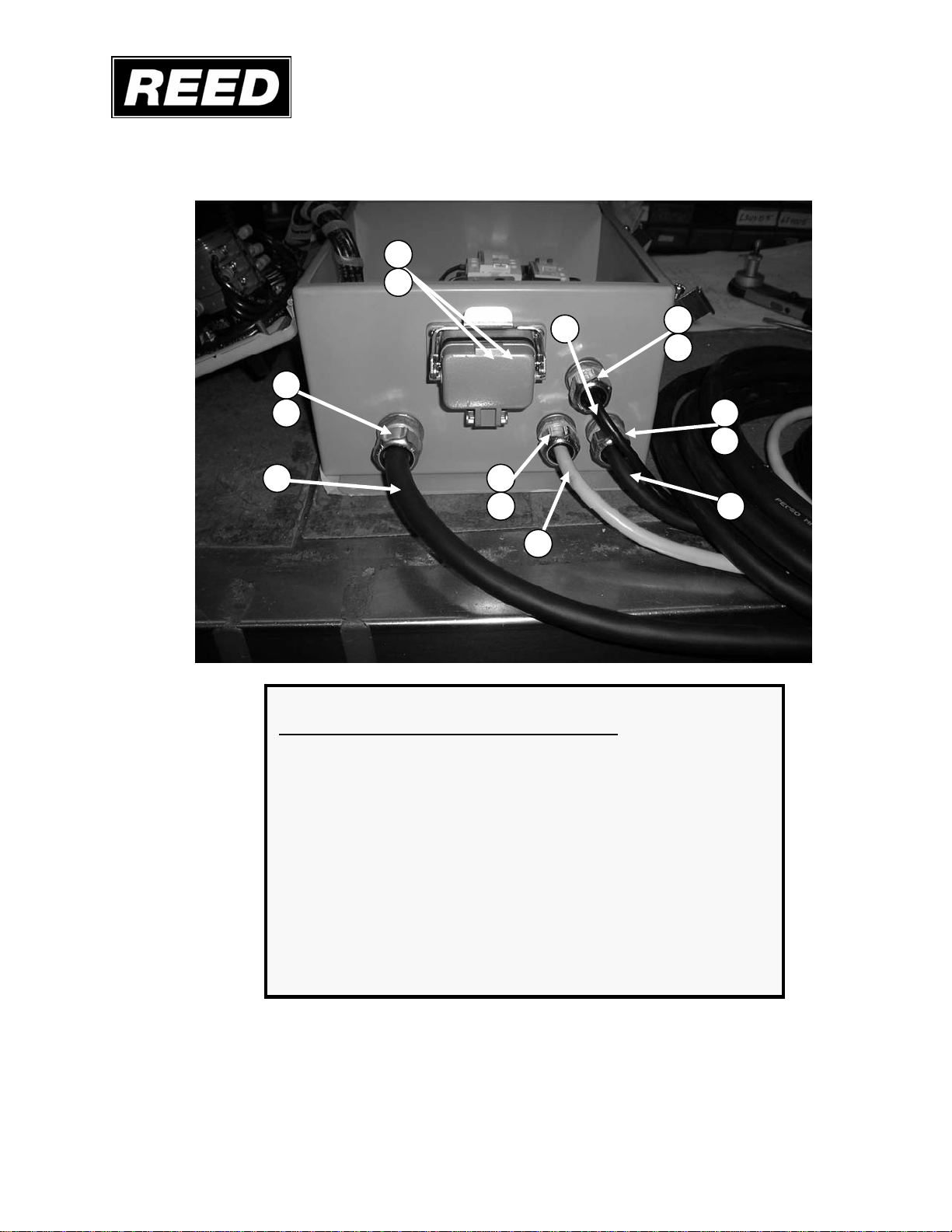

CONTROL BOX CONTINUED
3
9
2
1
7
4
5
5
6
11
5
6 10
8
Materials
Find# Qty Part# Description
1 1 20152 Conn. Base-Latch 6P
2 1 20153 Conn. Insert, 6P Fem, 16A
3 1 72896 Strain Relief T&B
4 1 10522 Strain Relief
5 3 10528 Nut-1/2” Bonding type
6 2 10523 Strain Relief
7 1 30241 Locknut-Elec. Conduit ¾
8 1 20406 Cable-Prox P/N for 20406
9 1 20167 Cable, 10AWG-4C, BLK
10 1 20168 Cable, 16AWG-4C, BLK
11 1 20169 Cable, 18AWG-3C, BLK

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 19 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129

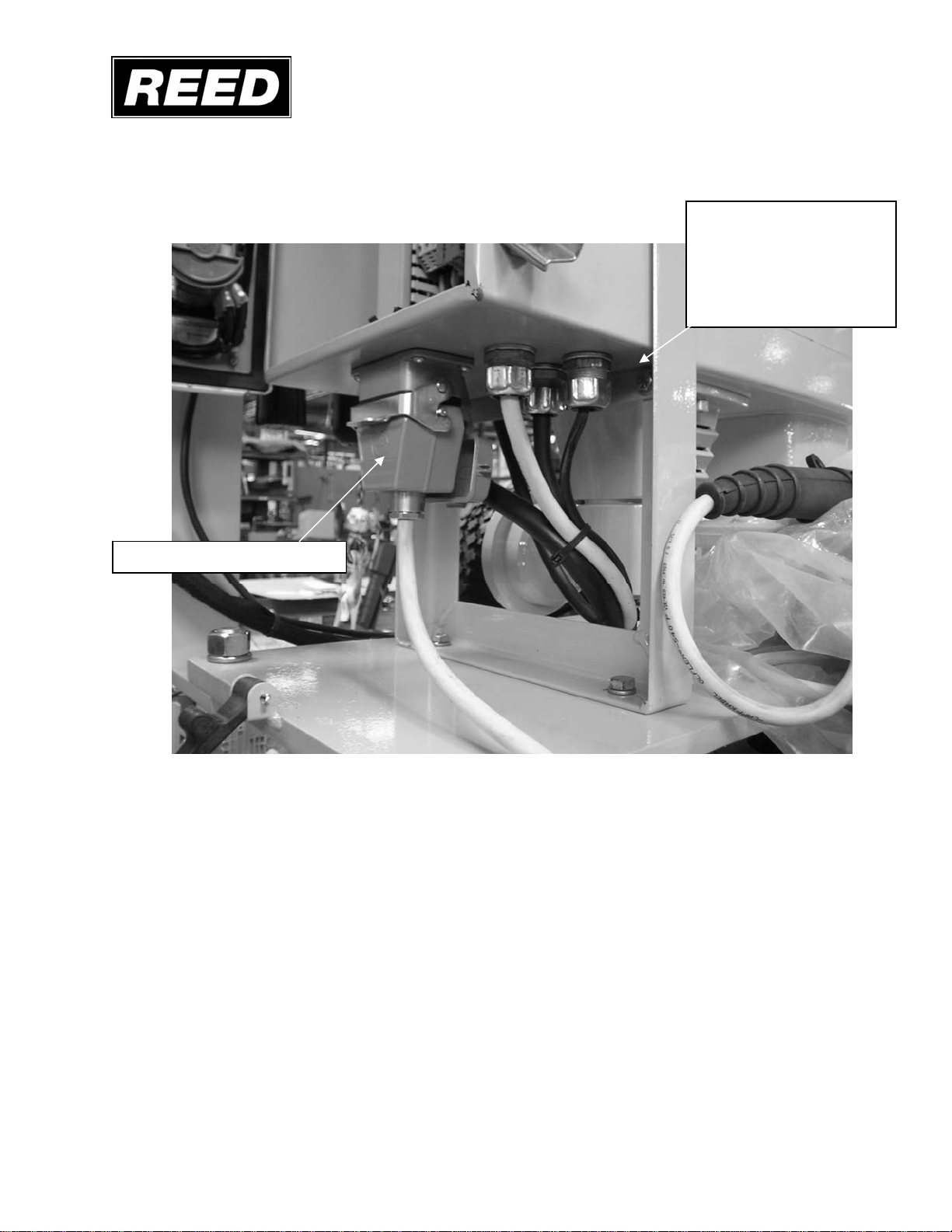

CONTROL BOX CONTINUED
20489 REMOTE
HARDWARE:
(4) ¼-20X3/4 Bolts
(4) ¼ Flat washers
(4) ¼ Lock washers
(4) ¼ Lock nut

SOVA7 SOVE7
MAINTENANCE, OPERATION, PARTS, and SAFETY
______________________________________________________________________________________
Page 20 of 23
13822 Oaks Avenue
Chino, CA 91710
reedpumps.com
(909) 287 - 2129
AIR VALVE
1
4
5
6
2
3
Materials
Find# Qty Part# Description
1 1 10199 VALVE-1-1/4 IN DYNA-QUIP COMBO
2 1 20257 AIR INLET SUPPORT NGEAR WELD
3 1 20285 VALVE-AIR PILOT OPER. CTRL.
4 1 13165 GUARD WELD-AIR GAUGE
5 1 13017 GAUGE-AIR 0-160 PSI
6 2 10340 ADAPTER MP20-MP20 HEX
