ReFleX Wireless Reflexicare SleepAngles Monitor User manual

RX501
SleepAngles Monitor
www.SleepAngles.com
reflexicare product family
TM

TM
Button Indicator light Charging leads
SleepAngles Monitor Quick Start
1 Install the Base Station. Please refer to the RX901 instruction manual.
2 Visit www.SleepAngles.com
3 Click on “New User”
i Enter personal information, email address and password
4 Click on “Add a Base Station”
i. Enter the Base Station Serial # and click on “Add”
(base station serial number is located on its back)
5 Click on “Add a Device”
i. Enter the SleepAngles Monitor Serial # and click on “Add”
(device serial number is located next to the charging leads)
*skip the steps above if information has been provided to you
TM
SN:xxxx-xxxx-xxxx-xxxx

6 Register your SleepAngles Monitor with your Base Station
Hold the SleepAngles Monitor
less than one meter away from
the Base Station
Press the white button
for 7 seconds and then
release
Seven green LEDs flashing
indicating registration
succcessful
TM Device Orientation
Supine
Prone
For proper monitor placement please
consult with your Sleep Specialists

1) Push the white button once
2) Interpretation: 3 lit red LEDs mean 3/7 battery power remaining

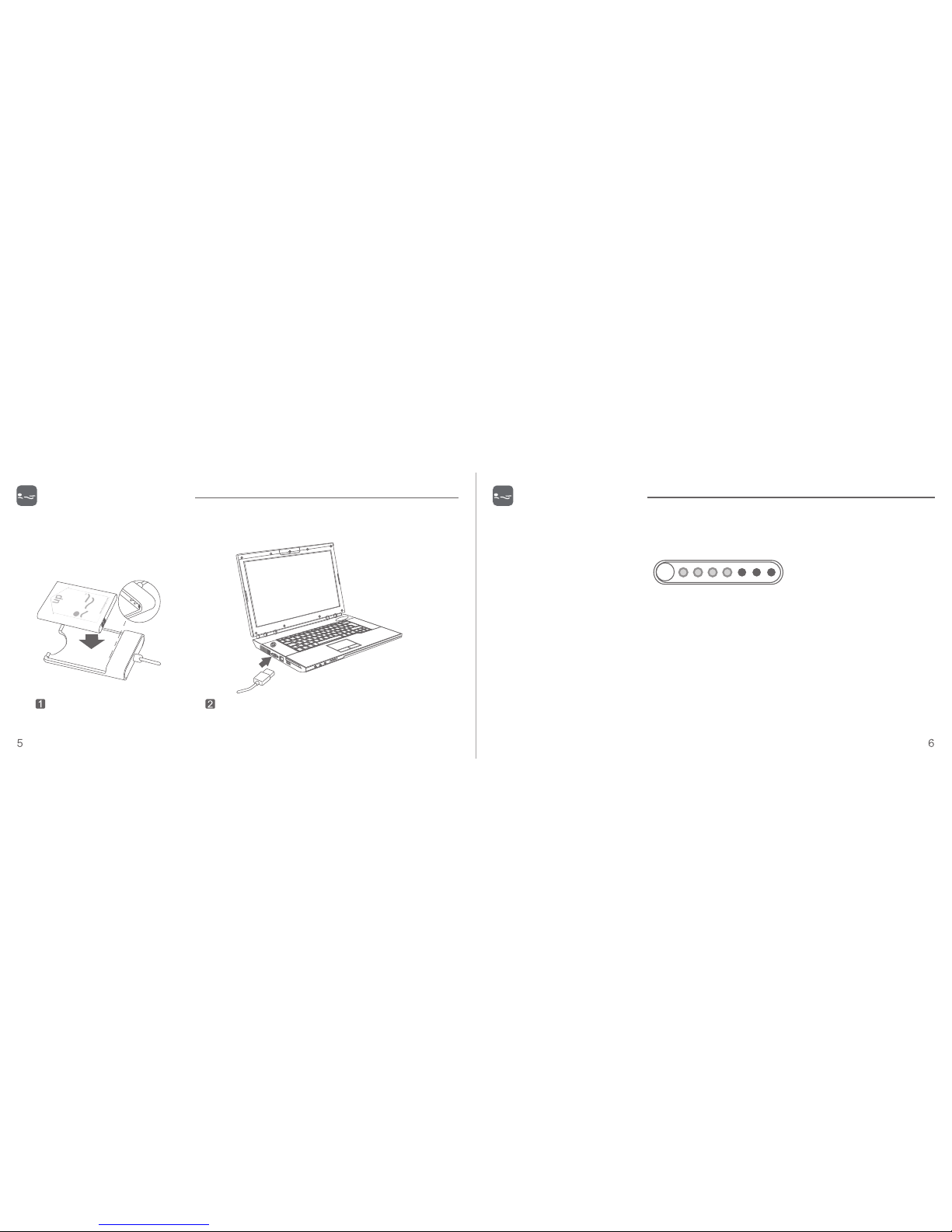

TM Battery Charging
Insert the SleepAngles monitor
into the charging station
Insert the USB connector of the charging
station into the USB port . (90min Charging Cycle)
TM Battery Status

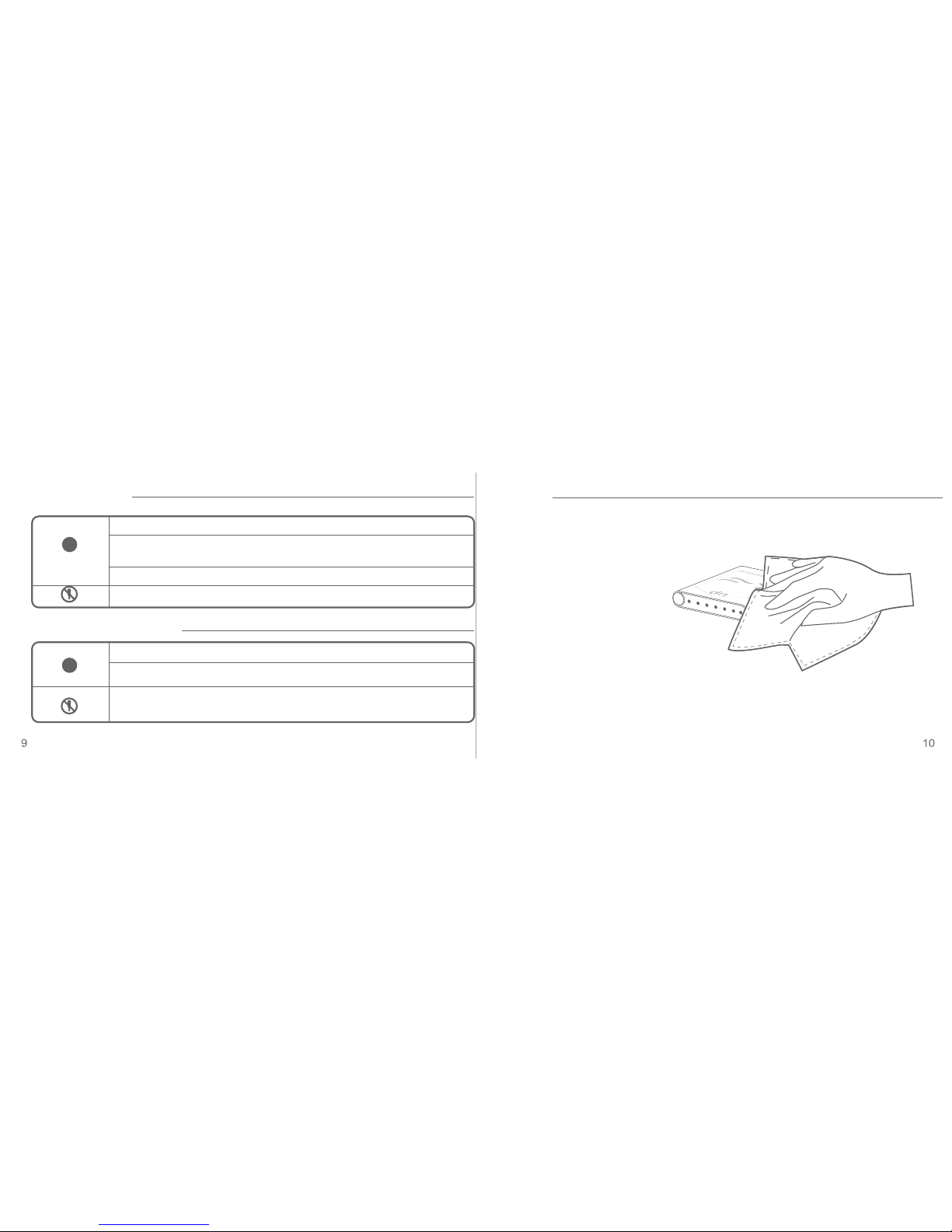

Cautions
TM
Battery Recharging
Rechargeable battery capacity is optimized after 2~3 charging cycles
Battery performance: minimum 30 days continuous monitoring
During battery recharging, it’s normal for the device to warm up
Operating temperature 0-40 celsius degree
When the battery is fully charged, all green LEDs will lit up
The USB battery charger is designed only for RX501 SleepAngles Monitor
Do not store the USB battery charger in a hot or wet place
Do not disassemble the product yourself
In order to avoid others being hurt by the product and extend its lifetime, please obey
the following cautions.
Symbol Meaning
General Instruction
Forbidden
Do not disassemble

Miscellaneous
Product maintenance
This sensor is only designed for torso angle during sleep
Do not use the SleepAngles Monitor where there is strong radiation, as the
device accuracy will be reduced
Data is forwarded to the SleepAngles Data Center in real-time
Disassemble the product will void your warranty
Keep the SleepAngles Monitor where it is dry and cool
Keep the SleepAngles Monitor on a level table when you don’t use it
Don’t disassemble the product after you abandon it, and obey local environ-
mental rules

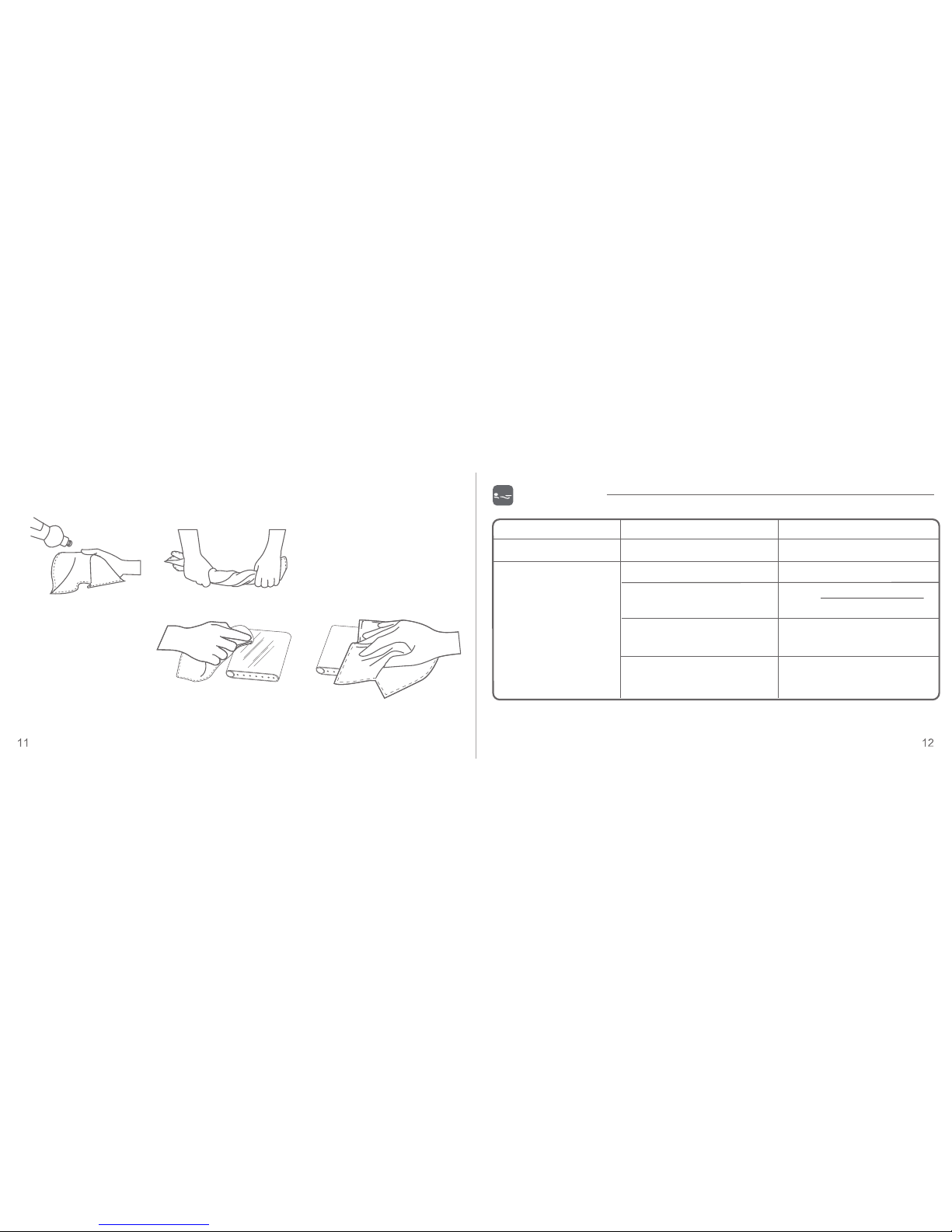

1 Use tissue to keep the SleepAngles
monitor free of dust and moisture
Clean

2 Dry the SleepAngles Monitor after applying cleaning solution
Cautions
Phenomenon
No indicator light
Fail device registration
due to...
Description
Low battery
possible radio interference
No account
Activate too many products
at the same time
Weak signal to the server
Methods
Recharge the battery
Keep closer to the Base Station
Log on www.SleepAngles.com to
create an user account
Do it one by one
Check network status LED on the
Base Station
TM

Data transmission
failure
Out of transmission range
Network error
Move the products closer to the
base station. Data can only transmit
up to 30m with a clear line of sight
Check network status
Product can not
be recharged
Defective USB battery charger
Insert the SleepAngles Monitor in
the incorrect orientation
Try switching to another USB port
Make sure the charging leads
align with the electrode probes in
the USB battery charger
Product Specifications
Items
Product Name
Voltage
Recharging
Display
Angles
Time Stamp
Battery grade
Battery releasing
Description
DC 5.0V, standard USB plug
7 LED lights
Depending on service subscription (minimum four angles)
dd-mmm yyyy hh:mm:ss
1-7 grade, division: 1 grade
≥500 times
45mAh Lithium polymer battery
SleepAngles Monitor RX501
TM

Battery life
Transmission Power 1mW
Transmitting range
Dimension
10 days per full charge
30 meters (in open place)
60x44.7x11.3mm
Working Condition
Storage and
Transportation Condition
Temperature: 0~40℃；Humidity：≤90% RH
Temperature: -20~60℃；Humidity：≤90% RH
FCC Statements
TM
The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

17 18
TM IC Statement
ReFleX Wireless Inc.
1400 - 1055 West Hastings Street,
Vancouver British Columbia
Canada V6E 2E9
email : [e-mail]
tel : [phone]
