• CEILING FAN OWNER’SMANUAL •
SUITABLE FOR USE IN WET LOCATION
WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
Style that revolves around you.
• BIMINI •
9/06

GENERAL INSTALLATION & OPERATION INSTRUCTIONS
IMPORTANT SAFEGUARDS:
1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly
before beginning.
2. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All
electrical connections must be made in accordance with local codes, ordinances, and/or the National Electric Code.
If you are unfamiliar with the methods of installing electrical wiring and products, secure the services of a qualified
and licensed electrician as well as someone who can check the strength of the supportive ceiling members and make
the proper installation(s) and connections.
3. Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades
should be at least 7 feet from floor when fan is operating.
4. If possible, mount ceiling fan on a ceiling joist – the joist must be able to supportthe motion and weight of the
moving fan. If the fan will be mounted on a ceiling outlet box, an approved box UL listed as “suitable for fan support”
is required. The box and its supporting members must be able to supportthe moving weight of the fan (at least 35 lbs).
The box must not be able to twist or work loose. Installation on a concrete ceiling should be performed by qualified
personnel.
5. Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the
carton until ready to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that
you do not mix fan blade sets, as each blade is partof a weighted set.
6. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apartwith the common conductor and the grounding conductor on one
side of the outlet box, and the “HOT” wires on the other side.
7. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should
be installed per the light kit installation instructions.
8. After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling
and/or causing damage or injury.
9. The fan can be made to work immediately after installation – the bearings are adequately charged with grease so
that, under normal conditions, further lubrication should not be necessary.
10. The fan must be turned off and stopped before reversing fan direction.
1

WARNINGS:
*Disconnect power by removing fuse or turning off circuit breaker before installing the fan.
* To reduce the risk of fire, electrical shock, or personal injury, mount only to the building’s structure. Electrical
boxes (unsupported) or joist spanning braces not designed for fan support will not adequately support the fan.
* To reduce the risk of personal injury, do not bend the blades when installing them, balancing them, or cleaning the
fan. Do not insert any object(s) between rotating fan blades.
*Shipping supports have been placed between the motor and fan housing to protect the fan during shipment.
These should be removed and discarded after the fan is hung in place.
NOTE:
The important precautions, safeguards, and instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur.It must be understood that common sense, caution, and
care are factors which cannot be built into this product. These factors must be supplied by the person(s)
installing, caring for, and operating the unit.
IMPORTANT SAFETY PRECAUTIONS

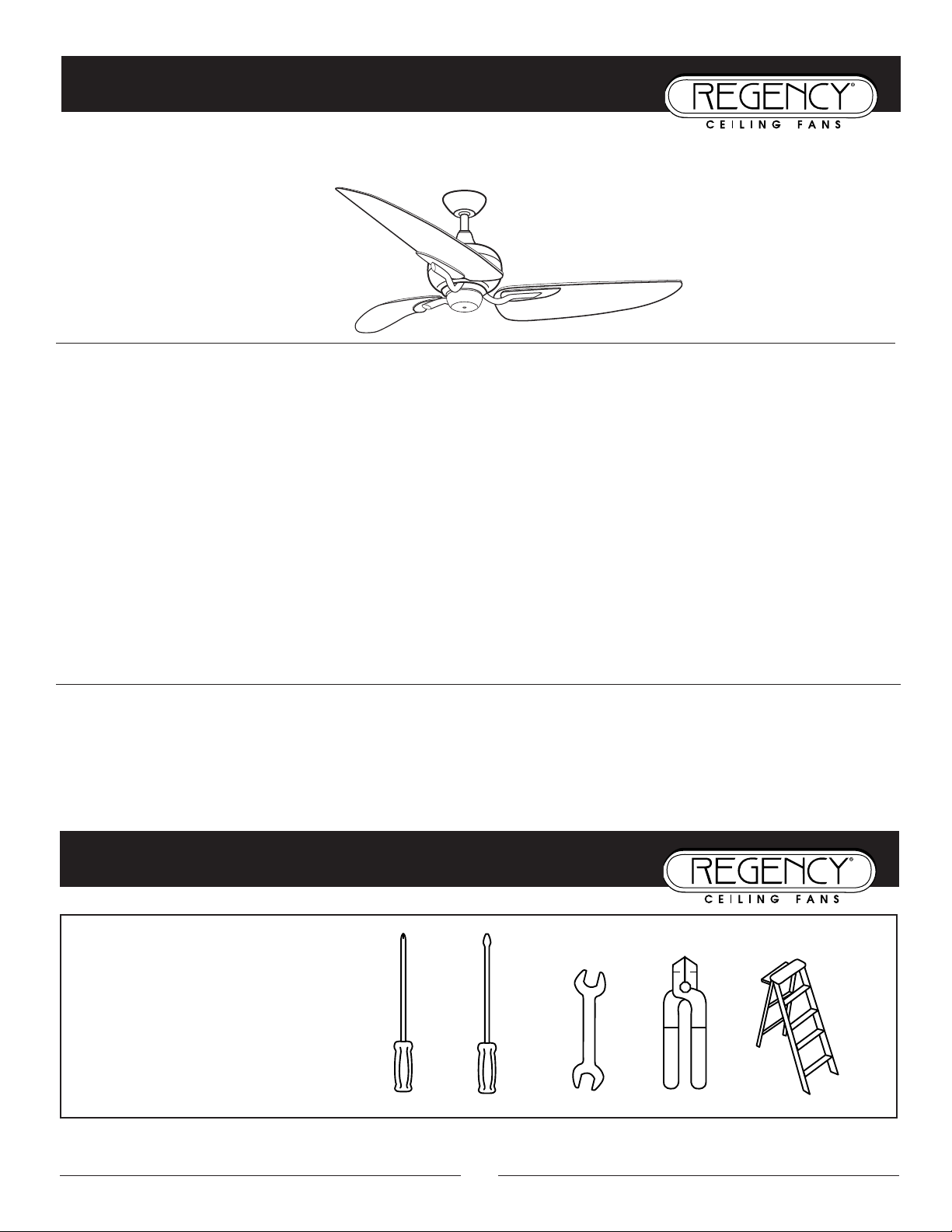

TOOLS AND MATERIALS REQUIRED
Thank you for choosing a Regency Ceiling Fan. You have chosen the best!
Your new ceiling fan has been designed to provide many years of service and enjoyment.
•Phillips screwdriver
•Blade screwdriver
•Wrench or pliers
• Wirecutter
•Stepladder
•Wiring supplies as required by
electrical code
2

Unpack your fan and check the contents. Do not discard the carton. If warranty replacement or repair is ever necessary, the
fan should be returned in original packing. Remove all parts and hardware. Do not lay motor housing on its side, as the
decorative housing may shift, bend, or get damaged.

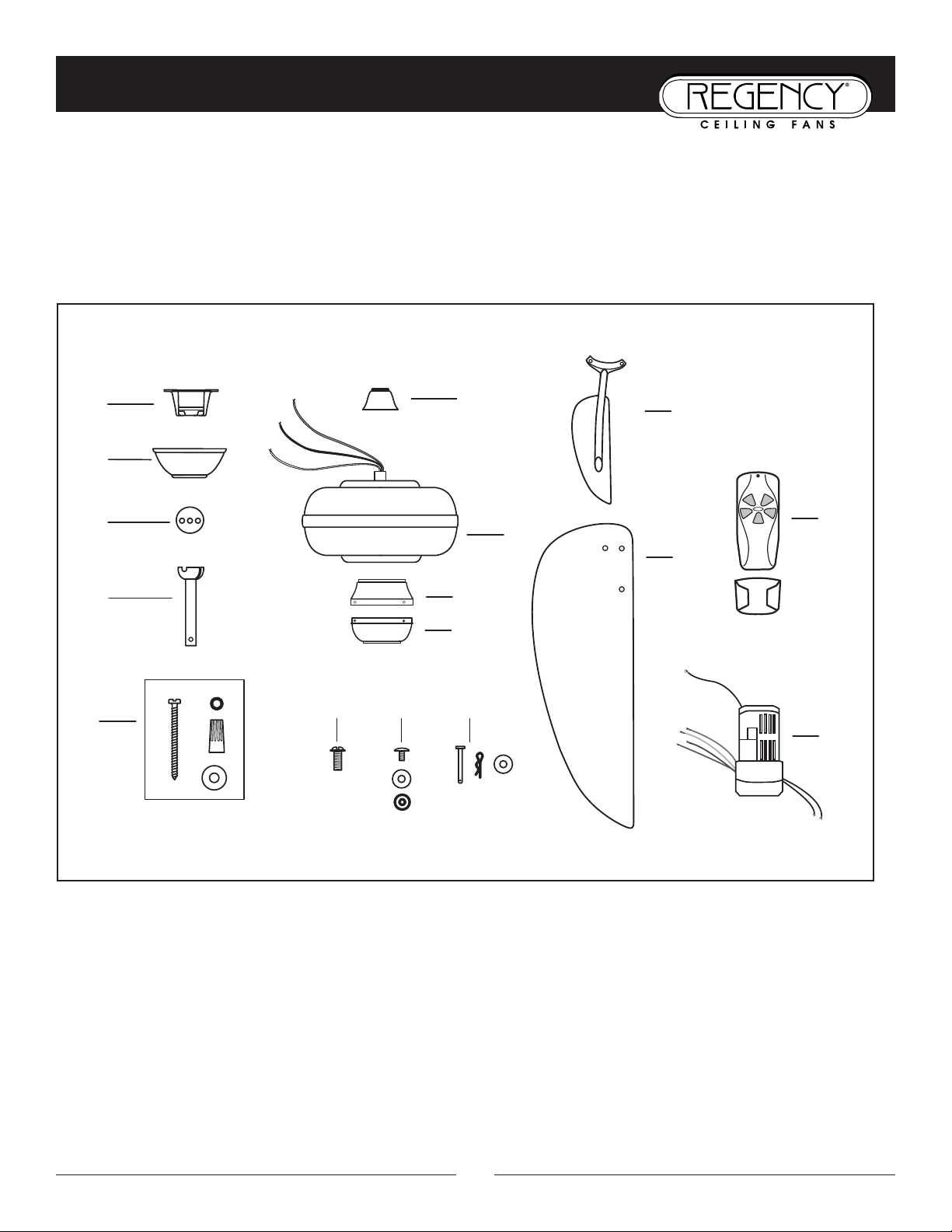

Examine all parts. You should have the following:
UNPACKING YOUR FAN
3
1. Mounting bracket
2. Ceiling canopy
3A. Ball cover (rubber)
3. Downrod/ball assembly
4. Bracket hardware
(wood screws, washers, wire nuts)
5. Decorative collar cover
6. Fan housing with motor (Remove rubber
shipping supports if included on your fan).
7. Detachable switch housing mounting hub
8. Detachable switch housing.
9. Blade arm to motor screws
10. Blade to blade arm screws, w/washers
11. Downrod pin, cotter pin, washer
12. Blade arms (3)
13. Fan blades (3)
14. Transmitter and holster
15. Receiver
1
3
13
4
6
2
910 11
3A
5
12
7
8
14
15

Downrod
Collar cover
Blade
Blade Arm
Canopy
Verify that you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove
motor from packing. Toavoid damage to finish, assemble motor on soft padded surface or use the original foam inset in
motor box. Do not lay fan on its side as this could result in shifting of motor in decorative enclosure.
Caution: To avoid possible electric shock, be sure
electricity is turned off at the main power box before
wiring. All wiring must be in accordance with National
and Local Electrical Codes and the ceiling fan must be
grounded as a precaution against possible electrical
shock.
1. Locate ceiling joist where fan is to be mounted,
being sure location agrees with the requirements in
the minimum clearance section of this guide. Wood
joist must be sound and of adequate size to support
35 lbs. (See page 1, #4)
2. If not already present, mount a UL listed outlet box
marked “suitable for fan support”, following the
instructions provided with the outlet box. The
outlet box must be able to support a minimum of 35
pounds.
3. Attach hanging bracket to outlet box using screws provided with the outlet box.*
PREPARATION
4

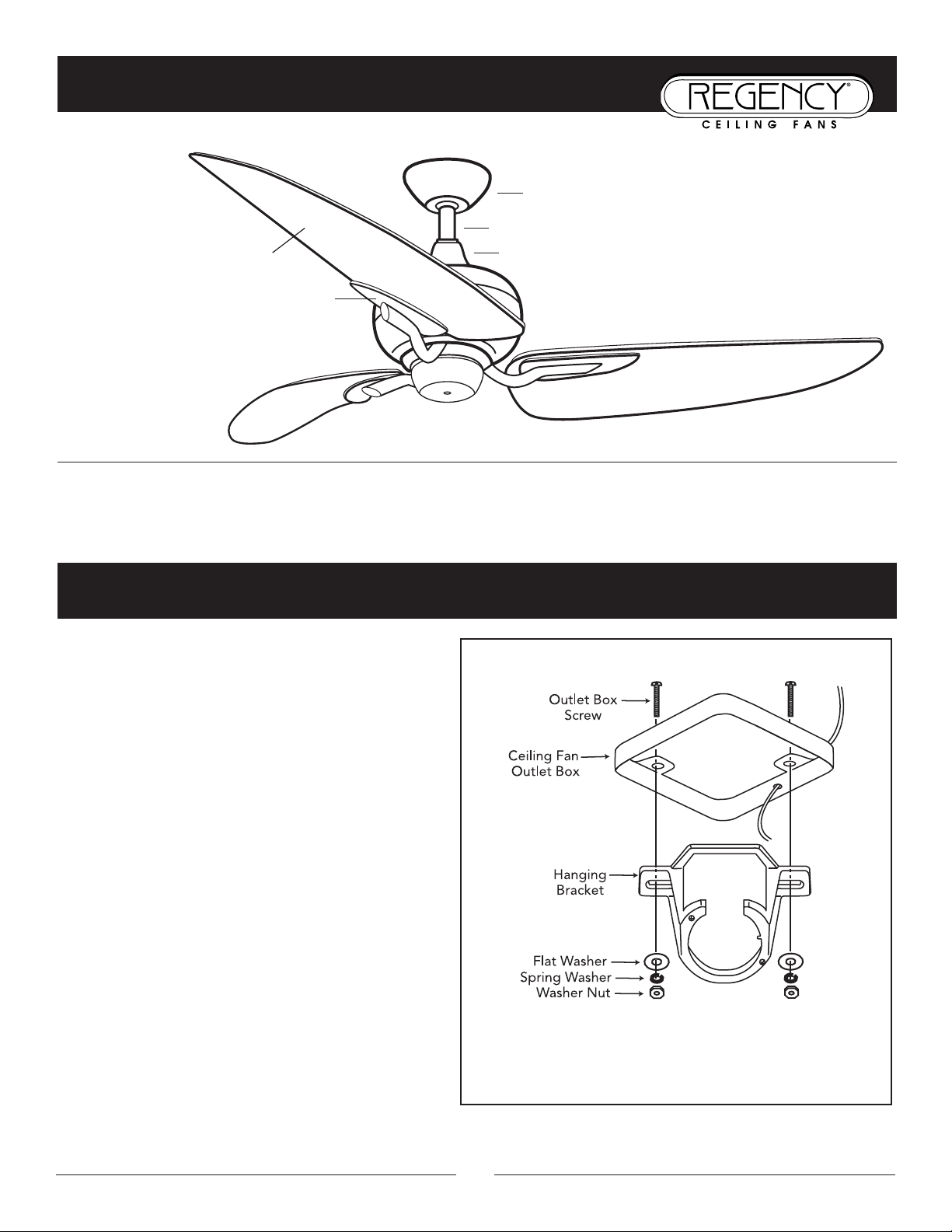

Parts identification on assembled fan
INSTALLING THE HANGING BRACKET
*Parts other than hanging bracket are
supplied with outlet box.

ASSEMBLY OF DOWNROD SYSTEM

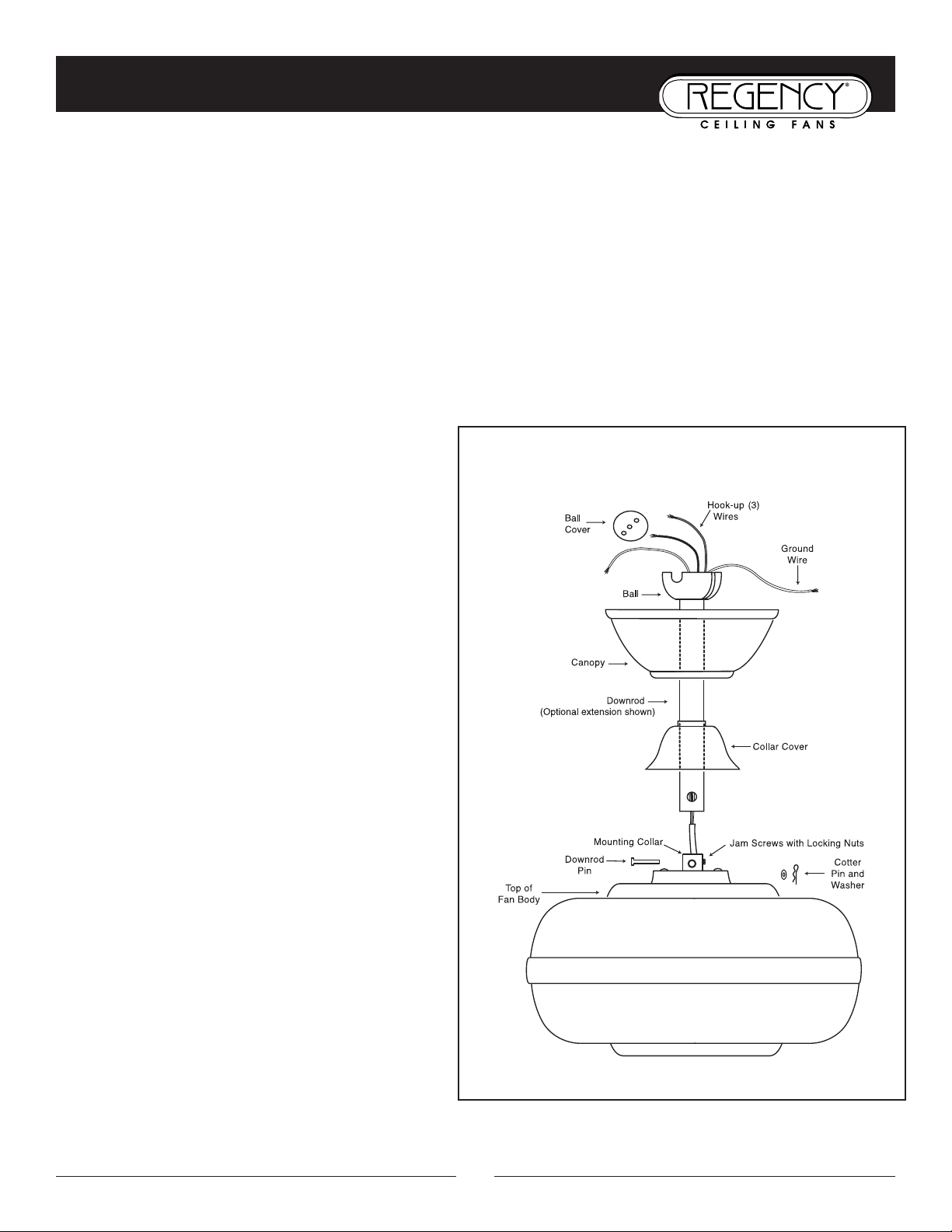

ATTACHING DOWNROD, CANOPY AND COLLAR COVER (FIG.2):
1. Carefully support fan body (motor) in its styrofoam packing with the mounting collar (where the wires come out)
facing upward.
2. Remove ball from downrod by loosening set screw in the side of the ball. Slide ball down and remove ball pin; remove ball.
3. Feed the wires from top of fan through end of downrod and set end of downrod into mounting collar so the hole
in the downrod lines up with the hole in the side of the mounting collar.
4. Insert downrod pin through holes in mounting collar and downrod; slip cotter pin through small hole in end of
downrod pin to hold downrod pin in place.
5. Tighten jam screws against downrod using a large
flat blade screwdriver to ensure a tight fit against
downrod. Then tighten lock nuts against
mounting collar.
NOTE: Fan has 6 feet of hook-up wire in case you are
using a long extension downrod. Wires can be cut so only
8inches or so extend beyond the top of the downrod to
make the electrical connections easier and safer.
6. Feed wires through and slide collar cover down
the downrod to top of fan.
7. Feed wires through canopy and slide canopy over
downrod to lay on top of collar cover.It will be
attached to ceiling later.
8. Feed wires through ball and slide ball over down-
rod, past hole in the top end of downrod. Insert
ball pin (removed in Step 2), slide ball up and
tighten set screw to secure ball in place.
9. Feed wire through holes in ball cover and snap
ball cover over top of ball.
5
Fig. 2

1. Be sure your hanger bracket is secure. The entire weight of the fan will
now be hanging from it.
2. Lift fan body/downrod/ball assembly into hanger bracket opening.
NOTE: The tab in hanger bracket opening should fit into slot on ball
(Fig. 3).
3. Make wire connections, (refer to section titled “Electrical Connections”page 6)
4. Slide canopy up and fasten to hanger bracket with screws provided
AFTER all electrical connections are complete.
Ball
Ball slot
Hanger
bracket
tab
6
INSTALLING THE FAN
Fig. 3
WARNING: To avoid damaging the blade arms and blades,
do not install onto fan until fan is fastened to ceiling.

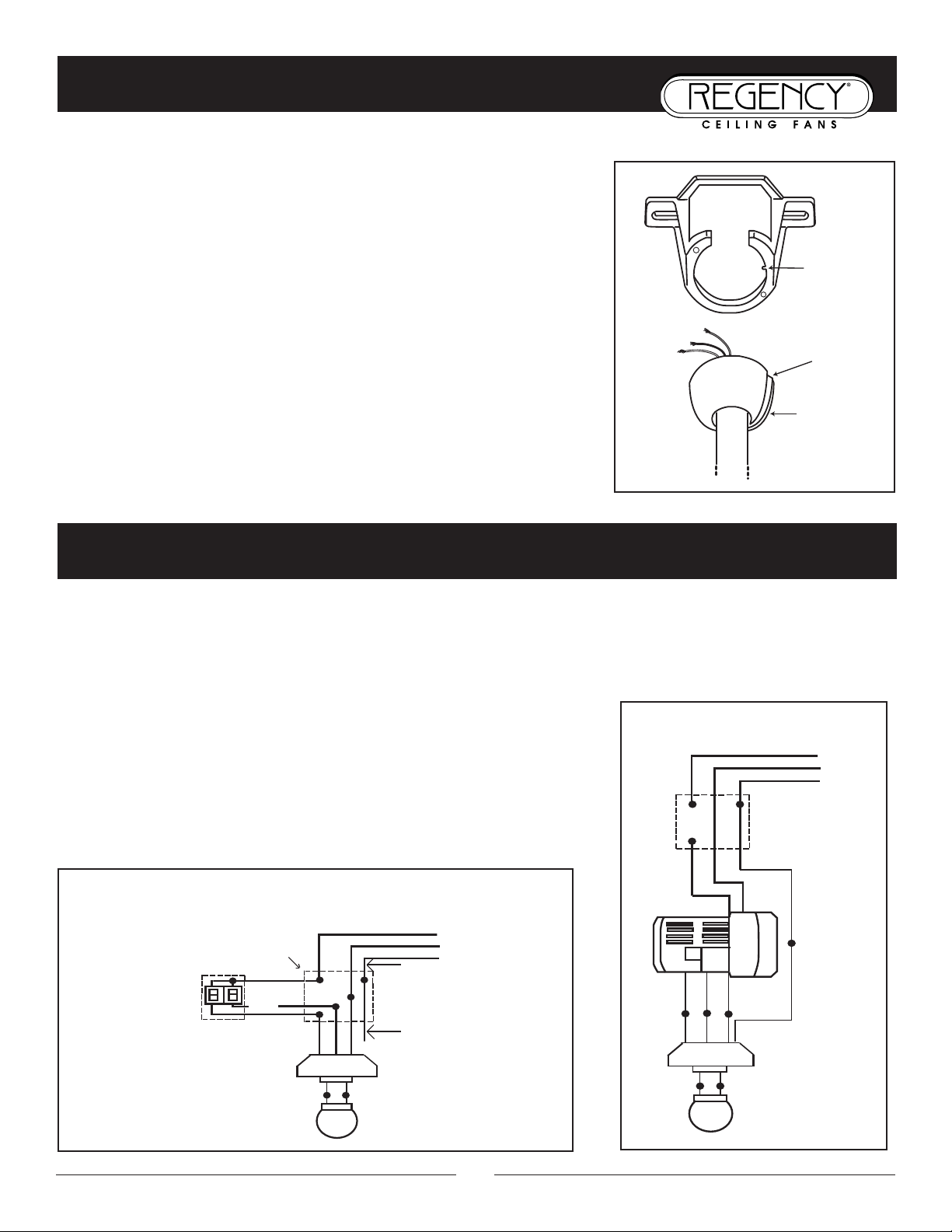

ELECTRICAL CONNECTIONS
Fan and light controlled by
independent wall switches.
Light
switch
FAN
switch
RED
BLK
WH
BLUE
Wiring Box
BLK
BLK
WH WH
WH
WH
BLUE
BLK
FAN
LIGHT
Power Lines
120V
Green
ground
Ground to
downrod on mounting bracket
BLK
BLK
WH WH
WH
WH
BLUE
BLK
LIGHT
120V
Green
ground
Ground wire
BLUE
BLK
WH
1. Four wires areconnected to the fan.
Black - this is the “hot” power to run fan.
White - this is the “common” power to run fan and light.
Blue - this is the “hot” power for light kit.
Green - Ground wire (on bracket or downrod)
2. If fan and light are to be connected to the same circuit, black
and blue wires can both be connected to house circuit black wire.
E
EL
LE EC CT TR RI IC CA AL LC
CO
ON NN NE EC CT TI IO ON NS S:
:Be sure electricity is turned off at the main power box before wiring
*
Fan and light controlled by
independent wall switches.
Light
switch
FAN
switch
RED
BLK
WH
BLUE
Wiring Box
BLK
BLK
WH WH
WH
WH
BLUE
BLK
FAN
LIGHT
Power Lines
120V
Green
ground
Ground to
downrod on mounting bracket
BLK
BLK
WH WH
WH
WH
BLUE
BLK
LIGHT
120V
Green
ground
Ground wire
BLUE
BLK
WH
Standard Installation
Receiver Installation

7
BLADE ATTACHMENT
Screw Fiber
Washer
Blade Arm
Blade
Install gasket between
blade arm and blade
1. Place washer on screw. Insert this assembly through the blade and start the screw into the blade arm. Repeat this
procedure without tightening the screw until all screws have been started into the blade arm. (Fig. 4).
2. Tighten all screws. Repeat for remaining blade arms/blades.
3. Fasten blade assembly to motor with screws and washers provided. Repeat procedure for remaining blades
(Fig. 5). Make sure screws are TIGHT! Loose motor screws can contribute to unnecessary hum during
operation.
B
BL
LA AD DE EA
AT
TT TA AC CH HM ME EN NT T:
:
Fig. 4
Fig. 5
NOTE: Illustration is representational. Your fan may look different.
NOTE: Illustration is representational. Your fan may look different.

INSTALLATION OF DETACHABLE SWITCH HOUSE
MONTING HUB
1. Remove one of the three screws on the mounting hub located on the fan motor.
2. Loosen the other two screws three to four revolutions.
3. Install detachable switch housing mounting hub to switch housing hub.
4. Pass the 9 pin connector through the center hole of the detachable swith housing mounting hub.
5. Line up the two slotted holes with the two loose screws on the mounting hub located on fan motor.
6. Re-install the third screw removed and tighten all three.
8

11
INSTALLATION OF REMOVABLE SWITCH HOUSING
NOTE: Be sure the power is off before installing.
1. Loosen the 3 side screws on switch housing hub halfway.
2. If installing light kit, carefully remove light kit plug in bottom of switch housing. Attach light kit to switch housing
per instructions supplied with light kit. See “Electrical Connections” for hook-up of light kit.
3. Connect the plug and receptacle and make sure side buckle snaps in place.
4. Attach the switch housing to the switch housing hub. Align the side screws with keyhole slots on edge of switch
housing and tighten the side screws.
5. Attach pull chain fobs to ends of the switch’s pull chains – one for fan speed and one for uplight on/off.
6. Turn the power on. Your Regency Ceiling Fan is now ready to enjoy!
Connector (plug) with Side Buckle
Detachable Switch Housing
Mounting Hub
Switch Housing
Switch Housing Hub
(bottom of motor)
Connector (receptacle)
Optional Light Kit
connects to bottom
of Switch Housing
Side Screw (x3)
Fig. 6

8
REMOTE CONTROL
GENERAL INFORMATION
Multiple code choices are included with your fan’s remote control in case:
• you have more than one remote control fan and want them to respond only to their own remote control
• you have other radio controlled devices in your home that may interfere with the fan remote control (i.e. garage
door opener)
• you experience radio interference on a chosen frequency (code setting)
NOTE: Factory code settings should not be used.
SET-UP AND OPERATING INSTRUCTIONS

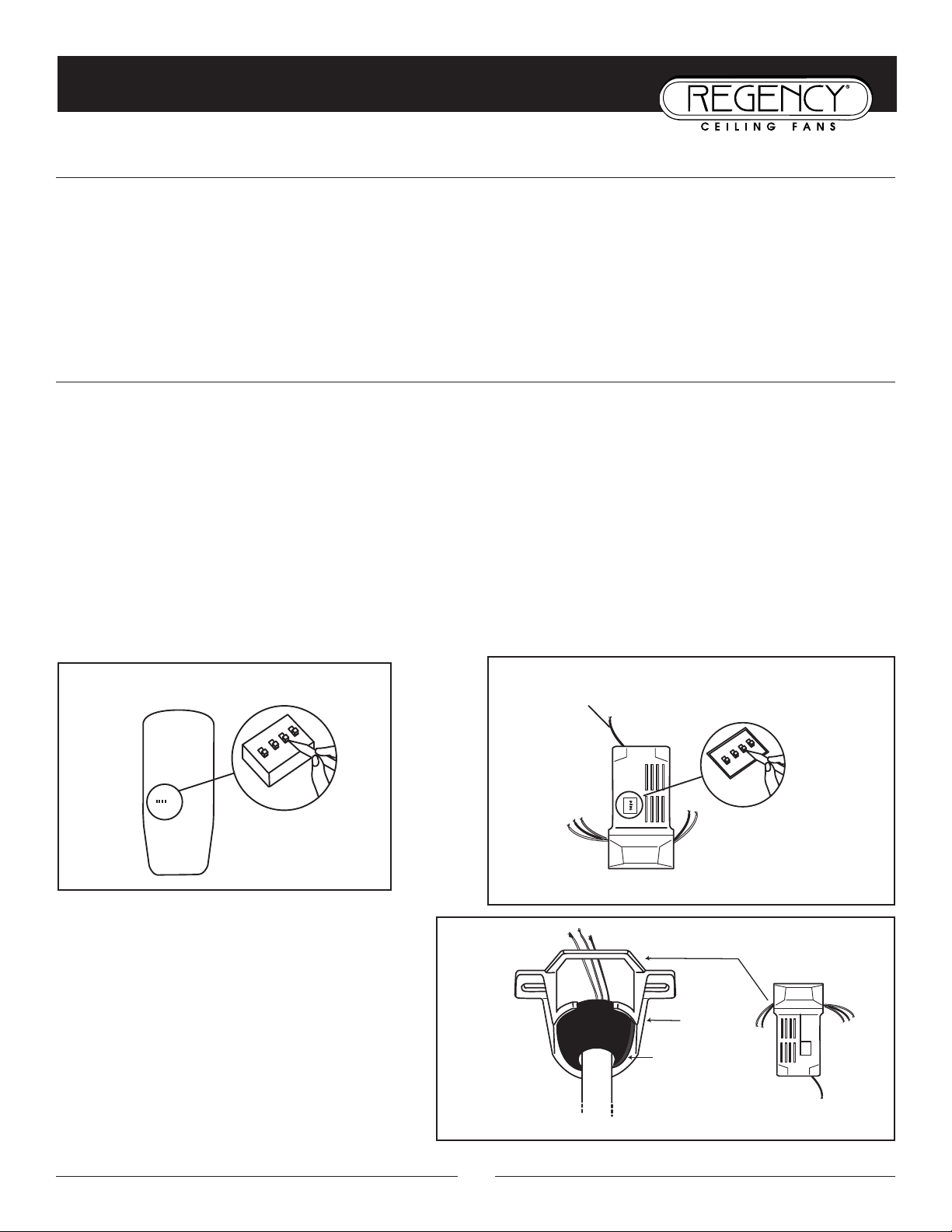

Setting the code:
This unit has 16 different code combinations. To set the code, perform these steps:
1. Setting the code on the TRANSMITTER [Fig. 1]:
a. Remove battery cover.
b. Slide code switches to your choice of ON or OFF position. Use a small screwdriver or ball point pen to slide
each switch firmly up or down.
c. Install 9v battery (not included).
d. Replace battery cover on transmitter.
2. Setting the code on the RECEIVER [Fig. 2]:
a. Locate the code switches on the top of the remote receiver under rubber seal cover.
b. Slide code switches to the SAME POSITIONS as set on your transmitter.
c. Reinstall seal cover.
After codes are set:
1. Install the receiver in the space above the ball
in the hanger bracket [Fig. 3]. Be careful not
to pinch any of the receiver’s wires.
2. Slide canopy up and secure with set screws
in hanger bracket.
1234
1234
ON
Code
TRANSMITTER
ON ECE
Switches
Code
RECEIVER
1234
ON
1234
ON DIP
Antenna
Switches
Fig. 2
Hanger
Ball
Receiver
bracket
Fig. 3
Fig. 1

OPERATING BUTTONS ON THE TRANSMITTER
HI – fan high speed
MED – fan medium speed
LOW – fan low speed
OFF – fan speed off
LIGHTS – light brightness and off function
• The light functions are controlled by pressing the light button. Tap button quickly to turn light off or on. Push the button
once and release to turn the light on to full brightness. Hold the button down to increase or decrease light brightness.
Release the button at the desired light brightness and that setting will be remembered the next time the light is turned on.
NOTE: If power is lost to the fan receiver, the memory will be lost and all settings will return to the default.
• Keep pressing the button for more than one second to dim the light and vary it cyclically from dim to bright and
back again.
• Range of the transmitter is approximately 25 ft.
• Forward/Reverse Direction:
To change direction of the fan’s rotation, stop the fan motor and locate the reverse switch on the top of the motor housing
near the collar cover. DO NOT reverse the motor with power on – this can cause damage to or reduce the operating life of
the switch.
Summer is a counterclockwise rotation of the blades when viewed from beneath the fan. This will create a downward
breeze that can be felt below the fan. This is the normal direction for the fan to run when the weather is warm.
Winter (clockwise) will draw air up through the blades and towards the ceiling, down the walls, and into the living space
during the cooler months.
OPERATION
WARM MONTHS
Forward (counterclockwise)
COOL MONTHS
Reverse (clockwise)
9

Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or
humming sound during operation. This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you
experience any flaws in the operation of your fan, please check the following points.
CAUTION: Switch off power supply before carrying out any of these checks.
1. If fan will not start: Check main and branch circuit breakers and/or fuses. Check line wire connections to fan housing
wiring. Make sure forward/reverse switch is set to one or the other position, not stuck in between.
2. If fan is noisy: Check and make sure that all screws in motor housing are snug (but not over tight). Check that the
screws securing blade arms to the motor are tight. Check that wire connectors in switch housing are not rattling against
each other or the interior wall of the switch housing. Check that all glassware is finger tight and that bulb(s) are well
held in the sockets, if a light kit is used. Check that the canopy is firmly attached to hanging bracket and not vibrating
against ceiling.
3. If fan wobbles: Check that all blades are firmly screwed into blade arms. Check that all blade arms are firmly secure to the
motor. Check to make sure that light kit (if present) is firmly attached to switch housing and that all glassware and shades
are fastened properly. Wobble can also result from even the smallest deviations in distance from blade tip to blade tip. If meas-
urements from blade tip to blade tip are not equal, loosen screws connecting blade to blade arm one at a time and adjust
blade(s) so that distances are equal. Interchanging adjacent blades may redistribute mass and result in smoother operation.
Blade arms can be bent slightly to restore same pitch to all blades if a blade is different than the other blades when
viewed edge on. Most wobble can be traced to a loose electrical box or mounting bracket. Make sure these are tight
and the ball is completely seated in the bracket.
CARE AND CLEANING
TROUBLESHOOTING - INCASE OF DIFFICULTY
10

THANK YOU FOR PURCHASING A REGENCY CEILING FAN.
Write to us at:
Regency Ceiling Fans
P.O. Box 730
Fenton, MO 63026
9/06 Regency Ceiling Fans
For additional troubleshooting tips,
visit us on the Web at: www.regencyfan.com
