Regency GF900L-NG Quick start guide

WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use petrol or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
919-501a
Greenre®GF900L
Gas Fireplace
08 October 2015
Owners &
Installation Manual
www.regency-re.com.au
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: GF900L-NG
GF900L-LP
GF900L-ULPG
LISTINGS AND CODE APPROVALS
These gas appliances have been tested
in accordance with AS4553 / NZS5262 /
NZS5266 and have been certied by the
Australian Gas Association for installation and
operation as described in these Installation
and Operating Instructions.
Must be installed as per AS/NZS5601-2013
Your unit should be serviced annually by
an authorised service person.
GF900L Video
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the re department.

2Regency GF900L-1 Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The GF900L has been designed to provide you
with all the warmth and charm of a wood fireplace at the flick of a switch. The model GF900L has been approved
by AGA for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy,
comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with
these instructions and the many features of your Regency® Fireplace.
GF900L Video
PAIRING THE REMOTE HANDSET AND CONTROL BOX ID CODE
The Remote Control Handset has a set of unique ID codes that is pre-programmed into its memory. This set of ID codes helps to differentiate one Remote
Control Handset from another so that only the control box with a matching ID code will respond to the appropriate Remote Control Handset.
To match the control box, the following steps are to be followed:
1. Ensure the Remote is switched OFF.
2. Remove main power to the control box.
3. Reconnect main power to the control box.
4. Press and hold the PROG and FAN buttons simultaneously. The temperature display will show the letters “LC” momentarily indicating the ID codes
have been transmitted
5. The display will revert back to the normal off mode display.
6. Release both the PROG and FAN buttons.
The control box will only learn the Remote ID codes during the rst 30 seconds after power is applied and will ignore this special command from the
Remote after the rst 30 seconds
Note: The pairing up process can be carried out by anyone.
Note: In addition; please also go to: www.regency-re.com.au to see the pairing up video.

Regency GF900L-1 Gas Fireplace 3
table of
contents
Pairing The Remote Handset ........................................2
Copy Of Data Badge .....................................................4
Unit Dimensions ............................................................5
Important Message ......................................................6
General Safety Information ............................................6
Installation Checklist ......................................................7
Locating Your Gas Fireplace ..........................................7
Clearances ....................................................................8
Mantel Clearances .........................................................9
Mantel Leg Clearances ..................................................9
Unit Assembly Prior To Installation ..............................10

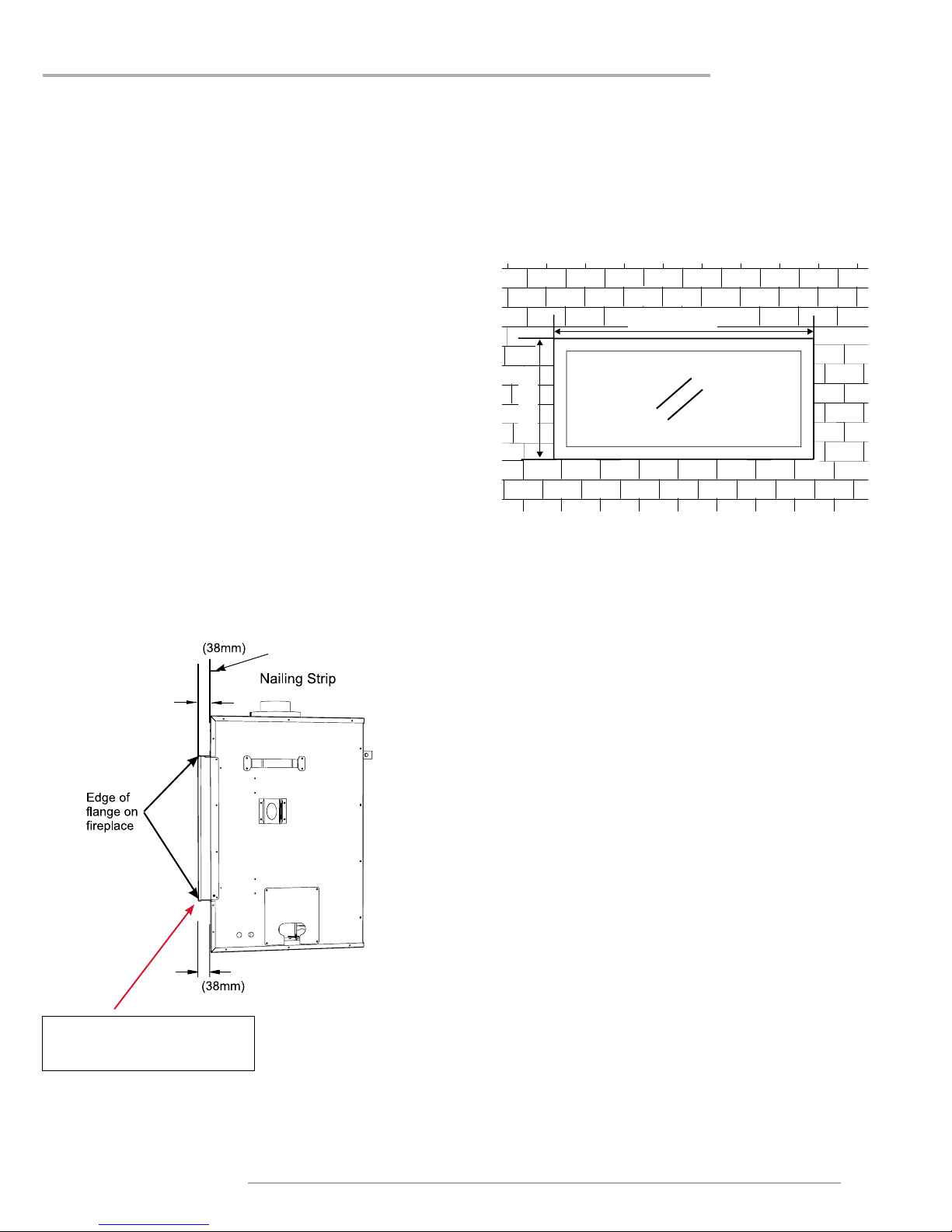

Nailing Strips........................................................10
Installation Access Panel .....................................10
Framing Dimensions ....................................................11
Non-Combustible Facing Installation ...........................12
Framing & Finishing .....................................................13
Framing & Finishing .....................................................14
Combustible Requirements .........................................14
Exterior Flue Termination Locations ............................15
Clearances ..................................................................16

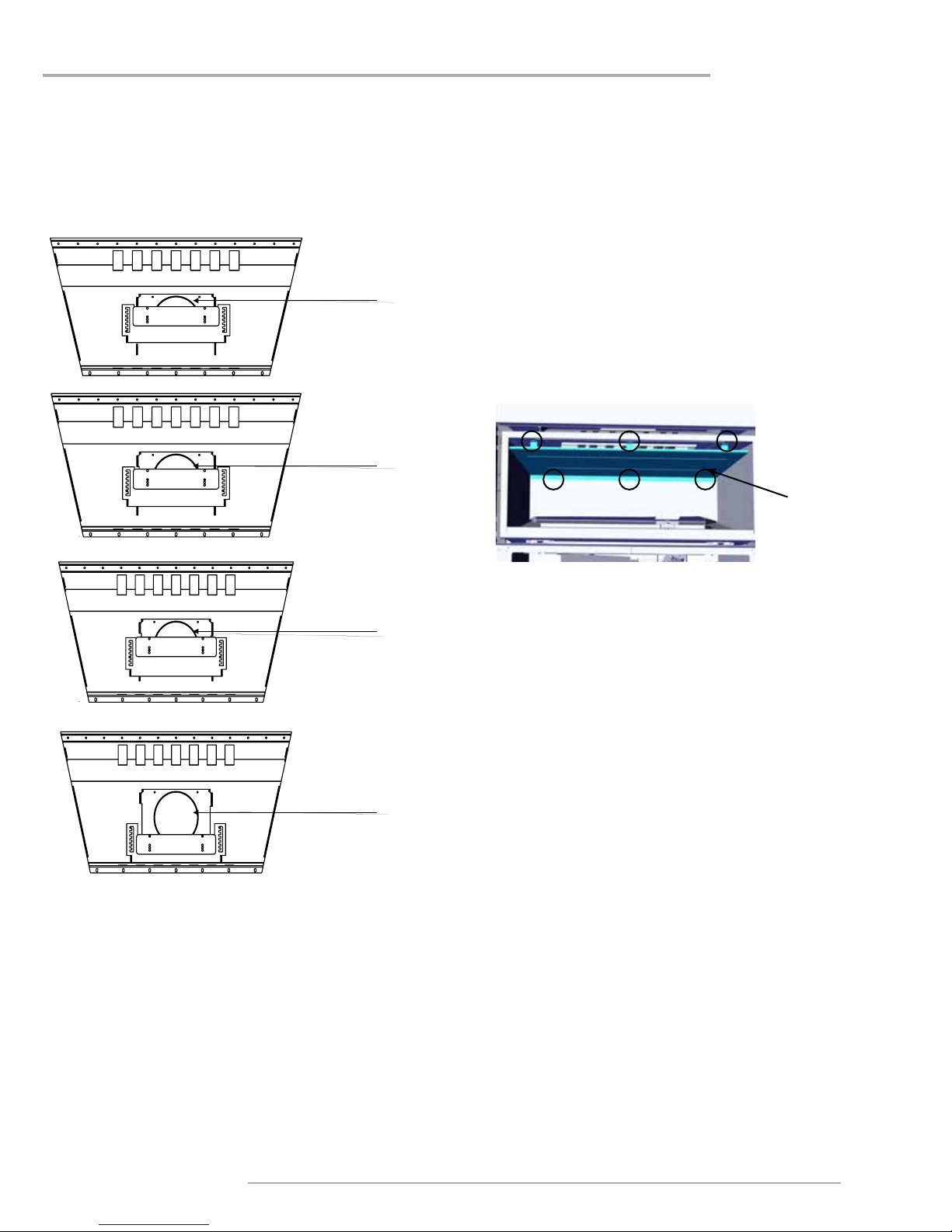

Flue Restrictor Position ...............................................17
Flueing Introduction .....................................................18

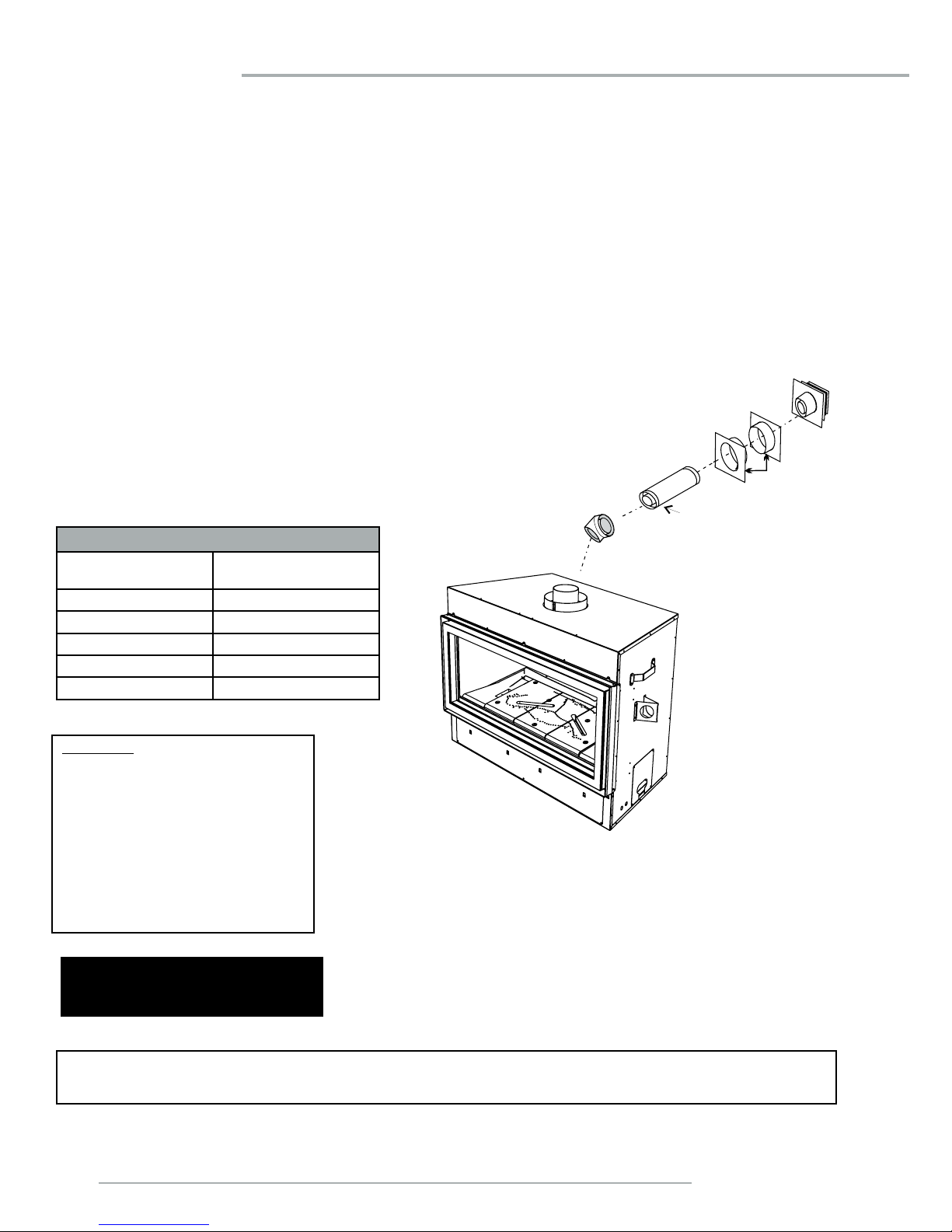

Flueing Arrangement For Horizontal Terminations ......18
Flueing Arrangements ................................................19

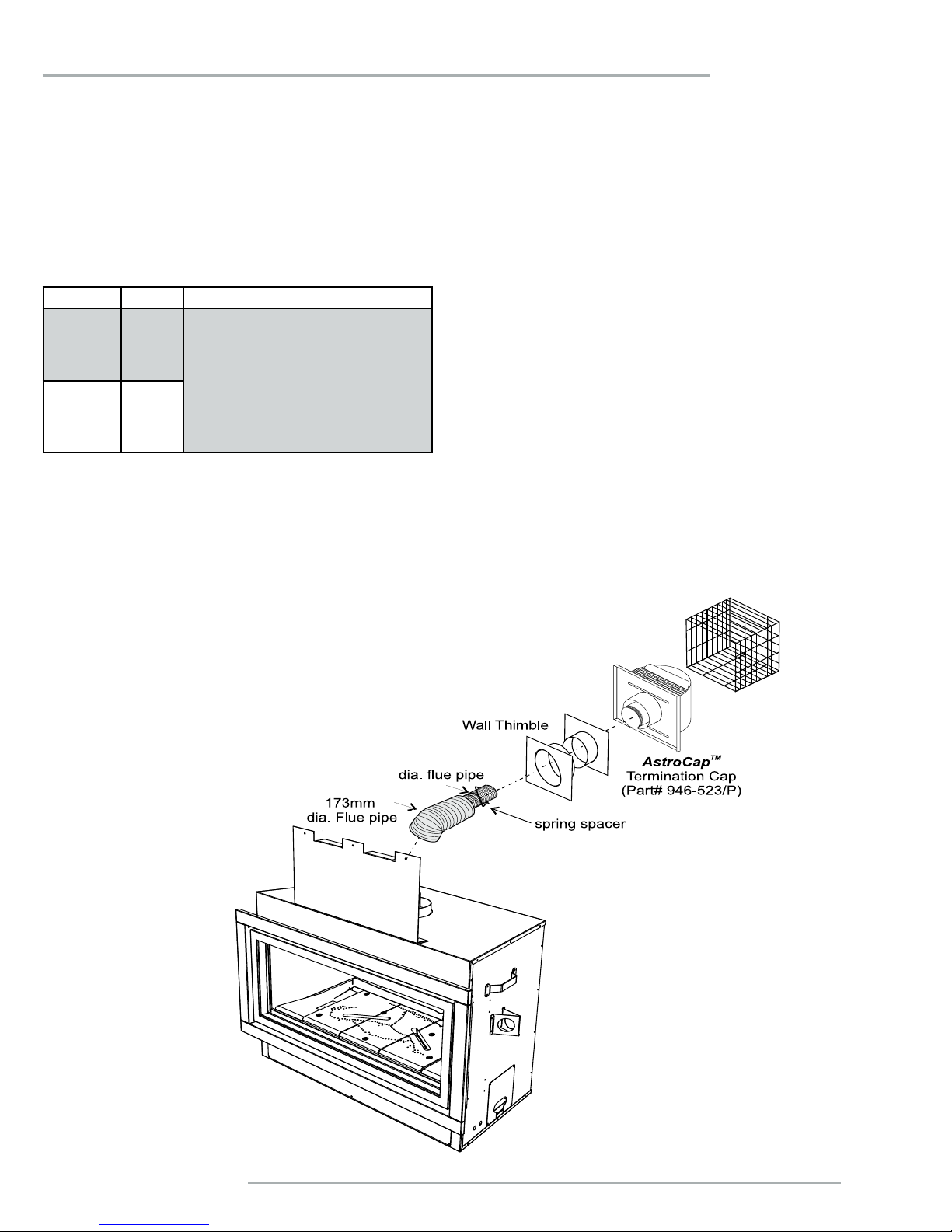

Horizontal Terminations ...............................................20
Horizontal Terminations ...............................................21
Vertical Terminations ...................................................22
Flueing Arrangement For Vertical Terminations ...........23
Direct Flue Zero Clearance Top Exit Vertical Flue Kit . . 24
Unit Installation With Horizontal Termination ..............25
Unit Installation With Horizontal Termination ..............26
Unit Installation With Vertical Termination ....................27
High Elevation ..............................................................28
Gas Line Installation ....................................................28
Pilot Adjustment ...........................................................28
Gas Pipe Pressure Testing ..........................................28
Wiring Diagram ............................................................29
Conversion Kit #466-967 From NG To LP/ULPG .........30
845 S.I.T. Valve Description .........................................32
Aeration Adjustment ....................................................32
Log Set Installation ......................................................33
Front Trim Removal / Installation .................................35
Inner Panel Removal / Installation ...............................35
Screen & Inner Door Frame Installation ......................36
Faceplate Installation ...................................................37
Operating Instructions ................................................38
Lighting Instructions ....................................................38
Shutdown Instructions .................................................38
Remote Control ..........................................................38
First Fire ......................................................................38
Summary Of Controls .................................................38
Fan Operation ..............................................................38
Copy Of Lighting Plate Instructions .............................39
Normal Operating Sounds Of Gas Appliances ............39
Resetting The Unit .......................................................39
Fan Service .................................................................40
Maintenance Instructions ............................................41
General Flue Maintenance ..........................................41
Glass Gasket ...............................................................41
Glass Door ...................................................................41
Glass Replacement .....................................................41
Troubleshooting ...........................................................42
Glass Door Installation ................................................43
Valve Tray Replacement ..............................................44
Electronic Components Parts List ...............................45
Main Assembly ............................................................46
Main Assembly ............................................................47
Accessories .................................................................48
Warranty .....................................................................51

4Regency GF900L-1 Gas Fireplace
SAFETY LABEL
safety decal
This is a copy of the data badge that accompanies each GF900L Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.
NOTE: Regency® units are constantly being improved. Check the badge on the unit and if there is a difference, the badge on the unit is the correct one.
COPY OF DATA BADGE
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATETHIS APPLIANCE BEFOREREADINGTHE
INSTRUCTIONSBOOKLET.
PLACEARTICLESONORAGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLEMATERIALS
SPRAY AEROSOLSINTHE VICINITY OF THIS
APPLIANCE WHILEINOPERATION.
OPERATEWITH PANELS,COVERSORGUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOTMODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
Rev. B
Part #: 919-117
Colour: Black on Grey
Size: 100% 7" W x 2.7" H
Mar.22/12 - draft for approval.
May 30/12 - Made changes as per test report.
June 25/12 - Added AGA Approval
Dec. 23/13: Updated E. Aus address
Sept. 23/15: Changed to MJ/hr + added NZ address
Serial
Number
Regency Gas Fireplace
405
Electrical: 240V 50 Hz
919-117b
Gas Type NG LP ULPG
Model GF900L-NG GF900L-LP GF900L-ULPG
Gas Consumption 35 MJ/hr 28 MJ/hr 28 MJ/hr
Manifold Pressure 0.87 kPa 2.49kPa 2.49 kPa
Injector Size 1 x #35 1 x#53 1 x #53
2.80mm 1.50mm 1.50mm
Model
Approval No. AGA 7908 G
Code AS4553 / NZS5262 / NZS5266
Distributed by:
Western Australia:
Air Group Australia
28 Division St
Welshpool, WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
New Zealand:
Aber Holdings
17 Main Street Place
Te Rapa, HA 3200
To be installed by an authorised person in
accordance with installation instructions provided
with the appliance.

Regency GF900L-1 Gas Fireplace 5

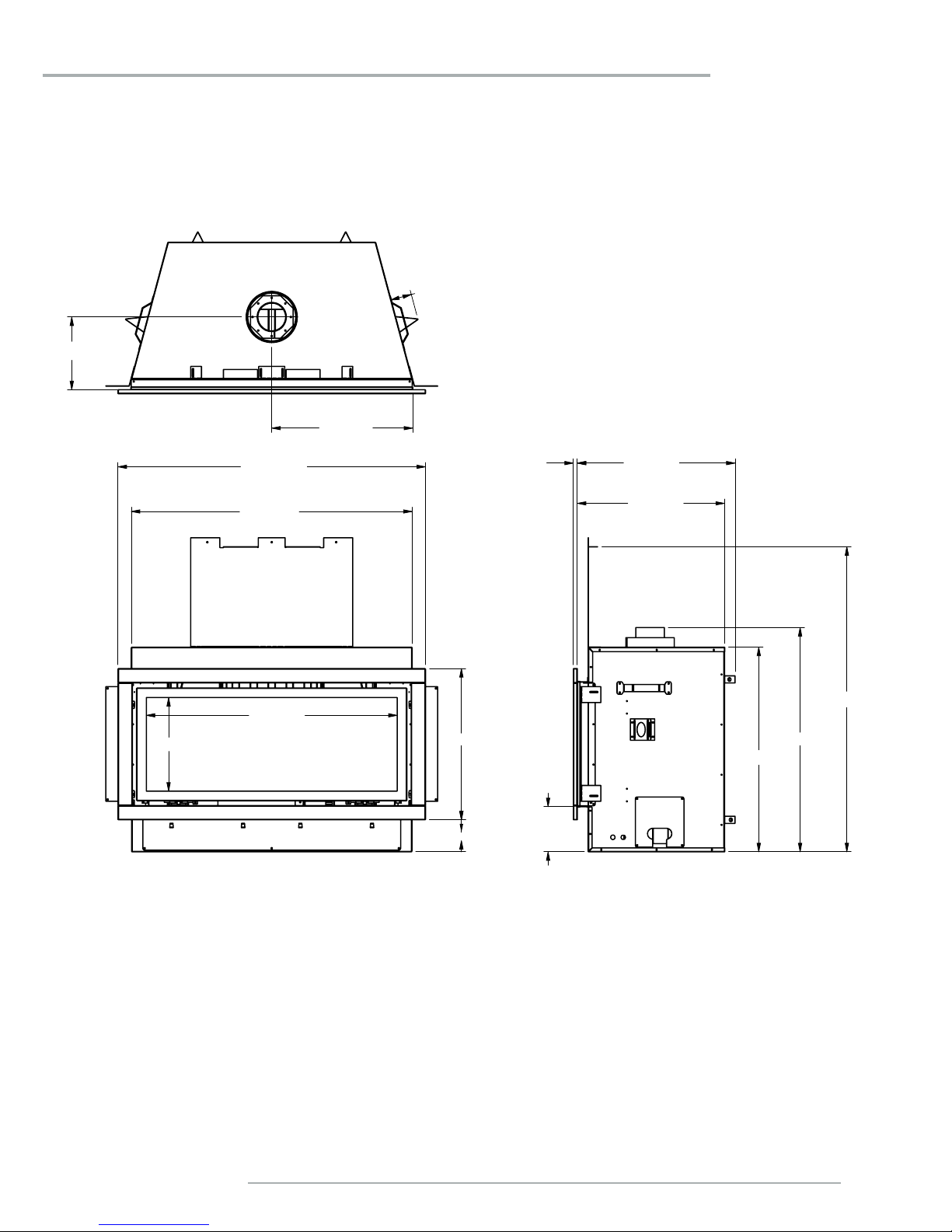

DIMENSIONS
dimensions
UNIT DIMENSIONS
(259mm)
(76mm)
(500mm)
(1091mm)
(995mm)
(889mm)
(332mm) (536mm)
(113mm)
(14mm) (560mm)
(522mm)
(160mm)
(1082mm)
(795mm)
(725mm)

6Regency GF900L-1 Gas Fireplace
installation
11) Under no circumstances should this appliance
be modified. Parts that have to be removed
for servicing should be replaced prior to
operating this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service
person. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Installation and Building
Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes.
3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the flueing system annually for
blockage and any signs of deterioration.
6) Flueing terminals shall not be recessed into
a wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
"THIS UNIT MUST ALWAYS
TERMINATE / FLUE
DIRECTLY TO THE OUTDOORS."
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The GF900L™ Direct Vent Fireplace must be installed
in accordance with these instructions. Carefully read all
the instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsibility of the
installer to ensure this fireplace is installed in compliance
with manufacturers instructions and all applicable codes
and complies with a AS/NZS 5601-2013.
CLOTHING OR OTHER FLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS, AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTH-
ING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED SERVICE
PERSON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY A PROFESSIONAL SERVICE
PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS OF
THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OFTRAFFIC AND AWAY FROM FURNITURE
AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLYWILLVOIDYOUR
WARRANTY AND MAY CAUSE A SERIOUS
HOUSE FIRE.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME AREA AS
THE APPLIANCE. TODDLERS,YOUNG
CHILDREN AND OTHERS MAY BE
SUSCEPTIBLE TO ACCIDENTAL
CONTACT BURNS. A PHYSICAL
BARRIERS IS RECOMMENDED IF
THERE ARE AT RISK INDIVIDUAL IN
THE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE,INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEPTODDLERS,YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS
OUT OFTHE ROOM AND AWAY FROM
HOT SURFACES.

Regency GF900L-1 Gas Fireplace 7
installation
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) The appliance must be installed on a flat,
solid, continuous surface For example a
wood, metal or concrete floor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3) The GF900L Direct Vent Gas Fireplace can
be installed in a recessed position or framed
out into the room as in A, B, C and D. See
Diagram 1.
7) Test Gas Pressure (Refer to "Gas Pipe Pres-
sure Testing" section).
8) Install standard and optional features. Refer
to the following sections:
a) Log Install
b) Faceplate / Door Frame Overlay
c) Remote Control
9) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
INSTALLATION CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas replace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements
(Refer to "Framing & Finishing" section)
e) Flueing Requirements (Refer to "Flueing"
section)
2) Assemble the standoffs and nailing strips
(Refer to "Unit Assembly Prior to Installation).
3) Slide unit into place.
4) Install vent (Refer to "Flueing Arrangement"
sections).
5) Make gas connections (Refer to "Gas Line
Installation section).
6) Test the pilot (Refer to "Pilot Adjustment"
section).
4) The GF900L Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
5) We recommend that you plan your installation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For ue terminations refer to "Exterior
Flue Termination Locations" section.

8Regency GF900L-1 Gas Fireplace
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 438mm Top of Fireplace Opening
B: Sidewall (on one side) 146mm Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 1003mm Top of Fireplace Opening
D: Mantel Depth (max.) 305mm 667mm Above Fireplace Opening
E: Alcove Width 1480mm Sidewall to Sidewall (Minimum)
F: Alcove Depth 787mm Front to Back Wall (Maximum)
G: From Floor 610mm Top of Fireplace Opening
Note: 0 No hearth required
Installed close
to ceiling.
Flue Clearances to Combustibles
Horizontal - Top 76mm
Horizontal - Side 51mm
Horizontal - Bottom 51mm
Vertical 51mm
Alcove
E
F
F
E
D
A
B
Installed Close
to Floor
G
IMPORTANT: If installing a television above
this appliance, the television must be either
fully recessed into the wall above the
replace and or have a mantle below the
television. If the television is left unprotected,
the extreme heat being emitted fom this
appliance will result in damage to the
television. See clearance requirements for
both mantle (page 9) and or enclosing the
top of the appliance (Page 11 D dimensions).
installation
NOTE: The unit can be installed onto a combustible base.

Regency GF900L-1 Gas Fireplace 9
MANTEL CLEARANCES
Due to the extreme heat this fireplace emits,the mantel clearances
are critical. Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Note: Ensure the paint that is used on the mantel and the facing
is "high quality" or the paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Combustible Material
(152mm)
(305mm)
0
Non-combustible
Facing
To Unit
Base
(667mm)
(610mm)
(254mm)
(660mm)
Top of
Fireplace
Opening
(508mm)
(305mm)
(606mm)
(438mm)
Combustible
Stud
(On Edge)
(25mm)
(502mm)
Nailing Flange
Allowable mantel
leg projection
181mm
254mm
330mm
38mm
MANTEL LEG
83mm
Non-Combustible
102mm
178mm
installation
(minimum 12mm)

10 Regency GF900L-1 Gas Fireplace
Nailing Strips
(DO NOT REMOVE NAILING
STRIPS)
installation
UNIT ASSEMBLY PRIOR TO
INSTALLATION
The nailing strips must be correctly positioned and attached before unit
is slid into position.
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,
1 on the top.
The top and side nailing strips are secured to the framing.
IMPORTANT NOTE
Framing depth measurement is noted with the nailing strips
set as far forward on the rebox as possible. The nailing
strips can be adjusted back up to 38mm to allow for varying
thicknesses in non-combustible material & wall nishes.
INSTALLATION ACCESS PANEL
The unit is equipped with a removable access panel for pre-finish installation
of optional components - this panel is located on the lower front face.
1) Remove 6 screws to remove access panel.
2) Easier access to gas connection with panel removed.
3) Install any optional components with access panel removed.
4) Reinstall access panel with 6 screws
Note: Access panel is no longer usable once facing material installed.
Installation Access Panel

Regency GF900L-1 Gas Fireplace 11
installation
FRAMING DIMENSIONS
Framing
Dimensions Description GF900
A Framing Height 1089mm
BFraming Width 1127mm
C*Framing Depth 552mm
D Minimum Height to Combustibles 1151mm
ECorner Wall Depth 1273mm
FCorner Facing Wall Width 1800mm
G Vent Centerline Height 991mm
H Non-combustible facing height 483mm
I Gas Connection Opening Height 38mm
J Gas Connection Height 67mm
K Gas Connection Inset 44mm
LGas Connection Opening Width 89mm
* Framing depth measurement is noted with the nailing strips set as far forward on the firebox as possible.
The nailing strips can be adjusted back up to 38mm to allow for varying thicknesses in non-combustible
material & wall finishes.
NOTE: A minimum thickness of 12mm non-combustible facing board compliant with AS1530-1 and AS1530-3 is required.
A
B
C
D
G
H
Non-Combustible
Facing
Header
Timber
Studs
F
E
I
J
K
L
Flex or Rigid Pipe
Finished Floor
Drywall or
other facing
C
C
Note: All framing may
be of wood construction.
NOTE: Do not place
timber/steel studs below
the timber framing studs
already in place.

12 Regency GF900L-1 Gas Fireplace
installation
NON COMBUSTIBLE FACING INSTALLATION
IMPORTANT NOTE:
Prior to installation of non-combustible materials by oth-
ers, check and inspect carefully for any hairline cracks and
or damage to board. The non combustible board must be
a minimum of 12mm thick and comply with AS1530-1 and
AS1530-3. Material which is thinner may crack as a result
due to the high temperatures this appliance emits.
1) Using screws for use with non-combustible boards-secure non-
combustible material around unit, framing and top nailing strip every
150mm
Important Note: To avoid cracking the board-pre-drill holes prior
to securing to unit/framing.
2) Wipe any debris/dust from the non-combustible material and dry wall.
3) Prior to securing, it is mandatory to prime the facing and edges using
a quality primer. This will ensure proper adhesion of the tape, filler and
paint.
Failure to follow this procedure will result in cracked seams.
4) Tape the seams using a mesh type tape.
5) Fill seams as normal. Avoid using filler which shrinks excessively.
Filler must be cured as per manufacturer's recommendations.
6) Prime wall for a second time for proper adhesion of paint.
7) Paint walls using a high quality paint which will withstand the high
temperatures being emitted from this appliance.
IMPORTANT
Regency Fireplace Products are designed, produced, tested and
certified to the highest industry standards. The finishing of the walls
surrounding Regency is as critical as the installation itself. The tem-
peratures around linear gas fireplaces are typically higher than would
be acceptable for the combustible materials. Your Regency Fireplace
is no exception to this rule. Therefore, the units are specified with
non-combustible required materials to specific dimensions above and
around the units. This is due to these areas reaching higher temperature
levels than required/acceptable for a combustible material. To obtain
the best, most durable finish around your fireplace, this calls for a high
level of care and attention to the preparation and finish around this
appliance, using only the highest quality materials, able to withstand
the temperatures produced.
By following the installation instructions in the manual exactly, you will
increase your chances for a damage free finish.
Every precaution is taken in providing the recommendations on prepara-
tion and finish, given the variation in paint quality, with temperature limits
and workmanship applied to or used in any application surrounding
the fireplace. This includes framing as well as finishing.
Over time natural convection from any fireplace can cause discoloration
in the area directly above the appliance. Lower quality paints, under
prepared finishes, poor applications and any framing discrepancies or
in the installation can cause this discoloration process to be expedited.
Discoloration is not the responsibility of Regency Fireplace Products,
we believe careful attention to the recommendations provided here will
be result in aesthetically pleasing result free of issues outlined above.
NOTE: (As per Page 11) When constructing a typical
"C" section framework, it is advisable to use the same
12mm non-combustible board on the whole front face.
Also, to cut out the clean edge trim opening (plus a
10mm border) on the non-combustible board. This
will help blend the sheeting easily and avoid cracking.

Regency GF900L-1 Gas Fireplace 13
installation
FRAMING & FINISHING
Note: When constructing the framed opening, please ensure
there is access to install the gas lines when the unit is
installed.
2) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapour barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself and/or the
flueing. Clearances must be maintained as per this manual.)
WARNING: Failure to insulate and add vapor barriers to the
inside of the exterior wall will result in operational and per-
formance problems including, but not limited to: excessive
condensation on glass doors, poor flame package, carbon,
blue flames etc. These are not product related issues.
3) The unit does not have to be completely enclosed in a chase. You
must maintain clearances from the vent to combustible materials:
See "Clearances" section. Combustible materials can be laid
against the side and back standoffs and the stove base.
4) Non-combustible material (ie. tile, slate, etc) may be brought up to
and overlap the unit (top and bottom) ensuring that the maximum
thickness does not go beyond the 38mm as shown in the diagram
below. The faceplate will not be able to be mounted if finished
material is beyond 38mm.
1) Frame in the enclosure for the unit with framing material.
IMPORTANT:The framed opening must be of non-combustible
material.
5) If material such as brick, stone, etc extends past the faceplate depth 38mm,
when finishing around the faceplate, the minimum opening dimensions
noted below must be adhered to ensuring for the removal of the faceplate
and for the safe operation of this appliance.
NOTE: Spacing of 25mm around the completed surround must be adhered to.
Unit shown with inner door frame only
Using the clean edge of the unit shown in
a typical tiled facing.
1002mm
446mm
Ensure front of facing mate-
rial is ush with the edge of
the ange on the replace.

14 Regency GF900L-1 Gas Fireplace
installation
COMBUSTIBLE REQUIREMENTS
FRAMING & FINISHING
Note:
Depending on the material used for finishing, the nailing
strips must be set accordingly so that the finished material
is always at the 38mm edge of the flange.
NOTE: A minimum thickness
of 12mm non combustible
facing is required.
Note:
• The siding nailing strips are factory set at 12mm. The
top nailing strip is xed during transit to the rear of the
appliance.
• Do not place any reinforcement in front of header and
behind nishing material.
• The nailing strip must be used. It is xed during transit
to the rear of the unit.
NOTE:
The appliance must be installed
on a at, solid continuous surface,
For example., a wood, metal or
concrete oor or in a raised (on
the wall) application. The appli-
ance must be installed on a metal
or wood base extending the full
width and depth of the appliance.
NOTE:
If raising the unit, then the minimum
height measurement (A) on page
11 of the framing dimensions must
be adhered to. For example., Unit
raised 300mm then A+ 300mm =
1389mm.
1108mm
83mm
606mm
502mm
1165mm
Non-combustible
Material
Non-combustible
Non-combustible
Non-combustible
Header
on edge
Timber Stud
Timber Stud
156mm 451mm
Combustible
Material
Finished
Material
Nailing Strip
Position
12mm 25mm
25mm 12mm
38mm 0mm (flush)
Unit
Nailing Strip
Flush w/unit
Factory Set
Unit
Nailing Strip
12mm Forward
Unit
Nailing Strip
25mm Forward
MINIMUM THICKNESS OF THE FINISH MATERIAL: 12MM

Regency GF900L-1 Gas Fireplace 15
installation
EXTERIOR FLUE TERMINATION LOCATIONS
FIGURE 6.2 (in part): LOCATION OF FLUE TERMINALS OF BALANCED FLUE AS/NZ
5601-2013, ROOM-SEALED, FAN ASSISTED OR OUTDOOR APPLIANCE

16 Regency GF900L-1 Gas Fireplace
installation
CLEARANCES
Ref. Item
Minimum clearances (mm)
Natural
Draught
Fan
Assisted
aBelow eaves, balconies and other projections:
Appliances up to 50 MJ/h input 300 200
Appliances up to 50 MJ/h input 500 300
bFrom the ground, above a balcony or other surface* 300 300
cFrom a return wall or external corner* 500 300
dFrom a gas meter (M) (see Note 5)
(see Clause 5.11, 5.9 for vent terminal location of regulator)
(see Table 6.7 for New Zealand requirements)
1000 1000
eFrom an electricity meter or fuse box (P)† (see Note 5) 500 500
fFrom a drain or soil pipe 150 75
gHorizontally from any building structure* or obstruction facing a terminal 500 500
hFrom any other flue terminal, cowl, or combustion air intake 500 300
jHorizontally from an openable window, door, non-mechanical air inlet, or any other opening into a building iwth
the exception of sub-floor ventilation:
Appliances up to 150MJ/h input* 500 300
Appliances over 150MJ/h input up to 200 MJ/h input* 1500 300
Appliances over 200MJ/h inputup to 250 MJ/h input** 1500 500
Appliances over 250MJ/h input* 1500 1500
All fan-assisted flue appliances, in the direction of discharge - 1500
kFrom a mechanical air inlet, including a spa blower 1500 1000
nVertically below an openable window, non-mechanical air inlet, or any other opening into a building iwth the
exception of sub-floor ventilation:
Space heaters up to 50MJ/h input 150 150
Other appliances up to 50 MJ/h input 500 500
Appliance over 50 MJ/h input and up to 150 MJ/h input 1000 1000
Appliances over 150 MJ/h input 1500 1500
* Unless appliance is certified for closer installation.
† Prohibited area below electricity meter or fuse box extends to ground level.
NOTES:
1 Where dimension c, j or k cannot be achieved an equivalent horizontal distance measured diagonally from the
nearest discharge point of the terminal to the opening may be deemed by the Technical Regulator to comply.
2 See Clause 6. 9. 4 for restriction on the flue terminal under a covered area.
3 See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder. A flue terminal is considered
to be a source of ignition.
4 For appliance not addressed above acceptance should be otained from the Technical Regulator.
5 Minimum clearance d and e also apply to any combustion air intake openings of appliances.

Regency GF900L-1 Gas Fireplace 17
installation
Flue restriction is required for certain venting installations, see the diagrams
in the "Flueing
Arrangements" section to determine if they are required for your installation.
The Flue Restrictor plate is located on the inside top of the firebox.
To set the flue restriction as indicated in the flueing arrangements diagrams,
refer to the following instructions;
1. Remove the glass door and inner panels - see instructions in this manual.
2. Remove 6 screws (3 front - 3 back) to remove heat baffle to access restrictor
plate.
3. Remove the screws that hold the flue restrictor in place.
FLUE RESTRICTOR POSITION
Heat Baffle
4. Adjust the flue restrictor plate to the required flue restrictor position as per
the diagrams shown below.
5. Once the flue restrictor plate is in the required position, secure with screws.
FLUE RESTRICTOR SETTING
Set 3-(32mm)
Set1-(44mm)
Set 2- (41mm)
FULLY OPEN
Set-0 (108mm)
FACTORY SETTING

18 Regency GF900L-1 Gas Fireplace
installation
FLUEING INTRODUCTION
The GF900L uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws
outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.
Note: These ue pipes must not be connected to any other appliance.
The gas appliance and flue system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or
gas burning appliance. Each direct vent gas appliance must use it's own separate flue system. Common flue systems are prohibited.
FLUEING ARRANGEMENT FOR HORIZONTAL TERMINATIONS

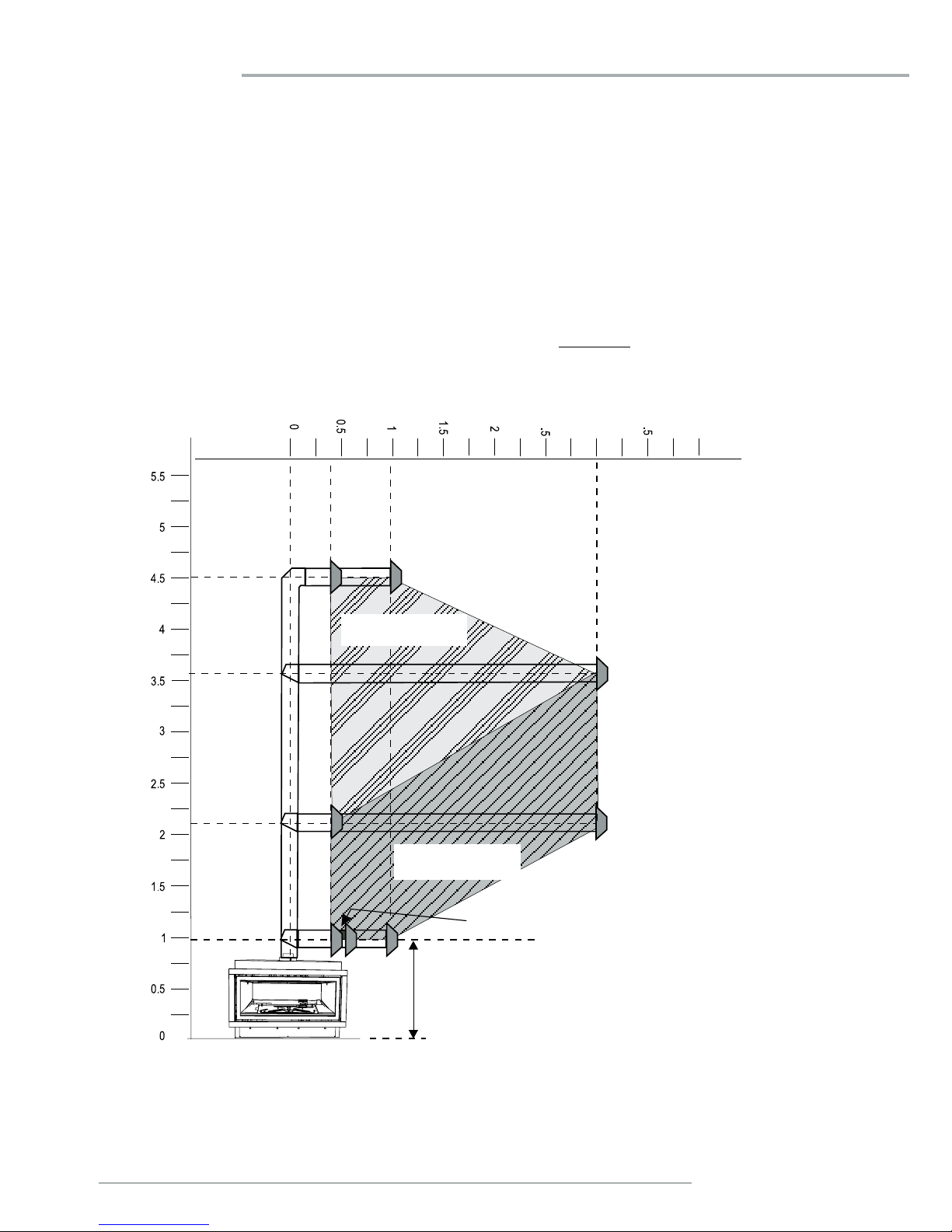

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o (two 45o elbows equal one 90o elbow).
Note: Must use optional rigid pipe adapter (Part# 510-994) when using Simpson Dura Vent Only.
• Maintain clearances to combustibles as listed in "Clearances" section
• Horizontal ue must be supported every 0.9m
• A ue guard should be used whenever the termination is lower than the specied minimum or as per local codes.
• Flex system can only be used up to 3m in total length- otherwise rigid venting must be used.
FLUE RESTRICTOR SETTING:
Flue restrictor factory set at Set 0.
Refer to the "Flue Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 1 if required.
mm991
Minimum
Height
Requirement
2
3
3
Restrictor Set #0
75mm-Open
Restrictor Set #2
25mm-Open
Restrictor Set #1
50mm-Open
Metres
Vertical Height (Metres)

Regency GF900L-1 Gas Fireplace 19
installation
Notes:
1) Liner sections should be continuous without any
joints or seams.
2) Only Flex pipe purchased from Regency®may be
used for Flex installations
3) Horizontal flue must be supported every 0.9m.
4) Regency®DirectVent System (Flex) is only approved
for horizontal terminations.
5) Flex system can only be used up to a maximum
continuous vent length of up to 3m. If longer runs
are required, rigid pipe must be used.
NOTE: Maximum horizontal run: 3M
FPI Kit # Length Contains:
#946-515 1.2 m 1) 175mm exible outer liner (Kit length)
2) 102mm exible inner liner (Kit length)
3) spring spacers
4) thimble
5) AstroCap termination cap
6) screws
7) tube of Mill Pac
8) plated screws
9) S.S. screws #8 x 1-1/2” drill point
#946-516 3 m
FLUEING ARRANGEMENTS
HORIZONTAL TERMINATION (FLEX)
Regency®Direct Vent System
These flueing systems, in combination with GF900L, have been tested and listed as a Direct Vent system by AGA. The location of the termination
cap must conform to the requirements in the Flue Terminal Locations diagram from the "Exterior Flue Termination Locations" section.
Regency®Direct Vent (Flex) System Termination Kits includes all the parts needed to install the GF900L using a flexible vent.
Flue Guard - if required*
(Part #946-506/P)
102mm

20 Regency GF900L-1 Gas Fireplace
installation
HORIZONTAL TERMINATIONS
RIGID PIPE 4" X 6-5/8" (102MM X 175MM)
The minimum components required for a basic horizontal
termination are:
1 Horizontal Termination Cap
1 90o Elbow
1 Rigid Pipe Adaptor (510-994)
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back standoffs to the
inside mounting surface of termination cap. For siding other
than vinyl furring strips may be used, instead of the vinyl siding
standoff, to create a level surface to mount the vent terminal.
The Terminal must not be recessed into siding. Measure the
wall thickness including furring strips.
If a Vinyl Siding Standoff is required (it must be used with vinyl
siding), measure to outside surface of wall without siding and
add 51mm.
When using Rigid Flue other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
WARNING:
Do not combine flueing components from
different flueing systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
with Duravent Direct-Vent.
The FPI AstroCapTM and Regency vertical cowls are certified for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent.
AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trade-
marks of Simpson Dura-Vent Co. Inc.
Flat Wall Installation
Wall Thickness
(mm)
Vent Length Required
(mm)
102mm-140mm 152mm
178mm-216mm 229mm
254mm-292mm 305mm
229mm-368mm 279mm-371mm Adj. Pipe
381mm-597mm 432mm-610mm Adj. Pipe
Adj.Pipe Length
Horizontal
Termination Cap
Wall Thimble
Rigid Pipe Adapter
Elbow
o
90
(DURA VENT ONLY)
