Regency IP28-PROPANE Quick start guide

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Models: IP28-NG
IP28-PROPANE
IP28-ULPG
Owners &
Installation
Manual
04/07/15
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553, NZS 5262 and
have been certied by the Australian Gas
Association for installation and operation as
described in these Installation and Operating
Instructions.
Your unit should be serviced annually by
an authorised service person.
918-938f
IP28 GAS INBUILT
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the re
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other am-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.

2Regency IP28 Gas Inbuilt Fireplace

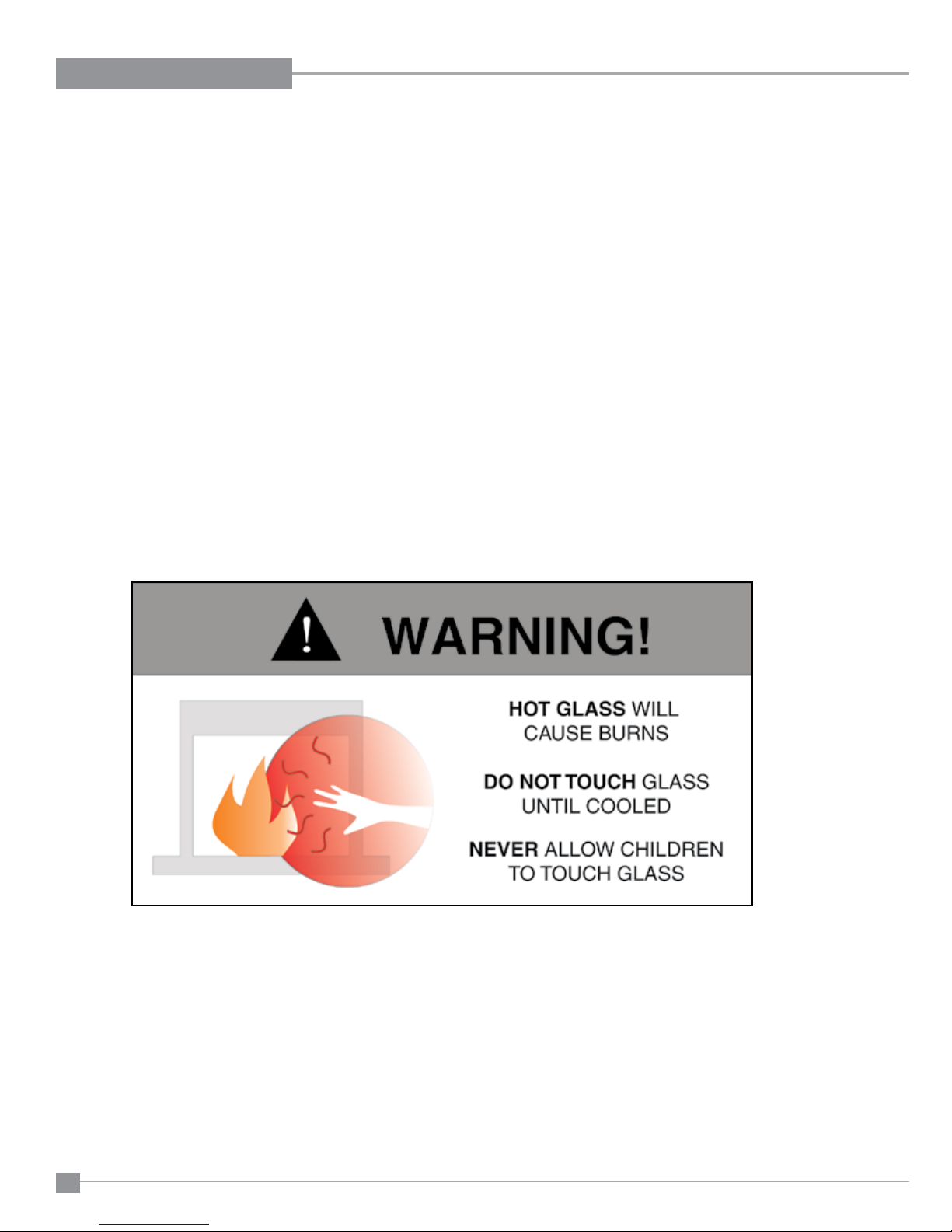

REGENCY
GAS INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by FPI. The Regency
Gas Fireplace Series of appliances has been designed to provide you with all the warmth and
charm of a replace, at the ick of a switch. The model IP28 of this series has been approved
by Australian Gas Association for both safety and efciency. As it also bears our own mark, it
promises to provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.

Regency IP28 Gas Inbuilt Fireplace 3
DIMENSIONS
UNIT DIMENSIONS W/ CONTEMPORARY FACEPLATE
MODULAR FACEPLATE AND INFILL PANEL
37.150
(944mm)
28.180
(716mm)
18.850
(476mm)
23.327
(593mm)
14.911
(379mm)
27.298
(694mm)
38-5/16"
33-1/2"
28-5/16"
25-7/8"
3/8"
1-5/8"
(973mm)
(848mm)
(657mm)
(719mm)
(41mm)
(10mm)

4Regency IP28 Gas Inbuilt Fireplace
DIMENSIONS
UNIT DIMENSIONS W/ SLIM LINE FACEPLATE
40-1/2”(1030mm)
28-5/8” (725mm)
16 - 7/8”
27-5/16”
23-3/8”
(593mm)
(427mm)
(693mm)
18.850
475.8

Regency IP28 Gas Inbuilt Fireplace 5
DIMENSIONS
DIMENSIONS - OPTIONAL MODULAR FIREPLACE SOLUTION
DIMENSIONS - OPTIONAL WEATHER BOX
49”(1245mm)
50-3/16” (1275mm)
34-7/8”(886mm)
36-15/16”(938mm)
18-5/16”(465mm)
105°
775mm
822mm
819mm
410mm

6Regency IP28 Gas Inbuilt Fireplace
TABLE OF CONTENTS
DATA BADGE
Copy of Data Badge .....................................................4
INSTALLATION
Important Message ........................................................8
For Your Safety ..............................................................8
Materials Required ........................................................8
Before You Start ............................................................8
Masonary Minimum Fireplace Opening Dimensions .....9
Contemporary Fascia ....................................................9
Slim Line Fascia ............................................................9
Combustible Mock replace" Minimum Fireplace opening
Dimensions ....................................................................9
Clearances To Combustibles .........................................9
Optional Modular replace solution Clearances ..........10

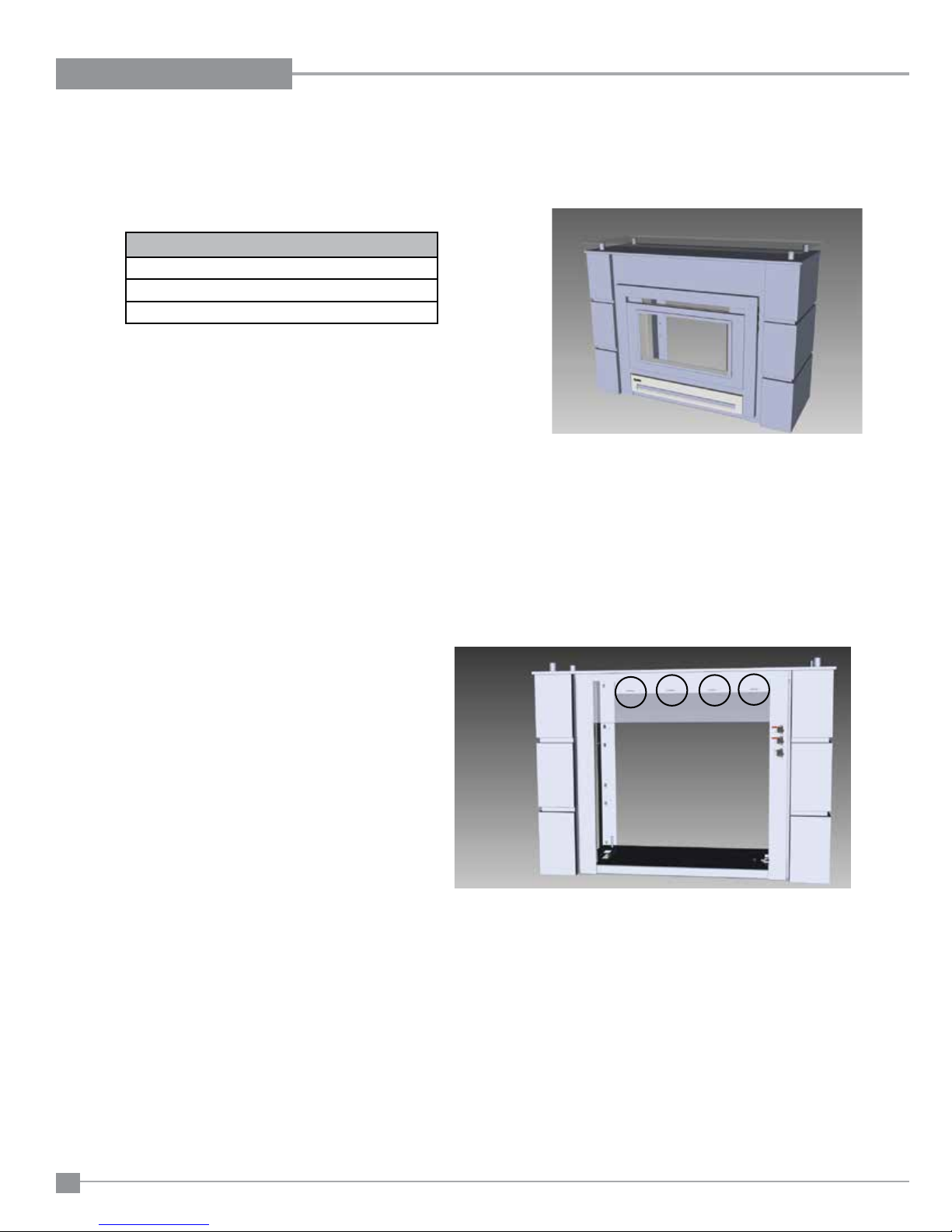

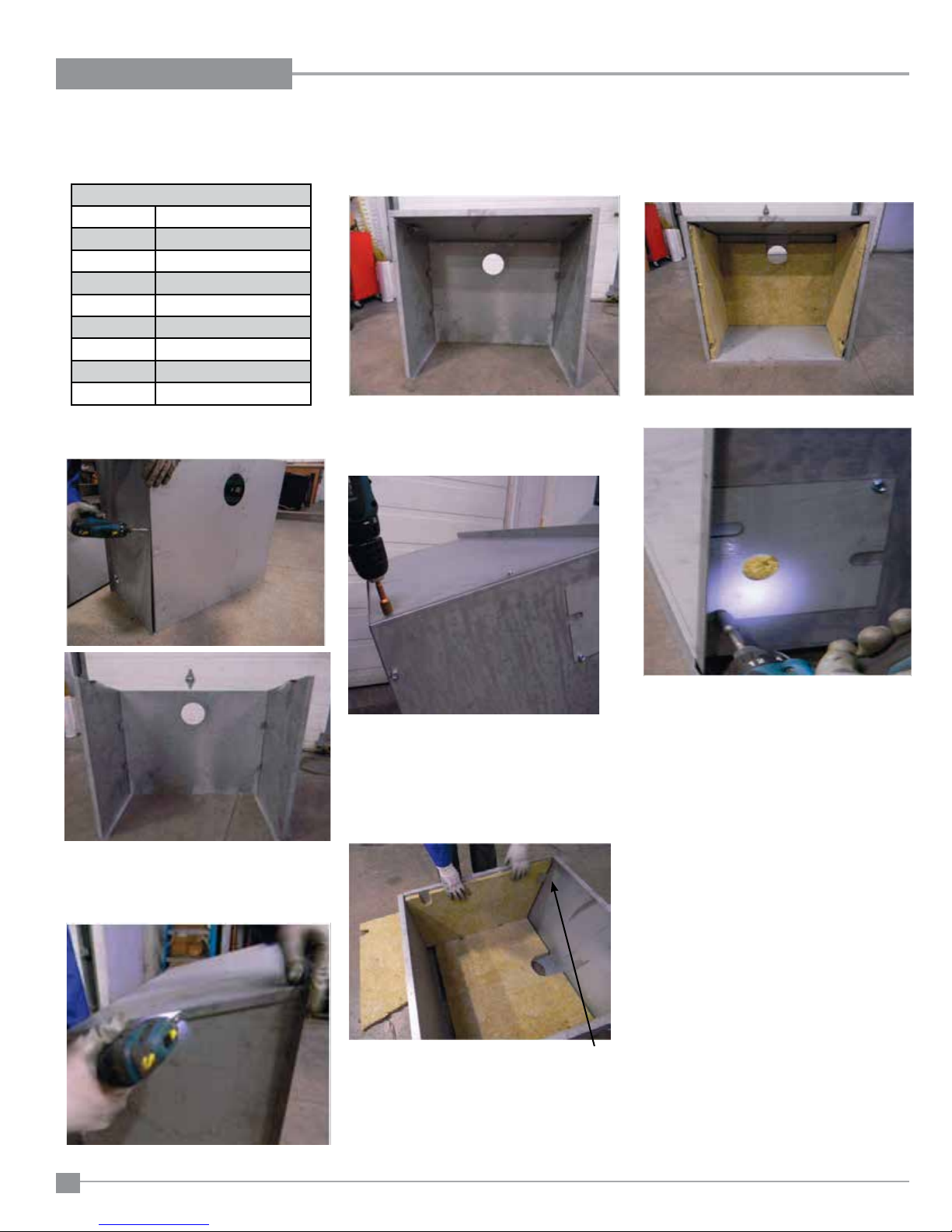

Mock Fireplace kit (zero clearance) installation........... 11
Gas Pipe Pressure Testing ..........................................12
Exterior Flue Termination Locations ............................13

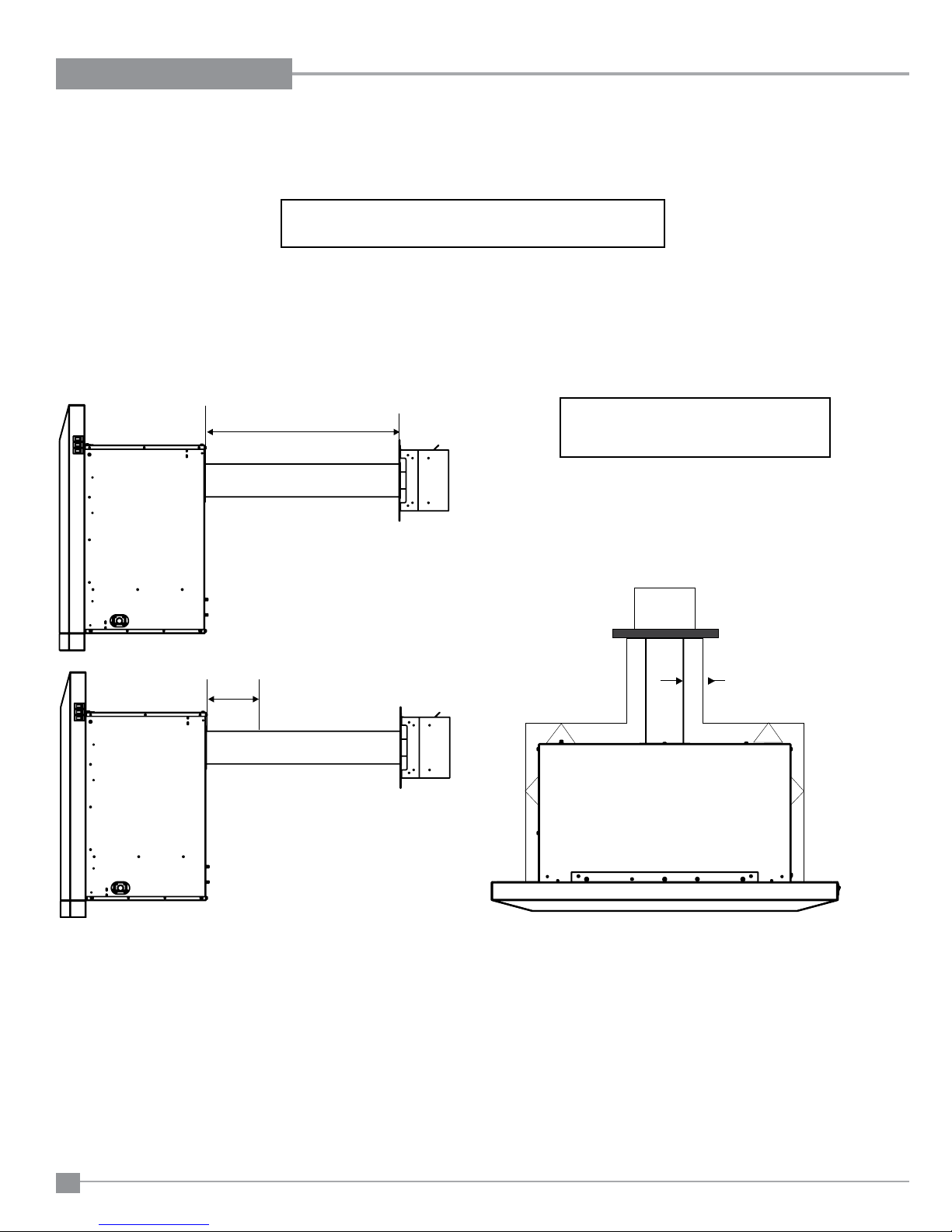

Venting and termination ...............................................14
Aeration Settings .........................................................15
Conversion Kit for NG to LPG Model...........................16
Conversion Kit for NG to ULPG Model ........................17
Optional Stainless steel inner panel install ..................21
Switch operation ..........................................................22
Log set installation .......................................................23
Glass Door installation.................................................24
Contemporary faceplate Installation ............................25
Hearth trim Installation.................................................26
Slim line faceplate Installation .....................................27
Optional inll panel Installation ....................................28
Modular faceplate Installation ......................................29
Final Check..................................................................30
Wiring ..........................................................................30
Standard wiring............................................................30
OPERATING INSTRUCTIONS
Operating Instructions ................................................31
Lighting Instructions.....................................................31
Shutdown Instructions .................................................31
First Fire ......................................................................31
Remote Control ..........................................................31
Copy Of Lighting Instruction Plate ...............................33
Normal Operating Sounds Of .....................................33
Gas Appliances............................................................33
Resetting the unit.........................................................33
MAINTENANCE
Door Glass ..................................................................35
Replacement ...............................................................35
Glass Gasket ...............................................................35
Convection Fan replacement.......................................36
Combustion Fan replacement .....................................37
Pressure switch replacement ......................................38

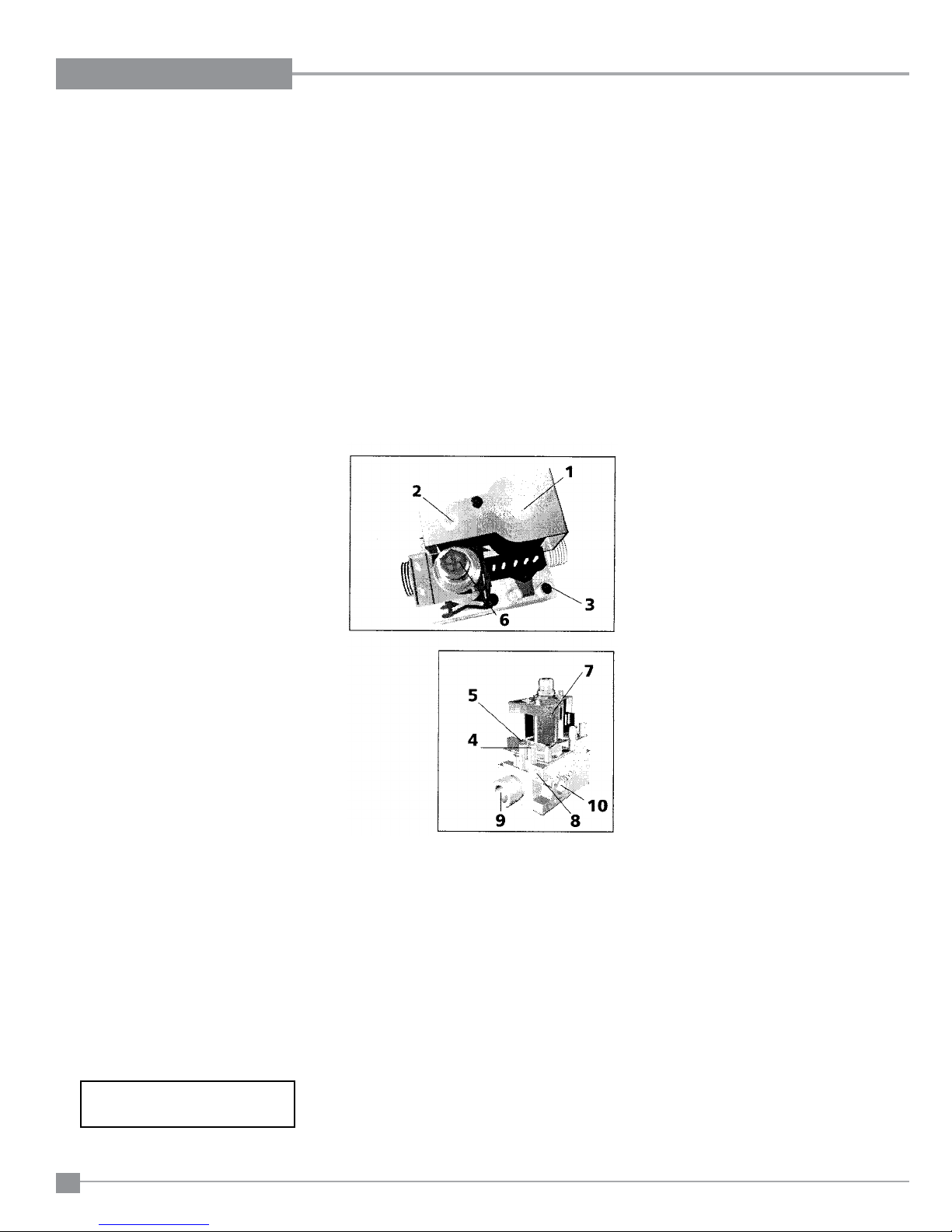

Valve assembly replacement .......................................39
PARTS LIST
Main Assembly ............................................................41
Contemporary Faceplate Assembly.............................42
Slim line Faceplate Assembly ......................................42
WARRANTY
Warranty ......................................................................43

Regency IP28 Gas Inbuilt Fireplace 7
SAFETY LABEL
(Australia Only)
This is a copy of the label that accompanies each Regency IP28 Gas Inbuilt replace. We have printed a copy of the contents here for your review.
DATA BADGE NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the
correct one.

8Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
IMPORTANT MESSAGE
The Regency Gas Inbuilt must be installed in ac-
cordance with these instructions. Carefully read all
the instructions in this manual rst.
Note: Failure to follow these instructions could
cause a malfunction of the heater which
could result in death, serious bodily in-
jury, and/or property damage. Failure to
follow these instructions may also void
your re insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion.
Always provide adequate combustion and ventila-
tion air. Follow instructions and information in the
current AS5601, NZS 5262 or local codes. Consult
the "authority having jurisdiction" to determine the
need for a permit prior to starting the installation.
BEFORE YOU START
INSTALLATION AND REPAIR SHOULD
BE DONE ONLY BY AN AUTHORISED
PERSON.
1) The appliance shall be installed in accordance
with the manufacturer's installation instructions,
local gas tting regulations, municipal building
codes, water supply regulations, electrical wir-
ing regulations, with AS5601. (AGA gas instal-
lation code) NZS 5262(New Zealand). Special
conditions ie. marine environment, should be
avoided.
2) The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning may
be required due to excessive lint from carpet-
ing, bedding material, etc. It is imperative that
control compartments, burners and circulating
air passageways of the appliance be kept clean
and free from excessive lint from carpeting.
3) Always connect this space heater to a approved
ueing and termination provided. Flue to the
outside of the building envelope. Never ue to
another room.
4) Inspect the ueing system annually for blockage
and any signs of deterioration.
5) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
6) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the replace.
MATERIALS REQUIRED
A 240 Volt AC power cord is hooked up to the unit.
Plug 3 wire cord into a suitable receptacle. Do not
cut the ground terminal off under any circumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance with
local codes.
This unit is polarity sensitive and will not
operate if polarity is incorrect.
The power connection must be accessible with
the appliance installed as per AS5601.
GAS CONNECTION WARNING
Only persons licensed to work with gas piping
may make the necessary gas connections to
this appliance.

Regency IP28 Gas Inbuilt Fireplace 9
INSTALLATION
12"Mantel
(305mm)
3-1/2" (89mm)
Mantel
20”(508mm)
Top
Faceplate
2
0
12 64
810
2
0
12
6
16
4
14
8
18
10
Side View
11"(279mm)
20
Mantel Clearances
CLEARANCES TO
COMBUSTIBLES
Minimum Clearances to Combustibles
From Unit
Sides A 2" / 51mm
Ceiling B 39-3/8" / 1000mm
Mantel C 11" / 279mm
Max. Mantle Depth E 12" / 305mm
(see Dia. 2)
Min. Alcove Width F 44-7/8" / 1139 mm
Max. Alcove Depth G 36" / 914 mm
*No hearth required.
MASONARY MINIMUM
FIREPLACE OPENING
DIMENSIONS
(CONTEMPORARY FASCIA)
The minimum replace dimensions for the
Regency gas space heater when using the
Contemporary Fascia are shown in the follow-
ing diagrams:
NOTE: ALLOW FOR SIDE GAS CONNEC-
TION - IF REQUIRED
COMBUSTIBLE
"MOCK FIREPLACE"
MINIMUM FIREPLACE
OPENING DIMENSIONS
The minimum replace dimensions for the
Regency gas space heater when installing into
a combustible mock replace are shown in the
following diagrams:
15-1/8” (384mm)
23-1/2” (597mm)
15-1/8” (384mm)
27-1/2” (699mm)
27-1/2” (699mm)
(SLIM LINE FASCIA)
The minimum replace dimensions for the Regency
gas space heater when using the Slim line Fascia
are shown in the following diagrams:
NOTE: ALLOW FOR SIDE GAS CONNECTION
- IF REQUIRED
490mm
702mm
490mm
770mm
770mm
490mm
702mm
450mm
770mm
770mm
(For Slim line Fascia)
(For Contemporary Fascia)
23-1/2” (597mm)
17” (432mm)
28-7/8” (735mm)
27-1/2” (699mm)
17” (432mm)

10 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION

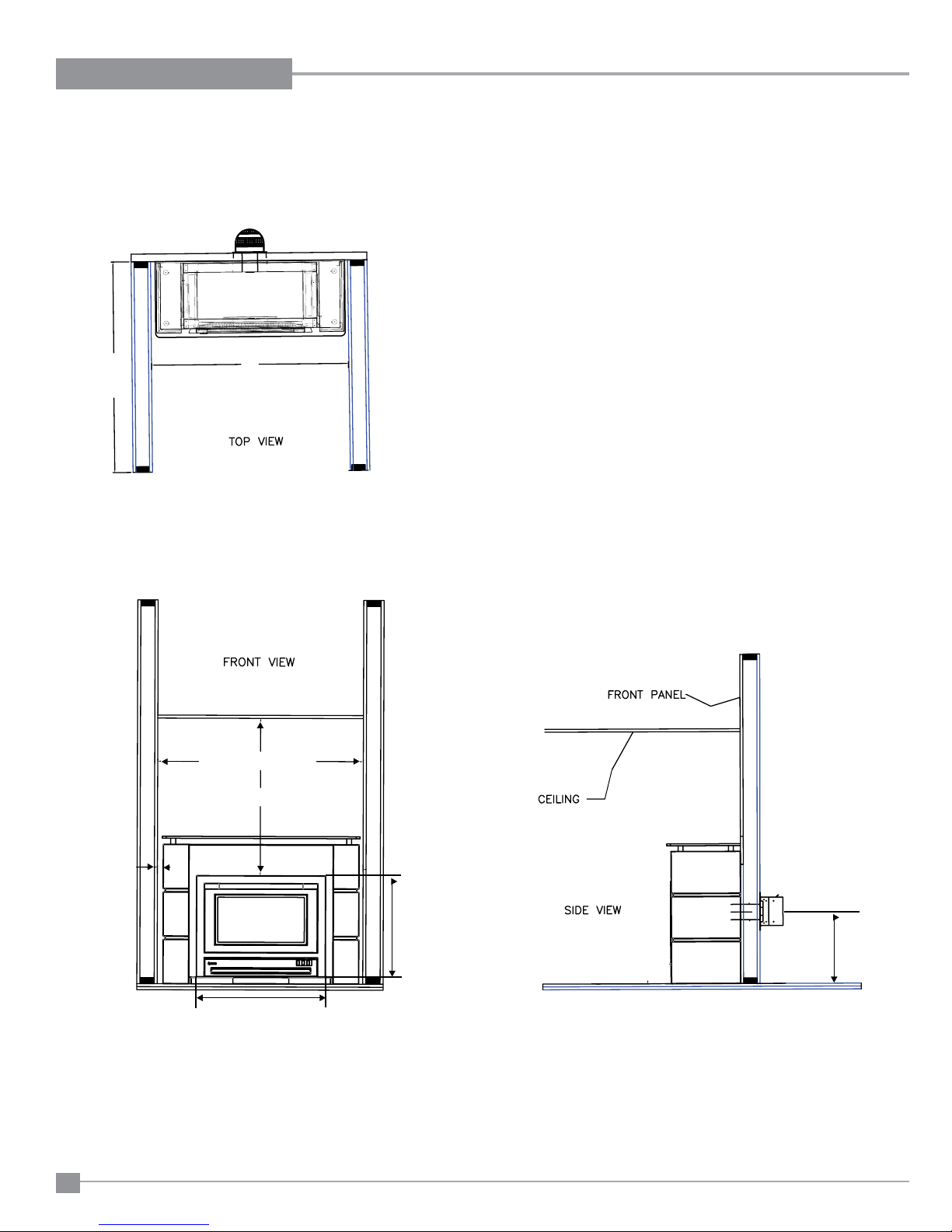

OPTIONAL MODULAR FIREPLACE SOLUTION CLEARANCES
51-7/16” (1305mm)
39-3/8” (1000mm)
1-7/16”
(37mm)
36”
(914mm)
51-7/16” (1305mm)
33-7/16” (848mm)
25-7/8”
(655mm) 20-5/8”
(523mm)
918-971 11/24/10
1
IP28
490mm
702mm
450mm
770mm
770mm

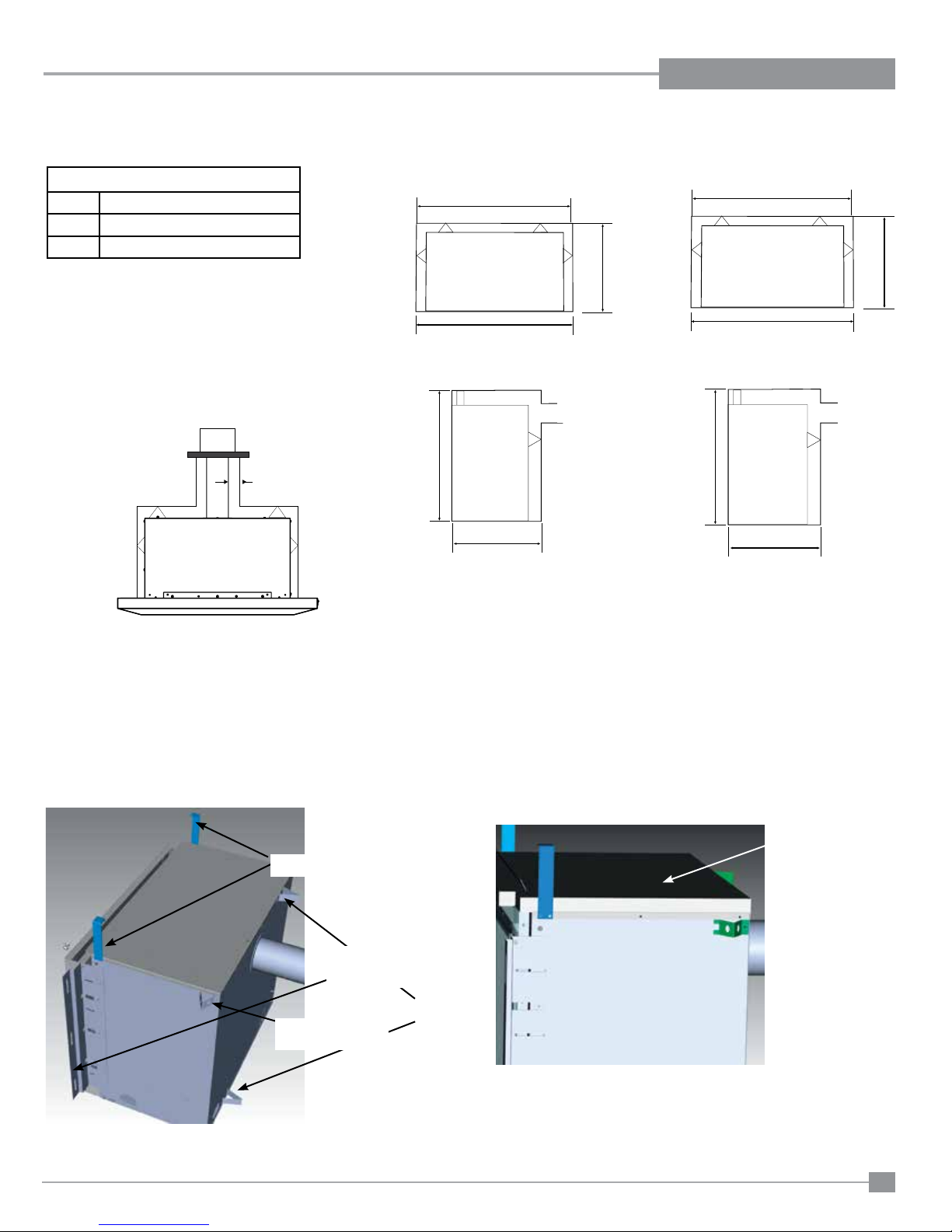

MOCK FIREPLACE KIT (ZERO CLEARANCE) INSTALLATION
Zero Clearance Kit
6 Standoffs
2 Side Brackets
1 Insulation Blanket
COMBUSTIBLE MOCK FIREPLACE KIT INSTALLATION:
Minimum cavity size for Low profile faceplate:
702mm Height x 770mm Width x 490mm Depth
Minimum cavity size for Contemporary faceplate:
702mm Height x 770mm Width x 450mm Depth
VENTING CLEARANCES: 10mm is required all around
venting
INSTALLATION OF MOCK FIREPLACE KIT:
1) Install top two 110 mm stand offs to the top of unit.
Install two 67 mm stand offs to the back of unit - install two 55 mm stand offs to the each side of unit.
2) Install left and right side nailing fl ange.
3) Lay insulation blanket on top of unit so it is fl ush and tight against backside of faceplate.
4) Unit is now ready for install into a combustible cavity that has the above mentioned clearances.
10mm
Top standoffs x 2
Back standoffs x 2
Insulation blanket
Side standoffs x 2
1 on each side
Side Nailing Flange x 2
1 on each left & right
490mm
702mm
490mm
770mm
770mm
NOTE: Please adjust nailing fl anges in relationship to either Contemporary or Low Profile Faceplate. Faceplate needs to be fl ush against fi nished wall.
Low Profile Fascia Contemporary Fascia

Regency IP28 Gas Inbuilt Fireplace 11
INSTALLATION
MOCK FIREPLACE KIT (ZERO CLEARANCE) INSTALLATION
918-971 11/24/10
1
IP28
490mm
702mm
450mm
770mm
770mm
MOCK FIREPLACE KIT (ZERO CLEARANCE) INSTALLATION
Zero Clearance Kit
6 Standoffs
2 Side Brackets
1 Insulation Blanket
COMBUSTIBLE MOCK FIREPLACE KIT INSTALLATION:
Minimum cavity size for Low profile faceplate:
702mm Height x 770mm Width x 490mm Depth
Minimum cavity size for Contemporary faceplate:
702mm Height x 770mm Width x 450mm Depth
VENTING CLEARANCES: 10mm is required all around
venting
INSTALLATION OF MOCK FIREPLACE KIT:
1) Install top two 110 mm stand offs to the top of unit.
Install two 67 mm stand offs to the back of unit - install two 55 mm stand offs to the each side of unit.
2) Install left and right side nailing fl ange.
3) Lay insulation blanket on top of unit so it is fl ush and tight against backside of faceplate.
4) Unit is now ready for install into a combustible cavity that has the above mentioned clearances.
10mm
Top standoffs x 2
Back standoffs x 2
Insulation blanket
Side standoffs x 2
1 on each side
Side Nailing Flange x 2
1 on each left & right
490mm
702mm
490mm
770mm
770mm
NOTE: Please adjust nailing fl anges in relationship to either Contemporary or Low Profile Faceplate. Faceplate needs to be fl ush against fi nished wall.
Low Profile Fascia Contemporary Fascia

12 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-
off valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig. (3.45 kPa). Disconnect piping
from valve at pressures over 3.45 kPa (14" w.c.).
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should
be checked using the valve pressure
ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" (# 3) and/or "OUT" (# 4)
pressure tap(s), turning counterclockwise with
a 1/8" wide at screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" (8mm) ID hose.
4) Seal and or check the pilot outlet (# 8)
5) The pressure check should be carried out
with the unit burning and the setting should be
within the limits specied on the safety label.
6) When nished reading manometer, turn off the
gas valve, disconnect the hose and tighten the
screw (clockwise) with a 1/8" at screwdriver.
Screw should be snug, but do not over tighten.
S.I.T. Valve Description
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/
Combustion Chamber Compensation
6) Pressure Regulator for Minimum and
Maximum Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
10) Side Outlet
Install to AS5601 (Australia) /
NZS 5262 (New Zealand)

Regency IP28 Gas Inbuilt Fireplace 13
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced ue terminals or
the ue terminals of outdoor appliances
according to AS5601-2004 (AGA gas installation code) or NZS 5262 (New Zealand)
and local authorities having jurisdiction.
Minimum Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other ue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-oor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-oor ventilation
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.
(III) Prohibited area below electricity meter or fuse box extends to ground level.
(IV) A ue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and a free ow of air at the
appliance is achieved.
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h
input
Up to 50 MJ/h Over 50 MJ/h input
to 150 MJ/h input
Over 150 MJ/h
input
150 500 1000 1500

14 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
VENTING AND TERMINATION
This flueing system in combination with the IP28 unit has been tested and listed as a power flue system by the Australian Gas Association.
The termination location must conform to AS5601 as per the diagram in the "Flue Termination Location" section of the manual.
Masonry and Mock Fireplace Installations:
IP28 must be fitted with the venting and terminal provided.
Ensure cavity is prepared and ready to accept unit and proper measurements are taken to ensure proper vent length and sealing of the terminal and vent-
ing.
Preparation of venting for Installation
Maximum and minimum vent lengths:
MAX LENGTH: 605mm
MIN LENGTH: 130mm
NOTE: All vent lengths must have 0.4 degree slope downwards.
24”
605mm
5”
130mm
CLEARANCES TO COMBUSTIBLES: 10mm is required all around the outer pipe.
1) Install inlet tube to back of unit with screws provided and mark ‘’cut line’’. Remove inlet tube from unit and cut tube to proper length to ensure
sealing at the terminal end.
2) Do the same as above for the outer tube. Secure to unit, ‘’mark cut line’’, remove from unit, and cut tube to proper length to ensure sealing at the
terminal end.
3) Re-install both the inner exhaust tube and outer fresh air tube to the unit.
Be sure not to damage the gasketing. Ensure both the inner and the outer are flush on the ‘’terminal side’’ and measurements are correct.
Once the venting is properly secured to the unit at the correct measurements for the cavity, the unit is now ready for installation.
10mm
THIS UNIT MUST ALWAYS
TERMINATE / VENT DIRECTLY TO THE
OUTDOORS.
Venting cannot be run vertically.
Venting must have slight downward slope towards terminal.

Regency IP28 Gas Inbuilt Fireplace 15
INSTALLATION
AERATION SETTINGS
The burner aeration is factory set but may need adjusting due to either the local gas supply, air supply or altitude. This adjustment is performed by the installer.
(Close the aeration for a more yellow ame, or open it to make the ame bluer). Please adjust and lock into place via screw.
NG: 7.94mm open
LPG 15mm open
ULPG 15mm open
Note: Any damage due to carboning resulting from improperly setting the aeration is NOT covered under warranty.
Burner Inlet Orice Sizes:
NG Propane ULPG
Burner #39 #53 #55
Max. Input
NG 28.8 mj
Propane 28.8 mj
ULPG 21 mj
Supply Pressure
NG 1.13 kPa
Propane 2.75 kPa
ULPG 2.75 kPa
Manifold Pressure HIGH LOW
NG 0.88 kPa 0.4kPa
Propane 2.49 kPa 1.6kPa
ULPG 2.49 kPa 1.6kPa
Electrical: 240 V. 50Hz.
Circulation: High/LO speed fan,
Log Set: Ceramic bre, 4 per set.
Aeration Setting
NG 7.94mm open
Propane 15mm open
ULPG 15mm open
System Data
IP28

16 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
Conversion Kit for NG to LPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit 456-967 Contains:
Qty. Part # Description
1 904-345 Burner Orice #53
1 908-528 Red "LPG" label
1 918-272 Label "Converted to ULPG"
1 919-107 Instruction Sheet
1) Shut off the gas supply and unplug the power
cord.
2) Remove the primary guard and faceplate.
Unplug polarized plug for the switches.
3) Remove the front door.
4) Remove logs.
5) Remove the grate.
6) Remove the burner and adjust the aeration
setting to 15 mm fully open.
7) Remove burner orice with a 1/2" wrench and
discard. Use a wrench to hold on to the elbow
behind the orice.
8) Reinstall new burner orice LPG stamped #53
and tighten.
9) Stick the conversion label "This unit has been
converted to LPG" over top of the serial number
decal.
10) Replace the yellow "NG" label with the red
"LPG" label.
11) Reverse steps 6-2.
12) Adjusting the Outlet Pressure
All the adjustments must be carried out
in the following order:
Remove the modulator plastic cap (A) using
needle nose pliers.
Maximum pressure: Turn unit "ON" to it's
highest input rating by setting the burner switch
to "HIGH" Screw in the nut (B) to increase the
outlet pressure and screw it out to decrease
it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to
maximum 2.49 kPa.
WARNING: When adjusting maximum pres-
sure do not screw the nut in fully.
If unable to obtain 2.49kPa outlet,
check inlet pressure is adequate.
Damage may occur to the gas valve
if maximum pressure adjustment is
fully screwed in.
Installer Notice:
These instructions must be left
with the appliance.
Minimum pressure: Turn unit "ON" to it's
lowest input rating by setting the burner
switch to "LOW". While holding the nut (B)
with a wrench, screw in the screw (C) to
increase the pressure and screw it out to
decrease it. Use a screwdriver 6 x 1 blade.
NOTE: The outlet pressure must be set to
minimum 1.60 kPa.
After carrying out all adjustments, block the
setting screws with paint, taking care not to
obstruct the breather orice of the pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct opera-
tion of the modulator it is necessary that
the plastic cap (A) is returned to its original
location.
13) Turn on gas supply and plug in power cord.
14) At the end of all setting and adjustment
operations, check electrical installation and
gas leaks.
15) Check operation of ame control.
16) Check for proper ame appearance and
glow on logs.
C
B
A
Figure 1

Regency IP28 Gas Inbuilt Fireplace 17
INSTALLATION
Conversion Kit for NG to ULPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
919-107 01/20/12
1
IP28
Conversion Kit for NG to ULPG Model
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit # 456-967 Contains:
Qty. Part # Description
1 904-575 Burner Orifice #55
1 908-273 Red "ULPG" label
1 918-272 Label "Converted to ULPG"
1 919-121 ULPG data badge overlay
1 919-107 Instruction Sheet
1) Shut off the gas supply and unplug the power
cord.
2) Remove the primary guard and faceplate.
Unplug polarized plug for the switches.
3) Remove the front door.
4) Remove logs.
5) Remove the grate.
6) Remove the burner and adjust the aeration
setting to 15 mm fully open.
7) Remove burner orifice with a 1/2" wrench and
discard. Use a wrench to hold on to the elbow
behind the orifice.
8) Reinstall new burner orifice ULPG stamped
#55 and tighten.
9) Stick the conversion label "This unit has been
converted to "ULPG" over top of the serial
number decal.
10) Replace the yellow "NG" label with the red
"ULPG" label.
11)Reverse steps 6-2.
12) Adjusting the Outlet Pressure
All the adjustments must be carried out
in the following order:
Remove the modulator plastic cap (A) using
needle nose pliers.
Maximum pressure: Turn unit "ON" to it's
highest input rating by setting the burner switch
to "HIGH" Screw in the nut (B) to increase the
outlet pressure and screw it out to decrease
it. Use a 10 mm wrench.
NOTE: The outlet pressure must be set to
maximum 2.49 kPa.
WARNING: When adjusting maximum pres-
sure do not screw the nut in fully.
If unable to obtain 2.49kPa outlet,
check inlet pressure is adequate.
Damage may occur to the gas valve
if maximum pressure adjustment is
fully screwed in.
Installer Notice:
These instructions must be left
with the appliance.
Minimum pressure: Turn unit "ON" to it's
lowest input rating by setting the burner
switch to "LOW". While holding the nut (B)
with a wrench, screw in the screw (C) to
increase the pressure and screw it out to
decrease it. Use a screwdriver 6 x 1 blade.
NOTE: The outlet pressure must be set to
minimum 1.60 kPa.
After carrying out all adjustments, block the
setting screws with paint, taking care not to
obstruct the breather orifice of the pressure.
Put back the modulator plastic cap.
WARNING: To ensure the correct opera-
tion of the modulator it is necessary that
the plastic cap (A) is returned to its original
location.
13) Turn on gas supply and plug in power cord.
14) At the end of all setting and adjustment
operations, check electrical installation and
gas leaks.
15) Check operation of fl ame control.
16) Check for proper fl ame appearance and
glow on logs.
C
B
A
Figure 1

18 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
OPTIONAL MODULAR FIREPLACE SOLUTION INSTALLATION
919-017 05/02/11
1
IP28
OPTIONAL MODULAR FIREPLACE SOLUTION INSTALLATION
Follow these instructions to the install the Optional Modular Fireplace Solution
See Installation Manual for overall dimensions and clearances.
Required components
IP28 unit
Modular Fireplace Solution (comes with faceplate
Venting Kit
Before you begin:
Ensure the Modular Fireplace Solution (MFS) is positioned so the gas and electrical connections can enter from the bottom or the back.
1) Follow the installation instructions for the venting and termination as referenced in the installation manual. Please note: WHEN IP 28 IS INSTALLED
WITHIN THE MFS THE UNIT IS RAISED. ENSURE YOUR HOLE TO CENTER IS MARKED AND CUT ACCORDINGLY.
2) Once the hole is prepared to install the venting, place the MFS center of the hole and fl ush against the wall and position the gas line and electrical
accordingly within the MFS. Secure the MFS to the wall using the screws provided. See screw locations in diagram below.
Note: Front panel shown as transparent to show screw locations.
3) Ensure venting is secured to unit and slide unit carefully into the MFS. NOTE: SLIDE UNIT IN PARTIALLY TO ALLOW ACCESS TO CONNECT
GAS AND ELECTRICAL. Once gas and electrical are connected, slide unit in completely.

Regency IP28 Gas Inbuilt Fireplace 19
INSTALLATION
919-017 05/02/11
2
IP28

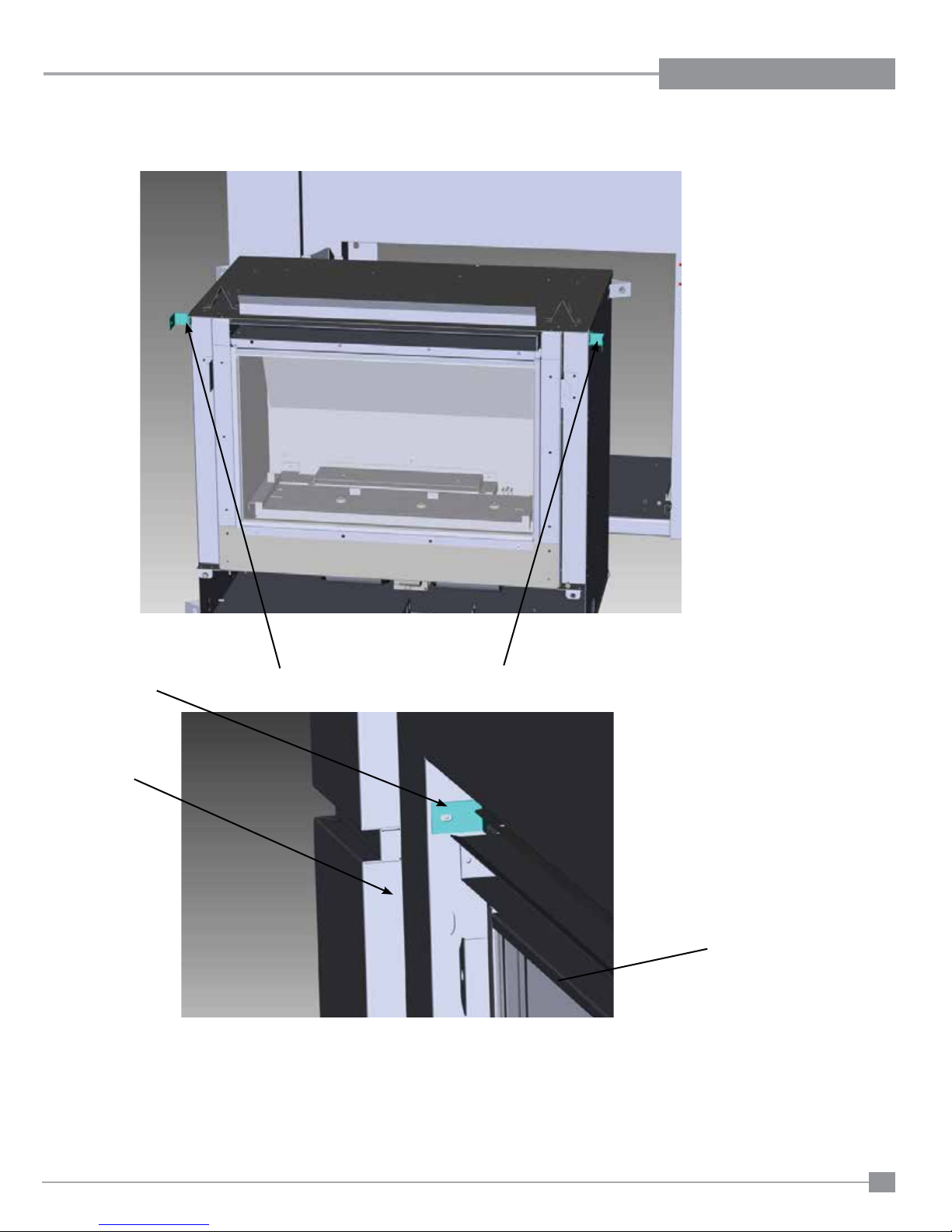

4) Secure unit to the MFS using the two securing brackets provided. See Below. Next, secure flue cowl to venting.
Securing brackets
Securing bracket
MFS
Unit
5) Install optional stainless inner panels and remote control if applicable.
See installation manual for detailed instructions. Install decorative log kit as referenced in the installation manual.
6) Install the faceplate as referenced in the installation manual, under slimline faceplate.
7) Ensure the proper gas pressure.

20 Regency IP28 Gas Inbuilt Fireplace
INSTALLATION
OPTIONAL WEATHER BOX INSTALLATION
919-192 10/09/12
OPTIONAL WEATHER BOX INSTALLATION
NOTE: The weather box to be installed ONLY in conjunction with the "Mock Fireplace Kit"
KIT # 456-940 Contains:
456-124 Cover External LH
456-125 Cover External RH
456-128 Cover External To p
456-129 Cover External Bottom
456-130 Cover External Back
440-420F Plate Gas Line Cover
456-126 Insulation Back
456-127 Insulation Sides
904-643 Screw 10 x 1/2 Hex
2. Attach the top to the sides with 3 screws on
each side.
1. Attach the side to the back with 4 screws on
each side.
3. Attach the bottom to the sides with 3 screws
on each side.
Ensure return edge is on the inside.
4. Install back insulation fi rst, when in place,
bend over 4 securing tabs. Install left and right
sides bending over three tabs each side to
secure.
5. Add gas cover plate, if required.
6. With the weather box assembled, secure to
the outside wall with screws.
7. Ensure weather box is sealed against
weather/water ingress etc
8. Before installing unit, ensure fl ue length, gas
and electrical routing have all been consid-
ered.
9. Install unit.
Side panels attached to back
Attach top to sides
Attach bottom to sides
Tab
Install insulation - secure by bending
tabs
1
IP28
