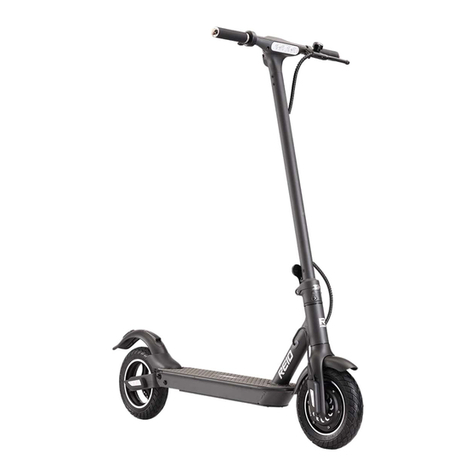

Reid E4 PLUS Instruction manual

OWNER'S PACK
@REIDBIKES

BUILD ME
Pages 1-10
MAINTAIN ME
RIDE ME
APP INTEGRATION
ENVIRONMENTAL PLEDGE
JOIN THE COMMUNITY
Pages 11-22
Pages 23-34
Pages 35-38
Pages 39-46
Pages 47-52

BUILD ME
1 2

This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
1.
2. This manual can also be downloaded from the website: www.tomoloo.com
3. WARNING: For the purposes of recharging the battery, only use the detachable supply unit (model: FY-
4202000) provided with this appliance.
4. When product is discarded:
(1) the battery must be removed from the appliance before it is scrapped;
(2) the appliance must be disconnected from the supply mains when removing the battery;
(3) the battery is to be disposed safely
5. This appliance contains batteries that are non-replaceable
Dangers! Warnings!
BUILD ME
Please pay attention to the following signs and relating content:
Could cause serious property
damage or personal injury
Improper operations can lead to
the malfunction of the product
Information tips
Version Number: A01 Original Instruction
3 4
About The Manual
This manual applies to your Reid E4 Plus electric scooter. Please read the manual carefully to ensure that:
1. You quickly grasp the basic operating procedures and riding methods of your Reid E4 Plus electric scooter.
2, You familiarise yourself with safe driving rules for a safe and enjoyable scooter experience.
3. You understand the composition and safety of your Reid E4 Plus electric scooter.
If you have any questions or need more information, please visit www.reidbikes.com

Brake lever
Grips x2
BUILD ME
Headlight (atmosphere lights) Throttle
The Control Panel
Folding mechanism
Motor
Charging port
Buckle
Brake lights
Disc brakes
Atmosphere lights
Battery compartment
*Please check carefully that the parts in the package are intact.
User manual x1
Screw M3 x4
Hex wrench M5 x1, M3 x1, M4 x1
Charger adapter x1
Components
M5 M4 M3
5 6
What Comes In The Box Components

Long press the power switch button to turn on the eScooter, also turning on the front light, ambient deck lighting, tail light and rear brake
light. The control panel shows the power and speed.
After turn on, the control panel display shows "1", indicating power mode 1. Press the button to cycle through the power modes, there are
three power modes in total and once you have reached power mode 3, pressing the button will restart the power mode cycle at 1.
Press the button twice to turn on the front light. Press the button twice again to turn it off.
Press the button three times to display the total distance. Pressing the button three times again will display the speed.
When using the brake, the rear brake light will get brighter.
The battery bar at the top equates to the following: Five Bars = 100%, Four Bars = 75%, Three Bars = 50%, Two Bars = 25% and One Bar
= Less than 10 %.
The Scooter will power down automatically after 15 minutes without riding and operation.
1.
2.
3.
4.
5.
6.
7.
Install the handlebars, pay attention to the installation direction. Ensure the handlebars are tightened well.
Install the brakes to the correct position with the Hex .wrench (M5 in the tool bag).
BUILD ME
Control Instructions:
Power switch
Headlight status
Battery
Bluetooth status
Speed mode
Speed
78
Control Panel Installation Guide

Install the handlebar to the steerer tube. Use the hex wrench M3 in the tool bag to lock the screws M3 x4
on both sides of the steerer tube as the below picture refereed.
After the installationis completed, switch on and off to
confirm if the scooter is operable.
BUILD ME
3. Hold the eScooter upright, to ensure that the lock will not be affected. Please keep the folding wrench (blue part of the image
below) at the bottom and the folding lock (the red part of the image below) at the far right. Pull the folding wrench to the top end
and turn the folding lock to the middle, then the eScooter is completely locked.
9 10

RIDE ME
11 12

Charging Instructions
Open the rubber cap.
Insert the charging plug.
After charging is completed, close the rubber cap to prevent water penetration.
Charging takes 3-4 hours.
RIDE ME
13 14
Charging Instructions Safety Instructions
Your Reid eScooter is a sporting entertainment tool that is not a vehicle. If you drive it into a public area there are
multiple safety risks not just to yourself but also to others. Strictly follow the instructions in this manual, to protect
yours and others safety and to ensure compliance with national and provincial regulations and traffic regulations.
It is important to understand that if you decide to take your Reid eScooter on a public road or other public place,
you may be exposed to the risk of unauthorised driving / improper operation of your eScooter, even if you are in
full compliance with our safe driving guide. You must strictly follow the safety requirements of this manual where
there are no national standards and regulations for electric scooters. Reid shall not be liable for any liability,
personal injury, accident, legal dispute and all other unfavourable events resulting from the use of violating the
instructions indicated in this manual.
The faster the eScooter is driving, the longer the brakes need and on some smooth surfaces, using the left-hand
brake can cause the wheels to slip and lose balance or even fall. Therefore it is important to be vigilant and
maintain the proper speed during driving, whilst maintaining a reasonable safety distance to others. Please be
vigilant and drive at low speeds before entering unfamiliar terrain.
Do not lend your Reid eScooter to a person who has never ridden it before to avoid injury. If you do lend your
eScooter to someone, be sure to be responsible for the safety of them, you should teach them how to ride and
tell them of how to ride safely, wearing the right safety gear.
Please check your Reid eScooter every time before driving. If you find that parts are loose, the battery life is
minimum, the tire is punctured of bare tread, or there is abnormal sound or malfunction, then please stop using it
immediately and do not force it to drive.

5. To start cruise control, keep one speed for 8 seconds,
on release of the throttle the speed will stay unchanged.
To cancel cruise control, push the throttle or the brake.
6. When turning, you need to lean your body slightly
towards the direction you are turning and turn the
handle slowly.
Do not accelerate downhill.
Do not ride through
doorways.
RIDE ME
16
3.Once you have the electric scooter moving above 5km,
putboth feet on the deck and push the throttle to start
the electric.
4. Releasing the throttle will slow you down gradually,
with an automatic energy recover system coming in.
For hard braking pull the lever on the left side.
6. When turning, you need to lean your body slightly
towards the direction you are turning and turn the
handle slowly.
1
*There are risks of falling and injury when riding, so please
wear a helmet and protective gear as shown in the picture.
How To Ride
Turn on the power and check the power indicatior.1. 2. One foot stands on the deck, the other foot kicks
backward.
5. Keep to one speed for approximately 8 seconds
to start the cruise control. When you release the throttle,
this then means the speed will remain unchanged. To
cancel the cruise control, push the throttle or
operate the brakes.
15 16

RIDE ME
17 18
Put the safety-lock (the red part of the image) up, meanwhile holding the steer tube. The open up
folding spanner (blue part of the image), aim it at the bell and the fender hook, then buckle the belt with
the back-fender.
Keep both feet on the deck whilst
driving.
Do not press the throttle whilst
walking with the eScooter.
Riding Safely
Do not ride quickly over uneven surfaces. Keep
a speed between 5km/h and 10km/h and bend
your knees slightly to ensure maximum safety.
Please avoid riding in
the rain.
Do not ride through
doorways.
Do not accelerate downhill.
Avoid barriers when driving.
Do not hang any heavy items on
the handlebar.
17 18

Forbidden to drive on the road or
in crowded residential areas.
Forbidden to rotate the handle strongly
while driving with high speed.
Forbidden to drive through water
deeper than 2cm.
Forbidden to drive the eScooter with
more than one person and/or holding
a child.
Forbidden to press the disc brake.
Forbidden to drive without your hands
holding the handlebar.
Forbidden to go up or down stairs or
to jump over barriers when driving.
Warning Reminder
RIDE ME
Do not try to do any dangerous movements
19 20
Forbidden to drive on the road or
in crowded residential areas.
Forbidden to rotate the handle strongly
while driving with high speed.
Forbidden to drive through water
deeper than 2cm.
Forbidden to drive the eScooter with
more than one person and/or holding
a child.
Forbidden to drive without your hands
holding the handlebar.
Forbidden to go up or down stairs or
to jump over barriers when driving.
Forbidden to press the disc brake.
Warning Reminder
Do not try to do any dangerous movements
Forbidden to step or tread on the
back mudguard.

21
RIDE ME
22
After the e-scooter has been folded successfully, use one hand or two to hold the folding-level to transit.
Put the safety-lock (the red part of the image) up whilst holding the steer tube. Then, open up
the folding spanner (the blue part of the image) and aim it at the bell and fender hook. Next,
buckle the belt with the back-fender.
Fold
Folding and Transportation
Open
Transporting

MAINTAIN ME
23 24

Alternatively, take your electric scooter to the nearest service centre for adjustment.
M5
MAINTAIN ME
25 26
Daily Maintenance
Rotary knob
1. Do not use other brand of batteries, otherwise there may be security risks.
2. Do not touch the battery contacts and do not open the battery compartment. Any tampering of this may
cause a short circuit, potentially damaging the battery and causing personal injury.
3. Only use the original charger for charging, otherwise it may cause damage or a fire.
4. Inappropriate disposal of used batteries may result in serious environmental pollution. Disposal of waste
battery packs must be in accordance with local regulations.
If there is a mark on the body of your Reid eScooter, wipe it with a small amount of water with a soft cloth. If it is
difficult to clean, you can use a toothbrush to brush it repeatedly then use a damp cloth to clean in. If the body
has plastic scratches, you can use sandpaper or other abrasive materials for polishing.
1. Do not use alcohol, gasoline, kerosene or other corrosive, volatile solvents to clean, otherwise it will seriously
damage the body and internal structure. It is forbidden to use a pressure fun spray and flush. Make sure that
the charging cable is unplugged and the rubber cap has been tightened when cleaning, otherwise it may cause
an electric shock or accident due to water intake.
2. Store you Reid eScooter in a dry and cool room as much as possible to avoid accelerating of ageing. Failure
to do so will reduce the usage life of the battery over time.
Electric scooter cleaning and storage
Note:
Electric scooter battery maintenance
Disc brakes debug
Note:
It is forbidden for non-professionals to remove the battery pack. Failure to do so may result in serious electrical
faults or safety short-circuits.
If you feel the brake is tight when you are riding, you can adjust the disc brake by loosening the screw on the
Rotary knob, with a M5 hex wrench (as shown in the picture below). Turn the Rotary knob slightly to the right
and tighten the screw with a M5 hex wrench. If you feel the brake is loose, you can turn the Rotary knob slightly
to the left, after loosening the screw on the Rotary knob with a M5 hex wrench and then tighten the screw.
5. Do not place the battery in a high temperature environment higher than 50 °C or lower than -20 °C (for
example do not expose the eScooter or its battery pack to the car in summer)otherwise it may cause a
malfunction, or even a risk of fire. The ideal temperature for maximum mileage and performance is between
20°C and 25°C and riding below 0°C will severely decrease battery life and performance. In some instance, at
-20°C the mileage may be only half or less than at optimal temperature.

Your eScooter has a 1-year warranty from the date of purchase.
If you’re having an issue with your eScooter, we want to help resolve it. In the first instance, please contact the store
where you purchased the product. If you experience any difficulty settling a warranty claim with your retailer, please
contact us directly. Likewise, should anything feel loose or not right then please stop using your product
immediately and get in contact with the retailer you purchased it from or us directly.
Register you eScooter with us so we can quickly and easily verify your purchase for you warranty. Should your
eScooter ever be stolen, you can also get in touch with us to retrieve your serial number which is often wanted by
the authorities.
Alternatively, take your electric scooter to the nearest service centre for adjustment.
If you feel the steerer tube is loose and shakes when you are riding, please use the M5 hex wrench to reinforce the
screw as the below picture shows.
MAINTAIN ME
Handle shake debug
Do not twist the screw
unless it is necessary
28
27
Warranty
REGISTER YOUR ESCOOTER

14+
MAINTAIN ME
Note:
Data and parameters vary by mode. Subject to change without notice.
29 30
Parameter Table

MAINTAIN ME
We hope you’re happy and riding well, however, should an issue ever arise with your eScooter and you are
shown an error code, you can refer to the below table for how to troubleshoot and fix this. To use this, go to the
row with your error code for instructions and use the corresponding photos below the table to help guide you
further. Should the problem not be fixed, please reach out to the retailer you purchased from or Reid at
www.reidbikes.com/contactus/ and we’ll do our best to help. For all warranty information on our eScooters,
please visit our dedicatedWarranty Page www.reidbikes.com/warranty/.
31 32
Error Codes

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
MAINTAIN ME
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Any changes or modifications not
expressly approved by the party responsible for compliance could void the users authority to operate the
equipment.
33 34
WARNING
1.To reduce the risk of injury, user must read the instructions manual.
2. Prolonged exposure to UV rays, rain and the elements may damage the enclosed materials.
3. Store indoors when not in use.
4. Risk of fire, no user serviceable parts
5. Use only with specified charger in instructions
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio//TV technician for help.

APP INTEGRATON
35 36
