Reiss TARAtec P9 User manual

Operating instructions
TARAtec sensors
P9
CD10, P10, OZ10, WP10, CH10
November 2019 (EN)
V2

Table of contents
2 / 44 TARAtec 9/10
Table of contents
1Information about these operating instructions..................................4
1.1 Symbols and displays ................................................................4
1.2 Associated documents...............................................................5
2Information on this product..................................................................6
2.1 Product description....................................................................6
2.2 Scope of supply.........................................................................8
2.3 Product overview .......................................................................9
2.4 Name plate..............................................................................10
3Safety ..................................................................................................11
3.1 Use for the intended purpose...................................................11
3.2 Use other than for the intended purpose...................................11
3.3 Personal qualifications .............................................................12
3.4 Rebuilding and modifications....................................................12
3.5 Residual risks ..........................................................................12
4Commissioning...................................................................................16
4.1 Installation requirements..........................................................16
4.2 Preparation of the sensors.......................................................16
4.3 Insertion into the flow chamber.................................................19
4.4 Electrical connection................................................................20
4.5 Initial calibration.......................................................................22
5Calibration...........................................................................................23
6Removal ..............................................................................................25

Table of contents
TARAtec 9/10 3 / 44
7Maintenance........................................................................................26
7.1 Maintenance overview .............................................................26
7.2 Changing the electrolyte and membrane cap............................26
8Troubleshooting .................................................................................28
8.1 Fault overview..........................................................................29
8.2 Special checks.........................................................................36
9Technical data.....................................................................................39
10 Deinstallation and storage .................................................................39
11 Disposal ..............................................................................................39
12 Warranty..............................................................................................40
13 Liability disclaimer..............................................................................40
14 Appendix.............................................................................................41

Information about these operating instructions
4 / 44 TARAtec 9/10
1 Information about these operating instructions
1.1 Symbols and displays
1.1.1 Safety and warning instructions
The hazard symbols and signal words listed below are used in these
operating instructions. They help you use the product safely, protect the
operating personnel against injuries and protect the operating company
against damage to property and additional costs.
Signal word Meaning
DANGER! DANGER means a hazard with a high degree
of risk which if not avoided will lead to death or
serious injury.
WARNING! WARNING means a hazard with a medium
degree of risk which if not avoided may lead to
death or serious injury.
CAUTION! CAUTION means a hazard with a low degree of
risk which if not avoided may lead to minor or
moderate injury.
NOTE NOTE warns against damage to property.
Tab. 1: Signal words

Information about these operating instructions
TARAtec 9/10 5 / 44
1.1.2 Labels in the text
Symbol Meaning
This symbol is the general warning symbol and warns
you about risks of injury. Take all the actions that are
indicated by this warning symbol.
This symbol indicates tips and helpful information for
optimum and economic use of the product.
This symbol indicates actions to be performed by the
personnel.

This symbol indicates the result of an action.
This symbol indicates individual bullet points.
This symbol indicates a precondition before
performing an action.
Tab. 2: Symbols in the text
1.2 Associated documents
Data sheets on the individual types of sensors can be found at the
following Internet address:
http://www.reiss-gmbh.com/english/datasheets.htm

Information on this product
6 / 44 TARAtec 9/10
2 Information on this product
2.1 Product description
The TARAtec 9/10 product range consists of sensors with covering
membranes.
They are 2-electrode systems for measuring the concentrations in water
of the disinfectants chlorine1, chlorine dioxide, ozone, peracetic acid or
hydrogen peroxide. In comparison to the product range TARAtec 7 the
TARAtec 9/10 sensors are characterised by improved resistance to
media for reducing surface tension (tensides). In addition, TARAtec 9
sensors can be used when the water being measured is at high
temperatures. The area of application of these sensors extends to almost
all water qualities.
The sensors are not suitable for checking the absence of chlorine,
chlorine dioxide, ozone, peracetic acid or hydrogen peroxide.
A complete measuring and/or control system normally consists of the
following components:
Sensor
Electrical leads and connectors
Flow chambers and connections
Measuring and control device
Dosing equipment
Analytical equipment
These operating instructions relate exclusively to the sensor.
Comply with the operating instructions for the peripheral
devices.
1Free chlorine (dependent on the pH value)

Information on this product
TARAtec 9/10 7 / 44
2.1.1 Chlorine dioxide CD10
The sensor measures the concentration of chlorine dioxide in the water
being measured. Such chlorine dioxide arises from the application of
chlorine dioxide (such as the acid/chlorite process, chlorine/chlorite
process). The chlorine dioxide sensor is insensitive to chlorine.
2.1.2 Peracetic acid P9 and P10
The sensor measures the concentration of peracetic acid in the water
being measured resulting from the application of peracetic acid.
2.1.3 Ozone OZ10
The sensor measures the concentration of dissolved ozone in the water
being measured. The sensor is virtually insensitive to chlorine.
2.1.4 Hydrogen peroxide WP10
The sensor measures the concentration of hydrogen peroxide in the
water being measured resulting from the application of hydrogen
peroxide.
2.1.5 Chlorine CH10
The sensor measures the concentration of free chlorine in the water
being measured. Such chlorine arises from the application of inorganic
chlorine products (such as chlorine gas, sodium hypochlorite solution,
calcium hypochlorite solution).
The sensor can be used in the pH range from pH 5.0 to pH 8.0. It is
essential to keep the pH value at a constant level, since the sensor signal
tracks the dissociation curve of the hypochlorous acid. The sensor shows
different chlorine values different values depending on the pH value
although no change in the chlorine concentration can be recognised in
the DPD-1 measuring values or iodometric measuring values.
When organic chlorine products or chlorine stabilisers are used, both
based on (iso) cyanuric acid as a rule, there may be considerable
differences between the DPD-1 measuring value or iodometric measuring
value and the signal of the chlorine sensor.

Information on this product
8 / 44 TARAtec 9/10
2.2 Scope of supply
Keep the all the packaging for the sensor.
In the event of repair or warranty please return the sensor in the
original packaging.
Check that the delivery is complete and undamaged.
If it is damaged:
Please contact your supplier.
Component Quantity Sensor with
voltage output
signal
Sensor with
4 - 20 mA
current loop output
signal
Sensor with
Modbus signal
transmission
(0…+/-2000 mV) (2-pole
screw
terminal
connection)
(5-pole-
M12-
connection)
Sensor with
membrane
cap
(depending on
the type)
1 
G-holder 1 
Electrolyte
(depending on
the type)
1 bottle 
Tweezers 1 
mA hood with
O-ring 20x1.5 1 – – –
Special emery
paper
(depending on
the type)
1 
Operating
instructions 1 
Tab. 3: Scope of supply

Information on this product
TARAtec 9/10 9 / 44
2.3 Product overview

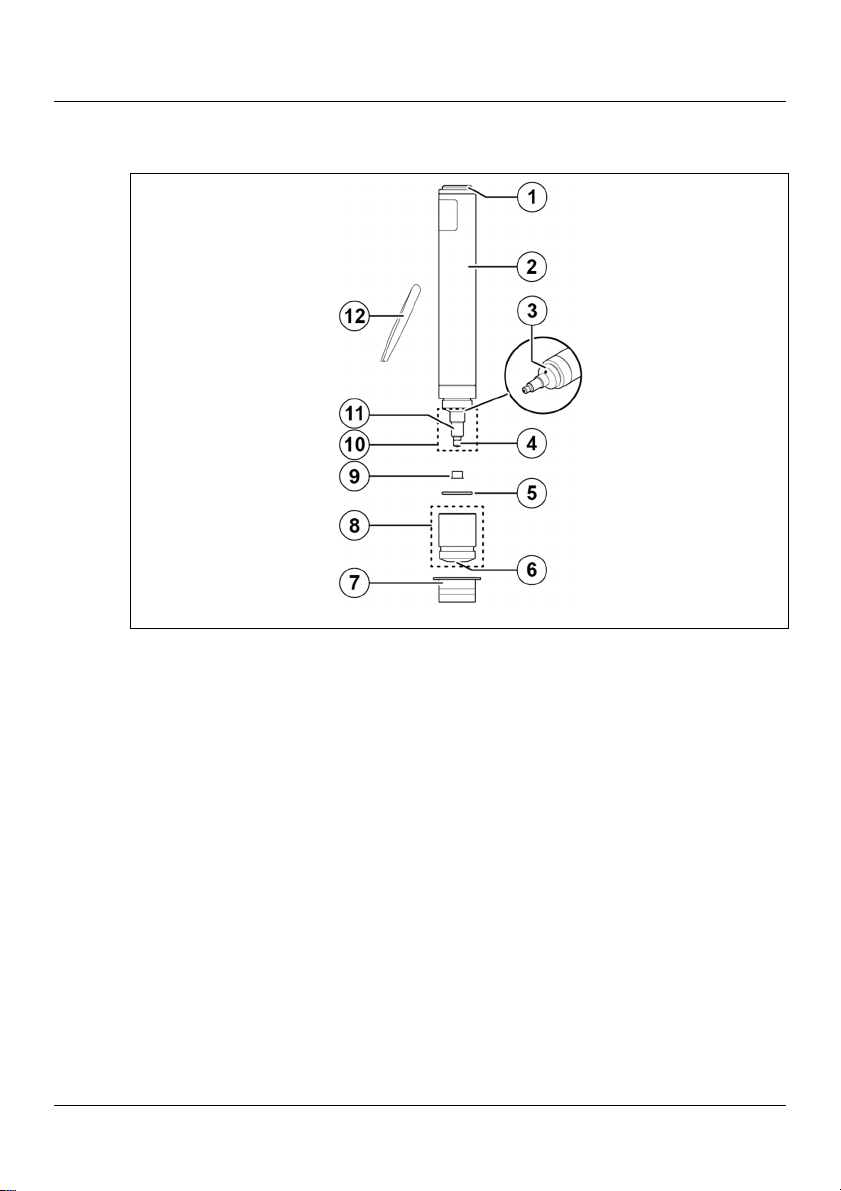

Fig. 1: Product overview
1 Electrical connection
2 Sensor body
3 Pressure compensation opening
4 Working electrode
5 O-ring 20 x 1.5
6 Membrane disc
7 Protective cap
8 Membrane cap
9 G-holder
10 Electrode finger
11 Reference electrode
12 Tweezers

Information on this product
10 / 44 TARAtec 9/10
2.4 Name plate
A name plate is glued to each sensor, this shows the following
information:
Fig. 2: Example of a name plate
1 Measured variables
2 Sensor designation, sensor name
3 Nominal measuring range of the sensor
4 Permissible temperature range of the measuring water
5 Maximum permissible pressure of the water being measured
6 Signal transmission
7 Power supply
8 Serial number
