REITER Respiro R9 profi User manual

Operating manual
Respiro R9 profi
Version 2.0 2019
original operating manual

Table of content
1. General ............................................................................................................................................ 1
1.1. Symbols in warnings................................................................................................................ 1
1.2. Additional instructions ............................................................................................................ 1
1.3. CE mark.................................................................................................................................... 2
1.4. Warning signs .......................................................................................................................... 2
2. Important information for your safety............................................................................................ 4
2.1. Intended use............................................................................................................................ 4
2.2. Target group............................................................................................................................ 4
3. Product description......................................................................................................................... 5
3.1. View of the machine................................................................................................................ 5
3.2. Description and definition....................................................................................................... 6
3.3. Technical data.......................................................................................................................... 7
3.4. Type label ................................................................................................................................ 7
3.5. Operating principle.................................................................................................................. 9
3.6. Equipment and road safety regulations................................................................................ 13
3.7. Electronics/Sensors ............................................................................................................... 14
3.8. Hydraulic................................................................................................................................ 16
3.9. Conveyor belt ........................................................................................................................ 20
4. Mounting and dismounting of Respiro R9 .................................................................................... 22
4.1. Requirements for the tug hydraulics:.................................................................................... 22
4.2. Coupling of the machine ....................................................................................................... 22
4.2.1. Coupling of the lower link ................................................................................................. 22
4.2.2. Coupling of the PTO shaft.................................................................................................. 23
4.2.3. Connect the hydraulic line and the main wiring harness.................................................. 23
4.2.4. Connecting the brake lines and lighting cables................................................................. 24
4.3. Placing of the machine .......................................................................................................... 24
4.4. Fold the Respiro R9 apart...................................................................................................... 25

II
4.5. Fold the Respiro R9 together ................................................................................................ 26
4.6. Ballasting of the tractor......................................................................................................... 28
5. Operation of the machine ............................................................................................................. 29
5.1. Control terminal .................................................................................................................... 29
5.2. Start screen............................................................................................................................ 29
5.3. WORK-Menu:......................................................................................................................... 31
5.4. SET-Menu: ............................................................................................................................. 34
5.4.3. SET menu basic settings –Page 3:..................................................................................... 36
5.5.2 Keyboard functions work units.......................................................................................... 37
5.5.3. Tastaturfunktionen Rotor und Beleuchtung ........................................................................... 38
5.6 Key assignment manual operation........................................................................................ 41
6. Getting started .............................................................................................................................. 42
7. Recommended settings for operation .......................................................................................... 44
7.1. Suspension................................................................................................................................. 44
7.2. Working height of the pick-up................................................................................................... 45
7.3. Rotor position, rotor damping and rotor suspension ............................................................... 46
7.4. Headland position ................................................................................................................. 46
7.5. Swath roller ........................................................................................................................... 46
7.6. Pick-up cover: ........................................................................................................................ 47
9. Maintenance.................................................................................................................................. 51
9.1. Maintenance chart ................................................................................................................ 51
9.2. Replacing pick-up tines.......................................................................................................... 52
9.3. Replacing rotor tines ............................................................................................................. 52
9.4. Replacing wear discs.............................................................................................................. 53
9.5. Repair of the conveyor belt................................................................................................... 53
9.6. Replacing the conveyor belt.................................................................................................. 54
9.7. Readjust / adjust cleaning striped for conveyor belt roller................................................... 58
9.8. Check wear of conveyor guide strips .................................................................................... 58
9.9. Change hydraulic oil .............................................................................................................. 59
9.10. Cleaning of machine parts................................................................................................. 59
9.11. Lubrication plan................................................................................................................. 60
10. Troubleshooting ........................................................................................................................ 61
10.1. Pick-up and rotor are not working .................................................................................... 61
10.2. Rotor does not lift.............................................................................................................. 61
10.3. Belt does not travel ........................................................................................................... 61
10.4. Pick-up tines make a noise when idling ............................................................................ 61

III
10.5. Pick-up or rotor are stiff / sluggish.................................................................................... 61
10.6. Conveyor belt is running lopsided..................................................................................... 61
10.7. Conveyor belt rollers build up dirt .................................................................................... 61
10.8. Gliding discs do not rotate smoothly ................................................................................ 61
11. Useful tips.................................................................................................................................. 66
11.1. Parking without folding together ...................................................................................... 66
11.2. Straw operation................................................................................................................. 66
12. Storage tips................................................................................................................................ 66
12.1. Parking outdoors ............................................................................................................... 67
12.2. Winter storage................................................................................................................... 67
13. Fault Emergency ........................................................................................................................ 67
14. Reiter Innovative Technology costumer service ....................................................................... 67
Very important
Retighten all screw connections after the first 10 hours of operation and a
further check after the first 50 hours
For safety reasons, check the wheel nuts regularly before each starting out.

1
1. General
Please read this operating manual carefully and keep it in the vicinity of the pick-up belt
rake. This will allow you to refer to it at any time for information regarding your safety and
proper use of the machine.
1.1. Symbols in warnings
In this operating manual there is a warning for every activity that involves a risk. Be sure to
follow these warnings to the letter. Doing so will allow you to avoid damage to property as
well as injuries, which in the worst case could even be fatal.
The warnings use signal words that have the following meanings:
Failure to heed this warning will result in death or severe injury.
Failure to heed this warning could result in death or severe injury.
Failure to heed this warning could result in minor injuries and/or damage to property.
1.2. Additional instructions
Information
This note indicates tips and useful information and provides assistance in solving a problem.
Environment
This note indicates instructions for the proper handling of environmentally hazardous
substances.

2
1.3. CE mark

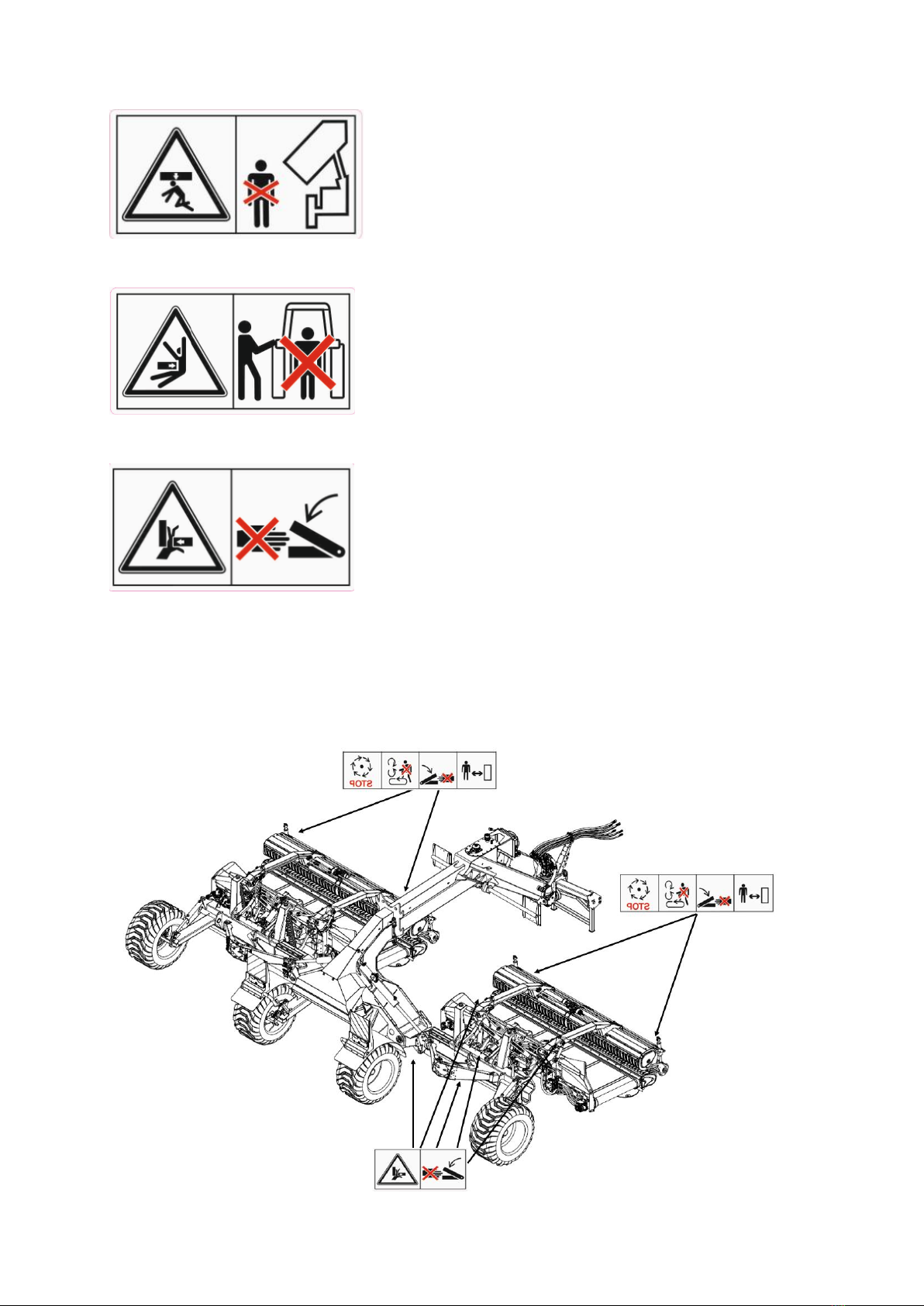

1.4. Warning signs
1.4.1. Meaning
Group warning signs
1) Maintain sufficient distance.
2) Never reach into the crush hazard area while the parts there are capable of moving.
3) Do not touch moving machine parts, never climb on to the conveyor belt.
4) Wait until the machine has come to a complete standstill.
Switch off the engine and remove the key before performing maintenance and repair work.
The CE mark to be affixed by the manufacturer informs others about the machine’s
conformity with the provisions of the Machinery Directive and other relevant EC
Directives.
EG Declaration of Conformity (see appendix)
By signing the EC Declaration of Conformity, the manufacturer declares that the
machines placed on the market are in compliance with all relevant health and safety
requirements.
1)
2)
3)
4)

3
Do not stand in the swivel range of the rotor while the machine is in operation.
Never step into the driving zone of the tractor.
Never reach into the crush hazard area while the parts there are capable of moving.
1.4.2. Position on the machine

4
2. Important information for your safety
The Respiro pick-up belt rake is built according to the recognized safety rules. Nevertheless,
hazards can arise during use. For this reason, the following safety instructions and the
special warnings in the individual chapters must be observed.
2.1. Intended use
✓exclusively for the normal use in agricultural work
✓for raking different corps
✓in compliance with the prescribed maintenance and repair work
Any non-agricultural use in prohibited
2.2. Target group
✓specialist staff
✓laymen, assistants
✓apprentices, interns under supervision

5
3. Product description
3.1. View of the machine
View from diagonally above (working position: centre swath)
View from diagonally behind (working position: centre swath)

6
3.2. Description and definition
1: right Pick-Up
2: left Pick-Up
3: rotor
4: rotor drive
5: swathroller
6: hydraulic tank
7: oil cooler
8: axial piston pump
9: bevel gear
10: parking support
11: linkage arm
12: attachment frame
13: unit linkage system
14: drawbar
15: transportation lock
16: lifting cylinder
17: wheel
18: belt
19: belt drive

7

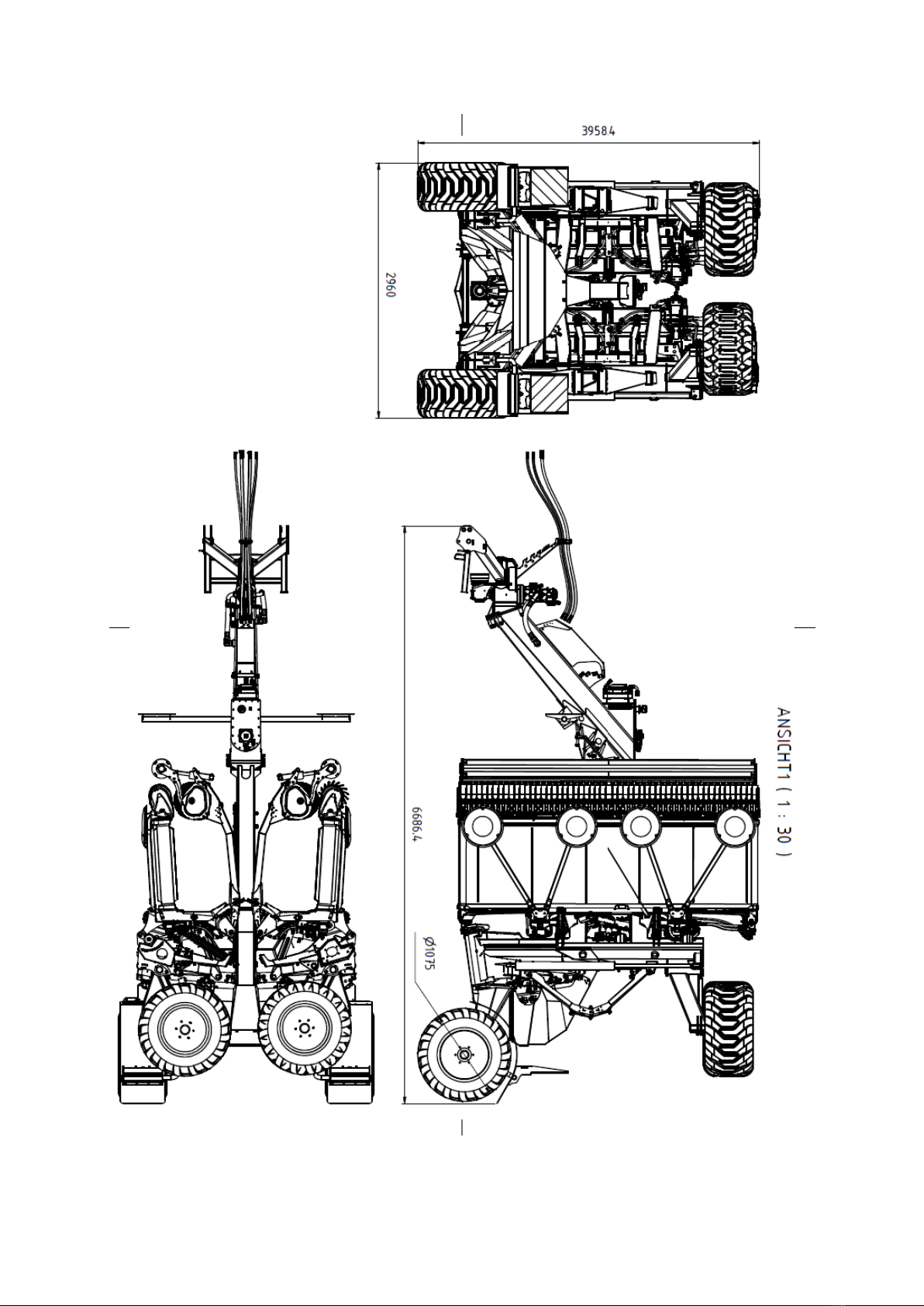

3.3. Technical data
Respiro R9 profi
attachment
standardised 2-point attachment (category 3)
Working width
7m side swath, 9 m centre swath, centre swath
minimum 7,5 m
Swath size
from 0,5 to 2 m
length
6,68 m
Height during transport
3,95 m
Width during transport
2,96 m
Maximum working width
9 m
Working height
2,6 m
Tractor requirements
150 PS
PTO speed
800
Total weight
6400 kg
wheels
500/50-22,5
Tire pressure
1,6 Bar

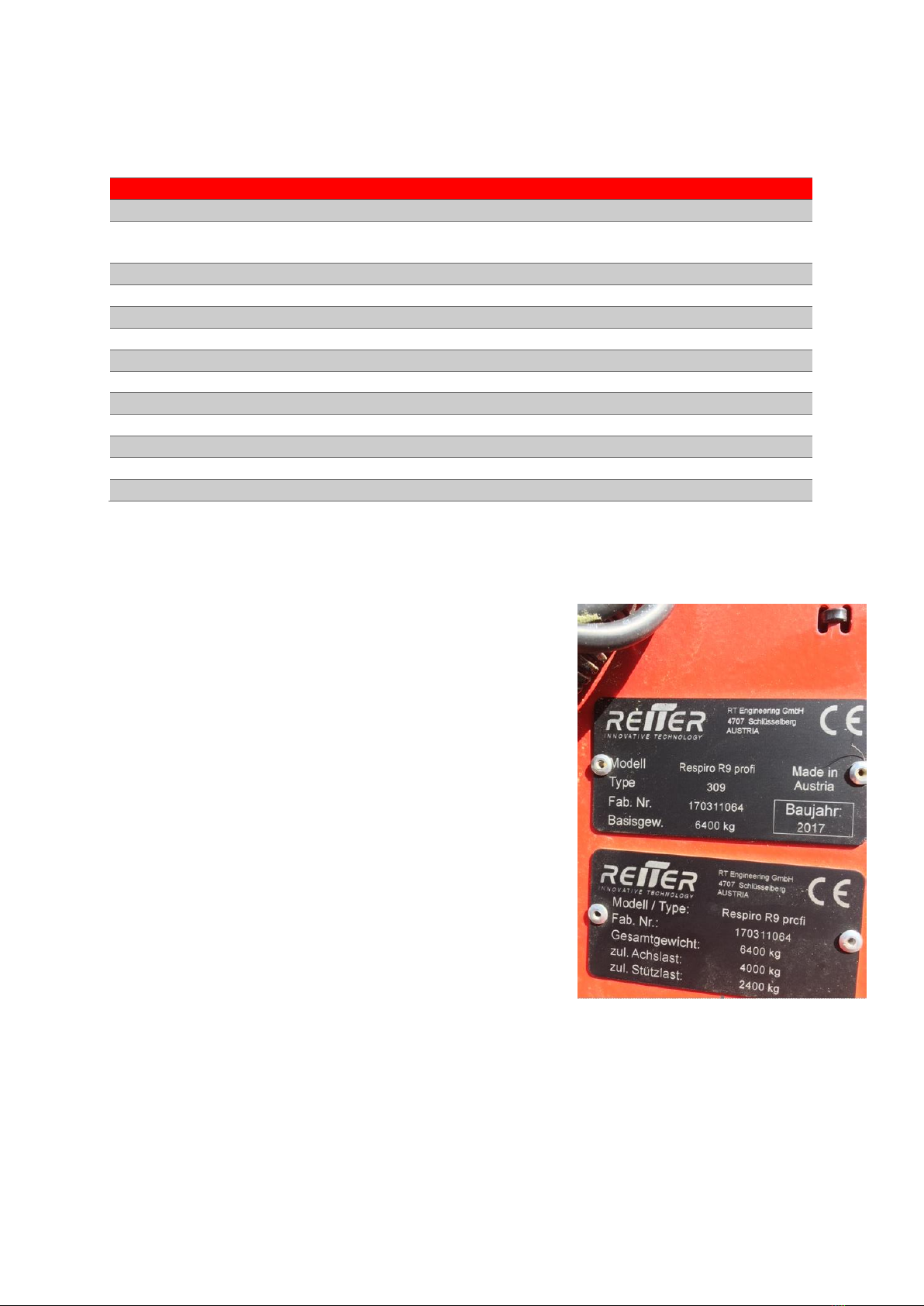

3.4. Type label
Please note here the type designation and the serial
number of your machine. This information must be
provided for spare parts orders or warranty requests.
Modell/Type: Respiro R9 profi
Fabrication number:

8

9

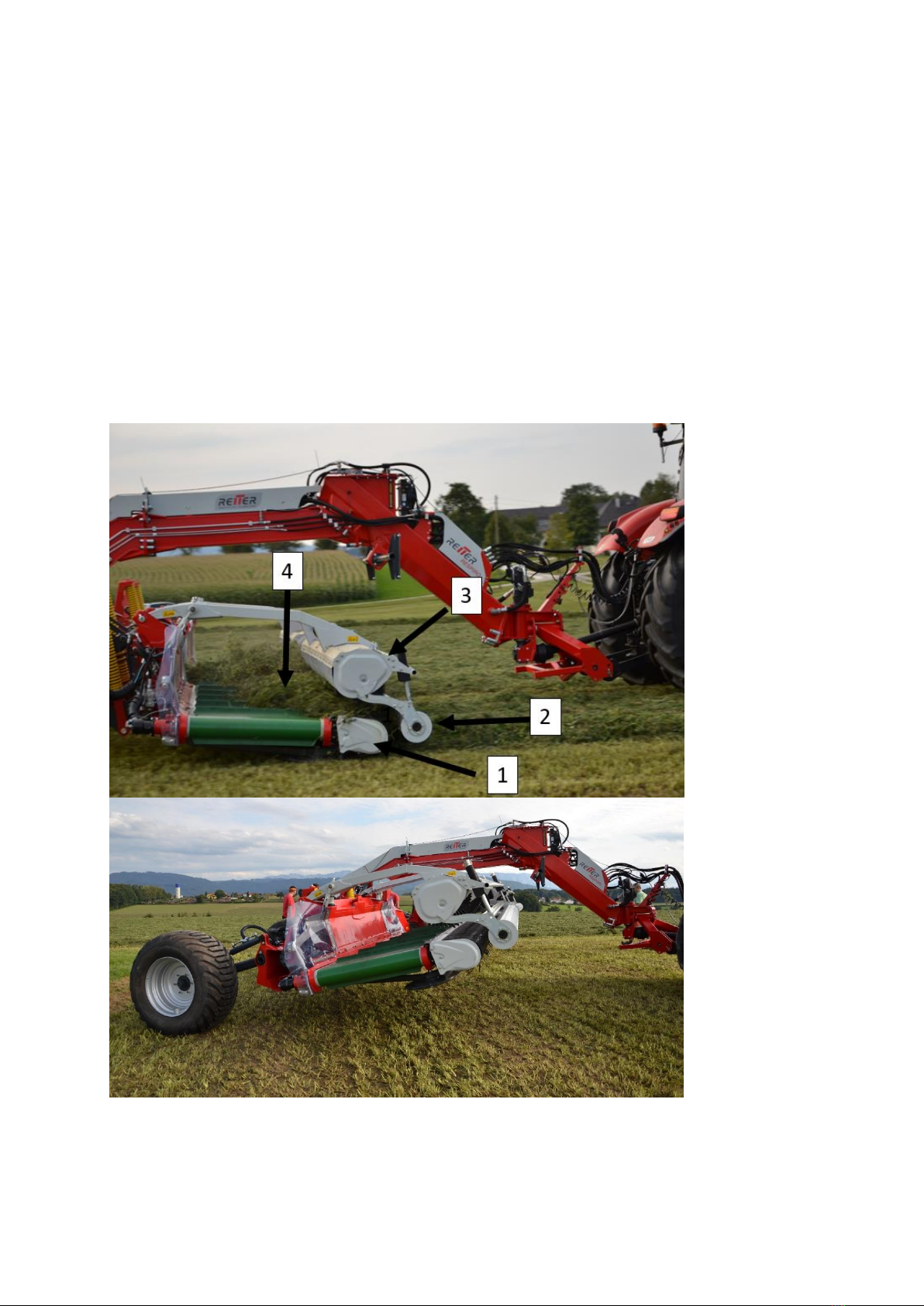

3.5. Operating principle
The Respiro R9 consists of 2 working units 3,5m Respiro profi with a 1000mm wide belt.
The forage is picked up from the ground by the pick-up (1). The swath roller (2) presses the
forage against the pick-up and guides the flow of material to the rotor (3). The driven rotor
conveys the forage evenly on to the conveyor belt (4). The forage can be deposited by the
conveyor belt on either the left or the right.
Thereby with the R9 you can provide a centre swath, a side swath or two (small) night
swaths.
Respiro R9 in headland position

10
Patented 4-wheel chassis
Four sliding plates per working unit provide the ideal ground guide for the pick-up

11

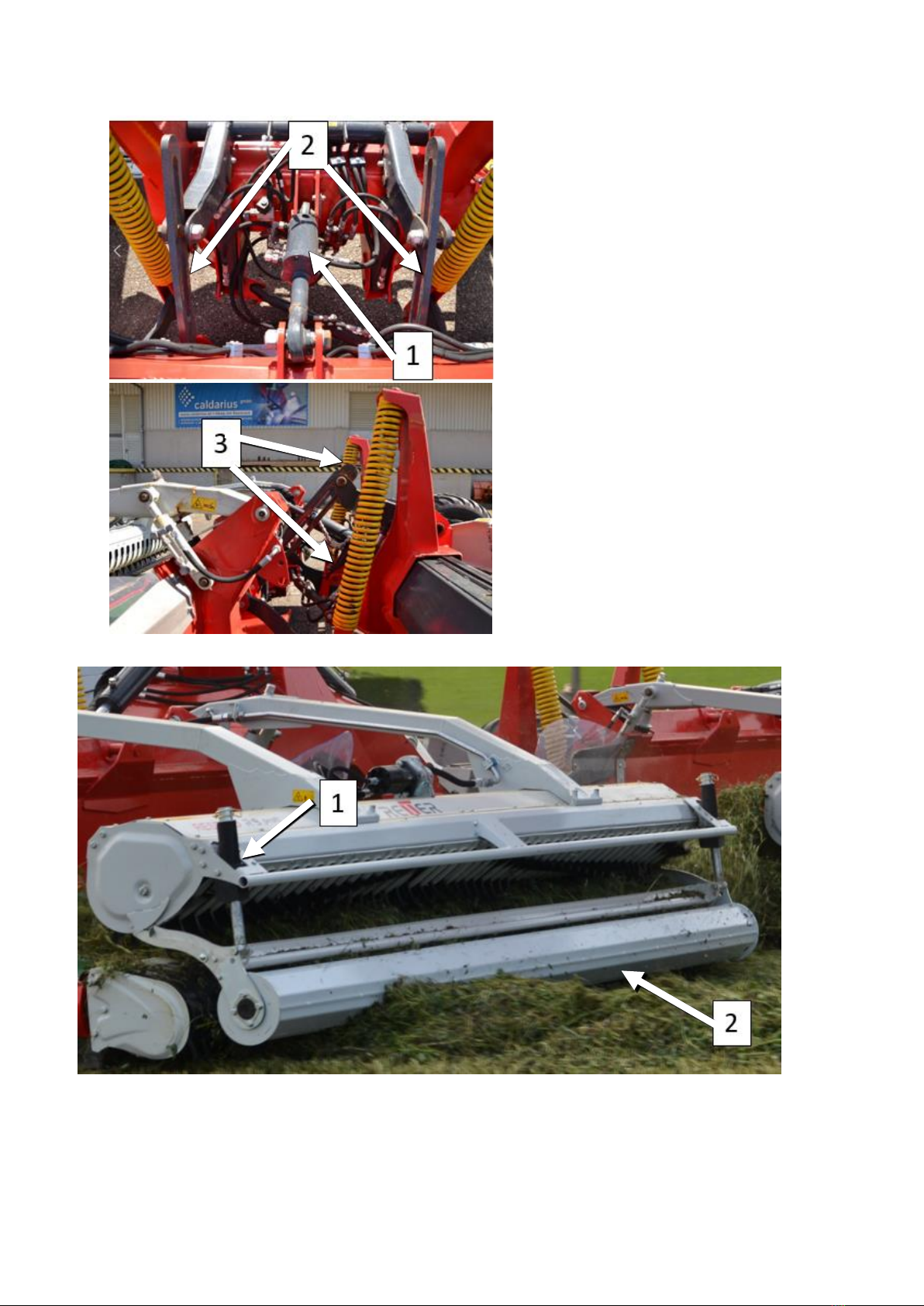

The upper linkage (1) and the two
lifting struts (2) fix the unit to the
frame. The suspension is provided via
the yellow springs (3).
Suspension (1) swath roller (2): suspended and adjustable in height

12
Accumulator (1) for rotor suspension. parking brake (1)
Respiro R9 support foot Tristop brake cylinder
1)
1)

13
3.6. Equipment and road safety regulations
Proper equipment that ensures road safety is either
factory-installed or can be installed by your distributer.
Always comply with the applicable maximum permitted
travel speed allowed for tractors with public road
equipment. Regardless of this maximum speed allowed
by law, for your safety, for the safety of others we never
recommend exceeding 25 km/h (15mph).

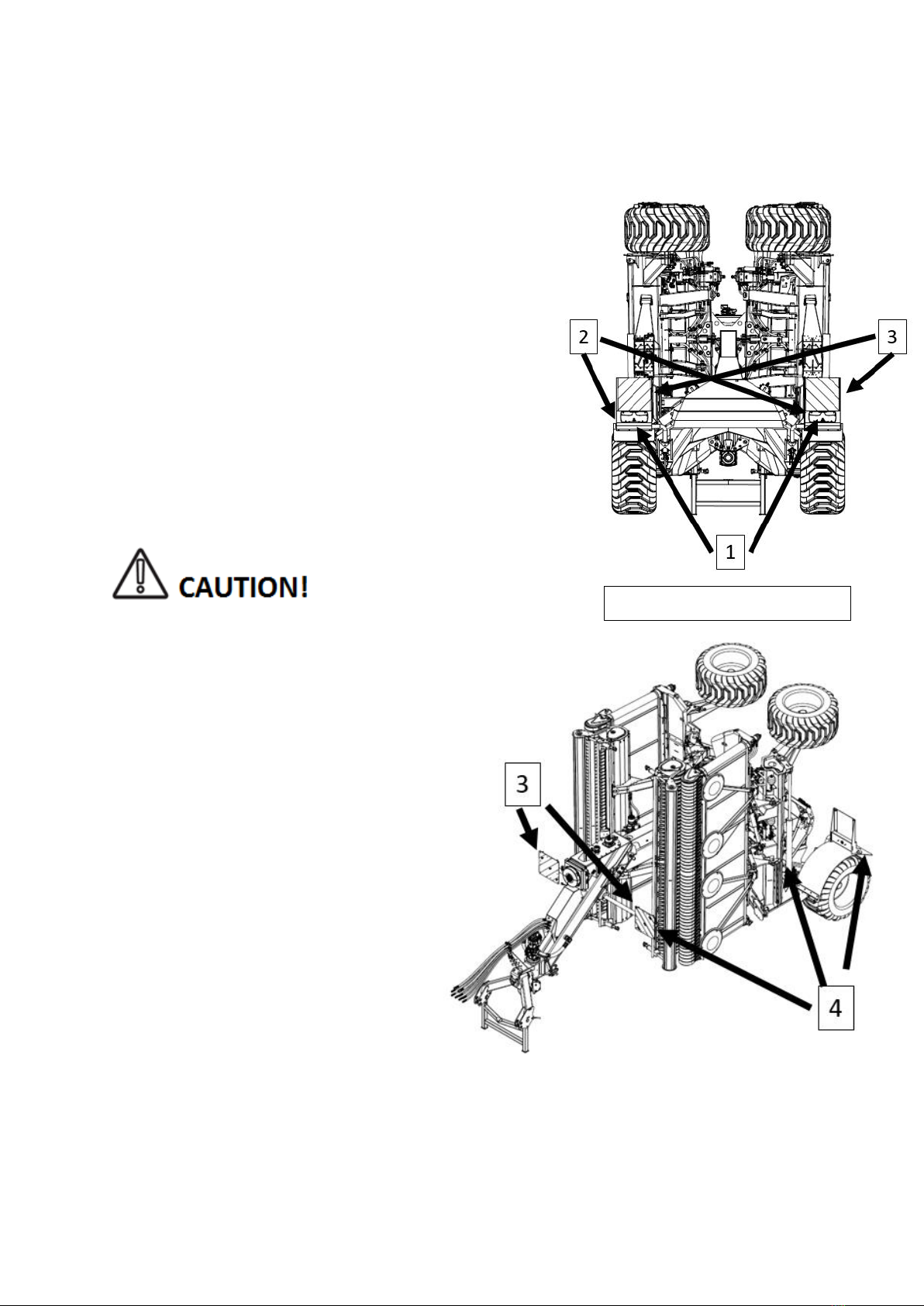

The rear-mounted road safety device consists of the
following elements:
•2 lights (1) (red taillight/brake light/direction
indicator)
•4 red reflectors (2)
•2 retroreflective warning signs front and back (3)
•3 reflectors sideways (4)
It is essential to replace the warning signs and
lights in case of wear or damage.
Respiro R9 in Transport-Stellung
Respiro R9 in Transport-Position

14

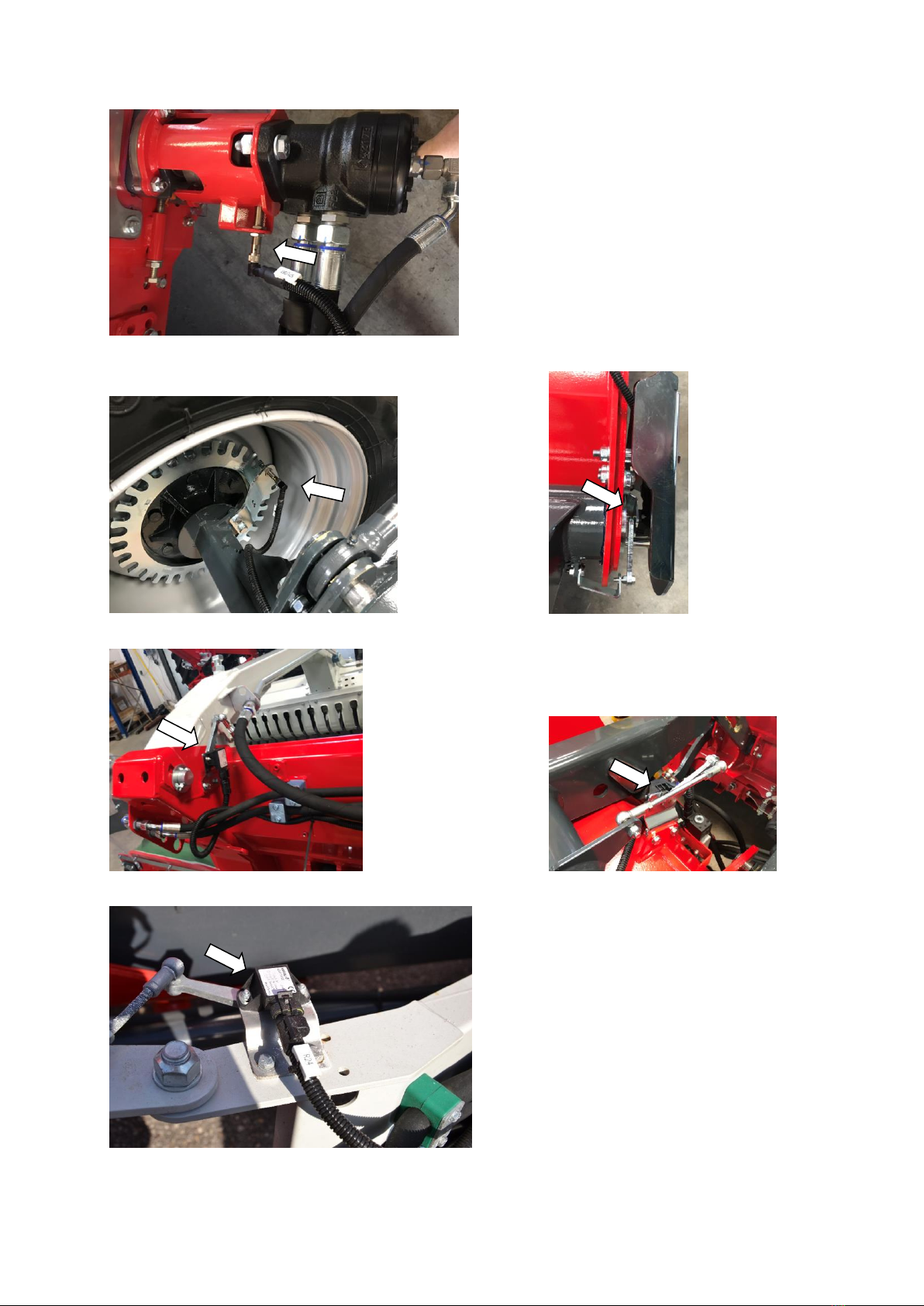

3.7. Electronics/Sensors
Power is supplied via an ISOBUS connection of the tractor.
CAN-Modul
Magnetic fields can damage the electronics of the CAN module.
Electromagnetically actuated values are no longer able to switch.
Do not mount any magnets near the CAN module!
PTO speed sensor Rotor speed sensor

15
Inductive sensor belt speed
Inductive sensor speed Angle sensor Telescopic boom
Angle sensor rotor Angle sensor hoist
Angle sensor for working width

16
3.8. Hydraulic
Axial Piston Variable Displacement Pump Bosch
Rexroth, Type A10VO.
Use the lowest system speed to enjoy all benefits:
✓Less wear of all components
✓Lower oil heating
✓Lower power requirement
✓Higher crop care; less leaf loss
Lower forage contamination and less foreign objects in the crop.
Each axial piston pump supplies one unit. The maximum power is 28kW.
The oil tank contains approx. 180 litres of hydraulic oil.
Overheating of the hydraulic oil.
Gaskets on valves and hydraulic elements can be damaged.
If possible, always use the free return flow to keep the oil heating low due to lower pressure
losses.
The working units are driven via the cardan
shaft, which drives two axial piston pumps.
Preselection of the 1000 PTO
When the axial piston pump is fully swung out,
the PTO speed must not exceed 750 rpm for
continuous operation.
The axial piston pump must not be operated
with zero delivery volume due to the risk of
overheating.
Hydraulic oil used: HLP 46
Regularly check the oil temperatures
