Remii WM-45-XS User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
WM-45-XS
1
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

2
TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. Please pay
special attention to the safety instructions provided in this manual. The instructions included
here will assure that you have many years of dependable and enjoyable service from your
this product.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING APPLIANCE ................................................................................................................... 6
GROUNDING APPLIANCE ............................................................................................................................................... 6
LOCATING THE FIREPLACE ........................................................................................................................................... 6
WM-45-XS .............................................................................................................................................................................
INSTALLATION-WALL MOUNT .................................................................................................................................... 8
INSTALLATION- BUILT-IN ............................................................................................................................................. 9
HARDWIRE INSTALLATION ........................................................................................................................................ 12
MEDIA OPTIONS .............................................................................................................................................................. 14
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... 14
OPERATION ....................................................................................................................................................................... 15
MANUAL OPERATION ................................................................................................................................................... 15
REMOTE CONTROL OPERATION ................................................................................................................................ 16
INSTALLING WALL THERMOSTAT ........................................................................................................................... 18
REPLACEMENT PARTS .................................................................................................................................................. 19
EXPLODED VIEW ............................................................................................................................................................ 20
TROUBLE SHOOTING ..................................................................................................................................................... 21
SERVICE HISTORY .......................................................................................................................................................... 22
WARRANTY ...................................................................................................................................................................... 23

3
IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. Keep combustible materials such as furniture pillows bedding papers clothes and
curtains at least 3 feet from the front sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug after it has
malfunctioned or if the unit has been dropped or damaged in any way.
5. Do not use the heater outdoors.
6. Do not run the cord under carpeting. Do not cover the cord with throw rugs runners
or anything else. Arrange the cord away from traffic areas where it could not be
tripped over.
7. To disconnect the heater turn the controls to "OFF" before removing the plug from
the outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock fire or damage to the heater.
9. To prevent a possible fire do not block air intakes in any manner.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline paint or flammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire electric shock or injury.
12. Avoid the use of an extension cord the extension cord will overheat and cause a fire.
This heater is not to be used with an extension cord.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is required by electrical codes.
15. Always disconnect the power before performing any cleaning maintenance or
relocation of the heater.
16. To prevent a possible fire do not burn wood or other materials in this heater.
17. To prevent electric shock or fire always use a certified electrician should new
circuits or outlets be required.
18. When transporting or storing the heater keep it in a dry place free from excessive
vibration.
19. This appliance should not be modified under any circumstances.
20. Packaging material should be kept away from children and be disposed of in a safe
manner. Plastic bags are not toys and should be kept away from children and
infants.
21. Do not use this heater in small rooms when they are occupied by persons not
capable of leaving the room on their own unless constant supervision is provided.
22. If the glass is damaged do not use the heater in order to avoid a hazard.
23. Do not leave children unsupervised where heater is turned on.
24. CAUTION Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
25. This appliance can be used by children aged from 8 years and above and persons
with reduced physical sensory or mental capabilities or lack of experience and

4
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.

5
Cautions
Do’s
 Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
 Always make sure the electrical socket is accessible and located adjacent
to but not above the heater.
 Always disconnect the heater from the electrical supply before moving it or
carrying out cleaning maintenance.
 Always make sure the heater is firmly secured to prevent it from being
tipped over.
 Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Don’ts
 Never leave children unsupervised in a room where the heater is ON and
unguarded.
 Never obstruct or cover the fan outlet or force items into heater openings.
 Never install or use the heater anywhere where water is in use i.e.
Bathroom Kitchens Shower Rooms and Swimming Pool etc.
 Never use aerosols or steam cleaners on or around the heater.
 Never route the mains supply cable under carpet etc.
 Never install the heater close to curtains or combustible materials.
 Never use the heater to dry clothes etc.
 Never sit or stand on the heater.
 Never use with a timer or any other device that switches the fire on
automatically.

UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing t
he appliance test to make sure the appliance operates properly by plugging
the power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches remote and heater) to make sure all
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41
℉
fireplace to reach room temperature before turning it on.
NOTE: Th r may b trac of odor during th first f w minut s of initial us . This is
harml ss, normal and will n v r occur again.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three
receptacles. The green grounding lug extending from the a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
three-
slot grounded receptacle is available.
To disconnect appliance turn controls to off then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1.
Where the fireplace is located must allow for wall and ceiling
2.
Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3.
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit
to trip of fuses to blow.
6
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
he appliance test to make sure the appliance operates properly by plugging
the power supply cord into a 120 Volt grounded outl
et.
Test all aspects of its operation (manual switches remote and heater) to make sure all
components are operating correctly.
As with most electronic devices your new electric fireplace has been designed to operate at
℉
) and 35 ℃ (95℉
). During the cold winter months allow the
fireplace to reach room temperature before turning
it on.
NOTE: Th r may b trac of odor during th first f w minut s of initial us . This is
harml ss, normal and will n v r occur again.
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three
-
blade grounding type plugs to two
receptacles. The green grounding lug extending from
the a
dapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
slot grounded receptacle is available.
To disconnect appliance turn controls to off then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider
the following:
Where the fireplace is located must allow for wall
and ceiling
clearances
Consider a location where the fireplace screen will not be exposed to direct sunlight from
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit
should be provided to avoid circuit breakers
he appliance test to make sure the appliance operates properly by plugging
Test all aspects of its operation (manual switches remote and heater) to make sure all
As with most electronic devices your new electric fireplace has been designed to operate at
). During the cold winter months allow the
NOTE: Th r may b trac of odor during th first f w minut s of initial us . This is
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
blade grounding type plugs to two
-slot
dapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
To disconnect appliance turn controls to off then remove plug from outlet.
Plan where to locate and frame the fireplace. This will save time and money later when you
clearances
Consider a location where the fireplace screen will not be exposed to direct sunlight from
A 15 ampere 120 Volt 60 Hz branch circuit with proper ground must be available at the
should be provided to avoid circuit breakers

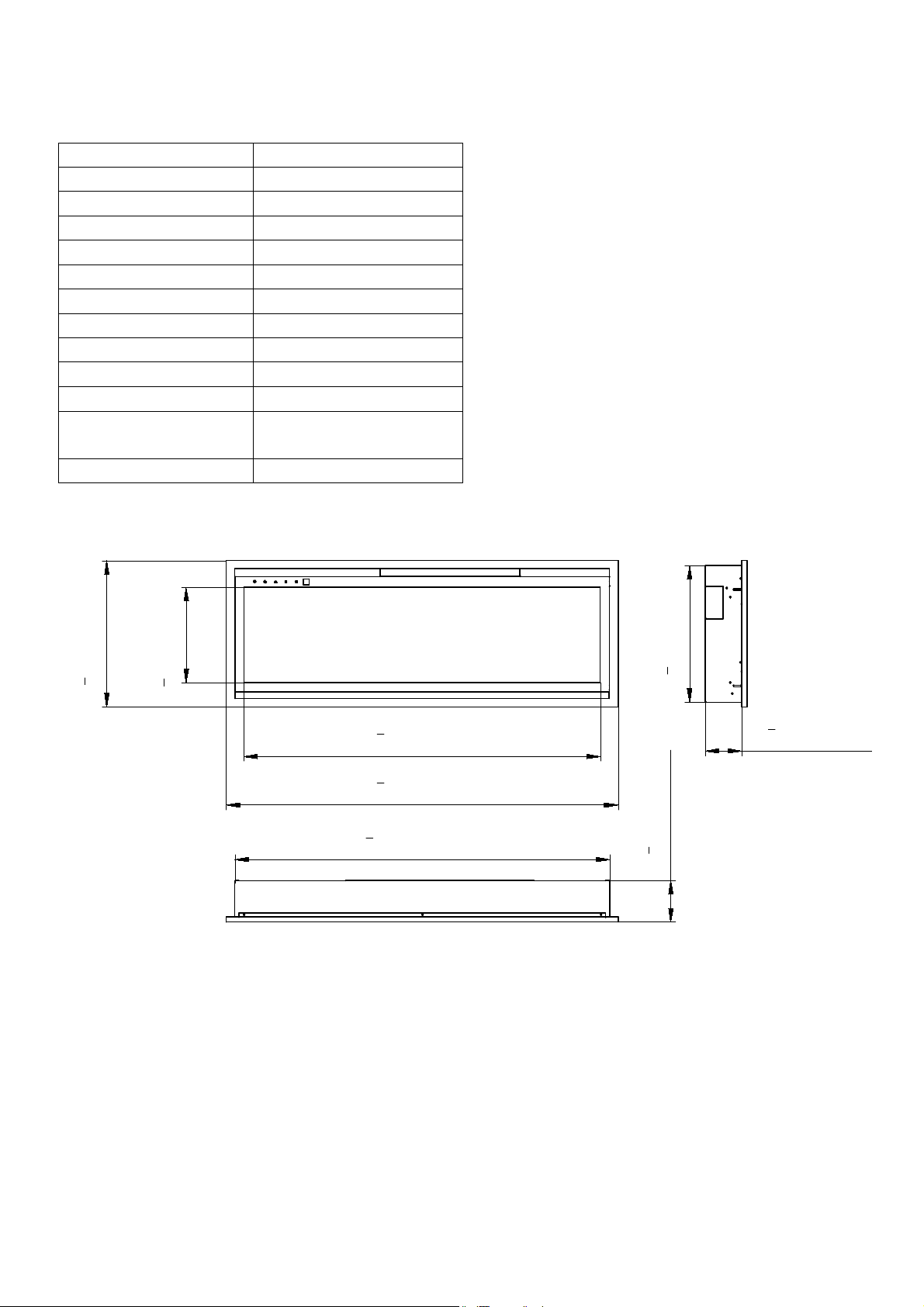

WM-45-XS
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER 38W
MOTOR HEATER 19W
Appliance Width 42 1/4” or 107.16 cm
Appliance Height 15 3/8 ” or 39.1 cm
Appliance Depth 4 1/8” or 10.4 cm
Gross Weight 63.27 lbs or 28.7 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
42 1/2”× 15 5/8“ or
107.95 cm× 39.688 cm
BTU 5118
This appliance has been tested in accordance
with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United
States and Canada. If you need assistance
during installation please contact your local
dealer.
NOTE: This applianc must b l ctrically
wir d and ground d in accordanc with local
cod s. In th abs nc of local cod s, us th
curr nt CSA C22.1 Canadian El ctrical Cod
in Canada or th ANSI/NFPA 70 National
El ctrical Cod in th Unit d Stat s.
161
2" [418.2mm]
441
8" [1120mm]
15
3
8" [391mm]
41
8" [104mm]
45
8" [119mm]
10
3
4" [273.5mm]
401
8" [1019mm]
421
4" [1071.6mm]

8

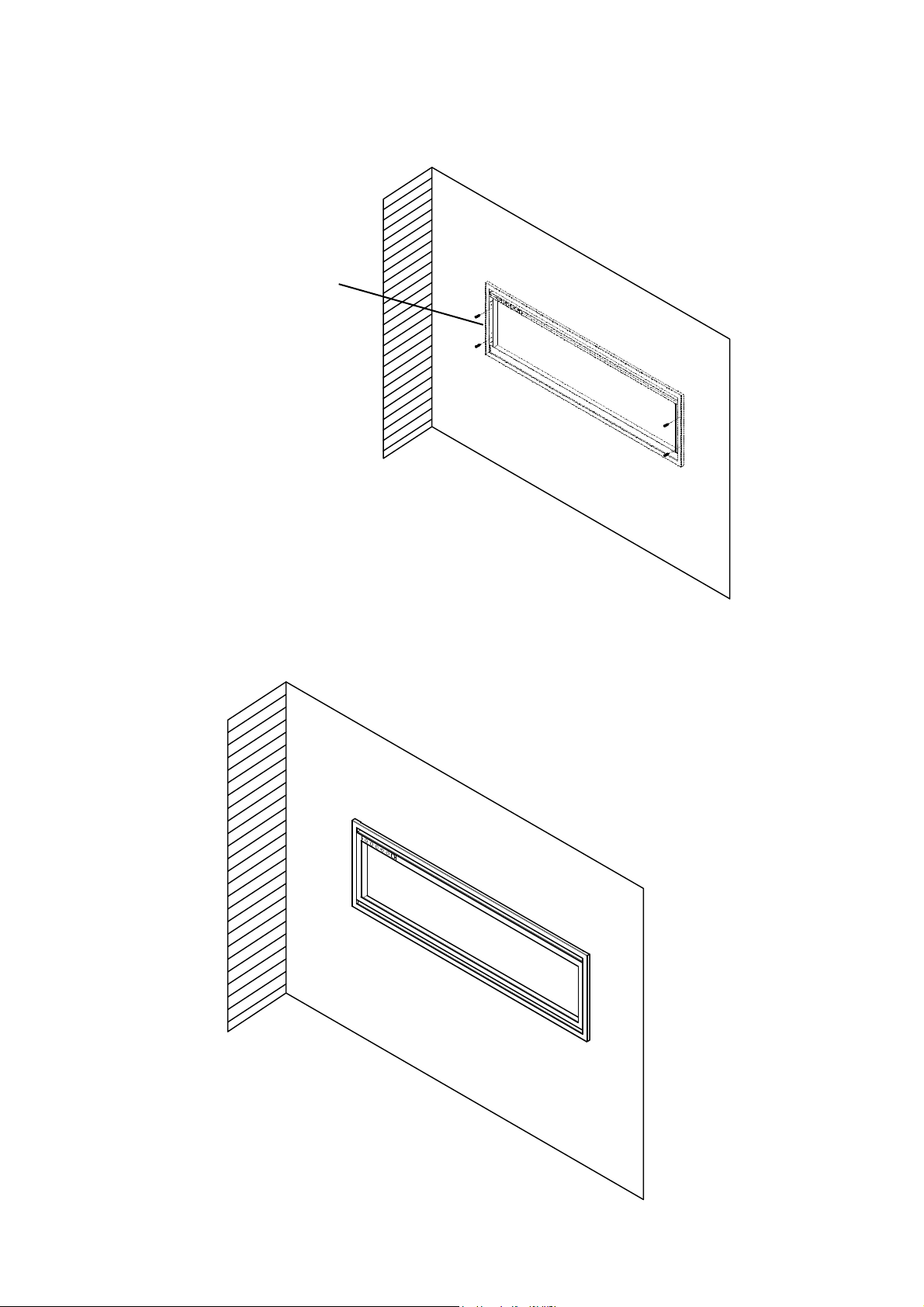

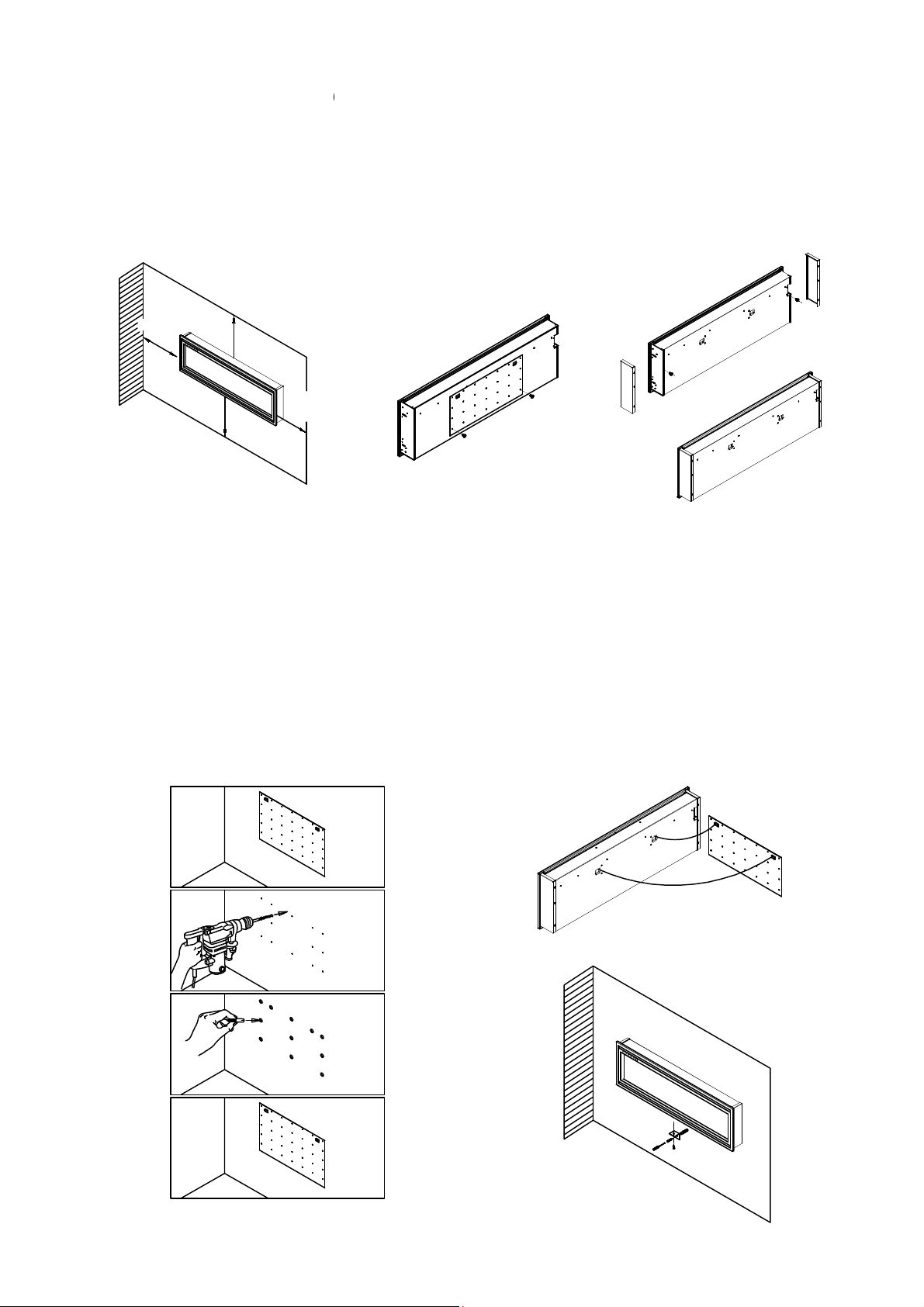

INSTALLATION-
WALL MOUNT
WALL MOUNT
NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your
local builder before you install this appliance on a wall.
1. Select a location that is not prone to moisture and is located at least .91 m or 3 feet away from combustible
materials such as curtains or drapes, furniture, bedding, paper, etc.
2. Using a spirit level to select a position in which to mount the heater horizontally. See Figure 1.
3. Check the wall to ensure there is no wiring, pipe wires etc in the area to be drilled. Drill 8 or more holes
depending on the size of the unit purchased, (8mm diameter & 4 mm depth) using a suitable size drill bit and
insert the wall plugs into the holes.
4. Remove the hanger from the fireplace by removing the screws. See Figure 2.
5. Screw the left and right side steel panel to the left and right side to cover the screws. See Figure 3.
Min. 5cm
2 in
Min. 5cm
2 in
Min. 5cm
2 in
FLOOR
Fig 1 Fig 2 Fig 3
Fig 4
Fig 5
Fig 6
6. Fasten the hanger to the wall (See Figure 4.). Hang the fireplace onto the hanger (See Figure 5.).
7. To prevent fireplace from moving, use the provided safety screw to fasten the fireplace to the wall. See Figure 6.
WARNING: Be sure that the bolts have been fixed firmly enough to
withstand the weight!

INSTALLATION- BUILT-
IN
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install this appliance on a wall.
Pr paration
1. Select
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
2.
Mark the desired location on the floor and store the appliance in a safe dry and dus
place.
3.
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
P
rior to installing test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 Volt grounded outlet.
The rough wall opening size of the fireplace:
W(“)
WM-45-XS
42 1/2
INSTALLATION
9
IN
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install t
his appliance on a wall.
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dus
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
rior to installing test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 Volt grou
nded outlet.
The rough wall opening size of the fireplace:
D(“) H(“)
42 1/2
4 3/8 15 2/8
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install this appliance on a wall.
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dus
t free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
rior to installing test the appliance to make sure the appliance is fully operational by
Screw
Screw
1. Unscrew 1 screw on each left and right side and push the front glass panel upward a bit
to take it off. (The screws are only for protection during transportation.)

10
2.
Unscrew the 2 screws located on each side and take off the inner
3.
Put the fireplace into the wall op
Unscrew the 2 screws located on each side and take
off the inner
side steel panels.
Put the fireplace into the wall op
ening and fix it to be the wall.
side steel panels.
inner side steel panels
screws
screws
Screw the appliance onto the wall.

11
4.
Screw back the inner side steel panel.
5. Put
back the front glass panel after you finish the media
Screw back the inner side steel panel.
back the front glass panel after you finish the med
ia decoration.
Screw back the inner side panel
that you removed at STEP 2.

12
Turn off the appliance completely and let cool before servicing. Only a qualified service
person should service and repair this electric appliance.
If it is necessary to hard-wire this appliance a qualified electrician must remove the
cord connection and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes
if hard-wired. In the absence of local codes use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
CODE in the United States.

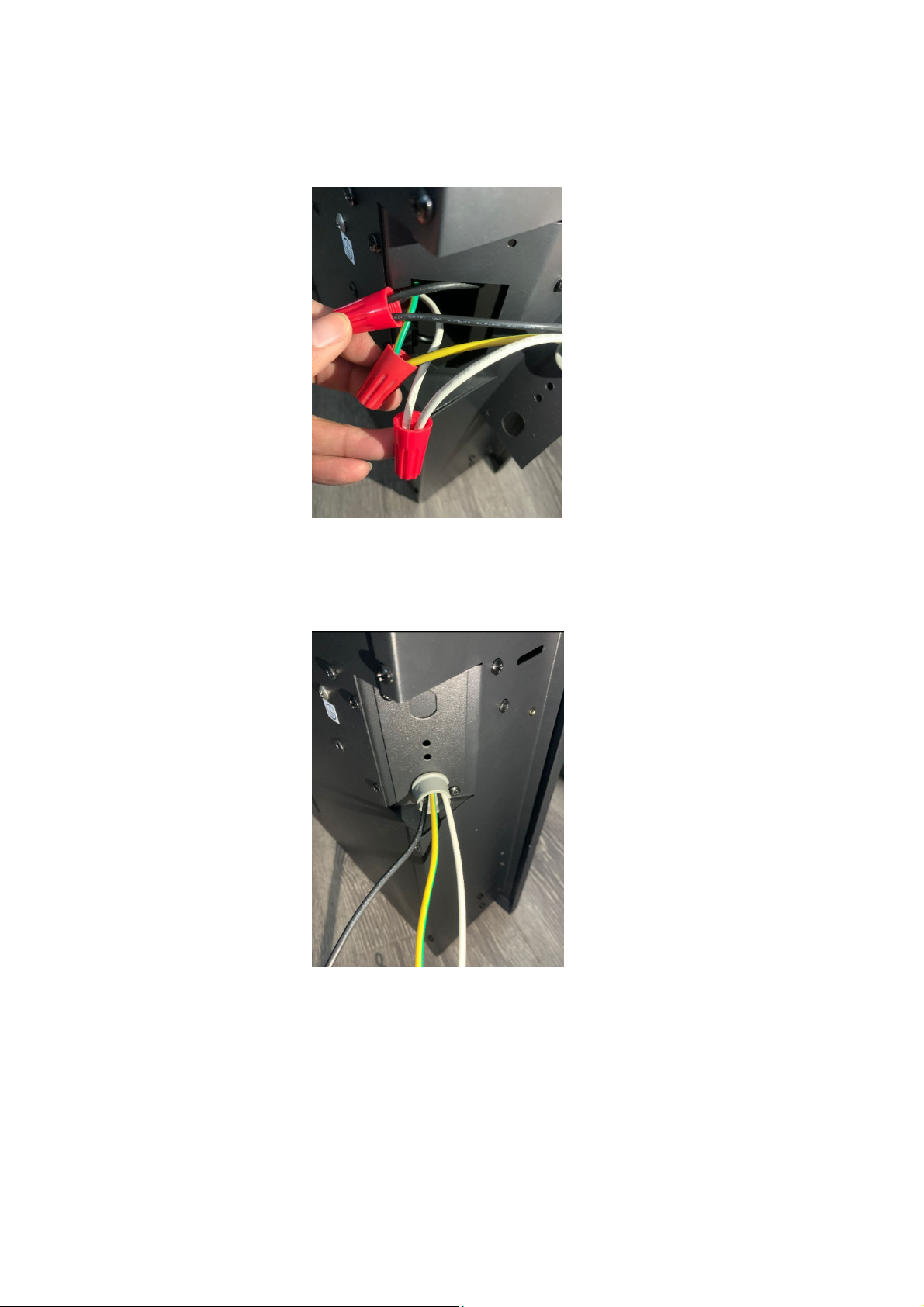

1. Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
2. Cut off the copper head of the wiring and leave 1 cm (0.4 inch) uncovered wiring.
HARD
WIRE INSTALLATION
WIRE INSTALLATION

13

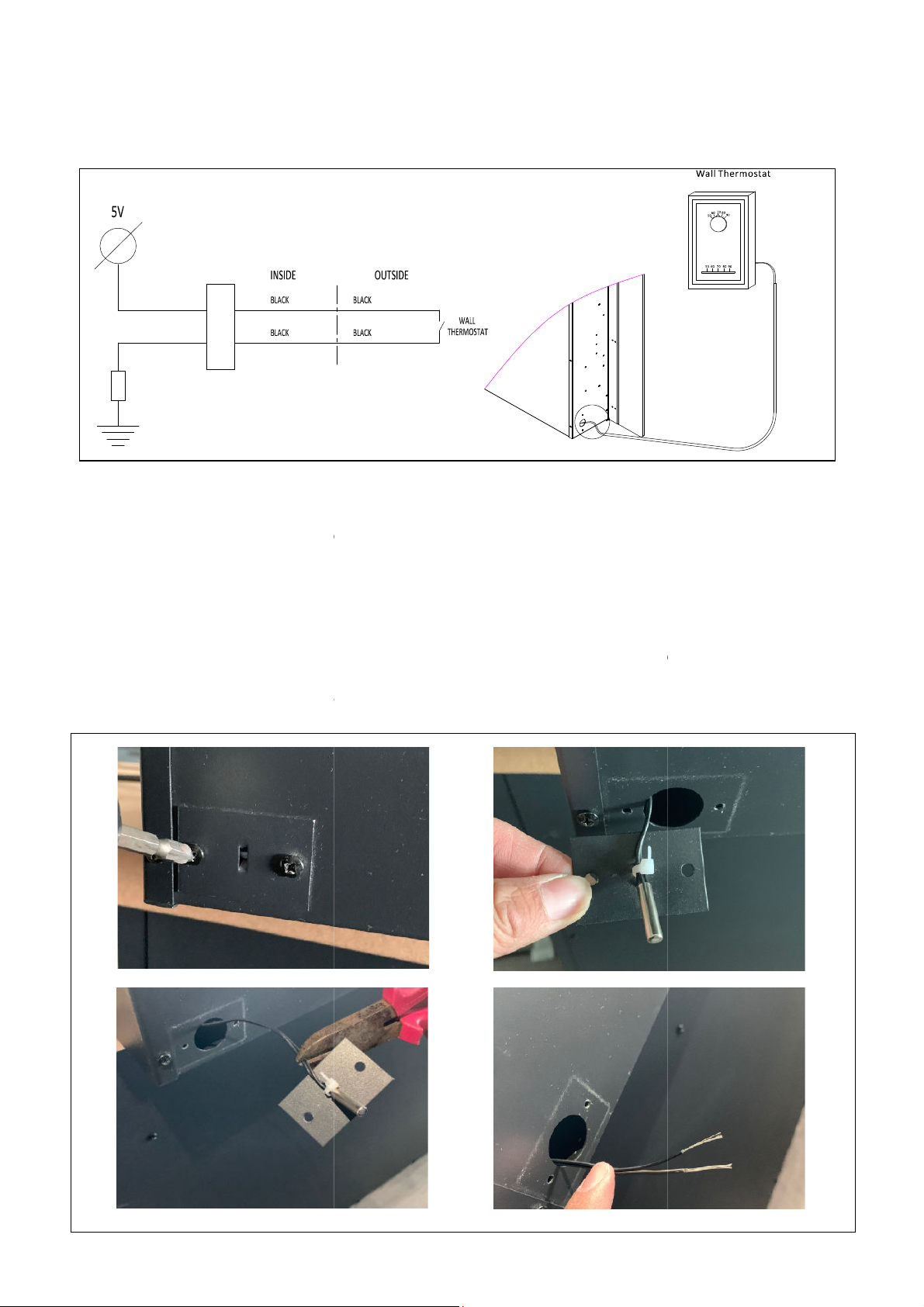

3. Connect the uncovered wiring with 14 A WG wiring (not provided with the appliance) y a wiring
connecting cap which you can find in the manual ag. Please make sure the live wire goes into
the “L”, the neutral wire into “N” and the ground wire into “G”.
4. Return the cover plate to the left side adding a wiring protector which you can find in the
manual bag and screw the two screws back in to fasten the plate.

14
MEDIA OPTIONS
The media that come with this appliance are ‘Suntea’ Canyon brown and Ocean blue.
Consumers may purchase optional decorative media if they choose. See dealer for more
details.
Suntea Ocean lue
DECORATIVE MEDIA INSTALLATION

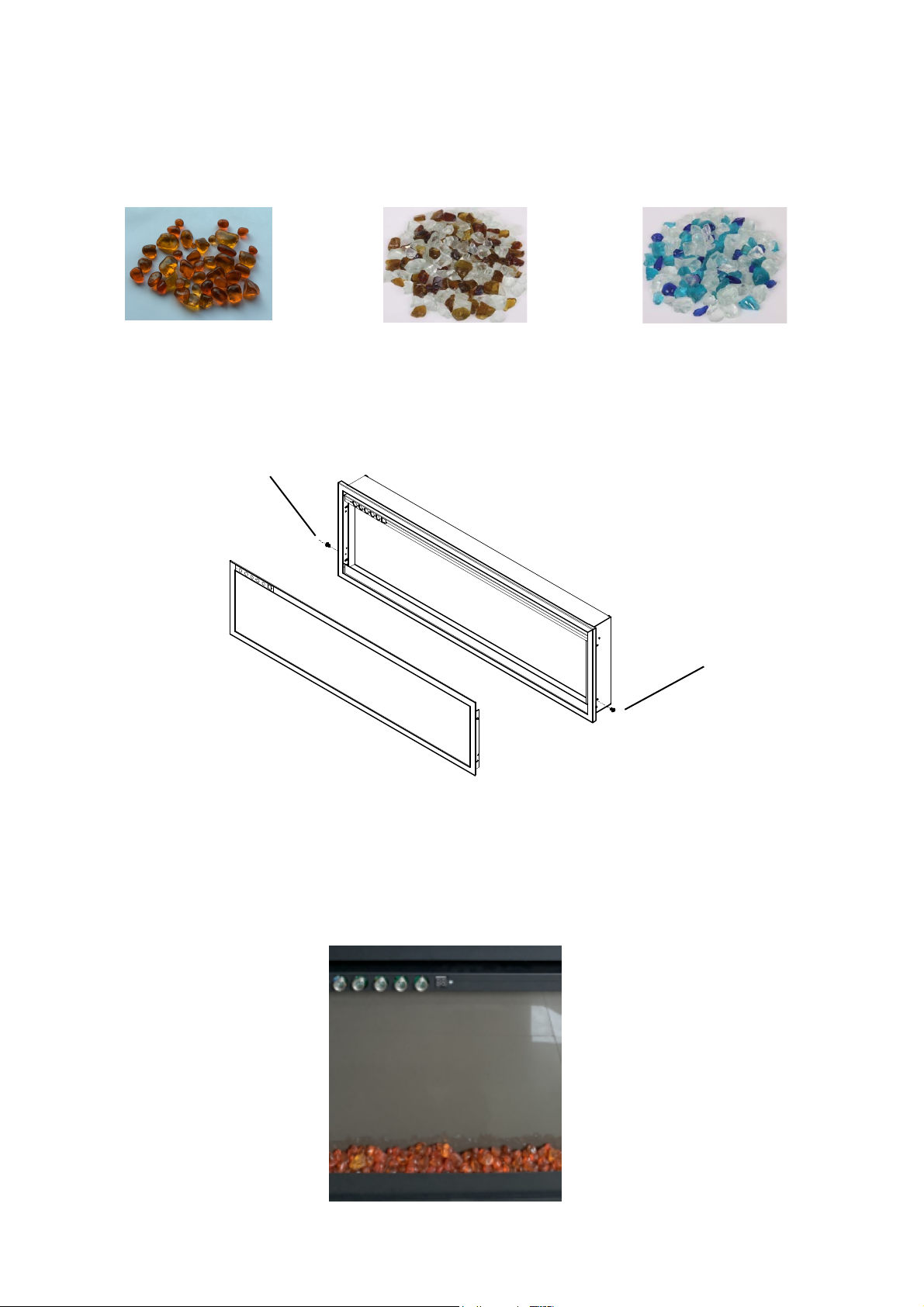

INSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
installing the fire glass.
Screw
Screw
Canyon rown
Unscrew 1 screw on each left and right side
take it off.
Unscrew 1 screw on each left and right side
and push
the front glass panel
the front glass panel
upward a bit to

15
OPERATION
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
SAFETY CUT-OFF

This appliance is fitted with a safety cut
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
reset.
 To reset the
appliance, disconnect the appliance from the main supply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.
Plug the fireplace into a 15 Amp wall socket.
This appliance is fitted with a safety cut
-
off which will operate if the fireplace overheats
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
appliance, disconnect the appliance from the main supply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.
off which will operate if the fireplace overheats
(e.g. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
appliance, disconnect the appliance from the main s
upply for at least 10
minutes. Reconnect the supply to the main and switch on the appliance.
The fireplace can be operated either by the touch panel located on the left front top side of
the fireplace,
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
1. Press “ ”, the fla e light turns on, color yellow, color orange and color red are on
the brightest ode(Y4,O4,R4), the tray light in white (E3), indicating “ON” , heater is
not working. Press gain to turn off the appliance, indicating “OF” on display, the
display will disappear in 5 seconds. It will recall the last setting used on the fireplace
2. Press “ ” to adjust the fla e color, F1 red, orange& yellow, F2 orange, F3 red, F4
yellow, F5 Red & orange, F6 orange & yellow, F7 red & yellow, F0 turns off the fla e
light.
3. Press “ ” once, one setting of heater works, 750W, indicating “H1” on display;
Press again, two setting of heater work, 1500W, indicating “H2”. Press the third ti e,
the heater turns off, indicating “H0” on display. Press this button for 5 seconds,
indicating “LO”, heater is off and the button is locked. Press this button again for 5
seconds, indicating “UL”, heater is still not working but the button is unlocked.
4. Press “ ” to adjust the tray light. E0 eans the tray light turns off. EE eans the
color of tray light cycles through 13 colors with an interval of 1 inute.
5. Press “ ” to set the turn off ti e, 30-1h-2h-3h-4h-5h-6h-7h-8h-00.

16

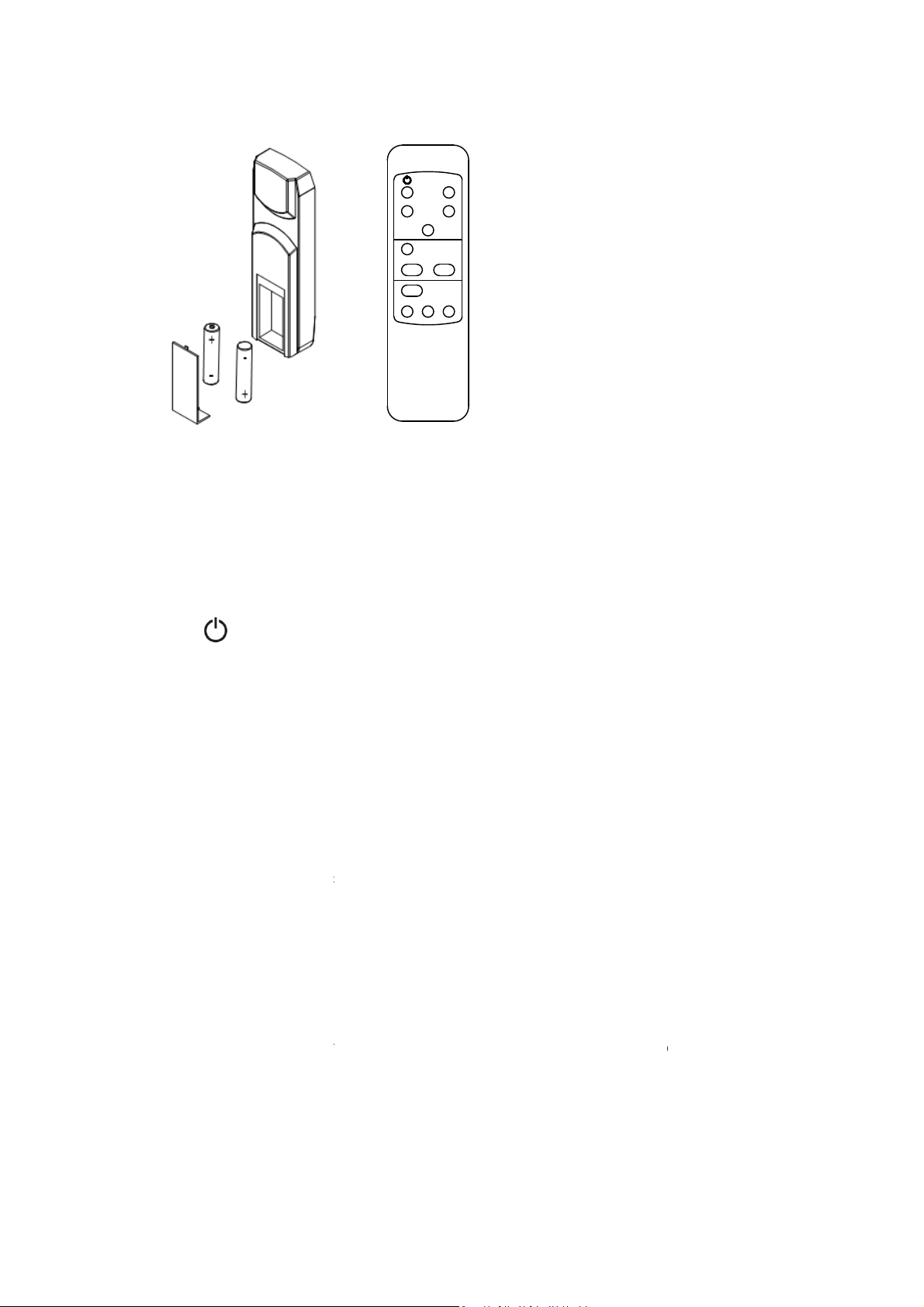

REMOTE CONTROL OPERATION
1. Press “ ”, the
fla e light
the brightest ode(
Y4,O4,R4
heater is not working. Press
the display will disap
pear
fireplace.
2. Press “D
ISPLAY ON/OFF
display, twice to turn off the fla e light, indicating
setting used on the fireplace.
3. Press “Yellow” to
adjust
Y4-Y3-Y2-Y1-Y0,
and Y0
4. Press “Orange” to
adjust
O4-O3-O2-O1-O0,
and O0
5. Press “Red” to
adjust
R4-R3-R2-R1-R0,
and R0
6. Press” TRAY LIGHT
ON/OFF
disp
lay. Press again to turn off the tray light, indicating
fla e light
turns on
, color yellow, color orange and color red are on
Y4,O4,R4
)
, the tray light in white (E3), indicating
heater is not working. Press
again to turn off the appliance,
indicating
pear
in 5 seconds. It will recall the las
t setting used on the
ISPLAY ON/OFF
”
once to turn on the fla e light, indicating
display, twice to turn off the fla e light, indicat
ing “FO” on
display.
setting used on the fireplace.
adjust
the intensity of the yellow fla e. T
here are 5 setting
and Y0
is when the yellow fla e
has turned off
adjust
the intensity of the orange fla e.
T
and O0
is when the orange fla e
has turned off
adjust
the intensity of the red fla e. T
here are 5 setting
and R0
is when the red fla e has turned off.
ON/OFF
”
, the tray light turns on in color white
lay. Press again to turn off the tray light, indica
ting”E0” on
display.
, color yellow, color orange and color red are on
, the tray light in white (E3), indicating
“ON” on display,
indicating
“OF” on display,
t setting used on the
once to turn on the fla e light, indicating
“FF” on
display.
It will recall the last
here are 5 settings,
has turned off
.
T
here are 5 settings,
has turned off
.
here are 5 setting
s,
, the tray light turns on in color white
, indicating “E3” on
display.
Forremotetofunctionmakesure theheaterispluggedinandmainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingtheremotemakesureyoupointtheremotetothecentreofthefireplaceand make
sure eachtimeyoupressthebuttonthebuzzerinsidetheunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmorethanoncewithintwo
secondsforcorrectoperation.
HEATER ON/OFF
HIGH LOW TEMP.
YELLOW
RED
DISPLAY ON/OFF
ORANGE
FLASHADJUST
TRAY
ON/OFF

1
10. Press “LOW” when
the heater is on,
display..
11. Press “HIGH” when
the heater is on
display.
12. Press “TEMP” w
hen the heater is on
C-16-19-21-23-25-27-
30;
and Fahrenheit, H0-61-
66
the heater is on,
one setting of heater
works
the heater is on
, two settings
of heater work
hen the heater is on
to set the roo te perature,
30;
Press this button for
5 seconds to switch between Celsius
66
-70-73-77-80-86.
works
, indicating “H1”on
of heater work
, indicating “H2” on
to set the roo te perature,
5 seconds to switch between Celsius
NOTE: In “TEMP” ode, two settings of heater work. When the “HEATER ON/OFF” button is
locked, “HIGH”, “LOW”,”TEMP” can’t use.
7. Press “ADJUST”
, rotates through
8. Press “FLASH”,
the tray light cycles through all 13 colors.
9. Press “HEATER
ON/OFF
“H2” on
display; press again to turn off the heater.
indicating “LO”,
heater is off and the
seconds, indicating “
UL
unlocked. If the heater is
“H1”,”H2” or “TEMP”
to indicate
, rotates through
the 13 colors of tray lighting.
the tray light cycles through all 13 colors.
ON/OFF
” once to turn on the
heater, in H2 setting, 1500W, indicating
display; press again to turn off the heater.
Press this button for
heater is off and the
button is locked. Press this button again for
UL
” on display
, heater is still not working but the button is
unlocked. If the heater is
on
but the fla e and tray light are off,
to indicate
the heater’s working ode.
heater, in H2 setting, 1500W, indicating
Press this button for
5 seconds,
button is locked. Press this button again for
5
, heater is still not working but the button is
but the fla e and tray light are off,
there is display of

Wir th wall th rmostat prior to installing th fir plac .
WALL THERMOSTAT
WIRING (
Install Wall Th rmostat p r instructions provid d with kit and p r th following
information:
1. Turn off circuit breaker.
2. Remove cover pl
ate located
3.
Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided with wall
18
Wir th wall th rmostat prior to installing th fi
r plac .
WIRING (
24 VAC)
Install Wall Th rmostat p r instructions provid d with kit and p r th following
ate located
at the bottom on the
left side of the appliance.
Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow the instructions provided wi
th wall switch kit
.
Install Wall Th rmostat p r instructions provid d with kit and p r th following
left side of the appliance.
Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat
.
INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
NOTE: Th wall th rmo
stat will b functioning wh n th h at r is on th
TEMP. s tting.
INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
stat will b functioning wh n th h at r is on th
TEMP. s tting.
stat will b functioning wh n th h at r is on th
TEMP. s tting.

19
REPLACEMENT PARTS
NO
PART NUMBER
DESCRIPTION QTY
WM-45-XS
1 3236503 TRIM 1
2 3236507 FRONT GLASS
ASSEMBLY 1
3 107022362 TRAY GLASS 1
4 107022361 BACK GLASS 1
5 601144 FLAME LED STRIP 4/5
6 10101225 FLAME MOTOR 1
7 3236505 FLICKER ASSEMBLY 1
8 601105F CIRCUIT BOARD 1
9 3236010 RIGHT OUT SIDE
COVER 1
10 10114001B TEMPERATURE
SENCOR 1
11 601300M-2 TOUCH PANEL 1
12 602130C BLOWER AND
HEATER ASSEMBLY 1
13 3236007 HANGER 1
14 3236009 LEFT OUT SIDE
COVER 1
15 3001506B SIGNAL RECEIVER 1
16 10125023 TRAY LIGHT 1
17 10105063C Remote control 1
NOTE: Remote control and tray light are not shown at the exploded view.

20
EXPLODED VIEW
