Lopi Lopi Revere User manual

TM
Revere
Fireplace
Insert
Owner's Manual
• Masonry Fireplace Insert
• Zero-Clearance (Metal) Fireplace Insert
SAFETY NOTICE:
If this appliance is not properly installed, a house fire
may result. For your safety, follow the installation
directions. Contact local building or fire officials about
restrictions and installation inspection requirements in
your area.
10850 117th Place N.E. Kirkland, WA 98033
93508132 Copyright 2001, T.I. $10.00
4020327
Listed
Tested to: U.L. 1482

2Introduction
Travis Industries 93508132 4020327
Introduction
We welcome you as a new owner of a Lopi Revere wood-burning stove. In purchasing a Lopi Revere
you have joined the growing ranks of concerned individuals whose selection of an energy system
reflects both a concern for the environment and aesthetics. The Lopi Revere is one of the finest
appliances the world over. This manual will explain the installation, operation, and maintenance of
this appliance. Please familiarize yourself with the Owner's Manual before operating your appliance
and save the manual for future reference. Included are helpful hints and suggestions which will make
the installation and operation of your new appliance an easier and more enjoyable experience. We
offer our continual support and guidance to help you achieve the maximum benefit and enjoyment
from your appliance.
Important Information
No other Lopi Revere appliance has the same serial
number as yours. The serial number is stamped onto
the label on the back of the appliance.
This serial number will be needed in case you require
service of any type.
Model: Lopi Revere
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card Today,
and Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your appliance. Do not mail
your Bill of Sale to us.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should
the need for service or information occur.

Table of Contents 3
Travis Industries 93508132 4020327
General Information
Introduction & Important Information ......................2
Safety Precautions.............................................4
Features & Specifications ....................................6
Insert Installation
Planning The Installation .....................................7

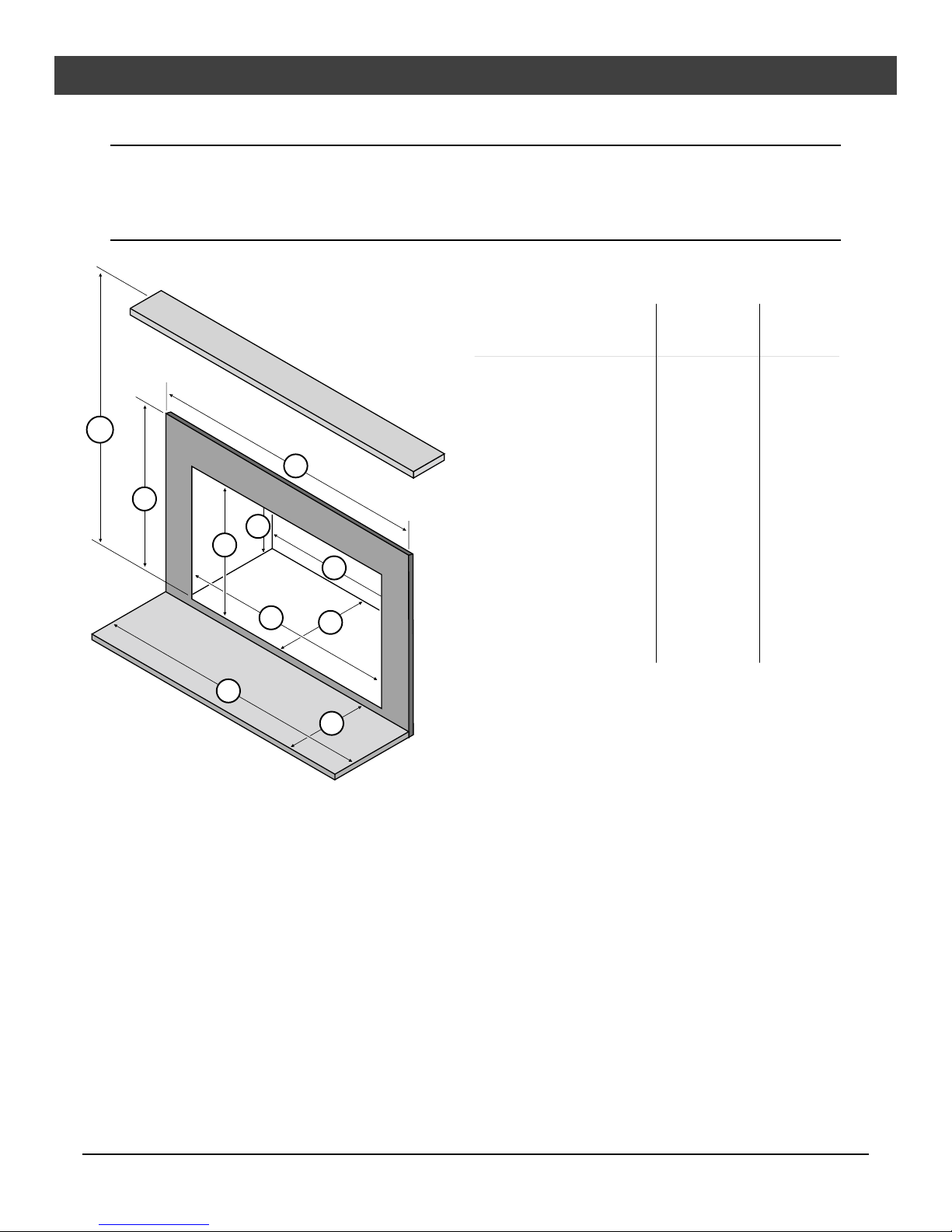

Insert Size Requirements.....................................8
Insert Placement Requirements ............................9
Hearth Requirements..........................................9
Masonry Fireplace Requirements..........................9
Zero Clearance (Metal) Fireplace Requirements.......10
Drafting Performance..........................................10
Leveling Bolt Installation......................................10
Block-Off Plate Installation...................................11
INSTALLATION DIAGRAMS
Insert with Positive Connection.........................12
Insert w Direct Connection (Masonry Fireplace)...12
Insert with Direct Connection (ZC Fireplace) .......13
Insert with Face Seal Connection......................13
Operating Your Appliance
Safety Notice ....................................................14
Before Your First Fire..........................................14
Opening the Door...............................................14
Bypass Operation ..............................................15
Starting a Fire ...................................................16
Adjusting the Burn Rate.......................................17
Ash Removal ....................................................17
Optional Blower Operation...................................18
Re-Loading the Stove .........................................18
Overnight Burn..................................................18
Normal Operating Sounds....................................18
Hints for Burning................................................19

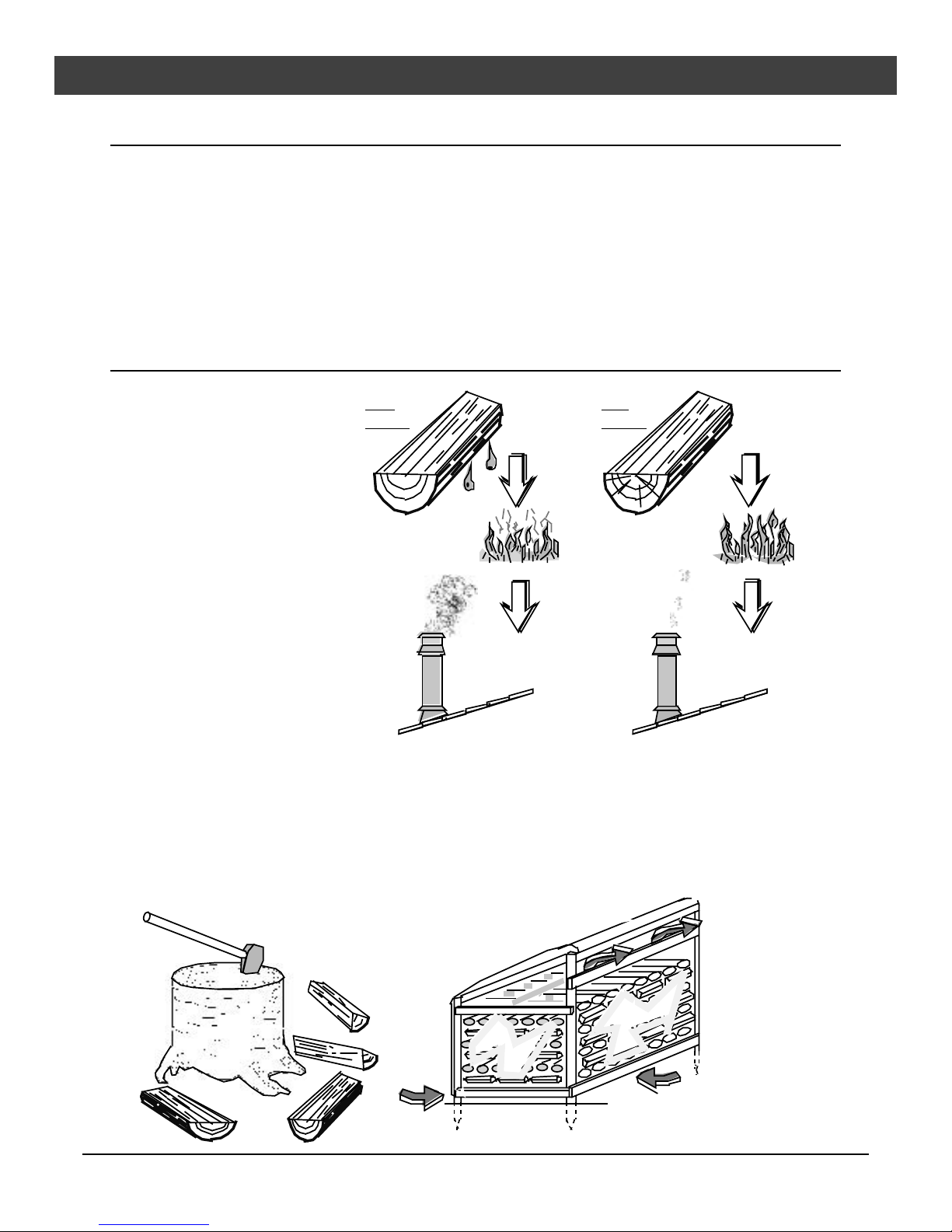

Selecting Wood .................................................19
Dry Wood is Key ...........................................19
Testing Wood Moisture...................................19
Why Dry Wood is Key.....................................19
Wood Cutting and Storage ..............................19
Troubleshooting.................................................20
Maintaining Your Appliance
Daily Maintenance..............................................21
Remove Ash ................................................21
Clean The Glass ...........................................21
Monthly Maintenance..........................................22
Door and Glass Inspection ..............................22
Check For Creosote Buildup............................22
Yearly Maintenance............................................23
Touch Up Paint.............................................23
Blower Cleaning............................................23
Firebrick and Baffle Inspection .........................23
Door Parts........................................................24
Replacing the Glass.......................................24
Replacing the Door Gasket..............................24
Replacing the Door Handle..............................24
Firebox Parts ....................................................25
Floor & Side Firebrick Removal & Replacement...25
Baffle Removal and Replacement.....................26
Air Tube Removal and Replacement .................26
Warranty
Warranty..........................................................27
Listing Information
Listing Information..............................................28
Optional Equipment
Surround Panels................................................29
Front Blower .....................................................31
Index
Index...............................................................32

4Safety Precautions
Travis Industries 93508132 4020327
• The viewing door must be
closed and latched during
operation.
• Never block free airflow
through the air vents on this
appliance.
Gas
• Gasoline or other flammable
liquids must never be used
to start the fire or "Freshen
Up" the fire. Do not store or
use gasoline or other
flammable liquids in the
vicinity of this appliance.
• This appliance is designed
and approved for the
burning of cord wood only.
Do not attempt to burn any
other type of fuel other than
cord wood in this appliance,
it will void all warranties and
safety listings.
ASHES
• Ashes must be disposed in
a metal container with a
tight lid and placed on a
non-combustible surface
well away from the home or
structure.
• Do not touch the appliance
while it is hot and educate
all children of the danger of
a high-temperature
appliance. Young children
should be supervised when
they are in the same room
as the appliance.
36"
•Keep furniture, drapes,
curtains, wood, paper, and
other combustibles a
minimum of 36" away from
the front of the appliance.
•This appliance must be
properly installed to prevent
the possibility of a house
fire. The instructions must
be strictly adhered to. Do
not use makeshift methods
or compromise in the
installation.
Ok
•Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements in
your area. Notify your
insurance company of this
appliance as well.
•Inspect the chimney
connector and chimney at
least twice monthly and
clean if necessary.
Creosote may build up and
cause a house fire.
•Do not connect this
appliance to any chimney
serving another appliance.
Type
HT Clay
Liner
•This appliance must be
connected to a listed high
temperature (UL 103 HT)
residential type chimney or
an approved masonry
chimney with a standard
clay tile, or stainless steel
liner.

Safety Precautions 5
Travis Industries 93508132 4020327
Mobile
Home
•When installed in a mobile
home, this appliance must
be bolted to the floor, have
outside air, and not be
installed in the bedroom
(Per H.U.D. requirements).
Check with local building
officials.
•Do not place clothing or
other flammable items on or
near this appliance.
•Never try to repair or replace
any part of this appliance
unless instructions are given
in this manual. All other
work must be done by a
trained technician.
•Do not make any changes
or modifications to an
existing masonry fireplace
or chimney to install this
appliance.
•Do not make any changes to
the appliance to increase
combustion air.
A
A
A
A
•Allow the appliance to cool
before carrying out any
maintenance or cleaning. •Overfiring the appliance may cause a house fire. If a unit
or chimney connector glows,
you are overfiring.
•Maintain the door and glass
seal and keep them in good
condition.
•Avoid placing wood against
the glass when loading. Do
not slam the door or strike
the glass.
•Do not use a grate or other
device to elevate the fire off
of the firebox floor. Burn the
fire directly on the bricks.
This
Manual
•Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
•Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
appliance,and
assumes no
responsibility of any
consequential
damage(s).

6Features & Specifications
Travis Industries 93508132 4020327
Installation Options:
•Masonry Fireplace Insert
•Factory-Built (Z.C.) Fireplace Insert
Features:
•EPA Phase II Approved
•2.2 Cubic Foot Firebox Volume
•Single Operating Control
•Accepts Logs Up to 18" Long
•Steel Plate Construction (5/16" & 3/16")
•Heavy Duty Refractory Firebrick
•Optional High-Tech Blower
Heating Specifications:
Approximate Maximum Heating Capacity (in square feet)* 1,200 to 2,000
Maximum BTU's per Hour (Cord Wood Calculation) 72,400
Overall Efficiency (Oregon Method) 70.4 %
Maximum Burn Time Up to 10 Hours
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the quality and moisture level of the fuel.
Dimensions:
21-3/8"
13-1/8" - ZC (metal) fireplaces
require 1" clearance to the rear.
21-5/8"
Weight....380 Lbs. 5-3/16"
Fireplace Opening
19-3/4"
(Does not include mounting
flange or bypass when installed
with the bay kit)
10" (does not include required hearth)
24-1/4"
Measure side and
top clearances from
the top plate.
Measure front
clearances from
the stove face.
18-3/4"
Emissions:
1.9 Grams Per Hour (EPA Phase II Approved) –Tests conducted by E.E.S.P.C.

Insert Installation (for qualified installers only) 7
Travis Industries 93508132 4020327
SAFETY NOTICE:
Please read this entire manual before you install and use your new
room heater. Failure to follow instructions may result in property
damage, bodily injury, or even death. Contact local building or fire
officials about restrictions and installation inspection requirements
in your area.
Planning The Installation
We suggest that you have an authorized Travis Industries dealer install your stove. If you install the
stove yourself, your authorized dealer should review your plans for installation.
Check with local building officials for any permits required for installation of this stove and notify your
insurance company before proceeding with installation.
Preparation for Installation
•Check for damage to the exterior of the inserts (dents should be reported, scratches can be fixed by
applying touch up paint).
•Check the interior of the firebox (replace cracked firebrick and make sure baffle is in place).
The stove can be lightened by removing the firebricks and baffle. (pg 26) - replace before operation.
Insert Installation Considerations
•This insert is approved for installation into an existing masonry or zero clearance (metal) fireplace.
Depending upon your installation concerns, several options are yours to provide the most desirable
installation. The sections that follow detail the requirements that must be met for a safe installation.
To further help installation, the most common types of installations are explained in table below. Prior
to installing your insert make a detailed plan with dimensions to double-check them against all of the
requirements listed.
Installation Type Considerations
Insert with Positive Flue (Full Reline)
(Page 12) •Utilizes existing masonry or zero clearance fireplace •Provides best draft
•Easiest to clean
Insert with Direct Connect Flue
(Page 12 and 13) •Utilizes existing masonry or zero clearance fireplace •Provides good draft
•Requires fireplace block-off plate - see page 11
Insert with Face Seal Connection
(Page 13) •Utilizes existing masonry fireplaces with cross section
of 28" to 144" (not approved for zero
clearance fireplaces)
•Provides okay draft
•Easiest to install
•Requires the optional surround panels and insulation
(see "Surround Panels" on page 29 and 30.

8Insert Installation (for qualified installers only)
Travis Industries 93508132 4020327
Surround Panels
•The insert must be installed with surround panels (see page 29).
Insert Size Requirements (see Illustration below)
a
ce
f
Masonry
Fireplace Z.C. (Metal) Fireplace
Minimum Fireplace Size
a
b
c
d
e
f
g
h
i
j
Height (front)
Height (rear)
Width (front)
Width (rear)
Depth
Hearth Depth*
Hearth Width
Facing Width
Facing Height
with mantel shield
Mantel Height
with mantel shield
19-3/4"
19-3/4"
24-1/4"
21-5/8"
13-1/8"
26"
40-1/4"
50-1/4"
47-1/4"
39-1/4"
49-1/4"
41-1/4"
* This is the distance the insert protrudes from
the fireplace opening plus the required 16" of
hearth extension.
b
d
h
i
j
g
Non-Combustible Hearth
Mantel (combustible or non-combustible)
Non-Combustible Facing
19-3/4"
19-3/4"
26-1/4"
23-5/8"
14-1/8"
26"
40-1/4"
48-1/4"
30-3/4"
N/A
42-3/4"
N/A

Insert Installation (for qualified installers only) 9
Travis Industries 93508132 4020327
Insert Placement Requirements
•The insert must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" of the front of the insert
•Insert and hearth must be installed on a level, secure floor
•The minimum clearances, facing, and hearth requirements in the illustration below must be met
(follow the clearances for the type of fireplace being used - either masonry or zero-clearance).
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
Side
Wall
Combustible or Non-Combustible Mantel
Combustible Top Facing
Non-Combustible
Hearth
Facing
Masonry
Fireplace
Minimum Clearances
k
l
m
n
o
p
q
x
Sidewall to Insert
Side Facing
Top Facing
with mantel shield
Mantel to Insert
with mantel shield
Hearth (Front)
Hearth (Side)
Front of Insert
Extension onto Hearth
15"
13"
28-1/2"
20-1/2"
30-1/2"
22-1/2"
16"
8"
36"
10"
q
l
k
p
x
o
n
m
ZC (Metal)
Fireplace
30"
12"
12"
N/A
24"
N/A
16"
8"
36"
10"
Hearth Requirements
•Must extend 16" in front of the insert and 8" on both sides (total of 19" deep by 39 5/8" wide)
•Must be non-combustible and at least .018" thick (26 gauge)
Masonry Fireplace Requirements
•Chimney must have a clay tile liner or a stainless steel liner (positive connection)
•Entire fireplace, including chimney, must be clean and undamaged. Any damage must be repaired
prior to installation of the insert
•Chimney height: 15' minimum; 33' maximum.
•Entire fireplace, including chimney, must meet local building requirements

10 Insert Installation (for qualified installers only)
Travis Industries 93508132 4020327
Zero-Clearance (Metal) Fireplace Requirements:
•Must utilize a positive (full reline) or direct connection (block-off plate)
•Must be manufactured by one of the following manufacturers:
•Marco •Majestic •Heatilator •Preway •Tempco •Superior
•Entire fireplace, including chimney, must be clean and undamaged. Any damage must be repaired
prior to installation of the insert
•Entire fireplace, including chimney, must meet local building requirements
•Chimney height: 15' minimum; 33' maximum. Minimum
cross section: 28.65 square inches
•The damper ("A") and grate ("B") must be removed (see
the illustration to the right)
•The smoke shelf ("C"), internal baffles ("D"), screen ("E"),
and metal or glass doors ("F") may be removed (if
applicable)
•The masonry lining ("G"), insulation ("H"), and any
structured rigid frame members (metal sides, floor, door
frame, face of the fireplace, etc. –"I") may not be
removed or altered
C
B
F
I
D
E
A
G
H
Drafting Performance
This appliance relies upon natural draft to operate. External forces, such as wind, barometric
pressure, topography, or factors of the home (negative pressure from exhaust fans, chimneys, air
infiltration, etc.), may adversely affect draft. Travis Industries can not be responsible for external
forces leading to less than optimal performance.
Leveling Bolt Installation
Two leveling bolts are included to level the insert if the fireplace has a stepped-up hearth. To install,
raise the rear of the insert up and insert the leveling bolts into the holes in the rear corners of the
insert. Adjust the bolts until they extend the same height as the hearth steps up. After the insert is
installed, fine-tune the leveling bolts to level the insert (see the illustration).
AAA
AAA
AAA
AAA
AAA
AAA
This distance is the
hearth step-up. The
leveling bolts should
stick out this far from the
base of the insert. Fireplace
Hearth
The leveling bolts go
into the holes at the
rear corners of the
insert.

Insert Installation (for qualified installers only) 11
Travis Industries 93508132 4020327
Block-Off Plate Installation
Whenever this appliance is installed with a direct connection a block-off plate, or other non-
combustible seal-off device (e.g. damper adapter), will need to be installed. This device is used to
seal the chimney, insuring no smoke enters the home and providing the chimney system with a seal
to promote draft. The directions below detail the steps for construction and installation of a block-off
plate.
1. Determine a location for the block-off plate at the top of the firebox below the damper area (make
it high enough to allow installation of the connection pipe). The location should be level and in an
area where it can be mounted easily. Measure the width at the rear ("A") and front ("B") of the
firebox at the height where the block-off plate will be installed (see the illustration below). Then
measure the depth of the location where the block-off plate will be installed ("C").
NOTE: Most masonry fireplaces have square fireboxes while certain zero-clearance (metal)
fireplaces often have domed firebox tops. This makes zero-clearance block-off plates more
difficult to install. To simplify the procedure, insulation may be used to seal the rounded edges.
2. Make a cardboard template of the measurements, but add a 2" flange to each side. This flange
will be used to mount the block-off plate to the inside of the firebox. Bend the flanges downwards
on the template and place it inside the fireplace. If the template fits correctly in its planned
location, go to the next step. If it does not, make a new template with the appropriate corrections
until it fits correctly.
3. With the template in place, mark the location that is centered in the fireplace and 9 1/4" back from
the fireplace opening. This location approximates the center of the flue when the insert is in place
(a slight offset may occur based upon insert and block-off plate placement). Remove the
template and cut a 6 1/4" diameter hole centered on this mark.
4. Make the block-off plate of 24 gage or thicker steel to match the template. Drill two holes in each
flange for mounting the plate.
5. Mount the block-off plate using masonry screws.
NOTE: Use sheet metal screws on zero-clearance (metal) fireplaces (screws need only be long
enough to penetrate the first layer of metal).
6. Insulate the block-off plate using high-temperature fiberglass insulation (Kaowool®or equivalent)
and furnace cement (allow the cement to dry for at least 24 hours before burning).
7. After placing the appliance and installing the pipe through the block-off plate, use high-
temperature fiberglass insulation and furnace cement to seal any cracks between the pipe and
block-off plate.
Firebox
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
A
C
B
The center of
the flue is 9 1/4"
back from the
fireplace
opening.
Damper Measurement
"A"
Measurement "B"
2" Flanges
(for attaching
the block-off
plate) Measurement
"C"
The center of the flue is 9 1/4" back from the
fireplace opening (6 1/4" in diameter).
Block-Off Plate Template

12 Insert Installation (for qualified installers only)
Travis Industries 93508132 4020327
Insert with
Positive
Connection
NOTE:
Most factory-built
chimney
manufacturers
make stainless
steel chimney
liners, either
flexible or rigid.
This provides a
wide variety of
installation
options. Make
sure to follow the
manufacturer's
instructions for
installation and
support.
A
A
A
A
The liner must be
stainless steel
connector or flexible
vent. Follow the liner
manufacturer's
insturctions for
installation and
support.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
Remove damper
or wire it open
Airtight Insulated
Clean-Out
Combustible Mantle
NOTE: This installation may be
used with a masonry or zero
clearance fireplace. The
requirements in the section
"Masonry Fireplace Requirements"
or "Zero Clearance Fireplaace
Requirements" must be fulfilled
prior to installation.
Flue Liner
See the section "Insert
Placement Requirements" for
minimum clearances and
hearth required.
AA
Cap (prevents water
from entering)
Install a non-combustible
cover plate to prevent water
from entering the chimney
Surround Panels
Insert with
Direct
Connection
(Masonry
Fireplace)
NOTE:
Direct
connections
require installation
of an airtight
block-off plate or
damper adapter
(see "Block-off
Plate Installation"
on page 11).
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
Block-off plate or
damper adapter
Remove
damper
or wire it
open
Airtight
Insulated
Clean-Out
Stainless steel
chimney connector
must Extend 1' past
the block-off plate or
to the flue liner
Combustible Mantle
Flue
Liner
See the section
"Insert Placement
Requirements" for
minimum clearances
and hearth required.
Surround Panels
NOTE: This installation may be
used with a masonry or zero
clearance fireplace. This
illustration depicts a masonry
insert, all requirements in the
section "Masonry Fireplace
Requirements" must be fulfilled
prior to installation.

Insert Installation (for qualified installers only) 13
Travis Industries 93508132 4020327
Insert with
Direct
Connection
(Z.C.
Fireplace)
NOTE:
Direct
connections
require installation
of an airtight
block-off plate or
damper adapter
(see "Block-off
Plate Installation"
on page 11).
A
A
A
A
Block-off plate or
damper adapter
Stainless steel
chimney connector
must Extend 1' past
the block-off plate.
Combustible Mantle
See the section
"Insert Placement
Requirements" for
minimum clearances
and hearth required.
Surround Panels
NOTE: This installation may be
used with a masonry or zero
clearance fireplace. This
illustration depicts a zero
clearance insert, all requirements
in the section "Zero Clearance
Fireplace Requirements" must be
fulfilled prior to installation.
Z.C. (Metal) firebox
Optional
Telescoping Legs No modification to the firebox of the z.c. fireplace is allowed.
Damper must
be removed
A
A
A
A
Insert with
Face Seal
Connection
NOTE:
Face seal
connections
require installation
of the surround
panels and
insulation (see the
"Surround Panel
Installation" on
pages 29 and 30).
A
A
AAA
AAA
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
Remove damper
or wire it open
Airtight Insulated
Clean-Out
Combustible Mantle
NOTE: This installation may be
used with a masonry fireplace
only. The requirements in the
section "Masonry Fireplace
Requirements" must be fulfilled
prior to installation.
Flue
Liner
See the section "Insert
Placement Requirements"
for minimum clearances
and hearth required.
Surround Panels with
insulation (see "Surround
Panels" installation
instructions in the back of
the manual)
A
A
NOTE: It is
recommended your
chimney have a
minimum 28 and a
maximum of 144
square inch cross-
sectional area to use a
face seal connection,
otherwise your
chimney maynot have
sufficient draw for the
fireplace insert to
operate correctly.

14 Operating Your Appliance
Travis Industries 93508132 4020327
Safety Notice:
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation
directions. Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
Read and follow all of the warnings on pages 4 and 5 of this manual.
Before Your First Fire
Verify the Installation
Before starting the stove, verify that the stove is properly installed and all of the requirements in this
manual have been followed.
Keep all flammable materials 36" away from the front of the stove (drapes, furniture, clothing, etc.).
Curing the Paint
This heater uses a heat-activated paint that will emit some fumes
while starting the first fire. Open doors and windows to the room
to vent these fumes. This typically lasts two to four hours. You
may also notice oil burning off of the interior of the heater. This
rust-stopping agent will soon dissipate.
Door Gasket - The door gasket might adhere to the paint on
the front of the heater. Leave the door slightly ajar for the first fire
and be careful when opening the door after the first fire.
AA
AA
AA
AA
A
A
A
A
2 to 4 hours
Over-Firing the Stove
This stove was designed to operate at a high temperature. But due to differences in vent
configuration, fuel, and draft, this appliance can be operated at an excessive temperature. If the
stove top or other area starts to glow red, you are over-firing the stove. Shut the air control down to
low and allow the stove to cool before proceeding.
Opening the Door
Rotate
the door
handle.
Swing
the door
open.
The door becomes hot during use. Use a glove to open the door if the handle is hot.
To prevent smoke from entering the room, open the bypass before opening the door (see following page
for directions). You can also open the door a small amount and let air enter the firebox.

Operating Your Appliance 15
Travis Industries 93508132 4020327
Bypass Operation
The bypass controls the flow of smoke inside the heater. When pulled out, smoke goes directly up
the flue, creating more draft. When pushed in, the smoke goes around the baffle, utilizing the
secondary combustion and making the heater more efficient.
• When starting or re-loading, pull the bypass out.
• During normal operation, push the bypass in.
Bypass Pushed In
Used for normal operation
Bypass Pulled Out
Used for starting and re-loading
AAA
AAA
AAA
AAA
AAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
A
A
Use the included pull tool
to operate the bypass rod

16 Operating Your Appliance
Travis Industries 93508132 4020327
Starting a Fire
Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-
pee", some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure
proper fire starting.
•Make sure the air control and by-pass are pulled out. If additional air is needed, open the doors 1/4"
during the first five minutes of start-up.
AA
Neveruse gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start
or "freshen up" a fire in this stove. Keep all such liquids well away from the stove while it is in use.
If using a firestarter, use only products specifically designed for stoves - follow the manufacturer's
instructions carefully.
If the smoke does not pass up the chimney, ball up one sheet of newspaper, place it in the center of the
grate and light it. This should start the chimney drafting (this eliminates "cold air blockage").
Use plenty of kindling to ensure the stove reaches a proper temperature. Once the kindling is burning
rapidly, place a few larger pieces of wood onto the fire.

Operating Your Appliance 17
Travis Industries 93508132 4020327
Adjusting the Burn Rate
Use the air control slider to control the burn rate of the stove. See the illustration below for details.
A
Low Burn
(air control closed) High Burn (air control open)
Use the air control to
change the burn rate.
AA
AA
AA
AA
Approximate Air
Control Settings: Overnight Burn................ Fully in to 1/8" open
Medium Burn.................... 1/8" open to 5/8" open
Medium High Burn.......... 5/8" open to fully open
High Burn.......................... Fully open (pulled out)
The air control becomes hot during operation - use gloves or a tool to prevent burns.
The air control may take several minutes to influence the burn rate. When making adjustments, you may
wish to let the stove burn for 10 minutes to gauge performance.
Ash Removal
ASHES
Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes
should be placed on a noncombustible floor or on the ground, away from all combustible
materials, pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally
dispersed, they should be retained in the closed container until all cinders have thoroughly
cooled.

18 Operating Your Appliance
Travis Industries 93508132 4020327
Optional Blower Operation
The blower will turn on once the stove is up to temperature. This is typically 15 to 30 minutes after
starting the fire. Follow the directions below to alter the blower speed.
OFF
Turn the dial all the way counter-
clockwise until it clicks off.
BLOWER
CONTROL
AA
AA
A
A
AA
A
A
A
A
A
LO
OFF HI
HIGH
The high position is all the way counter-
clockwise, without clicking off.
BLOWER
CONTROL
AA
AA
A
A
AA
A
A
A
A
A
LO
OFF HI
LOW
Turn the dial all the
way clockwise.
BLOWER
CONTROL
AA
AA
A
A
AA
A
A
A
A
A
LO
OFF HI
The blower may be used to affect heat output (i.e.: to reduce heat output, turn the blower down).
Route the power cord in a location where it will not come in contact with the appliance or become hot.
Re-Loading the Stove
Follow the directions below to minimize smoke spillage while re-loading the stove.
1Pull the air control all the way out (high burn).
2Open the door slightly. Let the airflow inside the firebox to stabilize before opening the doors fully.
3Load wood onto the fire.
Overnight Burn
This stove is large enough to accommodate burn times up to eight hours. Follow the steps below to
achieve an overnight burn.
1Move the air control to high burn and let the stove become hot (burn for approximately 15 minutes).
2Load as much wood as possible. Use large pieces if possible.
3Let the stove burn on high for 15 minutes to keep the stove hot, then turn the air control to low.
4In the morning the stove should still be hot, with embers in the coal bed. Stir the coals and load small
pieces of wood to re-ignite the fire, if desired.
Differences if chimney height and draft may lower overall burn times.
Normal Operating Sounds
AA
Creaks and Clicks:
The 3/16" and 5/16" steel may creak or click when
the stove heats up and cools down - this is normal.
Blower Sounds:
The blower will make a slight "humm" as it
pushes air through the stove.
Hint:
Make sure the leveling bolts on legs are extended -
preventing the hearth from amplifying any vibrations.

Operating Your Appliance 19
Travis Industries 93508132 4020327
Hints for Burning
•Get the appliance hot before adjusting to low burn
•Use smaller pieces of wood during start-up and high burns to increase temperature
•Use larger pieces of wood for overnight or sustained burns
•Stack the wood tightly together to establish a longer burn
•Leave a bed of ashes (1/2" deep) to allow for longer burns
•Be considerate of neighbors & the environment: burn dry wood only
•Burn small, intense fires instead of large, slow burning fires when possible
•Learn your appliance's operating characteristics to obtain optimum performance
Selecting Wood
Dry Wood is Key
Dry wood burns hot, emits
less smoke and creates
less creosote.
Testing Wood
Moisture
Split wood stored in a dry
area will be fully dry within
a year. This insures dry
wood. If purchasing wood
for immediate use, test the
wood with a moisture
meter. Some experienced
wood burners can measure
wood moisture by knocking
pieces together and
listening for a clear "knock"
and not a "thud".
W
et
W
ood
Leads
To Leads
To
Dry
Wood
Leads
To Leads
To
Less
Heat More Heat
More Smoke
and Creostoe Less Smoke and Creostoe
Why Dry Wood is Key
Wet wood, when burned, must release water stored within the wood. This cools the fire, creates
creosote, and hampers a complete burn. Ask any experienced wood burner and he or she will agree:
dry wood is crucial to good performance.
Wood Cutting and Storage
Cut wood to length and
chop into quarters. Store the wood off the ground in a
covered area. Allow for airflow
around the wood to dry the wood.
Air Flow
Air Flow
Air Flow

20 Operating Your Appliance
Travis Industries 93508132 4020327
Troubleshooting
Problem Possible Cause
Smoke Enters Room
During Start-Up •Cold Air Blockage - burn a piece of newspaper to
establish a draft.
•Close the doors - if the flame is not getting enough air,
first make sure the air control is open.
If additional air is needed, a small crack in the door is
all that is needed.
Kindling Does Not Start -
Fire Smolders •Cold Air Blockage - burn a piece of newspaper to
establish a draft.
•Not enough starter paper - use additional newspaper if
necessary.
•Not enough air - first make sure the air control is open.
If additional air is needed, a small
crack in the door is all that is needed.
Smoke Enters Room
While Re-Loading •Let the air stabilize before fully opening the door. Pull
the air control out before opening the door. Then open
the door approximately 1 inch. Let air go into the
firebox for a few seconds. Once the smoke appears to
be flowing up the chimney consistently, open the door.
•Insufficient Draft - Chimney height and outside
conditions can negatively affect draft. In these cases a
small amount of smoke may enter the home. Adding
more pipe or a draft-inducing cap may help.
Stove Does Not Burn Hot
Enough •Wood is Wet - see the section "Selecting Wood" on
page 19 for details on wood.
•Insufficient Draft - Chimney height and outside
conditions can negatively affect draft. In these cases
the fire may burn slowly. Adding more pipe or a draft-
inducing cap may help.
•Air Control is Not Wide Open - Make sure the air
control is all the wayout. Slide the control back and
forth to insure the control is not stuck.
Blower Does Not Run •Stove is Not Up to Temperature - This is normal. The
blower will come on when the stove is hot - usually 15
to 30 minutes.
•Electricity is Cut to the Blower - Check the household
breaker or fuse to make sure it is operable.
Stove Does Not Burn
Long Enough •This appliance burns for up to 8 hours. Depending
upon wood, draft, and other factors, the burn time may
be shorter. Make sure the doors are sealing and not
allowing air into the firebox - See the section "Door and
Glass Inspection" on page 22 for details.
•Check the ash bed for coals. Often, coals are still
glowing under a slight bed of flyash. By raking these
into a pile you can re-start your stove quickly.
