Remington X3 POWER-X Series User manual

X3 POWER-X SERIES
HAIR CLIPPER
5 YEAR WARRANTY HC3000AU
To register your product go to
www.remington-products.com.au
www.remington.co.nz
USE & CARE
MANUAL
PLEASE READ
PRIOR TO USE

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic precautions should
always be observed, including the following.
For additional protection, the installation of a residual current
device (rcd) having a rated residual operating current not
exceeding 30 mA is advisable in the electrical circuit supplying
the bathroom. Ask your installer for advice
KEEP AWAY FROM WATER
WARNING - TO REDUCE THE RISK OF BURNS, ELECTROCUTION AND
FIRE OR INJURY TO PERSONS
DANGER - As with most electrical appliances, electrical parts are
electrically live even when the switch is off.
• Do not place or store the appliance or charging adaptor where it can
fall or be knocked into a sink or bath.
• Do not place in or drop into water or any other liquid.
• If an appliance falls into water, “unplug it” immediately. Do not reach
into the water.
• Do not use while bathing or in the shower.
• Unplug and switch off this appliance before cleaning it.
• Use this appliance only for its intended use as described in this
manual.
• Do not use attachments not recommended by Remington.
• Never drop or insert any object into any opening of this appliance.
• Keep the cord away from heated surfaces.
• Do not use this appliance with a damaged or broken trimming unit as
injury may occur.
• Always store the charging adaptor in a moisture-free location.
• For household use only.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Keep the appliance and the power cord away from the edge of table
or countertops and out of reach of children and persons with reduced
physical, sensory or mental capabilities.
2

• This appliance is not a toy. Children shall be supervised to ensure they
do not play with the appliance.
• Do not use on people who are asleep.
• Never operate this appliance if it has a damaged cord or plug, if it is
not working correctly, if the charging adaptor has been damaged or
dropped into water.
• Do not use an extension cord or a voltage converter with this
appliance.
• Do not wrap the cord around the appliance.
• This appliance should be supplied with approved safety isolating
adaptors -3215A (for Australia) with the output capacity of 3.2V dc;
1.5A (adaptor output).
WARNING - KEEP THE APPLIANCE DRY
Remington strongly recommends that an approved Safety Switch
(Residual current device) be installed to protect all bathroom
power outlets. Ask an electrical contractor for advice.
SAVE THESE INSTRUCTIONS
3

HC3000AU X3 POWER-X SERIES HAIR CLIPPER
USE AND CARE MANUAL
Thank you for purchasing your Remington®X3 Power-X Series Hair Clipper.
Inside this manual you will find instructions on using and caring for your
new hair clipper.

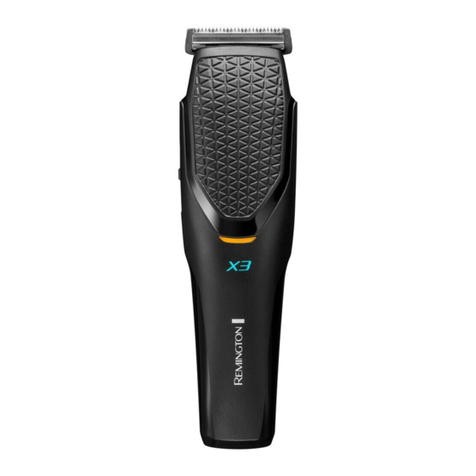

KEY PARTS
1. Blade set
2. On/Off Switch
3. Length adjustment dial
4. Length setting window for 14
- 24 mm comb
5. Length setting window for 3 -
13 mm comb
6. Charging indicator light
7. Charger connector
8. 14 - 24 mm comb
9. 3 - 13 mm comb
Not Shown:
• Power adapter
• Cleaning brush
• Oil bottle
• Pouch
1
8
9
2
7
6
3
4
5
4

ABOUT YOUR HAIR CLIPPER
HC3000AU SPECIFICATIONS
Power System Cord/Cordless
Full Charge Time 14-16 Hours
Runtime 45 Minutes
Indicators LED Charging Indicator
Voltage Type (adaptor voltage type) Worldwide 100-240V
CHARGING
• Before using your hairclipper for the first time, charge for 14-16 hours.
• Plug the adaptor into your hair clipper and then plug the charging
adaptor unit into a 100-240 volt domestic power outlet. Check to
ensure that the hair clipper On/Off switch is OFF. The Charging
Indicator Light will glow to indicate that it is charging.
• If the product is not going to be used for an extended period of time
(2 – 3 months), unplug it from the mains and store. Fully recharge your
hairclipper when you would like to use it again.
• Allow 14-16 hours for a complete charge.
• Use the hair clipper only with the charging adaptor supplied.
CHARGING VIA STANDARD ELECTRICAL SOCKET
• Ensure the product is switched off.
• Connect the charging adaptor to the product and then to the mains.
CORDED USE
• Connect the charging adaptor to the product then to the mains.
Note: Extended mains only use will result in the reduction of the battery life.
CORDLESS USE
• When the product is switched on and fully charged it can be used in
cordless mode for up to 45 minutes.
5

CLEANING AND MAINTENANCE
DO NOT SUBMERGE THE HAIR CLIPPER IN WATER.
• Your clipper is fitted with high quality blades.
• To ensure long lasting performance of your clipper, clean the blades
and unit regularly.
• Always keep the attachment guide comb on the trimmer blade.
AFTER EACH USE
• Ensure the appliance is switched off and unplugged from the charging
adapter before cleaning.
• Brush the accumulated hair from the blades and body of the clipper.
Do not submerge the clipper in water.
• To clean unit, wipe with a damp cloth and dry immediately.
• Place a few drops of cutter or sewing machine oil onto the blades.
Wipe off excess oil.
WASHABLE BLADE CLEANING
• The blades are washable under a running tap but must be removed
before they are cleaned in this way. Keep the body of the device dry at
all times.
• Take out the hex screws and disassemble the blade set. Brush and
clean out accumulated hair. Oil the contact surfaces of the blades and
then reassemble.
CLEANING CAUTIONS
• Do not use harsh or corrosive cleaners on the units or their blades.
• Ensure the appliance is switched off and unplug from the main outlet
before cleaning.
Storage: Always store this appliance and cord in a moisture-free area. Do
not wrap the cord around the appliance. Do not store in temperatures above
60ºC.
6

INSTRUCTION FOR USE
BEFORE STARTING THE CUT
• Make sure your clipper is operating correctly. Inspect the hair clipper
making sure that it is free from hair and dirt.
• Place a cape around the neck of the person whose hair is being
trimmed or cut.
• Seat the person so that their head is approximately at your eye level.
• Before cutting, always comb the hair so it is tangle free and dry.
• Hold the hair clipper in the palm of one hand and with your thumb
resting firmly on the top of the hair clipper. This grip provides
comfortable cutting control.
TO ATTACH A COMB
• Hold the comb with its teeth upward.
• Align the legs of the comb with the holes in the top
of the clipper on each side of the blade and slide
the legs into the trimmer until they click (Fig A).
• To remove, firmly pull the comb straight up away
from the clipper.
SETTING THE LENGTH OF CUT
• Your clipper comes with two adjustable combs 3 to 13 mm and 14 to
24 mm.
• These provide a length of cut that can be adjusted between 3 and 24
mm in increments of 1 mm.
1. Select the comb that fits the range of cut you want to achieve.
2. Fit the comb then rotate the length adjustment dial until the length you
want appears in the length selection window for that comb.
3. The length setting colour on the wheel matches the length marker
colour on the comb.
4. For example, if you want a cut length of 20 mm, fit the 14 to 24 mm
comb then turn the dial until 20 appears in the length setting window
for the 14 - 24 mm comb.
5. Use the clipper without any fixed combs for trimming hair close to the
skin.
6. This will trim hair to 1mm, holding the clipper so the blades are
perpendicular to the skin will trim hair to 0.5mm.
e
l
j
ig
m
n
k
f
h
A
7

INSTRUCTIONS FOR CUTTING HAIR
• Turn the product on using the on/off switch.
• For even cutting, allow the comb attachment/blade to cut its way
through the hair. Do not force it through quickly. If you are cutting for
the first time, start with the maximum guide comb, until you know how
short you would like your hair to be.
• The comb guide lengths described for use in the steps below are an
example only, if you want a longer or shorter hair cut you will need to
adjust the comb guide lengths to suit your requirements.
Step 1 - Nape Of The Neck
• Use 3mm or 6mm guide comb.
• Hold the hair clipper with the blade teeth pointing upwards. Begin
starting at the centre of the head at the base of the neck.
• Slowly lift the hair clipper, working upwards and outwards through the
hair, trimming just a little at a time.
Step 2 - Back Of The Head
• With the comb set at 12 mm or 18 mm, cut the hair at the back of the
head.
Step 3 - Side Of The Head
• With the comb set at 3 mm or 6 mm, trim sideburns.
• Then change to the longer 9mm guide comb and continue to cut to the
top of the head.
Step 4 - Top Of The Head
• Use the longer length comb attachment and set it to 24 mm then cut
hair on top of the head against the direction in which the hair normally
grows.
• For longer hair on top, use scissors. Lift the hair on top of the head
with your fingers. Cut the hair between your fingers to the desired
length.
• Always work from the back of the head.
Step 5 - The Finishing Touches
• Use the hair clipper without an attachment comb for close trimming
around the base and sides of the neck.
• To produce a clean straight line at the sideburns, reverse the clipper.
Place the reversed hair clipper at right angles to the head, tips of the
blades lightly touching the skin and then work downwards.
8

BATTERY REMOVAL
We strongly recommend that a professional removes the rechargeable
battery. Parts of the shaver case, and tools have sharp edges and may
cause injury if not handled correctly.
• The rechargeable battery must be removed from the appliance before
it is scrapped.
• The appliance must be disconnected from the supply mains when
removing the battery.
• Ensure that the battery is fully discharged. To do this, operate the
device until it stops.
• Pry off and remove the top housing.
• Using a small screwdriver, unscrew 3 screws from the inner bracket.
• Take out the battery bracket assembly.
• Cut off the battery tabs and wires and remove the battery from
bracket.
• The battery must be disposed of at an appropriate official recycling/
collection point.
• Do not attempt to operate the trimmer once you have opened it.
DISPOSAL/RECYCLING
Legislation in some localities mandates that e-waste (anything with a plug,
battery or cord) is disposed of through controlled recycling facilities and
must not be disposed of in general household waste. For more information
about recycling of electrical and battery operated appliances, please
contact your local council or your local household waste disposal service.
9

This product is not suitable for bath or shower.
This product conforms to radio frequency interference requirements
Any product purchased and used commercially carries a limited 90 Day Warranty.
