Remington r300 User manual

POWDER ACTUATED TOOL
MANUFACTURERS´ INSTITUTE INC.
™
Operating
Instructions
Read all instructions and warnings found in this manual
and on power load packaging before operating your
powder actuated tool. This manual should always ac-
company the tool and be transferred with it upon change
of ownership.
IMPORTANT:
REMINGTON R300
S F
®
Model R300

2119586
S F
REMINGTON R300
S F
Index
Warning: Safety Precautions ............................................3-11

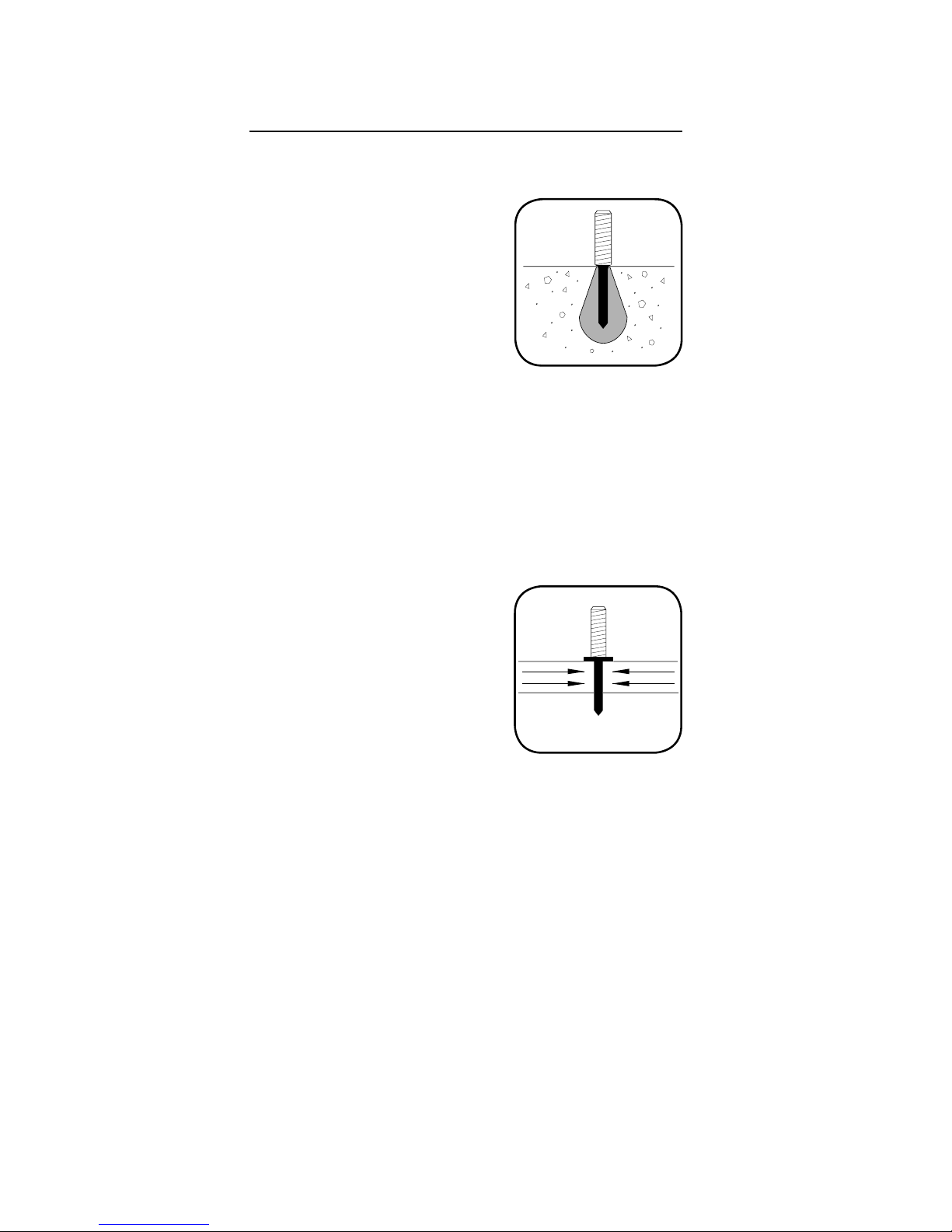

Why A Fastener Holds.........................................................12
Selecting Fasteners and Power Loads................................13

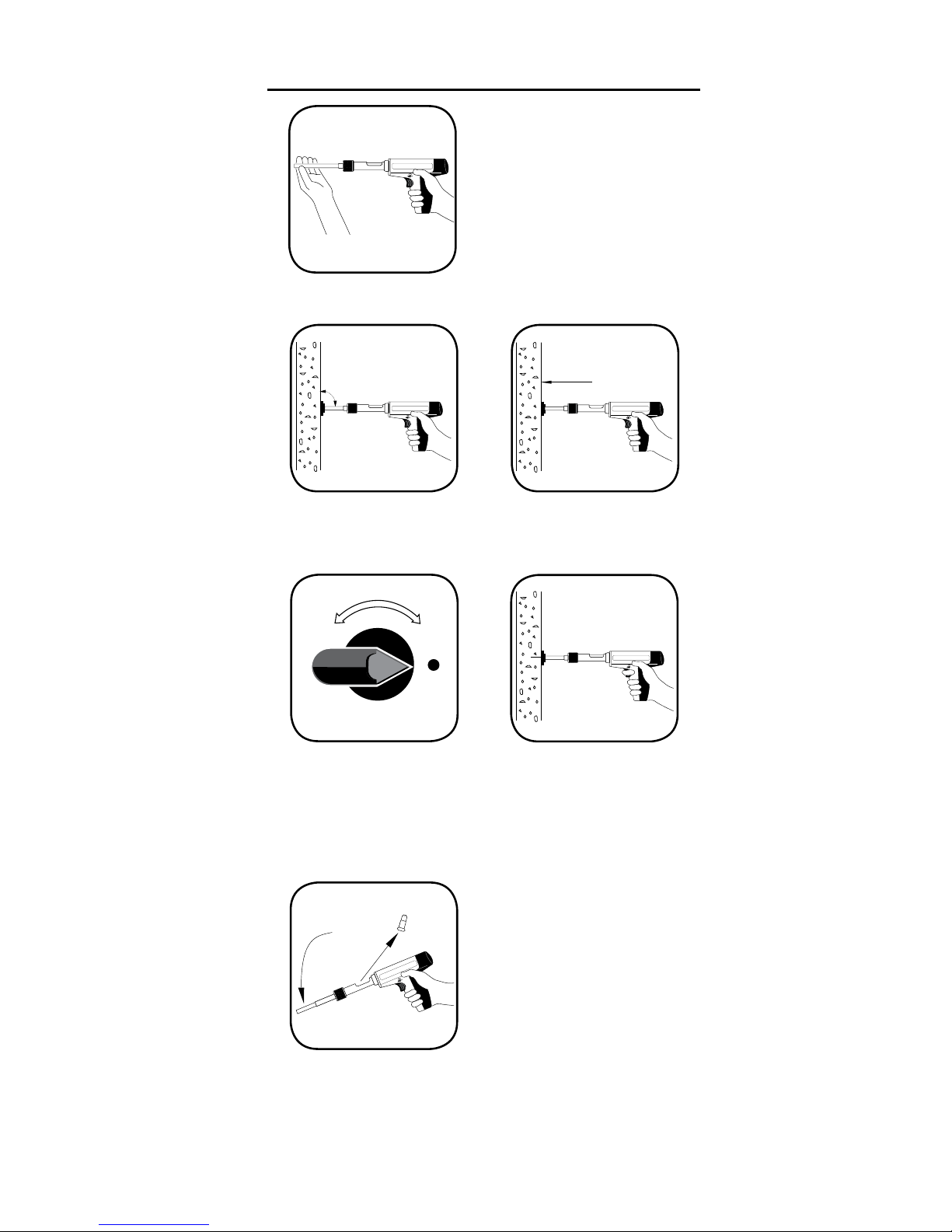

Operation....................................................................... 14-16

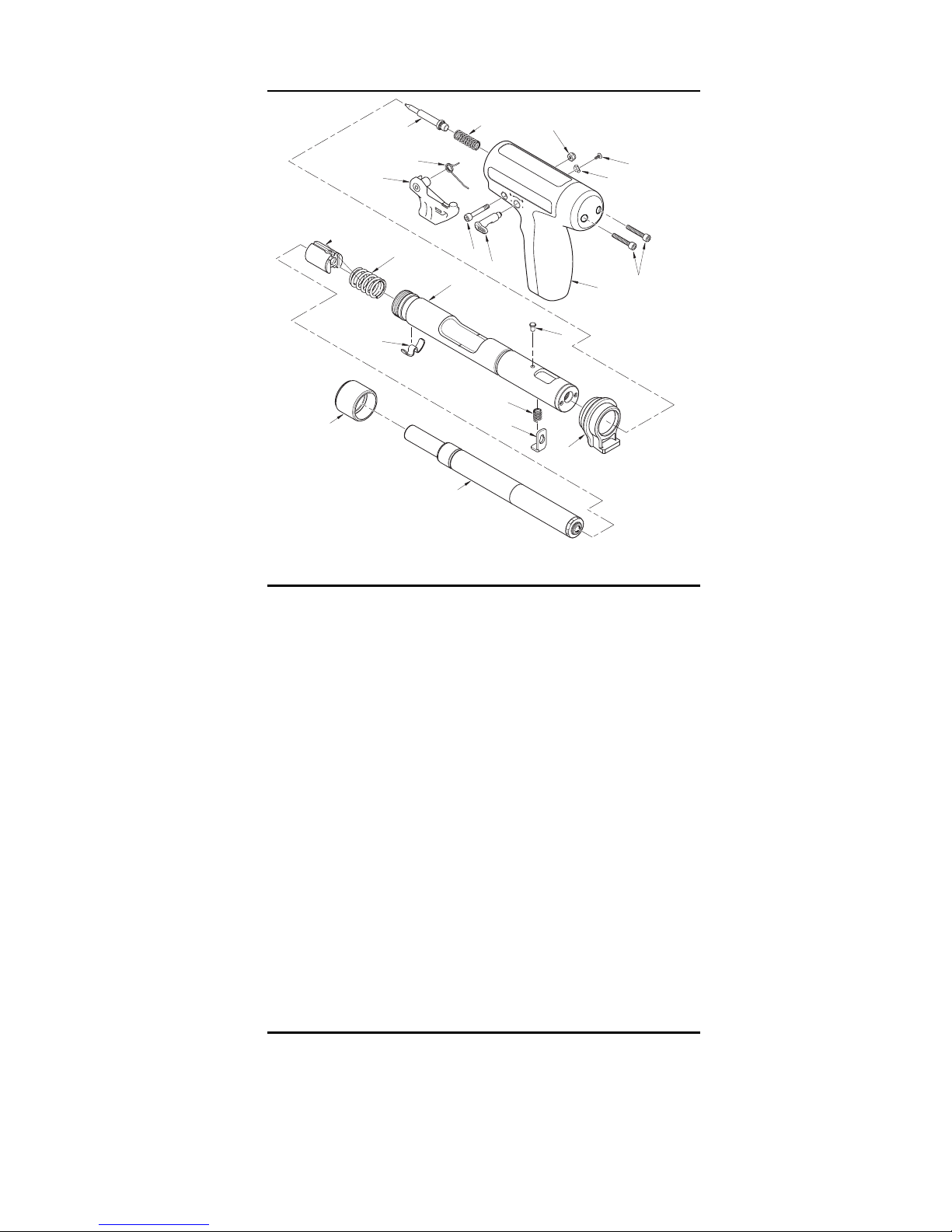

Parts List..............................................................................17
Accessories .........................................................................17

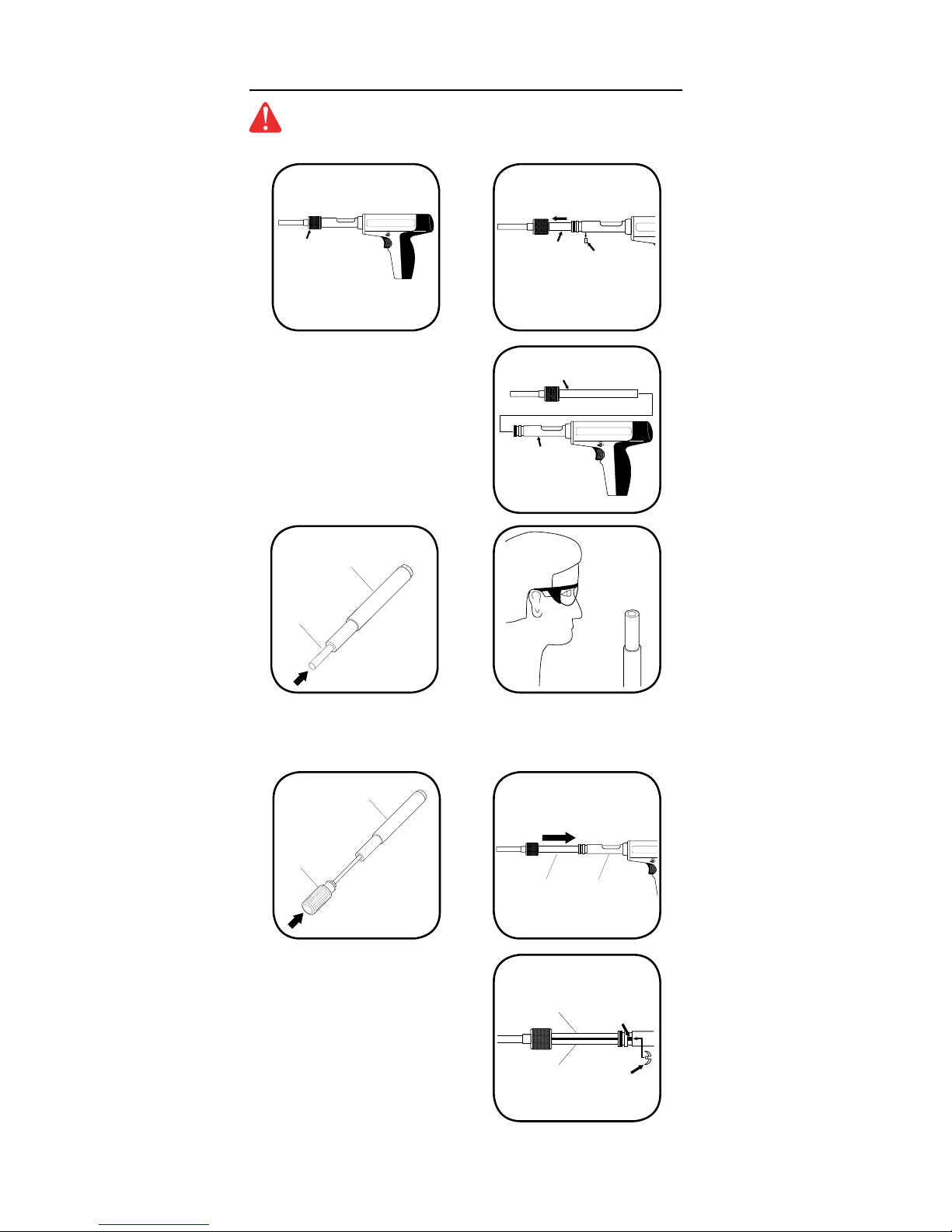

Barrel Replacement.............................................................18
Troubleshooting Guide ..................................................19, 20

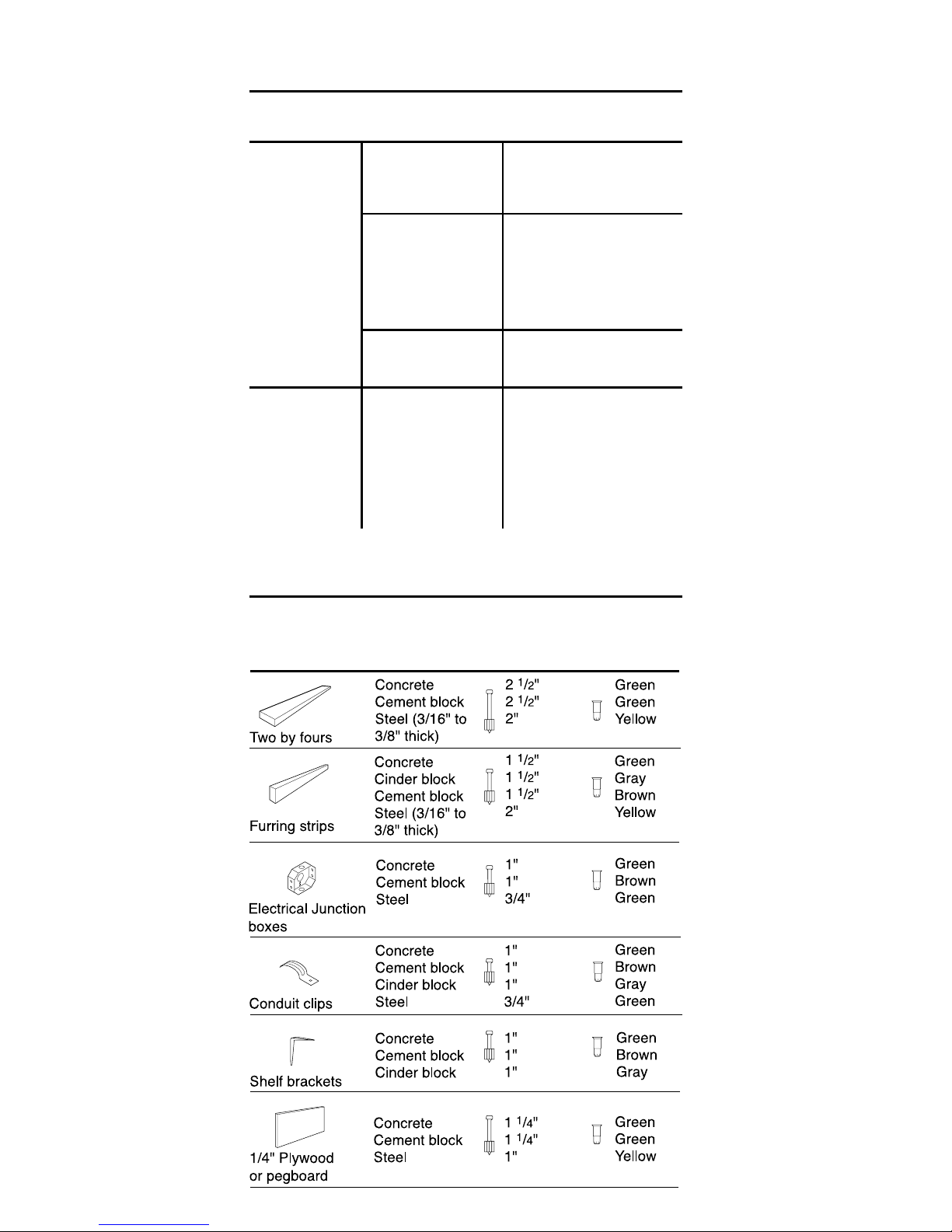

Application Chart ...........................................................20, 21
Replacement Parts and Accessories...................................22
Technical Service.................................................................22
Repair Service.....................................................................22
Parts Centrals......................................................................23
Limited Warranty .................................................................24

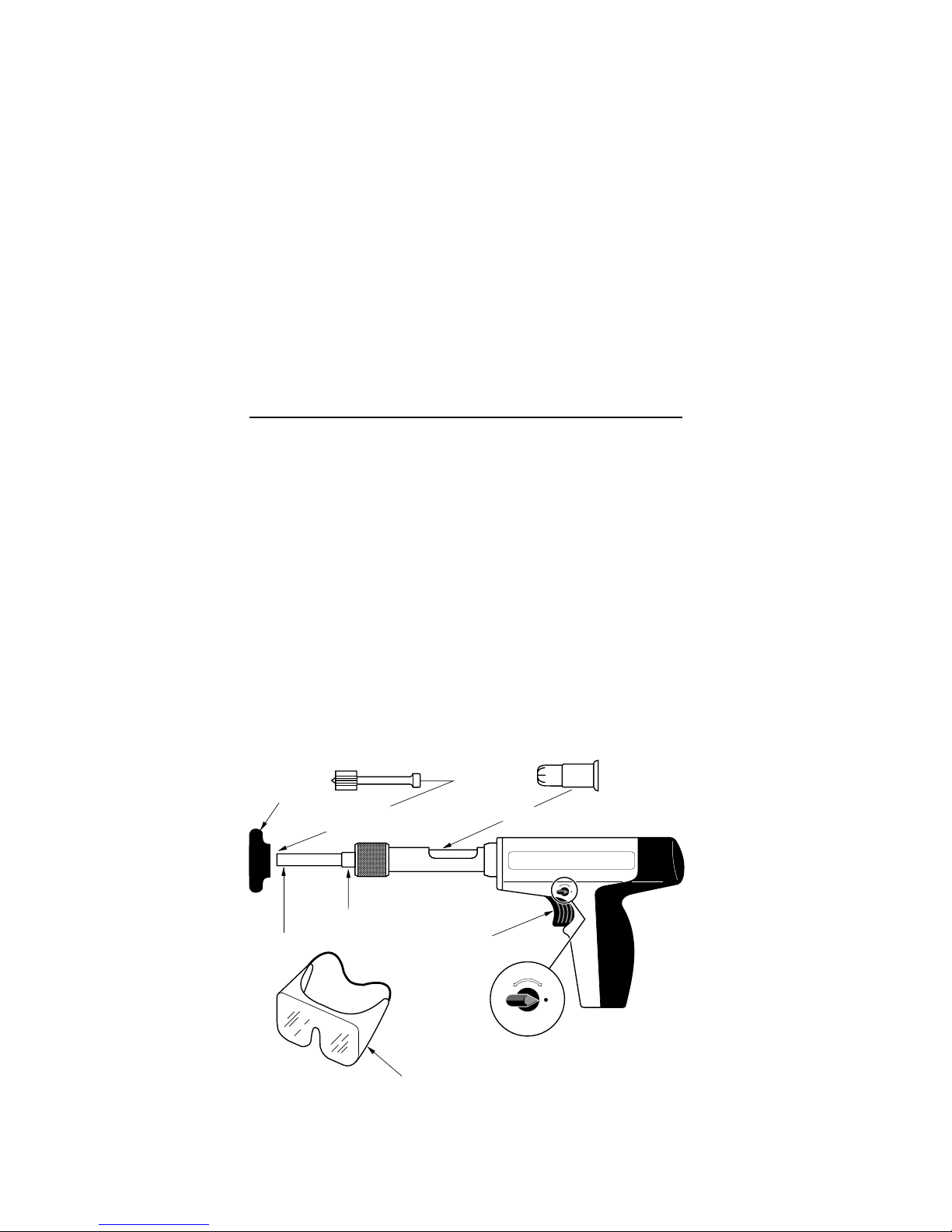

Power Load*
Trigger
Barrel Assembly
* Not provided with tool.
Spall
Shield*
Recommended
Approved Eye
Protection*
Muzzle
REMINGTON®
Model R300
The Remington®Model R300 is designed for use with Reming-
ton®.22 caliber, Type A, neck-down crimped power loads and
Remington®Power Fasteners. Remington®Power Fasteners
are manufactured from special steel and heat treated to pro-
duce a very hard, yet ductile, fastener.
The Remington®Model R300 is equipped with two safety
devices; a safety ON/OFF switch next to the trigger and a
spring-compression muzzle that must be fully depressed for
the tool to fire.
Power Fastener*
Safety ON/OFF
Switch

3
119586
Warning: Safety
Precautions
The following pages contain detailed warnings, cautions, and
rules of safe operation. Read carefully and become familiar
before operating to avoid serious injury. We expressly disclaim
any liability for any injury to persons or damage to property
which result from your failure to take the precautions contained
in this manual.
WARNING: This tool is designed only for use by qualified
operators. Qualification is obtained through a thorough under-
standing of the Safety Precautions and operating instructions
as defined in this operating manual. NOTE: The labor regula-
tions of many states require that the operator of this tool on
a job site be thoroughly trained and certified for competence
prior to operating this tool. For certification procedures, call:
DESA Power Tools™ Technical Services Department, 1-800-
858-8501 (English only) or visit www.desatech.com.
?
?
S F
S F
489.004

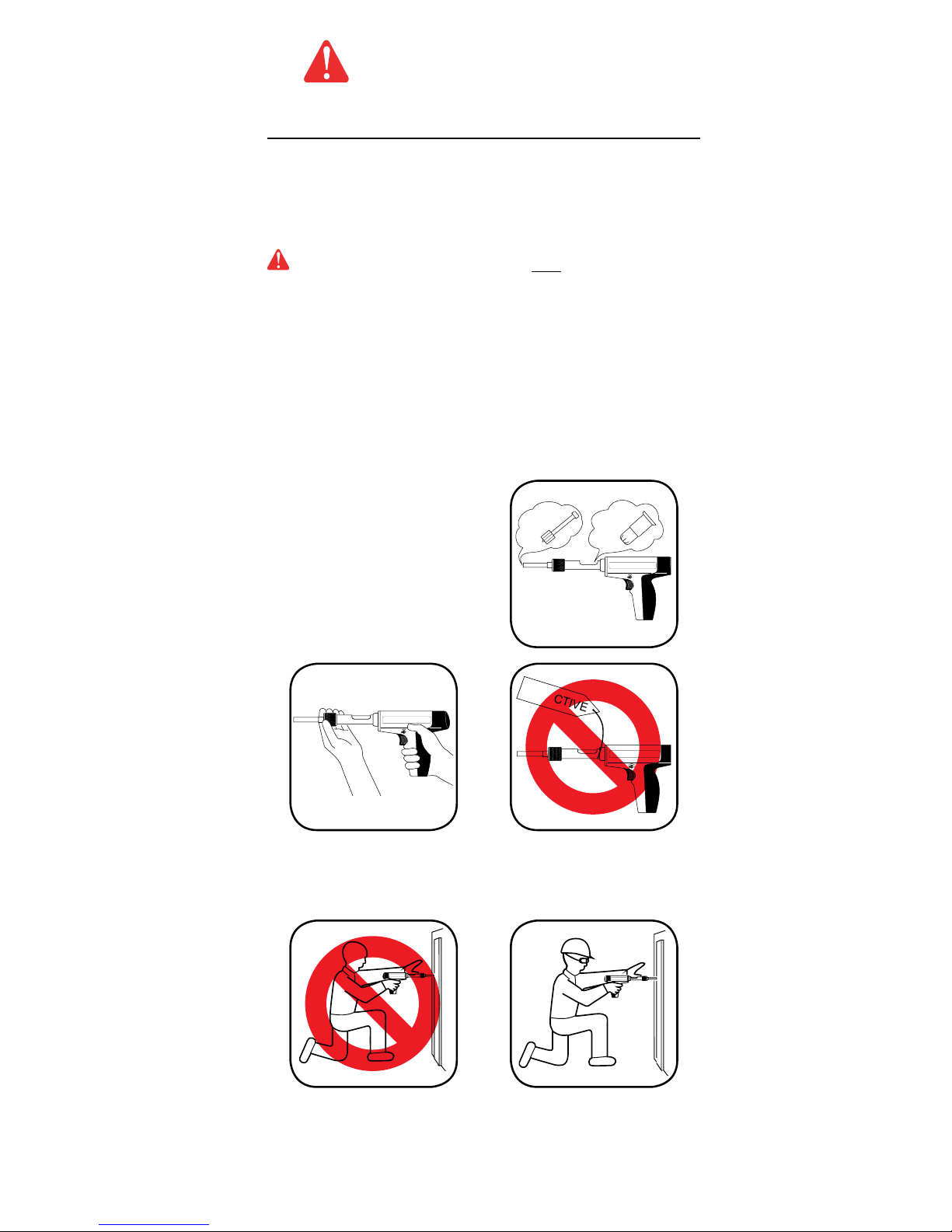

BEFORE USING
1. ALWAYS handle the tool
as if it were loaded. Before
starting work, check that
the tool is unloaded and
the muzzle is clear. NEVER
load a tool unless it is going
to be used.
2. ALWAYS inspect to make sure the tool is working properly.
If the tool does not work properly, remove from service and
tag DEFECTIVE. DO NOT use the tool again until it has
been properly repaired.
3. Operators and bystanders must ALWAYS wear goggles
and ear protection which meet or exceed the accepted
standards for adequate protection in your country. In the
USA, refer to ANSI standards. In Canada, refer to CSA
standards.
S F
DEFECTIVE

4119586
5. ALWAYS make sure the work area is clean from loose
material and debris.
1. NEVER place your hand over the muzzle. Accidental dis-
charge can cause serious injury.
HANDLING THE TOOL
2. NEVER place your finger on the trigger until the muzzle of
the tool is against the work surface.
4. ALWAYS clear the work area on all sides and post appropri-
ate warning signs on job sites.
S F
S F
POWDER
ACTUATED
TOOLS
IN USE
WARNING
!
S F
Safety Precautions
SF
S F

5
119586

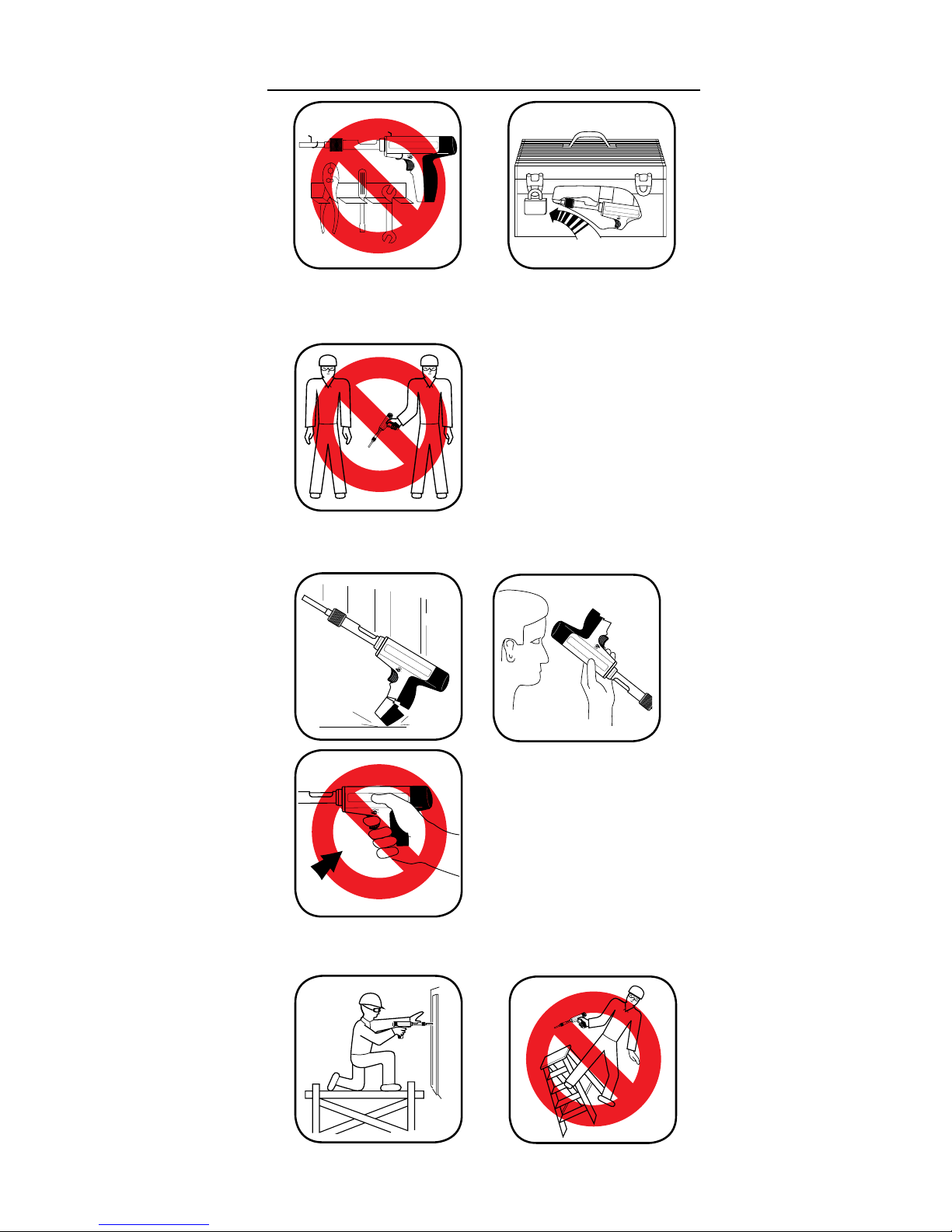

4. NEVER carry or pass a loaded powder actuated tool.
NEVER point a powder actuated tool at anyone.
3. ALWAYS store UNLOADED powder actuated tool and
power loads in a locked container. Keep power loads of
different power levels in separate containers.
5. Ifthetoolisdropped,inspectfordamageandrepairitbefore
continuing to work. NEVER use a damaged tool.
6. ALWAYS take precautions to maintain your balance while
operating a powder actuated tool.
POWER
LOADS
POWE
LOAD
SF
SF
SF
Safety Precautions
S F
S F
SF
SF

6119586
7. An operator taking medi-
cation should take extra
precautions while handling
the tool. NEVER drink al-
coholic beverages or take
medications which impair
your vision, balance, or
judgement before using a
powder actuated tool.
KNOW YOUR FASTENING BASE MATERIAL
1. ALWAYS know the thickness and type of base material
into which you are fastening. NEVER GUESS. Test the
base material by using the Center Punch Test. The Center
Punch Test is performed by using a hammer to test drive
the particular power fastener to be used into the material.
If the point penetrates easily, the material is too soft. If the
point becomes blunt, the material is too hard. If the material
fractures, cracks or shatters, the material is too brittle. Test
fastenings can be made if the material shows a clear power
fastener impression and the power fastener point is not
blunted. ALWAYS start with the lowest power load (Gray-
Level 1) and proceeding with the order shown in the lower
right-hand figure above. Operators and bystanders must
ALWAYS wear goggles and ear protection which meet or
exceed the accepted standards for adequate protection
in your country. In the USA, refer to ANSI standards. In
Canada, refer to CSA standards.
?
?
?
?
?
?
?
CENTER
PUNCH TEST
TOO SOFT
Sinks in
with
average
hammer
blow
Start
1
GRAY
3
GREEN 4 YELLOW
2
BROWN
Safety Precautions
TOO HARD
Point
flattens
TOO BRITTLE
Surface
shatters

7
119586
3. NEVER make fastenings in spalled or cracked areas.
2. NEVER attempt to drive power fasteners into very hard or
brittle materials including, but not limited to cast iron, glass,
tile, stone, brick, or hardened steel. Materials of this type
tend to shatter and create hazard from flying particles.
4. NEVER drive power fasteners into thin or easily penetrated
material unless it is backed by concrete or steel. When in
doubt, such as when base material is concealed, conduct
a Center Punch Test (See page 6). Check continually to
avoid fastening into unsuitable material, especially in older
buildings.
5. DO NOT fasten through or within 1/2" of predrilled or pre-
punched holes.
S F
Safety Precautions
S F
CAST IRON GLASS
S F
TILE BRICK
S F
S F

8119586
7. DO NOT drive power fasteners into steel base material
less then 3/16" thick, within 2" of a weld, within 1/2" of the
edge, or within 1" of another power fastener.
3" 3"
3"
6. DONOT drive power fasteners into concretelessthan three
times as thick as the intended power fastener penetration,
within 3" of the edge, within 3" of another power fastener,
or within 3" of a failed power fastener.
8. When fastening into masonry walls, always drive into
horizontal mortar joints, NEVER into vertical mortar joints.
BE CAREFUL, a poorly laid joint may permit too much
penetration and/or unsatisfactory holding power.
OPERATING THE TOOL
1. ALWAYS hold tool perpendicular to work surface.
3"
3X
1X
3/16" MIN
1/2"
1"
YES
SF
90˚
S F
Safety Precautions
TOO THIN
WELD
NO
SF

9
119586
WATER
SF
3. ALWAYS use the spall shield when driving directly into
concrete or steel. ALWAYS wear eye protection.
4. NEVER use a powder actuated tool in an explosive or
flammable atmosphere or when non-sparking tools are
required.
POWER LOADS AND POWER FASTENERS
1. NEVER leave unfired power loads on floors or work surfaces.
2. Should the tool fail to fire, hold the muzzle firmly against
the work surface for 30 seconds. Release the trigger and
remove pressure on the tool while holding the muzzle
against the work surface.Again press the tool firmly against
the work surface and pull the trigger. If the tool still fails to
fire, hold the tool firmly against the work surface for another
30 seconds before unloading and carefully discarding the
misfired power load into water or oil.
30
S F
S F
Spall
Shield
Safety Precautions
S F
GASOLINE
GAS
OLINE
POWER
LOADS
POWER
LOADS

10 119586
1
2
3
4
5678
9
10
11
12
1
22
L
E
K
C
I
N
B
R
A
S
S
C
A
L
I
B
E
R
POWER
LOADS
ONLY
NOTE:
Failure to start with
the lowest power level
can result in overdrive
condition and will re-
sult in damage to tool
(see page 13).
Start
1
GRAY
3
GREEN 4 YELLOW
2
BROWN
Safety Precautions
2. Remington
®
PowerLoadsareavailableinfourpower levels with
gray (1) being the lowest power level and yellow (4) being the
highest power level. start with the lowest power level (gray-
level1)and increaseuntila properfasteningismade(see page
13, Selecting Power Fasteners and Power Loads).
3. NEVER use power loads in firearms.
4. NEVER carry power fasteners or other hard objects in the
same pocket or container with power loads.
5. Acolor blind person must take extra precautions to prevent
the chance of mixing the power loads of various levels.
YELLOW?
BROWN?
GREEN?
GRAY?
POWER
LOADS
POWER
LOADS
