MKT 240
Recessed grip
Recessed grip
Control
panel
Infrared
Infrared
receiver
receiver
Transport
rollers
rollers
Air directing
plate fi ns
plate fi ns
2
Before delivery, this device was sub-
jected to numerous material, function,
and quality tests. Nevertheless, the
device may present a danger if used by
untrained personnel, improperly, or not
according to regulation!
Observe the following notices:
■
The device is not suited for out-
door operation.
■
The device may not be set up and
operated in rooms at risk of explo-
sion and in atmospheres containing
oil, sulphur, or salt.
■
Make sure it is at a suffi cient
security distance to infl ammable
objects.
■
Do not place any objects on the
device.
■
Observe the minimum clearances
(Fig. 2).
■
Do not insert any objects into air
inlets and outlets.
■
Erect the device on an even, stable
surface. Never place it on its side
(Fig. 3).
■
Operate the device only when it is
upright.
■
Do not expose the device to direct
water spray.
■
Operate the device only within its
permissible operating limits (16 to
35°C).
■
Do not pull on or bend the mains
supply line.
■
Protect all electrical lines of the
device from damage, even from
animals.
■
Select the extension lines of the
mains supply line depending on
mains supply line depending on
the connected load of the device,
the connected load of the device,
the line length, and the intended
the line length, and the intended
use.
■
Do not lay lines under carpeting.
Do not lay lines under carpeting.
■
Never operate the device with-
Never operate the device with-
out an air fi lter.
■
Never direct the air fl ow at
Never direct the air fl ow at
people.
■
Never open the device housing
Never open the device housing
as there is a danger of an electri-
as there is a danger of an electri-
cal shock.
■
Work on the cooling system and
Work on the cooling system and
the electrical equipment may be
the electrical equipment may be
carried out only by an
carried out only by an
authorised specialist.
authorised specialist.
Transporting the device
Transporting the device
■
Before transport, switch off the
device and pull the mains plug.
■
Transport the device only in an
upright position.
■
We recommended that any
condensate be drained using the
condensate drain spout on the
back side of the device before
transport.
■
After every transport of the
device, wait at least 5 minutes
before recommissioning it
(Fig. 4).
Safety Notices
Operation other than as de-
scribed in these instructions is
prohibited. Nonobservance leads
to the extinguishment of any li-
ability and warranty claims.
Fig.
2
Minimum clearances
Side 500 mm
Front 500 mm
Rear 400 mm
Top 100 mm
Scope of Supply
1 MKT 240 air conditioner
1 Infrared remote control
2
Batteries (type AAA/1.5 V)
1
Air outlet hose with connection
pipe adapter and
win
dow jet
Exhaust air
outlet
Connecting line
with plug
with plug
Condensate drain
spout with plug
Air inlet
(circulation air)
with air fi lter
Window
Window
jet
jet
A
ir outlet
hose
Air inlet
(exhaust air)

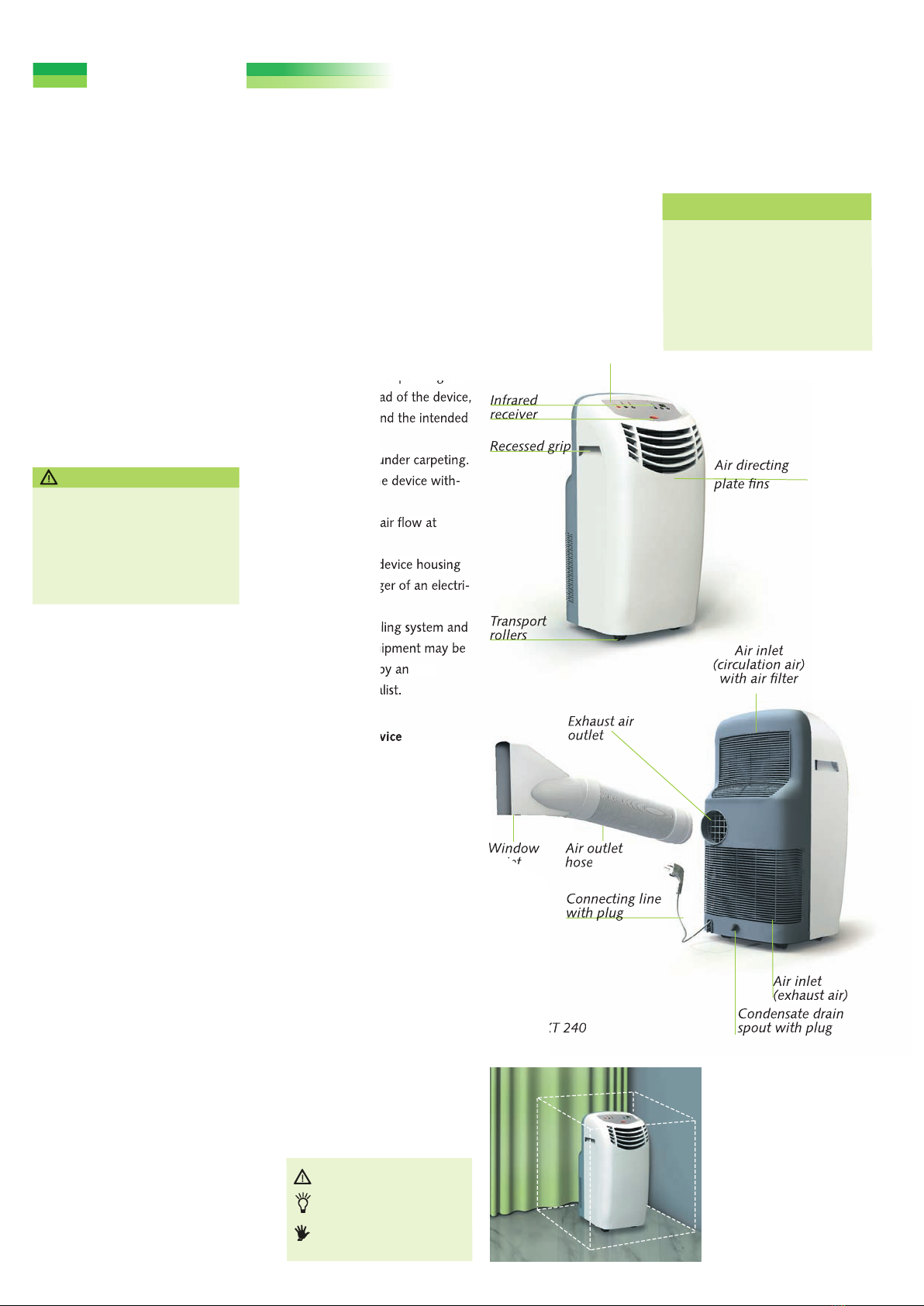

Fig.
1
MKT 240
MKT 240
Caution
TIP
CAUTION
DANGER

3
Delivery
All devices are carefully packed
before shipping. Please check the
device immediately after delivery.
Make a note of any damage or
missing parts on the delivery note
and inform the forwarding agent
and your contractual partner. No
warranty can be assumed for later
complaints.
Erecting the device
■
Make sure that all air intake
and air outlet openings are
free; observe the minimum
clearances (Fig. 2).
■
Erect the device on a solid,
even foundation (Fig. 3).
■
Make sure that people and
sensitive objects such as plants
are not directly affected by the
emerging air.
■
Connect the device to a
properly installed plug socket
(230V/50Hz) (Fig. 5).
■
Insert the batteries into the
remote control. To do so,
push up the cover on the back
side of the remote control
and insert the batteries while
observing the proper polarity.
Observe the marking inside
the compartment (Fig. 6).
■
Check whether the plug of the
condensate drain spout has
been provided and whether
it has been properly inserted.
There is otherwise a danger of
water emerging.
Exhaust air conduction
During the operation of the air
conditioner, the device creates
humid exhaust air that must be
conducted outside of the room
so that the cooling effect can be
maintained.
Observe the following notices:
■
Plug the air outlet hose in-
cluded in delivery onto the air
outlet on the rear panel of the
device.
■
Lock both catches on the air
outlet into both openings of
the air outlet hose.
■
Keep the air outlet hose as
short as possible (max. length
1400 mm).
■
Always lay the air outlet
hose with a constant upward
incline from the device to the
wall/window.
Make sure it has
a wide curve radius (Fig. 7).
■
The air outlet hose may not be
extended.
■
Pivot-hung windows
·
Connect
the air outlet hose to
Connect the air outlet hose toConnect
the window jet and the de-
vice.
·
Op
en the window a
nd l
ay
the
fl at nozzle between the win
dow trim and the window
frame
(Fig. 8)
.
■
Double-wing window
Lay the fl at nozzle between
the wings, close the window
as far as possible, and secure
the wings with a holding strap
(Fig. 9).
■
Wall bushing
In case of permanent instal-
lation (s. p. 9, Fig. 19), the
exhaust air from the device is
conducted outside the room
through the wall bushing (Fig.
10).
Device Structure
Fig.
8
Hanging
the window jet
into a pivot-hung
window
Fig.
9
Secure the double-wing
window using a holding strap.
Fig.

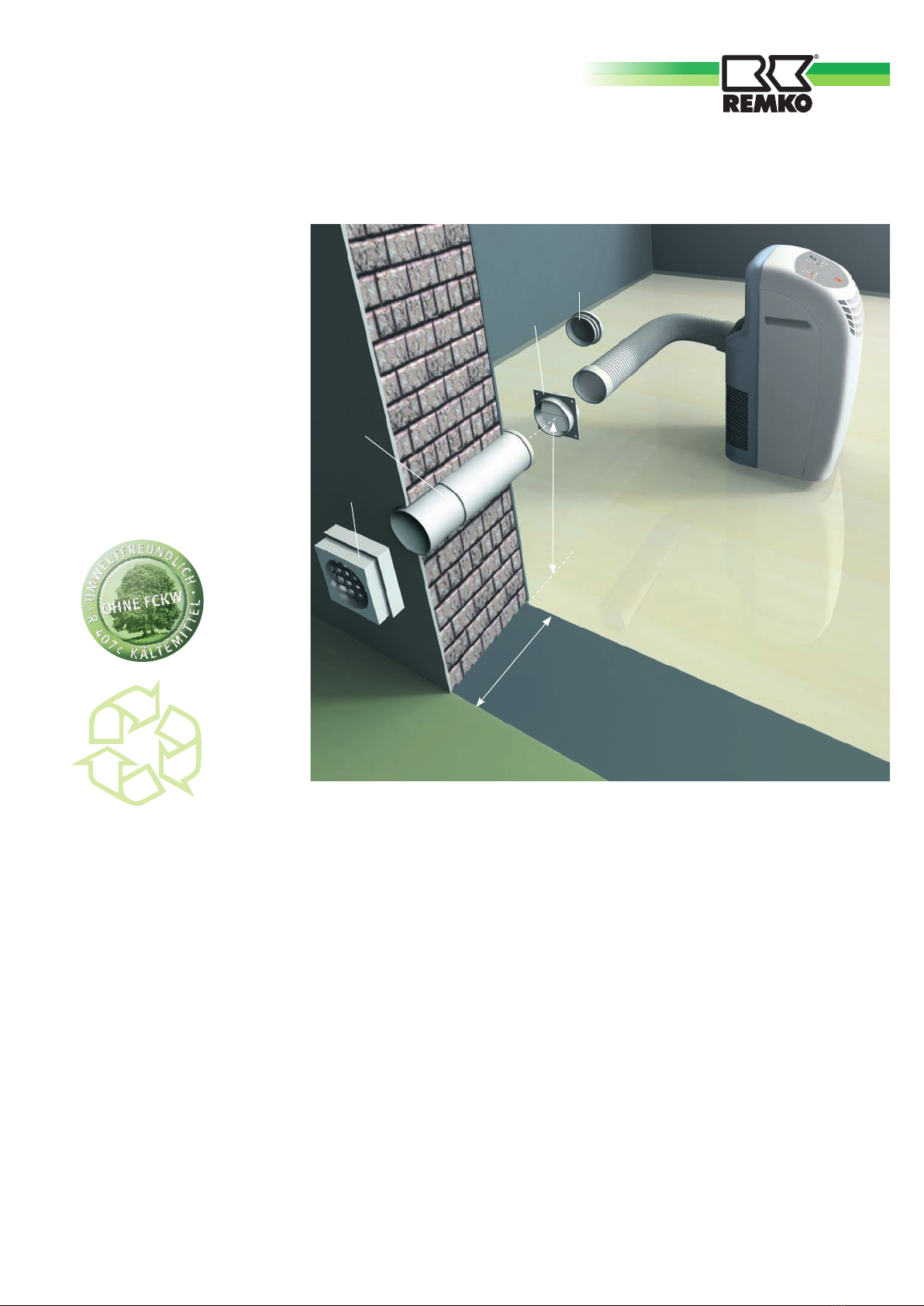

10
Permanent installation
with a wall bushing (accessory,
not included in supply schedule)
Fig.
3
Vertical erection on
solid, even foundation
Fig.
4
Five-minute “wait“
Fig.
5
230 V / 50 Hz
Fig.
6
Remote control
6 Remote control 6
Abb.
7
Attach the air outlet
7 Attach the air outlet 7
hose with a constant upward
incline

MKT 240
7
7
6
6
4
14
1
5
5
2
3
3
Infrared
transmitter
4
1 On/off “Power“ button
2 “Mode“ button
3 “Fan Speed“ button
4 “Timer“ button
5+6
Temperature/time setting buttons
“Timer/Temp. Adjust“: 5 higher, 6 lower
7 Display
8
Red fault LED: Reservoir full (s. p. 7 Trouble Shooting)
An acoustic and an optical signal indicate that the fl oat switch of the internal
reservoir has shut down the operation of the device. The acoustic signal dies
down after a short period of time, but the LED remains active.
9
Mode LED
Green: “Cool“
Orange: “Dehumidify“
Yellow: “Fan“
10
Orange LED for the fan speed, with high/medium/low speed “High“/“Med“/
“Low“
11 Green LED for the time delay, “Timer“
12 Green “Room Temp“ LED
(If this LED lights up the current room temperature is shown in the display (7))
13 Green “Set Temp“ LED
14 “°C/°F“ toggle button (only on the remote control)
Operation
The device is operated comfortably using
the control panel on the device or the in-
frared remote control. Keys with the same
symbols have the same function.
Mode“
selection (2)
■
“Cool“
The device is used to cool the room. It fi lters
and dehumidifi es the air and thus creates a
pleasant room climate.
■
“
Dehumidify“
In the “Dehumidify“ mode, humidity is
removed from the air.
■
“
Fan“
The device circulates the air, fi lters it, and
creates an even air fl ow.
1
1
2
2
3
3
Infrared
Infrared
receiver
4
4
5
5
6
6
7
12
10
9
8
11
13

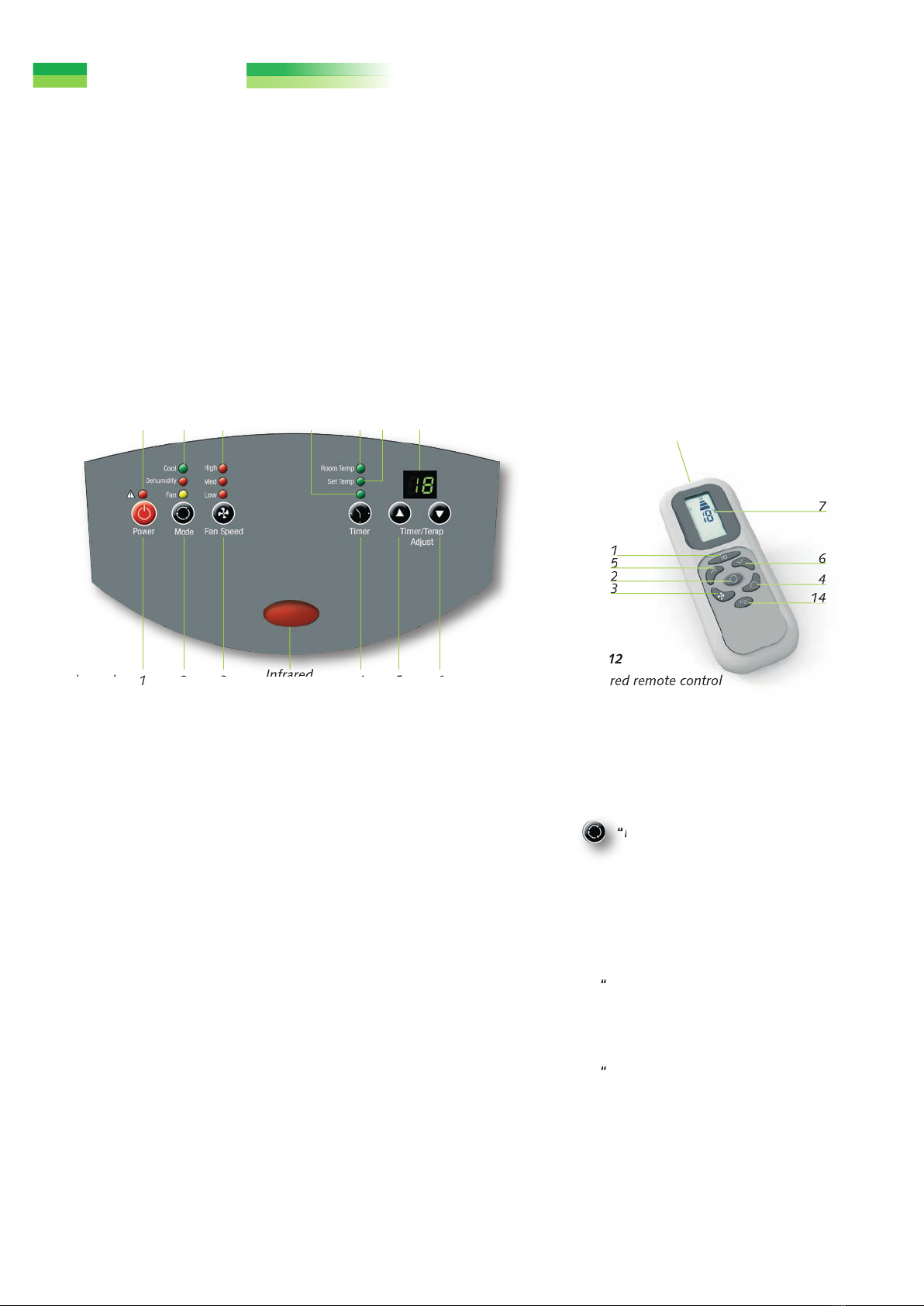

Fig.
11
Control panel
Control panel
Fig.
12
12
Infrared remote control
Infrared remote control
“
Mode“
■
Point the infrared transmitter of the
remote control at the infrared receiver
on the control panel.
■
In order for the signal to be received
without interference, there should be
no objects between the remote control
and the device (reach of approx. 5 m).
■
The proper reception of the signal is
indicated acoustically.

TIP
5
“Dehumidify“
mode
1.
Attach the air outlet hose to the wall
bushing or the window.
2.
Activate the device using the “Power“
button (1).
3.
Press the “Mode“ button (2) until the
“Dehumidify“ LED (9) lights up; the fan
is automatically switched to the “Med“
or medium fan speed stage.
“
Fan“
mode
1.
Activate the device using the “Power“
button (1).
2.
Press the “Mode“ button (2) until the
“Fan“ LED (9) lights up.
3.
Select the fan setting using the “Fan
Speed“ button (3):
“High“ highest speed
“Med“ medium speed
“Low“ lowest speed
4.
The room temperature is not infl uenced
and remains constant. For this reason,
the temperature and time setting
“Timer/Temp. Adjust“ buttons (5/6)
cannot be used.
“Cool“ mode
1.
Attach the air outlet hose to the wall
bushing or the window.
2.
Activate the device using the “Power“
button (1) .
3.
Press the “Mode“ button (2) until the
“Cool“ LED (9) lights up.
4.
Select the fan setting using the “Fan
Speed“ button (3):
“High“ highest speed
“Med“ medium speed
“Low“ lowest speed
5. I
f the “Room Temp.“ LED (12) lights up,
the current room temperature is shown
in the display (7).
6.
As soon as the (4/5/6) button is
pressed, the display switches from the
room temperature to the set tempera-
ture (LED 13 lights up) and shows the
desired temperature for 15 seconds.
7
.
Set the desired room temperature using
the “Timer/Temp. Adjust“ button (5/6).
The up arrow (5) increases the set value
shown in the display (7), while the
down arrow (6) decreases it.
“Timer“ time delay (4)
You can turn the device on and off
automatically using the timer. To do so,
an activation/deactivation delay is pro-
grammed.
■
Automatic activation
1.
Activate the device using the
“Power“ button (1).
2.
Select the mode and make all set-
tings for the desired mode.
3
.
Deactivate the device using the
“Power“ button (1) .
4
.
Press the “Timer“ button (4).
5
.
Set the time using the “Timer/
Temp. Adjust“ button (5/6).
Only whole hours can be entered.
6
.
The
LED (11) fl ashes.
7
.
The device activates automatically
at the set time.
■
Automatic
deactivation
1
.
The device is running in the previ-
ously set mode.
2
.
Press the “Timer“ button (4).
3
.
Set the remaining run time using
the “Timer/Temp. Adjust“ button
(5/6).
Only whole hours can be entered.
4
.
The
LED (11) fl ashes.
5
.
The device deactivates automati-
cally at the set time.
“
Cool
“
mode
You can achieve a pleasant
room climate by selecting
a set temperature that is a
maximum of 4 to 7°C below
the outdoor temperature.
“Timer“ time delay (4)

MKT 240
6
With low cleaning effort, you
can guarantee malfunction-free
operation and a long service
life.
■
Use only mild, environment-
friendly cleaning agents.
■
Regularly clean the
ventilation slots.
■
Clean the device as required,
but at least once a year, with
a moist cloth and lukewarm
water.
■
Do not expose the device to
direct water spray.
Maintenance and Care
Cleaning the air fi lter
Clean the air fi lter regularly,
but at least every 100 operat-
ing hours. In case of strongly
contaminated air, the period is
reduced accordingly.
1.
Switch off the device and
pull the mains plug.
2
.
Remove the fi lter from the
device (Fig. 14).
3
.
Clean the fi lter using a
vacuum cleaner or, in case
of heavy soiling, carefully
using lukewarm water (Fig.
15/16).
4
.
Let the fi lter air-dry and then
reinsert it.
Fig.
14
Removing the air fi lter
upwards from the machine
CAUTION
Always turn off the device
and pull the mains plu
g
before
cleaning!
Never operate the device
without the air fi lter.
Fig.
15
/
16
Cleaning the air fi lter
Fig
.
17
Draining the condensate
Draining the condensate
■
The condensate evaporates
during operation and is then
conducted outside with the
exhaust air via the air outlet
hose.
■
In case of extreme humidity,
the device collects conden-
sate in a reservoir. If the
permissible level is exceeded,
the red fault LED lights up
and the device shuts down.
■
The reservoir must be
emptied via the condensate
drain spout (Fig. 17).
Fig.
13

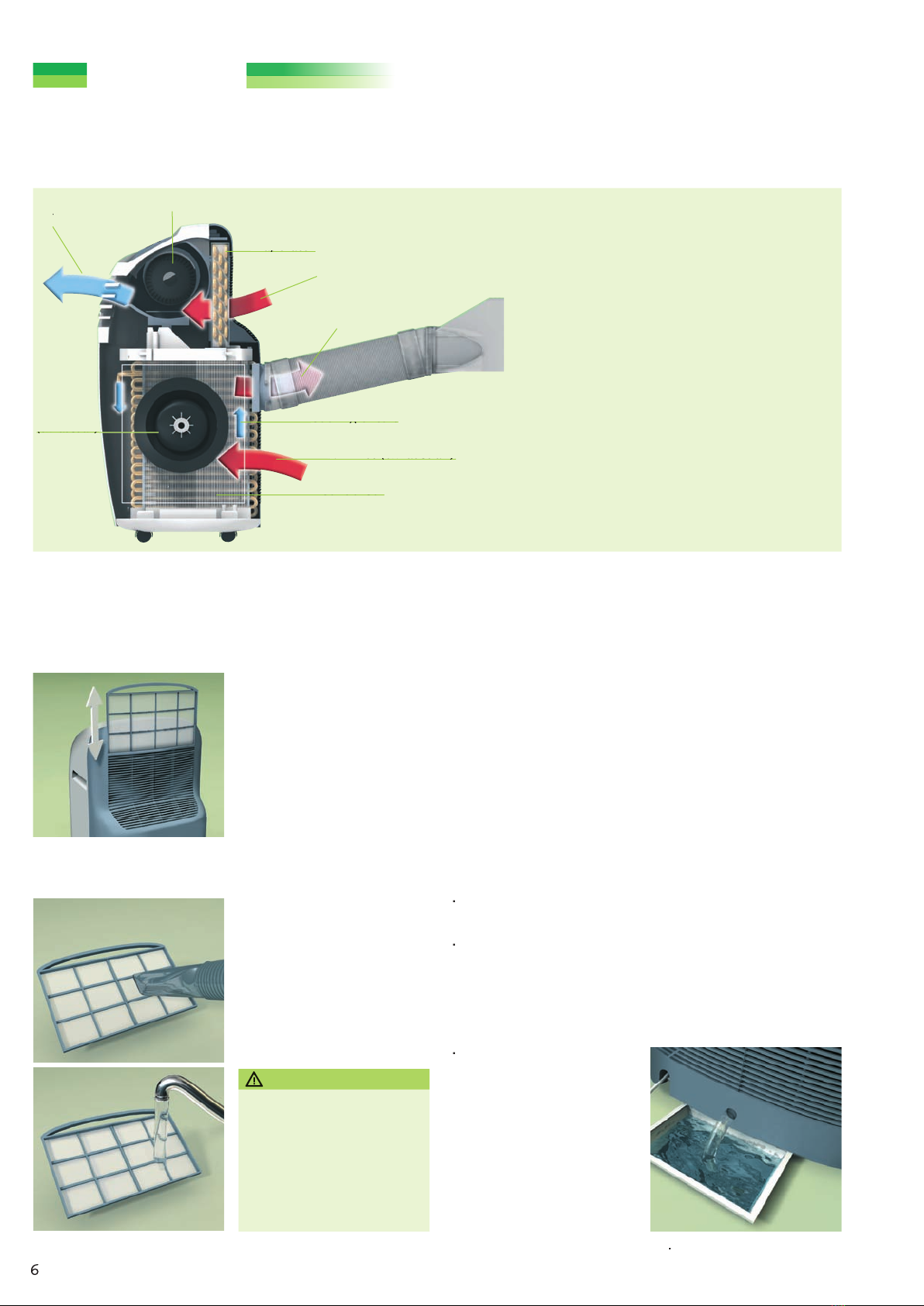

Functional principle of the cooling process
Functional principle of
the cooling process
The air conditioner
cools the air by re-
moving heat from it.
The fan (circulation
air) conducts cooled
air into the room. The
heat that the device
has removed from the
air is conducted out-
side via the air outlet
hose.
Ventilator
(exhaust air)
(exhaust air)
Evaporator
Evaporator
Condenser
Condenser
Cooling circuit
Cooling circuit
Air inlet (exhaust air)
Air inlet (exhaust air)
Air inlet (circulation air)
with air fi lter
Humidity is removed
from the air and drips
as condensate from the
evaporator onto the hot
condenser and evapora-
tes. Excess condensate
drips from the condenser
into a collection tray
and conducted from
there to the condenser
again using a rotor,
evaporated, and then
conducted away with
the exhaust air fl ow.
Cooled circulation
air
in the room
air in the room air
Fan (circulation air)
Warm exhaust air
outside

7
Contact your dealer or
contractual partner if the
device cannot be com-
missioned.
Never open the device
housing.
Never perform work on
the cooling circuit or the
electrical equipment.
Trouble Shooting
The device is not function
ing and the
control panel remains dark
.
■
Make sure that
· the mains plug is properly inserted;
· there is no power failure;
· the mains voltage is present (fuse)
■
Check the mains supply line for damage.

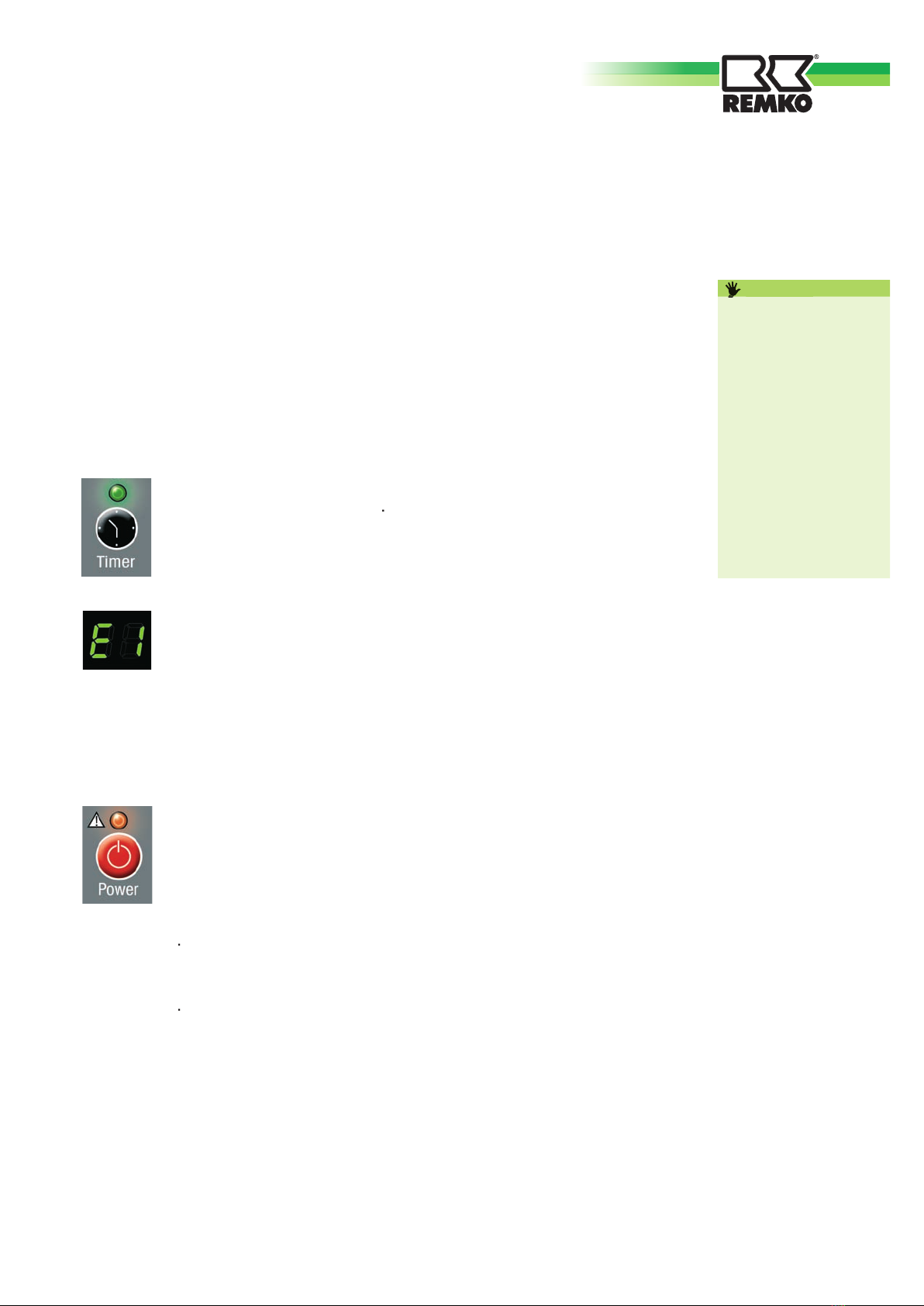

The device is not fun
ctionin
g and the
“Timer“ time del
ay
LED
is fl ash
ing
.
■
“Timer“ time delay is programmed.
Delete the timer setting.
The device is not functioning and
“E1“ is being shown in the display.
■
The room temperature lies outside the
operating range of 16 to 35°C. Wait
until the room temperature lies in the
working range (reduce the incident of
sunlight and close windows and doors,
if necessary).
The device deactivates automatically.
The fault LED fl ashes and a signal sounds
(reservoir full).
To drain the reservoir, proceed as follows:
1.
Switch off the device and pull the mains
plug.
2
.
Place a fl at tray under the condensate
drain spout and remove the plug (Fig.
17).
3
.
After the condensate has drained,
reinsert the plug fi rmly.
The device is not cooling properly.
■
Check the mode: the “Cool“ LED must
be lit.
■
For an optimum cooling capacity, close
the curtains and blinds. In addition,
make sure the windows and doors are
closed.
■
Make sure that
· the air outlet hose has been prop-
erly attached. It may not be bent,
declining, or laid in a tight curve;
· no foreign bodies impair the ex-
haust or intake air supply (observe
the minimum clearances);
· the air directing plate fi ns are free of
soiling or foreign objects
· the set temperature is not too high
(operating limits of the device: 16
to 35°C).
The
device does not react
to the remote control.
■
Make sure that
· the batteries are functioning;
change them if necessary;
· the batteries are inserted with the
correct polarity (cf. the marking);
· there are no objects between the
remote control and the device
(reach of approx. 5 m).
Condensate is emerging.
■
Make sure that
· the device is on a horizontal
foundation;
· the air outlet hose is properly at-
tached;
· the plug is fi rmly inserted in the
condensate drain spout.
DANGER
DANGER

MKT 240
8
CAUTION
■
The function of the device was precisely
checked several times at the factory. If
malfunctions that are not described in
the “Trouble Shooting“ chapter (s. p.
7) still appear, contact your dealer or
contractual partner.
■
In order for REMKO to assume the
warranty, the “Warranty Certifi cate“
included in delivery must be completely
fi lled out and sent to REMKO GmbH &
CO KG immediately after purchasing or
commissioning.
Warranty

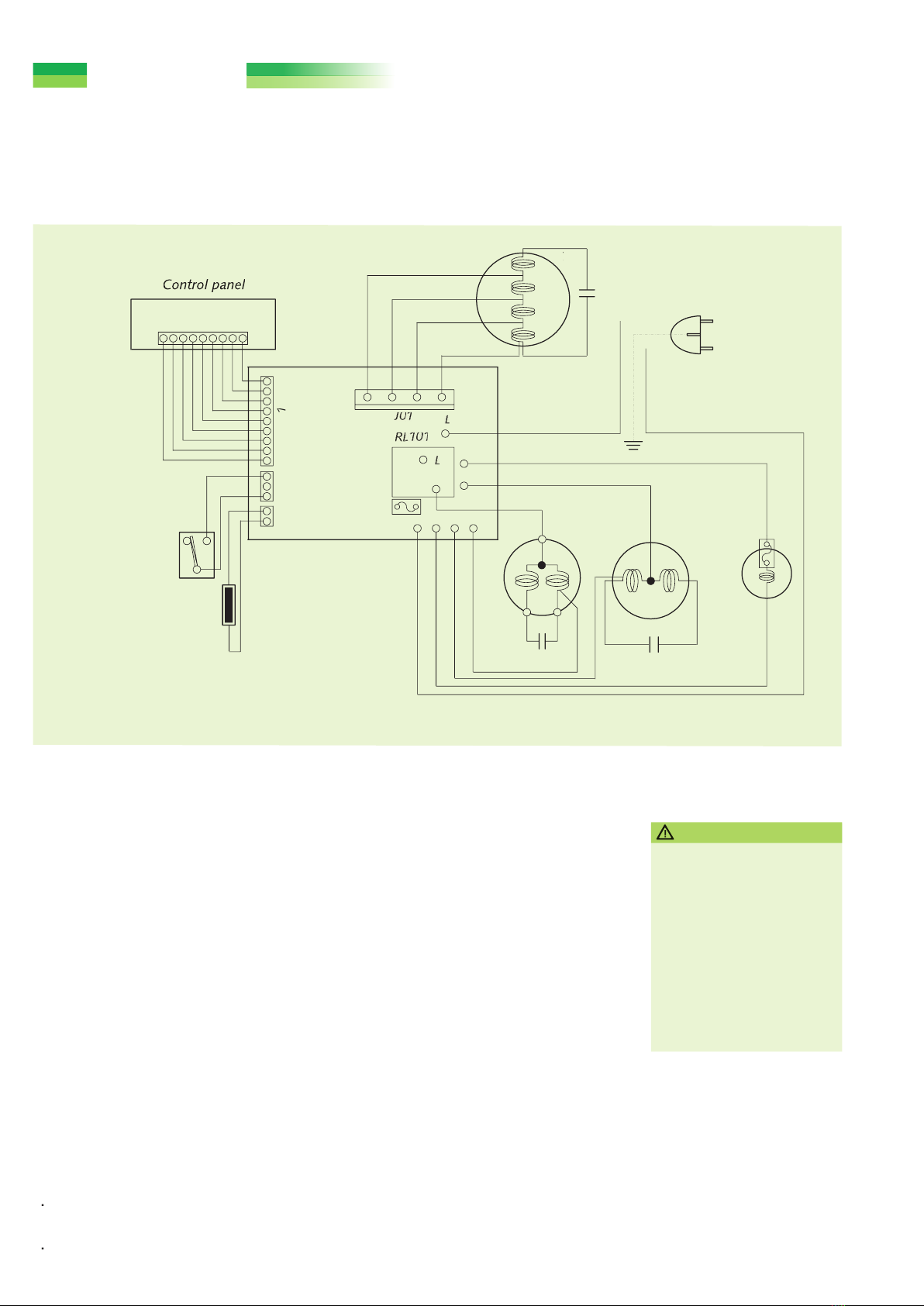

Electrical wiring diagram
The manufacturer is not li-
able for damage that occurs
due to nonobservance of
manufacturer instructions or
the legal requirements or due
to unauthorised changes to
the device.
Fig.
18
E
lectrical wiring diagram
Technical dimensions and design sub-
ject to alteration
Control panel
Evaporator fan
C
ondenser
R
ed
Orange
Yellow
W
hite
WhiteW
R
ed
R
ed
Red
Blue
Blue
Blue
Blue
Condenser
Condenser
Compressor
Evaporator fan
Reservoir motor
Mains plug
White
Blue
White
Blu
e
Microswitch
Temperature
sensor
J003
J00
2
J00
1
Hi
Med
Lo
L
N
E
Brown
COMP
To take the device out of service,
deactivate it fi rst by pressing the “Power“
button. Then pull the mains plug.
If the device must be shut down for a
longer period of time, for example, for
storage during the winter, observe the
following:
1.
Let the machine run for about two
hours in the “Fan“ mode to dry the sur-
face of the evaporator plate fi ns. In this
way, the residual moisture is removed
from the device and you can prevent
unpleasant smells during recommission-
ing.
2
.
Switch off the device, pull the mains
plug, and roll up the mains supply line.
3
.
Drain the condensate (s. p. 6).
Taking out of service

9
Protective
grille
Sealing cap
Telescopic
pipe
min. 430 mm
Trap
max. 480 mm
Environment and Recycling
■
Dispose of the packaging in an eco-
friendly manner.
■
Do not dispose of the device in
domestic rubbish.
■
Both the refrigerant and the plant parts
are subject to special disposal
conditions.
■
The refrigerant used belongs to the
chlorofl uorocarbon refrigerant group. If
it is released into the air due to damage
to the cooling circuit, injury to the respi-
ratory organs of people and animals will
not occur.
Installation Instructions for the Wall
■
Create a core hole in the outside wall
(max.- wall thickness of 480 mm) with a
diameter of at least 135 mm.
■
Take the minimum distance of 430 mm
between the fl oor (mounting surface of
the device) and the centre of the wall
bushing into consideration.
■
Insert the telescopic pipe into the wall
bushing
■
To prevent cold bridges, insulate the
telescopic pipe with suitable insulating
material.
■
Wall the telescopic pipe into the core
hole in such a way that it is fl ush to both
sides of the wall.
■
Mount the protection grill on the out-
side of the wall (make sure it is protect-
ed from rain).
■
Fix the trap to the inside.
■
The “top“ label on the trap must be
legible from the inside!
■
When taking the device out of service,
for example, at the beginning of winter,
close the opening of the trap using the
sealing cap to prevent air circulation.
Fig.
19
Installation diagram
for the wall bushing

MKT 240
10
Fig.
20
Device diagram of the MKT 240
Technical dimensions and design
subject to alteration

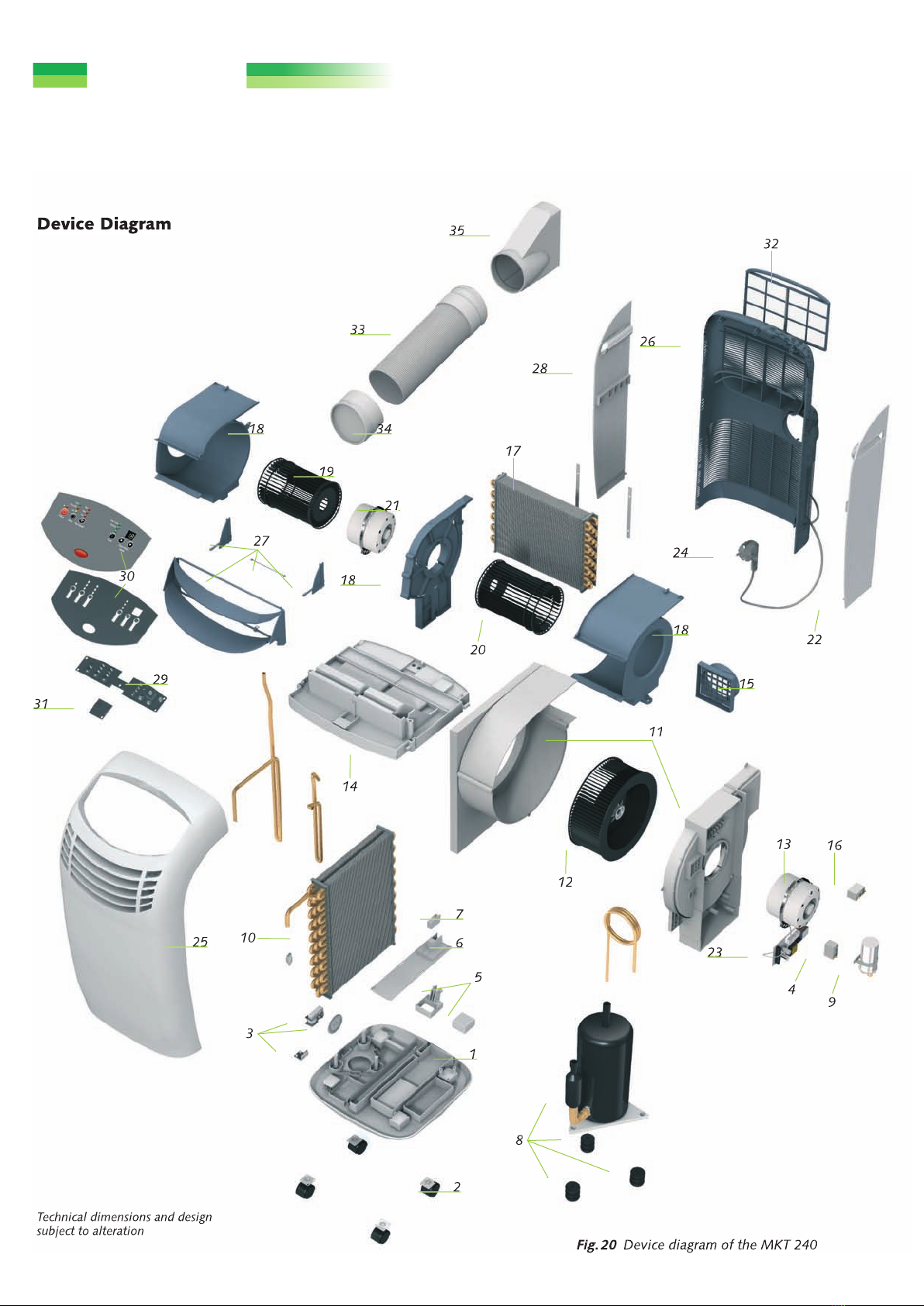

Device Diagram
28
28
35
35
33
33
34
34
18
18
29
29
19
19
21
31
31
18
18
18
18
20
30
27
25
25
8
1
2
3
10
7
7
6
6
11
5
9
4
23
23
13
16
12
14
15
15
17
24
26
26
32
22

11
Fig. no. Designation
Ref. no.
1 Unit bottom
1106850
2 Transport roller
1106851
3 Condensate motor with rotor
1106852
4
Condenser 2.5 µF (evaporator fan)
1106853
5 Float regulator (reservoir)
1106854
6 Cover (reservoir)
1106855
7 Microswitch (reservoir)
1106856
8 Compressor, cpl.
1106857
9 Condenser 2.5 µF (compressor)
1106858
10 Evaporator
1106859
11 Fan housing (exhaust air)
1106860
12 Fan wheel (exhaust air)
1106862
13 Fan motor (exhaust air)
1106863
14 Condensate tray
1106864
15 Exhaust air pipe adapter
1106315
16 Condenser 1.5 µF
1106316
17 Evaporator
1106317
18 Fan housing, 3-pc. (circulation air)
1106318
19 Fan wheel, left (circulation air)
1106869
20 Fan wheel, right (circulation air)
1106870
21 Fan motor (circulation air)
1106871
22 Side wall, right
1106872
23 Circuit board
1106873
24 Mains supply line with plug
1106874
25 Front wall
1106875
26 Back wall
1106876
27 Air outlet segment
1106877
28 Side wall, left
1106878
29 PCB with control
1106879
30 Control panel
1106880
31 Entry circuit
1106881
32 Air fi lter
1106883
Air outlet hose, cpl. (Nos. 33, 34, 35)
1106885
33 Air outlet hose
1106886
34 Connection pipe adapter
1106887
35 Window jet
1106888
Not shown Condensate drain spout with plug
1106882
Not shown Sensor (circulation air)
1106889
Not shown Remote control
1106884
Spare
Part List
Wh
en ordering spare parts, enter
the serial of the
device
on the
rating plate in addition to the
Ref. no
.
Designation
Ref. no.
Wall bushing
1613115
(incl. telescopic pipe, protective
grille, trap, sealing cap)
Accessories

REMKO GmbH & Co. KG
Air-conditioning and heating technology
Im Seelenkamp 12
·
327
91
Lage, Germany
P.O. Box 1827
·
32777
Lage, Germany
Phone
+49-5
2
32
-
6
06-130
Fax +49-5
2
32
-
6
06-
2
60
E-mail [email protected]
URL www.remko.de
Technical Data
REMKO
MKT 240
Device type
MKT 240
Nominal cooling capacity * kW 2.30
Energy effi ciency class, cooling B
Energy effi ciency variable 2.42
Dehumidifi cation capacity Max. l/h 1.60
Application range (room air volume) Approx. m
3
70
Temperature setting range °C 16 bis 32
Temperature operating limits °C 16 bis 35
Refrigerant R 407 C
Refrigerant quantity kg 0.770
Circulation air volume fl ow rate m
3
/h 230/260/300
Exhaust air volume fl ow rate Max. m
3
/h 360
Sound pressure level ** dB (A) 49/51/55
Voltage supply V/Ph/Hz 230/1~/50
Type of protection IP 20
Power consumption kW 0.95
Current consumption A 4.43
Air outlet hose, length mm 1400
Air outlet hose, diameter mm 125
Dimensions, height mm 450
Dimensions, width mm 770
Dimensions, depth mm 430
Weight kg 27.00
Ref. no.
1612240
*
Room temperature dry-bulb 35°C / wet-bulb 24°C
** Distance 1 m
REMKO
Your Competent Partner for
Air-conditioning • Heating • Dehumidifi cation
