R9A02G011
RTK-251-1PowerBank3 Instruction Manual
Introduction
The RTK-251-1PowerBank3 is a 3cell (series connected) Li-ion battery power bank reference board having one USB
Type-CTM port. The USB Type-Cport supports the Dual Role Power (DRP) Feature. When the power bank is in Sink
mode, the power bank requests 5, 9, 15, 20V which is supported by a USB Power Delivery (USB PD) provider such as
a USB PD AC adapter. When the power bank is in Source mode, as long as an installed battery has enough power
budget, it will supply 5, 9, 12, 15, 20V which is requested by a USB PD consumer product such as a Tablet, PC, or
smartphone.
The RTK-251-1PowerBank3 works as DRP device and automatically detects Power provider such as a USB PD AC
adapter and Power consumer such as a Tablet, PC, and smartphone that is connected to this board. Also, it changes own
power role depending on the remaining battery capacities. The battery remaining capacities are always displayed on
LEDs.
The RTK-251-1PowerBank3 board is USB-IF PD3.0 certified and the functions and capabilities are fixed in the setting
at that time.
Target Device
USB Power Delivery Controller (PDC): R9A02G011
Buck-Boost Battery Charger (BB-Charger): ISL95538B
R19AN0054EJ0100
Rev.
1.0
Nov 9, 2018

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 2 of 14
Nov 9, 2018
Contents
1. Features..........................................................................................................................3
1.1 USB-IF PD3.0 certified configurations......................................................................................5
2. Functions........................................................................................................................6
2.1 Battery charging.......................................................................................................................... 6
2.2 LED function................................................................................................................................7
2.3 Protection functions ................................................................................................................... 8
3. Board Setup and how to use.........................................................................................9
3.1 Required materials to use this board........................................................................................ 9
3.2 Board settings...........................................................................................................................10
3.3 Battery power connection........................................................................................................11
3.3.1 Operation example of Source mode. ................................................................................11
3.3.2 Operation example of Sink mode...................................................................................... 12
4. Optional functions........................................................................................................13

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 3 of 14
Nov 9, 2018
1. Features
The RTK-251-1PowerBank3 supports the following features.
USB Power Delivery and USB Type-C
Having one USB Type-C port
Power Role: Dual Role (Supports Try.SRC mode)
Power Source voltage (no PPS): 5, 9, 12, 15, 20V
Power Sink: 5, 9, 15, 20V
Battery Charger
Battery type: Li-ion battery.
Number of cells: 3series cells
Trickle Charging
5 LED indicators
USB Type-C port status indicator (1 LED)
Battery remaining capacity indicator (4 LEDs)
Protections
Over Temperature Protection (USB Type-C Receptacle)
Over Voltage Protection (VBUS voltage)
Over Current Protection (VBUS current)
Figure 1-1 RTK-251-1PowerBank3 Block Diagram

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 4 of 14
Nov 9, 2018
Figure 1-2 RTK-251-1PowerBank3 Board picture (Top View)
Figure 1-3 RTK-251-1PowerBank3 Board picture (Bottom View)
U1: PDC
U3: ISL95538B
U38-U39: DC-DC for VDD, Vconn
JP2: Switch pad
RT1: Thermistor

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 5 of 14
Nov 9, 2018
1.1 USB-IF PD3.0 certified configurations
The RTK-251-1PowerBank3 board is USB-IF PD3.0 certified under the following configurations.
Category: Power Brick (no PPS)
Product Name: RTK-251-1PowerBank3
TID: 1090007
Power Role: Dual Role (Supports Try.SRC)
45W Power Source: 5, 9, 12, 15, 20V
60W Power Sink: 5, 9, 15, 20V
Supports BC1.2 DCP

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 6 of 14
Nov 9, 2018
2. Functions
The RTK-251-1PowerBank3 board functions are described in this section.
2.1 Battery charging
The RTK-251-1PowerBank3 manages Battery Charging. it starts to charge the battery with charging current and stops
charging when the battery charging current is less than 200mA for 200ms in CV loop. The RTK-251-1PowerBank3
restarts charging when the battery voltage is decreased below “Max Voltage”. The RTK-251-1PowerBank3 also
supports trickle charging to an overly discharged battery. It can activate the trickle charging function when the battery
voltage is lower than “Min Voltage”. “Max Voltage” and “Min Voltage” are pre-programmed in PDC firmware.

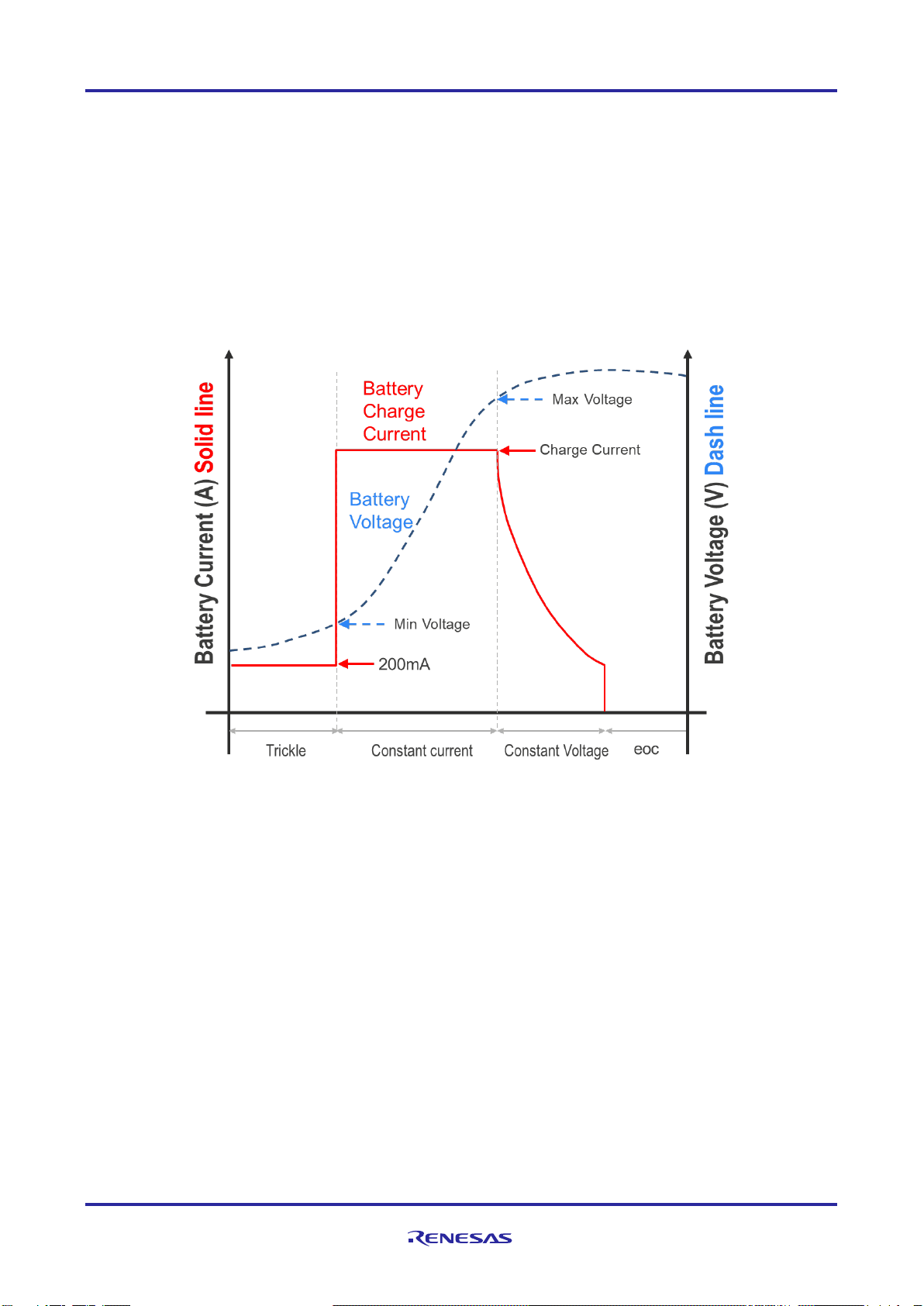

Figure 2-1 Battery Charging Image.

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 7 of 14
Nov 9, 2018
2.2 LED function
Figure 2-2 LEDs on RTK-251-1PowerBank3.
USB Type-C port role
LED_Type-C behavior
Unplugged
OFF
Sink mode
Blinking (0.5 sec interval as default)
Sink mode (Fully-charged)
OFF
Source mode
Lighted
Source mode (Low Battery)
OFF
Table 2-1 USB Type-C Port role indicator (Blue LED: D16)

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 8 of 14
Nov 9, 2018
Under charging RTK-251-1PowerBank3 from USB PD source device
Battery power
LED1
LED2
LED3
LED4
Low Battery - 0 %
OFF
OFF
OFF
OFF
0 % -30 %
OFF
OFF
OFF
OFF
30 % - 45 %
Lighted
OFF
OFF
OFF
45 % - 60 %
Lighted
Lighted
OFF
OFF
60 % -
Lighted
Lighted
Lighted
OFF
Fully-charged
Lighted
Lighted
Lighted
Lighted
Table 2-2 Battery remaining capacity indicator (Green LED: D15, D14, D13, D8)
Under discharging RTK-251-1PowerBank3 to other battery device or Unplugged
Battery power
LED1
LED2
LED3
LED4
Low Battery – 0 %
OFF
OFF
OFF
OFF
0 % - 30 %
Lighted
OFF
OFF
OFF
30 % - 45 %
Lighted
Lighted
OFF
OFF
45 % - 60 %
Lighted
Lighted
Lighted
OFF
60 % -
Lighted
Lighted
Lighted
Lighted
Fully-charged
Lighted
Lighted
Lighted
Lighted
Table 2-3 Battery remaining capacity indicator (Green LED: D15, D14, D13, D8)
2.3 Protection functions
The RTK-251-1PowerBank3 supports the protection functions.
Parameter
Description
Threshold value
OCP
When VBUS current is over 3.2A, ISL95538B will stop VBUS.
Then PDC detect VBUS drop as OCP.
Fixed
OVP
Over voltage protection value. Send Hard Reset command to
source when VBUS voltage is reaching the OVP value.
25V
OTP
Over temperature protection value.
For details, please refer to R9A02G011 User Manual.
Safe: 40 degrees C
Warning: 60 degrees C
Danger: 80 degrees C

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 9 of 14
Nov 9, 2018
3. Board Setup and how to use
Prior to start using the board, please make sure if the jumpers settings are the same as the following instructions. Also,
please don’t try other settings, which all are reserved.
3.1 Required materials to use this board.
3 cells Li-ion battery pack having a battery protection function, the battery emulator or the two/four-quadrant
DC power supply: 1 unit
USB Type-C Cable: 1pcs
Caution:
Please use this board when you understand and agree that Renesas DOES NOT have any
responsibility, indemnification, or liability for use of this board. Especially, Li-ion batteries may
cause fire, injury, explosion, etc. if they are handled incorrectly. Please use the charge /
discharge of the battery at your own risk.
Item
Condition / Note
Specification
Nominal Voltage
Average
10.8V
Standard Charge
Constant current
Greater than 2000mA
Maximum Charge Voltage
12.6V
Standard Discharge
Cut off voltage
Lower than 8.25V
Constant current
Greater than 6000mA
Operating Temperature
Charge
0 ~ 45 degrees C at least.
Discharge
-20 ~ 60 degrees C at least.
Table 3-1 Requirements for 3 cells battery pack to be used.

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 10 of 14
Nov 9, 2018
3.2 Board settings
The Jumper settings of RTK-251-1PowerBank3 board is described in this section. Other settings are reserved and please
DO NOT change them.
Caution:
Make sure the HW setting matches the battery pack configuration. Li-ion batteries may cause fire,
injury, explosion, etc. if this HW setting is different from an actual battery configuration.
Figure 3-1 JP32/JP33/JP34/JP38/JP39/JP40 jumpers on RTK-251-1PowerBank3.
JP32
JP33
JP34
JP38
JP39
JP40
3 cells
OFF
ON
OFF
OFF
ON
OFF
Table 3-2 JP32/33/34/38/39/40 settings.
JP2 (Switch Pad)
R114 mounted on 1-2 side
Table 3-3 JP2 setting.
Figure 3-2 JP44/JP45 jumpers on RTK-251-1PowerBank3.
JP44
JP45
Connected 1 and 2
Connected 1 and 2
Table 3-4 JP44/JP45 setting

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 11 of 14
Nov 9, 2018
3.3 Battery power connection
Figure 3-3 shows the battery power connection to RTK-251-1PowerBank3 board.
- Battery V+ should be connected to J5 (Red Banana Jack)
- Battery V- should be connected to J6 (Black Banana Jack)
Figure 3-3 Battery power and USB device connection.
After installing the battery power, RTK-251-1PowerBank3 is ready to use.
3.3.1 Operation example of Source mode.
Figure 3-4 shows the connection example of charging device using RTK-251-1PowerBank3 board.
Figure 3-4 connection configuration of source mode.
When connecting a PD device to RTK-251-1PowerBank3 board via Type-C cable, RTK-251-1PowerBank3 detects it
and tries to be in Source mode so that power can be charged to an attached device as much as possible. If the RTK-251-
1PowerBank3 is in source mode, Lighting blue LED on RTK-251-1PowerBank3 and charging VBUS to an attached
device.
The RTK-251-1PowerBank3 does not operate as Source device when the power role of connected device is Source
only or RTK-251-1PowerBank3 is in the low battery status.
The RTK-251-1PowerBank3 operates only as Sink device when the Battery Level falls below the Low Battery
Detection Threshold. And Source operations resumes when the Battery Level exceeds the Low Battery Detection
Threshold.

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 12 of 14
Nov 9, 2018
3.3.2 Operation example of Sink mode.
Figure 3-5 shows the connection example of charging RTK-251-1PowerBank3 using PD source device.
Figure 3-5 connection configuration of sink mode.
When the RTK-251-1PowerBank3 is connected to Source only device such as USB PD AC adapter via USB Type-C
cable, it automatically detects the device and always becomes Sink mode. If the RTK-251-1PowerBank3 is connected
to the Legacy USB downstream port using USB A to C cable, RTK-251-1PowerBank3 also becomes Sink mode
automatically by detecting VBUS power.
When DRP device is connected, the RTK-251-1PowerBank3 tries to become Source mode as much as possible. If
RTK-251-1PowerBank3 detects the low battery status, RTK-251-1PowerBank3 is fixed to Sink mode until battery is
charged enough. When RTK-251-1PowerBank3 is in Sink mode, LED (Blue) is blinking.

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 13 of 14
Nov 9, 2018
4. Optional functions
The RTK-251-1PowerBank3 board is not possible to change parameters by using the Renesas ROM Image Generator.
The RTK-251-1PowerBank3 supports any other optional functions as following. They are disabled in this kit. For
changes in these functions, please contact Renesas local sales offices.
Customize USB Type-C output power (Up to 60W PDPNote, supported optional capabilities such as 12V or
14.8V, supported PPS)
Customize Battery power (Number of cells, Battery capabilities)
Customize LED behavior
Switch function
Deep Sleep mode
Note: Maximum PDP is depended on Battery power.

R9A02G011 RTK-251-1PowerBank3 Instruction Manual
R19AN0054EJ0100 Rev.1.0 Page 14 of 14
Nov 9, 2018
Website and Support
Renesas Electronics Website
http://www.renesas.com/
Inquiries
http://www.renesas.com/contact/
All trademarks and registered trademarks are the property of their respective owners.

A-1
Revision History
Rev.
Date
Description
Page
Summary
1.0
Nov 9, 2018
—
Initial Release

General Precautions in the Handling of Microprocessing Unit and Microcontroller Unit Products
The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas.
For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as
well as any technical updates that have been issued for the products.
1. Handling of Unused Pins
Handle unused pins in accordance with the directions given under Handling of Unused Pins in the
manual.
The input pins of CMOS products are generally in the high-impedance state. In operation with
an unused pin in the open-circuit state, extra electromagnetic noise is induced in the vicinity of
LSI, and an associated shoot-through current flows internally; malfunctions can occur due to
the false recognition of the pin state as an input signal. Unused pins should be handled as
described under Handling of Unused Pins in the manual.
2. Processing at Power-on
The state of the product is undefined at the moment when power is supplied.
The states of internal circuits in the LSI are indeterminate and the states of register settings and
pins are undefined at the moment when power is supplied.
In a finished product where the reset signal is applied to the external reset pin, the states of
pins are not guaranteed from the moment when power is supplied until the reset process is
completed.
In a similar way, the states of pins in a product that is reset by an on-chip power-on reset
function are not guaranteed from the moment when power is supplied until the power reaches
the level at which resetting has been specified.
3. Prohibition of Access to Reserved Addresses
Access to reserved addresses is prohibited.
The reserved addresses are provided for the possible future expansion of functions. Do not
access these addresses; the correct operation of LSI is not guaranteed if they are accessed.
4. Clock Signals
After applying a reset, only release the reset line after the operating clock signal has become
stable. When switching the clock signal during program execution, wait until the target clock signal
has stabilized.
When the clock signal is generated with an external resonator (or from an external oscillator)
during a reset, ensure that the reset line is only released after full stabilization of the clock
signal. Moreover, when switching to a clock signal produced with an external resonator (or by
an external oscillator) while program execution is in progress, wait until the target clock signal is
stable.
5. Differences between Products
Before changing from one product to another, i.e. to a product with a different part number, confirm
that the change will not lead to problems.
The characteristics of Microprocessing unit or Microcontroller unit products in the same group
but having a different part number may differ in terms of the internal memory capacity, layout
pattern, and other factors, which can affect the ranges of electrical characteristics, such as
characteristic values, operating margins, immunity to noise, and amount of radiated noise.
When changing to a product with a different part number, implement a system-evaluation test
for the given product.

http://www.renesas.com
Refer to "http://www.renesas.com/" for the latest and detailed information.
Renesas Electronics Corporation
TOYOSU FORESIA, 3-2-24 Toyosu, Koto-ku, Tokyo 135-0061, Japan
Renesas Electronics America Inc.
1001 Murphy Ranch Road, Milpitas, CA 95035, U.S.A.
Tel: [phone], Fax: [phone]
Renesas Electronics Canada Limited
9251 Yonge Street, Suite 8309 Richmond Hill, Ontario Canada L4C 9T3
Tel: [phone]
Renesas Electronics Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K
Tel: [phone]
Renesas Electronics Europe GmbH
Arcadiastrasse 10, 40472 Düsseldorf, Germany
Tel: [phone], Fax: [phone]
Renesas Electronics (China) Co., Ltd.
Room 1709 Quantum Plaza, No.27 ZhichunLu, Haidian District, Beijing, 100191 P. R. China
Tel: [phone], Fax: [phone]
Renesas Electronics (Shanghai) Co., Ltd.
Unit 301, Tower A, Central Towers, 555 Langao Road, Putuo District, Shanghai, 200333 P. R. China
Tel: [phone], Fax: [phone]
Renesas Electronics Hong Kong Limited
Unit 1601-1611, 16/F., Tower 2, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong
Tel: [phone], Fax: [phone]
Renesas Electronics Taiwan Co., Ltd.
13F, No. 363, Fu Shing North Road, Taipei 10543, Taiwan
Tel: [phone], Fax: [phone]
Renesas Electronics Singapore Pte. Ltd.
80 Bendemeer Road, Unit #06-02 Hyflux Innovation Centre, Singapore 339949
Tel: [phone], Fax: [phone]
Renesas Electronics Malaysia Sdn.Bhd.
Unit 1207, Block B, Menara Amcorp, Amcorp Trade Centre, No. 18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: [phone], Fax: [phone]
Renesas Electronics India Pvt. Ltd.
No.777C, 100 Feet Road, HAL 2nd Stage, Indiranagar, Bangalore 560 038, India
Tel: [phone], Fax: [phone]
Renesas Electronics Korea Co., Ltd.
17F, KAMCO Yangjae Tower, 262, Gangnam-daero, Gangnam-gu, Seoul, 06265 Korea
Tel: [phone], Fax: [phone]
SALES OFFICES
© 2018 Renesas Electronics Corporation. All rights reserved.
Colophon 7.2
(Rev.4.0-1 November 2017)
Notice
1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for
the incorporation or any other use of the circuits, software, and information in the design of your product or system. Renesas Electronics disclaims any and all liability for any losses and damages incurred by
you or third parties arising from the use of these circuits, software, or information.
2. Renesas Electronics hereby expressly disclaims any warranties against and liability for infringement or any other claims involving patents, copyrights, or other intellectual property rights of third parties, by or
arising from the use of Renesas Electronics products or technical information described in this document, including but not limited to, the product data, drawings, charts, programs, algorithms, and application
examples.
3. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others.
4. You shall not alter, modify, copy, or reverse engineer any Renesas Electronics product, whether in whole or in part. Renesas Electronics disclaims any and all liability for any losses or damages incurred by
you or third parties arising from such alteration, modification, copying or reverse engineering.
5. Renesas Electronics products are classified according to the following two quality grades: “Standard” and “High Quality”. The intended applications for each Renesas Electronics product depends on the
product’s quality grade, as indicated below.
"Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic
equipment; industrial robots; etc.
"High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control (traffic lights); large-scale communication equipment; key financial terminal systems; safety control equipment; etc.
Unless expressly designated as a high reliability product or a product for harsh environments in a Renesas Electronics data sheet or other Renesas Electronics document, Renesas Electronics products are
not intended or authorized for use in products or systems that may pose a direct threat to human life or bodily injury (artificial life support devices or systems; surgical implantations; etc.), or may cause
serious property damage (space system; undersea repeaters; nuclear power control systems; aircraft control systems; key plant systems; military equipment; etc.). Renesas Electronics disclaims any and all
liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or
other Renesas Electronics document.
6. When using Renesas Electronics products, refer to the latest product information (data sheets, user’s manuals, application notes, “General Notes for Handling and Using Semiconductor Devices” in the
reliability handbook, etc.), and ensure that usage conditions are within the ranges specified by Renesas Electronics with respect to maximum ratings, operating power supply voltage range, heat dissipation
characteristics, installation, etc. Renesas Electronics disclaims any and all liability for any malfunctions, failure or accident arising out of the use of Renesas Electronics products outside of such specified
ranges.
7. Although Renesas Electronics endeavors to improve the quality and reliability of Renesas Electronics products, semiconductor products have specific characteristics, such as the occurrence of failure at a
certain rate and malfunctions under certain use conditions. Unless designated as a high reliability product or a product for harsh environments in a Renesas Electronics data sheet or other Renesas
Electronics document, Renesas Electronics products are not subject to radiation resistance design. You are responsible for implementing safety measures to guard against the possibility of bodily injury, injury
or damage caused by fire, and/or danger to the public in the event of a failure or malfunction of Renesas Electronics products, such as safety design for hardware and software, including but not limited to
redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult
and impractical, you are responsible for evaluating the safety of the final products or systems manufactured by you.
8. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. You are responsible for carefully and
sufficiently investigating applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive, and using Renesas Electronics
products in compliance with all these applicable laws and regulations. Renesas Electronics disclaims any and all liability for damages or losses occurring as a result of your noncompliance with applicable
laws and regulations.
9. Renesas Electronics products and technologies shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws
or regulations. You shall comply with any applicable export control laws and regulations promulgated and administered by the governments of any countries asserting jurisdiction over the parties or
transactions.
10. It is the responsibility of the buyer or distributor of Renesas Electronics products, or any other party who distributes, disposes of, or otherwise sells or transfers the product to a third party, to notify such third
party in advance of the contents and conditions set forth in this document.
11. This document shall not be reprinted, reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products.
(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its directly or indirectly controlled subsidiaries.
(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Renesas Electronics:
RTK0EUG011D06000BJ
