Renesas Ob1203sd-bt2-evk User manual

OB1203SD-BT2-EVK

QUICK START GUIDE

Evaluation kit for Heart Rate, SpO2, and Respiration Rate

renesas.com/OB1203SD-BT2-EVK

Battery ON position

Battery ON position = toward battery connector

3Press Button

>2 seconds to wake

Ready/Awake LED should

be solid red *

Go to: renesas.com/ob1203sd-bt2-evk/dashboard.html

Note: The Web Application runs on Microsoft Edge or Google Chrome using

a Windows PC (V10 or above). It uses the computer’s built in Bluetooth (BLE)

capability to connect to the EVK. PC’s Bluetooth must be enabled.

Compatible browsers are listed here: caniuse.com/web-bluetooth

*OB1203SD-BT2-EVK will time out after ~30s without a nger on the sensor to

extend battery life.

Click connect

Select

Click pair

7Observe and evaluate

© 2021 Renesas Electronics America Inc. (REA). All rights reserved. All trademarks are the property of their respective owners. REA believes the information herein was accurate when given but assumes no risk as to its quality or use. All information is provided as-is without

warranties of any kind, whether express, implied, statutory, or arising from course of dealing, usage, or trade practice, including without limitation as to merchantability, tness for a particular purpose, or non-infringement. REA shall not be liable for any direct, indirect, special,

consequential, incidental, or other damages whatsoever, arising from use of or reliance on the information herein, if advised of the possibility of such damages. REA reserves the right, without notice, to discontinue products or make changes to the design or specications

of its products or other information herein. All contents are protected by U.S. and international copyright laws. Except as specically permitted herein, no portion of this material may be reproduced in any form, or by any means, without prior written permission from Renesas

Electronics America Inc. Visitors or users are not permitted to modify, distribute, publish, transmit or create derivative works of any of this material for any public or commercial purposes.

Document No.: R36DS0021EU0000

Renesas Electronics America Inc.

renesas.com

1001 Murphy Ranch Road, Milpitas, CA 95035

Phone: 1-888-468-3774

OB1203SD-BT2-EVK QUICK START GUIDE

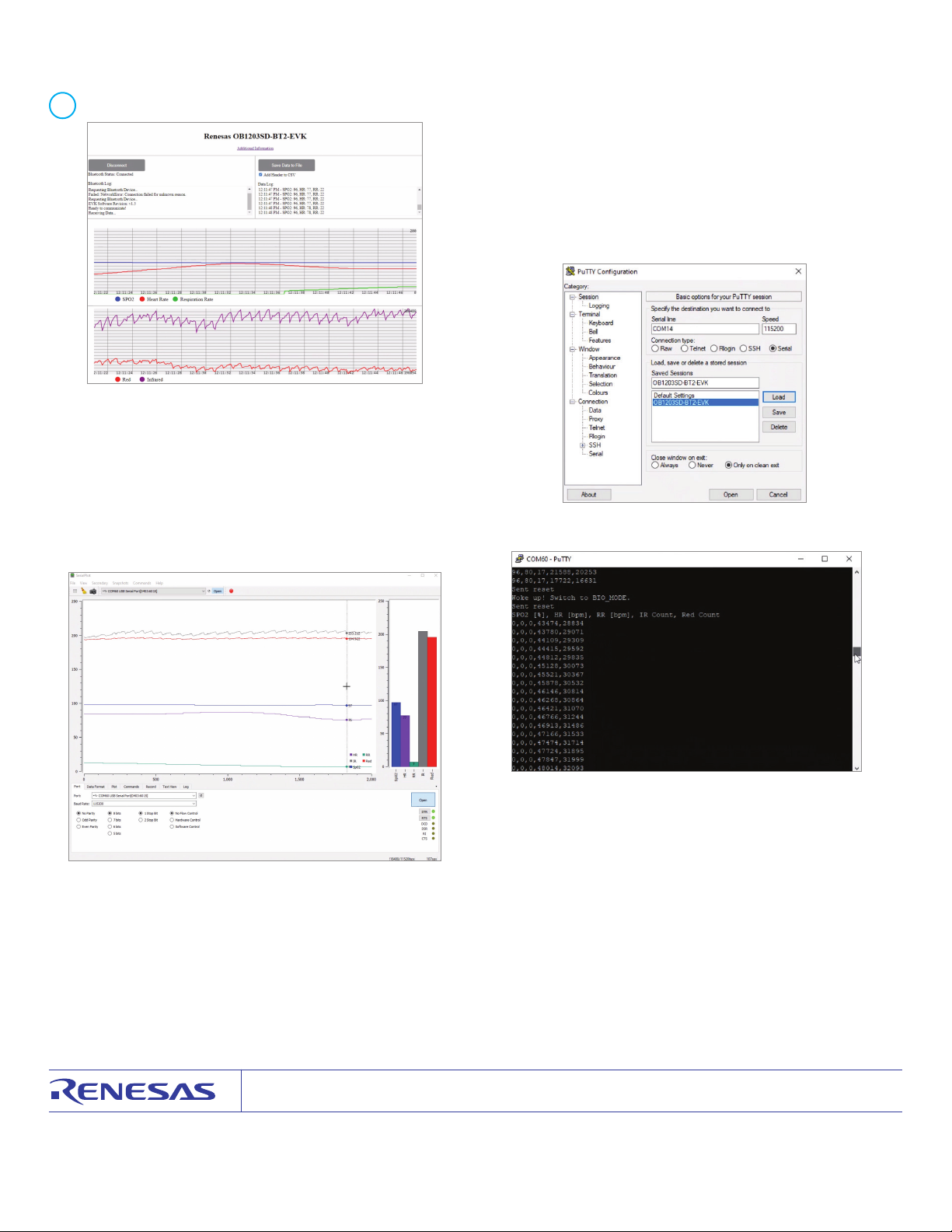

Optionally the measurements can be observed using a USB cable

and SerialPlot.

hackaday.io/project/5334-serialplot-realtime-plotting-software/

log/192838-serialplot-v012-release

Note: USB connection must be plugged in AFTER the board is powered up

(red LED on).

Port: Baud Rate 115200, No Parity, 8 bits, 1 Stop Bit, No Flow Control

Data Format: ASCII, Number of Channels: 5, Column Delimiter: comma

Optionally the measurements can be observed using a USB cable

and PuTTY

chiark.greenend.org.uk/~sgtatham/putty/latest.html

Note: USB connection must be plugged in AFTER the board is powered up

(red LED on).
