Renesas US082-ZMOD4510EVZ User manual

Evaluation Board Manual
R36UZ0001EU0100 Rev.1.0 Page 1
Jun 10, 2021 © 2021 Renesas Electronics
The US082-ZMOD4510EVZ board enables quick
prototyping of the ZMOD4510 gas sensor module for
outdoor air quality (OAQ) in a custom system design.
The board provides a standard Pmod™ Type 6A
(Extended I2C) connection for the on-board sensor to
plug into any required MCU evaluation kit with a
matching connector.
The US082-ZMOD4510EVZ features Pmod
connectors on both sides of the board to allow
additional Type 6/6A boards to be connected in a
daisy-chained solution with multiple sensors on the
same MCU Pmod connector. Software support
present in the Renesas IDE (e2studio) provides code
generation to connect the sensor and the MCU
significantly reducing development time. Because of
the standard connector and software support, the
US082-ZMOD4510EVZ is the best choice to rapidly
create an IoT system with the Renesas
Quick-Connect IoT.
Features
▪Gas sensor module for outdoor air quality
ZMOD4510 sensor sample mounted:
• Supports different methods of operation,
including Total Outdoor Air Quality (1st Gen) and
Ultra-Low Power with selective ozone
measurements (2nd Gen)
• Supports international standards for air quality,
such as the US Environmental Protection
Agency (EPA)
▪Standardized Type 6A Pmod connector supports
I2C Extended interface
▪Dual connectors allow pass-through signals for
daisy-chained solutions
▪Software support in e2studio minimizes
development time with one-click code generation
Board Contents
▪US082-ZMOD4510EVZ Board

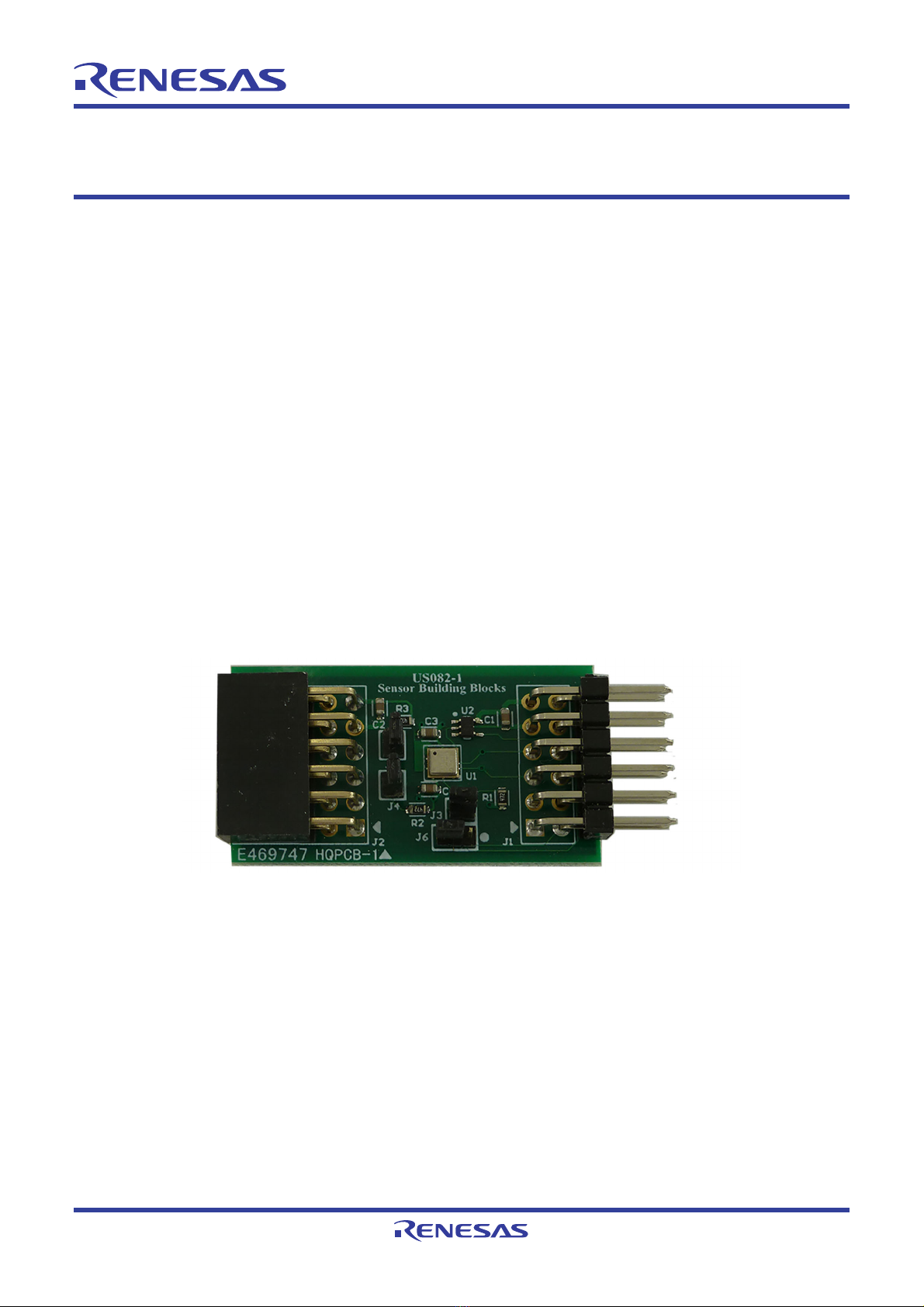

Figure 1. US082-ZMOD4510EVZ Pmod Board
US082-ZMOD4510EVZ

R36UZ0001EU0100 Rev.1.0 Page 2
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
Contents
1. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Required or Recommended User Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Software Installation and Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Kit Hardware Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Programming Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Board Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.1 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.2 Bill of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.3 Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

R36UZ0001EU0100 Rev.1.0 Page 3
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
1. Functional Description
The US082-ZMOD4510EVZ functions as a sensor building block to create a custom system solution. It can be
used individually or with a combination of other sensors using the Pmod Type 6A interface. See the Renesas
Quick-Connect IoT web page for a list of available sensor Pmod boards. Along with a simple hardware
connection, the software sensor block in the Renesas software package allows you to generate all the necessary
glue code between the sensor and the MCU with the simple click of a button.
Figure 2. US082-ZMOD4510EVZ Pmod Board with RA2L1 MCU Kit

R36UZ0001EU0100 Rev.1.0 Page 4
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
2. Setup
2.1 Required or Recommended User Equipment
The following additional lab equipment (sold separately) is required for using the board:
▪Any MCU board that supports Type 6A Pmod.
▪US082-INTERPEVZ interposer board if using one of the Renesas MCU kits shown in Table 1.
2.2 Software Installation and Usage
See the Renesas website for the latest version of the e2 studio installer. The minimum FSP version supporting
sensor blocks is FSP 3.1.0. For the latest sensor support, ensure you are using the latest release.
Visit Renesas Quick-Connect IoT for more information about creating your customized system solution.
2.3 Kit Hardware Connections
Follow these procedures to set up the kit as shown on Figure 3.
1. Ensure the MCU evaluation kit has a Pmod connector set to Type 6A (see the kit hardware manual if unsure).
a. If no Type 6A Pmod is available, ensure the MCU evaluation kit can use the US082-INTERPEVZ interposer
board and insert the board into the MCU connector before adding any sensor boards.
2. Plug in the US082-ZMOD4510EVZ to the Type 6A connector, being careful to align Pin 1 on the sensor board
and MCU kit.
3. Connect the J4 and J5 jumpers to place 4.7k pull-up resistors on the I2C bus lines.
a. Only one set of I2C pull-up resistors should be used on the bus. If multiple sensor boards are used, only
one board should have the jumpers present.
b. MCU kits typically do not have pull-up resistors present on the bus lines but double check for them.
4. The INT pin of the ZMOD4510 is a push-pull output signaling if a measurement is being taken. Connect it to
the Busy (GPIO) pin of the Pmod connector by placing Jumper J6 on Pins 1-2. Connect it to the INT pin of the
Pmod connector by placing Jumper J6 on Pins 2-3. Connect Jumper J3 to add an optional 4.7k pull-up resistor
to this line.
Table 1. Renesas MCU Evaluation Kits[1] capable of supporting Type 6A PMODs when used with the
US082-INTERPEVZ
1. This table is not a comprehensive list of supported MCU Kits. See the evaluation kit hardware manual to confirm Pmod pinout.
RA RX Synergy
EK-RA4W1 RX111-Starter-Kit PK-S5D9
EK-RA2A1 RX231-Starter-Kit DK-S3A7
EK-RA4M1 RX23W-Starter-Kit DK-S128
EK-RA6M1 RX23T-Starter-Kit TB-S1JA
EK-RA6M2 RX24T-Starter-Kit TB-S3A6
EK-RA6M3 RX24U-Starter-Kit DK-S7G2
EK-RA6M3G

R36UZ0001EU0100 Rev.1.0 Page 5
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
5. The sensor is now ready to be used in the system. Follow the MCU kit instructions for connecting and powering
up the evaluation kit.
3. Programming Interface
Programming of the system can be accomplished through Renesas IDE, e2studio. See the MCU evaluation kit
documentation to set up the initial project in e2studio. As the project is initialized, adding the ZMOD4510 sensor
to the project only takes a few steps.
1. Navigate to the Components tab, open the Middleware/all folder, and select the required sensor and mode of
operation. For the case shown in Figure 4, select the rm_ZMOD4xxx_rx and rm_zmod4510_oaq_2nd.
2. Click the Generate Project Content icon and the system generates the code to configure the sensor with the
MCU.
3. Write three to four lines of code to check the version, initialize the sensor, start the measurement cycle, and get
the data. The following is example code for an RA MCU.
err = p_zmod4xxx_api->open(p_zmod4xxx_ctrl, p_zmod4xxx_cfg); // Configure the sensor
err = p_zmod4xxx_api->measurementStart(p_zmod4xxx_ctrl); // Start measuring
err = p_zmod4xxx_api->read(p_zmod4xxx_ctrl, &gs_zmod4510_raw_data, NULL);//Get data
4. Use the data in your given application. Sample projects are available on the Renesas website as well.
For more information on creating your full system design, further information on software development, and
additional hardware availability, visit the Renesas Quick-Connect IoT web page.
Figure 3. Evaluation Kit Connections
Figure 4. Component Configuration in Renesas e2studio
Jumpers for I2C Pull-Ups OAQ Gas Sensor Module
Connector to
MCU board
Jumper for Busy/Int Pull-Up
Jumper for Busy/Int
Connector for additional
sensor Pmod boards

R36UZ0001EU0100 Rev.1.0 Page 6
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
4. Board Design

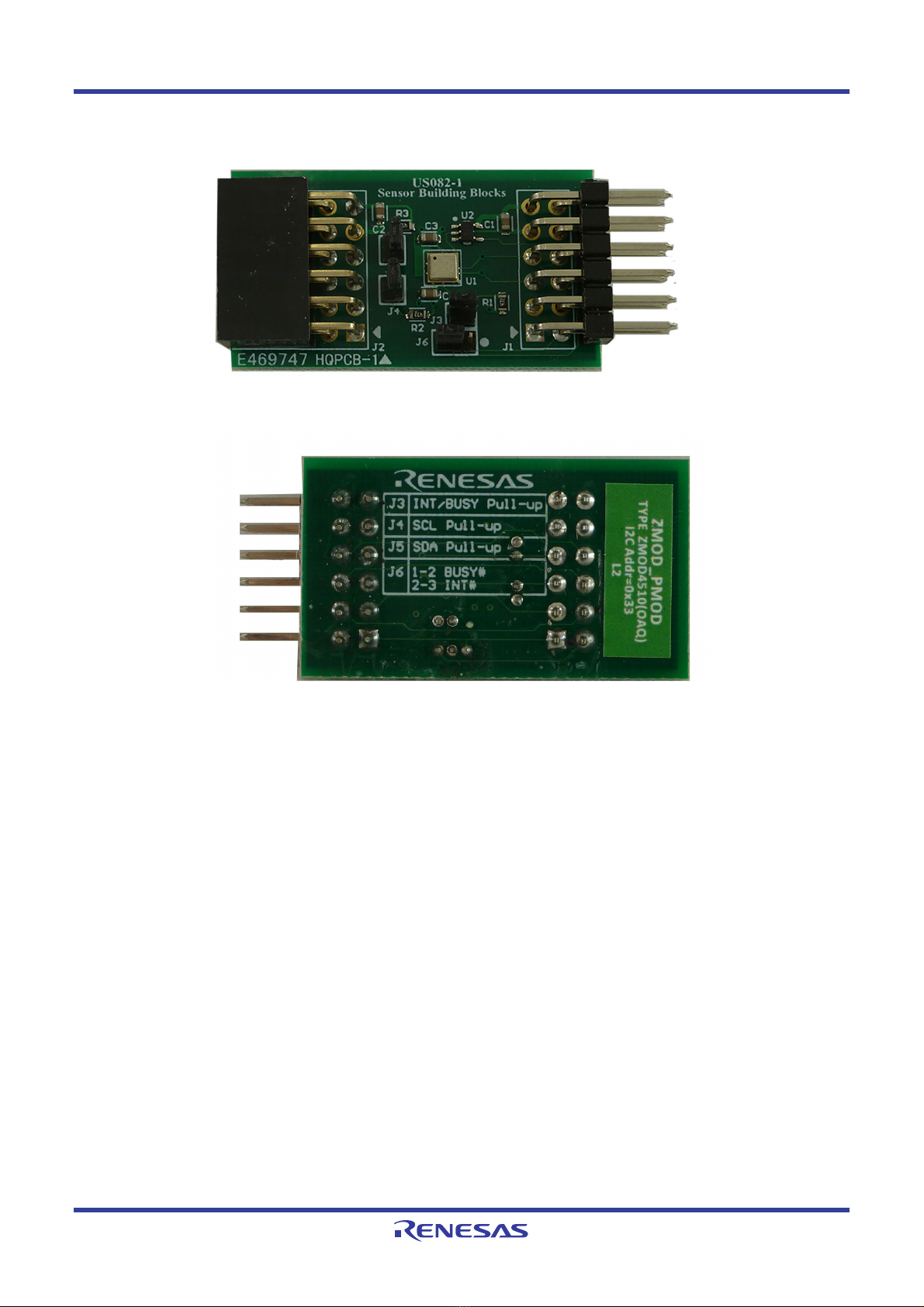

Figure 5. US082-ZMOD4510EVZ Evaluation Board (Top)
Figure 6. US082-ZMOD4510EVZ Evaluation Board (Bottom)

R36UZ0001EU0100 Rev.1.0 Page 7
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
4.1 Schematic Diagrams
4.2 Bill of Materials
Figure 7. US082-ZMOD4510EVZ Schematic
Qty Reference Description Value PCB Footprint Part Number
4 C1, C2, C3, C4 Capacitor, 0.1µF, 50V, 0603 0.1µF 0603 C0603C104J5RACTU
1 J1 Male Header 0.1" pitch PMOD 2x6 Right
Angle
PmodTM PMOD-MALE-TOP M20-9950645
1 J2 Female Header 0.1" pitch PMOD 2x6
Right Angle
CON-000050-01 SSW-106-02-F-D-RA
3 J3, J4, J5 CONN HEADER VERT 2POS 1.27 MM HDR-1X2-FTS FTS-102-01-L-S
1 J6 CONN HEADER VERT 3POS 1.27 MM HDR-1X3-FTS FTS-103-01-L-D
3 R1, R2, R3 Resistor, 4.7k, 0603 4.7k 0603 RC0603JR-074K7L
1 U1 Gas Sensor Module ZMOD4510 ZMOD4510
1 U2 Single Inverter Buffer/Driver With
Open-Drain Output
DCK0005A_N SN74LVC1G06DCKT
4 J3, J4, J5, J6 1.27" 1x2 Jumper with Grip, Gold NPB02SVFN-RC
GND
GND
3V3
PMOD Interface System
IIC_SDA
RES_N
IIC_SCL
17
28
39
410
511
612
J2
GND GND
PMOD Interface Slave
IRQ#
4.7k
0603 R1
4.7k
0603 R2
4.7k
0603 R3
3V3
3V3
BUSY#
GPIO4GPIO4
C1
0.1uF, 50V C2
0.1uF, 50V
1 2
J3
1 2
J4
1 2
J5
1 7
2 8
3 9
410
511
612
J1
R
LOGO1
GND
3V3
C3
0.1uF, 50V
SCL
1
SDA
2
INT
3
NC
4
VDD
5
VSS
6
VSS 7
NC 8
VSS 9
VDDH 10
RES_N 11
VDDIO 12
U1
ZMOD4510
GND
3V3
BUSY#
BUSY#
IRQ#
2 4
U2A
SN74LVC1G06DCKT
1
2
3
J6
C4
0.1uF, 50V
ENABLE
POWER_ON
ENABLE
POWER_ON

R36UZ0001EU0100 Rev.1.0 Page 8
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual

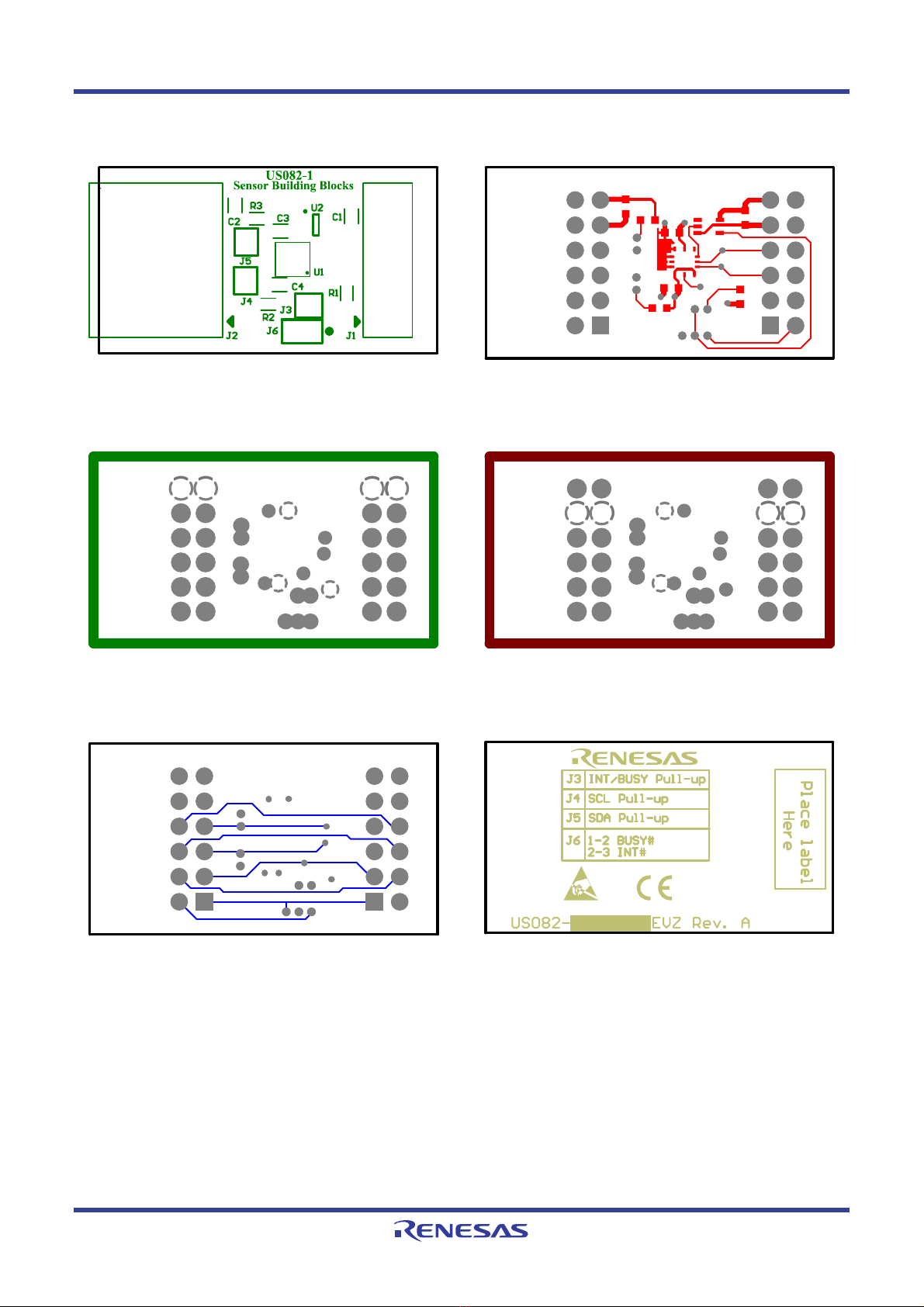

4.3 Board Layout
Figure 8. Silkscreen Top Layer Figure 9. Top Layer
Figure 10. Layer 1 Figure 11. Layer 2
Figure 12. Bottom Layer Figure 13. Silkscreen Bottom Layer

R36UZ0001EU0100 Rev.1.0 Page 9
Jun 10, 2021
US082-ZMOD4510EVZ Evaluation Board Manual
5. Ordering Information
6. Revision History
Part Number Description
US082-ZMOD4510EVZ ZMOD4510 Pmod Board
US082-INTERPEVZ Pmod interposer board to convert Type 2A and 3A to Type 6A on older Renesas MCU kits.
Revision Date Description
1.0 Jun 10, 2021 Initial release
