RenewAire EV450 Owner's manual

Model SHOWN: HE1.5XRT
Model Shown: HE1XIN
Model Shown: EV450IN
EV450
HE1X
HE1.5X
EC Motor Supplemental Manual
Supplemental Manual for Options

1.800.627.44992
EC Motors
OPTIONS
WARNING
RISK OF FIRE, ELECTRIC SHOCK, OR INJURY. OBSERVE ALL CODES AND THE FOLLOWING:
1. Before servicing or cleaning the unit, switch power off at disconnect switch or service
panel and lockout/tag-out to prevent power from being switched on accidentally. More
than one disconnect switch may be required to de-energize the equipment for servicing.
2. This installation manual shows the suggested installation method. Additional measures
may be required by local codes an standards.
3. Installation work and electrical wiring must be done by qualified professional(s) in
accordance with all applicable codes, standards and licensing requirements.
4. Any structural alterations necessary for installation must comply with all applicable
building, health, and safety code requirements.
5. This unit must be grounded.
6. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment that might be installed in the area affected by this
equipment. If this unit is exhausting air from a space in which chimney vented fuel burning
equipment is located, take steps to assure that combustion air supply is not affected.
Follow the heating equipment manufacturer’s requirements and the combustion air supply
requirements of applicable codes and standards.
7. Use the unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
8. This unit is intended for general ventilating only. Do not use to exhaust hazardous or
explosive materials and vapors. Do not connect this unit to range hoods, fume hoods, or
collection systems for toxics.
9. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
10. If installed indoors, this unit must be properly ducted to the outdoors.
CAUTION
When an external 10 VDC source control
is used, the maximum distance between
the EC Motor and 10 VDC source control
cannot exceed 33 ft (10 m).
CAUTION
To avoid motor bearing damage and noisy
and/or unbalanced impellers, keep drywall
spray, construction dust, etc., out of unit.
CAUTION
Very low airflow rates may result in fouling
of the energy exchanger core. Do not re-
duce airflow to below 250 cfm per core.
Make sure clean filters are installed before
balancing airflow. Dirty or clogged filters
reduce airflow through the unit.
CAUTION

31.800.627.4499
EC Motors OPTIONS
1.0 OVERVIEW 4
1.1 DESCRIPTION .......................................................................................................... 4
1.2 OPERATING CONTROLS............................................................................................ 4
2.0 PERFORMANCE DATA 5
2.1 EV450IN ECM OPERATING RANGE ............................................................................ 5
2.2 EV450RT ECM OPERATING RANGE ........................................................................... 5
2.3 HE1XIN (H OR V) ECM OPERATING RANGE ................................................................ 6
2.4 HE1XRT ECM OPERATING RANGE............................................................................. 6
2.5 HE1XRTC ECM OPERATING RANGE........................................................................... 7
2.5.1 Unit Tied into Separate Ducts.......................................................................................................... 7
2.5.2 Unit Tied into Air-Handler................................................................................................................ 7
2.6 HE1.5XIN (H OR V) ECM OPERATING RANGE ............................................................. 8
2.7 HE1.5XRT ECM OPERATING RANGE .......................................................................... 8
3.0 INSTALLATION 9
3.1 PRINCIPLES OF EXTERNAL CONTROL....................................................................... 9
3.2 ELECTRICAL SPECIFICATIONS .................................................................................. 9

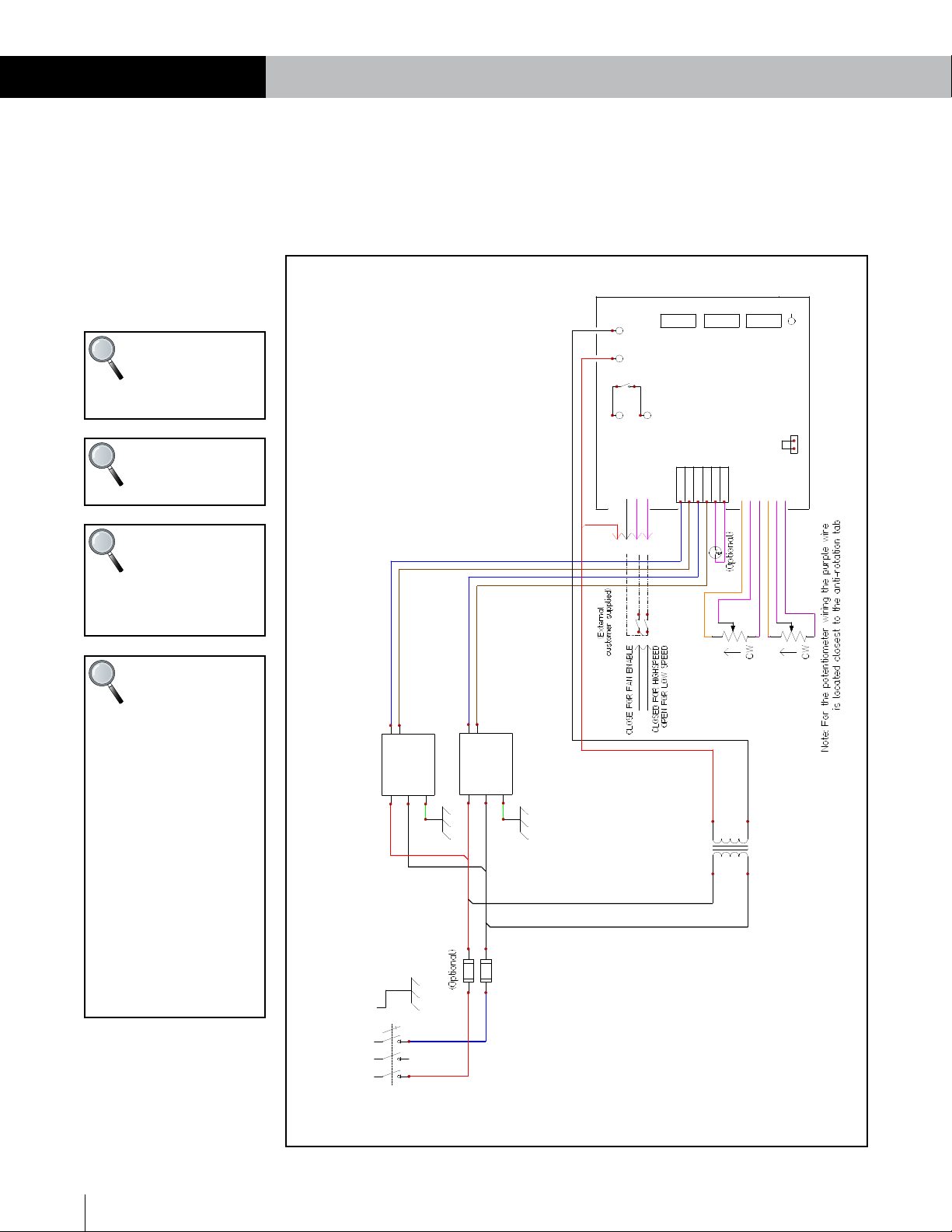

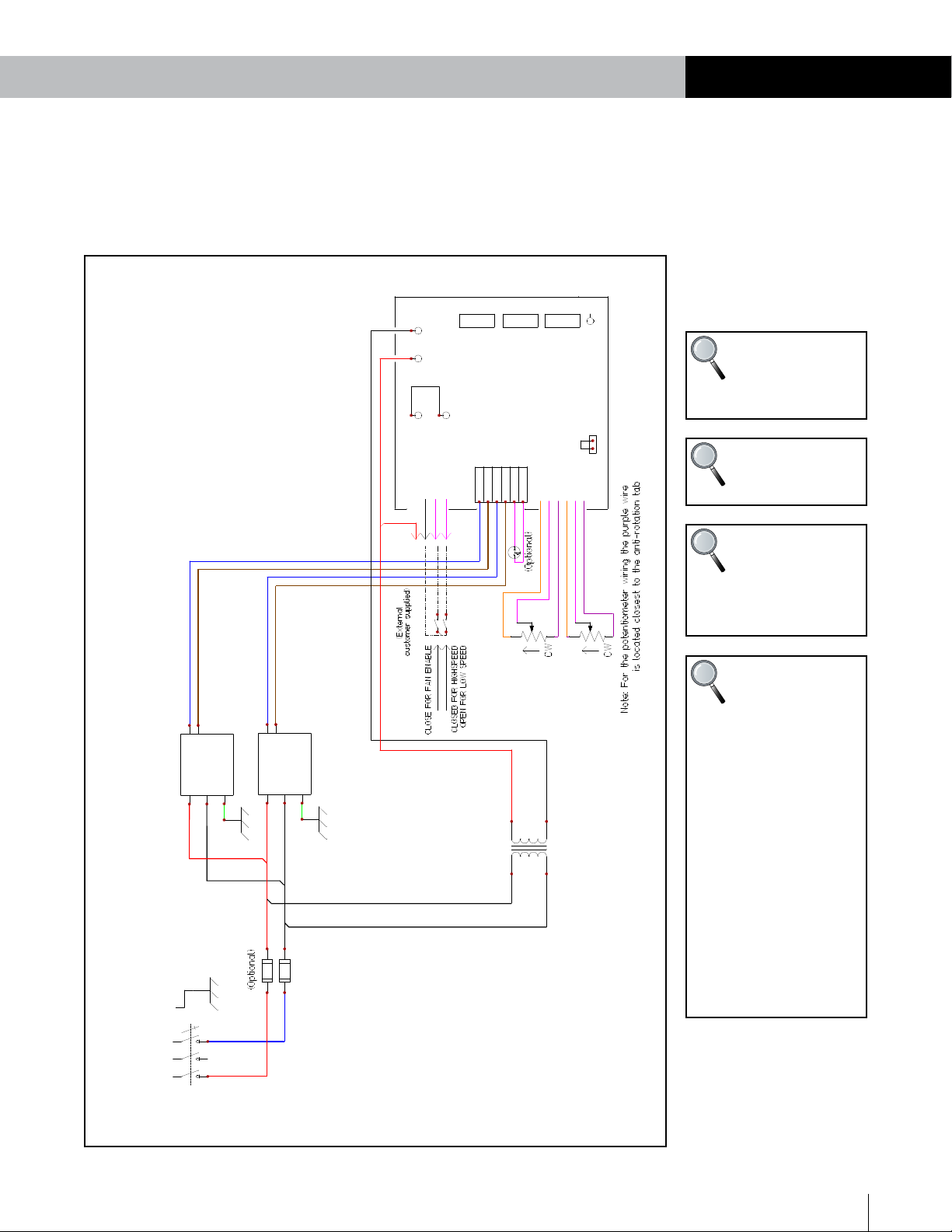

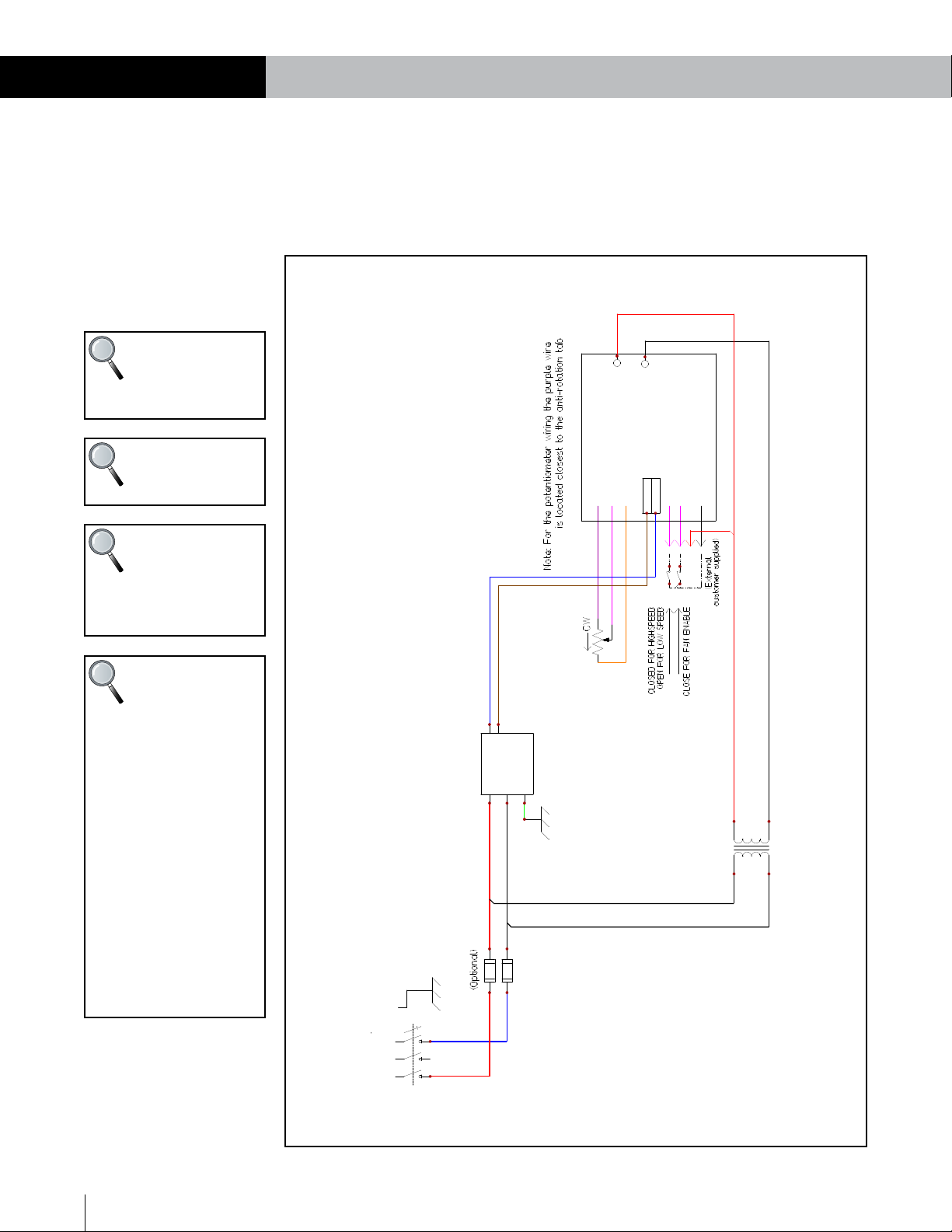

3.3 WIRING SCHEMATICS............................................................................................. 10
3.3.1 EV450 .......................................................................................................................................... 10
3.3.2 HE1X (shown without dampers)..................................................................................................... 11
3.3.3 HE1.5X (shown without dampers).................................................................................................. 12

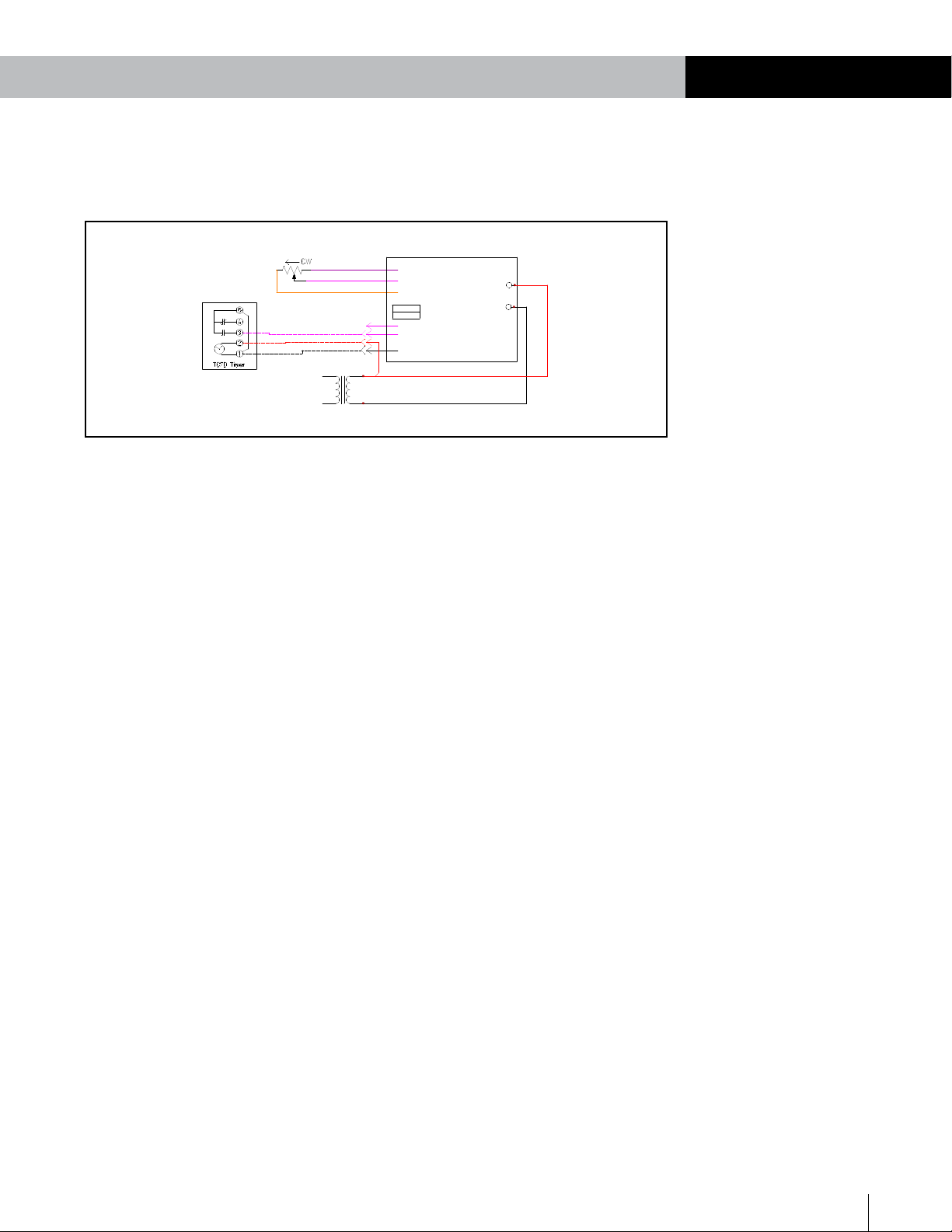

3.3.4 TC7D Field Wiring (Optional Accessory)......................................................................................... 13
4.0 OPERATION 14
4.1 AIRFLOW PERFORMANCE ...................................................................................... 14
4.2 MEASURING AIRFLOW ........................................................................................... 14
4.2.1 Equipment Required...................................................................................................................... 14
4.2.2 Cross Core Static Pressure Measurement Instructions................................................................... 14
4.3 AIRFLOW VERSUS PRESSURE DROPS..................................................................... 15
5.0 FACTORY ASSISTANCE 15
TABLE OF CONTENTS

1.800.627.44994
EC Motors
OPTIONS
1.0 OVERVIEW
1.1 DESCRIPTION
RenewAire’s light commercial units are offered with optional electronically commutated motors
(ECM). EC motors have higher efficiencies with considerable energy savings over a standard
permanent split capacitor motor. The ECM offered in RenewAire energy recovery ventilators
(ERVs) are constant torque with a variety of speed control options. The motors operate at fixed
speed or variable speed with speed inputs from fixed resistors, potentiometer, or 0–10 Vdc
analog signal.
1.2 OPERATING CONTROLS
A wide variety of low voltage (24 VAC) control schemes may be selected to meet the ventilation
needs of the facility. These include time clock, occupancy sensor, carbon dioxide sensor, and
others. Building Management Systems (BMS) may also control the unit with external control by
others.
OVERVIEW

51.800.627.4499
EC Motors OPTIONS
2.0 PERFORMANCE DATA

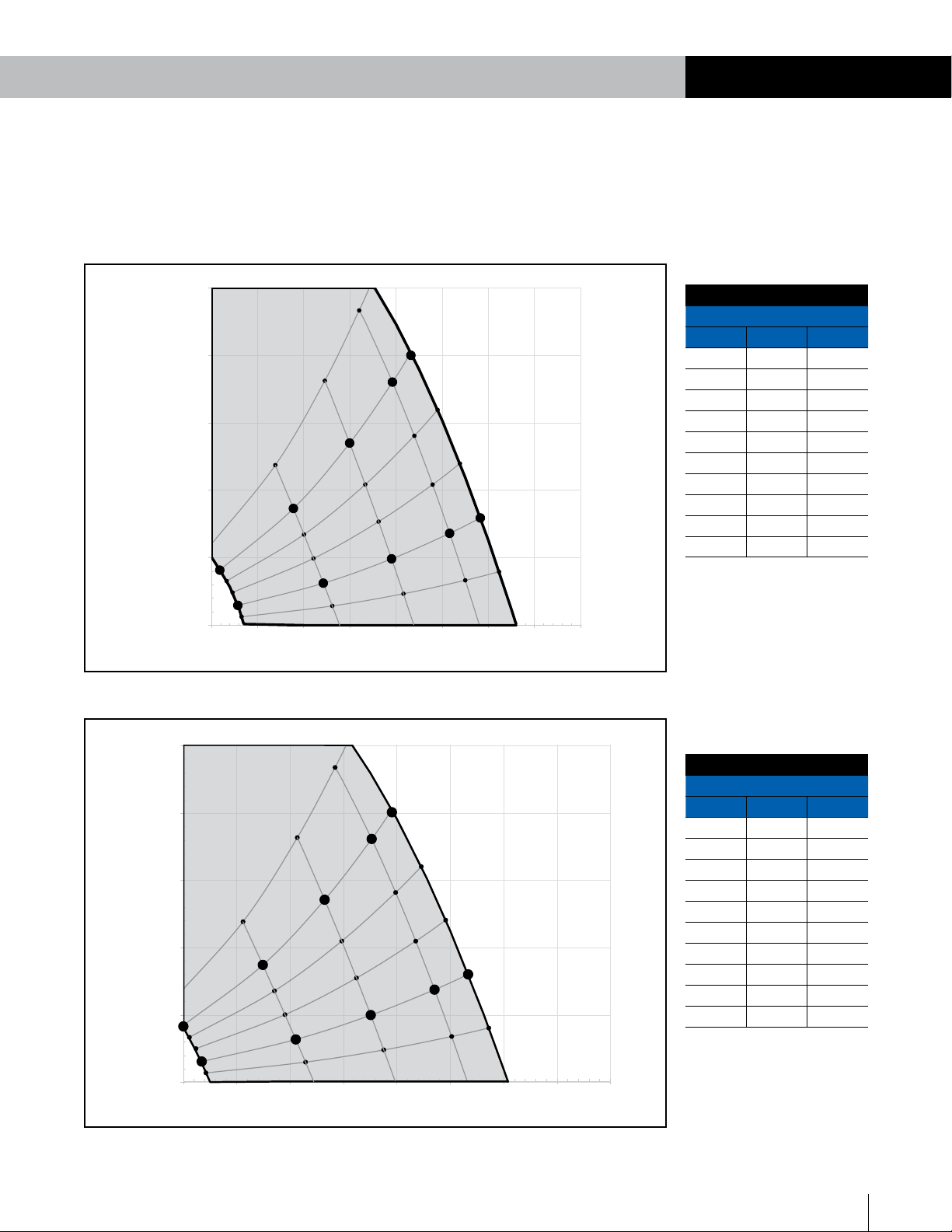

2.1 EV450IN ECM OPERATING RANGE
0.00
0.25
0.50
0.75
1.00
1.25
200 250 300 350 400 450 500 550 600
External Static Pressure (in. w.g.)
Airflow (cfm)
EV450-IN ECM
74
75
76
80
80
160
171
177
183
188
198
269
284
299
307
315
328
403
410
427
436
447
449
500 (Watts)
506
520
521
515
487 EV450-IN ECM
Sample Points
CFM ESP* Watts
229 0.07 75
321 0.16 171
395 0.25 284
458 0.34 410
491 0.40 506
209 0.20 80
289 0.43 188
350 0.67 315
396 0.90 447
416 1.00 515
EV450-RT ECM
Sample Points
CFM ESP* Watts
217 0.07 78
305 0.16 180
375 0.25 301
435 0.34 426
467 0.40 520
200 0.20 85
274 0.43 196
332 0.67 324
376 0.90 451
395 1.00 502
2.2 EV450RT ECM OPERATING RANGE
0.00
0.25
0.50
0.75
1.00
1.25
200 250 300 350 400 450 500 550 600
External Static Pressure (in. w.g.)
Airflow (cfm)
EV450-RT ECM
514 (Watts)
415
289
174
77
520
521
516
502
470
426
438
447
451
436
301
310
317
324
337
180
186
191
196
204
78
80
82
85
Note: Watts is for the entire unit.
*Inches Water Column
Note: Watts is for the entire unit.
*Inches Water Column
PERFORMANCE DATA

1.800.627.44996
EC Motors
OPTIONS
HE1X-IN ECM
Sample Points
CFM ESP* Watts
324 0.04 86
446 0.07 150
647 0.15 300
794 0.24 564
929 0.33 827
1019 0.41 1042
300 0.11 91
406 0.20 160
579 0.42 359
713 0.65 599
828 0.89 871
883 1.00 1075
Note: Watts is for the entire unit.
*Inches Water Column

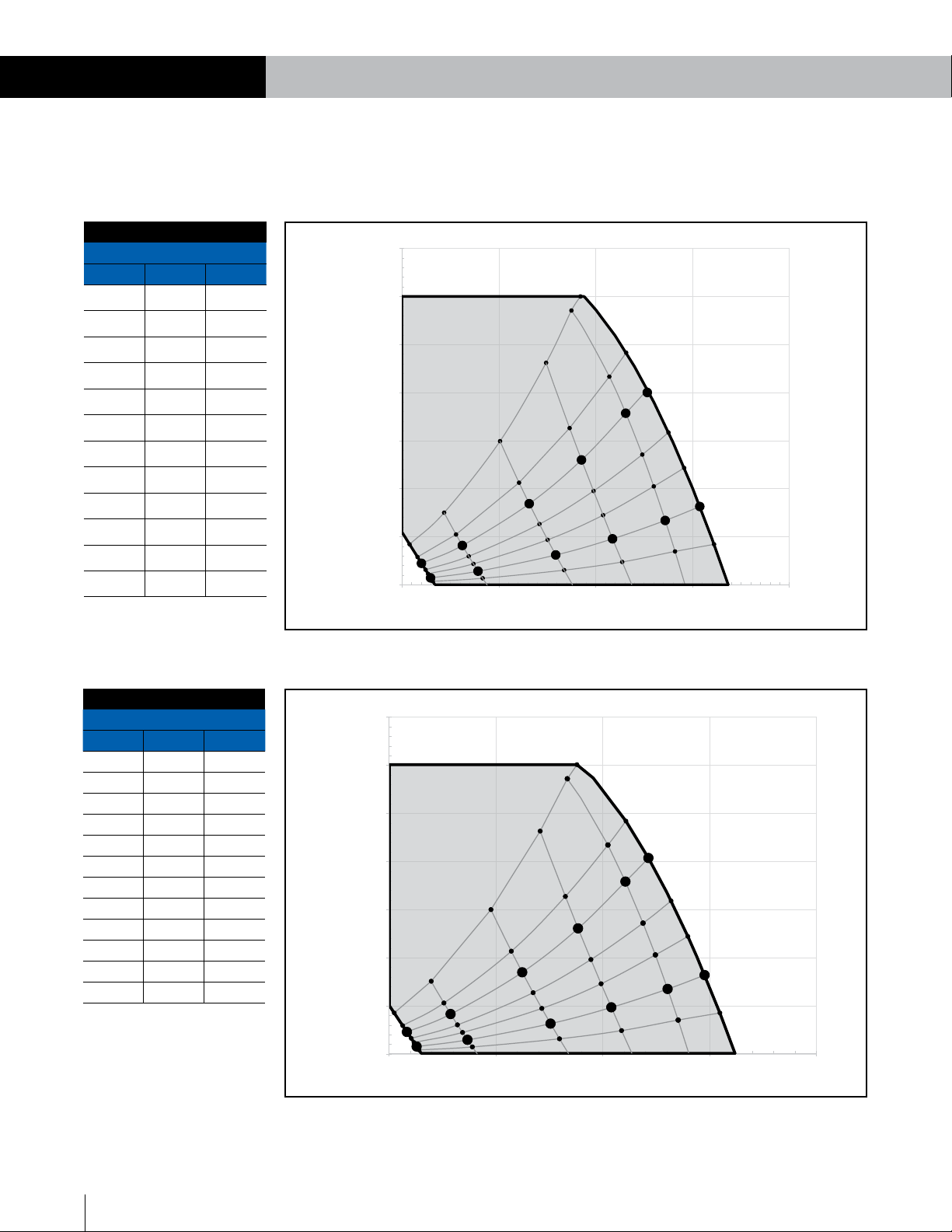

2.3 HE1XIN (H OR V) ECM OPERATING RANGE
2.4 HE1XRT ECM OPERATING RANGE
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
250 500 750 1000 1250
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1X-IN ECM (H or V)
85
97
89
148
150
153
156
160
164
173
273
300
322
340
359
386
392
560
564
572
583
599
643
655
818
827
839
852
871
911
918
1029 (Watts)
1042
1056
1068
1075
1029
992
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
250 500 750 1000 1250
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1X-RT ECM
87
99
91 151
153
156
159
163
168
177
298
321
339
354
368
380
397
564
572
582
594
612
630
665
828
838
851
864
881
898
921
1041 (Watts)
1053
1065
1073
1074
1061
966
HE1X-RT ECM
Sample Points
CFM ESP* Watts
314 0.04 88
433 0.07 153
627 0.15 321
770 0.24 572
901 0.33 838
988 0.41 1053
291 0.11 93
394 0.20 163
561 0.42 368
692 0.65 612
803 0.89 881
857 1.01 1074
Note: Watts is for the entire unit.
*Inches Water Column
PERFORMANCE DATA

71.800.627.4499
EC Motors OPTIONS

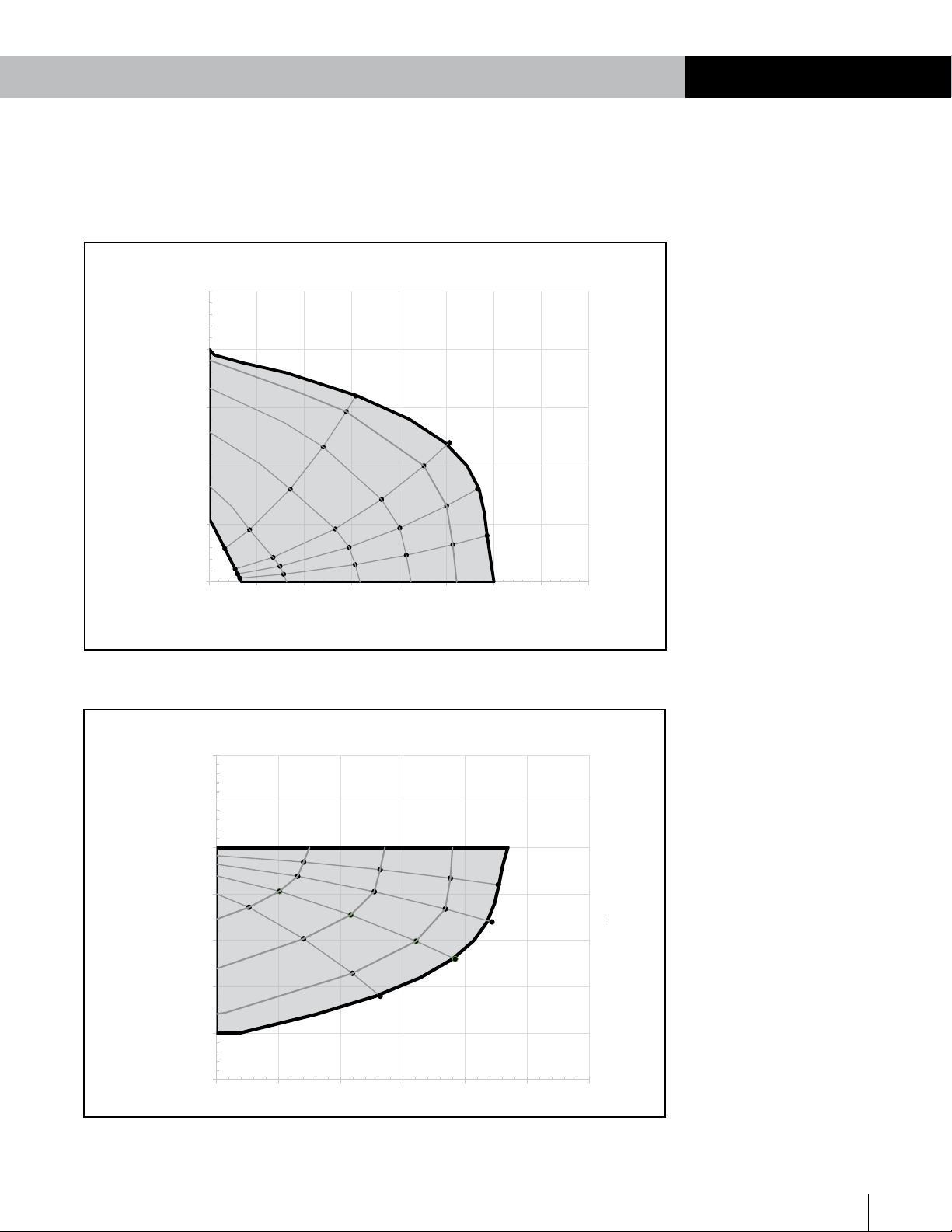

2.5 HE1XRTC ECM OPERATING RANGE
2.5.1 Unit Tied into Separate Ducts
0.00
0.25
0.50
0.75
1.00
1.25
250 375 500 625 750 875 1000 1125 1250
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1X-RTC ECM
Unit Tied Into Separate Ducts
890 watts
900
806
516
694
718
654
471
372
250
131
94
444
276
139
89
470
277
140
443
249
137
89
2.5.2 Unit Tied into Air-Handler
0.0
0.2
0.4
0.6
0.8
1.0
1.2
0200 400 600 800 1000 1200
HE1X-RTC EA EC
new RTC EA
0.2 sys
0.4 sys
0.6 sys
0.8 sys
1.0 sys
-1.25
-1.00
-0.75
-0.50
-0.25
0.00
0.25
0.50
500 625 750 875 1000 1125 1250
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1X-RTC ECM
Unit Tied into Air Handler
1040 (Watts)
866
559
297
1050
1060
755
907
595
333
851
562
331
630
451
296
PERFORMANCE DATA

1.800.627.44998
EC Motors
OPTIONS

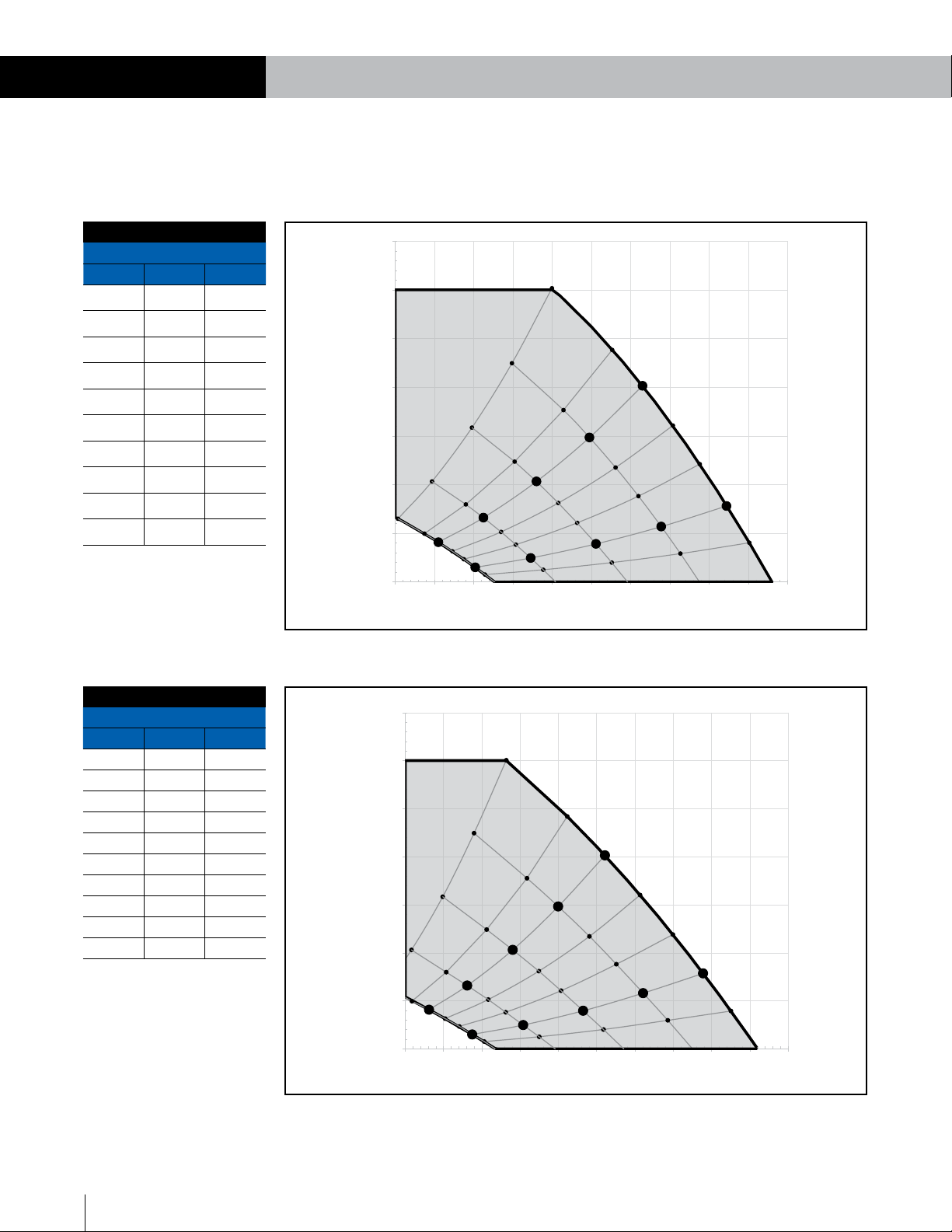

2.6 HE1.5XIN (H OR V) ECM OPERATING RANGE
2.7 HE1.5XRT ECM OPERATING RANGE
HE1.5X-RT ECM
Sample Points
CFM ESP* Watts
593 0.07 188
760 0.12 313
955 0.20 502
1151 0.29 739
1347 0.39 1021
453 0.20 182
577 0.33 304
725 0.51 489
874 0.74 722
1026 1.01 1000
Note: Watts is for the entire unit.
*Inches Water Column
HE1.5X-IN ECM
Sample Points
CFM ESP* Watts
630 0.07 189
807 0.12 314
1014 0.20 502
1222 0.28 735
1430 0.39 1015
513 0.20 185
656 0.33 310
825 0.52 498
994 0.74 735
1163 1.01 1017
Note: Watts is for the entire unit.
*Inches Water Column 0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
375 500 625 750 875 1000 1125 1250 1375 1500 1625
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1.5X-IN ECM
190
189
188
187
185
183
178
314
314
313
312
310
306
296
500
502
502
501
498
493
475
730
735
739
739
735
727
698
1006 (Watts)
1015
1021
1022
1017
1006
965
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
375 500 625 750 875 1000 1125 1250 1375 1500 1625
External Static Pressure (in. w.g.)
Airflow (cfm)
HE1.5X-RT ECM
189
188
187
185
182
179
314
313
312
309
304
298
283
501
502
501
497
489
478
451
735
739
738
733
722
703
658
1015 (Watts)
1021
1022
1015
1000
973
907
PERFORMANCE DATA

91.800.627.4499
EC Motors OPTIONS
3.0 INSTALLATION
3.1 PRINCIPLES OF EXTERNAL CONTROL
The light commercial units with EC motors are designed for control by a wide variety of low
voltage (24 VAC) controls to meet the ventilation needs of the facility. These include time clock,
occupancy sensor, carbon dioxide sensor, BMS, and others. These devices are commonly
known as 2-wire, 3-wire, and 4-wire devices. RenewAire offers separately the following for
standalone control of the ERV:
uDigital Time Clocks TC7D-W and TC7D-E
uOccupancy Sensors MC-C and MC-W
uCarbon Dioxide Sensor/Controllers CO2-W and CO2-D
uIndoor Air Quality Sensor/Controllers IAQ-W and IAQ-D
INSTALLATION
3.2 ELECTRICAL SPECIFICATIONS
Electrical Ratings for ECM Units
Phase (unit) Input
Voltage
FLA
(motor) MCA (unit) MOPD (unit)
EV450 1115 VAC 8.1 10.1 15
208-230 VAC 4.8 6.0 15
HE1X 1115 VAC 8.1 18.2 25
208-230 VAC 4.8 10.8 15
HE1.5X 1
115 VAC 8.0 18.0 20
208-230 VAC 4.4 9.9 15
277 VAC 4.4 9.9 15

1.800.627.449910
EC Motors
OPTIONS
3.3 WIRING SCHEMATICS
3.3.1 EV450
INSTALLATION
CHANGESNAMEREV. DATE
Description
Family
Config
No Damper
RenewAire
1
ABCDE
New5 4/8/2020 austine
611/18/2020 NealW Updated potentiometer wiring and field 24 VAC 71/19/2021 NealW Changed transformer wire from BU to BK
EV450 ECM
2 3 4 5 6 7 8 9
10 11 12 13
EV450Jxx--x11,15-----GxTx-xx_007
24VAC
BK RD
YL YL VAR
EN
24VAC
COM
Circuit Board
YL PU
OR
GND W 10V
COM
Input Power
115 VAC, 1 Phase
208-230 VAC, 1 Phase
GND
N/L3
L1
BR
BU
BK
BK
RD
L(L+)
N(L-)
GND
GND
0-10 V
4
5
SF ECM
BK
RD
XF1
BK
BURD
F1
1
2
R1
NOTE: Connect the
yellow EN wire to
the black COM wire
to enable the unit.
NOTE: By default
the resistors on the
board set SPEED 1.
NOTE: Connect the
yellow VAR wire to
the black COM wire
to enable SPEED 2. SPEED
2 is set by the
potentiometer.
NOTE: To utilize an
external 0–10 VDC
analog signal for
SPEED 2:
1. Remove the potentiom-
eter by cutting the wires at
the potentiometer.
2. Connect the remote
analog signal to the yellow
wire from the
potentiometer.
3. Connect the remote
signal ground to the purple
wire from the
potentiometer.
4. Cap the orange wire
from the potentiometer
with a wire nut.

111.800.627.4499
EC Motors OPTIONS
INSTALLATION
3.3.2 HE-1X (shown without dampers)
CHANGESNAMEREV. DATE
Description
Family
Config
No Damper
RenewAire
1
ABCDE
New4 3/26/2020 austine
511/6/2020 NealW Updated potentiometer wiring and field 24 VAC 61/18/2021 NealW Updated 24 VAC Com wire color
HE1X ECM
2 3 4 5 6 7 8 9
10 11 12 13
HE-1XJxxx-x11,15xx---GxTx-xx_006
1
2
3 4
1
2
3 4
1
2
3 4
DOORKILL1
DOORKILL2
24VAC
BK
RD
YL YL
VAR EN 24VAC
COM
Circuit Board
J1
BYPASS
YL PU OR YL PU OR
SFGND SFW SF10V EFGND EFW EF10V
1
2
3 4
5 6
BYPASSCOM
EA/RA
OA/FA
COM
Input Power
115 VAC, 1 Phase
208-230 VAC, 1 Phase
GND
N/L3
L1
BR
BU
BK
BK
RD
L(L+)
N(L-)
GND
GND
0-10 V
4
5
SF ECM
BK
RD
XF1
BK
BURD
F1
L(L+)
N(L-)
GND
GND
0-10 V
4
5
EF ECM
SF EF
BR
BU
YL YL
NOTE: Connect the
yellow EN wire to
the black COM wire
to enable the unit.
NOTE: By default
the resistors on the
board set SPEED 1.
NOTE: Connect the
yellow VAR wire to
the black COM wire
to enable SPEED 2. SPEED
2 for each fan is set by the
potentiometers.
NOTE: To utilize an
external 0–10 VDC
analog signal for
SPEED 2:
1. Remove the potentiom-
eter by cutting the wires at
the potentiometers.
2. Connect the remote
analog signal to the yellow
wire from the
potentiometers.
3. Connect the remote
signal ground to the purple
wire from the
potentiometers.
4. Cap the orange wire
from the potentiometers
with a wire nut.

1.800.627.449912
EC Motors
OPTIONS
INSTALLATION
3.3.3 HE1.5X (shown without dampers)
CHANGESNAMEREV. DATE
Description
Family
Config
No Damper
RenewAire
1
ABCDE
New4 3/26/2020 austine
511/5/2020 NealW Updated potentiometer wiring and Field 24 VAC 61/18/2021 NealW Added 277 VAC
HE1.5X ECM
2 3 4 5 6 7 8 9
10 11 12 13
HE-1.5XJxxx-x11,15,19xx---GxTx-xx_006
1
2
3 4
1
2
3 4
1
2
3 4
DOORKILL1
DOORKILL2
24VAC
BK
RD
YL YL
VAR EN 24VAC
COM
Circuit Board
J1
BYPASS
YL PU OR YL PU OR
SFGND SFW SF10V EFGND EFW EF10V
1
2
3 4
5 6
BYPASSCOM
EA/RA
OA/FA
COM
Input Power
115 VAC, 1 Phase
208-230 VAC, 1 Phase 277 VAC, 1 Phase
GND
N/L3
L1
BR
BU
BK
BK
RD
L(L+)
N(L-)
GND
GND
0-10 V
4
5
SF ECM
BK
RD
XF1
BK
BURD
F1
L(L+)
N(L-)
GND
GND
0-10 V
4
5
EF ECM
SF EF
YL YL
BR
BU
NOTE: Connect the
yellow EN wire to
the black COM wire
to enable the unit.
NOTE: By default
the resistors on the
board set SPEED 1.
NOTE: Connect the
yellow VAR wire to
the black COM wire
to enable SPEED 2. SPEED
2 for each fan is set by the
potentiometer.
NOTE: To utilize an
external 0–10 VDC
analog signal for
SPEED 2:
1. Remove the potentiom-
eter by cutting the wires at
the potentiometer.
2. Connect the remote
analog signal to the yellow
wire from the
potentiometer.
3. Connect the remote
signal ground to the purple
wire from the
potentiometer.
4. Cap the orange wire
from the potentiometers
with a wire nut.

131.800.627.4499
EC Motors OPTIONS
INSTALLATION
CHANGESNAMEREV. DATE
Description
Family
Config
Field Wiring
RenewAire
1
ABCDE
EV450 ECM
2
3
4
5
6
7
8
9
10
11
12
13
EV450Jxx--x11,15-----GxTx-xx_006
24VAC
BK
RD
YL
YL VAR
EN
24VAC
COM
Circuit Board
YL
PU
OR
GND
W
10V
COM
BK
RD
XF2
1
2
R2
3.3.4 TC7D Field Wiring (Optional Accessory)

1.800.627.449914
EC Motors
OPTIONS
4.0 OPERATION
4.1 AIRFLOW PERFORMANCE
The ERV is factory wired to operate at low fixed speed and variable speed.
Airflows must be measured and the unit’s potentiometers adjusted so that it operates at the
airflow volumes specified for the installation.
Use the pressure taps in the core and filter doors to determine the airflow. Section 4.3
translates the pressure drop across the energy recovery core to the actual airflow volume.
4.2 MEASURING AIRFLOW
4.2.1 Equipment Required
uMagnehelic gauge or other device capable of measuring 0–1.5 in. water of
differential pressure.
u2 pieces of flexible tubing, 1/8" ID, 1/16" wall works best.
4.2.2 Cross Core Static Pressure Measurement Instructions
uThe individual differential pressures (DP) are measured using the installed pressure ports
located in the front of the units core access doors.
uTo read SCFM of Fresh Air (FA) install the “high” pressure side (+) of your measuring device
to the Outside Air (OA) port and the “low” pressure side (-) to the Fresh Air (FA) port.
uTo read SCFM of Room Air (RA) install the “high” pressure side (+) of your measuring device
to the Room Air (RA) port and the “low” pressure side (-) to the Exhaust Air (EA) port.
uUse the reading displayed on your measurement device to cross reference the CFM output
using the conversion chart.
uAdjust airflow by changing the potentiometer setting for the measured airstream.
NOTE: Be sure to
remove cap from
pressure port before
inserting tubing. Ensure
tubing is well seated in
pressure ports.
NOTE: The tubing
should extend in
the pressure port
approximately 1".
NOTE: These ports
are carefully located
on the unit to give
the most accurate airflow
measurement. Do not
relocate ports.
NOTE: Be sure to
replace cap into
pressure port when
airflow measuring is
complete.
NOTE: For best per-
formance the airflow
rate for both the FA
and EA should be roughly
equal (“balanced”). In
some facilities a slight
positive or negative
pressure in the building is
desired. RenewAire energy
recovery ventilators can
generally operate with a
flow imbalance of up to
20% without significant
loss in energy recovery
efficiency.
OPERATION

151.800.627.4499
EC Motors OPTIONS
AIRFLOW PREDICTED BY PRESSURE DROP ACROSS CORE (SCFM)
DP
("H2O)
EV450IN ECM HE1XINV ECM HE1XINH ECM HE1.5XIN ECM HE1XRT ECM HE1XRTC ECM HE1.5XRT ECM
FA RA FA RA FA RA FA RA FA RA FA RA FA RA
0.10 -- -- -- -- -- -- -- -- -- -- -- -- 335 --
0.15 -- -- -- -- -- -- 380 320 -- -- -- -- 450 --
0.20 200 200 280 -- 260 -- 500 440 -- -- -- -- 555 --
0.25 225 225 330 270 310 290 620 565 -- -- -- -- 650 --
0.30 245 245 380 320 360 340 740 695 280 250 -- -- 745 --
0.35 265 265 425 375 415 390 860 825 325 290 -- -- 835 300
0.40 285 285 470 430 470 440 980 960 370 330 -- -- 920 380
0.45 305 305 520 480 520 490 1095 1095 415 370 -- -- 1005 475
0.50 330 330 570 530 570 540 1215 1235 460 410 650 -- 1085 575
0.55 350 350 620 580 620 590 1330 1375 515 455 688 -- 1165 685
0.60 370 370 670 630 670 640 1450 1515 550 500 725 555 1240 805
0.65 390 390 720 680 720 690 1565 -- 595 540 770 610 1315 935
0.70 410 410 770 730 770 740 -- -- 640 580 815 665 1385 1070
0.75 430 430 815 785 820 790 -- -- 690 620 853 720 1460 12220
0.80 455 455 860 840 870 840 -- -- 740 660 890 775 1530 1375
0.85 475 475 910 890 920 890 -- -- 785 700 933 828 -- 1535
0.90 495 495 960 940 970 940 -- -- 830 740 975 880 -- --
0.95 -- -- 1010 990 1020 990 -- -- 875 785 1018 938 -- --
1.00 -- -- 1060 1040 1070 1040 -- -- 920 830 1060 995 -- --
1.05 -- -- -- 1090 -- 1090 -- -- 965 870 -- 1048 -- --
1.10 -- -- -- -- -- -- -- -- 1010 910 -- 1100 -- --
4.3 AIRFLOW VERSUS PRESSURE DROPS
OPERATION
In the unlikely event that you need assistance from the factory for a specific issue with the
ERV or its ECM Option, make sure that you have the information called for in the Unit Records
pages at the front of the ERV manual. The person you speak with at the factory will need that
information to properly identify the unit and the installed options.
Remember that RenewAire Customer Service can only assist with the ERV and its options, it
cannot resolve engineering issues that result from air handling system design by others.
5.0 FACTORY ASSISTANCE
To contact RenewAire Customer Service:
Call 800-627-4499
Email: RenewAireSuppor[email protected]

About RenewAire
For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ)
in commercial and residential buildings of every size. This is achieved while maximizing
sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery
Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and
decrease operational expenses by minimizing equipment needs, resulting in significant energy
savings. Our ERVs are competitively priced, simple to install, easy to use and maintain and have
a quick payback. They also enjoy the industry’s best warranty with the lowest claims due to
long-term reliability derived from innovative design practices, expert workmanship and Quick
Response Manufacturing (QRM).
As the pioneer of static-plate core technology in North America, RenewAire is the largest ERV
producer in the USA. We’re committed to sustainable manufacturing and lessening our
environmental footprint, and to that end our Waunakee, WI plant is 100% powered by wind
turbines. The facility is also one of the few buildings worldwide to be LEED and Green Globes
certified, as well as having achieved ENERGY STAR Building status. In 2010, RenewAire joined
the Soler & Palau (S&P) Ventilation Group in order to provide direct access to the latest in energy-
efficient air-moving technologies. For more information, visit: renewaire.com
