Renishaw RENGAGE OMP600 User manual

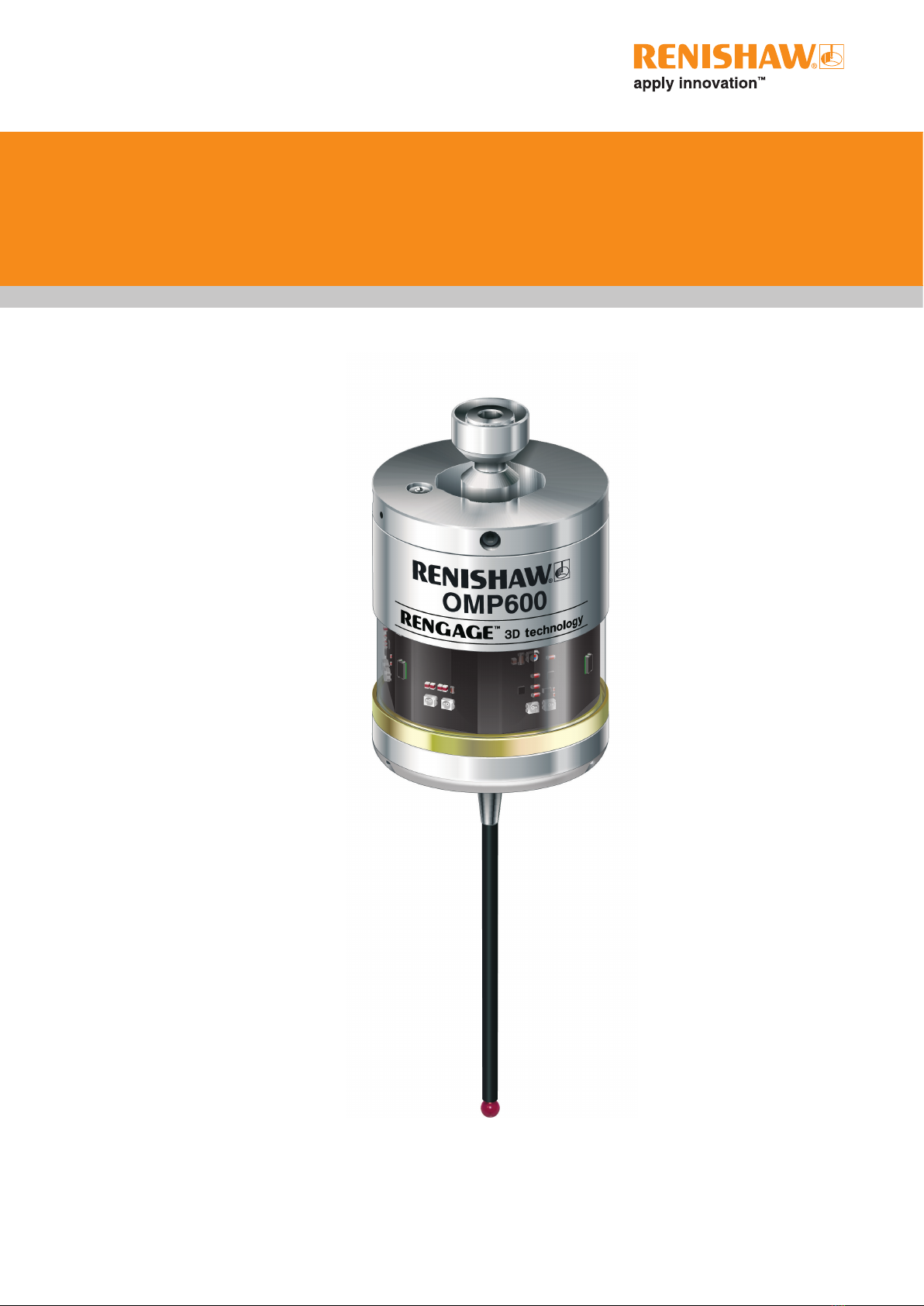

OMP600 high-accuracy optical machine
probe
Installation guide
H-5180-8504-01-B

Renishaw part no: H-5180-8504-04-B
First issued: 0.2015
Revised: 09.2022
© 2015–2022 Renishaw plc. All rights reserved.
This document may not be copied or reproduced in whole or in part, or transferred to any other media
or language, by any means, without the prior written permission of Renishaw plc.
Renishaw plc. Registered in England and Wales. Company no: 1106260. Registered office: New Mills,
Wotton-under-Edge, Gloucestershire, GL12 8JR, UK.
Compliance information for this product is available by scanning the QR code or visiting
www.renishaw.com/mtpdoc

i
Contents
Contents
Before you begin .............................................................1.1
Disclaimer .................................................................1.1
Trade marks................................................................1.1
Warranty ..................................................................1.1
Changes to equipment .......................................................1.1
CNC machines .............................................................1.2
Care of the probe ...........................................................1.2
Patents ...................................................................1.2
Intended use ...............................................................1.2
Safety ....................................................................1.3
OMP600 basics...............................................................2.1
Introduction ................................................................2.1
Getting started..............................................................2.2
Modulated vs legacy optical transmission ......................................2.2
Multiple probe system .....................................................2.2
Trigger Logic™ ...........................................................2.2
Probe modes ............................................................2.3
Configurable settings.........................................................2.3
Switch-on delay ..........................................................2.3
Switch-on / switch-off methods...............................................2.4
Enhanced trigger filter .....................................................2.5
Auto-reset function ........................................................2.5
Optical transmission modes .................................................2.5
Optical power ............................................................2.6
OMP600 dimensions.........................................................2.6
OMP600 specification ........................................................2.7
Typical battery life ...........................................................2.9
Recommended styli.........................................................2.10

OMP600 installation guide
ii
Contents
System installation ...........................................................3.1
Installing the OMP600........................................................3.1
Operating envelopes ......................................................3.1
Preparing the OMP600 for use .................................................3.4
Fitting the stylus ..........................................................3.4
Installing the batteries .....................................................3.5
Mounting the probe on a shank ..............................................3.6
Stylus on-centre adjustment.................................................3.7
Calibrating the OMP600 ......................................................3.8
Why calibrate a probe? ....................................................3.8
Calibrating in a bored hole or on a turned diameter...............................3.8
Calibrating in a ring gauge or on a datum sphere ................................3.9
Calibrating the probe length .................................................3.9
Trigger Logic™ ...............................................................4.1
Reviewing the probe settings ..................................................4.1
Probe settings record ........................................................4.2
Changing the probe settings ...................................................4.3
Operating mode.............................................................4.5
Probe status LEDs ........................................................4.5
Maintenance .................................................................5.1
Maintenance ...............................................................5.1
Cleaning the probe ..........................................................5.1
Changing the batteries .......................................................5.2
Diaphragm replacement ......................................................5.4
OMP600 diaphragms ......................................................5.4
Fault-finding .................................................................6.1
Parts list .....................................................................7.1

1.1
Disclaimer
WHILE CONSIDERABLE EFFORT WAS MADE TO VERIFY THE ACCURACY OF THIS DOCUMENT
AT PUBLICATION, ALL WARRANTIES, CONDITIONS, REPRESENTATIONS AND LIABILITY,
HOWSOEVER ARISING, ARE EXCLUDED TO THE EXTENT PERMITTED BY LAW.
RENISHAW RESERVES THE RIGHT TO MAKE CHANGES TO THIS DOCUMENT AND TO THE
EQUIPMENT, AND/OR SOFTWARE AND THE SPECIFICATION DESCRIBED HEREIN WITHOUT
OBLIGATION TO PROVIDE NOTICE OF SUCH CHANGES.
Trade marks
RENISHAW® and the probe symbol are registered trade marks of Renishaw plc. Renishaw
product names, designations and the mark ‘apply innovation’ are trade marks of Renishaw plc or its
subsidiaries.
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
AppStore is a service mark of Apple Inc.,registered in the U.S. and other countries.
Other brand, product or company names are trade marks of their respective owners.
Warranty
Unless you and Renishaw have agreed and signed a separate written agreement, the equipment
and/or software are sold subject to the Renishaw Standard Terms and Conditions supplied with such
equipment and/or software, or available on request from your local Renishaw office.
Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms
and Conditions), provided that they are installed and used exactly as defined in associated Renishaw
documentation. You should consult these Standard Terms and Conditions to find out the full details of
your warranty.
Equipment and/or software purchased by you from a third-party supplier is subject to separate terms
and conditions supplied with such equipment and/or software. You should contact your third-party
supplier for details.
Changes to equipment
Renishaw reserves the right to change equipment specifications without notice.
Before you begin

OMP600 installation guide
1.2
Before you begin
CNC machines
CNC machine tools must always be operated by fully trained personnel in accordance with the
manufacturer's instructions.
Care of the probe
Keep system components clean and treat the probe as a precision tool.
Patents
Features of the OMP600 probe, and other similar Renishaw probes, are the subject of one or more of
the following patents and/or patent applications:
CN 100416216
CN 101142461
CN 101171493
CN 101198836
CN 101476859
EP 1457786
EP 1613921
EP 1866602
EP 1880163
EP 1893937
EP 2154471
IN 234921
IN 305341
IN 307453
IN 364693
IN 8707/DELNP/2008
JP 4852411
JP 5283501
JP 5308811
JP 5357541
JP 5600072
JP 5611297
US 6860026
US 7285935
US 7316077
US 7486195
US 7603789
US 7689379
US 7792654
US 8140287
US 9157722
WO 2009/112819
Intended use
The OMP600 is an optical spindle probe that enables automated workpiece inspection and job set-up
on multi-tasking machines, machining centres and gantry machining centres.

1.3
Before you begin
Safety
Information to the user
This product is supplied with non-rechargeable batteries that do not contain lithium. Refer to the
battery manufacturer’s literature for specific battery operating, safety and disposal guidelines.
• Do not attempt to recharge the batteries.
• Replace the batteries only with the specified type.
• Do not mix new and used batteries in the product.
• Do not mix different types or brands of batteries in the product.
• Ensure that all batteries are inserted with the correct polarity in accordance with the instructions in
this manual and indicated on the product.
• Do not store the batteries in direct sunlight.
• Do not expose the batteries to water.
• Do not expose the batteries to heat or dispose of batteries in a fire.
• Avoid forced discharge of the batteries.
• Do not short circuit the batteries.
• Do not disassemble, apply excessive pressure, pierce, deform or subject the batteries to impact
• Do not swallow the batteries.
• Keep the batteries out of the reach of children.
• If the batteries are swollen or damaged do not use them in the product and exercise caution when
handling them.
• Dispose of waste batteries in accordance with your local environmental and safety laws.
Ensure that you comply with international and national battery transport regulations when transporting
batteries or this product with the batteries inserted To reduce the risk of shipment delays, should you
need to return this product to Renishaw for any reason, do not return any batteries.
Information to the machine supplier/ installer
It is the machine supplier's responsibility to ensure that the user is made aware of any hazards
involved in operation, including those mentioned in Renishaw product literature, and to ensure that
adequate guards and safety interlocks are provided.
Under certain circumstances, the probe signal may falsely indicate a probe seated condition. Do not
rely on probe signals to halt the movement of the machine.
Information to the equipment installer
All Renishaw equipment is designed to comply with the relevant EC and FCC regulatory requirements.
It is the responsibility of the equipment installer to ensure that the following guidelines are adhered to,
in order for the product to function in accordance with these regulations:
• any interface MUST be installed in a position away from any potential sources of electrical noise,
i.e. power transformers, servo drives etc;

OMP600 installation guide
1.4
Before you begin
• all 0V/ground connections should be connected to the machine “star point” (the “star point” is a
single point return for all equipment ground and screen cables).This is very important and failure to
adhere to this can cause a potential difference between grounds;
• all screens must be connected as outlined in the user instructions;
• cables must not be routed alongside high-current sources, i.e. motor power supply cables etc, or be
near high-speed data lines;
• cable lengths should always be kept to a minimum.
Equipment operation
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
Optical safety
This product contains LEDs that emit both visible and invisible light.
The OMP600 is ranked Risk Group: Exempt (safe by design).
The product was evaluated and classified using the following standard:
BS EN 62471:2008 The photobiological safety of lamps and lamp systems.
Renishaw recommends that you do not stare at or look directly into any LED device, irrespective of its
risk clarification.

2.1
OMP600 basics
Introduction
Welcome to OMP600, Renishaw’s optical probe that offers an unrivalled combination of size, reliability,
robustness and high-accuracy probing on medium and large machining centres.
Successfully combining patented RENGAGE™ strain gauge technology with the optical transmission
system of the OMP60, the OMP600 provides existing probe users with a simple upgrade to solid-state
strain gauge technology and all the associated benefits this brings:
• excellent 3D performance to allow probing of contoured surfaces;
• improved repeatability in all probing directions;
• a low triggering force combined with low pre-travel variation to provide high accuracy, even when
used with long styli;
• the elimination of reseat failures;
• high resistance to machine tool vibration;
• resistance to shock and false triggering through the use of solid-state accelerometers.
In addition to providing high-accuracy measurement on your machine tool, the OMP600 also offers:
• Faster calibration:
On complex 3D parts, it is common to measure in several different directions. Each direction
of a standard mechanical probe must be calibrated, to ensure that the pre-travel variation is
compensated in the measurement. Performing this calibration for every 3D direction can be
time-consuming.
The OMP600 has almost no pre-travel variation, so a single calibration value may be used for any
probing angle in 2D or 3D. This results in a vastly reduced calibration time. An additional benefit is a
corresponding reduction in errors introduced by environmental changes within the machine during
a long calibration cycle.
• The ability to be used in applications where axial and radial reorientations are used, enabled by the
use of solid-state accelerometers.
NOTE: The auto-reset function is required and recommendations should be followed for optimum
metrology performance (see “Auto-reset function” later in this section).

OMP600 installation guide
2.2
OMP600 basics
Getting started
Three multicolour probe LEDs provide a visual indication of the selected probe settings.
For example:
• switch-on and switch-off methods;
• probe status – triggered or seated;
• battery condition.
Batteries are inserted or removed as shown (see “Installing the batteries” in Section 3, “System
installation” for further information).
On insertion of the batteries, the LEDs will begin to flash (see “Reviewing the probe settings” in
Section 4, “Trigger Logic™”).
Modulated vs legacy optical transmission
The OMP600 can be operated in either modulated or legacy mode. Modulated mode has a higher
resistance to light interference. Certain forms of light interference can cause false triggers or mimic
a start signal and falsely activate the probe. These effects are much reduced when modulated
transmission is selected.
Modulated mode
When set to modulated mode, the probe will only function with the OMI-2, OMI-2T, OMI-2H and
OMI-2C interfaces, or with the OSI with OMM-2 interface system.
Legacy mode
When set to legacy mode, the probe will only function with an OMI or OMM with MI 12.
Multiple probe system
To operate a twin OMP600 probe system, one OMP600 probe needs to be set to PROBE 1 start and
the other to PROBE 2 start. In applications where a third OMP600 is to be used, this should be set to
PROBE 3 start. These settings are user configurable.
The Renishaw OMI-2T interface allows twin OMP600 applications. The Renishaw OSI with OMM-2
interface system allows up to three OMP600 probes to be used on the same machine tool.
NOTE: When used in conjunction with an OMI-2T, or with an OSI with OMM-2 interface system, the
OMP600 switch-on method must be set to “optical on” (standard).
Trigger Logic™
Trigger Logic™ (see Section 4, “Trigger Logic™”) is a method that allows the user to view and select
all available mode settings in order to customise a probe to suit a specific application. Trigger Logic is
activated by battery insertion and uses a sequence of stylus deflections (triggering) to systematically
lead the user through the available choices to allow selection of the required mode options.

2.3
OMP600 basics
A Probe Setup app is available that simplifies this process with clear, interactive instructions and
informative videos and is available for download on the following app stores.
or
Current probe settings can be reviewed by simply removing the batteries for a minimum of 5 seconds,
and then replacing them to activate the Trigger Logic review sequence.
Probe modes
The OMP600 probe can be set in one of three modes:
Standby mode: where the probe is awaiting a switch-on signal.
Operational mode: activated by one of the switch-on methods described later in this section. In this
mode the OMP600 is ready for use.
Configuration mode: where Trigger Logic may be used to configure the following probe settings.
Configurable settings
Switch-on delay
When the standard switch-on is selected, the probe will be operational in less than 0.8 seconds. After
being switched on, the OMP600 must remain operational for a minimum of 1 second before being
switched off.
A second switch-on mode is available whereby a 3 second delay is invoked after the probe start
signal is received. This feature is aimed at machines where “auto-start” is required, i.e. it will ensure
that when the probe receives a start signal during a tool change that it will switch on correctly in
the spindle. To ensure that the probe activates correctly, it is important that it is stationary when it is
switched on. If the probe is not stationary during a start sequence, there is a possibility that the strain
gauges could auto-zero in the incorrect position and produce a permanently triggered output. The
3 second delay ensures that the start sequence only occurs when the probe is safely located in the
machine spindle (this assumes that the tool change process is completed in less than 3 seconds).
NOTES: The probing program on the machine will need to take account of the 3 second delay.
The 3 second delay is not compatible with the OMI-2T or OMI-2H.
When used in conjunction with an OSI with OMM-2 interface system, the OSI should be set to single
probe mode.

OMP600 installation guide
2.4
OMP600 basics
OMP600 switch-on method
Switch-on options are configurable
OMP600 switch-off method
Switch-off options are configurable
Switch-on time
Optical on
Optical switch-on is commanded
by machine input.
Optical off
Optical switch-off is commanded by a
machine input. A timer automatically
switches the probe off 90minutes after
the last trigger, or reseat event, if it is
not turned off by machine input.
When using
either modulated
transmission, or legacy
transmission
(start filter off), the
switch-on time will be
0.8 seconds.
When using legacy
transmission (start filter
on), the switch-on time
will be 1.4 seconds.
Optical on
Optical switch-on is commanded
by machine input or auto start.
Timer off (timeout)
Timeout will occur 12, 33 or 134
seconds (user configurable) after the
last probe trigger or reseat event.
Please note that the issue of a further
M-code will reset the timer.
Optical on (3 second delay)
Optical switch-on is commanded
by machine input or auto start.
Timer off (timeout)
Optical off or Timer off (timeout).
See Optical off or Timer off (timeout),
depending on switch-off configuration.
Optical start time plus
3 seconds.
Spin on
Spin at 500 rev/min for 1 second
minimum.
Spin off
Spin at 500 rev/min for 1 second
minimum. A timer automatically
switches the probe off 90 minutes after
the last trigger if it is not spun.
1 second.
Spin on
Spin at 500 rev/min for 1 second
minimum.
Timer off (timeout)
Timeout will occur 12, 33 or 134
seconds (user configurable) after the
last probe trigger or reseat event.
Please note that a spin event during
the timeout period will reset the timer.
1 second.
Shank switch on Shank switch off 3 seconds.
Switch-on / switch-off methods
The following switch-on / switch-off options are user-configurable.
• Optical on / optical off
• Optical on / timer off
• Spin on / spin off
• Spin on / timer off
• Shank switch on / shank switch off.
NOTE: A visual indication of currently selected probe settings is provided, on battery insertion, by the
three multicoloured LEDs located within the probe’s window (see Section 4, “Trigger Logic™”).
NOTE: After being switched on, the OMP600 must be on for 1 second before being switched off.

2.5
OMP600 basics
Enhanced trigger filter
Probes subjected to high levels of vibration or shock loads may output signals without having
contacted any surface. The enhanced trigger filter improves the probe’s resistance to these effects.
When the filter is enabled, a constant 8 ms or 16 ms delay is introduced to the probe’s output. The
factory setting is 8 ms. If false triggering is noticed, consider increasing the filter delay to 16 ms.
Auto-reset function
In previous strain gauge products, the probe was required to be turned off during reorientation moves.
The auto-reset function in the OMP600 can compensate for stylus forces, resulting from changes in
probe orientation, that can cause the probe to trigger.
This feature is controlled by solid-state accelerometers and is suitable for applications where axial and
radial reorientation of the probe is applied.
To achieve optimum metrology performance when the auto-reset function is turned on, a dwell is
recommended before making a programmed move that follows any reorientation of the probe.
When using a stylus of up to 150 mm in length, a 0.2 second dwell is necessary. In most applications,
the machine response time will adequately provide this.
When using a 200 mm long stylus, or heavy stylus configurations, a 1 second dwell is required. This
will necessitate edits to the machine probing programme.
When in “auto-reset” mode, the probe will not trigger when moved below a speed of 3 mm/min.
NOTE: Speeds below 3 mm/min commonly occur when manually moving the probe using the
handwheel with a very ne feedrate.
Optical transmission modes
Probes subjected to particular forms of light interference may accept spurious start signals.
The OMP600 can be operated in either “Modulated” or “Legacy” optical transmission mode.
Modulated mode
The OMP600 becomes compatible for use with the OMI-2, OMI-2T, OMI-2H, OMI-2C and OSI with
OMM-2 interface sytem to provide substantially increased resistance to light interference.
Modulated transmission, in the OMP600, is capable of providing three different coded start signals.
This allows the use of two probes with an OMI-2T and up to three probes with an OSI with OMM-2
interface system, respectively.
Legacy mode
A start filter improves the probe’s resistance to spurious start signals.
When Legacy (start filter on) is enabled, an additional 1 second delay is introduced to the probe
activation (switch-on) time.
It may be necessary to revise the probe program software to allow for the increased activation time.

OMP600 installation guide
2.6
OMP600 basics
Stylus overtravel limits
Stylus length ±X / ±Y +Z
50 (1.97) 18 (0.70) 11 (0.43)
100 (3.94) 32 (1.26) 11 (0.43)
Twin or multiple probe system
To operate in a twin or multiple probe system, one probe needs to be set to PROBE 1 start and the
other to PROBE 2 start (OMI-2T or OSI with OMM-2 interface system) or PROBE 3 start (OSI with
OMM-2 interface system only). These settings are user configurable.
In a twin probe system, such as a spindle probe and an optical tool setting probe, the spindle probe
would be set to PROBE 1 start and the tool setter to PROBE 2 start.
In a multiple probe system, with two spindle probes and one optical tool setting probe, the two spindle
probes would be set to PROBE 1 and PROBE 2 start, respectively. The tool setter would be set to
PROBE 3 start.

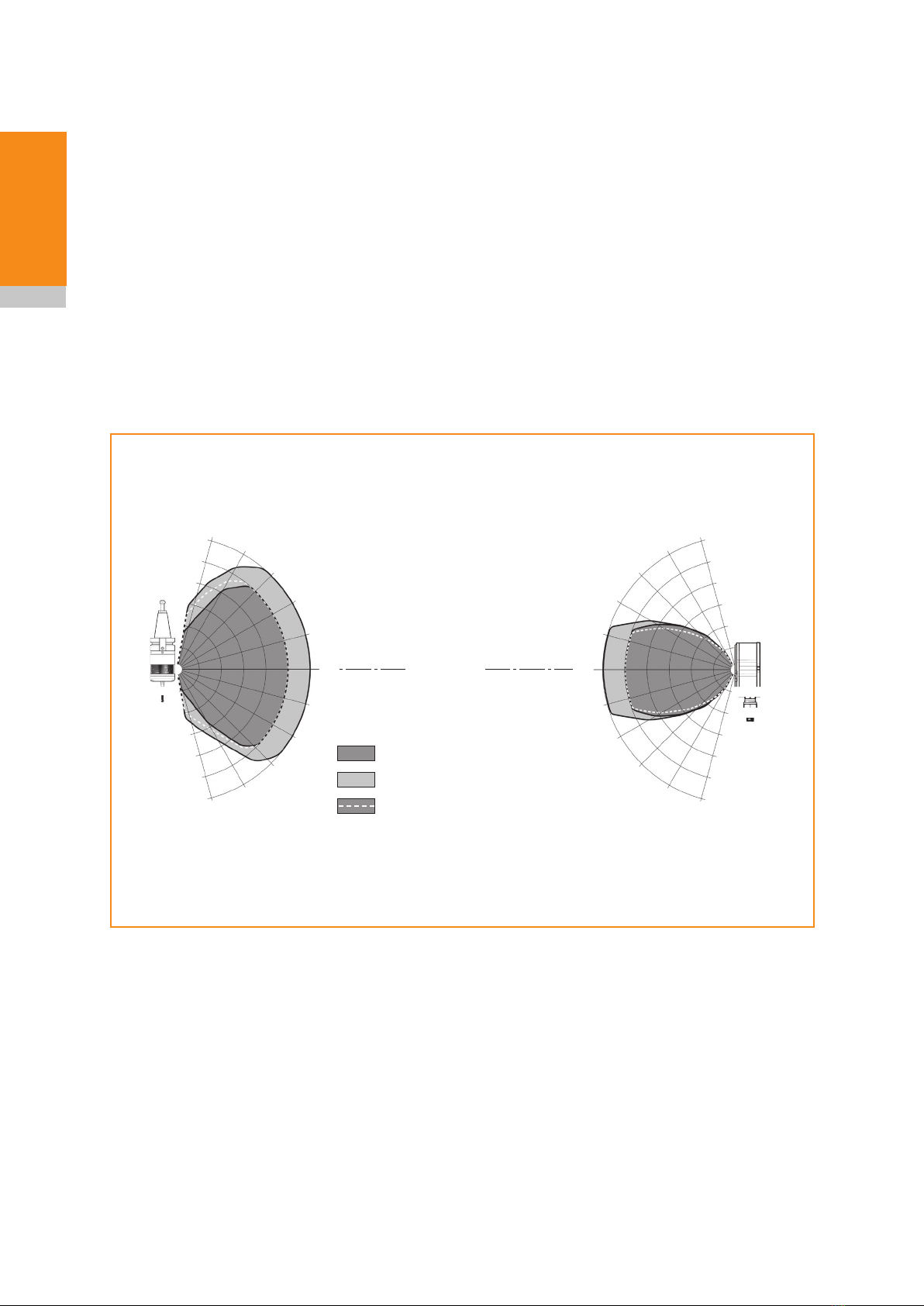

Optical power
Where the separation between the receiver/interface is small, low optical power may be used. In this
setting, the optical transmission range will be reduced, as shown on the performance envelopes, so
battery life will be extended.
Dotted lines on the performance envelopes represent the OMP600 in low optical power.
Low optical power should be used whenever possible for increased battery life.
Maximum battery life is achieved when lithium- thionyl chloride (LTC) batteries are used in conjunction
with low power mode.
The probe is factory set to standard optical power.
OMP600 dimensions
Dimensions given in mm (in)
A range of probe-ready shanks is
available from Renishaw
50 (1.97) 19 (0.75) Battery cassette
Shank switch (optional)
Window
15°
15°
Ø63 (Ø2.48)
76 (2.99)
M4 stylus
Probe status LED
Transmit diode
Receive diode

2.7
OMP600 basics
OMP600 specification
Principal application Workpiece inspection and job set-up on all sizes of machining
centres and small to medium multi-tasking machines.
Dimensions Length
Diameter
76 mm (2.99 in)
63 mm (2.48 in)
Weight (without shank) With batteries
Without batteries
1029 g (36.30 oz)
964 g (34.00 oz)
Transmission type 360° infrared optical transmission (modulated or legacy)
Switch-on methods Optical M-code, spin on or shank switch
Switch-off methods Optical M-code, timer, spin off or shank switch
Probe feedrate (minimum) 3 mm/min (0.12 in/min)
Spindle speed (maximum) 1000 rev/min
Operating range Up to 6 m (19.7 ft)
Receiver/interface Legacy mode OMI, OMM with MI 12 or MI 12-B
Modulated mode OMI-2, OMI-2T, OMI-2H, OMI-2C or
OSI or OSI-D with OMM-2 or OMM-
2C.system
Sense directions ±X, ±Y, +Z
Unidirectional repeatability 0.25 µm (10 µin) 2s– 50 mm stylus length (see note 1)
0.35 µm (14 µin) 2s– 100 mm stylus length
X,Y (2D) form measurement
deviation
±0.25 µm (10 µin) – 50 mm stylus length (see note 1)
±0.25 µm (10 µin) – 100 mm stylus length
X,Y, Z (3D) form
measurement deviation
±1.00 µm (40 µin) – 50 mm stylus length (see note 1)
±1.75 µm (70 µin) – 100 mm stylus length
Stylus trigger force
(see notes 2 and 5)
XY plane (typical minimum)
+Z direction (typical minimum)
0.15 N, 15 gf (0.54 ozf)
1.75 N, 178 gf (6.03 ozf)
Stylus overtravel force
XY plane (typical minimum)
+Z direction (typical minimum)
3.05N, 311gf (10.98 ozf) (see note 3)
10.69 N, 1090 gf (38.51 ozf) (see note 4)
Stylus overtravel XY plane
+Z plane
±15°
11 mm (0.43 in)
Note 1 Performance specication is tested at a standard test velocity of 240 mm/min (9.45 in/min). Signicantly higher velocity
is possible depending on application requirements.
Note 2 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the
probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on
related variables including measuring speed and machine deceleration. RENGAGE™ equipped probes offer ultra-low
trigger forces.
Note 3 Stylus overtravel force in the XY plane typically occurs 126 μm after the trigger point and rises by 0.32 N/mm,
33 gf/mm (29.3 oz/in) until the machine tool stops (in the high force direction and using a carbon bre stylus).
Note 4 Stylus overtravel force in the +Z direction typically occurs 50 μm after the trigger point and rises by 2.95 N/mm,
301 gf/mm (270 oz/in) until the machine tool stops.
Note 5 These are the factory settings, manual adjustment is not possible.

OMP600 installation guide
2.8
OMP600 basics
Environment IP rating IPX8, BS EN 60529:1992+A2:2013
IK rating IK01, BS EN 62262:2002+A1:2021 [for glass
window]
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Operating temperature +5 °C to +55 °C (+41 °F to +131 °F)
Battery types 2 × AA 1.5 V alkaline or 2 × AA 3.6 V lithium-thionyl chloride (LTC)
Battery reserve life Approximately one week after a low battery warning is first given (based
on 5% usage).
Typical battery life See the table on page 2.10.
Low battery indication Blue flashing LED in conjunction with normal red or green probe status
LED.
Dead battery indication Constant red LED or flashing red LED.
Rechargeable batteries Either nickel-cadmium (NiCd) or nickel-metal hydride (NiMh) can be
used. However, when these battery types are fitted, expect a battery
life of approximately 50% less than that quoted for alkaline batteries,
together with a reduced low battery warning period.

2.9
OMP600 basics
Modulated transmission
2 × AA 1.5V
alkaline
batteries
(typical)
Optical on/off Shank on/off Spin on/off
Standard
power
Low
power
Standard
power
Low
power
Standard
power
Low
power
Standby 480 days 520 days 170 days
5% usage 80 days 100 days 90 days 100 days 60 days 70 days
Continuous use 120 hours 140 hours 120 hours 140 hours 120 hours 140 hours
2 × AA 3.6V
LTC batteries
(typical)
Optical on/off Shank on/off Spin on/off
Standard
power
Low
power
Standard
power
Low
power
Standard
power
Low
power
Standby 750 days 800 days 370 days
5% usage 200 days 230 days 210 days 240 days 160 days 180 days
Continuous use 330 hours 380 hours 330 hours 380 hours 330 hours 370 hours
Legacy transmission
2 × AA 1.5V
alkaline
batteries
(typical)
Optical on/off Shank on/off Spin on/off
Standard
power
Low
power
Standard
power
Low
power
Standard
power
Low
power
Standby 480 days 520 days 170 days
5% usage 90 days 100 days 90 days 100 days 70 days 80 days
Continuous use 120 hours 150 hours 120 hours 150 hours 120 hours 150 hours
2 × AA 3.6V
LTC batteries
(typical)
Optical on/off Shank on/off Spin on/off
Standard
power
Low
power
Standard
power
Low
power
Standard
power
Low
power
Standby 750 days 800 days 370 days
5% usage 210 days 240 days 220 days 250 days 170 days 190 days
Continuous use 340 hours 410 hours 340 hours 410 hours 340 hours 400 hours
Typical battery life

OMP600 installation guide
2.10
OMP600 basics
Recommended styli
High-modulus carbon fibre styli are designed to minimise pre-travel and improve accuracy, as the stem
material is extremely stiff. This inherent stiffness makes the following styli the most suitable for strain
gauge applications.
Part number A-5003-7306
Carbon fibre
A-5003-6510
Carbon fibre
A-5003-6511
Carbon fibre
A-5003-6512
Carbon fibre
ABall diameter mm (inch) 6.0 (0.24) 6.0 (0.24) 6.0 (0.24) 6.0 (0.24)
BLength mm (inch) 50.0 (1.97) 100.0 (3.94) 150.0 (5.91) 200.0 (7.88)
CStem diameter mm (inch) 4.5 (0.18) 4.5 (0.18) 4.5 (0.18) 4.5 (0.18)
DEWL mm (inch) 36.0 (1.42) 88.0 (3.39) 138.0 (5.46) 186.0 (7.33)
Mass g (oz) 4.1 (0.14) 6.2 (0.22) 7.5 (0.26) 8.7 (0.31)
Use of the solid carbon fibre styli featured above will guarantee the best possible measurement
performance from the OMP600.
It is possible that the recommended styli may not be suitable for every OMP600 application and it may
be necessary to select specialised styli configurations to meet specific application requirements.
In applications where specialised styli are to be used, it may be beneficial to reduce the speed of any
probing moves. It has been observed that, in certain circumstances, specialist styli configurations will
not exhibit the probing characteristics and performance that would have otherwise been expected and
achieved when using the recommended styli. Reducing the speed of the probing moves may, in some
instances, improve the performance of the probe.
When selecting components for an application-specific stylus, it is recommended that a configuration
with the least number of components is chosen. The stylus diameter should always be as large as
possible and the overall stylus length kept to a minimum. If a stem with a reduced diameter is required,
then it is recommended that an M4 stem of short length and reduced diameter is chosen.
A
D
C
B

3.1
System installation
Installing the OMP600
Operating envelopes
When used with the OMI or the OMM with MI 12 or MI 12-B, the OMP600 uses legacy transmission.
When used with the OMI-2, OMI-2T, OMI-2H or with the OSI with OMM-2 interface system, the
OMP600 uses modulated transmission.
Natural reflective surfaces within the machine may increase the signal transmission range.
For best system performance, ensure that the OMI-2C is mounted in a position which is not directly in
front of a light source.
Coolant and swarf residue accumulating on the probe, interface or receiver windows will have a
detrimental effect on transmission performance. Wipe clean as often as is necessary to maintain
unrestricted transmission.
CAUTION: If two systems are operating in close proximity to each other, take care to ensure that the
signals transmitted from the OMP600 on one machine are not picked up by the receiver on the other
machine, and vice versa. When this is found to be the case, it is recommended that the OMP600 low
optical power setting is selected, along with the low range setting on the receiver.
OMP600 probe
MI 12 interface unit
or MI 12-B
OMM
Workpiece CNC machine
control
OMI, OMI-2, OMI-2T or
OMI-2H
OMM-2
OSI interface unit
CNC machine
control
CNC machine
control

OMP600 installation guide
3.2
System installation
Performance envelope when using the OMP600 with an OMI-2, OMI-2T, OMI-2H or OMM-2
(modulated transmission)
The diodes of the OMP600 and the OMI-2, OMI-2T, OMI-2H or OMM-2 must be in each other’s field
of view and within the performance envelope shown. The OMP600 performance envelope is based on
the optical centre line of the OMI-2, OMI-2T, OMI-2H or OMM-2 being at 0° and vice versa.
Positioning the OMI-2, OMI-2T, OMI-2H, OMI or OMM-2
To assist in finding the optimum position for the OMI, signal strength is displayed on the OMI
multi-coloured LED.
To assist in finding the optimum position for the OMI-2, OMI-2T, OMI-2H or OMM-2, signal condition is
displayed on a multi-coloured LED.Positioning the OMI-2C
Typical plot at +20 °C (+68 °F)
360° around probe axis in m (ft)
0°
60°
45°
45°
15°
30°
30°
15°
60°
0°
60°
45°
45°
15°
30°
30°
15°
60°
75°
4 (13.1)
3 (9.8)
2 (6.5)
1 (3.3)
5 (16.4)
4 (13.1)
3 (9.8)
2 (6.5)
1 (3.3)
5 (16.4)
75°
75°
75°
6 (19.9) 6 (19.9)
Optical centre line
OMP600
Switch on / switch off
Operating – standard power mode
Operating – low power mode
OMI-2
OMI-2T
OMI-2H
OMM-2
