System description
RVP is a non-contact vision measurement probe for use with the REVO-2 5-axis measurement system on co-ordinate measuring machines.
RVP increases the multi-sensor capability of REVO-2 by adding non-contact inspection to the existing touch-trigger, high-speed tactile
scanning and surface finish capability of the system.
The RVP system comprises a probe and a range of modules that are automatically interchangeable with all other probe options available for
REVO. This flexibility means that the optimum tool can be selected to inspect a wide range of features, all on one CMM platform.
The RVP system is managed by the same I++ DME compliant interface as REVO-2 and full user functionality is provided by Renishaw's
MODUS metrology software. New MODUS vision software capability includes RVP configuration, image processing with application specific
options and automatic image storage for review and further analysis.
RVP user's guide
www.renishaw.com
Issued 06 2022
10

Design principles of the RVP system
The RVP system uses an industry standard CMOS image sensor to capture and then detect the position of features using the contrast between
light and dark areas of the image. Data points are projected on to the location where the image contrast changes from light to dark. A detailed
calibration model of the lens system transforms the co-ordinates of the projected point on the image to real-world, three dimensional co-
ordinates on the part.
RVP user's guide
www.renishaw.com
Issued 06 2022
11

System components overview
RVP user's guide
www.renishaw.com
Issued 06 2022
12

Key Description Part number
1REVO-2 head A-5759-0001
2RVP vision probe A-5378-0080
3VM10 vision module A-5378-0082
4VM11-2 vision module A-5378-0093
5VM12 vision module A-5378-0088
6VPCP probe change port A-5378-0081
7VMCP module change port A-5378-0083
8VA90 calibration adaptor A-5378-0091
9ACM kit A-5378-0094
10 VA11 calibration artefact A-5378-0089
* NOTE: VA90 calibration adaptor shown fitted to VA11. The VA90 calibration adaptor (A-5378-0091) does not include the VA11.
RVP probe
RVP is the probe component of the system that houses the sensor and digital signal processor. There are currently two vision modules that
attach to the probe body that enable the inspection of a range of size and shape features.
The RVP component of the system is automatically interchangeable with other probe options using the VPCP heated change port that can be
fixed to the MRS rack system.
RVP user's guide
www.renishaw.com
Issued 06 2022
13

Vision modules

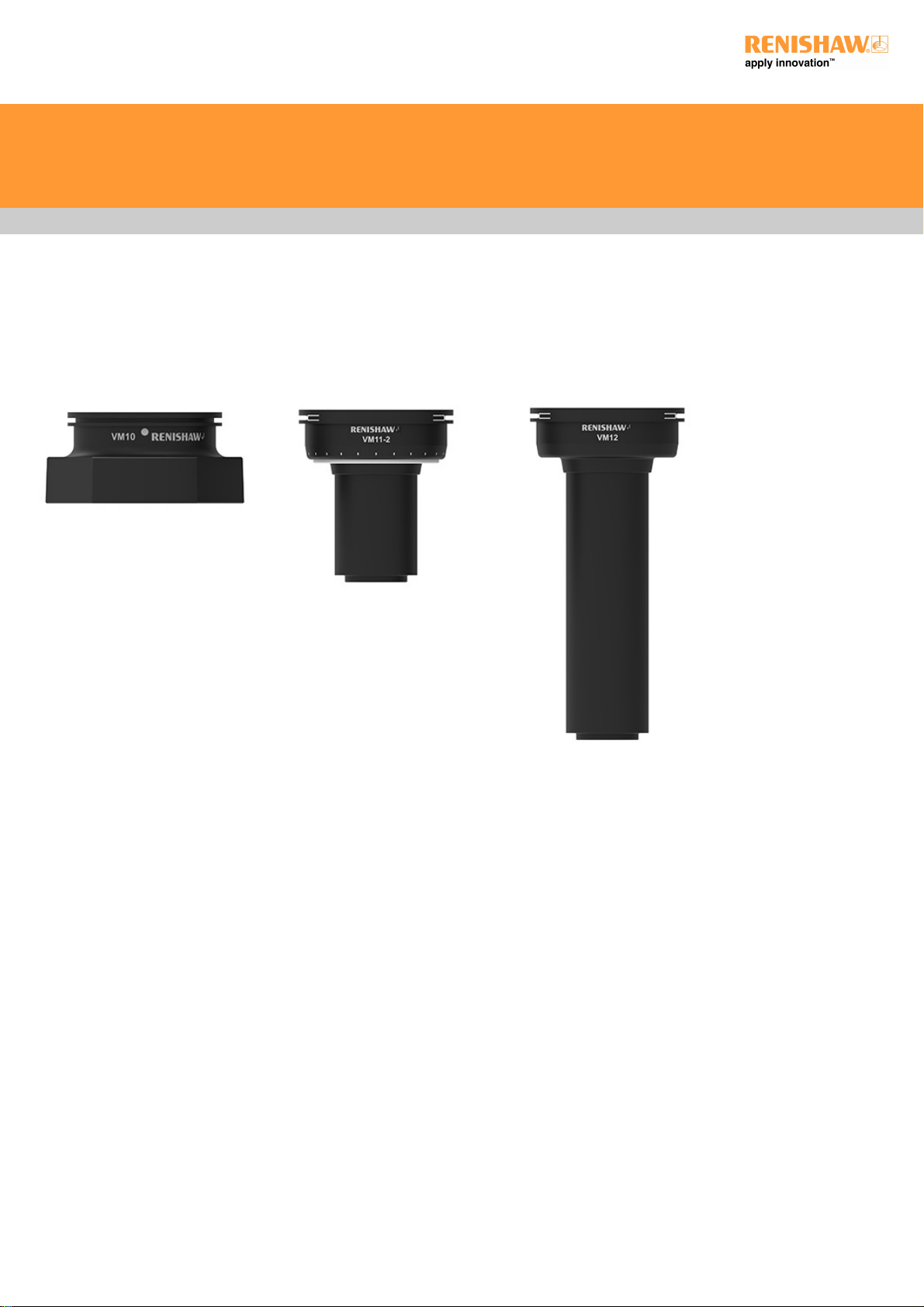

The RVP system features three interchangeable vision modules (VM10, VM11-2 and VM12) which are tailored to provide inspection capability
for different applications. The vision modules attach to the probe body using the same style kinematic mount utilised by all the current REVO
probes.
VM10 has a wider field of view allowing larger features to be inspected. VM11-2 has a greater stand-off distance which improves accessibility
when inspecting complex parts with hard to reach features. VM12 has high magnification for inspection of very small features.
ACM accessory
The ACM is an accessory designed to enhance access for the RVP non‐contact vision system. Using a precision, first‑surface mirror, ACM
rotates the field of view through 90° allowing vision inspection of bore surfaces and other features previously inaccessible to RVP. ACM is
compatible with VM11-2, attaching magnetically to a kinematic ring on the module.
VA11 calibration artefact and VA90 calibration adaptor
The VA11 is a dedicated calibration artefact used to calibrate the target feature size and stand-off distance of the RVP system when using a
VM10, VM11-2 or VM12. The VA90 calibration adaptor converts VA11 into a calibration artefact compatible with ACM. The calibration routine
for RVP is fully automated through MODUS and UCCsuite.
VPCP and VMCP change ports
There are two new change ports that can be mounted to an MRS rack system to allow the automated changing of all the RVP probe and
module components.
The VPCP change port is used to change and house the RVP probe body on the machines rack system. The VMCP change port changes and
houses the ACM and vision module components of the RVP system. Both rack ports are temperature controlled to ensure that the housed
components are at the correct and most efficient operating temperature.
RVP user's guide
www.renishaw.com
Issued 06 2022
14

Dimensional information
RVP REVO vision probe
Vision modules
RVP user's guide
www.renishaw.com
Issued 06 2022
15

Angle change mirror
RVP user's guide
www.renishaw.com
Issued 06 2022
16

Change ports
VA11 calibration artefact
RVP user's guide
www.renishaw.com
Issued 06 2022
17

VA90 calibration adaptor fitted to VA11
NOTE: Dimensions in mm (in).
RVP user's guide
www.renishaw.com
Issued 06 2022
18

Installation
Fitting VPCP and VMCP to the MRS / MRS2 rack
The VPCP and VMCP heated change ports can be fixed to an MRS or MRS2 rack system. It is recommended that they are attached to the MRS
/ MRS2 rail using the following procedure, where it is assumed that the MRS / MRS2 rack system is correctly installed.
1. Insert one of the fixing screws through the VPCP / VMCP.
2. Position the VPCP / VMCP underneath the rail and locate the respective T-nut within the rail*.
3. Hand tighten the fixing screw into the T-nut and repeat the process for the next fixing screw.
4. Position the VPCP / VMCP and tighten both fixing screws using the hexagonal key supplied.
NOTE: The image above shows the VPCP change port but the procedure is the same for the VMCP change port.
* NOTE: T-nuts must be used with the MRS system. However T-nuts and D-nuts are compatible with the MRS2 system.
NOTE: Please refer to the REVO-2 change port system spacing guide (Renishaw part number H-1000-5408) for full details of the
recommended spacing for positioning all sensors and artefacts on the MRS / MRS2 rail.
RVP user's guide
www.renishaw.com
Issued 06 2022
19

Fixing VA11 calibration artefact and VA90 to CMM
The VA11 calibration artefact is designed to be fixed securely to the bed of the CMM to allow accurate and repeatable calibration of the RVP
system components. The diagrams below show how to fix the VA11 to the bed of the CMM.
1. Locate an appropriate threaded hole in the bed of the machine.
2. Position the artefact plate above the threaded hole.
3. Screw the correct cap head bolt through the hole into the threaded hole on the machine. The supplied washer can be used to correctly fit
smaller diameter bolts.
4. Tighten with a hex wrench.
5. Attach the calibration pillar to the kinematic mount. Integral magnets will secure it in place. Polarisation of the magnets will ensure the
pillar is fitted in the correct orientation.
6. For use with ACM, VA90 can be fitted to the VA11 kinematic mount and the calibration pillar fitted instead to the kinematic mount on the
VA90.
Securing the pillar / VA90
The VA11 pillar and VA90 can optionally be secured to the baseplate or each other using the supplied bracket and screws.
1. Fix the VA11 baseplate to the bed of the CMM before securing the pillar or VA90.
2. Position the bracket with the curved face towards the pillar.
3. Attach the bracket to the baseplate or VA90 using the supplied M2 cap head screw and tighten with a hex wrench.
4. Screw the M2 shoulder bolt through the bracket into the pillar or VA90 and tighten with a hex wrench. Ensure the bolt is not overtightened,
it should float within the bracket so as not to affect the kinematic location of the pillar or VA90.
RVP user's guide
www.renishaw.com
Issued 06 2022
20
