Renogy LYCAN 5000 Power Box User manual

LYCAN 5000
Power Box
Quick Guide
RPB4835OA-48LFPA12S Version 1.0
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR INPUT 1
SOLAR INPUT 1
+
+
AC OUTPUT
30A
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
Bluetooth Module

Contents
Accessory List .......................................................................................................01
Wiring Diagram......................................................................................................02
Product Overview ..................................................................................................03
Installation .............................................................................................................05
Turning On.............................................................................................................07
Charging................................................................................................................08
Powering Appliances .............................................................................................11
Bluetooth Pairing ...................................................................................................19
Turning O󰀨.............................................................................................................20
*Capacity Expansion .............................................................................................22
Maintenance..........................................................................................................24

01
Accessory List
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR INPUT 1
SOLAR INPUT 1
+
+
AC OUTPUT
30A
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
Bluetooth Module
Quick Guide × 1 IEC C19 to NEMA 5-20P Power
Cable × 1 Keys × 2
LYCAN 5000
Power Box
RPB4835OA-48LFPA12S
Version 1.0
COMMUNICATION
ACINPUT
20A
ACOUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLARINPUT1
SOLARINPUT1
+
+
ACOUTPUT
30A
SOLAR1
SOLAR2
BATTERY
SURCE
ACOUTPUT20A
ACOUTPUT30A
ACOUTPUT30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
Quick Guide
Handle Bar Screws × 4 Handle Bar × 1 RJ45 Plug Waterproof Housing
× 1
M8x1.25x20mm

02
Wiring Diagram
AC INPUT
20A
AC OUTPUT
20A
AC OUTPUT
30A
SOLAR INPUT 2
EXPANSION
COMMUNICATION
SOLAR INPUT 1
+
+
-
-
48V
50AH BATTERY
20A AC Input
(Wall Outlet or Generator)
AC Output (20A
Maximum)
AC
DC Positive
DC Negative
Communication
AC Output (30A
Maximum)
Renogy 48V 50Ah Smart
Lithium Iron Phosphate Battery
Solar Array 1 Solar Array 2
zThis Quick Guide contains important installation, operation, and maintenance instructions for
Lycan 5000 Power Box. Please read the guide carefully before using.
zPlease refer to the full user manual of LYCAN on renogy.com for more detailed instructions.
zIllustrations in the Quick Guide are for reference only.
zFor any questions, please visit renogy.com for help.

03
Product Overview
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR INPUT 1
SOLAR INPUT 1
+
+
AC OUTPUT
30A
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
Bluetooth Module
1 2 3 4 5 6 7
8 9 10 11 6 12 13 14
NO. Item NO. Item
1Solar Inverter Charger Display
(Including Indicators and Buttons) 8 Viewing Window
2 Solar Input Circuit Breaker 1 9 Bluetooth Module
3 Solar Input Circuit Breaker 2 10 AC Output Circuit Breaker (20A)
4 Battery Circuit Breaker 11 AC Output Circuit Breaker (30A)
5 Surge Protection Device 12 AC Input Circuit Breaker (20A)
6 Front Door Locks 13 AC Outlet (30A)
7 AC Inlet (20A) 14 AC Outlet (20A)

04
Product Overview
COMMUNICATION
SOLAR INPUT 2
AC INPUT
20A
AC OUTPUT
20A
AC OUTPUT
30A
SOLAR INPUT 1
-
-
15 1716 18 19
20 2423182221
NO. Item NO. Item
15 Solar Connector 1 20 Grounding Hole
16 Solar Connector 2 21 Anderson Connector (Including Dust
Cover)
17 Handle Bar (Pre-Installed) 22 RJ45 Jack (Including Waterproof
Housing)
18 Back Door Locks 23 Vent Cover
19 Handle Bar (Installation Required) 24 Swivel Casters
zPlease inspect the unit for any visible damage including cracks, dents, deformation, and other
visible abnormalities before installation.
zAll connector contacts shall be dry, clean, and free of any dirt and corrosion.
zDO NOT touch the exposed electrolyte or powder if the batteries inside LYCAN are damaged.
zPlease wear proper protective equipment and use insulated tools during installation and operation.

05
Installation
Recommended Tools
Phillips Screwdriver
(#2) Wrench (10mm) Wrench (12mm)
10mm
10mm
10mm
12mm
12mm
12mm
zMake sure that the Handle Bar
is installed rmly on LYCAN.
zAllow at least 1 foot of space
behind the Vent Cover for
e󰀩cient heat dissipation.
zInstall LYCAN at ground level
on a at surface. Ensure that
the installation environment is
clean, cool, ventilated and away
from direct sunlight.
zIf transporting the Swivel
Casters over wet surfaces,
ensure it is no more than 2
inches deep.
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLARINPUT 1
SOLARINPUT 1
+
+
AC OUTPUT
30A
SOLAR1
SOLAR2
BATTERY
SURCE
ACOUTPUT 20A
ACOUTPUT 30A
ACOUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-1.1
STEP-1.2
AC OUTPUT
20A
AC OUTPUT
30A
COMMUNICATION
20A
SOLAR INPUT 2
+
+
EXPANSION
12mm
10mm
STEP-1.3
Find the Handle Bar and the
Handle Bar Screws under
LYCAN.
Install the Handle Bar on the left
side of LYCAN with the Handle Bar
Screws. Make sure that the Screws
are rmly tightened with the Philips
Screwdriver.
Loosen the screws to remove
the xing bracket from LYCAN.
Keep the upper screw properly
for subsequent grounding cable
connection.
AC/INV
SET UP DOWN ENT
CHARGE FAULT
SOLAR1
SOLAR2
BATTERY
SURCE PROTECTION
ACOUTPUT 20A
ACOUTPUT 30A
ACINPUT
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-1.4
STEP-1.5
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLARINPUT 1
SOLARINPUT 1
+
+
AC OUTPUT
30A
SOLAR1
SOLAR2
BATTERY
SURCE
ACOUTPUT 20A
ACOUTPUT 30A
ACOUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
AC OUTPUT
30A
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLARINPUT 1
SOLARINPUT 1
+
+
AC OUTPUT
30A
SOLAR1
SOLAR2
BATTERY
SURCE
ACOUTPUT 20A
ACOUTPUT 30A
ACOUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-1.6
AC OUTPUT
30A
Lift LYCAN from the skid with
two people.
Release the Pedal Brakes on Swivel
Casters. Move LYCAN to a proper
installation location.
Engage the Pedal Brakes on Swivel
Casters to prevent LYCAN from moving.

06
COMMUNICATION
STEP-1.7
AC INPUT
20A
AC OUTPUT
20A
AC OUTPUT
30A
SOLAR INPUT 1
SOLAR INPUT 2
SOLAR 1
SOLAR 2
BATTERY
SURCE
PROTECTION
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
Connect the ring terminal of a
grounding cable (not included)
to the grounding hole of LYCAN
with the screws removed from
the xing bracket.
PE
I/ON
O/OFF
STEP-1.8
Grounding Busbar (PE) Grounding Rod
of the AC Load Center
Connect the bare wire end
of the grounding cable to the
grounding busbar (PE) of an AC
load center (not included) or a
grounding rod (not included).
zPlease secure the grounding cable connections to the proper specication.
Installation

07
Turning On
zPlease turn LYCAN on before charging it or using it to power appliances.
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLARINPUT 1
SOLARINPUT 1
+
+
AC OUTPUT
30A
SOLAR1
SOLAR2
BATTERY
SURCE
ACOUTPUT 20A
ACOUTPUT 30A
ACOUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
AC INPUT
20A
STEP-2.1
STEP-2.2
BAT+ BAT-
STEP-2.3
Open the Front Door Locks with the
included Keys and rotate the wing
knobs counterclockwise by 90° to
open the front door.
Push the switch up to close the
Battery Circuit Breaker.
Rock the switch on the bottom of
the solar inverter charger to the
ON position (I) to turn on the solar
inverter charger.
STEP-2.4
AC INPUT
20A
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
AC OUTPUT
30A
SOLARINPUT 1
-
SOLARINPUT 2
For more information, please visit www.renogy.comc 87.7111
OT
INFORMATION
ON
please ensure that your changer is lithium lron phosphate compatible before use.
le, crush,puncture, or incinerate the battery.
it the external contacts.
122 (50 C)
F
battery to temperatures above
OT
INFORMATION
For more information, please visit www.renogy.comc 87.7111
ON
please ensure that your changer is lithium lron phosphate compatible before use.
le, crush,puncture, or incinerate the battery.
it the external contacts.
122 (50 C)
F
battery to temperatures above
BATTERY
48V
50AH
BATTERY
1s
STEP-2.5
Bluetooth Module
LINK
POWER
BLUETOOTH
SET UP DOWN ENT
AC/INV CHARGE FAULT
CHARGING
LI
OUTPUTBATT
INPUTBATT
48V
50AH
BATTERY
48V
50AH
BATTERY
STEP-2.6
Open the Back Door Locks with the
included Keys and rotate the wing
knobs counterclockwise by 90° to
open the back door.
Press and hold the power button on
the top of either of the batteries for
1 second to turn on the batteries.
The indicators of the batteries ash
green. The POWER indicator of
the Bluetooth module lights up. The
buzzer of the solar inverter charger
beeps briey, and the Solar Inverter
Charger Display turns on.
LYCAN may not be operating properly and needs troubleshooting if the following occurs after turning LYCAN
on. Please refer to the full user manuals of relevant products on renogy.com for troubleshooting instructions.
z48V 50Ah Smart Lithium Iron Phosphate Battery: The indicator of the battery lights up red, ashes
red, or does not light up.
zBT-2 Bluetooth Module: The POWER indicator of the Bluetooth module does not light up.
z48V 3500W Solar Inverter Charger: The Solar Inverter Charger Display does not turn on, or the
Solar Inverter Charger FAULT Indicator lights up red or ashes red.
zPlease close the front door and back door, rotate the wing knobs clockwise by 90°, and lock the
Front Door Lock and Back Door Lock after turning LYCAN on.

08
Charging
zLYCAN supports both AC charging and solar charging, which can be combined for a faster
charging speed.
zThe solar inverter charger is preset to operate with the batteries. While no additional programming is
required, some parameters can be modied for specic applications. Please note that modifying the
parameters outside the specied range can lead to irreversible damage to LYCAN and voids the warranty.
Please refer to the full user manual of LYCAN on renogy.com for more information.
AC Charging
STEP-3.1
AC OUTPUT
20A
SURCE
PROTECTION
AC INPUT
SOLAR INPUT 2
SOLAR INPUT 1
+
+
EXPANSION
20A AC Input
(Wall Outlet or Generator)
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
AC OUTPUT
30A
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-3.2
Connect LYCAN to a wall outlet or a generator (not included) with
the included IEC C19 to NEMA 5-20P Power Cable.
Loosen the captive screws to
open the Viewing Window.
SOLAR 1
SOLAR 2
BATTERY
SURCE PROTECTION
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
STEP-3.3
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
OUTPUTBATT INPUTBATT
STEP-3.4
100%
25%
BYPASS
Push the switch up to close
the AC Input Circuit Breaker.
The Solar Inverter Charger Display
shows that the battery is being charged
by AC, and the Solar Inverter Charger
CHARGE Indicator ashes green.
zThe wall outlet and the outlet on the generator MUST be rated at 20A or greater.
zPlease close the Viewing Window and tighten the captive screws after completing the steps above.
zPress the Solar Inverter Charger UP and DOWN Buttons to turn the page and view detailed
charging status. Please refer to the full user manual of 48V 3500W Solar Inverter Charger on
renogy.com for more instructions.

09
Charging
Solar Charging
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
SOLAR INPUT 1
SOLAR INPUT 1
+
+
AC OUTPUT
30A
STEP-3.6
Solar
Array 1
Solar
Array 2
AC INPUT
20A
AC OUTPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
AC OUTPUT
30A
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-3.7
Connect the solar panels (sold separately) in series and/or
parallel to form solar arrays. Connect the solar arrays to the Solar
Connectors of LYCAN. LYCAN accepts up to 2 solar arrays.
Loosen the captive screws to
open the Viewing Window.
SOLAR INPUT 2
SOLAR INPUT 1
+
+
-
-
SOLAR INPUT 2
SOLAR INPUT 1
+
+
-
-
STEP-3.8
SOLAR 1
BATTERY
SURCE PROTECTION
SOLAR 2
SOLAR 1
BATTERY
SURCE PROTECTION
SOLAR 2
Solar Input Circuit Breaker 1
Solar Input Circuit Breaker 2
PV
CHARGE
DOWN
CHARGING
LI
100%
25%
FAULT
ENT
UP
SET
AC/INV
OUTPUT INPUT
STEP-3.9
Push the switch up to close
the corresponding Solar Input
Circuit Breaker.
The Solar Inverter Charger
Display shows that the battery
is being charged by solar, and
the Solar Inverter Charger
CHARGE Indicator ashes
green.

10
zPlease close the Viewing Window and tighten the captive screws after completing the steps
above.
zThe operating voltage of the solar array shall exceed 60VDC, the open circuit voltage shall NOT
exceed 150VDC, and the short circuit current shall NOT exceed 20A.
zMake sure that the 2 solar arrays have the same operating voltage and are not partially shaded.
Operating voltage mismatches or partial shading can cause current backow and damage solar
arrays.
zPress the Solar Inverter Charger UP and DOWN Buttons to turn the page and view detailed
charging status. Please refer to the full user manual of 48V 3500W Solar Inverter Charger on
renogy.com for more instructions.
zAdditional protection devices including DC ground fault circuit interrupters, DC arc fault circuit
interrupters, and rapid shutdown devices (not included) may be required to comply with the local
and state codes for solar systems.
Charging

11
Powering Appliances
zLYCAN can power appliances at temporary sites, in permanent o󰀨-grid homes, and during
emergencies with Power Strips, AC Load Centers, and Transfer Switches respectively. Please
refer to the corresponding instructions based on actual applications.
zPlease fully charge LYCAN prior to rst use.
Temporary Power Supply
Recommended Accessories
*Power Strip
(20A Current Rating)
*Power Strip
(30A Current Rating)

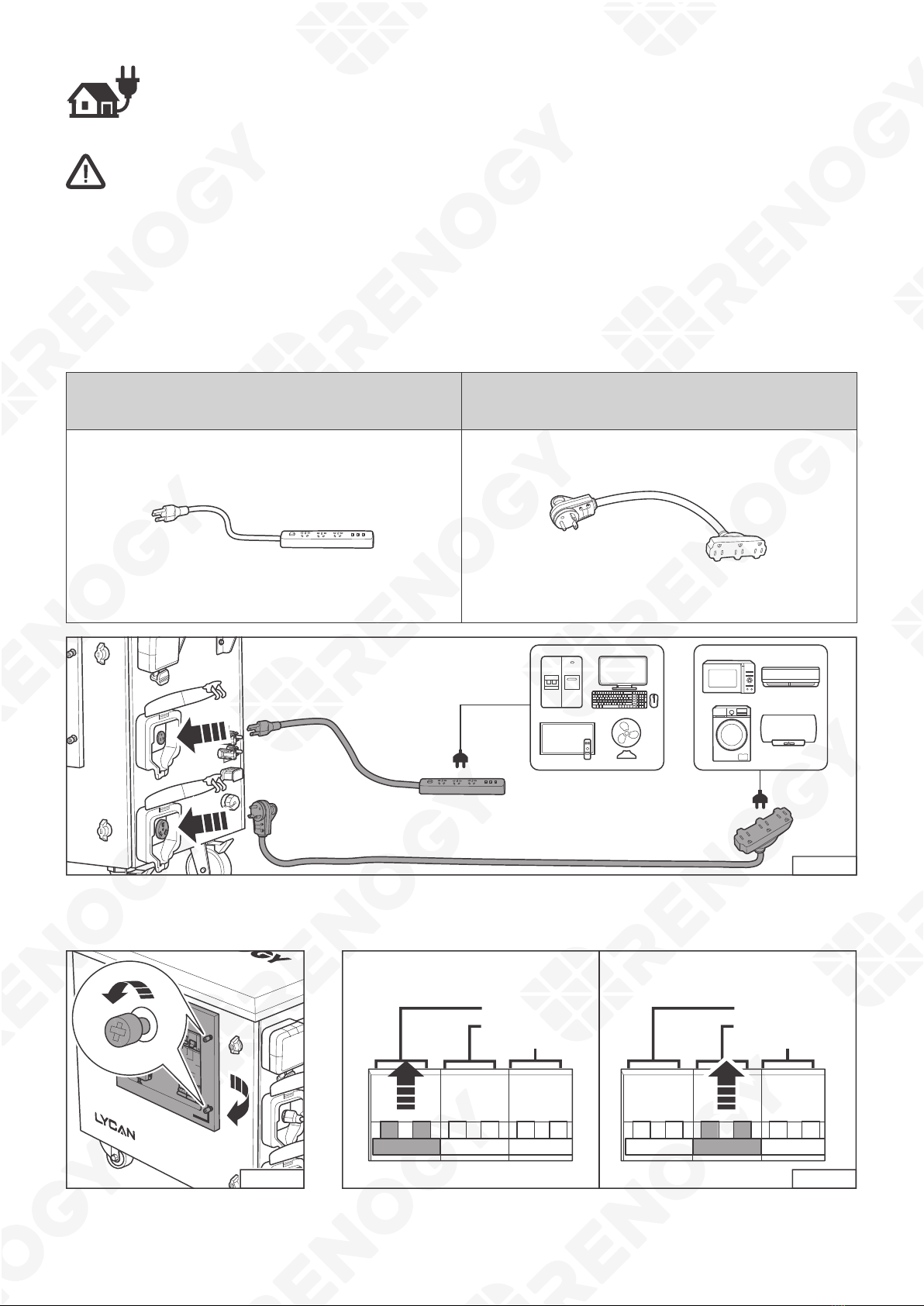

STEP-4.1
AC OUTPUT
20A
COMMUNICATION
SOLAR INPUT 2
+
+
EXPANSION
Connect the Power Strips (not included) with corresponding current ratings to the 20A and 30A AC
Outlets of LYCAN. Plug appliances into the Power Strips.
AC INPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-4.2 STEP-4.3
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
20A AC Output Circuit Breaker 30A AC Output Circuit Breaker
Loosen the captive screws to
open the Viewing Window.
Push the switch up to close the corresponding AC Output Circuit
Breaker.

12
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
INPUT
100%
25%
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
INPUT
BYPASS
100%
25%
STEP-4.4
Powered by BatteriesPowered by Bypass AC The Solar Inverter Charger
AC/INV Indicator lights up
yellow when the appliances
are powered by bypass AC.
The Solar Inverter Charger
AC/INV Indicator ashes
yellow when the appliances
are powered by the batteries.
zPlease close the Viewing Window and tighten the captive screws after completing the steps
above.
zWhen the 20A AC Outlet is used to power appliances, the continuous loads shall not exceed 16A,
and the noncontinuous loads shall not exceed 20A.
zWhen the 30A AC Outlet is used to power appliances, the continuous loads shall not exceed 24A,
and the noncontinuous loads shall not exceed 30A.
zWhen the appliances are powered by bypass AC, the continuous loads shall not exceed 16A, and
the noncontinuous loads shall not exceed 20A, no matter which AC Outlet is used.
Powering Appliances

13
O󰀨-Grid Living
Recommended Accessories
*AC Load Center and AC
Circuit Breakers
*NEMA TT-30P to Bare Wire
Adapter Cable
zFor a safe and reliable
installation, it is
recommended that the
installation be carried out
by a trained and licensed
electrician.
zPlease read the user
manual of the AC Load
Center carefully before
installation.
STEP-5.1 STEP-5.2
PE
NN
L
Remove the cover of the AC
Load Center (not included).
Connect the 2 live terminals with
a copper busbar (not included).
Connect the bare wire end of the Adapter Cable (not included) to
the AC Load Center. The black live wire goes to either of the live
terminals (L), the white neutral wire goes to the neutral busbar (N),
and the green ground wire goes to the grounding busbar (PE).
N N
PE
I/ON
O/OFF
I/ON
O/OFF
STEP-5.3
Select appropriate AC Circuit Breakers (not included) based on the current ratings and types of the appliances.
Connect the appliances to the AC Load Center. The black live wires go to AC Circuit Breakers, the white
neutral wires go to the neutral busbar (N), and the green ground wires go to the grounding busbar (PE).
Powering Appliances

14
O󰀨-Grid Living
COMMUNICATION
AC OUTPUT
20A
SOLAR INPUT 2
+
+
EXPANSION
STEP-5.4
STEP-5.5
I/ON
O/OFF
I/ON
O/OFF
AC OUTPUT
20A
AC INPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-5.6
Connect the plug end of the
Adapter Cable to the 30A AC
Outlet of LYCAN.
Replace the cover to the
AC Load Center. Push the
switches toward the center of
the AC Load Center to close
all the AC Circuit Breakers.
Loosen the captive screws to
open the Viewing Window.
STEP-5.7
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
INPUT
100%
25%
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
INPUT
BYPASS
100%
25%
STEP-5.8
Powered by Bypass AC Powered by Batteries
Push the switch up to close
the 30A AC Output Circuit
Breaker.
The Solar Inverter Charger AC/INV Indicator lights up yellow
when the appliances are powered by bypass AC.
The Solar Inverter Charger AC/INV Indicator ashes yellow when
the appliances are powered by the batteries.
zPlease close the Viewing Window and tighten the captive screws after completing the steps
above.
zThe AC Circuit Breakers and the appliances MUST be rated at 120VAC.
zThe continuous loads shall not exceed 24A, and the noncontinuous loads shall not exceed 30A.
zWhen the appliances are powered by bypass AC, the continuous loads shall not exceed 16A, and
the noncontinuous loads shall not exceed 20A.
Powering Appliances

15
Emergency Backup
Recommended Accessories
*Reliance Controls 306A Pro/
Tran 2 Manual Transfer Switch
*NEMA TT-30P to
NEMA L14-30R Adapter Cable
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
zFor a safe and reliable
installation, it is
recommended that the
installation be carried out
by a trained and licensed
electrician.
zPlease read the user
manual of the Transfer
Switch carefully before
installation.
I/ON
O/OFF
ON OFF
STEP-6.1
I/ON
O/OFF
A
METER 1 METER 2
GEN
OFF
LINE
GEN
OFF
LINE
B C D E F
1 2 1 2 1 2
I/ON
O/OFF
STEP-6.2
N N
PE
Push the switches toward the sides
of the AC load center to open all
the AC circuit breakers. Remove
the cover of the AC load center.
Connect the bare wires from the Transfer Switch (sold separately)
to the AC load center. The white neutral wire goes to the neutral
busbar (N), and the green ground wire goes to the grounding
busbar (PE).
I/ON
O/OFF
STEP-6.3
A
METER 1 METER 2
GEN
OFF
LINE
GEN
OFF
LINE
B C D E F
1 2 1 2 1 2
I/ON
O/OFF
STEP-6.4
Branch Line (C) Wiring Diagram
Determine the 120VAC circuits
that need to be used during an
emergency. Disconnect the black
live wires from the corresponding
AC branch circuit breakers.
Find the red and black wires from the Transfer Switch that are marked
C, D, E, and F. Connect the red wires to the selected AC branch circuit
breakers. Insert the black wires marked the same letter and the black
live wires disconnected from the AC branch circuit breakers into wire
ceonnectors (not included). Twist the wire connectors tightly.
Powering Appliances

16
Emergency Backup
zConnect the Transfer Switch to 120VAC circuits in the AC load center ONLY.
zThe current ratings of the AC circuit breakers in the Transfer Switch shall not exceed the current
ratings of the corresponding AC branch circuit breakers in the AC load center.
zWith a pre-installed double-pole AC branch circuit breaker, the circuits A and B of the Transfer Switch
shall not be connected to the 120VAC circuits of the AC load center. If more 120VAC circuits are needed
to be used during an emergency, please replace the double-pole AC branch circuit breaker on the circuits
A and B with 2 single-pole AC branch circuit breakers, and remove the handle tie from the corresponding
circuit selector switches. Refer to the user manual of the Transfer Switch for more instructions.
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
STEP-6.5
20 20 15 15 15 15
STEP-6.6
A
METER 1 METER 2
GEN
OFF
LINE
GEN
OFF
LINE
B C D E F
1 2 1 2 1 2
X
G
Y
W
Y
X
W
G
STEP-6.7
Remove the cover and the
power inlet ller plate of the
Transfer Switch.
Connect the green ground
wire (included in the Transfer
Switch) to the grounding
terminal of the Transfer
Switch.
Replace the cover to the Transfer
Switch. Run the bare wires inside the
Transfer Switch through the power
inlet mounting hole. Connect the bare
wires to the power inlet (included in the
Transfer Switch). The green ground
wire goes to the G terminal, the white
neutral wire goes to the W terminal,
the black and red live wires go to the X
and Y terminals. Tighten the terminal
screws on the side of the power inlet.
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
STEP-6.8
A
METER 1 METER 2
GEN
OFF
LINE
GEN
OFF
LINE
B C D E F
1 2 1 2 1 2
STEP-6.9
L14
30
125
30A
250V
/
-
ON OFF
I/ON
O/OFF
Mount the power inlet onto the
Transfer Switch.
Replace the cover to the AC load center. Push the switches up to close all the
AC circuit breakers in the Transfer Switch. Push the switches toward the center
of the AC load center to close all the AC circuit breakers in the AC load center.
Powering Appliances

17
Emergency Backup
COMMUNICATION
AC INPUT
20A
AC OUTPUT
20A
SOLAR INPUT 1
SOLAR INPUT 1
+
+
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
STEP-6.10
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
F
EDCBA
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
STEP-6.11
Connect the 30A AC Outlet of LYCAN to the power inlet of the
Transfer Switch with the Adapter Cable (sold separately).
Twist the receptacle end of the
Adapter Cable clockwise to
lock it into place.
AC OUTPUT
20A
AC INPUT
20A
AC/INV
SET
UP
DOWN
ENT
CHARGE
FAULT
SOLAR 1
SOLAR 2
BATTERY
SURCE
AC OUTPUT 20A
AC OUTPUT 30A
AC OUTPUT 30A
PROTECTION
BLUETOOTH
POWER
LINK
BT-2
BluetoothModule
STEP-6.12
STEP-6.13
AC OUTPUT 20A
AC OUTPUT 30A
AC INPUT
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
STEP-6.14
Loosen the captive screws to
open the Viewing Window.
Push the switch up to close
the 30A AC Output Circuit
Breaker.
Move all the circuit selector
switches on the Transfer
Switch to the LINE position.
METER 1 METER 2
GEN
OFF
GEN
OFF
LINE LINE
A B C D E F
STEP-6.15
CHARGE
FAULT
ENT
DOWNUP
SET
AC/INV
CHARGING
LI
INPUT
100%
25%
STEP-6.16
During an emergency,
determine the circuits to be
powered by LYCAN, and
move the corresponding
circuit selector switches on the
Transfer Switch to the GEN
position.
The Solar Inverter Charger
Display shows that the
appliances are powered by
the batteries, and the Solar
Inverter Charger AC/INV
Indicator ashes yellow.
Powering Appliances

18
Emergency Backup
zLYCAN can be used as an uninterruptible power supply (UPS) with an automatic transfer switch.
zPlease close the Viewing Window and tighten the captive screws after completing the steps
above.
zThe continuous loads shall not exceed 24A, and the noncontinuous loads shall not exceed 30A.
zLeave LYCAN plugged into a wall outlet at all times to keep it topped o󰀨 and ready to power
appliances during an emergency.
Powering Appliances
