PHOENIX 300
POWER STATION
User Guide
Model: R300PHX
- 01 -

TABLE OF CONTENTS
- 02 -
IMPORTANT SAFETY INSTRUCTIONS 03
PACKAGE CONTENTS 04
FEATURES 04
RECHARGING YOUR PHOENIX 300 07
BATTERY LEVEL LED INDICATORS 07
PRODUCT OVERVIEW 05
SPECIFICATIONS 06
TROUBLESHOOTING 13
FREQUENTLY ASKED QUESTIONS 16
WARRANTY 17
OPERATING YOUR PHOENIX 300 10
MAINTENANCE 12

Please read the User Guide carefully before recharging or operating your Phoenix 300.
IMPORTANT SYMBOLS
Indicates potentially dangerous conditions that could result in personal injury
Indicates conditions or practices that could result in damages to the unit or other
equipment
Indicates procedures or functions that are important for proper and safe operation
of the unit and/or other equipment
CAUTION
WARNING
NOTE
DO NOT drop or strike the unit. Doing so may cause circuit failures and cracks in the casing.
DO NOT dismantle or modify the unit. Doing so may cause irreversible damages to the unit and
void warranty.
Please turn off the output ports when no devices are connected to the unit to prevent electric
shocks.
Please dispose of the product according to the local recycling and environmental regulations.
DO NOT overload the AC or DC outputs. Please check the specifications of output ports and
devices before operation.
DO NOT submerge the unit in water or operate the unit in the rain. Doing so may cause
short-circuits, electric shocks, and/or fire.
DO NOT place the unit near fire and/or heat the unit. Doing so may cause irreversible damages
to the unit and/or battery explosion.
Please check the unit before each use. Stop using the unit if you notice unusual smells, heating,
distortion, or any other abnormalities.
DO NOT expose the unit to strong electrostatic fields, strong magnetic fields, and/or radiation.
DO NOT place the unit under direct sunlight or place in high-temperature situations. Doing so
may cause unit malfunction or component degradation.
Keep the unit out of the reach of young children.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
- 03 -

FEATURES
PACKAGE CONTENTS
REVOLUTIONARY SPEED
The PHOENIX 300’s USB-C port features Power Delivery (PD) technology that can pump out up to 60W power
to compatible devices. Quick Charge (QC) technology allows for up to 18W of output power from the USB-A
port.
VERSATILE POWERING OPTIONS
The PHOENIX 300 is equipped with multiple commonly used output ports to power essential gadgets and small
appliances, while a D-Tap port is at the ready for your photography and videography equipment.
PURE SINE WAVE
Produce clean, silent, and stable AC power up to 200W with the pure sine wave inverter to power delicate
electronic devices efficiently and safely.
ULTIMATE SAFETY
The battery management system (BMS) commands voltage control, temperature control, short circuit
protection, and overcurrent protection to keep both the power station and your devices safe from damage.
1 x Renogy PHOENIX 300 Power Station
1 x User Guide
1 x AC/DC Adapter
1 x Solar Panel Connectors to 5.5mm DC Adapter Cable
1 x USB-C to USB-C Cable
1 x USB-A to USB-C Cable
- 04 -

PRODUCT OVERVIEW
D-TAP/CIG
USB
AC LIGHT
IN/OUT
TYPE-C 60W PD
DC IN
D-TAP
USB
43
12
11
10
6
5
2
13
9
8
7
1
14
16
15
- 05 -

SPECIFICATIONS
Port On/Off Buttons
Flashlight On/Off Button
Main Power Button
AC Outlets
DC Input Port
Folding Carrying Handle
LED Flashlight
Air Vent
16
15
14
13
12
11
10
9
Battery Level LED Indicators
Port Status LED Indicators
Flashlight Status LED Indicators
CIG Port
QC USB-A Port
USB-A Ports
USB-C PD Port
D-Tap Port
8
7
6
5
4
3
2
1
Output
3.6-6V / 3A, 6.5-9V / 2A, 9-12V / 1.5A, 18W Max
5V / 2.4A Each, 3.4A Total Max
5-20V, 60W Max
QC USB-A Port
USB-A Port (2)
USB-C PD Port
Input
12-25V, 50W Max
5-20V, 60W Max
110W Max
DC Input Port
USB-C PD Port
Total
Battery
General
Lithium-ion Battery
14.4V
23400mAh / 337Wh
1000 Cycles to 80% Capacity
Type
Voltage
Capacity
Cycle Life
181 x 155 x 143 mm / 7.1 x 6.1 x 5.6 in.
2.9 kg / 6.4 lb.
PC + ABS
2 x 1.6W LED
0-40 ℃/ 32-104 ℉
0-45 ℃/ 32-113 ℃
45-95%
FCC, CE, PSE, RoSH
Dimension
Weight
Material
Flashlight
Normal Operating Temperature
Storage Temperature
Operating / Storage Humidity
Certifications
- 06 -

BATTERY LEVEL LED INDICATORS
RECHARGING YOUR PHOENIX 300
AC Outlet (2)
Total Continuous Output
110V / 60Hz (US, JP, CA)
220V / 50Hz (AU, EU, CN)
200W Rated, 350W Surge
Pure Sine Wave
300W Max
CIG Port
D-Tap Port
11-17V / 10A Max
11-17V / 10A Max
When recharging your PHOENIX 300, one of the Battery Level LED Indicators will flash. The flashing LED
indicates the unit’s current battery level. Once your PHOENIX 300 is fully recharged, all Battery Level LED
Indicators will be lit and remain solid.
When the battery level of PHOENIX 300 is lower than 15%, the last Battery Level LED Indicator will flash twice
per second.
As you use your PHOENIX 300 to power other devices, the Battery Level LED Indicators will go out one by
one to indicate the remaining battery capacity.
Four Battery Level LED Indicators indicate the battery level of the PHOENIX 300, approximating 25% - 50%
- 75% - 100% capacity.
To shorten the recharge time of PHOENIX 300, it is recommended to disconnect all loads while
recharging the unit.
NOTE
To maximize battery life, be sure to fully recharge your PHOENIX 300 before operating or
storing.
If the Battery Level LED Indicators flash in an unusual way, your PHOENIX 300 may need
special attention. Please refer to the TROUBLESHOOTING section for help.
Recharge Time
Recharge via USB-C PD Wall Charger: 6 Hours
Recharge via both AC/DC Adapter and USB-C PD Wall Charger: 3.5 Hours
Recharge via AC/DC Adapter: 8 Hours
Recharge via Solar: 8 Hours
CAUTION
CAUTION
- 07 -

The above recharge times are based on conditions when the PHOENIX 300 is recharged at full
speed with no loads connected to it.
NOTE
Recharging via Solar
The PHOENIX 300 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit’s current battery level.
Use the included Solar Panle Connectors to DC Adapter Cable to connect the solar panel to the DC Input Port
of your PHOENIX 300 and place your PHOENIX 300 in the shade to prevent it from overheating.
Place the solar panel under direct sunlight. Steer clear of trees or branches that can shade the solar panel
and slow down the recharging process.
For optimal recharging performance, it is strongly recommended to recharge your PHOENIX 300 using a
compatible solar panel (not included) on bright sunny days free of scattered clouds.
D-TAP/CIG
USB
AC LIGHT
IN/OUT
TYPE-C 60W PD
DC IN
D-TAP
USB
Compatible Solar Panels:
Renogy E.FLEX Series Portable Solar Panel: 50W
Renogy Flexible Solar Panel: 50W, 100W
Renogy ECLIPSE Series Foldable Solar Suitcase w/o Controller: 100W
Renogy Monocrystalline Foldable Solar Suitcase w/o Controller: 100W
Renogy ECLIPSE Series Solar Panel: 100W
Renogy Polycrystalline Solar Panel: 50W, 100W
Renogy Monocrystalline Solar Panel: 50W, 80W, 100W
- 08 -

Make sure the open circuit voltage of the solar panel does not exceed 25V or fall short of 12V.
CAUTION
The solar recharge time is highly dependent on solar irradiance and ambient temperature.
NOTE

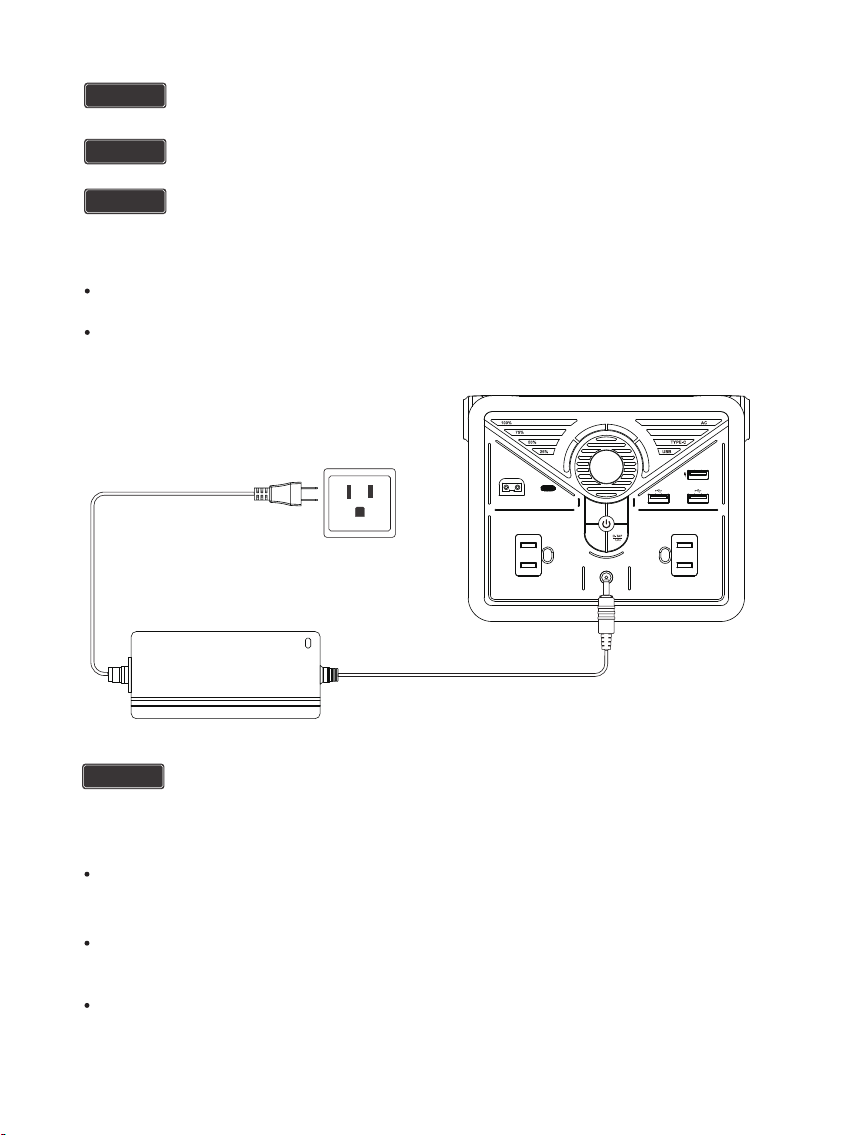

Recharging via AC/DC Adapter
The PHOENIX 300 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit’s current battery level.
Plug your PHOENIX 300 into a wall outlet through the DC Input Port using the included AC/DC Adapter.
Electrical shock can occur if the Solar Panle Connectors to DC Adapter Cable is damaged or
frayed. DO NOT use a damaged or frayed cable to recharge your PHOENIX 300.
Recharging via USB-C PD Wall Charger
The PHOENIX 300 is designed to be recharged via either a USB-C wall charger or a USB-A wall charger.
However, for optimal recharging performance, it is highly recommended to recharge your PHOENIX 300 using
a USB-C PD wall charger (not included) with a high power rating.
The PHOENIX 300 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit’s current battery level.
Connect the USB-C PD Port of your PHOENIX 300 to a USB wall charger (not included) using the included
USB-A to USB-C Cable or USB-C to USB-C Cable and plug the USB wall charger into a wall outlet.
Electrical shock can occur if the power supply cable of AC/DC Adapter is damaged or frayed.
DO NOT use a damaged or frayed cable to recharge your PHOENIX 300.
WARNING
D-TAP/CIG
USB
AC LIGHT
IN/OUT
TYPE-C 60W PD
DC IN
D-TAP
USB
WARNING
- 09 -

D-TAP/CIG
USB
AC LIGHT
IN/OUT
TYPE-C 60W PD
DC IN
D-TAP
USB
Operating your PHOENIX 300 at high temperatures above 104℉(40℃) or at low temperatures
below 32℉(0℃) can result in battery performance degradation and service life shortening. For
optimal battery performance and maximum battery life, it is strongly recommended to operate
your PHOENIX 300 at room temperature.
CAUTION
The above estimation formulas only apply when the PHOENIX 300 has been fully recharged and
the device does not draw too much power.
NOTE
Actual number of full charges and working hours may vary from different powering methods and
device operation status.
NOTE
Recommended USB Wall Chargers:
Google USB-C Power Adapter: 45W
Apple USB-C Power Adapter: 30W, 61W, 87W, 96W
Operation Time
Electrical shock can occur if the USB wall charger is damaged. DO NOT use a damaged USB
wall charger to recharge your PHOENIX 300.
WARNING
Battery Powered Devices:
Number of Full Charges = 67,392mAh x 0.95
The Battery Capacity of Device (mAh)
DC Powered Devices:
Working Hours = 337Wh x 0.95
The Rated Power of Device (W)
AC Powered Devices:
Working Hours = 337Wh x 0.85
The Rated Power of Device (W)
OPERATING YOUR PHOENIX 300
- 10 -

Powering Your Devices
Four Port Status LED Indicators respectively display the status of the AC Outlets, D-Tap Port and CIG Port,
USB-C PD Port, as well as QC USB-A Port and USB-A Ports.
Compatible Devices:
USB-A Ports / QC USB-A Port: Smart Watch, Electronic Book, Smart Phone, Tablet, Action Camera, Digital
Camera, Bluetooth Speaker, Wireless Headphone, Drone, and other USB enabled devices.
To use the CIG Port, D-Tap Port, and AC Outlets, first press the corresponding Port On/Off Button to turn on
the port. The corresponding Port Status LED Indicator will illuminate. Then, connect your device to the port for
power. When not using the port, long press the corresponding Port On/Off Button to turn it off and the
corresponding Port Status LED Indicator will go out.
To use the USB-A Ports and QC USB-A Port, directly connect your device to the port. The PHOENIX 300 will
begin to power your device automatically with the corresponding Port Status LED Indicator illuminating. When
not using the port, long press the corresponding Port On/Off Button to turn it off and the corresponding Port
Status LED Indicator will go out.
To use the USB-C PD Port, directly connect your device to the port. The PHOENIX 300 will begin to power
your device automatically with the corresponding Port Status LED Indicator illuminating. When not using the
port, disconnect your device from the port and the corresponding Port Status LED Indicator will go out.
When no device is connected to the PHOENIX 300, press the Main Power Button to turn it off to conserve energy.
When the battery level of PHOENIX 300 is lower than 10%, use of the AC Outlets will be automatically
disabled. Please use DC outputs to continue powering your devices.
When the battery voltage is excessive low, all the outputs will be cut off automatically. See TROUBLESHOOT-
ING for more details.
USB-C PD Port: Smart Phone, Tablet, Laptop, Handheld Gaming Console, DSLR Camera, and other USB-C
enabled devices.
CIG Port: Portable Refrigerator, Car Vacuum, Car Air Fan, CPAP Machine and other car powered devices.
D-Tap Port: DSLR Camera, Camcorder, Digital Cinema Camera, LED Light, and other photography or
videography equipment.
AC Outlets: Laptop, Monitor, TV, Game Console, Inkjet Printer, Portable Projector, Light Bulb and other AC
powered devices.
- 11 -

Battery high-temperature protection may be triggered when the PHOENIX 300 is operating at full
load. When this is the case, cool down the unit before resuming operation. See TROUBLE-
SHOOTING for more details.
CAUTION
When using the AC outlets of your PHOENIX 300, keep 4 inches of space on either side of the
unit to guarantee efficient heat dissipation of the inverter.
CAUTION
If any of the Ports Status LED Indicators flashes in an unusual way, your PHOENIX 300 may
need special attention. See TROUBLESHOOTING for help.
CAUTION
Some devices that require high current impulse may not be compatible with the PHOENIX 300
even though they do not exceed the power ratings of output ports.
NOTE
When the PHOENIX 300 is powering devices that have high power consumption, the battery
level can drop quickly. In this case, you may not get exactly 337Wh of energy.
NOTE
The PHOENIX 300 can be recharged and deliver DC power to your devices simultaneously.
However, AC power is not available when the PHOENIX 300 is being recharged.
NOTE
The PHOENIX 300 can provide up to 300W total continuous output. Allocate the outputs rational-
ly and follow the specifications of each output port. DO NOT overload your PHOENIX 300.
WARNING
MAINTENANCE
Using the LED Flashlight
The LED Flashlights on both sides of the Folding Carrying Handle have four light modes: Bright (100%
brightness), Dim (50% brightness), Flashing, and SOS.
Press the Flashlight On/Off Button to turn on the LED Flashlights, switch light modes, and turn off the LED
Flashlights. You can also long press the Flashlight On/Off Button to turn off the LED Flashlights no matter
what mode are they in.
To prolong the service life of your PHOENIX 300, keep it away from harsh sunlight, water, dust, and dirt. DO
NOT leave your PHOENIX 300 outside under harsh environments.
If possible, keep your PHOENIX 300 connected to a power source when it is not being used and avoid using
large loads when the battery level is low.
To maintain a healthy battery, please recharge your PHOENIX 300 at least once every two months.
Keep your PHOENIX 300 away from corrosives, fire, and heat sources.
If you do not intend to use your PHOENIX 300 frequently, it is strongly recommended to keep its battery level
at around 50% and store it in a clean, dry and well-ventilated environment with temperatures around 77℉(25
℃) and a humidity no higher than 75%.
- 12 -

TROUBLESHOOTING
If your PHOENIX 300 does not operate normally, please refer to the following table for a possible cause and
solution.
If the following troubleshooting solutions do not work, please contact us for help. Refer to the last page of User
Guide for contact information.
LED Indicators Possible Causes Solution
All Battery Level LED Indicators
flash twice per second
All Battery Level LED Indicators
and Port Status LED Indicators
flash twice per second
The last Battery Level LED
Indicator flashes twice per
second and the unit gets shut
off afterwards
DC Input Port Overvoltage
Protection
DC Input Port Undervoltage
Protection
1.
Battery High Temperature
Protection
1.
Battery Low Temperature
Protection
2.
Battery Low Voltage Protection
1.
2.
Remove all connections
If the voltage rating of power
source does not fall in the
range of 12~25V, stop using
that power source to
recharge the unit via the DC
Input Port.
1.
2.
Connect the unit to the power
source that conforms to the
specifications of DC Input Port
and the unit will resume
recharging automatically.
3.
Remove all connections.
Cool down or warm up the
unit to the room temperature.
1.
Remove all output connections.
1.
Press the Port On/Off Buttons.
2.
2.
If the unit was powering loads,
press the Port On/Off Button(s)
to turn on the output port(s)
again and reconnect the loads
to the unit.
3.
If the unit was recharging,
reconnect the unit to the power
source and the unit will resume
recharging automatically.
4.
- 13 -

If output ports can be turned on,
it means that the loads drew too
much power from the unit and
pulled down the battery voltage.
In this case, only connect small
loads to the unit.
3.
4.
All Battery Level LED Indicators
and the Port Status LED
Indicator of USB-A Ports and
QC USB-A Port flash twice per
second
USB-A Ports or QC USB-A
Port Overcurrent Protection
USB-A Ports or QC USB-A Port
Short-circuit Protection
1.
2.
Remove connections to the
USB-A Ports and QC USB-A
Port.
1.
All Battery Level LED Indicators
and the Port Status LED
Indicator of D-Tap Port and CIG
Port flash twice per second
D-Tap Port or CIG Port
Overcurrent Protection
1.
D-Tap Port or CIG Port
Short-circuit Protection
2.
Remove connections to the
D-Tap Port and CIG Port.
1.
If the D-Tap Port or CIG Port
was shorted, remove the short
circuit immediately.
2.
If the USB-A Ports or QC USB-A
Port were shorted, remove the
short circuit immediately.
If none of the output ports can
be turned on, it means that the
unit should not continue
powering loads. In this case,
recharge the unit as soon as
possible to avoid permanent
damages to the battery.
2.
If the loads drew currents that
exceed the specifications of
USB-A Ports or QC USB-A
Port, stop powering those loads
via the USB-A Ports or QC
USB-A Port.
3.
Connect only the loads that
conform to the specifications
of USB-A Ports and QC
USB-A Port to the unit.
4.
If the loads drew currents that
exceed the specifications of
D-Tap Port or CIG Port, stop
powering those loads via the
D-Tap Port or CIG Port.
3.
- 14 -

All Battery Level LED Indicators
and the Port Status LED
Indicator of USB-C PD Port
flash twice per second
USB-C PD Port Overcurrent
Protection
1. Remove the connection to the
USB-C PD Port.
1.
All Battery Level LED Indicators
and the Port Status LED
Indicator of AC Outlets flash
twice per second
AC Outlets Overcurrent
Protection
1.
AC Outlets Short-circuit
Protection
2.
Inverter Over Temperature
Protection
3.
Inverter Undervoltage
Protection
4.
Remove all output connections.1.
If the AC Outlets were shorted,
remove the short circuit
immediately.
2.
If the loads drew power that
exceeds the specifications of
AC Outlets, stop powering
those loads via the AC
Outlets.
3.
If the load drew a current that
exceeds the specifications of
USB-C PD Port, stop powering
that load via the USB-C PD Port.
3.
Connect only the load that
conforms to the specifications
of USB-C PD Port to the unit.
4.
Press the Port On/Off Button
to turn on the D-Tap Port and
CIG Port again and connect
only the loads that conform to
the specifications of D-Tap
Port and CIG Port to the unit.
4.
If the unit has been operating
at high loads or at high
temperatures for a long time,
cool down the unit to room
temperature.
4.
If the unit was powering large
loads via AC Outlets at a low
battery level, recharge the unit
before resuming operation.
5.
If the USB-C PD Port was
shorted, remove the short
circuit immediately.
2.
USB-C PD Port Short-circuit
Protection
2.
- 15 -

All Battery Level LED Indicators
and the Port Status LED
Indicators of all operating output
ports flash twice per second
Total Output Overload
Protection
1. Reallocate the outputs to keep
the total output power under
300W.
1.
Press the Port On/Off Button(s)
to turn on only necessary
output port(s).
2.
Press the Port On/Off Button to
turn on the AC Outlets again
and connect only the loads that
conforms to the specifications
of AC Outlets to the unit.
6.
First, make sure the output ports have been turned on by pressing the corresponding Port On/Off Buttons.
Then, check the battery level of the unit. If the last Battery Level LED Indicator is flashing, please recharge
the unit as soon as possible. Finally check if the connected device conforms to the specifications of output
ports. If the unit still cant power your devices, see TROUBLESHOOTING or contact us for help. Refer to the
last page of User Guide for contac information.
FREQUENTLY ASKED QUESTIONS
1. Why doesn’t my PHOENIX 300 power other devices?
No, the battery pack in PHOENIX 300 is not replaceable. Do not try to dismantle your PHOENIX 300 and
replace the battery by yourself. Doing so may cause irreversible damages to the unit and battery explosion.
2. Can I replace the battery pack in my PHOENIX 300?
No, the PHOENIX 300 cannot be chained with other power stations. If you are looking for a rechargeable AC
power supply with larger capacity, please visit our official website or contact us for more options. Refer to the
last page of User Guide for contact information.
3. Is the PHOENIX 300 chainable?
No, the PHOENIX 300 is not waterproof. Please keep the unit away from moisture. Do no submerge the unit
in water or operate the unit in the rain. Doing so may cause short-circuits, electric shocks, and fire.
4. Is the PHOENIX 300 waterproof?
The battery capacity is rated at 0.2C. When the PHOENIX 300 is powering devices that have high power
consumption, the internal resistance of battery will turn more energy into heat and lower battery capacity as
a result. When this is the case, you may not get exactly 337Wh of energy.
5. Why doesn’t the battery of PHOENIX 300 last as long as I expect?
- 16 -

WARRANTY
RENOGY products are covered by a 12-month limited warranty from the original purchase date. If any
problems occur, please contact us for assistance. Refer to the last page of User Guide for contact information.
We only provide after-sales services for products that are sold by RENOGY or retailers and distributors
authorized by RENOGY. If you have purchased your unit from other channels, please contact your seller for
more information about return and warranty.
Please register your purchase(s) directly at warranty.renogy.com/support/tickets/new or your region’s
corresponding website so that we can stay in touch and contact you in the unlikely event that a safety recall
is required.
- 17 -

驭光者·火鸟300
太阳能便携式电源箱
用户指南
- 18 -
型号: R300PHX

目录
安全操作准则 20
产品配件 21
产品特性 21
为您的火鸟300充电 24
电量LED指示灯 24
产品概况 22
规格参数 23
故障排除 30
常见问题 33
售后保修 33
使用您的火鸟300 27
维护 29
- 19 -
